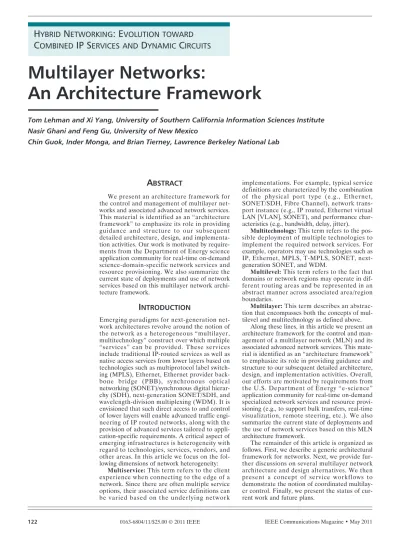

Multilayer Networks: An Architecture Framework

I

NTRODUCTION

Emerging paradigms for next-generation net-work architectures revolve around the notion of the network as a heterogeneous “multilayer, multitechnology” construct over which multiple “services” can be provided. These services include traditional IP-routed services as well as native access services from lower layers based on technologies such as multiprotocol label switch-ing (MPLS), Ethernet, Ethernet provider back-bone bridge (PBB), synchronous optical networking (SONET)/synchronous digital hierar-chy (SDH), next-generation SONET/SDH, and wavelength-division multiplexing (WDM). It is envisioned that such direct access to and control of lower layers will enable advanced traffic engi-neering of IP routed networks, along with the provision of advanced services tailored to appli-cation-specific requirements. A critical aspect of emerging infrastructures is heterogeneity with regard to technologies, services, vendors, and other areas. In this article we focus on the fol-lowing dimensions of network heterogeneity:

Multiservice:This term refers to the client experience when connecting to the edge of a network. Since there are often multiple service options, their associated service definitions can be varied based on the underlying network

implementations. For example, typical service definitions are characterized by the combination of the physical port type (e.g., Ethernet, SONET/SDH, Fibre Channel), network trans-port instance (e.g., IP routed, Ethernet virtual LAN [VLAN], SONET), and performance char-acteristics (e.g., bandwidth, delay, jitter).

Multitechnology:This term refers to the pos-sible deployment of multiple technologies to implement the required network services. For example, operators may use technologies such as IP, Ethernet, MPLS, T-MPLS, SONET, next-generation SONET, and WDM.

Multilevel:This term refers to the fact that domains or network regions may operate in dif-ferent routing areas and be represented in an abstract manner across associated area/region boundaries.

Multilayer:This term describes an abstrac-tion that encompasses both the concepts of mul-tilevel and multitechnology as defined above.

Along these lines, in this article we present an architecture framework for the control and man-agement of a multilayer network (MLN) and its associated advanced network services. This mate-rial is identified as an “architecture framework” to emphasize its role in providing guidance and structure to our subsequent detailed architecture, design, and implementation activities. Overall, our efforts are motivated by requirements from the U.S. Department of Energy “e-science” application community for real-time on-demand specialized network services and resource provi-sioning (e.g., to support bulk transfers, real-time visualization, remote steering, etc.). We also summarize the current state of deployments and the use of network services based on this MLN architecture framework.

The remainder of this article is organized as follows. First, we describe a generic architectural framework for networks. Next, we provide fur-ther discussions on several multilayer network architecture and design alternatives. We then present a concept of service workflows to demonstrate the notion of coordinated multilay-er control. Finally, we present the status of cur-rent work and future plans.

ABSTRACT

We present an architecture framework for the control and management of multilayer net-works and associated advanced network services. This material is identified as an “architecture framework” to emphasize its role in providing guidance and structure to our subsequent detailed architecture, design, and implementa-tion activities. Our work is motivated by require-ments from the Department of Energy science application community for real-time on-demand science-domain-specific network services and resource provisioning. We also summarize the current state of deployments and use of network services based on this multilayer network archi-tecture framework.

HYBRID

NETWORKING: EVOLUTION TOWARD

COMBINED

IP SERVICES AND

DYNAMIC

CIRCUITS

Tom Lehman and Xi Yang, University of Southern California Information Sciences Institute

Nasir Ghani and Feng Gu, University of New Mexico

Chin Guok, Inder Monga, and Brian Tierney, Lawrence Berkeley National Lab

Multilayer Networks:

CAPABILITYPLANES

C

APABILITY

P

LANES

O

VERVIEW

The primary focus of many advanced multilayer network architectures has been the data plane technology types and the various ways they may be combined. However, there are other critical capabilities and functions required in order to manage and control complex next-generation network architectures. To facilitate the discus-sion and definition of our MLN architecture framework, we first introduce the concept of a “capability plane,” or CapabilityPlane. A Capa-bilityPlane represents a grouping of related func-tions that are needed for the operation of a single technology layer in our multilayer network construct. Our CapabilityPlane definition spans the functional areas necessary to provide client services, as user requirements are a primary motivation for our work. We first define differ-ent CapabilityPlanes for a generic technology layer. With these foundations in place, we can then examine the use of CapabilityPlanes in the construction and operation of multilayer archi-tectures that combine two or more of the tech-nology layers. In particular, the following CapabilityPlane types are identified: DataPlane, ControlPlane, ManagementPlane, AAPlane, Ser-vicePlane, and ApplicationPlane. These are now detailed further.

D

ATA

P

LANE

The DataPlane is the set of network elements that send, receive, and switch network data. For this architecture definition we identify the Data-Plane options in terms of technology regions. A technology region is a set of network elements that are grouped together and utilize the same DataPlane technology type. The technology types are defined using the standard generalized MPLS (GMPLS) [1] nomenclature of packet switching capable (PSC) layer, layer 2 switching capable (L2SC) layer, time-division multiplexing (TDM) layer, lambda switching capable (LSC) layer, and fiber-switch capable (FSC). Addition-ally, we associate these technology types with the more common terminology as follows:

• Layer 3 for PSC using IP routing • Layer 2.5 for PSC using MPLS • Layer 2 for L2SC (often Ethernet) • Layer 1.5 for TDM (often SONET/SDH) • Layer 1 for LSC (often WDM switch

ele-ments)

• Layer 0 for FSC (often port switching devices based on optical or mechanical technologies)

Each of these technology types includes unique features and capabilities. Furthermore, it is well understood that most networks of interest will be constructed by utilizing a combination of two or more of these DataPlane technologies to form a multilayer network, as discussed later. As a result, there are multiple implementation options in terms of the technology types (IP routing [with MPLS capabilities], Ethernet, Eth-ernet PBB, SONET/SDH, next-generation SONET/SDH, WDM, etc.). A detailed discus-sion of these specific technology types is not a topic for this article. Instead, we identify the key

functions for all the CapabilityPlanes. The key functions for the DataPlane are identified as fol-lows:

Element control:This refers to the ability to send, receive, and switch network data. The spe-cific control functions will be unique to the Dat-aPlane technology and capabilities.

Element status:This refers to obtaining and providing information on the status of network elements in the DataPlane. Typically the Man-agementPlane will be the primary consumer of information from this DataPlane function.

Layer adaptation:This refers to the Data-Plane adaptation from one technology type to another. The specific adaptation capabilities will be unique to the DataPlane technology and capabilities. A common adaptation type is that accomplished by DataPlane elements that have Ethernet client ports which are adapted into SONET/SDH or WDM for transmission over wide-area links.

C

ONTROL

P

LANE

The ControlPlane is responsible for the control and provisioning functions associated with the DataPlane. This generally includes maintaining topology information and configuring network elements in terms of data ingress, egress, and switching operations. The ControlPlane is one of two CapabilityPlanes that directly interact with the DataPlane. The key functions identified for this plane are as follows:

Routing:Routing protocols are responsible for the reliable advertisement of the network topology and the available resources (e.g., band-width and other technology-specific features) within the network region. This function pro-vides the distribution and dissemination of reachability information, layer- and technology-specific information, resource usage status, and topology information between network elements within a network region. Within a given Data-Plane technology region, the routing information may be either distributed or centralized.

Path computation:This function refers to the processing of routing information to determine how to accomplish functions such as provisioning an end-to-end path, evaluating network state, adjusting to failures/changes, or instantiating constraint-based topologies. In a multilayer, mul-tivendor, multidomain environment, this may require many specific discrete functions such as traffic engineering database pruning, network graph construction and transformations, multidi-mensional constrained shortest path first (CSPF) computations, and application of many other possible algorithms.

Signaling:Signaling protocols are responsible for provisioning, maintaining, and deleting con-nections, and the exchange of messages to instantiate specific provisioning requests based on the above routing and path computation functions. This may be accomplished via proto-cols such as Resource Reservation Protocol — Traffic Engineering (RSVP-TE) [2] or web-ser-vice-based messaging, for example.

Traffic engineering database (TEDB):This is the function inside the ControlPlane that stores the topology state of the DataPlane. The infor-mation in the TEDB will come from the routing

The ControlPlane is responsible for the

control and provisioning func-tions associated with

the DataPlane. This generally includes maintaining topology information and con-figuring network ele-ments in terms of data ingress, egress,

and switching operations.

information as well as from external sources such as the other CapabilityPlanes.

ControlPlane Status:This function involves the maintenance of ControlPlane state such that recovery mechanisms can restore operation after ControlPlane failures.

M

ANAGEMENT

P

LANE

The ManagementPlane refers to the set of sys-tems and processes that are utilized to monitor, manage, and troubleshoot the network. The ManagementPlane is one of two CapabilityPlanes that directly interact with the DataPlane. The ManagementPlane may be queried by network administrators, users, and other CapabilityPlanes such as the ServicePlane or ApplicationPlane. The ManagementPlane may publish monitoring data, or metadata, which is available for other domains to access. The key functions identified for the ManagementPlane are as follows:

Monitoring:This function involves querying each of the other CapabilityPlanes for informa-tion. For the DataPlane this may include infor-mation such as network element status, utilization information, resource configuration, and interface information (errors, utilization, configurations). For each CapabilityPlane, status monitoring will be defined that is unique to its function set.

Troubleshooting procedures:This function involves the investigation of issues and problems in the network. These procedures are generally a set of monitoring steps conducted in an objective specific manner to identify or resolve an issue. The issues are generally identified by a user, another CapabilityPlane, or the Management-Plane itself.

ManagementPlane status: This function involves the maintenance of ManagementPlane state such that recovery mechanisms can restore operation after ManagementPlane failures.

AAP

LANE

The AAPlane is the authentication and autho-rization plane, and is responsible for the mecha-nisms which allow the other planes to identify and authenticate users and receive associated policy information. The key functions identified for the AAPlane are as follows:

AuthN:This is the function that identifies the user. It takes some type of user credential (e.g., a username and password, a signed certificate,

or some other identity provider handle), verifies that credential, and then returns the local identi-fier and possibly attributes for the user.

AuthZ:This is the function that verifies the right of the user to perform the requested action. It takes an authenticated user identity and attributes and the requested action and defines the authorization parameters.

AAPlane Status:This function involves the maintenance of AAPlane state such that recov-ery mechanisms can restore operation after AAPlane failures (e.g., corruption of the authen-tication or authorization policies).

S

ERVICE

P

LANE

The ServicePlane refers to the set of systems and processes that are responsible for providing services to users and maintaining state on those services. The ServicePlane will generally rely on the functions of the ControlPlane and/or Man-agementPlane to effect actual changes on the DataPlane. In addition, the ServicePlane will typically maintain databases on current and future service instantiations and coordinate associated workflow processes. The Service-Plane also has a very important role in the coordination of other CapabilityPlanes’ actions to achieve a higher-level goal. The key func-tions identified for the ServicePlane include processing service requests and subsequently coordinating with the other CapabilityPlanes to service the requests. This function is realized primarily in the form of CapabilityPlane service workflows, which are discussed later. Overall, the key functions identified for the Service-Plane are as follows:

Service management:This involves processing service requests and coordinating with the other CapabilityPlanes to service the requests. For interdomain or intertechnology region actions, the ServicePlane may also coordinate directly with other peer ServicePlanes. The specific ser-vices available will be unique to each network. The service management function will generally initiate the workflow management processes. This function also maintains a description of the services offered by a specific instance of a ServicePlane. For instance, a simple service might be a point-to-point circuit connecting two endpoints. A more complicated service may use multipoint topology to create a broadcast domain between multiple endpoints. Additional features may also be associated with a service offering (e.g., the ability to specify latency or jit-ter requirements).

Workflow management:This function will be instantiated in many different forms based on unique service and network requirements. Work-flow management refers to the coordination of the functions across multiple CapabilityPlanes to accomplish a specific set of functions associated with a service provision.

ServicePlane status:This function involves the maintenance of the ServicePlane state, which supports recovery mechanisms that can restore operation after ServicePlane failures. The recov-ery functions may be completely internal to the ServicePlane, or in some instances may include a coordinated effort across multiple Capabilty-Planes.

Figure 1. CapabilityPlanes organization. ApplicationPlane

ServicePlane AAPlane

Generic data plane layer

A

PPLICATION

P

LANE

The ApplicationPlane provides higher-level functions that will generally be tailored for domain-specific purposes. It is envisioned that the ApplicationPlane is the area where domain-specific experts will be creative and develop capabilities that are specific and unique to their application requirements. The ApplicationPlane will rely on the capabilities offered by one or more ServicePlanes to accomplish its objectives. The key functions identified for the Application-Plane are as follows:

Co-scheduler:Responsible for contacting one or more ServicePlanes to determine if a given network service is available at the time needed. This will likely be accomplished in the context of separate actions to coordinate availability of application specific resources such as compute clusters, storage repositories, and scientific instruments.

Session control:A session is the end-to-end composition of one or more ServicePlane service instantiations. The ApplicationPlane will gener-ate a ServicePlane request tailored to the appli-cation requirements. A session may be created based on application requirements such as throughput, jitter, and time period requirements. In addition, the ApplicationPlane may be con-cerned with higher-level session related configu-rations, which are beyond the scope of the ServicePlane and the feature set described in this architecture article. These types of features are generally application- or domain-specific and may involve configuration of end system applica-tions, end system interfaces, selection of specific protocols, or other unique application configura-tions.

ApplicationPlane Status: This function involves the maintenance of ApplicationPlane state such that recovery mechanisms can restore operation after ApplicationPlane failures.

C

APABILITY

P

LANE

S

UMMARY

Figure 1 depicts the concept of operation for how these CapabilityPlanes are interconnected and interact. As noted above, the only planes that actually touch the DataPlane are the Con-trolPlane and ManagementPlane. Another way to view the DataPlane layer to CapabilityPlane relationship is from a DataPlane layer centric view. Meanwhile, Fig. 2 depicts the network capabilities of the DataPlane in terms of layers 1, 2, and 3. In this figure the capabilities that are identified for each layer correspond to the Capa-bilityPlanes discussed earlier. Another important item to note is that while this architecture defini-tion maintains a distinct single CapabilityPlane to single DataPlane relationship, it is recognized that in real-world implementations, this may not be the case. For instance, if one constructs a net-work with PSC on top of LSC equipment, there may be a desire to have a single CapabilityPlane which is responsible for both the PSC and LSC technology regions. This would be acceptable within the framework of this architecture description. The purpose of the multilayer archi-tecture described herein is to define functions and capabilities. Implementation options (e.g., combining CapabiltyPlanes into a single

instanti-ation) are indeed compatible with the concepts presented here. The remainder of this article focuses on describing the architecture from a CapabilityPlane perspective.

MULTILAYER

NETWORK

ARCHITECTURES

In this section we consider the design of net-works with two or more technology regions/lay-ers. In fact, the majority of networks deployed today consist of multiple technology layers, with routers over WDM being one common example. Different technology layers are selected based on a variety of technical and practical considera-tions. However, the layers are generally treated as separate and distinct, and not managed together in the multilayer context we describe here. We expect that existing networks as well as new deployments will continue to be multilayer, and there will be increasing interest in integrated multilayer control and management capabilities. This is a key motivation for our work. Our descriptions of multilayer and multitechnology networking here are similar to those described in the Internet Engineering Task Force (IETF) requirements for GMPLS-based multiregion and multilayer networks (MRN/MLN) [3]. In addi-tion to the network layer concept, which is pri-marily from a DataPlane topology and connection perspective, the concept of layer-associated CapabilityPlanes provides us with the added flexibility to explore multiple possible configurations for such networks. We classify them into four MLN models: MLN-Vertical, Horizontal, Combined, and MLN-InterDomain.

M

ULTILAYER

N

ETWORKING

— V

ERTICAL First we discuss a multilayer network where two or more DataPlane types may be layered in a vertical manner. The notion of vertical layering of technology regions implies using lower-layer Figure 2. Layer view of capabilities.

Layer 1

Grid middleware

AA _MPLSQoS _MPLSIP _servicesLayer3

Manage ment plane AA Layer2 control VLANs SONET Layer2 services Manage ment plane

AA _controlLayer1 Optical _servicesLayer1 Management plane Data plane Control plane AA plane Service

plane Managementplane

Applications Application, middleware management Application, middleware layer Layer 3

Layer 2.5 layer 2 layer 1.5

Application, middleware

service provisioning to provide capabilities at the higher layers. Specifically, Fig. 3 depicts a verti-cal multilayer topology consisting of PSC, L2SC, and LSC technology regions. As noted in the fig-ure, each of the technology regions has its own set of CapabilityPlanes. In addition, technology adaptation points are required in order to move data across layer boundaries. A typical provi-sioning action for a vertical multilayer topology such as this would be for a lower layer, such as the LSC region, to provision a circuit that would be reflected as a link at the higher L2SC layer. Subsequently, L2SC services may be provided. A similar scenario could be accomplished using the L2SC as the lower layer and the PSC region as the higher layer.

M

ULTILAYER

N

ETWORKING

— H

ORIZONTAL In this subsection we discuss a multilayer net-work topology where two or more DataPlane types may be layered in a horizontal manner. Here, Fig. 4 depicts the notion of a horizontal layering of technology regions. This topology implies that we are integrating or “stitching” ser-vices across different technology region bound-aries; as opposed to the vertical case, we do not use a lower-layer service to create a link or capa-bility at a higher layer.

A typical provisioning action for a horizontal multilayer topology such as this would be to pro-vision a path across multiple technology regions in order to provide a service. This service will generally present a similar technology (e.g., Eth-ernet) at both edges, but the underlying technol-ogy may differ along the path.

As noted in the figure, each of the technology regions has its own set of CapabilityPlanes. In

addition, technology adaptation points are also required in order to move data across technolo-gy region boundaries.

M

ULTILAYER

N

ETWORKING

— C

OMBINED We can also combine the vertical and horizontal multilayer topologies to create a more flexible and sophisticated set of available network ser-vices. This is shown in Fig. 5, where a topology may consist of vertical multilayer networks peer-ing in a horizontal manner. In this context, all the peering links (i.e., links that cross the bound-ary line) represent horizontal multilayer net-working. Hence, there are two such links shown in Fig. 5, but there could be more.

It should be noted that the horizontal peering links at the higher layer (layer 3 in this example) may be built via a direct physical link between the two layer 3 devices, or it may have been cre-ated via an earlier provisioning of some resources from the horizontal lower-layer link (layer 1 in this example) . In either case, the architecture and subsequent handling of provi-sioning events will be identical. Note that there will be some practical impacts associated with provisioning of higher-layer links from lower-layer links, such as reduced available capacity on the lower-layer link for future provisioning actions. However, the ability to provision ser-vices at both layers independently or in an inte-grated fashion still remains.

M

ULTILAYER

N

ETWORKING

— I

NTER

D

OMAIN The notion of InterDomain messaging and service provisioning is similar to the horizontal MLN case, where the horizontal boundary line is also a domain boundary. However, the primary Figure 3. Multilayer networking — vertical.

Layer 3 (PSC) Layer 2 (L2SC) Multilayer vertical networking boundary Multilayer vertical networking boundary Layer 1 (LSC)

Technology adaptation points

Control plane AA plane Service plane Management plane Control plane AA plane Service plane Management plane Control plane AA plane Service plane Management plane We expect that existing networks as well as new deployments will continue to be multi-layer and there

will be increasing interest in integrated

multi-layer control and management capabilities. This is a

key motivation for our work.

difference between the two is a matter of tailor-ing the full set of interregion communications to a subset that will meet the security and scalabili-ty requirement for InterDomain communica-tions. This model is also illustrated in Fig. 5.

H

YBRID

M

ULTILAYER

N

ETWORKING AND

C

APABILITY

P

LANES

The concept of hybrid networking is introduced here in the context of using multilayer networks to conduct sophisticated management and move-ment of data flows across the various layers in a flexible and dynamic fashion.

The intelligence and processes required to determine “why and when” to perform such functions is beyond the scope of this article. However, this MLN topic area is deemed as one of key importance, and there is a clear need for continued research, development, and even deployment of solutions.

This article does cover the “how” aspect with respect to hybrid networking functions. Specifi-cally, the ServicePlane interface will provide an entry point into one or all of the DataPlane lay-ers where a hybrid networking agent (HNA) could obtain network service and topology provi-sioning to support larger hybrid networking workflows. In general, it is anticipated that such a HNA would utilize the MLN (Vertical, Hori-zontal, Combined, InterDomain) capabilities as needed and available to accomplish its larger goals of hybrid networking traffic engineering and traffic grooming. In this context an HNA would look like a process operating at the Appli-cationPlane from the multilayer network archi-tecture perspective.

N

ESTED

C

APABILITY

P

LANES

The concept of nested CapabilityPlanes is anoth-er topic of intanoth-erest. An action is classified as “nested” when the resulting network services (or topologies) are handed off to a separate set of CapabilityPlanes for subsequent responsibility. An action where the resulting network services (or topologies) are not handed off to a separate set of CapabilityPlanes is not considered a nest-ed action. An important point to note here is that the ServicePlane service interface and fea-ture set does not change for the nested vs. non-nested concept. Hence, the only distinction between the two is how the requesting entity uti-lizes the results of a requested service instantia-tion. The most obvious scenario for the nested

case is the provision of an entire topology that is handed off from one ServicePlane to a second ServicePlane (and associated CapabilityPlanes), which then assumes responsibility for subsequent service instantiations.

The MLN-Vertical type is an example of a nested CapabilityPlane action. However, the nested capability plane concept is really broader than that limited example. Specifically, this topic is intended to encompass a larger range of func-tions and systems, which utilizes MLN capabili-ties in sophisticated and complex ways to create and manage multiple “virtual” network topolo-gies. These topologies may appear independent to some CapabilityPlanes but in reality are creat-ed via a recursive handoff of resource subsets from one CapabilityPlane instance to another.

The intelligence and processes required to determine “why and when” to perform such nested CapabilityPlane functions is beyond the scope of this article. This is another topic that requires additional research and development by the broader MLN community.

The ServicePlane interface will provide an entry point into the DataPlane layers where a nested CapabilityPlane agent could obtain net-work service and topology provisioning to sup-port larger nested CapabilityPlane workflows. In general, it is anticipated that such a nested CapabilityPlane agent would utilize the MLN (Vertical, Horizontal, Combined, InterDomain) capabilities as needed and available to accom-plish its larger goals of nested CapabilityPlane topology instantiations.

CAPABILITYPLANE

SERVICE

WORKFLOWS

A control or configuration action on a network will typically be the result of a workflow process that coordinates actions across multiple Capabil-ityPlanes. This is referred to as a multiple Capa-bilityPlane service workflow in this document. The modular nature of DataPlane layers and the associated CapabilityPlanes allow for many dif-ferent workflows that can be tailored to the needs and requirements of individual users and network operators. As a result, there are poten-tially many types of workflows, each involving all or a subset of the CapabilityPlanes. Along these lines, Fig. 6 depicts a simple workflow associated with a user requesting a circuit instantiation across two network domains. The coordinated Figure 4. Multilayer networking — horizontal.

Layer3 (PSC)

Layer1.5 (TDM)

Technology adaptation points

Control plane AA plane Service plane Management plane Control plane AA plane Service plane Management plane Multi-layer horizontal networking boundary

The most obvious scenario for the

nest-ed case is the provi-sion of an entire

topology that is handed off from one

ServicePlane to a second ServicePlane

(and associated CapabilityPlanes), which then assumes

responsibility for subsequent service

workflow includes interdomain ServicePlane interactions, which result in specific AAPlane and ControlPlane actions in their respective domains. The result is a circuit instantiation across each DataPlane that is “stitched” together to operate as a single end-to-end circuit from the user perspective. The ServicePlane is the CapabilityPlane with primary responsibility for initiating and managing these workflows in response to ApplicationPlane requests.

DEPLOYMENT

STATUS AND

NEXT

STEPS

Multiple networks have deployed systems imple-menting a subset of the MLN architecture frame-work described here. This includes deployments on ESnet SDN [4], Internet2 ION [5], USLHC-net [6], and others. In particular, the ESUSLHC-net OSCARS [7, 8] software suite provides the Capa-bilityPlane implementation for these networks. OSCARS has focused on the ServicePlane and ControlPlane functionalities. These deployments are being utilized today to provide advanced net-work services to DOE Office of Science applica-tions in the area of high-energy physics, climate modeling, and others.

The primary service provision at this time takes the form of dedicated bandwidth virtual circuits provisioned in real time based on user requests. The service interface technology and user demarcation is generally Ethernet VLAN. Here, the decision to select Ethernet VLAN as the service transport is twofold. First, since Eth-ernet technology is ubiquitous, it provides a common DataPlane framing protocol that can stitch end-to-end virtual circuits across domain boundaries (e.g., between the user and provider, and between providers). Second, by utilizing

Ethernet VLANs, multiple virtual circuits can be instantiated over a single physical port. This reduces overheads and facilitates ease of deploy-ment.

While the service interface technology has been normalized based on Ethernet VLANs, the DataPlane technology utilized to provide this service is diverse, and can include IP routers (PSC), SONET switches (TDM), and Ethernet devices (L2SC). For example, the ESnet and Internet2 DataPlanes are based on Ethernet over MPLS. Meanwhile, the USLHCNet Data-Plane is based on a mix of Ethernet over SONET and native Ethernet network elements. In all cases, OSCARS leverages the vendor capabilities to provide the ServicePlane, ControlPlane, and AAPlane functional elements of the MLN archi-tecture described. Hence, in order to create an end-to-end multidomain circuit, each domain provisions a virtual circuit that is stitched across peering points and utilizes the MLN framework to provide a uniform end-to-end Ethernet VLAN service.

Overall, the current set of deployed networks only capitalize on a small subset of the many features introduced in the proposed MLN frame-work. However, increasing requirements (driven by more stringent user needs, simplifying service offerings and delivery, and reducing cost and increasing efficiency) will inevitably drive broad-er adoption of the MLN framework. By using the MLN framework in conjunction with intelli-gent complex constrained path finding algo-rithms, networks will be able to provide a better user experience by determining the best Data-Plane transport to meet the user requirements, abstract technology specific complexities of the DataPlane from the ServicePlane, and reduce cost by utilizing the lowest network layer in the DataPlane that complies with the service level Figure 5. Multilayer networking — combined.

Control plane AA plane Service plane Management plane Control plane AA plane Service plane Management plane Domain boundary Domain boundary

Capability plane inter domain exchanges

Technology adaptation points

SONET (TDM) layer IP (PSC) layer WDM (LSC) layer WDM (LSC) layer Control plane AA plane Service plane Management

plane Control plane

AA plane Service plane Management plane MLN (horizontal) MLN (vertical) MLN (vertical) MLN (horizontal) Overall, the current

set of deployed networks only capitalize upon a small subset of the

many features introduced in the proposed MLN framework. However, increasing requirements will inevitably drive broader adoption of the MLN framework.

agreements. Today, we are continuing our research and development efforts in these areas with the objective to apply our MLN architec-ture framework to developing flexible and rapid-ly reconfigurable networks based on a multilayer construct.

SUMMARY

As traffic demands continue to increase, net-work operators will be searching for methods and techniques to more efficiently utilize their network infrastructures. Simply adding more bandwidth at a single technology layer will not likely keep up with future demands or provide a cost efficient method for network upgrades and performance improvements. The tech-niques described in this article are motivated by a belief that integrated multilayer control and management capabilities will be an enabling technology leading to better network resource utilization and improved user experiences. The concepts described in this article are intended to present a vision for moving forward to real-ize the seamless and dynamic movement of data flows, services, and virtualized network environments across all layers of network infras-tructures.

A

CKNOWLEDGMENTS

This research was supported in part by the U.S. DOE Office of Science under award numbers DE-FG02-06ER25741, DE-AC02-05CH11231, and DE-SC0001229. The authors are very grate-ful to DOE for its generous support. In addition, the authors are also very thankful to Dr. Thomas Ndousse, William Johnston, and Mary Thomp-son for their many insightful discussions and feedback.

REFERENCES

[1] E. Mannie, “Generalized Multi-Protocol Label Switching (GMPLS) Architecture,” RFC 3945, Oct. 2004.

[2] “Generalized MPLS Signaling — RSVP-TE Extensions,” RFC 3473, Jan. 2003.

[3] K. Shimoto et al., “Requirements for GMPLS-Based Multi-Region and Multi-Layer Networks (MRN/MLN),” RFC 5212, July 2008.

[4] DOE Energy Sciences Net (ESNet), http://www.es.net/. [5] Internet2 ION Network, http://www.internet2.edu/ion. [6] USLCHNet, http://lhcnet.caltech.edu/.

[7] OSCARS: On-Demand Secure Circuits and Advance Reservation System, http://www.es.net/oscars/.

[8] C. Guok et al., “A User Driven Dynamic Circuit Network Implementation,” Proc. Distrib. Autonomous Network

Mgmt. Sys. Wksp., Nov. 2008.

BIOGRAPHIES

TOMLEHMAN[M’04] is a computer scientist in the Computer Networks Division at the University of Southern California’s Information Sciences Institute (ISI). His research interests are in the areas of advanced network architectures, net-work control planes, end-to-end application performance, network monitoring, and network virtualization. He received his B.S. dnegree from Virginia Tech and a M.S. degree from The Johns Hopkins University in electrical engineering.

XIYANG[S’01, M’05] received a B.S. degree in communica-tion engineering and an M.S. degree in communicacommunica-tion and information systems from the University of Electronic Science and Technology, China, in 1997 and 2000, and a Ph.D. degree in computer science from the University of Nebraska-Lincoln in 2004. He worked with Lucent Tech-nologies as a member of technical staff in Bells Labs, Bei-jing, China, in 2000. He joined the University of Southern California, Information Science Institute (USC/ISI) as a research associate in 2004. He is currently a computer sci-entist at USC/ISI. His research interests include advanced network architecture, next-generation Internet, optical working, large-scale network testbed and application, net-work virtualization and cloud computing.

NASIRGHANI[SM] is currently an associate professor in ECE at the University of New Mexico. His research interests include cyber-infrastructure design, survivability, applica-tions, and telehealth. He has published over 130 refereed journal and conference papers, and several book chapters, and has co-authored various standardization drafts. Over-all, his research has been funded by some key U.S. govern-ment agencies (including NSF, DOE, DTRA, and NAVSEA) and some industrial sponsors. In particular, he received the NSF CAREER award in 2005 to support his work in mul-tidomain network design. Prior to joining academia, he spent over eight years in industry and held key technical positions at several large companies (Nokia, Motorola, IBM) as well as some startups (Sorrento Networks, Array Sys-tems Computing). He is actively involved in a range of ser-vice roles and has served as a symposium co-chair for IEEE GLOBECOM, IEEE ICC, and IEEE ICCCN. He has also chaired the IEEE ComSoc Technical Committee on High Speed Net-works (TCHSN) and established the High-Speed Networking Workshop for IEEE INFOCOM. He is an Associate Editor for

IEEE Communications Letters and has served as a guest

editor for IEEE Network, IEEE Communications Magazine, and Cluster Computing. He received his Bachelor’s degree from the University of Waterloo, his Master’s degree from McMaster University, and his Ph.D. degree from the Univer-sity of Waterloo, Canada.

FENGGUreceived his Bachelor’s degree in electronics and information engineering from Huazhong University of Sci-ence and Technology, Wuhan, China, in 2008, and his M.S. degree in computer engineering from the University of New Mexico in 2010. He is currently pursuing a Ph.D. degree under the supervision of Dr. Nasir Ghani in the Figure 6. Simple CapabilityPlane service workflow.

Service plane Control plane 8. Dataplane control 11. Dataplane control 7. Path signal 10. Path

signal 6. Path compute

5. authN/Z 2. authN/Z 1. Service request 12. Service response AA plane Domain boundary Service plane Application plane

Control plane AA plane

3. Path compute 4. Service request 9. Service response

The concepts described in this article are intended

to present a vision for moving forward

to realize the seamless and dynamic movement

of data flows, services, and

virtual-ized network envi-ronments across all layers of network

Department of Electrical and Computer Engineering at the University of New Mexico. His research interests include network scheduling, topology overlay design/traffic engi-neering, multilayer/multidomain networking, and wireless networks.

CHINGUOKjoined ESnet in 1997 as a network engineer, focusing primarily on network statistics. He was a core engineer in the testing and production deployment of MPLS and QoS (Scavenger Service) within ESnet. He is cur-rently the technical lead of the ESnet On-Demand Secure Circuits and Advanced Reservation System (OSCARS) pro-ject which enables end-users to provision guaranteed bandwidth virtual circuits within ESnet. He also serves as a co-chair to the Open Grid Forum On-Demand Infrastructure Service Provisioning Working Group.

INDERMONGA[M’00] ([email protected]) is developing new ways to advance networking services for collaborative and distributed science by leading research and services within ESnet. He contributes to ongoing ESnet research projects, such as Advanced Resource Computation for Hybrid Service and Topology Networks (ARCHSTONE) and ANI-Testbed as well as to the OSCARS and Advanced Network Initiative (ANI) 100G projects. He also serves as co-chair of the Net-work Services Interface Net-working group in the Open Grid

Forum. His research interests include network virtualization, network energy efficiency, grid/cloud computing, and sen-sor networking. He currently holds 10 patents, and has over 15 years of industry and research experience in telecommunications and data networking at Wellfleet Communications, Bay Networks, and Nortel. He earned his undergraduate degree in electrical/ electronics engineering from the Indian Institute of Technology, Kanpur, before coming to the United States to pursue his graduate studies at Boston University’s Electrical and Electronics Communi-cation Systems Department.

BRIANL. TIERNEYis a staff scientist and group leader of the ESnet Advanced Network Technologies Group at Lawrence Berkeley National Laboratory (LBNL). His research interests include high-performance networking and network proto-cols; distributed system performance monitoring and anal-ysis; network tuning issues; and the application of distributed computing to problems in science and engi-neering. He has been the PI for several DOE research pro-jects in network and grid monitoring systems for data intensive distributed computing. He has an M.S. in com-puter science from San Francisco State University and a B.A. in physics from the University of Iowa. He has been at LBNL since 1990.
