CERPASS TECHNOLOGY CORP.

Report No.: SECE1105096-C

Cerpass Technology Corp. Issued Date : Sep 12, 2012

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 1 of 103}

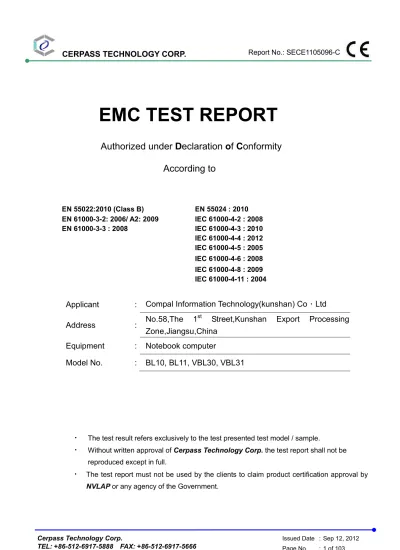

EMC TEST REPORT

Authorized under Declaration of Conformity

According to

EN 55022:2010 (Class B) EN 55024 : 2010 EN 61000-3-2: 2006/ A2: 2009 IEC 61000-4-2 : 2008 EN 61000-3-3 : 2008 IEC 61000-4-3 : 2010 IEC 61000-4-4 : 2012 IEC 61000-4-5 : 2005 IEC 61000-4-6 : 2008 IEC 61000-4-8 : 2009 IEC 61000-4-11 : 2004

Applicant

: Compal Information Technology(kunshan) Co，Ltd

Address

:

No.58,The 1

st

Street,Kunshan Export Processing

Zone,Jiangsu,China

Equipment

: Notebook computer

Model No.

: BL10, BL11, VBL30, VBL31

The test result refers exclusively to the test presented test model / sample.

Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.

The test report must not be used by the clients to claim product certification approval by NVLAPor any agency of the Government.

(2)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 2 of 103}

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 3 of 103}

9. Radio Frequency electromagnetic field immunity test ... 62

10.Electrical Fast Transient/ Burst Immunity Test ... 66

11.Surge Immunity Test ... 70

11.2. Test Severity Level ... 71

12.Conduction Disturbances induced by Radio-Frequency Fields ... 74

13.Power Frequency Magnetic Field Immunity Tests ... 78

13.1. Test Setup ... 78

14.Voltage Dips and Voltage Interruptions Immunity Test Setup ... 81

14.1. Test Conditions ... 81

(4)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 4 of 103}

Document history

Attachment No. Date Description

SECE1010128 Dec 16, 2010 First edition

SECE1010128-E Jun 03, 2011 Second edition(Add one RAM, one LED panel, two battery and one adapter) SECE1105096-C Sep 12,2012 The third edition. Add model No.: VBL30,

(5)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 5 of 103}

CERTIFICATE OF COMPLIANCE

According to

EN 55022:2010 (Class B) EN 55024 : 2010 EN 61000-3-2: 2006/ A2: 2009 IEC 61000-4-2 : 2008 EN 61000-3-3 : 2008 IEC 61000-4-3 : 2010 IEC 61000-4-4 : 2012 IEC 61000-4-5 : 2005 IEC 61000-4-6 : 2008 IEC 61000-4-8 : 2009 IEC 61000-4-11 : 2004

Applicant

: Compal Information Technology(kunshan) Co，Ltd

Address

:

No.58,The

1

st

Street,Kunshan

Export

Processing

Zone,Jiangsu,China

Equipment

: Notebook computer

Model No.

: BL10, BL11, VBL30, VBL31

I HEREBY CERTIFY THAT :

The measurements shown in this test report were made in accordance with the procedures given in EUROPEAN COUNCIL DIRECTIVE 2004/108/EC.

The test was carried out on Sep 12, 2012 at Cerpass Technology Corp.

Signature

Miro Chueh/ Technical director

(6)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 6 of 103}

1. Summary of Test Procedure and Test Results

Test Item Normative References Test Result

Conducted Emission EN 55022:2010 PASS

Radiated Emission EN 55022:2010 PASS

Harmonics EN 61000-3-2: 2006/ A2: 2009 N/A

Voltage Fluctuations EN 61000-3-3: 2008 PASS

Electrostatic Discharge Immunity

Test (ESD) IEC 61000-4-2 : 2008 PASS

Radio Frequency electromagnetic

field immunity test (RS) IEC 61000-4-3 : 2010 PASS

Electrical Fast Transient/ Burst

Immunity Test (EFT) IEC 61000-4-4 : 2012 PASS

Surge Immunity Test IEC 61000-4-5 : 2005 PASS

Conduction Disturbances induced

by Radio-Frequency Fields IEC 61000-4-6 : 2008 PASS

Power Frequency Magnetic Field

Immunity Test IEC 61000-4-8 : 2009 PASS

Voltage Dips and Voltage

Interruptions Immunity Test IEC 61000-4-11 : 2004 PASS

2. Immunity Testing Performance Criteria Definition

A. Normal performance within limits specified by the manufacture, requestor or purchaser; B. Temporary loss of function or degradation of performance which ceases after the disturbance

ceases, and from which the equipment under test recovers its normal performance, without operator intervention;

C. Temporary loss of function or degradation of performance, the correction of which requires operation intervention;

D. Loss of function or degradation of performance which is not recoverable, owing to damage to hardware or software, or loss of data.

(7)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 7 of 103}

3. Test Configuration of Equipment under Test

3.1. Manufacturer

Compal Information Technology(kunshan) Co，Ltd

No.58,The 1

st

Street,Kunshan Export Processing Zone,Jiangsu,China

3.2. Feature of Equipment under Test

Character Brand Model \ Spec.

CPU Intel

Sandy Bridge Dual Core ES2 2.5G i5-2540M 2.6G I7-2620M 2.7G i3-2310M 2.1G i5-2410M 2.3G B815/1.6G B820/1.7G B830/1.8G B840/1.9G B960/2.2G B970/2.3G B980/2.4G 2020M/2.4G DDR 1066 1GB Hynix HMT112S6TFR8C-G7N0 DDR 1333 1GB HYNIX HMT112S6TFR8C-H9N0 MICRON MT4JSF12864HZ-1G4D1 SAMSUNG M471B2873FHS-CH9 DDR 1333 2GB Samsung M471B5673FH0-CH9 Micron MT8JSF25664HZ-1G4D1 Ramaxel RMT1950MD58E8F-1333 ELPIDA EBJ21UE8BFU0-DJ-F Hynix HMT125S6TFR8C - H9N0

Hynix DDR3 MODU HYN HMT325S6CFR8C-H9N0 2G/1333

SAMSUNG DDR3 MODU SAM M471B5773DH0-CH9 2G/1333

DDR 1066 4GB

Samsung M471B5273BH1-CF8

Samsung DDR3 MODU SAM M471B5273DH0-CH9 4G/1333

Hynix DDR3 MODU HYN HMT351S6CFR8C-H9N0 4G/1333

(8)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 8 of 103}

HDD(250G 5400rpm) HITACHI HTS545025B9A300 Seagate ST9250315AS WD WD2500BEVT-22A23T0 HDD(250G 7200rpm) HITACHI HTS725025A9A364 WD WD2500BEKT-22PVMT0 HDD(320G 5400rpm) HITACHI HTS545032B9A300 Seagate ST9320310AS WD WD3200BEVT-22A23T0 Seagate ST9320325AS WD WD3200BPVT-22JJ5T0 HDD(320G 7200rpm) HITACHI HTS725032A9A364 WD WD3200BEKT-22PVMT0 HDD(500G 5400rpm) HITACHI HTS545050B9A300 Seagate ST9500325AS WD WD5000BEVT-22A0RT0 Seagate ST9500325AS WD WD5000BPVT-22HXZT3 HDD(500G 7200rpm) HITACHI HTS725050A9A364 WD WD5000BEKT-22KA9T0 ODD Pioneer DVR-TD01RS PANASONIC UJ8A0 PLDS DS-8A5S SONY BC-5540H PLDS DS-8A4S Panasonic UJ8C0ADAA1-B PLDS DS-8A8SH Pioneer DVR-TD11RS LCD LG LP140WH1-TLC6 CMI BT140GW01 V.7 IVO M140NWR2 R1 CPT CLAA140WB11A BOE HT140WXB-501 Hannstar HSD140PHW1-A00 AUO B140XW01 BOE HB140WX1-100 Hannstar HSD140PHW3-B00

(9)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 9 of 103}

Camera Liteon 10P2SF018 D-max GAA-061002-C1A Suyin CN031A-J13C-HN01 Liteon 10P2TF105 D-max GAA-866402-C1A Suyin CN1316-J13C-HN01 WLAN (802.11 b/g/n (1*1)) Realtek RTL8188CE Realtek RTL8191SE

WLAN & Bluetooth Combo Broadcom BCM94313HMGB Realtek RTL8188CE Realtek RTL8188CEBT Realtek RTL8191SE Atheros ATH-AR5B195 Adapter APD NB-65B19 Delta ADP-65JH BB APD NB-90B19 Delta ADP-90CD BB APD DA-65C19 Battery Sanyo BATAW20L61 Sanyo BATAW20L62 SONY BATBLB3L61 SONY BATBLB3L62 Celxpert BATBL10L61

Motherboard Compal UMA / LA-9351P

Compal DIS / LA-9351P

(10)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 10 of 103}

3.3. Test Mode and Test Manner

Test Manner

a During testing, the interface cables and equipment positions were varied according to Europe Standard.

b Turn on the power of all equipments.

c Connect the LCD Monitor, IPOD, Microphone& Earphone, HDD, Notebook, SD Card and EUT.

d Adjust the EUT, then test.

Test Mode Description

The pre-tested modes were with the above components.

The worst emission level was found under the following modes /configuration was as follows:

The Worst Mode for CE:

Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30(UMA) Mode 17: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL31(DIS) The Worst Mode for RE, Harmonic &flick and EMS:

Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30(UMA) Mode 18: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL31(DIS)

(11)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 11 of 103}

Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30(UMA)

Item Manufacturer Model Specification

HDD Seagate ST9320325AS 320G 5400rpm

CPU Intel Sandy Bridge B980 2.4GHz

LED BOE HB140WX1-100 14"

ODD Panasonic UJ8C0ADAA1-B ----

RAM HYNIX MODU

HYNHMT325S6CFR8C-H9N0 DDR3 1333 2GB

WLAN Realtek RTL8188CE ----

Camera Liteon 10P2TF105 ----

Adapter APD APD NB-65B19 65W

Battery CELXPERT BATBL10L61 ----

Mode 2: Full System (LED 1366*768/60Hz+HDMI 1366*768/60Hz) for VBL30(UMA)

RAM HYNIX MODU

Mode 3: Full System (1024*768/75Hz+VGA 1024*768/75Hz) for VBL30(UMA)

RAM HYNIX MODU

(12)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 12 of 103}

RAM HYNIX MODU

HDD WD WD3200BPVT-22JJ5T0 320G 5400rpm

LED Hannstar HSD140PHW3-B00 14"

ODD PLDS DS-8A8SH ----

RAM SAMSUNG MODU SAM

M471B5773DH0-CH9 DDR3 1333 2G

WLAN Realtek RTL8191SE ----

Adapter APD APD DA-65C19 65W

Battery Sanyo BATAW20L61 ----

HDD Seagate

ST9500325AS (0001SDM1/0002BSM1/ 0003BSM1)

500G 5400rpm

ODD Pioneer DVR-TD11RS ----

RAM Samsung MODU SAM M471B5273DH0-CH9 DDR 1333 4GB

W/L & B/T

Combo Atheros ATH-AR5B195 ----

Adapter Delta ADP-65JH 65W

(13)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 13 of 103}

HDD WD WD5000BPVT-22HXZT3 500G 5400rpm

CPU Intel Ivy Bridge 2020M 2.4GHZ

RAM SAMSUNG MODU

SAM M471B5273DH0-CH9 DDR 1333 4GB

W/L & B/T

Combo Realtek RTL8188CEBT ----

CPU Intel Sandy Bridge B840 1.9GHz 1.9GHz

RAM Hynix MODU HYN HMT325S6CFR8C-H9N0 DDR 1333 2GB

Item Manufacture r Model Specification HDD WD WD3200BPVT-22JJ5T0 320G 5400rpm CPU Intel B815 1.6GHz LED BOE HB140WX1-100 14" ODD Pioneer DVR-TD11RS ----

(14)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 14 of 103}

HDD Seagate ST9500325AS

(0001SDM1/0002BSM1/ 0003BSM1) 500G 5400rpm

LED BOE HT140WX1-100 14"

RAM Hynix MODU

HYNHMT325S6CFR8C-H9N0 DDR3 1333 2G

W/L & B/T

Battery SONY BATBLB3L61 ----

W/L & B/T

Mode 12: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL31(DIS)

RAM HYNIX MODU

(15)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 15 of 103}

Mode 13: Full System (LED 1366*768/60Hz+HDMI 1366*768/60Hz) for VBL31(DIS)

RAM HYNIX MODU

Battery CELXPERT BATBL10L61

Mode 14: Full System (1024*768/75Hz+VGA 1024*768/75Hz) for VBL31(DIS)

RAM HYNIX MODU

(16)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 16 of 103}

HDD WD WD3200BPVT-22JJ5T0 320G 5400rpm

RAM SAMSUNG MODU SAM

M471B5773DH0-CH9 DDR3 1333 2G

HDD Seagate

ST9500325AS (0001SDM1/0002BSM1/ 0003BSM1)

500G 5400rpm

RAM Samsung MODU SAM M471B5273DH0-CH9 DDR 1333 4GB

W/L & B/T

Battery SONY BATBLB3L61

CPU Intel Ivy Bridge 2020M 2.4GHZ

RAM SAMSUNG MODU

SAM M471B5273DH0-CH9 DDR 1333 4GB

W/L & B/T

(17)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 17 of 103}

CPU Intel Sandy Bridge B840 1.9GHz 1.9GHz

Item Manufacture r Model Specification HDD WD WD3200BPVT-22JJ5T0 320G 5400rpm CPU Intel B815 1.6GHz LED BOE HB140WX1-100 14" ODD Pioneer DVR-TD11RS ----

Battery Sanyo BATAW20L61

HDD Seagate ST9500325AS

(0001SDM1/0002BSM1/ 0003BSM1) 500G 5400rpm

LED BOE HT140WX1-100 14"

RAM Hynix MODU

HYNHMT325S6CFR8C-H9N0 DDR3 1333 2G

W/L & B/T

(18)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 18 of 103}

W/L & B/T

(19)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 19 of 103}

3.4. Description of Support Unit

No Device Manufacturer Model No. Description

1 HDD GM 3409A N/A

2 Microphone& Earphone SALAR N/A N/A

3 IPOD Apple MA477TA/A N/A

4 IPOD Apple MA477TA/A N/A

5 LCD Monitor DELL 3008WFPt N/A

6 Notebook SONY PCG-71811P Power by adaptor

7 SD Card Kingston N/A N/A

Item Cable Quantity Description

A USB 3.0 Cable 1 Shielding, 0.5m

B Audio Cable 1 Non-shielding, 1.8m

C USB 2.0 Cable 1 Shielding, 1.2m

D USB 2.0 Cable 1 Shielding, 1.2m

E HDMI Cable 1 Shielding, 1.5m

F VGA Cable 1 Shielding, 1.8m, with two ferrite cores bonded

(20)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 20 of 103}

3.5. General Information of Test Lab

Test Site: Cerpass Technology Corp.

Performand Location : No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China

NVLAP LAB Code : 200814-0

FCC Registration Number : 916572, 331395 IC Registration Number : 7290A-1, 7290A-2

VCCI Registration Number :

T-343 for Telecommunication Test C-2919 for Conducted emission test

R-2670 for Radiated emission test below 1GHz G-227 for Radiated emission test above 1GHz

Frequency Range

Investigated :

Conducted Emission Test: from 150kHz to 30 MHz Radiated Emission Test: from 30 MHz to 1,000 MHz Radiated Emission Test: from 1GHz to 6GHz

Test Distance :

The test distance of radiated emission below 1GHz from antenna to EUT is 10 M.

The test distance of radiated emission above 1GHz from antenna to EUT is 3 M.

LABORATORY ACCREDIATION

3.6. Measurement Uncertainty

Conducted Emission

The measurement uncertainty is evaluated as ± 2.71 dB. Radiated Emission

(30MHz -1000MHz) Horizontal The measurement uncertainty is evaluated as ±3.59 dB. Vertical The measurement uncertainty is evaluated as ± 3.89 dB (1G-6GHz) Horizontal The measurement uncertainty is evaluated as ± 2.31 dB.

(21)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 21 of 103}

4. Test of Conducted Emission

4.1. Test Limit

Conducted Emissions were measured from 150 kHz to 30 MHz with a bandwidth of 9 kHz and return leads of the EUT according to the methods defined in European Standard EN 55022 Clause 9. The EUT was placed on a nonmetallic stand in a shielded room 0.8 meters above the ground plane as shown in section 5.2. The interface cables and equipment positioning were varied within limits of reasonable applications to determine the position producing maximum conducted emissions.

Table 1 Class B Line Conducted Emission Limits:

Frequency range (MHz)

Limits (dB µ V)

Quasi Peak Average

0.15 to 0.50 66 to 56 56 to 46

0.50 to 5 56 46

5 to 30 60 50

Note 1: The lower limits shall apply at the transition frequencies.

Note 2: The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50MHz.

Table 2 - Limits of conducted common mode (asymmetric mode) disturbance at telecommunication ports in the frequency range 0.15 MHz to 30 MHz for class B equipment.

Frequency range (MHz) Voltage limits dB(µV) Current limits dB(µA)

Quasi-peak Average Quasi-peak Average

0.15 to 0.5 84 to 74 74 to 64 40 to 30 30 to 20

0.5 to 30 74 64 30 20

Note 1: The limits decrease linearly with the logarithm of the frequency in the range 0.15 to 0.5 MHz. Note 2: The current and voltage disturbance limits are derived for use with an impedance stabilization

network (ISN) which presents a common mode (asymmetric mode) impedance of 150Ω to the telecommunication under test (conversion factor is 20 log10 150/1 = 44dB).

(22)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 22 of 103}

4.2. Test Procedures

a. The EUT was placed on a desk 0.8 meters height from the metal ground plane and 0.4 meter from the conducting wall of the shielding room and it was kept at least 0.8 meters from any other grounded conducting surface.

b. Connect EUT to the power mains through a line impedance stabilization network (LISN). c. All the support units are connecting to the other LISN.

d. The LISN provides 50 ohm coupling impedance for the measuring instrument. e. The CISPR states that a 50 ohm, 50 micro-Henry LISN should be used. f. Both sides of AC line were checked for maximum conducted interference. g. The frequency range from 150 kHz to 30 MHz was searched

h. Set the test-receiver system to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode.

4.3. Typical Test Setup

10cm 80cm EUT 80cm 40cm LISN 80cm 40cm LISN ISN AE

(23)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 23 of 103}

4.4. Measurement equipment

Instrument/Ancillary Manufacturer Model No. Serial No. Calibration

Date Valid Date.

Test Receiver R&S ESCI 100565 2012.03.12 2013.03.11

AMN R&S ESH2-Z5 100182 2012.03.12 2013.03.11

Two-Line V-Network R&S ENV216 100325 2012.03.12 2013.03.11

ISN FCC FCC-TLISN-T2-02 20379 2011.12.09 2012.12.08

ISN TESEQ ISN ST08 30175 2011.09.13 2012.09.12

Current Probe R&S EZ-17 100303 2012.03.12 2013.03.11

Passive Voltage Probe R&S ESH2-Z3 100026 2012.03.12 2013.03.11

Attenuator R&S ESH3-Z2 100529 2012.03.12 2013.03.11

Temperature/ Humidity

(24)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 24 of 103}

4.5. Test Data and Result

Test Mode : Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30

AC Power : AC 230V/50Hz Phase : LINE

Temperature : 22°C Humidity : 50% Pressure(mbar) : 1002 Date: 2012/09/08 No. Frequency (MHz) Factor (dB) Reading (dBuV) Level (dBuV) Limit (dBuV) Margin (dB) Detector 1 0.1660 9.87 44.08 53.95 65.15 -11.20 QP 2 0.1660 9.87 33.44 43.31 55.15 -11.84 AVG 3 0.2460 9.87 35.45 45.32 61.89 -16.57 QP 4 0.2460 9.87 25.81 35.68 51.89 -16.21 AVG 5 2.6300 9.71 26.84 36.55 56.00 -19.45 QP 6 2.6300 9.71 23.09 32.80 46.00 -13.20 AVG 7 4.2740 9.71 27.00 36.71 56.00 -19.29 QP 8 4.2740 9.71 16.54 26.25 46.00 -19.75 AVG 9 14.4620 9.81 25.19 35.00 60.00 -25.00 QP 10 14.4620 9.81 15.05 24.86 50.00 -25.14 AVG 11 28.5460 9.57 25.75 35.32 60.00 -24.68 QP 12 28.5460 9.57 17.22 26.79 50.00 -23.21 AVG

(25)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 25 of 103}

AC Power : AC 230V/50Hz Phase : NEUTRAL

(26)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 26 of 103}

AC Power : AC 230V/50Hz Phase : LINE

(27)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 27 of 103}

AC Power : AC 230V/50Hz Phase : NEUTRAL

(28)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 28 of 103}

AC Power : AC 230V/50Hz Phase : LAN 10Mbps

(29)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 29 of 103}

Test Mode : Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30

(30)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 30 of 103}

Test Mode : Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30

(31)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 31 of 103}

(32)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 32 of 103}

(33)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 33 of 103}

Note: Measurement Level = Reading Level + Correct Factor

(34)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 34 of 103}

4.6. Test Photographs

Main Port

Front View

(35)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 35 of 103}

LAN Port 10Mbps&100Mbps

Front View

(36)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 36 of 103}

LAN Port 1000Mbps

Front View

(37)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 37 of 103}

5. Test of Radiated Emission

5.1. Test Limit

The EUT shall meet the limits of below Table when measured at the measuring distance R in accordance with the methods described in European Standard EN 55022 Clause 10. If the reading on the measuring receiver shows fluctuations close to the limit, the reading shall be observed for at least 15 s at each measurement frequency; the highest reading shall be recorded, with the exception of any brief isolated high reading, which shall be ignored.

Table – Limits for radiated disturbance of class B ITE at a measuring distance of 10 m

Frequency range MHz Quasi-peak limits dB(µV/m) 30 to 230 30 230 to 1000 37

NOTE 1 The lower limit shall apply at the transition frequency.

NOTE 2 Additional provisions may be required for cases where interference occurs. The EUT shall meet the limits of below Table when measured in accordance with the method

described in European Standard EN 55022 Clause 10 and the conditional testing procedure described below.

Table – Limits for radiated disturbance of class B ITE at a measuring distance of 3 m

Frequency range GHz Average limit dB(µV/m) Peak limits dB(µV/m) 1 to 3 50 70 3 to 6 54 74

NOTE The lower limit applies at the transition frequency.

• Conditional testing procedure:

The highest internal source of an EUT is defined as the highest frequency generated or used within the EUT or on which the EUT operates or tunes.

If the highest frequency of the internal sources of the EUT is less than 108 MHz, the measurement shall only be made up to 1 GHz.

If the highest frequency of the internal sources of the EUT is between 108 MHz and 500 MHz, the measurement shall only be made up to 2 GHz.

If the highest frequency of the internal sources of the EUT is between 500 MHz and 1 GHz, the measurement shall only be made up to 5 GHz.

If the highest frequency of the internal sources of the EUT is above 1 GHz, the measurement shall be made up to 5 times the highest frequency or 6 GHz, whichever is less.

(38)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 38 of 103}

5.2. Test Procedures

a. The EUT was placed on a relatable table top 0.8 meter above ground.

b. The EUT was set such that distance from the interference receiving antenna to EUT was 10meters for below 1GHz and 3 meters for above 1GHz. The antenna was mounted on the top of a variable height antenna tower.

c. The table was rotated 360 degrees to determine the position of the highest radiation. d. The antenna is a broadband antenna for below 1GHz and horn antenna for above 1GHz,

and its height is varied between one meter and four meters above ground to find the maximum value of the field strength both horizontal polarization and vertical polarization of the antenna are set to make the measurement.

e. For each suspected emission the EUT was arranged to its worst case and then tune the antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the maximum reading.

f. Set the test-receiver system to Peak Detect Function and specified bandwidth with Maximum Hold Mode.

g. The bandwidth below 1GHz setting on the strength meter is 120kHz and above 1GHz is 1MHz.

5.3. Typical test Setup

(39)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 39 of 103}

Above 1GHz Test Setup

5.4. Measurement equipment

Date Valid Date.

EMI Test Receiver R&S ESCI 101183 2012.03.12 2013.03.11

Preamplifier Agilent 87405B My39500554 2012.03.12 2013.03.11

Preamplifier Agilent 8449B 3008A02342 2012.03.12 2013.03.11

Ultra Broadband

Antenna R&S HL562 100363 2012.05.03 2013.05.02

Broad-Band Horn

Antenna Schwarzbeck BBHA9120D 9120D-618 2012.05.03 2013.05.02

Spectrum Analyzer R&S FSP40 100324 2012.03.12 2013.03.11

Temperature/ Humidity

(40)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 40 of 103}

5.5. Test Result and Data(30MHz-1000MHz)

AC Power : AC 230V/50Hz Ant. Polarization: Horizontal

Temp : 23℃ Humidity : 52% Pressure(mbar) : 1002 Date : 2012/09/08 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (deg) 1 32.9099 -6.95 22.18 15.23 30.00 -14.77 QP 200 68 2 127.9699 -14.98 28.03 13.05 30.00 -16.95 QP 400 149 3 191.0200 -15.51 30.17 14.66 30.00 -15.34 QP 400 108 4 413.1499 -8.06 27.29 19.23 37.00 -17.77 QP 183 0 5 939.8600 1.73 22.47 24.20 37.00 -12.80 QP 100 360 6 1000.0000 2.79 20.90 23.69 37.00 -13.31 QP 200 244 Note: Measurement Level = Reading Level + Correct Factor

(41)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 41 of 103}

AC Power : AC 230V/50Hz Ant. Polarization: Vertical

Temp : 23℃ Humidity : 52% Pressure(mbar) : 1002 Date : 2012/09/08 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (deg) 1 30.0000 -5.56 23.88 18.32 30.00 -11.68 QP 100 14 2 42.6100 -11.79 27.75 15.96 30.00 -14.04 QP 400 236 3 127.0000 -14.97 33.30 18.33 30.00 -11.67 QP 300 176 4 192.9600 -15.52 30.75 15.23 30.00 -14.77 QP 100 153 5 215.2700 -14.73 30.69 15.96 30.00 -14.04 QP 226 360 6 998.0600 2.75 22.37 25.12 37.00 -11.88 QP 199 0

(42)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 42 of 103}

Temp : 23℃ Humidity : 52% Pressure(mbar) : 1002 Date : 2012/09/08 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (deg) 1 32.9099 -6.95 23.28 16.33 30.00 -13.67 QP 100 28 2 191.0200 -15.51 33.87 18.36 30.00 -11.64 QP 400 71 3 450.0099 -6.45 33.04 26.59 37.00 -10.41 QP 300 295 4 493.6600 -5.09 30.97 25.88 37.00 -11.12 QP 200 310 5 674.0800 -3.00 29.30 26.30 37.00 -10.70 QP 151 0 6 827.3400 -0.05 26.64 26.59 37.00 -10.41 QP 100 94 Note: Measurement Level = Reading Level + Correct Factor

(43)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 43 of 103}

Temp : 23℃ Humidity : 52% Pressure(mbar) : 1002 Date : 2012/09/08 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (deg) 1 32.9100 -6.95 28.96 22.01 30.00 -7.99 QP 100 232 2 193.9299 -15.53 36.41 20.88 30.00 -9.12 QP 100 141 3 724.5200 -1.61 27.57 25.96 37.00 -11.04 QP 221 360 4 790.4800 -0.94 30.26 29.32 37.00 -7.68 QP 300 0 5 833.1599 0.14 31.36 31.50 37.00 -5.50 QP 298 360 6 859.3500 0.85 27.79 28.64 37.00 -8.36 QP 278 360

(44)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 44 of 103}

5.6. Test Result and Data(1000MHz-6000MHz)

Temp : 23℃ Humidity : 52% Pressure(mbar) : 1002 Date : 2012/09/08 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (deg) 1 1115.000 -13.57 60.34 46.77 70.00 -23.23 peak 300 146 2 1115.000 -13.57 46.21 32.64 50.00 -17.36 AVG 300 146 3 1335.000 -11.91 58.63 46.72 70.00 -23.28 peak 100 352 4 1335.000 -11.91 44.57 32.66 50.00 -17.34 AVG 100 352 5 1660.000 -10.34 64.60 54.26 70.00 -15.74 peak 100 194 6 1660.000 -10.34 48.92 38.58 50.00 -11.42 AVG 100 194 7 1790.000 -10.98 62.76 51.78 70.00 -18.22 peak 100 124 8 1790.000 -10.98 47.25 36.27 50.00 -13.73 AVG 100 124 9 1990.000 -6.37 54.40 48.03 70.00 -21.97 peak 200 329 10 1990.000 -6.37 40.99 34.62 50.00 -15.38 AVG 200 329 11 2330.000 -4.53 50.42 45.89 70.00 -24.11 peak 100 54 12 2330.000 -4.53 37.08 32.55 50.00 -17.45 AVG 100 54 Note: Measurement Level = Reading Level + Correct Factor

(45)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 45 of 103}

(46)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 46 of 103}

(47)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 47 of 103}

Test engineer:

(48)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 48 of 103}

5.7. Test Photographs(30MHz-1000MHz)

Front View

(49)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 49 of 103}

5.8. Test Photographs(1000MHz-6000MHz)

Front View

(50)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 50 of 103}

6. Harmonics Test

6.1. Limits of Harmonics Current Measurement

6.2. Measurement equipment

Date Valid Date. EMC Emission Tester EMCPARTNE

R Harmonics-1000 159 2012.04.20 2013.04.19

Temperature/

Humidity Meter Zhicheng ZC1-11 CEP-TH-004 2012.03.12 2013.03.11

6.3. Test Result and Data

The power of Notebook computer (model No. BL10, BL11, VVBL30, VVBL31) is less than 75W after the testing. According the standard, the equipment with a rated power of 75W or less, other than lighting equipment, limits are not specified in this standard. So the test data needn’t list.

Limits for Class A equipment Harmonics Order n Max. Permissible harmonics current A Odd harmonics 3 2.30 5 1.14 7 0.77 9 0.40 11 0.33 13 0.21 15<=n<=39 0.1515/n Even harmonics 2 1.08 4 0.43 6 0.30 8<=n<=40 0.238/n

Limits for Class D equipment Harmonics

Order n

Max. Permissible harmonics current per

watt mA/W

Max. Permissible harmonics

current A Odd Harmonics only

3 3.4 2.30 5 1.9 1.14 7 1.0 0.77 9 0.5 0.40 11 0.35 0.33 13 0.30 0.21 15<=n<=39 3.85/n 0.15 x15/n

(51)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 51 of 103}

7. Voltage Fluctuations Test

7.1. Test Procedure

The equipment shall be tested under the conditions of Clause 5.

The total impedance of the test circuit, excluding the appliance under test, but including the internal impedance of the supply source, shall be equal to the reference impedance. The stability and tolerance of the reference impedance shall be adequate to ensure that the overall accuracy of ±8% is achieved during the whole assessment procedure.

7.2. Measurement equipment

Date Valid Date. EMC Emission Tester EMCPARTNE

R Harmonics-1000 159 2012.04.20 2013.04.19

Temperature/

(52)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 52 of 103}

7.3. Test Result and Data

Basic Standard : EN 61000-3-3

Final Test Result : PASS

Test Mode : Mode 1: Full System (LED 1366*768/60Hz+VGA 1366*768/60Hz) for VBL30(UMA)

Temperature : 22℃

Humidity : 50%

Atmospheric Pressure : 100 kPa

Test Data : Sep 06, 2012

Full Bar : Actual Values Empty Bar : Maximum Values Circles : Average Values

(53)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 53 of 103}

Urms = 230.7V Freq = 50.000 Range: 5 A Irms = 0.261A Ipk = 1.360A cf = 5.206 P = 25.65W S = 60.27VA pf = 0.426

Test - Time : 1 x 10min = 10min ( 100 %)

LIN (Line Impedance Network) : L: 0.24ohm +j0.15ohm N: 0.16ohm +j0.10ohm

Limits : Plt : 0.65 Pst : 1.00

dmax : 4.00 % dc : 3.30 % dtLim: 3.30 % dt>Lim: 500ms

(54)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 54 of 103}

Basic Standard : EN 61000-3-3

Final Test Result : PASS

Test Mode : Mode 18: Full System (LED 1366*768/60Hz+VGA

1366*768/60Hz) for VBL31(DIS)

Temperature : 22℃

Humidity : 50%

Atmospheric Pressure : 100 kPa

Test Data : Sep 06, 2012

Full Bar : Actual Values Empty Bar : Maximum Values Circles : Average Values

(55)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 55 of 103}

Urms = 230.5V Freq = 50.013 Range: 5 A Irms = 0.601A Ipk = 2.529A cf = 4.211 P = 62.95W S = 138.4VA pf = 0.455

Test - Time : 1 x 10min = 10min ( 100 %)

LIN (Line Impedance Network) : L: 0.24ohm +j0.15ohm N: 0.16ohm +j0.10ohm

Limits : Plt : 0.65 Pst : 1.00

dmax : 4.00 % dc : 3.30 % dtLim: 3.30 % dt>Lim: 500ms

Test completed, Result: PASSED

(56)

CERPASS TECHNOLOGY CORP.

TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 _{Page No.} _{: 56 of 103}

EMC TEST REPORT. Authorized under Declaration of Conformity. According to

CERPASS TECHNOLOGY CORP.

EMC TEST REPORT

Authorized under Declaration of Conformity

According to

Applicant

: Compal Information Technology(kunshan) Co，Ltd

Address

:

No.58,The 1

Street,Kunshan Export Processing

Zone,Jiangsu,China

Equipment

: Notebook computer

Model No.

: BL10, BL11, VBL30, VBL31

CERPASS TECHNOLOGY CORP.

Contents

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

Document history

CERPASS TECHNOLOGY CORP.

CERTIFICATE OF COMPLIANCE

According to

Applicant

: Compal Information Technology(kunshan) Co，Ltd

Address

:

No.58,The

1

Street,Kunshan

Export

Processing

Zone,Jiangsu,China

Equipment

: Notebook computer

Model No.

: BL10, BL11, VBL30, VBL31

I HEREBY CERTIFY THAT :

CERPASS TECHNOLOGY CORP.

1. Summary of Test Procedure and Test Results

2. Immunity Testing Performance Criteria Definition

CERPASS TECHNOLOGY CORP.

3. Test Configuration of Equipment under Test

3.1. Manufacturer

Compal Information Technology(kunshan) Co，Ltd

No.58,The 1

Street,Kunshan Export Processing Zone,Jiangsu,China

3.2. Feature of Equipment under Test

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

3.3. Test Mode and Test Manner

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

3.4. Description of Support Unit

CERPASS TECHNOLOGY CORP.

3.5. General Information of Test Lab

3.6. Measurement Uncertainty

CERPASS TECHNOLOGY CORP.

4. Test of Conducted Emission

4.1. Test Limit

CERPASS TECHNOLOGY CORP.

4.2. Test Procedures

4.3. Typical Test Setup

CERPASS TECHNOLOGY CORP.

4.4. Measurement equipment

CERPASS TECHNOLOGY CORP.

4.5. Test Data and Result

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.

CERPASS TECHNOLOGY CORP.
