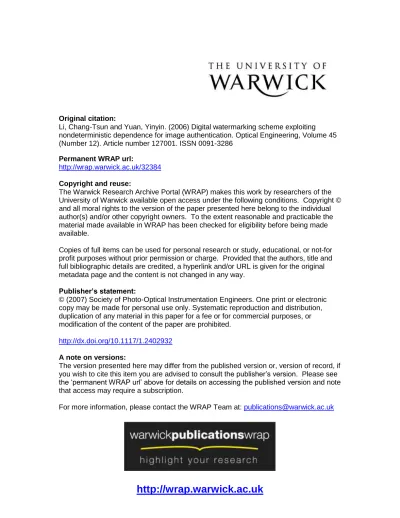

Original citation:

Li, Chang-Tsun and Yuan, Yinyin. (2006) Digital watermarking scheme exploiting nondeterministic dependence for image authentication. Optical Engineering, Volume 45 (Number 12). Article number 127001. ISSN 0091-3286

Permanent WRAP url:

http://wrap.warwick.ac.uk/32384 Copyright and reuse:

The Warwick Research Archive Portal (WRAP) makes this work by researchers of the University of Warwick available open access under the following conditions. Copyright © and all moral rights to the version of the paper presented here belong to the individual author(s) and/or other copyright owners. To the extent reasonable and practicable the material made available in WRAP has been checked for eligibility before being made available.

Copies of full items can be used for personal research or study, educational, or not-for profit purposes without prior permission or charge. Provided that the authors, title and full bibliographic details are credited, a hyperlink and/or URL is given for the original metadata page and the content is not changed in any way.

Publisher’s statement:

© (2007) Society of Photo-Optical Instrumentation Engineers. One print or electronic copy may be made for personal use only. Systematic reproduction and distribution, duplication of any material in this paper for a fee or for commercial purposes, or modification of the content of the paper are prohibited.

http://dx.doi.org/10.1117/1.2402932 A note on versions:

The version presented here may differ from the published version or, version of record, if you wish to cite this item you are advised to consult the publisher’s version. Please see the ‘permanent WRAP url’ above for details on accessing the published version and note that access may require a subscription.

Digital Watermarking Scheme Exploiting

Non-deterministic Dependence for Image

Authentication

Chang-Tsun Li and Yinyin Yuan

Department of Computer Science University of Warwick Coventry, CV4 7AL, UK {ctli, [email protected]}

ABSTRACT

Watermarking schemes for authentication purposes are characterized by three factors namely

security, resolution of tamper localization, and embedding distortion. Since the requirements of high

security, high localization resolution, and low distortion cannot be fulfilled simultaneously, the

relative importance of a particular factor is application-dependent. Moreover, block-wise

dependence is recognized as a key requirement for fragile watermarking schemes to thwart the

Holliman-Memon counterfeiting attack. However, it has also been observed that deterministic

dependence is still susceptible to transplantation attack or even simple cover-up attack. This work is

intended to propose a fragile watermarking scheme for image authentication, which exploits

non-deterministic dependence and provides the users with freedom of making trade-offs among the

three factors according to the needs of their applications.

1.

INTRODUCTION

In recent years, researchers have spent enormous amount of effort investigating digital

watermarking schemes to meet the needs of copyright protection and authentication of multimedia.

Usually, the schemes for copyright protection [2, 12, 14] are typically robust in the sense that the

embedded watermark is expected to be preserved provided the host media is still valuable after

manipulation. On the contrary, the schemes for authentication and verification of content integrity

[1, 3-9, 11, 15, 16] are usually (semi) fragile in the sense that, when attacked, the embedded

watermark should be entirely or locally destroyed, depending on whether the attack is a global or

local tampering, so that alarms can be raised when wrong watermark is extracted. This work is

intended to address the issues of fragile watermarking schemes and to propose a novel scheme for

authentication purposes.

Fragile watermarking schemes for authentication purposes often find their applications in

medical, forensic, broadcasting, and military applications where content verification and identity

authentication are of the main concern. It is desirable that the watermarking scheme should not only

be able to verify the authenticity and content integrity of the image, but also to locate the positions

where tampering has taken place so that possible intention of the attacker can be interpreted. It is

also important that the embedding operation should not introduce noticeable distortion to the host

image. Therefore, fragile watermarking schemes are characterized by three factors namely security,

resolution of tamper localization, and embedding distortion.

While low distortion and high resolution of tamper localization are important, the key concern

of an authentication scheme is security. A fragile watermarking scheme must show no security gaps

to attacks such as cover-up / cut-and-paste [1] and the Holliman-Memon counterfeiting attack [6]

Cover-up attack is the operation of cutting one region / block of the image and pasting it somewhere

in the same or another image. The Holliman-Memon counterfeiting attack / birthday attack is

devised on the basis of the so-called birthday paradox [13, Appendix 8.A]. According to birthday

paradox, using a hash function that produces a bit string of length l, the probability of finding at least

two blocks that hash to the same output is greater than 0.5 whenever roughly 2l/2 watermarked

blocks are available. The idea of the attack is to forge a new watermarked image (a collage) from a

number of authenticated images watermarked with the same key and watermark / logo by combining

portions of various authenticated images while maintaining their relative positions in the forged

version. Fridrich et al. [3, 4] showed that, provided a larger number of images watermarked with the

same key are available, counterfeiting is possible even when the logo is not known to the attacker.

Block-wise dependence is accepted as an essential requirement to combat the

Holliman-Memon counterfeiting attack / birthday attack [1, 3-11, 15]. However, it has also been

shown that with deterministic dependence, i.e., the information involved or dependent upon is

deterministic, is susceptible to ‘transplantation attack’ or even simple cover-up attack [1, 8-10]. The

'transplantation attack' derived by Barreto et al. [1] works as follows. Let f_′A → f′B denote that the

hashing or the calculation of some sort of signature of block f_′B depends on the information about f′A.

Now, for two arbitrary images, f_′ and f_″, with block f_′A identical to f″A, f′B identical to f″B, and f′C

identical to f_″C, but f′X not identical to f″X, if the following dependence relationships exist

…_→ f_′A→ f′X→ f′B→ f′C→…

…_→ f_″A→ f″X→ f″B→ f″C→…

then the block pairs (f_′X, f′B) and (f″X, f″B) can be swapped without being detected by schemes such as

not thwart this type of transplantation attack. For example, let fA↔fB denote that the hashing of each

block depends on the information about the other. Now if the following dependence relationships

exist

…_{↔ f′}

A↔ f′B↔ f′X↔ f′C↔ f′D↔….

…_{↔ f″}

A↔ f″B↔ f″X↔ f″C↔ f″D↔….,

the triplets (f_′B ,f′X , f′C) and (f″B ,f″X , f″C) are interchangeable without raising alarm if block f′D is

also identical to f_″D. In the light of the threat posed by the transplantation attack, non-deterministic

dependence has to be imposed as a key requirement on the watermarking schemes. This is one of the

key motivations of this work

Since the requirements of high security, high resolution of tamper localization, and low

embedding distortion cannot be fulfilled simultaneously, the relative importance of a particular

factor is application-dependent. It is therefore desirable to provide the users with the flexibility of

making trade-offs among the three factors to suit the needs of their application. This is another key

motivation behind the proposed scheme.

The rest of this work is organized as follows. The merits and limitations of some related works are

reviewed and discussed in Sec. II. A new scheme is proposed and analyzed in Sec. III. Experiments

are conducted in Sec. IV to test the proposed scheme. Finally, conclusions are drawn in Sec. V.

2.

RELATED WORKS

Generally speaking, fragile watermarking schemes can be classified into three categories

Level 1: Schemes such as the Yeung-Minzter [17] and Wong’s schemes [15], in which

embedding process does not involve any dependence information, fall into this category. The lack of

block-wise dependence in these schemes makes forgery an easy task. For example, a fake image

with valid watermark can be constructed by swapping blocks of the authentic images in a database,

which are watermarked with the same scheme using the same watermark or key.

Level 2: Schemes such as [7] and the hash block chaining scheme (HBC1) of [1] that exploit

deterministic dependence by making the signature relying on the contextual information from the

neighboring pixels/blocks belong to this category. Watermarked with this type of scheme, when an

image block is subjected to the Holliman-Memon counterfeiting attack, the watermark detector

would not be able to derive valid signature or watermark from the blocks dependent on the attacked

one and, as a result, alarms in association with those blocks could be raised. For example, in [7], Li

et al. proposed to use a binary feature map extracted from the underlying image as watermark and

divide the watermark into blocks. Then the right half of each watermark block is replaced with the

right half of the next block in zigzag scanning path before encrypting and embedding into the LSBs

of the image. Nevertheless, the dependence with deterministic context is still susceptible to the

transplantation attack.

Level 3: Schemes such as [5, 8, 9] and HBC2 of [1] that place randomly chosen parameters as

well as the contextual information from the neighboring blocks to form a non-deterministic

signature are of this level. By involving random/non-deterministic parameters in the dependence

context, the signature of two identical image blocks will be different, thus, providing further

resistance against transplantation attack.

However, one common limitation of the three categories of schemes is that they do not provide

and embedding distortion to meet the needs of their application. Moreover, the scheme of [5] is not

able to detect the cropping on the right and/or from the bottom of the watermarked image because

none of the pixels on the right or below the pixel to be watermarked is involved in the watermarking

process. Li and Yang proposed a 1-D neighborhood forming strategy [9] to tackle this problem by

involving x pixels ahead of the pixel to be marked in the zigzag order because the direction of the

zigzag-scanning path is not constant. However, one disadvantage of the scheme is that the process of

turning off the false alarms is not efficient due to the variable shape of the dependence

neighborhood.

3. PROPOSED WORK

In this work we propose a new scheme in attempt to overcome the aforementioned problems.

The proposed scheme can be employed for watermarking color and gray scale images. Without loss

of generality, throughout the rest of this work we will assume that we are working with gray scale

images with 8 bits per pixel. Symbols are defined as follows.

f: the original image of M pixels with the gray scale of its ith pixel denoted as f(i)

b: the number of watermarkable bits of each pixel

f_′ : the image received by the watermark detector.

w: the secret-key generated watermark image of the same dimensions as the original image f,

with the gray scale of its ith pixel denoted as w(i) that consist of only b bits (i.e,, w(i) ∈ [0,

2b-1], b < 8)

w_′: the extracted watermark image by the decoder with the gray scale of its ith pixel denoted as

w′ (i)

pixels including pixel i itself

S(i): the secret non-deterministic dependence information of pixel i extracted from N(i)

according to Eq. (1) expressed as follows:

∑

w f j

i

S (1)

Note that performing the floor function ⎣•⎦ after dividing f(i) by 2b is intended to involve only

the 8 – b bits of f(i), which are not affected throughout the embedding process, in the

calculation of S(i).

D: the binary difference map between w and w_′ with its ith pixel denoted as D(i) (D(i) ∈ {0,

255}) indicating whether w(i) and w_′ (i) are different. Wherever the watermarked image is

manipulated, noises are shown in the corresponding portion of the difference map D.

A: the binary authenticity map with its ith pixel denoted as A(i) (A(i) ∈ {0, 255}) created by

turning the false alarms and missed alarms (false authenticity) of D off and on, respectively.

3.1Watermark Embedding Algorithm

Stepe 1. Specify the number of watermarkable bits b of each pixel and the size (k × k pixels) of

N(i) agreed with the watermark detector.

Stepe 2. Generate a watermark image w of the same dimensions as the original image f with the

secret key shared with the watermark detector

Stepe 3. For each pixel i of the original image f

Stepe 3.1. Calculate the secret dependence information S(i) according to Eq. (1)

Stepe 3.2. Use S(i) as the seed of a random number generator to generate an integer v(i) in the

Stepe 3.3. Adjust the b least significant bits of f(i) so that

v(i) ⊕ ( f(i) mod 2b ) = w(i), (2)

where ⊕ is the symbol of EXCLUSIVR-OR operation.

An example of the embedding operation in Stepe 3.3 is as follows: Suppose b = 2 (i.e. we allow

2 LSBs to be watermarked), v(i) = 2 = (10)2, w(i) = 0 = (00)2, f(i) = 129 = (10000001)2. Then the

left-hand side of Eq. (2) is

v(i) ⊕ ( f(i) mod 2b ) = (10)2⊕ (129 mod 22)

= (10)2⊕ (01)2

= (11)2

, which is not equal to w(i) on the right-hand side of Eq.(2). In order to embed the watermark by

satisfying Eq. (2), f(i) has to be changed from 129 to 130. This can be proved by substituting 130 for

f(i) in Eq. (2). Note if the original f(i) satisfies Eq. (2) no change to f(i) is necessary.

3.2Watermark Detection Algorithm

Stepd 1. Specify the number of watermarkable bits b of each pixel and the size (k × k pixels) of

N(i) agreed with the watermark embedder.

Stepd 2. Generate a watermark image w of the same dimensions as the received image f′with the

secret key shared with the watermark embedder

Stepd 3. For each pixel i of the received image f′

received image f_′

Stepd 3.2. Use S(i) as the seed of a random number generator to generate an integer v(i) in the

range of [0, 2b-1]

Stepd 3.3. Extract watermark bit w′(i) according to Eq. (3) defined as follows

w_′(i) = v(i) ⊕ ( f_′( i) mod 2b ) (3)

Stepd 3.4. Calculate the binary difference D(i) between w(i)and the extracted watermark w′(i)

using Eq. (4)

⎩ ⎨ ⎧ = = Otherwise , 255 ) ( ) ( ' , 0

w i w i

D(i) (4)

Stepd 4. Turn on/off the missed alarms/false alarms according to Eq (5) to create the authenticity

map A such that

⎩ ⎨ ⎧ ≤ > = ) ( ) ( , 255 ) ( ) ( , 0 ) ( i N i Black i N i Black i A α α (5)

where |N(i)| is the cardinality or size of N(i) and Black(i) is a function returning the

number of black pixels (the pixels with gray scale equal to 0) in the neighborhood N(i) of

pixel i of the difference map D and 1/2b < α≤ 1. Appropriately chosen value of α makes

the noisy areas shrink while filling up the interior of them. The purpose of this

3.3Algorithm Analyses

3.3.1Post-processing

There are two possible authentication errors namely false alarm and false authenticity (missed

alarm) in the difference map D. The false alarm is the result of the involvement of N(i) and appear

outside the actual tampered area making it looks bigger than it actually is. This is because, for any

authentic pixel i, if any one of its neighbors in N(i) is tampered with, pixel i will be deemed

inauthentic with a probability of 1- 1/2b. Therefore, the larger the dependence neighborhood N(i) is,

the lower the resolution of tamper localization becomes. Reducing the size of N(i) would increase

the resolution of tamper localization. However, this is achieved at the expense of security since

smaller dependence neighborhood provides lower security. It is therefore desirable to turn the false

alarms off in order to improve the localization accuracy without reducing the size of N(i) and

compromising the security.

On the other hand, according to Eq. (1), tampering the watermarked image changes S(i).

However, according to Eq. (3), for each individual pixel i, new S(i) could still produce the

same/correct w_′(i) with a probability of 1/2b. (Note that for the schemes reported in [1, 4, 5, 7, 9, 10,

15-17] this probability is as high as 0.5 because they only watermark the least significant bit, i.e., b

= 1.) Although turning the missed alarms on does not make significant contribution, it could make

the tampered areas look more ‘solid’, thus, creating clearer indication of tampering.

Stepd 4 of the watermark-detecting algorithm is intended to serve the purpose of turning the

3.3.2Balancing security, resolution, and distortion

Embedding more bits into each pixel would certainly introduce more distortion to the

watermarked image. However, this also introduces more secret information into the media thus

providing higher security. In the cases where the user requires higher resolution of tamper

localization and could afford higher distortion, the requirement can be met by watermarking more

bits per pixel (i.e., using greater value of b in the algorithm) and involving smaller dependence

neighborhood N(i) without compromising the security. Another advantage of using greater value for

b is that the probability of missing alarm is lower (1/2b).

3.3.3Calculating dependence information

There are various ways for calculating S(i). For example, Barreto et al. proposed to hash the

gray scales of the pixels with the dependence neighborhood appended with some random numbers

[1]. In this work, we propose to calculate S(i) according to Eq (1). With the inclusion of w(i) and w(j)

in Eq (1), even two identical dependence neighborhoods would yield different S(i)s because their

corresponding watermarks are different. This feature makes the proposed algorithm immune to

transplantation attack without resorting to the relatively compute-intensive hashing operation as in

[1]. At first glance, manipulating any one of 8 - b most significant bits (MSBs) of f(i) makes no

difference in the result of the operation of f(i) mod 2b in Eq. (2) and therefore could defeat the

proposed scheme. However, this is not true because the 8- b MSBs of f(i) have already been

involved in the calculation of S(i) in Eq. (1), which in turn generates v(i) used in Eq. (2). Therefore,

4. EXPERIMENTS

To demonstrate the imperceptibility of the proposed scheme we applied the scheme to four test

images and listed the embedding distortion (PSNR) measured in dB in Table 1. We can see that even

when b = 3 (i.e. we allow the first 3 LSBs to be watermarked), the PSNRs are still higher than 37.9

dB. This feature is visualized in Figure 1. Figure 1(a) shows the original image of F16 while Figure

1(b), 1(c), and 1(d) show the images watermarked with the proposed scheme with the size of the

neighborhood N(i) equal to 5 × 5 pixels and the number of watermarkable bits b equal to 1, 2, and 3,

respectively. In all cases, the distortion is not noticeable to human visual system (PSNR equal to

51.1, 44.2, and 37.9 dB, respectively).

Figure 2(a) illustrates the attacked version of the watermarked image (b = 1) of Figure 1(b) with

the characters on the fuselage of the jet fighter removed. Figure 2(b) highlights the exact

corresponding region, the ‘ground truth’, which has actually been tampered with. The difference

map D in Figure 2(c) indicates the authentication result with the size of the neighborhood N(i) equal

to 5 × 5 before post-processing. Figure 2(d) illustrates the final authenticity map A after

post-processing with α equal to 0.7. The difference map D in Figure 2(e) indicates the

authentication result with the size of the neighborhood N(i) equal to 9 × 9 before post-processing.

Figure 2(f) illustrates the final authenticity map A after post-processing with α equal to 0.7.

Figure 3 shows the authentication results with the number of watermarkable bits b = 3

subjected to the same local manipulation applied to Figure 2(a). Figure 3(a) is the difference map D

with the size of the neighborhood N(i) equal to 3 × 3. Figure 3(b) illustrates the authenticity map A

after the post-processing was applied to Figure 3(a) withα = 0.25. Figure 3(c) demonstrates the

0.25. We can see the difference in terms of the resolution of tamper localization between Figure 3(a)

and (c). By comparing the difference between Figure 3(c) and (d), the significant improvement on

the resolution of tamper localization made by the post-processing in Stepd 4 can be clearly seen.

To demonstrate the proposed scheme’s capability of thwarting the vector quantization attack,

we first watermarked four images: 1) the original image of Lena; 2) image of Lena with the LSB

plane flipped. (d) image of Lena with the second LSB plane flipped; 4) image of Lena with the 2

LSB planes flipped. An image as shown in Figure 4(a) is then forged with its four quadrants taken

from the four watermarked images. The difference map in Figure 4(b) shows that the image in

Figure 4(a) is actually a fake. The reason the “noise cross” appear in the difference map is because

that along the boundaries of the four quadrants, wrong pixels enters the dependence neighborhood

of the pixels to be authenticated, which disturb the dependence relationship. The noises appearing

along the borders of the difference map is due to the fact that when establishing the dependence

neighborhood we allow the image to “wrap around”, i.e. the pixels along the left (upper) border of

the image are treated as neighbors of the pixels along the right (bottom) border, and vice versa. This

feature of “wrap around” allows the scheme to put up resistance against cropping attack.

5. CONCLUSIONS

In this work, we reviewed some previous watermarking schemes to identify their merits and

limitations. Based on their limitations and given the challenges fragile watermarking schemes face,

we propose a simple yet powerful scheme with its security relying on non-deterministic dependence

information. Effectiveness of this scheme is shown in the experiments. The main merits of the

proposed scheme are:

attack, and transplantation attack due to the merit of non-deterministic dependence.

z The balance between security, tamper localization, and embedding distortion can be adjusted by varying the size of the neighbourhood and the number of watermarkable bits

according to the needs of the applications.

z The post-processing scheme offers a way of enhancing localization resolution without compromising security.

z Involving the neighbouring pixels in all directions in the dependence neighbourhood centred at the pixel to be marked allows the scheme to detect cropping on any sides of the

image along any directions.

6. REFERENCES

[1] P. S. L. M. Barreto, H. Y. Kim, and V. Rijmen, “Toward secure public-key block-wise fragile

authentication watermarking,” in IEE Proceedings - Vision, Image and Signal Processing,

148(2), 57 – 62 (2002).

[2] A. G. Bors and I. Pitas, “Image watermarking using block site selection and dct domain

constraints,” Optics Express, 3(12), 512-522 (1998).

[3] J. Fridrich, M. Goljan, and N. Memon, “Cryptanalysis of the yeung–mintzer fragile

watermarking technique,” Journal of Electronic Imaging, 11(2), 262-274 (2002).

[4] J. Fridrich, "Security of fragile authentication watermarks with localization," in Proc. SPIE

Security and Watermarking of Multimedia Contents, VI, 691-700 (2002).

[5] J Fridrich, M. Goljan and A.C. Baldoza, "New fragile authentication watermark for images," in

[6] M. Holliman and N. Memon, “Counterfeiting attacks on oblivious block-wise independent

invisible watermarking schemes,” IEEE Trans. Image Processing, vol. 9, no. 3, pp. 432-441,

March 2000.

[7] C.-T. Li, D. C. Lou, and T. H. Chen, “Image authenticity and integrity verification via

content-based watermarks and a public key cryptosystem,” in Proc. IEEE Int. Conf. Image

Processing, vol. III, Vancouver, Canada, Sept. 2000, pp. 694-697.

[8] C.-T. Li, “Digital fragile watermarking scheme for authentication of jpeg images,” IEE

Proceedings - Vision, Image, and Signal Processing, 151(6), 460 – 466 (2004).

[9] C.-T. Li and F.-M. Yang, "One-dimensional neighborhood forming strategy for fragile

watermarking," Journal of Electronic Imaging, 12(2), 284-291 (2003).

[10]C.-T. Li, "Digital watermarking for multimedia authentication," in Digital Watermarking for

Digital Media, ed. by J. Seitz, Idea Group Publishing (2005).

[11]A. H. Ouda and M. R. El-Sakka, “Localization and security enhancement of block-based image

authentication,” in Proc. IEEE Int. Conf. Image Processing, I, 673-676 (2005).

[12] J.-M. Shieh, D.-C. Lou, and M.-C. Chang, “Highly robust watermarking scheme based on

surrounding mean value relationship,” Optical Engineering, 44,(6), 897-907 (2005)

[13] W. Stallings, Cryptography and network security – Principles and practice, Prentice Hall,

(1998).

[14]K. Su, D. Kundur and D. Hatzinakos, “Spatially localized image-dependent watermarking for

statistical invisibility and collusion resistance,” IEEE Trans. on Multimedia, 7(1), 52 - 66

[15]P. W. Wong and N. Memon, “Secret and public key image watermarking schemes for image

authentication and ownership verification,” IEEE Trans. On Image Processing, 10(10), 1593 -

1601 (2001).

[16]P. W. Wong and N. Memon, “Secret and public key authentication watermarking schemes that

resist vector quantization attack,” in Proc. SPIE Security and Watermarking of Multimedia

Contents II, 40-47 (2000).

[17]M. Yeung and F. Minzter, “Invisible watermarking for image verification,” Journal of

BIOGHRAPHIES

Chang-Tsun Li received the B.S. degree in electrical engineering from Chung-Cheng Institute of

Technology (CCIT), National Defense University, Taiwan, in 1987, the M.S. degree in computer

science from U. S. Naval Postgraduate School, U.S.A., in 1992, and the Ph.D. degree in computer

science from the University of Warwick, U.K., in 1998. He was an associate professor during

1999-2002 in the Department of Electrical Engineering at CCIT and a visiting professor in the

Department of Computer Science at U.S. Naval Postgraduate School in the second half of 2001. He

is currently a lecturer in the Department of Computer Science at the University of Warwick, U.K.

His research interests include image processing, pattern recognition, computer vision, multimedia

security, and content-based image retrieval.

Yinyin Yuan received her master degree from the University of Warwick in 2005 and her Bachelor

degree from the University of Science and Technology of China in 2003, both in the discipline of

Computer Science. She is now a PhD candidate in the Department of Computer Science, University

of Warwick. Her research interests are in the fields of digital watermarking, medical image

Table 1. Embedding distortion measured in PSNR inflicted on the test images with different number

of watermarkable bits b.

PSNR(dB)

b

F16 Mandrill Lena Camera man

FIGURE CAPTIONS

Figure 1. (a) The original image (b) The watermarked image with the number of watermarkable bits

b = 1 and PSNR at 51.1 dB. (c) The watermarked image with b = 2 and PSNR at 44.1 dB. (d) The

watermarked image with b = 3 and PSNR at 37.9 dB. The size of N(i) is equal to 5×5 pixels in all

cases.

Figure. 2. (a) The tampered version of Figure 1(b) with the characters on the jet fighter removed. (b)

The actual region tampered with. (c) The difference map D with the size of the neighborhood N(i)

equal to 5×5. (d) The authenticity mapA after post-processing withα = 0.7. (e) The difference map

D with the size of the neighborhood N(i) equal to 9×9. (f) The authenticity map A after

post-processing withα = 0.7.

Figure 3. Authentication results with the number of watermarkable bits b = 3 subjected to the same

local manipulation as shown in Figure 2(b). (a) The difference map D with the size of the

neighborhood N(i) equal to 3×3. (b) The authenticity mapA after post-processing withα = 0.25. (c)

The difference map D with the size of the neighborhood N(i) equal to 9×9. (d) The authenticity map

Figure 4. Vector quantization attack. (a) A forged image with its four quadrants taken from four

slightly different and authentic images watermarked with the proposed scheme. (b) Difference map
