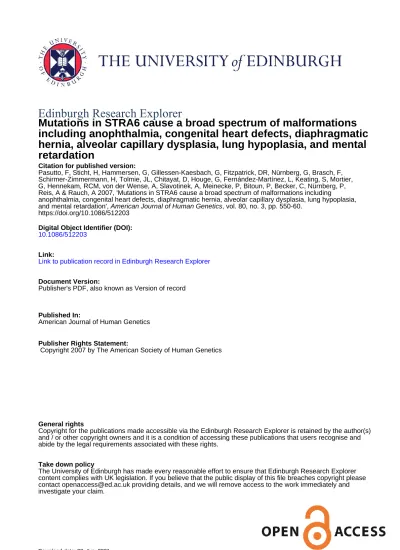

Edinburgh Research Explorer

(1)

Edinburgh Research Explorer

Mutations in STRA6 cause a broad spectrum of malformations

including anophthalmia, congenital heart defects, diaphragmatic

hernia, alveolar capillary dysplasia, lung hypoplasia, and mental

retardation

Citation for published version:

Pasutto, F, Sticht, H, Hammersen, G, Gillessen-Kaesbach, G, Fitzpatrick, DR, Nürnberg, G, Brasch, F,

Schirmer-Zimmermann, H, Tolmie, JL, Chitayat, D, Houge, G, Fernández-Martínez, L, Keating, S, Mortier,

G, Hennekam, RCM, von der Wense, A, Slavotinek, A, Meinecke, P, Bitoun, P, Becker, C, Nürnberg, P,

Reis, A & Rauch, A 2007, 'Mutations in STRA6 cause a broad spectrum of malformations including

anophthalmia, congenital heart defects, diaphragmatic hernia, alveolar capillary dysplasia, lung hypoplasia,

and mental retardation', American Journal of Human Genetics, vol. 80, no. 3, pp. 550-60.

https://doi.org/10.1086/512203

Digital Object Identifier (DOI):

10.1086/512203

Link:

Link to publication record in Edinburgh Research Explorer

Document Version:

Publisher's PDF, also known as Version of record

Published In:

American Journal of Human Genetics

Publisher Rights Statement:

Copyright 2007 by The American Society of Human Genetics

General rights

Copyright for the publications made accessible via the Edinburgh Research Explorer is retained by the author(s)

and / or other copyright owners and it is a condition of accessing these publications that users recognise and

abide by the legal requirements associated with these rights.

Take down policy

The University of Edinburgh has made every reasonable effort to ensure that Edinburgh Research Explorer

content complies with UK legislation. If you believe that the public display of this file breaches copyright please

contact [email protected] providing details, and we will remove access to the work immediately and

investigate your claim.

(2)

550 The American Journal of Human Genetics Volume 80 March 2007 www.ajhg.org

REPORT

Mutations in STRA6 Cause a Broad Spectrum of Malformations

Including Anophthalmia, Congenital Heart Defects,

Diaphragmatic Hernia, Alveolar Capillary Dysplasia, Lung

Hypoplasia, and Mental Retardation

Francesca Pasutto, Heinrich Sticht, Gerhard Hammersen, Gabriele Gillessen-Kaesbach, David R. FitzPatrick, Gudrun Nu¨rnberg, Frank Brasch, Heidemarie Schirmer-Zimmermann, John L. Tolmie, David Chitayat, Gunnar Houge, Lorena Ferna´ndez-Martı´nez, Sarah Keating, Geert Mortier, Raoul C. M. Hennekam, Axel von der Wense, Anne Slavotinek, Peter Meinecke, Pierre Bitoun, Christian Becker, Peter Nu¨rnberg, Andre´ Reis, and Anita Rauch

We observed two unrelated consanguineous families with malformation syndromes sharing anophthalmia and distinct eyebrows as common signs, but differing for alveolar capillary dysplasia or complex congenital heart defect in one and diaphragmatic hernia in the other family. Homozygosity mapping revealed linkage to a common locus on chromosome 15, and pathogenic homozygous mutations were identified in STRA6, a member of a large group of “stimulated by retinoic acid” genes encoding novel transmembrane proteins, transcription factors, and secreted signaling molecules or proteins of largely unknown function. Subsequently, homozygous STRA6 mutations were also demonstrated in 3 of 13 patients chosen on the basis of significant phenotypic overlap to the original cases. While a homozygous deletion generating a premature stop codon (p.G50AfsX22) led to absence of the immunoreactive protein in patient’s fibroblast culture, struc-tural analysis of three missense mutations (P90L, P293L, and T321P) suggested significant effects on the geometry of the loops connecting the transmembrane helices of STRA6. Two further variations in the C-terminus (T644M and R655C) alter specific functional sites, an SH2-binding motif and a phosphorylation site, respectively. STRA6 mutations thus define a pleiotropic malformation syndrome representing the first human phenotype associated with mutations in a gene from the “STRA” group.

From the Institute of Human Genetics (F.P.; L.F.-M.; A. Reis; A. Rauch) and Institute of Biochemistry (H.S.), Friedrich-Alexander-University Erlangen-Nuremberg, Erlangen, Germany; Cnopf’s Pediatric Hospital, Erlangen-Nuremberg, Germany (G.H.; H.S.-Z.); Institut fuer Humangenetik, Campus Luebeck, Univ-ersitaetsklinikum Schleswig-Holstein, Luebeck, Germany (G.G.-K.); Medical Genetics Section, MRC Human Genetics Unit, Edinburgh (D.R.F.); Cologne Center for Genomics (G.N.; C.B.; P.N.) and Institute for Genetics (P.N.), University of Cologne, Cologne, Germany; RZPD Deutsches Ressourcenzentrum fuer Genomforschung GmbH, Berlin (G.N.); Department of Pathology, University Associated Hospital Bremen-Mitte, Bremen, Germany (F.B.); Clinical Genetics, Yorkhill Hospital, Glasgow (J.L.T.); The Prenatal Diagnosis and Medical Genetics Program (D.C.) and Department of Pathology and Laboratory Medicine, Mount Sinai Hospital, University of Toronto, Toronto (S.K.); Center for Medical Genetics and Molecular Medicine, Haukeland University Hospital, Bergen, Norway (G.H.); Department of Medical Genetics, Ghent University Hospital, Gent, Belgium (G.M.); Clinical Genetics and Dysmor-phology, Institute of Child Health, Great Ormond Street Hospital for Children, University College London, London (R.C.M.H.); Department of Pediatrics, Academic Medical Center, University of Amsterdam, Amsterdam (R.C.M.H.); Department of Neonatal and Pediatric Intensive Care, Altonaer Children’s Hospital (A.v.d.W.), and Abteilung fu¨r Medizinische Genetik, Altonaer Kinderkrankenhaus, Hamburg (P.M.); and Pediatrics Department, University of California, San Francisco (A.S.); Medical Genetics Departments, University Hospital Jean Verdier, Bondy, France (P.B.)

Received November 3, 2006; accepted for publication January 2, 2007; electronically published January 29, 2007.

Address for correspondence and reprints: Dr. Anita Rauch, Institute of Human Genetics, Friedrich-Alexander-University Erlangen-Nuremberg, Schwa-bachanlage 10, 91054 Erlangen, Germany. E-mail: [email protected]

Clinical anophthalmia (AO) is the complete absence of the eye and may be the most severe end of a clinical spec-trum of ocular malformations including microphthalmia (MO), which is a small eye usually deﬁned in terms of corneal diameter or axial length.1_{Estimates of the birth}

prevalence of anophthalmia and microphthalmia from well-maintained population-based registers are 14 and 3 per 100,000 births, respectively.1_{Autosomal recessive}

or-igin is likely in ∼10% of cases.2_{CHX10 mutations have}

been shown to underlie autosomal recessive isolated clin-ical anophthalmia in two families3_{and microphthalmia}

with cataract and abnormalities of the iris,4_whereas

syn-dromic autosomal dominant anophthalmia has been as-sociated with mutations in SOX2.5_{According to a national}

study on microphthalmia, anophthalmia, and coloboma,

33% of cases had one or more associated major malfor-mations, and 21% had learning disabilities.1_{As only a few}

of the latter syndromal cases had features of recognized entities, it was assumed that several new syndrome di-agnoses are yet to be delineated in this group.

To increase the understanding of syndromic anophthal-mia, we performed positional cloning in two unrelated consanguineous families with new, apparently not yet re-ported conditions, including clinical anophthalmia and variable malformations of the lung, the heart, and the diaphragm, as well as mental retardation. This work was performed as part of our research study addressing the genetics of mental retardation, which was approved by the research ethics committee of the University of Er-langen-Nuremberg.

(3)

Figure 1. A and B, Pedigrees of the two families and segregation of the respective mutation (M). Arrows indicate the probands.

Individuals marked with asterisks participated in the genomewide linkage analysis. C and D, Examples of electropherograms of STRA6 mutations in families 1 (C) and 2 (D). WT p Wild type.

The proband in family 1 (IV:2 in fig. 1A) was a female infant born at 33 wk of gestation following a pregnancy during which bilateral anophthalmia had been diagnosed by ultrasound scan at 16 wk of gestation. She had normal intrauterine growth, with a birth length of 49 cm (97th percentile), weight 2,035 g (50th percentile), and head circumference 32 cm (75th percentile). In the perinatal period, bilateral clinical anophthalmia was confirmed. Ad-ditional malformations were noted at that time: right-sided pelvic kidney, circulatory nonrelevant pulmonic valve stenosis, and persistent ductus arteriosus, which was surgically closed at the age of 3 wk. When assessed at the age of 2 mo, growth was normal, with the crown-to-heel length (50 cm) and weight (3,200 g) at the age of 2 mo corresponding to the 10th–25th percentile for prema-turely born girls, whereas head circumference (35 cm) cor-responded to the 25th–50th percentile. She had mild facial dysmorphism, with marked blepharophimosis with an unusual trichoglyphic pattern of the eyebrows, which were broad, flaring, and only upward growing (fig. 2E). She had a broad nasal bridge, micrognathia, and large, low-set ears (fig. 2A and 2B). Cerebral magnetic resonance imaging (MRI) showed no abnormality of brain structure and showed visible optic nerves and chiasm. Mechanical ventilatory support was required from birth, because of persistent respiratory insufficiency. Chest CT at the age of 6 wk showed no evidence of pulmonary malformations, lymphangiectasia, or interstitial lung disease. Open lung biopsy performed at the age of 2.5 mo revealed a reduced number of alveolar units and pulmonary capillary vessels with thickening of the interalveolar septa, as well as me-dial thickening of small pulmonary arteries with

muscu-larization, which are the key features of alveolar capillary dysplasia (MIM 235680) (fig. 2G) without misalignment of lung vessels. She did not show any psychomotor de-velopment and, despite high-dose steroid treatment, she was extubated for only 13 d before dying at the age of 6 mo from respiratory insufficiency. The family history was significant. The parents are first cousins of Turkish origin. The paternal uncle of the proband, who was also married to his half-cousin, had a daughter with bilateral ano-phthalmia, who died at the age of 2 d from a complex cyanotic congenital heart defect with atresia of the pul-monary artery and single ventricle (IV:4 in fig. 1A). She had normal intrauterine growth, with a birth length of 51 cm (25th–50th percentile), weight 3,240 g (25th–50th per-centile), and head circumference 36 cm (75th percentile). Karyotype, metabolic screen, and cerebral and renal ul-trasound all showed normal results. Parents consented to postmortem examination of thoracic organs, which con-firmed the single ventricle with atresia of the pulmonary artery.

The proband in family 2 (IV:1 in ﬁg. 1B) was a 14-year-old boy with bilateral clinical anophthalmia, diaphrag-matic hernia, and profound mental retardation, with a performance IQ estimated to be !20. He was the eldest son of a healthy consanguineous couple of Turkish origin. When assessed at the age of 13 years 3 mo, he had severe short stature (height 123 cm [⫺4.47 SD]; weight 21 kg [BMI ⫺2.95]) with relative preservation of head growth (occipitofrontal circumference 51 cm [3rd percentile]). He had no speech and had no obvious receptive language skills. Although he used a wheelchair, he was able to take a few steps when supported. He had both an atrial and a

(4)

Figure 2. A–D, Frontal and lateral views of patient IV:2 of family 1 at age 6 mo (A and B) and patient IV:1 of family 2 at age 13

years (C and D). Note similar mild dysmorphism with broad, ﬂaring, and only upward-growing eyebrows; broad nasal bridge; large, low-set ears; and receding chin. E and F, Close-up of right eyebrows of IV:2 of family 1 (E) and IV:1 of family 2 (F). G, Hematoxylin-eosin staining of lung biopsy, showing deﬁciency in the number of alveolar units and pulmonary capillary vessels with thickening of the interalveolar septa.

ventricular septal defect, which did not require any ther-apy. Cerebral MRI performed at the age of 4 years showed a structurally normal brain, apart from absent optic nerves. He had mild facial dysmorphism with severe ble-pharophimosis and an unusual trichoglyphic pattern of both eyebrows similar to that seen in family 1 (ﬁg. 2F). He had a broad nasal bridge, micrognathia, and large, low-set ears (ﬁg. 2C and 2D). He had a healthy brother and sister. His mother had had one termination of pregnancy because of perceived high risk and another pregnancy that was terminated at 23 wk gestation after a diagnosis of bilateral anophthalmia and severe diaphragmatic hernia on antenatal ultrasound scan (IV:3). The fetus showed mild facial dysmorphism similar to that of the probands in this family and family 1. Parents did not consent to

postmortem examination but agreed to skin biopsy for ﬁbroblast culture.

To identify the underlying disease genes, a genome-wide linkage scan was performed using the Affymetrix GeneChip Human Mapping 10K SNP array Xba142 (ver-sion 2.0) and both affected and unaffected individuals from both families. The sex of each sample was veriﬁed by counting heterozygous SNPs on the X chromosome. Relationship errors were evaluated with the help of the program Graphical Relationship Representation.6_The

pro-gram PedCheck was applied to detect Mendelian errors,7

and data for SNPs with such errors were removed from the data set. Non-Mendelian errors were identiﬁed by use of the program MERLIN,8_{and unlikely genotypes for}

(5)

Figure 3. Graphic summaries of multipoint linkage analyses in families 1 and 2, performed using the Allegro program under the assumption of autosomal recessive inheritance with full penetrance. A, Genomewide multipoint LOD scores of family 1, including genotypes from individuals III:1–4, IV:1–3, and IV:5–6 (ﬁg. 1A), identifying a single locus on chromosome 15 with the expected maximum LOD score of 2.9. B, Genomewide multipoint LOD scores of family 2, including genotypes from individuals III:1–2 and IV:1– 3 (ﬁg. 1B), identifying multiple loci on chromosomes 1, 4, 7, 8, and 15 with the expected maximum LOD score of 1.9. C, Summary LOD scores including both families allowing also for locus heterogeneity (HLOD) revealing a single locus on chromosome 15 with a maximum LOD and HLOD of 4.8.

performed using the Allegro program,9_{under the}

assump-tion of autosomal recessive inheritance with full pene-trance. The parametric analysis unveiled the expected maximum multipoint LOD score of 2.9 on chromosome 15 (q23-25.1) in family 1 for a region of∼15 cM (ﬁg. 3A) and multiple possible loci in family 2, including the same locus on chromosome 15 with the expected maximum LOD score of 1.9 (ﬁg. 3B). Parametric and nonparametric

linkage analysis of both families together revealed a single maximum LOD score of 4.8 for the region 15q23-25.1, which was also achieved when allowing for locus hetero-geneity (HLOD) (ﬁg. 3C). Haplotypes were reconstructed with ALLEGRO and were presented graphically with HaploPainter.10_{This latter program also reveals}

informa-tive SNP markers as points of recombination between pa-rental haplotypes. All data handling was performed using

(6)

Figure 4. Haplotype analyses on chromosome 15q23-25.1, showing homozygous markers linked to the disease locus in family 1 (A) and family 2 (B). According to the NCBI human genome overview page, build 35.1, the ﬂanking markers SNP_A-1511966 (rs1822829) and SNP_A-1509050 (rs1077965) span a region of∼12 Mb between 65.21 and 77.85 Mb from pter.

the graphical user interface ALOHOMORA.11 _Haplotype

reconstruction showed homozygosity for two different al-leles at the same 12-Mb region between markers SNP_A-1511966 (rs1822829) and SNP_A-1509050 (rs1077965) in affected children from both families (ﬁg. 4).

This critical region contained 1280 known and pre-dicted genes annotated in the UCSC database. After eval-uation of the available data on developmental expression and function of each of the genes, we selected two for mutational analysis. UACA (encoding uveal autoantigen with coiled-coil domains and ankyrin repeats protein) was selected because it plays an important role in the regu-lation of stress-induced apoptosis and because it is ex-pressed in heart and in choroid, retina, and eye muscles, among other tissues, according to the SwissProt protein database. STRA6 (FLJ12541; Stra for “stimulated by reti-noic acid”) was chosen because of its involvement in the retinoic acid pathway and its therefore likely role in mor-phogenesis, as well as reported expression in mouse tissues corresponding to affected organs in our patients.

Sequencing of UACA revealed no mutation in the pro-bands of family 1 (IV:2) and 2 (IV:1). Sequence analysis of all 20 exons (ﬁg. 5A) and intronic ﬂanking regions of

STRA6 revealed single-nucleotide variants in both

fami-lies. A homozygous missense mutation in exon 12, c.878CrT (P293L), was found in the affected child IV:2 of family 1 (ﬁg. 1C). A homozygous frameshift muta-tion leading to a premature stop codon (c.145_147delC; p.G50AfsX22) in exon 4 was demonstrated in both af-fected children of family 2 (ﬁg. 1D). Both mutations were shown to cosegregate with the disease phenotype in the

respective families (fig. 1A and 1B). After the identification of STRA6 mutations in these families, the mutational anal-ysis was extended using a cohort of 13 unrelated white patients selected on the basis of having a severe eye mal-formation and malmal-formations of the diaphragm or one of the latter associated with malformations of the lungs or heart (table 1). This analysis led to the identification of four further homozygous amino acid changes (P90L, T321P, T644M, and R655C) in STRA6 in three patients (tables 1 and 2 and fig. 5A). Parental heterozygosity for the respective mutation was proved in families for which parental samples were available (MWS1-EE and MWS4-BE). Patient MWS6-BK carries two of these missense mu-tations (P90L and T321P), both homozygously, but no other family members were available for further analysis. None of the mutations were found in a panel of 190 healthy, adult white control individuals. Further support for the pathogenicity of the missense mutations was pro-vided by the demonstration that each of the substituted amino acids was evolutionarily conserved, which was done using multiple sequence alignments by ClustalW (fig. 5B). RT-PCR analysis of RNA isolated from cultured fibroblasts of the affected aborted fetus (IV:3) from family 2, which harbored the premature stop mutation, showed detectable levels of the mutated STRA6 transcript with and without puromycin treatment (fig. 6A). Western blot anal-ysis of protein extracted from these fibroblasts was per-formed using a rabbit polyclonal antibody raised to the C-terminal region of STRA612 _{(kindly supplied by Pierre}

Chambon). This showed absence of immunoreactive pro-tein in the patient’s ﬁbroblasts (ﬁg. 6B). RT-PCR on normal

(7)

Figure 5. Location and conservation of mutated residues. A, Location of mutations along STRA6 genomic and protein schematic representation, respectively. Transmembrane helices predicted by all three algorithms used are shown as dark gray boxes; helices predicted only by one or two of the algorithms are shown as dotted light gray boxes. B, ClustalW multiple sequence alignments of human STRA6 regions to orthologues encompassing mutated residues. All these residues are evolutionary conserved. The respective substituted amino acid is highlighted in blue.

adult human mRNAs from different tissues confirmed the broad expression pattern previously found in mice (fig. 7A). Detailed analysis of distinct parts of an adult human eye revealed expression in sclera, retina, retinal pigment epithelium, and trabecular mashwork but not in choroid and iris (fig. 7B).

Both the function and the tertiary structure of STRA6 peptide are unknown. To explain the potential effects of the missense mutations, we performed secondary struc-ture analysis by use of three different prediction programs (TMHMM,13 _TMpred,14 _{and TopPred}15_{), which suggested}

that STRA6 has between 8 and 12 transmembrane helices. Accordingly, three missense mutations (P90L, P293L, and T321P) are predicted to be located in loops connecting these transmembrane helices, whereas two missense mu-tations (T644M and R655C) are located in the evolution-ary conserved C-terminal region of the protein. Analysis of the secondary structure outside the transmembrane seg-ments was performed using a consensus secondary pre-diction from the NPS@ server.16_{This approach suggested}

that the mutations P293L and P90L increase the extent of helical structures in STRA6, resulting in an extension of the transmembrane helix (P293L) (ﬁg. 6C) and the for-mation of a novel helix within a loop (P90L). As a con-sequence, the topology of the loops is altered, and nu-merous conserved residues are brought into a different orientation with respect to the membrane. Amino acid T321 was also predicted to be located in an extremely short loop (maximum length comprising residues 319– 326) connecting two transmembrane helices. As a

con-sequence of the T321P mutation, a rigid diproline-motif (P320–P321) is generated that is probably incompatible with the sterically demanding topology of this tight loop (ﬁg. 6C). Thus, mutants P90L and T321P, observed ho-mozygously in the same patient, are both expected to have signiﬁcant effects on the secondary and tertiary structure of the loops in STRA6.

In contrast, mutations T644M and R655C are predicted by the ELM program17_{to impair functional sites at the}

C-terminal region. T644M alters the STAT5 Src Homology 2 (SH2) domain binding motif, YTLL, which triggers the JAK2/STAT5 signaling cascade. STAT5 and related mem-bers of the STAT family are activated in different tissues by means of a series of ligands and are involved in inter-feron signaling, development of the mammary gland, re-sponse to growth hormone, and embryogenesis.18_R655C

alters the invariant arginine of the R-X-[ST] consensus se-quence representing a phosphorylation site of proteinki-nase A19_{and therefore probably alters the successive signal}

transduction pathways.

The phenotype of the three patients detected on the follow-up mutation analysis shows remarkable overlap with that of the initial cases, with bilateral clinical ano-phthalmia and normal birth measurements as consistent features. The healthy parents of patient MWS1-EE are distantly related through a common great-great-grand-parent. After a pregnancy remarkable for polyhydram-nion, MWS1-EE was born at term with normal measure-ments (weight 3,130 g [10th–25th percentile], length 50 cm [10th–25th percentile], and head circumference 35 cm

(8)

Table 1. Overview of Phenotype in Patients Investigated for STRA6 Mutations

Patient Mutation

Parental

Consanguinity Eye Lung Diaphragm Heart Palate Kidney Uterus

Age at

Death Other

Fam1-IV:2 P293L ⫹ b AO ACD ⫺ PSt, PDA ⫺ Pelvic ⫺ 6 mo PTB 33 weeks, DD

Fam1-IV:4 NA ⫹ b AO ⫺ ⫺ CHD,PA ⫺ ⫺ ⫺ 2 d

Fam2-IV:1 p.G50AfsX22 ⫹ b AO ⫺ CDH ASD, VSD ⫺ ⫺ ⫺ Alive at age 14 years, profound MR, SOS

Fam2-IV:3 p.G50AfsX22 ⫹ b AO ⫺ CDH ⫺ ⫺ ⫺ ⫺ TOP

MWS1-EE R655C ⫹ b AO Hypo DE 3 mo Inguinal hernia, severe hypotonia, failure to thrive

Brother NA ⫹ b AO ⫺ ⫺ TAC-IV, RAA, PDA,

PA

⫺ ⫺ ⫺ 22 mo SOS

MWS4-BE T644M ⫺ b AO Hypo CDH b hydronephrosis Alive at age 3 mo

Brother NA ⫺ ? Hypo, unilo ⫺ TOF, PDA ⫺ Horseshoe ⫺ 1 d Undescended testes, hypoplastic renal arteries

Sister NA ⫺ b AO Hypo, unilo ⫺ PDA, CoA ⫺ ⫺ Dysplasia 1 d

MWS6-BK P90L, T321P ⫹ b AO Hypo CDH, DE PDA Hypo Bicornuate 1 d PTB 36 wk, Meckel diverticle

MWS2-FA ⫺ ⫹ b Col ⫺ CDH ⫺ ⫺ ⫺ ⫺ Skin patches, brittle hair

MWS3-KH ⫺ ⫺ b MO ⫺ CDH ⫺ ⫺ ⫺ ⫺ MO: extreme

MWS5-LR ⫺ ⫺ Col ⫺ CDH ⫺ ⫺ ⫺ ⫺

RHP006.070 ⫺ ⫺ b MO ⫺ b DE ⫺ ⫺ ⫺ ⫺ MO: extreme, MR

GM23728 ⫺ ⫺ b MO Hypo, unilo DE, hypo Hypo Pa, CoA Dysplastic Neonatal Abnormal cornea and iris

AvdW22260 -Twin1 ⫺ ⫺ ⫺ Hypo CDH ⫺ ⫺ ⫺ ⫺ 1 d PTB (28 wk)

Twin 2 ⫺ ⫺ ⫺ Hypo CDH ⫺ CP ⫺ ⫺ 1 d PTB (28 wk)

AS20861-FF264 ⫺ ⫺ ri

MO

⫺ CDH ⫺ ⫺ ⫺ ⫺ MO: max. diameter 9 mm at age 13 mo with

inter-nal, dense calciﬁcation within the globe, and a larger, inferiorly located benign cyst measuring 2.5 cm; DD (11 mo level at age 13 mo)

CD50396 ⫺ ⫺ b AO Hypo DE VSD CP ⫺ Hypo, bicornuate 1 d Matthew-Woods syndrome, hypoplastic spleen,

hy-poplastic alae nasi

PM22479 ⫺ ⫹ ⫺ ⫺ CDH ⫺ ⫺ ⫺ ⫺ Neonatal Suspected Donnai-Barrow syndrome (MIM 222448),

large omphalocele, hypoplasia of corpus cal-losum, enlarged ventricles, extreme hypertelomerism

Brother NA ⫹ ⫺ ⫺ CDH ASD b CLP ⫺ ⫺ Neonatal Suspected Donnai-Barrow syndrome (MIM 222448),

hypoplasia of corpus callosum, enlarged ventri-cles, extreme hypertelomerism

PB-E03_053 ⫺ ⫺ b MO ⫺ CDH ⫺ ⫺ ⫺ ⫺ ⫺ MO: severe, b inguinal hernia, sparse hair,

brachycephaly, MR, spasticity, alive at 10 years NOTE.—ACD p alveolar capillary dysplasia; AO p anophthalmia; ASD p artrial septal defect; b p bilateral; CDH p congenital diaphragmatic hernia; CHD p congenital heart defect; C(L)P p cleft (lip) palate; CoA p coarctation of aorta; Col p coloboma; DD p developmental delay; DE p diaphragmatic eventration; Hypo p hypoplastic; MO p microphthalmia; MR p mental retardation; NA p not analyzed; Pa p pulmonary artery; PA p atresia of pulmonary artery; PDA p persistent ductus arteriosus; PSt p pulmonic valve stenosis; PTB p preterm birth; RAA p right aortic arch; ri p right sided; SOS p postnatal shortness of stature; TAC p truncus arteriosus communis; TOF p tetralogy of Fallot; TOP p termination of pregnancy; unilob p unilobular lung; VSD p ventricular septal defect.

(9)

Table 2. Overview of STRA6 Mutations

Patient Exon

Alterationa

Genomic Protein Fam1-IV:2 12 c.878CrT P293L Fam2-IV:1 4 c.145-147delC p.G50AfsX22 Fam2-IV:3 4 c.145-147delC p.G50AfsX22 MWS1-EE 20 c.1963CrT R655C MWS4-BE 20 c.1931CrT T644M MWS6-BK 6, 13 c.269CrT, c.961ArC P90L, T321P

a _{All mutations were homozygous.}

Figure 6. Characterization of mutations. A, STRA6 RT-PCR on cultured fibroblast cells from the affected fetus (IV:3, family 2) and from a healthy individual (C) grown in the absence and the presence of puromycin (p⫺/p⫹) as inhibitor of translation, respectively, showing no evidence for early nonsense-mediated mRNA decay; (⫹) positive control, (⫺) negative control. B, Western blot analysis of cultured fibroblast protein cell extract showing a STRA6 protein band in two human healthy control lanes (indicated as “WT”) but not in the two lanes with the homozygous mutant c.145_147delC (from IV:3, family 2). C, Model showing the effect of the P293L mutation (right) on the STRA6 structure in comparison with the wild type (left). The membrane is indicated by a dotted line. The transmembrane helix (A300-V319) that is proximal to the site of the mutation is shown in ribbon presentation, and the two adjacent helices are indicated by cylinders. In the wild type, residue P293 represents the N-terminal cap of a helix starting at L294, whereas the L293 present in the mutant allows an N-terminal extension of the helix, now starting at H291 and changing the topology of the respective loop. Therefore, the P293L mutation is predicted to cause an extension of the helix by three residues, thus affecting the structure and orientation of the respective loop. Moreover, it is important to note that V319 is also the N-terminal residue of an extremely short loop (maximum predicted length between aa 319 and aa 326), in which a second mutation (T321P) has been identified. [25th–50th percentile]). Because of respiratory

insuffi-ciency, ventilatory support was needed for 4 d. The boy showed bilateral anophthalmia, left-sided diaphragmatic eventration, and right-sided inguinal hernia. He had se-vere hypotonia, poor feeding, and almost no weight gain until he died at the age of 3 mo. No postmortem exam-ination was performed. The older brother of MWS1-EE also showed bilateral anophthalmia, with only remains of nervi optici detected at autopsy. In addition, he had trun-cus arteriosus communis type IV with right-sided aorta, lack of pulmonary arteries, and lung supply by bronchial arteries. He died from a thrombosis of the bronchial ar-terial branches at the age of 22 mo. Although his birth measurements at 36 wk gestation were normal (weight 2,300 g [10th percentile], length 46 cm [10th–25th centile], and head circumference 33 cm [25th–50th per-centile]), he had short stature at autopsy (length 78 cm [⫺3.26 SD] and head circumference 48 cm [25th–50th per-centile]). He was not able to walk but could feed himself and spoke in short sentences and thus showed no evi-dence of mental retardation. Patient MWS4-BE is a female infant who is the third child of seemingly unrelated healthy parents. She was born at 38 wk gestation, weigh-ing 3,180 g (50th percentile), with length of 47 cm (25th percentile), and a head circumference of 34 cm (50th–75th percentile). At birth, she was noted to have bilateral an-ophthalmia, with a right-sided diaphragmatic hernia, pul-monary hypoplasia, and bilateral hydronephrosis. She was last assessed at the age of 3 mo. The family history was significant. The first child was male and was born at 40

wk gestation, weighing 3,200 g (10th–25th percentile) with a length of 49.5 cm (10th percentile). This infant died at 24 h of age. At postmortem examination, pul-monary hypoplasia, unilobular left lung, tetralogy of Fal-lot, patent ductus arteriosus, undescended testes, horse-shoe kidney, and hypoplastic renal arteries were noticed. No mention was made of the eyes in the postmortem report or neonatal record. The second child was female and was born at 39 wk gestation, weighing 3,160 g (25th– 50th percentile). Bilateral anophthalmia was noted at birth. This child also died in the first 24 h of life. At post-mortem examination, pulmonary hypoplasia with uni-lobular lungs was noted, in addition to the severe eye malformation. Patent ductus arteriosus, coarctation of the aorta, and uterine dysplasia were also reported. Unfortu-nately, no samples were available from the first two chil-dren. Patient MWS6-BK was the offspring of a marriage between Pakistani first cousins. The mother had two

(10)

mid-558 The American Journal of Human Genetics Volume 80 March 2007 www.ajhg.org

Figure 7. Expression pattern of STRA6 determined by RT-PCR in normal adult human (A) and eye (B) tissues. RPE p Retinal pig-ment epithelium; TM p Trabecular meshwork.

trimester miscarriages. The girl was born at 36 wk gesta-tion, with normal measurements (weight 2,750 g [25th– 50th percentile], length 47 cm [25th percentile], and head circumference 33 cm [25th–50th percentile]. She died at age 7 h from respiratory insufﬁciency with rapid deteri-oration. Autopsy showed absent eyes with small palpebral ﬁssures, left-sided diaphragmatic hernia, right-sided dia-phragmatic eventration, bilateral severe lung hypoplasia, structural normal heart with wide-open ductus arteriosus, bicornuate uterus, small kidneys (6 and 5.7 g) with prom-inent but microscopically normal adrenals (7.9 g), Meckel diverticle, and prominent labia minora. Karyotyping re-vealed homozygosity for the common pericentromeric in-version of chromosome 9. Skeletal survey revealed no abnormalities.

The phenotype of our patients with STRA6 mutations shows overlap with that of the sib pair reported as having “Matthew-Wood syndrome” (MIM 601186).20 _However,

one of our patients, CD50396, who had the full clinical picture described in this family, including cleft palate, hy-poplastic alae nasi, hyhy-poplastic spleen, and bicornuate uterus, did not show a STRA6 mutation. This patient may still harbor a STRA6 mutation outside the analyzed region or may indicate locus heterogeneity for this disorder. Nev-ertheless, there may be subtle differences in the facial dys-morphisms—in particular, the shape of the nose and eye-brows, the involvement of the palate, and the large head size relative to body length—between patients with STRA6 mutations and those with Matthew-Wood syndrome, but for these to be considered signiﬁcant, we will need to an-alyze further cases. The combination of microphthalmia, pulmonary hypoplasia, and diaphragmatic hernia has been described in ﬁve patients with sporadic disease,21_all

of whom had intrauterine growth retardation, a feature not seen in our patients with STRA6 mutations. The combination of severe microphthalmia, Fallot tetralogy, and diaphragmatic hernia has been reported in a child with de novo balanced chromosomal translocation (1;15)(q41;q21.2),22 _{but the breakpoint on chromosome}

15 is located several bands proximal to the STRA6 locus. These sporadic cases and cases of Matthew-Wood syn-drome may not be associated with STRA6 mutations but are likely to be caused by a gene from the same pathway.

STRA6 belongs to a novel group of retinoic acid (RA)–

inducible genes that are likely to be direct targets of the retinoid receptors, such as RXRa and RARg.23 _{STRA6 is}

predicted to encode a highly hydrophobic transmembrane protein, which does not display similarities with other known integral membrane proteins. Immunohistochem-ical and RNA in situ hybridization analyses revealed site-and stage-speciﬁc expression of Stra6 during murine em-bryonic development. In placenta, Stra6 is prominently expressed in the region of exchanges between maternal and embryonic circulations (i.e., yolk sac and labyrinthine zone of mature placenta). During embryogenesis, Stra6 is strongly expressed in the periocular mesenchyme, in the developing eyes, in respiratory mesenchymes, and in re-spiratory/bronchial epithelium, as well as in the devel-oping CNS (meninges, cranial ganglia, choroid plexi, and brain microvasculature) and in different embryonic gut derivatives (the epithelium of the pharyngeal pouches, mesenchyme of the esophagus, stomach, intestine, and rectum). In adult organs, it is strongly expressed at the level of blood-organ barriers. These barriers are made of epithelial and endothelial cells connected by tight junc-tions and play a role in limiting passive diffusion of chemicals, as well as in the facilitative transport of many nutrients. The high expression of Stra6 in 16 of these dif-ferent barriers, together with its localization in the basal region of the Sertoli cell plasma membrane, suggested that it may function as a component of an as-yet-unidentiﬁed transport machinery.12,23

The RA signaling pathway is complex and incompletely understood. RA appears to directly regulate 1500 pro-teins.24 _{RA signaling is known to be important in}

nor-mal lung and alveolar development.25 _{The developing}

diaphragm,26,27_heart,28_{and CNS}24_{also strongly depend on}

proteins associated with the metabolism and binding of retinoids. It is interesting that the homozygous null mu-tation was compatible with life (family 2), whereas the patients with missense mutations all died of respiratory insufﬁciency (family 1: MWS1-EE, MWS4-BE, and MWS6-BK). The assembly of an altered protein into the mem-brane thus may be more deleterious than the total absence of the protein. Alveolar dysplasia and pulmonary hypo-plasia may be the result of an impaired RA signal trans-duction resulting in abnormal levels of elastin protrans-duction, which is essential for alveolization.25

Congenital diaphragmatic hernia (CDH) is an important component of the phenotype in the STRA6 mutation-pos-itive cases, and, in this malformation, the etiology is un-clear in most isolated and syndromal cases. CDH has an incidence of 1 in 3,000 births and a high mortality rate of∼33%–58%.29 _{Many cytogenetic anomalies have been}

described in CDH involving almost every chromosome but most commonly chromosome 15.30 _{A 5-Mb critical}

interval has been deﬁned molecularly on 15q26.1-q26.2,31

but no causal mutations in individual genes within this region have been identiﬁed in CDH cases.32_{The only gene}

(11)

de-velopment in humans is FOG2, or ZFPM2 (8q23),33_which

was found mutated in a single deceased child with bilateral pulmonary hypoplasia and abnormally muscularized di-aphragm but also in some patients with Fallot tetralogy.34

Alveolar capillary dysplasia is a rare but probably under-diagnosed cause of persistent pulmonary hypertension of the neonate, usually resulting in death within 4–6 wk after birth.35_{It will be interesting to investigate isolated cases}

for STRA6 mutations.

In summary, we show that homozygous mutations in

STRA6 cause a pleiotropic, multisystem malformation

syn-drome characterized by bilateral anophthalmia, mild fa-cial dysmorphism, normal intrauterine growth, early le-thality in most cases, and a variety of malformations of the lungs, diaphragm, heart, and urogenital system. Pro-found mental retardation and short stature with relatively large head were present in the one patient with long-term survival. This STRA6 anophthalmia syndrome shows phe-notypic overlap with Matthew-Wood syndrome, which may be distinct, however, in facial dysmorphism and in-volvement of the palate. Very preliminary genotype-phe-notype correlation suggests that missense mutations may be associated with early lethality due to respiratory in-sufﬁciency, whereas truncating mutation may be com-patible with long-term survival and normal lung function. Further studies are necessary to elucidate whether

STRA6 and related genes from the RA pathway are also

involved in the pathogenesis of other types of syndromal or isolated anophthalmia, diaphragmatic hernia, and al-veolar capillary dysplasia.

Note added in proof.—STRA6 was just identiﬁed as the

long-sought membrane receptor for retinol binding pro-tein that mediates cellular uptake of vitamin A.36

Acknowledgments

We thank the family members for their kind participation, Clau-dia Preller for excellent technical assistance, and Renate Ulmer for cultivation of the ﬁbroblast cell line. We also thank Dr. Kathy Williamson for help with samples transfer and Dr. Jose Martinez for sending samples and clinical details. This work was suppor-ted in part by grant C2 from the SFB539 (A. Reis) and RA 833/7-1 (A. Rauch), funded by the Deutsche Forschungsgemeinschaft (DFG), and by the German Federal Ministry of Science and Ed-ucation through the National Genome Research Network (grant 01GR0416 to G.N., C.B., and P.N.).

Web Resources

Accession numbers and URLs for data presented herein are as follows:

ClustalW, http://www.ebi.ac.uk/clustalw/

ELM, The Eukaryotic Linear Motif Resource for Functional Sites in Proteins, http://elm.eu.org/

SwissProt, http://ca.expasy.org/sprot/ (for reference sequence Q8TB21_Human)

National Center for Biotechnology Information (NCBI), http:// www.ncbi.nlm.nih.gov/

NPS@ Consensus Secondary Structure Prediction, http://

npsa-pbil.ibcp.fr/cgi-bin/npsa_automat.pl?pagep/NPSA/ npsa_seccons.html

Online Mendelian Inheritance in Man (OMIM), http://www.ncbi .nlm.nih.gov/Omim/

TMHMM, http://www.cbs.dtu.dk/services/TMHMM-2.0/ (for pre-diction of transmembrane helices in proteins)

TMpred, http://www.ch.embnet.org/software/TMPRED_form.html (for prediction of transmembrane helices in proteins) TopPred, http://bioweb.pasteur.fr/seqanal/interfaces/toppred.html

(for prediction of transmembrane helices in proteins) University of California Santa Cruz (UCSC) Genome Browser,

http://genome.ucsc.edu/cgi-bin/hgTracks (reference sequences NT_010194 and NM_022369)

References

1. Morrison D, FitzPatrick D, Hanson I, Williamson K, van Hey-ningen V, Fleck B, Jones I, Chalmers J, Campbell H (2002) National study of microphthalmia, anophthalmia, and col-oboma (MAC) in Scotland: investigation of genetic aetiology. J Med Genet 39:16–22

2. Vogt G, Puho E, Czeizel AE (2005) A population-based case-control study of isolated anophthalmia and microphthalmia. Eur J Epidemiol 20:939–946

3. Bar-Yosef U, Abuelaish I, Harel T, Hendler N, Oﬁr R, Birk OS (2004) CHX10 mutations cause non-syndromic microphthal-mia/ anophthalmia in Arab and Jewish kindreds. Hum Genet 115:302–309

4. Ferda Percin E, Ploder LA, Yu JJ, Arici K, Horsford DJ, Ruth-erford A, Bapat B, Cox DW, Duncan AM, Kalnins VI, et al (2000) Human microphthalmia associated with mutations in the retinal homeobox gene CHX10. Nat Genet 25:397–401 5. Fantes J, Ragge NK, Lynch SA, McGill NI, Collin JR,

Howard-Peebles PN, Hayward C, Vivian AJ, Williamson K, van Hey-ningen V, et al (2003) Mutations in SOX2 cause anophthal-mia. Nat Genet 33:461–463

6. Abecasis GR, Cherny SS, Cookson WO, Cardon LR (2001) GRR: graphical representation of relationship errors. Bioin-formatics 17:742–743

7. O’Connell JR, Weeks DE (1998) PedCheck: a program for identiﬁcation of genotype incompatibilities in linkage anal-ysis. Am J Hum Genet 63:259–266

8. Abecasis GR, Cherny SS, Cookson WO, Cardon LR (2002) Merlin—rapid analysis of dense genetic maps using sparse gene ﬂow trees. Nat Genet 30:97–101

9. Gudbjartsson DF, Jonasson K, Frigge ML, Kong A (2000) Al-legro, a new computer program for multipoint linkage anal-ysis. Nat Genet 25:12–13

10. Thiele H, Nurnberg P (2005) HaploPainter: a tool for drawing pedigrees with complex haplotypes. Bioinformatics 21:1730– 1732

11. Ruschendorf F, Nurnberg P (2005) ALOHOMORA: a tool for linkage analysis using 10K SNP array data. Bioinformatics 21: 2123–2125

12. Sapin V, Bouillet P, Oulad-Abdelghani M, Dastugue B, Cham-bon P, Dolle P (2000) Differential expression of retinoic acid-inducible (Stra) genes during mouse placentation. Mech Dev 92:295–299

13. Krogh A, Larsson B, von Heijne G, Sonnhammer EL (2001) Predicting transmembrane protein topology with a hidden Markov model: application to complete genomes. J Mol Biol 305:567–580

(12)

560 The American Journal of Human Genetics Volume 80 March 2007 www.ajhg.org 14. Reddy EP, Korapati A, Chaturvedi P, Rane S (2000) IL-3

sig-naling and the role of Src kinases, JAKs and STATs: a covert liaison unveiled. Oncogene 19:2532–2547

15. Claros MG, von Heijne G (1994) TopPred II: an improved software for membrane protein structure predictions. Com-put Appl Biosci 10:685–686

16. Combet C, Blanchet C, Geourjon C, Deleage G (2000) NPS@: network protein sequence analysis. Trends Biochem Sci 25: 147–150

17. Puntervoll P, Linding R, Gemund C, Chabanis-Davidson S, Mattingsdal M, Cameron S, Martin DM, Ausiello G, Brannetti B, Costantini A, et al (2003) ELM server: a new resource for investigating short functional sites in modular eukaryotic proteins. Nucleic Acids Res 31:3625–3630

18. Calo V, Migliavacca M, Bazan V, Macaluso M, Buscemi M, Gebbia N, Russo A (2003) STAT proteins: from normal control of cellular events to tumorigenesis. J Cell Physiol 197:157– 168

19. Shabb JB (2001) Physiological substrates of cAMP-dependent protein kinase. Chem Rev 101:2381–2411

20. Seller MJ, Davis TB, Fear CN, Flinter FA, Ellis I, Gibson AG (1996) Two sibs with anophthalmia and pulmonary hypo-plasia (the Matthew-Wood syndrome). Am J Med Genet 62: 227–229

21. Lee SYR, Shiu YK, Ng WF, Chow CB (2006) Another patient with pulmonary hypoplasia, microphthalmia and diaphrag-matic hernia. Clin Dysmorphol 15:43–44

22. Smith SA, Martin KE, Dodd KL, Young ID (1994) Severe mi-crophthalmia, diaphragmatic hernia and Fallot’s tetralogy as-sociated with a chromosome 1;15 translocation. Clin Dys-morphol 3:287–291

23. Bouillet P, Sapin V, Chazaud C, Messaddeq N, Decimo D, Dolle P, Chambon P (1997) Developmental expression pat-tern of Stra6, a retinoic acid-responsive gene encoding a new type of membrane protein. Mech Dev 63:173–186

24. Blomhoff R, Blomhoff HK (2006) Overview of retinoid me-tabolism and function. J Neurobiol 66:606–630

25. Kumar VH, Lakshminrusimha S, Abiad MT, Chess PR, Ryan RM (2005) Growth factors in lung development. Adv Clin Chem 40:261–316

26. Greer JJ, Babiuk RP, Thebaud B (2003) Etiology of congenital diaphragmatic hernia: the retinoid hypothesis. Pediatr Res 53:726–730

27. Gallot D, Marceau G, Coste K, Hadden H, Robert-Gnansia E, Laurichesse H, Dechelotte PJ, Labbe A, Dastugue B, Lemery D, et al (2005) Congenital diaphragmatic hernia: a retinoid-signaling pathway disruption during lung development? Birth Defects Res A Clin Mol Teratol 73:523–531

28. Zile MH (2004) Vitamin A requirement for early cardiovas-cular morphogenesis speciﬁcation in the vertebrate embryo: insights from the avian embryo. Exp Biol Med (Maywood) 229:598–606

29. Langham MR Jr, Kays DW, Ledbetter DJ, Frentzen B, Sanford LL, Richards DS (1996) Congenital diaphragmatic hernia: ep-idemiology and outcome. Clin Perinatol 23:671–688 30. Lurie IW (2003) Where to look for the genes related to

dia-phragmatic hernia? Genet Couns 14:75–93

31. Klaassens M, van Dooren M, Eussen HJ, Douben H, den Dek-ker AT, Lee C, Donahoe PK, Galjaard RJ, Goemaere N, de Krijger RR, et al (2005) Congenital diaphragmatic hernia and chromosome 15q26: determination of a candidate region by use of ﬂuorescent in situ hybridization and array-based com-parative genomic hybridization. Am J Hum Genet 76:877– 882

32. Slavotinek AM, Moshreﬁ A, Davis R, Leeth E, Schaeffer GB, Burchard GE, Shaw GM, James B, Ptacek L, Pennacchio LA (2006) Array comparative genomic hybridization in patients with congenital diaphragmatic hernia: mapping of four CDH-critical regions and sequencing of candidate genes at 15q26.1-15q26.2. Eur J Hum Genet 14:999–1008

33. Ackerman KG, Herron BJ, Vargas SO, Huang H, Tevosian SG, Kochilas L, Rao C, Pober BR, Babiuk RP, Epstein JA, et al (2005) Fog2 is required for normal diaphragm and lung develop-ment in mice and humans. PLoS Genet 1:58–65

34. Clark KL, Yutzey KE, Benson DW (2006) Transcription factors and congenital heart defects. Annu Rev Physiol 68:97–121 35. Michalsky MP, Arca MJ, Groenman F, Hammond S, Tibboel

D, Caniano DA (2005) Alveolar capillary dysplasia: a logical approach to a fatal disease. J Pediatr Surg 40:1100–1105 36. Kawaguchi R, Yu J, Honda J, Hu J, Whitelegge J, Ping P, Wiita

P, Bok D, Sun H (2007) A membrane receptor for retinol bind-ing protein mediates cellular uptake of vitamin A. Science (http://www.sciencemag.org/cgi/rapidpdf/1136244v1.pdf) (electronically published ahead of print January 25, 2007; accessed January 29, 2007)
