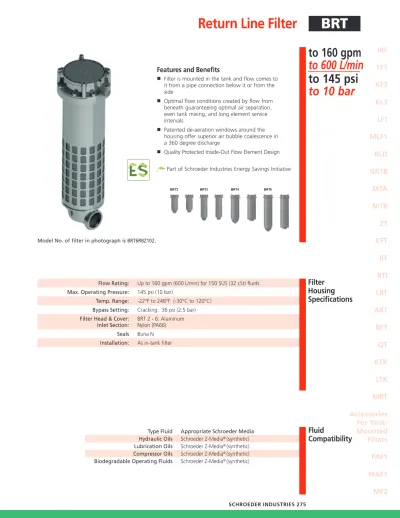

Features and Benefits

(1)

SCHROEDER INDUSTRIES 275

IRF

TF1

KF3

KL3

LF1

MLF1

RLD

GRTB

MTA

MTB

ZT

KFT

RT

RTI

LRT

ART

BFT

QT

KTK

LTK

MRT

Accessories

For

Tank-Mounted

Filters

PAF1

MAF1

MF2

Type Fluid

Appropriate Schroeder Media

Hydraulic Oils

Schroeder Z-Media

®

(synthetic)

Lubrication Oils

Schroeder Z-Media

®

(synthetic)

Compressor Oils

Schroeder Z-Media

®

(synthetic)

Biodegradable Operating Fluids

Schroeder Z-Media

®

(synthetic)

Fluid

Compatibility

Return Line Filter

BRT

to 160 gpm

to 600 L/min

to 145 psi

to 10 bar

Flow Rating:

Up to 160 gpm (600 L/min) for 150 SUS (32 cSt) fluids

Max. Operating Pressure:

145 psi (10 bar)

Temp. Range:

-22°F to 248°F (-30°C to 120°C)

Bypass Setting:

Cracking: 36 psi (2.5 bar)

Filter Head & Cover:

Inlet Section:

BRT 2 - 6: Aluminum

Nylon (PA66)

Seals

Buna N

Installation:

As in-tank filter

Filter

Housing

Specifications

Model No. of filter in photograph is BRT6RBZ102.

Features and Benefits

■

Filter is mounted in the tank and flow comes to

it from a pipe connection below it or from the

side

■

Optimal flow conditions created by flow from

beneath guaranteeing optimal air separation,

even tank mixing, and long element service

intervals

■

Patented de-aeration windows around the

housing offer superior air bubble coalescence in

a 360 degree discharge

■

Quality Protected Inside-Out Flow Element Design

(2)

BRT

Return Line Filter

Filter element removal height

B

A

h2 min. h2 min. h1 h1 H4 H5

Oil level H3 min. H3 min H2 H2 H1 H1 Oil level 4.1 RFB 0170 – 0300

Type Design Connection _pos. H1 H2 H3 H4 H5 h1 h2 h3 ØD1 Ød1 Ød2 Øk Weight _[lbs]

BRT2 Diffuser with opening H 12.7 8.68 7.32 – 11.69 2.42

11.81

0.69 5.28 7.09 7.87 0.41 7.3 Diffuser with opening V 11.99 7.97 6.61 10.61 – 7.1 BRT3 Diffuser with opening H 18.6 11.67 10.31 – 17.6 _17.72 8.6 Diffuser with opening V 17.89 10.96 9.61 16.52 – 8.8

Housing closure V Housing connection H

Mounting element e. g.: Cyl. scr. ISO4762-M10x25-8.8 Recommended torque 25 +5 Nm Torque 20 +5 Nm Ø D1 Ø d2 4x Ø k Ø d1 OUT IN OUT IN Ø D1

B

J1 connection for differential pressure indicator (e. g. VE, VA, VO)

h3

B

A

11.81

B

h3

B

A

11.81

B

h3

Element

Performance

Information

Dimensions

BRT2 - BRT3

Filtration Ratio Per ISO 4572/NFPA T3.10.8.8 Using automated particle counter (APC) calibrated per ISO 4402

Filtration Ratio per ISO 16889 Using APC calibrated per ISO 11171

Element

ß

x

≥ 75

ß

x

≥ 100

ß

x

≥ 200

ß

x(c)

≥ 200

ß

x(c)

≥ 1000

2RBZ10

C/F

11.2

2RBZ25

C/F

16.2

3RBZ10

C/F

11.2

3RBZ25

C/F

16.2

4RBZ10

C/F

11.2

4RBZ25

C/F

16.2

6RBZ10

C/F

11.2

6RBZ25

C/F

16.2

(3)

SCHROEDER INDUSTRIES 277

IRF

TF1

KF3

KL3

LF1

MLF1

RLD

GRTB

MTA

MTB

ZT

KFT

RT

RTI

LRT

ART

BFT

QT

KTK

LTK

MRT

Accessories

For

Tank-Mounted

Filters

PAF1

MAF1

MF2

Type Design Connection _position H1 H2 H3 H4 H5 H6 h h1 h2 ØD1 ØD2 Øk Weight _[lbs]

BRT4 Diffuser with opening H ₁₀ 18.37 12.09 9.21 – 16.85 0.69 2.42

16.9

6.06 8.07 0.41 9.9 Diffuser with opening V 16.63 10.34 7.17 15.5 – 9.5 BRT6 Diffuser with opening H ₁₀ 24.16 15.09 12.2 – 22.65 _22.8 12.1

Diffuser with opening V 22.11 13.04 10.16 21.3 – 11.7

Flange diameter

Filter element removal height Filter element removal height

h2 min

Oil level

Anti-drain valve Anti-drain valve

OUT

IN Housing closure V Housing connection H

Fastening element e.g.: Cyl. scr. ISO4762-M10x30-8.8 Torque 25 +5 Nm Ø d4 Ø d3 4x Ø k J1 h h1 h1 H6 H5 H2 H2 H3 H3 H4 min. H4 min. H1 min. H1 min. Ø D2 Ø D1 Ø D1 IN Ø D2

16.9

Flange diameter _{Flange diameter}

h2 min

Oil level

OUT

16.9

Flange diameter _{Flange diameter}

h2 min

Oil level

OUT

Return Line Filter

BRT

Element

Dirt Holding

Capacity & Burst

Rating

Dimensions

BRT4 - BRT6

Element DHC (g) Element DHC (g) 2RBZ10 70.4 4RBZ10 152.5 2RBZ25 77.8 4RBZ25 173.4 3RBZ10 114.3 6RBZ10 190.4 3RBZ25 128.3 6RBZ25 231.7

Element Burst Rating:

87 psi (6 bar) for standard elements

(4)

BRT

Return Line Filter

5. SPECIFICATIONS FOR THE TANK FLANGE

1.

and maximum roughness of Ra 3.2 µm.

2. In addition, the mounting interface should be free from damage and scratches. 3.

4.

neither deform when the seal is compressed during tightening.

Housing connection V Housing connection H

Installation depth Installation depth

35.5 max. 27.5 min. Ra 1.6 Installation depth Installation depth Ø 180 ±0.2 Ø 40 ±0.1 Ø 140 +0.1 0 Ø 170 min. 4x M10 30 □_{200 min.} 30° 15 min. 4x 90° 3 2 Ra 1.6 0.3 0.2 20 min. Ra 1.6 0.3 1 25° 1 28 max. Ø 40 ±0.1 1 0.3 1 25° 5.1 RFB 0170 – 0300 D D 1:1 1:1 D-D 5.2 RFB 0400 – 0600

0.3 0.2 30 2 15 min. Ra 1.6 Ø 185.7 ±0.2 □ 205 min. 4x 90° 0.3 22 min. 27 max. 25° 2 25° 0.3 Ra 1.6 2 1.5 Ø 60 ±0.1

Dimensions

BRT2 - BRT3

Dimensions

BRT4 - BRT6

5. SPECIFICATIONS FOR THE TANK FLANGE

1.

and maximum roughness of Ra 3.2 µm.

2. In addition, the mounting interface should be free from damage and scratches. 3.

4.

neither deform when the seal is compressed during tightening.

35.5 max. 27.5 min. Ra 1.6 Installation depth Installation depth Ø 180 ±0.2 Ø 40 ±0.1 Ø 140 +0.1 0 Ø 170 min. 4x M10 30 □_{200 min.} 30° 15 min. 4x 90° 3 2 Ra 1.6 0.3 0.2 20 min. Ra 1.6 0.3 1 25° 1 28 max. Ø 40 ±0.1 1 0.3 1 25° 5.1 RFB 0170 – 0300 D D 1:1 1:1 D-D 5.2 RFB 0400 – 0600

Installation depth20 min. 26 max. 0.3 0.2 30 2 15 min. Ra 1.6 Ø 185.7 ±0.2 □_{205 min.} 4x 90° 0.3 2Ra 1.6 22 min. 27 max. Ø 76 ±0.1 25° 2 25° 0.3 Ra 1.6 2 1.5 Ø 60 ±0.1

(5)

SCHROEDER INDUSTRIES 279

Pressure

Drop

Information

Based on

Flow Rate

and Viscosity

∆

P

element

Return Line Filter

BRT

Z10 Z25 0.00 0.10 0.20 0.30 0.40 0.50 0 20 40 60 80 100 120 140 160 180 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 0 5 10 15 20 25 30 35 40 45 50 Pr es sure Dr op [B AR ] Flow Rate [LPM] Pr es sure Dr op [P SI D] Flow Rate [GPM]

Total Filter Pressure Drop versus Flow Rate at 32 cSt (150 SUS)

Z10 Z25 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0 50 100 150 200 250 300 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 0 10 20 30 40 50 60 70 80 90 Pr es sure Dr op [B AR ] Flow Rate [LPM] Pr es sure Dr op [P SI D] Flow Rate [GPM]

Total Filter Pressure Drop versus Flow Rate at 32 cSt (150 SUS)

Z10 Z25 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0 50 100 150 200 250 300 350 400 450 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 0 20 40 60 80 100 120 Pre ssure Dr op [B AR ] Flow Rate [LPM] Pr es sure Dr op [P SI D] Flow Rate [GPM]

Total Filter Pressure Drop versus Flow Rate at 32 cSt (150 SUS)

Z10 Z25 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0 100 200 300 400 500 600 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0 20 40 60 80 100 120 140 160 180 Pre ssure Dr op [B AR] Flow Rate [LPM] Pr es sure Dr op [P SI D] Flow Rate [GPM]

Total Filter Pressure Drop versus Flow Rate at 32 cSt (150 SUS)

BRT2

BRT3

BRT4

(6)

Filter

Model

Number

Selection

BOX 1

BOX 2

BOX 3

Filter

Series

of Element

Size

Element Media Type

BRT

2RB

Z = Excellement

®

Z-Media

®

(synthetic)

3RB

4RB

6RB

How to Build a Valid Model Number for a Schroeder BRT:

BOX 1

BOX 2

BOX 3

BOX 4

BOX 5

BOX 6

BOX 7

BRT

–

Example:

NOTE: One option per box

BOX 1

BOX 2

BOX 3

BOX 4

BOX 5

BOX 6

BOX 7

BRT

– 3RB –

Z

– 10 –

–

1

–

= BRT3RBZ101Y2

BOX 5

BOX 6

Seal Material

Inlet Porting

Omit = Buna N

2 = side inlet

V = Viton

®

1 = bottom inlet

BRT

Return Line Filter

BOX 4

Micron Rating

10 = 10 μm

25 = 25 μm

BOX 7

Dirt Alarm

®

Options

Omit = No Indicator, sealed up w/ screw plug

Clogging

Indicators

VA = visual/electrical

VE =

electrical
