date: rev. description: designer: vs R1 Updated Elevation ans Site Plan bw R2 Revised removing tri-stripes from fuel canopy.

(1)

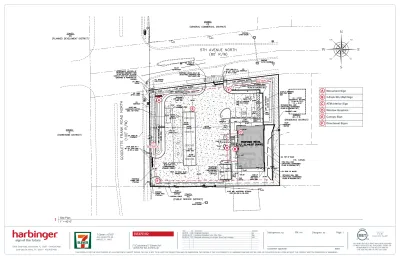

Site Plan

1

1” = 40’-0”

D B A

E

F

10’

SETBACK

10’

SETBACK

Monument Sign

A

D E F

C

ATM Interior Sign Window Graphics Canopy Sign Directional Signs

B

3-Pack SEJ Wall Sign

C

(2)

MANUFACTURE & SHIP ONE (1) M25 (03130797) D/F INTERNALLY ILLUMINATED “MAIN ID” SIGN CABINET. 3/16” THICK PAN FORMED & EMBOSSED WHITE POLYCARBONATE FACES W/ TRANSLUCENT VINYL GRAPHICS APPLIED FIRST SURFACE. 8” DEEP EXTRUDED ALUM. CABINET W/ 2” INSET HINGED RETAINERS TO BE PAINTED DURANODIC BRONZE.

CABINET TO BE INTERNALLY ILLUMINATED W/ WHITE LEDS. 2” INSET RETAINERS TO BE HINGED ON ONE SIDE OF CABINET.

MANUFACTURE & SHIP ONE (1) CUSTOM D/F INTERNALLY ILLUMINATED GAS PRICE/OTH SIGN CABINET. CABINET TO BE INTERNALLY ILLUMINATED W/ WHITE LEDS.

3/16” THICK PAN FORMED CLEAR POLYCARBONATE FACES BACK SPRAYED PMS 485 RED THEN PMS WHITE W/ 3M 3630-26 GREEN TRANSLUCENT VINYL APPLIED SECOND SURFACE.

8” DEEP EXTRUDED ALUM. CABINET W/ 2” INSET HINGED RETAINERS & 1 1/2” DIVIDER BARS ALL TO BE PAINTED DURANODIC BRONZE.

2” INSET RETAINERS TO BE HINGED ON ONE SIDE OF CABINET.

TOP MONUMENT TRIM TO BE FABRICATED ALUM. & PAINTED TO MATCH SW 7037 BALANCED BEIGE (PROVIDED BY HARBINGER).

BOTTOM MONUMENT TRIM TO BE FABRICATED ALUM. & PAINTED TO MATCH SW 7035 BALANCED BEIGE (PROVIDED BY HARBINGER).

3M 3630-44 ORANGE, 3M 3630-33 RED, 3M 3630-26 GREEN, 3M 7725-12 BLACK VINYL SPECS:

PMS 485 RED, PMS WHITE, DURANODIC BRONZE, SW 7037 BALANCED BEIGE, SW 7035 BALANCED BEIGE PAINT SPECS:

NOTE: PER CODE, MONUMENT SIGN CANNOT DISPLAY PRICE.

NOTE: STONE VENEER BASE TO MATCH BUILDING ELEVATION ARCHITECTURE, PROVIDED BY OTHERS.

NOTE: VERTICAL MOUNTING STEEL & FOOTING TO BE PROVIDED BY OTHERS.

NOTE: LANDSCAPE HEDGES TO BE PROVIDED BY OTHERS.

Face & Side Detail - M25 & Custom Gas Price / OTH Monument Sign - Sign A

2

1/2” = 1’-0” Display Square Footage (Cabinets Combined): 49.8

Plastic: M25 & L25G2D DIESEL BKGRND SIZE:

PRODUCT COPY:

11” X 24”

3.25”

PRODUCT COPY SPECS:

OAH:

OAL:

47”

42 15/16”

7-ELEVEN LOGO DIMENSIONS:

6”

22” TOP TRIM 8”

2” PAN 2” PAN

HINGE

PANNED 3/16”

ACRYLIC FACE WHITE LEDS 2” INSET RETAINER

1/4” EMBOSS EMBOSS 3/4” EMBOSS POWER SUPPLY

HINGE

WHITE LEDS 2” INSET RETAINER

PANNED 3/16”

ACRYLIC FACE

9’-2 1/2” FROM GRADE (OAH) 4’-3 1/8” PAN4’-6 1/8” V.O.4’-8 7/8” CUT SIZE4’-10 ½” CABINET 6”2”4”

10’-2 3/4” CABINETS COMBINED

4’-6” PAN 4’-9” V.O.

4’-11 3/4” CUT SIZE

4’-6” PAN 4’-9” V.O.

4’-11 3/4” CUT SIZE 11’-2 3/4”

12’-4 3/4” TOP TRIM (OAW)

6” 6”

5’-1 3/8” CABINET 5’-1 3/8” CABINET

10”3’-0” STONE BASE 2”2”

6”

22” TOP TRIM 8”

2” PAN 2” PAN

12” STONE 14” TRIM

PANNED 3/16”

ACRYLIC FACE POWER SUPPLY

Square footage Calculations:

Allowed:

Proposed:

60.0 sqft 49.8 sqft

Allowed:

Proposed:

15’-0”

9’-2 1/2”

Allowable Sign Height:

6”

6” ^1” ^1”

1’-3” PAN 2’-10 5/8” V.O. 1’-8” CUT SIZE 4’-10 ½” CABINET3’-5/8” CUT SIZE1’-6” V.O.2’-7 5/8” PAN

1 1/2” DIVIDER BAR

LEDGE STONE VENEER BASE (BY OTHERS) LEDGE STONE

VENEER BASE (BY OTHERS)

(3)

Side Mounting Detail - Sign B

4

NTS

BUILDING WALL/FASCIA PANNED &

EMBOSSED FACE LAGS BOLT

7.22”

NOTE: FOR COMPLETE INSTALL INSTRUCTIONS, REFER TO ENCLOSED MANUFACTURES’ DOCUMENTS.

ONE (1) SET OF 24” S/F INTERNALLY ILLUMINATED WALL SIGNS (SEJ 1300 SERIES).

ELECTRICAL NOTE: EXPOSED EXTERIOR 20 AMP WEATHERPROOF ELECTRICAL DISCONNECT REQUIRED WITHIN VISUAL RANGE OF SIGN REQUIRED FOR EVERY 16 AMPS OF SIGNAGE. ACTUAL NUMBER OF CIRCUITS TO BE DETERMINED BY A LICENSED ELECTRICAL CONTRACTOR. ACTUAL LOCATION OF BOX MAY VARY. CIRCUITS AND SWITCH TO BE PROVIDED BY OTHERS. INPUT VOLTAGE - 120V

ALL SIGNAGE WILL BE (MET) LISTED,(U.L.) 48STD COMPLIANT AND CARRY (MET) LABELS.

ON OFF

Front Elevation - SEJ Wall Sign Cabinets - Sign B

3

1/4” = 1’-0” Display Square Footage(Cabinets): 27.5

50.8661” CABINET 13’-9 3/16” (OAL)

50.8661” CABINET

50.8661” CABINET 6.3

29 3/4” R.C. 24” CAB.

6.3

Photo Overlay (West Elevation) - Signs B, C & D

5

1/8” = 1’-0”

Square footage Calculations:

Allowed:

Proposed:

30.0 27.5

ON

OFF

+/- 72’

Number of signs allowed:

Allowed:

Proposed:

1 1

Formula: Allowed one sign per road frontage

(4)

Front Elevation - Typical Window Vinyl Graphics - Sign D

7

3/8” = 1'-0"

WINDOW VINYL GRAPHICS. VINYL GRAPHICS TO BE APPLIED SECOND SURFACE ONTO DESIGNATED STORE WINDOWS.

NOTE: WINDOW GRAPHICS KITS TO BE PROVIDED AND INSTALLED BY OTHERS. NOT PART OF HARBINGERS SCOPE OF WORK.

NOTE: FOR FULL INSTALLATION INSTRUCTIONS, REFER TO 7-ELEVEN SIGNAGE MANUAL.

GRAPHIC AS REQUIRED

3’-2” FROM GRADE

7 1/4”

THE VERY FIRST WINDOWS ON EITHER SIDE OF THE DOOR WILL GET THE STRIPE WITH THE LOGO. ALL OF THE REMAINING WINDOWS WILL GET STRIPES WITHOUT THE LOGO.

FROSTING UNDER THE STRIPES ONLY TO HIDE EQUIPMENT AT THE SALES COUNTER AREA

WHEN DESIRED.

(DETERMINED BY OTHERS)

Front Elevation & Side Mounting Detail - Standard ATM S/F Window Sign - Sign B

6

_{1” = 1’-0”} Display Square Footage (Cabinet): 3.2

INSTALL ONE (1) STANDARD INTERNALLY ILLUMINATED S/F WINDOW SIGN. 3/16” THICK FLAT WHITE ACRYLIC FACE W/TRANSLUCENT VINYL GRAPHICS APPLIED FIRST SURFACE. CABINET TO BE INTERNALLY ILLUMINATED W/ T-8 H.O. FLUORESCENT LAMPS. 5 1/8” DEEP ALUM. CABINET &

1” RETAINERS ALL PAINTED BLACK. SIGN TO HANG INSIDE THE STORE BEHIND GLASS AS INDICATED IN PHOTO OVERLAY WITH EYE BOLTS.

VINYL SPECS: 3M 3630-26 GREEN

NOTE: ATM SIGN TO BE FABRICATED & PROVIDED BY OTHERS!

5 1/8”

1” RETAINER FLAT 3/16”

ACRYLIC FACE FLUORESCENT LAMP EYE BOLT 3’-½” CUT SIZE

2’-10 3/4” V.O.

1’-1/4” CUT SIZE 10 ½” V.O.

3’-3/4” CABINET

1’-½” CABINET

(5)

4-1/4"

4-3/16"

6-3/4"

Front View & Side Mounting Detail - W9 (03130855) Canopy Sign Cabinet - Sign E

8

1/2” = 1’-0" Display Square Footage(Cabinet): 9.0

MANUFACTURE & SHIP ONE (1) W9 (03130855) S/F INTERNALLY ILLUMINATED WALL SIGN CABINET.

3/16” THICK PAN FORMED & EMBOSSED WHITE ACRYLIC FACE W/ TRANSLUCENT VINYL GRAPHICS APPLIED FIRST SURFACE. 4” DEEP EXTRUDED ALUM. CABINET W/ 1 1/4” RETAINERS TO BE PAINTED

WHITE. CABINET TO BE INTERNALLY ILLUMINATED W/ WHITE LEDS.

7-ELEVEN VINYL SPECS: 3M 3630-44 ORANGE, 3M 3630-33 RED, 3M 3630-26 GREEN NOTE: SIGN TO BE INSTALLED 2’-0” FROM LEFT EDGE OF GAS CANOPY.

3’-0” CABINET 2’-11 ½” CUT SIZE

2’-9 ½” V.O.

2’-7 ½” PAN

3’-0” CABINET 2’-11 ½” CUT SIZE 2’-9 ½” V.O. 2’-7 ½” PAN

PANNED 3/16”

ACRYLIC FACE ON/OFF TOGGLE SWITCH

LAG BOLTS W/ SHIELDS WHITE LED

BUILDING FASCIA 4” 2” PAN

1/4” EMBOSS EMBOSS 3/4” EMBOSS

.040 ALUM. BACK POWER SUPPLY

1 1/4” RETAINER

Canopy Elevations - Sign E

10

SOUTH ELEVATION:

NORTH ELEVATION: 9.0 SQ. FT. EAST ELEVATION:

WEST ELEVATION:

Front Elevation & Side Detail - Typical Canopy Sign Layout - Sign E

9

3/8” = 1’-0”

VARIES

TBD FASCIA

2’-0” 3’-0”

3’-0” CABINET

+/- 90’

+/- 22 2’

+/- 22’

2’

3’

(6)

MANUFACTURE & SHIP TWO (2) CUSTOM HEIGHT D/F INTERNALLY ILLUMINATED DIRECTIONAL SIGN CABINETS.

3/16” THICK PAN & EMBOSSED WHITE POLYCARBONATE FACES W/ TRANSLUCENT VINYL GRAPHICS APPLIED FIRST SURFACE. 3 5/8” DEEP EXTRUDED ALUM. CABINET W/ 1” RETAINERS TO BE PAINTED DURANODIC BRONZE.

CABINET TO BE INTERNALLY ILLUMINATED W/ WHITE LEDS.

3M 3630-44 ORANGE, 3M 3630-33 RED, 3M 3630-26 GREEN 7-ELEVEN VINYL SPECS:

NOTE: ARROWS TO ALWAYS BE FACING TOWARDS STORE.

NOTE: PER CODE, MAXIMUM HEIGHT TO BE 4 FEET.

Front Elevation & Side Detail - Standard D/F Directional Sign Cabinet - Sign Type F

11

3/4” = 1’-0”

2’-0” BELOW GRADE

MOUNTING FOOTING SPECS

(BY OTHERS) 1’-5 ½” CUT SIZE

1’-2 1/2” PAN 1’-4” V.O.

1’-6” CABINET

2’-0” CUT SIZE 1’-10 5/8” V.O.

2’-5/8” CABINET

4’-0” (OAH)

2” PAN 3 ⅝”

WHITE LEDS 1”X1” ANGLE RETAINER

PANNED 3/16”

POLYCARBONATE FACE EMBOSS POWER SUPPLY

2” PAN

2”X2” ALUM.

SQUARE TUBE POLES

3”

1’-9 3/8” PAN

SIDE A SIDE B

Standard Directional Cabinet Square footage Calculations:

Allowed:

Proposed:

4.0 sqft (Each) 3.0 sqft (Each)

Allowed:

Proposed:

4’-0”

Allowable Sign Height:
