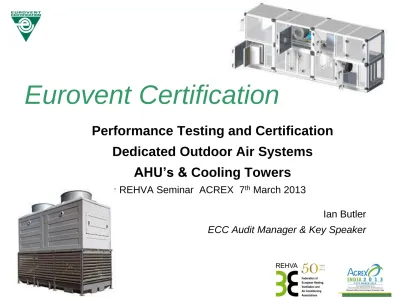

Eurovent Certification

Performance Testing and Certification

Dedicated Outdoor Air Systems

AHU’s & Cooling Towers

REHVA Seminar ACREX 7th _{March 2013}

Ian Butler ECC Audit Manager & Key Speaker

2/30

First to

THANK ALL

the drivers

3/30

4/30 This is not one countries problem

BUT every countries problems! Where is the power coming from ?

Is it ‘sustainable’ in what we have & are doing TODAY!

5/30

6/30 _{March 2013}

Can you TRUST this Products Performance?

I am sure it has not been CERTIFIED!

Introduction and Plan

• Introduction

• Eurovent Certification

Company (ECC)

• Overview: AHU & Cooling

Tower Programme’s

• Summary & Formula for

Success



.

ECC Product Certification in Detail

REHVA Special Addition Journal

(3) Air conditioners

Fan coil

units Air filters Chilled beams

Refrigerated display cabinets

Heat exchangers Air handling units

(2) Heat recovery systems

Rooftops

Cooling towers Drift eliminators

18 certification programmes

+ including VRF (publication mid-2013)

Chillers & Heat pumps

Variable refrigerant flow Close

control AC

Eurovent Certification Company

Much more : Committees and Commissions

• Certification Programmes cohabit with market expectations

and legislation through Europe

 Continuous change progression through 12 Compliance Committees

 Committees made up of representatives from manufacturers, be they small or big, covering all Europe

 150 people working together makes progress smooth and profitable to the whole HVAC & R industry and to its end-users

 Harmonisation and Integrity in Commission with associations of contractors, laboratories and end-users

14 Independent Laboratories

& testing agencies, through Europe

accredited ISO 17025

Madrid Spain

CETIAT Lyon France

CTI Houston USA

DMT Essen Germany

DTI Copenhagen Danemark

HOCHSHULE Luzern Switzerland

IMQ Amaro Italy

MC HALE Washington USA

TNO Apeldoorn Holland

SP Boras Sweden

TÜV-NORD Essen Germany TÜV-SÜD Munich Germany

VTT Espoo Finland

WSP Stuttgart Germany

11/30 _{March 2013}

ECC is accredited according to EN45011:1998 equivalent ISO 17065:2012)

Certification

How does it work?

12/30 _{March 2013}

Declaration lists

Product ranges (and models)

+ Technical characteristics & Performances or Selection software

After study of the list

Selection

Random selection of models

No. of tests based on lifetime of models or Selection software Performance data registered from Software outputs Selection on-site & visit of the

Production place

Delivery, verification of testing object

Testing in an independent laboratory Comparison declared vs. measured data

If necessary: correction of catalogues or software

Review, Approval, certificate and

Publication of data

www.eurovent-certification.com & www.certiflash.com File rejected

Independent Third Party Control

in Collaboration with ECC Participants

ASSURANCE THAT RULES ARE

ADHERED TO!

CAR EXAMPLE

: (Close the loop during

factory audit for AHU Model Box standard

manufacture)

Standard Certified UNIT from Software & Factory Production

You Can TRUST

Special UNIT just for your test Mr Customer! NO ‘Control’

ECC website

QUICK SEARCH

DIFFERENT WAYS OF ACCESSING DATA

Certiflash

TM

- pop-up from search engines - on manufacturer websites - an app Manufacturer Ljgmoeigh nvoiuhva Vojziuvnû(nûnvav, V;* »p’(inv,*ât,*^v Nfmehfmoifh Ahoghamo »igh Ljgmoeigh nvoiuhva Vojziuvnû(nûnvav, Vojzuv nûnvav,

2012

Overview of energy labels &

performances for HVAC products

Product

Energy performances

Description

AC<12kW (S)EER, (S)COP

Vent. units SEC

Boilers/HP ηs

Chillers/HP (S)EER, (S)COP, ESEER

Fans η

VRF (S)EER, (S)COP

Rooftops (S)EER, (S)COP

AC>12kW (S)EER, (S)COP

AHU f(V,η,∆p,f)

Fan Coils FCEER, FCCOP

Air Filters An. En. Cons

HEx R Res. Non Res. MEPS 2013 2015 2015? 2002 ₁₉₉₅ 2015? 1995 (HP) 1995 2013 2007 1995 2007 1995 2007 2001 2013 2015? 2015 2015? 2015? 2015? 2015? 2015? 2013 2004 2010 2008 2011 2012 2005

?

?

Air handling units

• Key facts

 6 classes from A to <E: complex interrelationships to evaluate the energy efficiency of AHU, can even depend on climate conditions

 One letter to represent balanced effects of:

• Air velocity in the fan section (v)

• Heat recovery efficiency (η) and pressure drop (Δp) • Fan efficiency (f)

 3 subgroup of products:

• Design outdoor temperature < 9°C (HRS will significantly save energy) • Design outdoor T > 9°C : N

• Single supply / extract units : h

CLASS

All Units

Units for full or partial outdoor air at design winter

temperature ≤ 9°C Absorbed power factor Velocity Heat recovery system

vclass [m/s] ηclass [%] Δpclass [Pa] fclass–Pref [-]

A / AN / Ah 1.8 75 280 0.9

B / BN / Bh 2.0 67 230 0.95

C / CN / Ch 2.2 57 170 1.0

D / DN / Dh 2.5 47 125 1.06

E / EN / Eh 2.8 37 100 1.12

<E / <EN /<Eh No calculation required No requirement

18/30 _{March 2013}

•

Timeframe

 2nd _{draft commission}

working document

ECC energy label for

Fan coil units

0 200 400 600 800 1000 1200 G F E D C B A Others

Variable speed fan

Classes A and B only achieved by variable speed fan units

Technology & Innovation driving Efficiency

ECC energy label for

Fan coil units

 Available since 2011

 First energy label for FCU in the world!

• Key facts

 Weighted average of performance of low, medium and high speeds

 Consider both sensible and latent capacities

low med high low med high c Pe c Pe c Pe Pc Pc Pc FCEER ) ( % 65 ) ( % 30 ) ( % 5 % 65 % 30 % 5            low med high low med high h Pe h Pe h Pe Ph Ph Ph FCCOP ) ( % 70 ) ( % 25 ) ( % 5 % 70 % 25 % 5            20/30 _{March 2013}

ECC Collaboration & Incentives

• Eurovent Certification & Cooling Technology Institute

 For Cooling Tower Certification (Joint Certification Programme)

NEW PROGRAMME

• Eurovent Certification Liquid Chiller Package / Heat Pump &

NFCAP

 French Heat Pump Certification, Recognition of Products that Meet Specified Quality Requirements i.e. COP with ‘Min’

Thresholds

• Eurovent Certification Members AHU’s & VLA (Netherlands)

 Government Capital Rebate programme (For ECC Air Handling Members with Certified A Class products)

• Eurovent Certification Members Remote Refrigeration Display Cabinet’s & Spanish Government

 Government incentives for High Efficiency Refrigeration Display Cabinets (Energy Class A & B only)

Cooling Tower Certification

Started Feb,2012

22/30 _{March 2013}

Cooling Tower Certification for

Open

Circuit

& soon to announce inclusion of

Closed Circuit

• The importance of air conditioning and

industrial cooling is constantly increasing in modern architecture and industrial process cooling.

• The human perception of comfort and the new challenges to reduce the electrical power consumption and CO2 footprint

have designers striving for optimal system performances with the highest possible efficiencies. Reliable thermal

performances are crucial to ensure these

best efficiencies which are typical for cooling circuits driven by evaporative cooling

equipment.

• Eurovent Certification Company guarantees the consistency of thermal testing and

manufacturing of European and

non-European companies that subscribe to the program.

Summary

Key benefits in one glance

• Easy product selection in HVAC-R

 Direct comparison of competitive products

• Good for customer, good for the planet

 New installations as well as retrofitting

 Less energy consumption as the unit runs as expected to achieve the required performance ⇒ reduced product climate and environmental impact as well as electricity costs

 Possible Incentives for more energy savings?

• In all cases, the best practice:

Good design (avoid oversizing)

⇒ ask for third party certified performances

Good energy efficiency

⇒ ask for third party certified best classes

Formula For Success:

Certified efficient

products

,

Optimized system designs, &

Professional installations

Some key issues:

• Air Re-circulation

• Noise Amplification

• Control Strategy

• Poor Installation

• Regular Maintenance

Thank you

for your attention
