Ethernet PFC Sending Application note

(1)

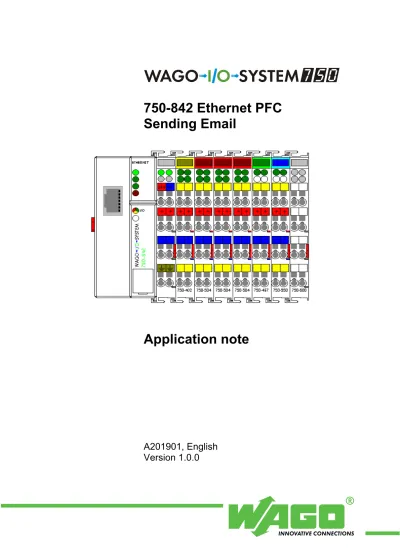

750-842 Ethernet PFC

Sending Email

(2)

2 • General

WAGO Kontakttechnik GmbH Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: [email protected] Web: http://www.wago.com Technical Support Phone: +49 (0) 571/8 87 – 5 55 Fax: +49 (0) 571/8 87 – 85 55 E-Mail: [email protected]

(3)

Table of Contents • 3

1 Important

comments

To ensure fast installation and start-up of the units described in this manual, we strongly recommend that the following information and explanation is carefully read and adhered to.

1.1 Legal principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations con-tained therein. Any use of this manual which infringes the copyright provisions stipulated herein, is not permitted. Reproduction, translation and electronic and photo-technical archiving and amendments require the written consent of WAGO Kontakttechnik GmbH. Non-observance will entail the right of claims for damages.

1.1.2 Personnel

qualification

The use of the product detailed in this manual is exclusively geared to spe-cialists having qualifications in PLC programming, electrical spespe-cialists or persons instructed by electrical specialists who are also familiar with the valid standards. WAGO Kontakttechnik GmbH declines all liability resulting from improper action and damage to WAGO products and third party products due to non-observance of the information contained in this manual.

1.1.3 Intended

use

For each individual application, the components supplied are to work with a dedicated hardware and software configuration. Modifications are only admit-ted within the framework of the possibilities documenadmit-ted in the manuals. All other changes to the hardware and/or software and the non-conforming use of the components entail the exclusion of liability on part of WAGO Kon-takttechnik GmbH.

Please direct any requirements pertaining to a modified and/or new hardware or software configuration directly to WAGO Kontakttechnik GmbH.

(5)

Important comments • 5

1.2 Range of validity

This application note is based on the stated hardware and software of the spe-cific manufacturer as well as the correspondent documentation. This applica-tion note is therefore only valid for the described installaapplica-tion.

New hardware and software versions may need to be handled differently. Please note the detailed description in the specific manuals.

(6)

6 • Description

2 Description

The purpose of this document is to provide step-by-step procedures for confi-guring a WAGO Ethernet PFC (750-842) for transmittal of email messages. In order to demonstrate that emails are being transmitted, a mail server is setup using ArGoSoft Mail Server, a freeware product available for download at

www.argosoft.com. Microsoft’s Outlook is used to view the messages trans-mitted by the WAGO Ethernet PFC. This document first shows how to confi-gure ArGoSoft and Outlook on a local PC, followed by how to conficonfi-gure and initiate transmittal of email messages by the WAGO Ethernet PFC.

The procedures in this document have been tested with (but are not limited to) the following hardware/software configuration:

· Intel Pentium III based PC running Windows 98 Operating System, with Ethernet network interface card

· ArGoSoft Mail Server version 1.4 · Microsoft Outlook 98

· WAGO 750-842 Ethernet Buscoupler, firmware revision 4.0 · WAGO 750-400 2pt. Digital Input Module, 24VDC

· WAGO 758-500 Industrial Ethernet Switch

· Ethernet interconnection cables (quantity 2), with straight through connec-tivity

For other details about WAGO I/O please refer to the WAGO Users Manuals.

(7)

Reference Material • 7

3 Reference

Material

3.1 Procedure 1: Configuring the ArGoSoft Mail Server.

Install the ArGoSoft Mail Server, version 1.4, and configure it as follows: A) Start ArGoSoft Mail Server.

B) Under Tools…Options… create a local domain. In the example, the do-main is ‘mymailserver.com’.

(8)

8 • Reference Material

C) Under Tools…Users… create a new user. In the example, the new user is ‘user1’. Enter a Real Name and Password in the fields. Be sure to remember the password, as you will need it later.

(9)

3.2 Procedure 2: Configuring service for Microsoft Outlook

Start Microsoft Outlook, and proceed as follows:

Under Tools…Services… add a new service of type Internet E-mail. In the example, the new service is ‘PFC Mail Server’. Under User Information, fill in the Name and E-mail address fields. The E-mail address field must coin-cide with the user and local domain set up in ArGoSoft.

(10)

10 • Reference Material

Under the Servers tab, enter the IP address for the Incoming and Outgoing

mail servers. The IP addresses will be that of the local PC. Enter the Account name and Password as they were entered in the ArGoSoft user configuration.

Figure 4: Creating an Internet E-mail Service in Outlook.

(11)

3.3 Procedure 3: Configuring the WAGO Ethernet PFC

Configure the 750-842 WAGO Ethernet PFC as follows:

Download the EmailDemo.pro project to the 750-842 Ethernet PFC. A snapshot of the project is shown here. Be certain to copy the libraries SMTP_MAIL.LIB and ETHERNET.LIB into the \LIB2 subdirectory of WAGO-I/O-PRO 32, and insert them into the project.

(12)
