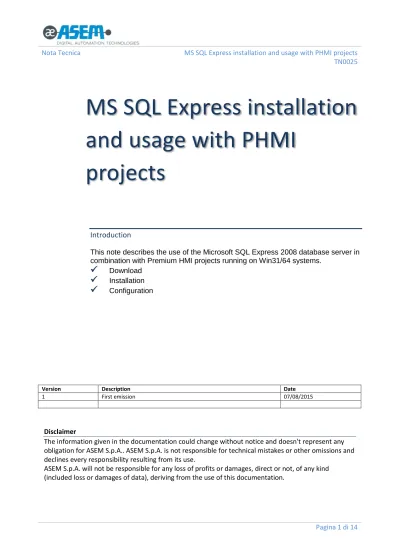

Nota Tecnica MS SQL Express installation and usage with PHMI projects TN0025

Pagina 1 di 14

MS SQL Express installation

and usage with PHMI

projects

Introduction

This note describes the use of the Microsoft SQL Express 2008 database server in combination with Premium HMI projects running on Win31/64 systems.



Download



Installation



Configuration

Version Description Date

1 First emission 07/08/2015

Disclaimer

The information given in the documentation could change without notice and doesn't represent any obligation for ASEM S.p.A.. ASEM S.p.A. is not responsible for technical mistakes or other omissions and declines every responsibility resulting from its use.

(2)

Nota Tecnica MS SQL Express installation and usage with PHMI projects TN0025 Pagina 2 di 14

1 Introduction

SQL Server 2008 Express is a free edition of SQL Server that is ideal for learning and building desktop and server applications of small and medium-sized compatible with the ODBC connector Premium HMI.

Database newer versions than 2008 edition, are not supported by Premium HMI.

2 Download

You can get the installation package from the following link.

http://www.microsoft.com/en-us/download/details.aspx?id=30438

When making the selection of the components to download, please get the one, which is compatible with the system where you are going to install it according to the following table.

SQLEXPR_x64_ENU.exe 64bit systems SQLEXPR_x86_ENU.exe 32bit systems

SQLEXPR32_x86_ENU.exe includes the support for both 32/64bit systems

3 Installation

Make sure you have logged in to the system with a user account having administrative rights and then run the setup.

(4)

Pagina 4 di 14 Proceed then with the installation.

In the “Feature selection” screen leave all the option as default as shown in the following figure.

(5)

Pagina 5 di 14 In the “Server configuration” screen, you can setup the service account. If not strictly required we suggest leaving all the default settings.

(6)

Pagina 6 di 14 The paths shown in this screen will be used to store the data. When keeping the default settings the data are archived in a sub-folder of the database server installation directory.

Each database is made of two files, one for the data and one for the transaction log.

Click “Next” to finally start the installation.

(7)

Pagina 7 di 14

4 Configuration in Premium HMI Studio

To configure a Premium HMI project to use the database server just installed you need to: - Configure the default ODBC plug-in

- Create the tables for the several items you’ll need to archive: o Alarms historical list

o Recipes and dataloggers o Audit trail

4.1 ODBC plug-in settings

(8)

Pagina 8 di 14 Click on the right side of the column as select “SQLServerExp 2008”.

Click on “ODBC settings” to setup the connection parameters.

The server name can be found using the “SQL Server Configuration Manager” tool that has been installed automatically together with the database server.

(9)

Pagina 9 di 14 The string “(local)” before the name says the server is local to the system on which Premium HMI Runtime will be executed.

In the “Database” field, you need to specify the name of the database. If left empty Premium will use the project name

4.2 Creating the database, the tables and the ODBC data sources

To have Premium HMI Runtime storing data into the database you will need to create the database, the tables for each set of items you need to store and the ODBC data sources links used by the applications (in this case PHMI Runtime) to connect to the database server.

Please remember that in order to enable the use of the relational database through the ODBC connector you simply need to disable the IMDB archive.

The next figure shows the case of the system historical log.

The database, the tables and the ODBC links can be created directly from Premium HMI Studio or manually using the “SQL Express Management Studio” tool.

4.2.1 Creating the database, the tables and the ODBC links by means of Premium HMI Studio

You need to install the Premium HMI Studio on the PC where also the Premium HMI Runtime will be executed and where the database server is installed.

(10)

Pagina 10 di 14 The first time this command is executed, Premium HMI Studio creates the database, the tables and the ODBC links automatically.

(11)

Pagina 11 di 14

4.2.2 Creating the database and the tables by means of the SQL Express Management Studio

You need to install the “Microsoft® SQL Server® 2008 Management Studio Express” tool available free from the following link:

http://www.microsoft.com/en-us/download/details.aspx?id=7593

Launch the setup and select the option as per the following figure.

(12)

Pagina 12 di 14 In the "Feature selection" screen, mark the checkbox "Management tools ..." as shown in the following figure.

Complete now the component installation.

(13)

Pagina 13 di 14 The name of the server is specified in the "Server name" field, which is pre-compiled automatically when the tool starts; if there is only one server instance it is also already the correct name.

Once the connection is done, click with the right mouse button over the ”Databases” icon and select “New database”.

In the "New database" screen specify the name of the database, and confirm.

(14)

Pagina 14 di 14 Premium HMI Runtime when executing the project will automatically create the tables and the ODBC data sources.
