Vol 5, No 1 (2017)

(1)

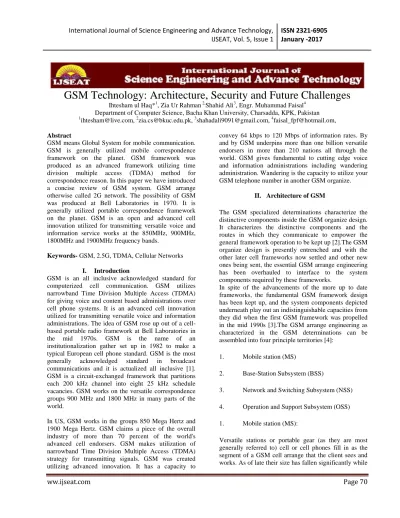

GSM Technology: Architecture, Security and Future Challenges

Ihtesham ul Haq*1, Zia Ur Rahman2,Shahid Ali3, Engr. Muhammad Faisal4

Department of Computer Science, Bacha Khan University, Charsadda, KPK, Pakistan

1_{[email protected],}2_{[email protected],}3_{[email protected],}4_{[email protected],}

Abstract

GSM means Global System for mobile communication. GSM is generally utilized mobile correspondence framework on the planet. GSM framework was produced as an advanced framework utilizing time division multiple access (TDMA) method for correspondence reason. In this paper we have introduced a concise review of GSM system. GSM arrange otherwise called 2G network. The possibility of GSM was produced at Bell Laboratories in 1970. It is generally utilized portable correspondence framework on the planet. GSM is an open and advanced cell innovation utilized for transmitting versatile voice and information service works at the 850MHz, 900MHz, 1800MHz and 1900MHz frequency bands.

Keywords- GSM, 2.5G, TDMA, Cellular Networks

I. Introduction

GSM is an all inclusive acknowledged standard for computerized cell communication. GSM utilizes narrowband Time Division Multiple Access (TDMA) for giving voice and content based administrations over cell phone systems. It is an advanced cell innovation utilized for transmitting versatile voice and information administrations. The idea of GSM rose up out of a cell-based portable radio framework at Bell Laboratories in the mid 1970s. GSM is the name of an institutionalization gather set up in 1982 to make a typical European cell phone standard. GSM is the most generally acknowledged standard in broadcast communications and it is actualized all inclusive [1]. GSM is a circuit-exchanged framework that partitions each 200 kHz channel into eight 25 kHz schedule vacancies. GSM works on the versatile correspondence groups 900 MHz and 1800 MHz in many parts of the world.

In US, GSM works in the groups 850 Mega Hertz and 1900 Mega Hertz. GSM claims a piece of the overall industry of more than 70 percent of the world's advanced cell endorsers. GSM makes utilization of narrowband Time Division Multiple Access (TDMA) strategy for transmitting signals. GSM was created utilizing advanced innovation. It has a capacity to

convey 64 kbps to 120 Mbps of information rates. By and by GSM underpins more than one billion versatile endorsers in more than 210 nations all through the world. GSM gives fundamental to cutting edge voice and information administrations including wandering administration. Wandering is the capacity to utilize your GSM telephone number in another GSM organize.

II. Architecture of GSM

The GSM specialized determinations characterize the distinctive components inside the GSM organize design. It characterizes the distinctive components and the routes in which they communicate to empower the general framework operation to be kept up [2].The GSM organize design is presently entrenched and with the other later cell frameworks now settled and other new ones being sent, the essential GSM arrange engineering has been overhauled to interface to the system components required by these frameworks.

In spite of the advancements of the more up to date frameworks, the fundamental GSM framework design has been kept up, and the system components depicted underneath play out an indistinguishable capacities from they did when the first GSM framework was propelled in the mid 1990s [3].The GSM arrange engineering as characterized in the GSM determinations can be assembled into four principle territories [4]:

1. Mobile station (MS)

2. Base-Station Subsystem (BSS)

3. Network and Switching Subsystem (NSS)

4. Operation and Support Subsystem (OSS)

1. Mobile station (MS):

Versatile stations or portable gear (as they are most generally referred to) cell or cell phones fill in as the segment of a GSM cell arrange that the client sees and works. As of late their size has fallen significantly while

GSM Technology: Architecture, Security and Future Challenges

Ihtesham ul Haq*1, Zia Ur Rahman2,Shahid Ali3, Engr. Muhammad Faisal4 Department of Computer Science, Bacha Khan University, Charsadda, KPK, Pakistan

Abstract

I. Introduction

Versatile stations or portable gear (as they are most generally referred to) cell or cell phones fill in as the segment of a GSM cell arrange that the client sees and works. As of late their size has fallen significantly while

GSM Technology: Architecture, Security and Future Challenges

Ihtesham ul Haq*1, Zia Ur Rahman2,Shahid Ali3, Engr. Muhammad Faisal4 Department of Computer Science, Bacha Khan University, Charsadda, KPK, Pakistan

Abstract

I. Introduction

(2)

the level of usefulness has incredibly expanded. A further preferred standpoint is that the time between charges has essentially expanded.

There are various components to the wireless, in spite of the fact that the two principle components are the fundamental equipment and the SIM.The equipment itself contains the primary components of the cell phone including the show, case, battery, and the hardware used to produce the flag, and process the information beneficiary and to be transmitted. It likewise contains a number known as the International Mobile Equipment Identity (IMEI). This is introduced in the telephone at fabricate and "can't" be changed. It is gotten to by the system amid enrollment to check whether the hardware has been accounted for as stolen.

The SIM or Subscriber Identity Module contains the data that gives the personality of the client to the system. It contains are assortment of data including a number known as the International Mobile Subscriber Identity (IMSI).

2. Base Station Subsystem (BSS)

The Base Station Subsystem (BSS) segment of the GSM organize engineering that is on a very basic level related with speaking with the mobiles on the system. It comprises of two components:

1) Base Transceiver Station (BTS): The BTS utilized as a part of a GSM organize involves the radio transmitter recipients, and their related reception apparatuses that transmit and get to straightforwardly speak with the mobiles. The BTS is the characterizing component for every cell. The BTS speaks with the mobiles and the interface between the two is known as the Um interface with its related conventions [5].

2) Base Station Controller (BSC): The BSC shapes the following stage over into the GSM organize. It controls a gathering of BTSs, and is regularly co-situated with one of the BTSs in its gathering. It deals with the radio assets and controls things, for example, handover inside the gathering of BTSs, designates channels and so forth. It speaks with the BTSs over what is named the Abis interface.

named the center system. It gives the principle control and interfacing for the entire versatile system. The significant components inside the center system include:

1) Mobile Switching administrations Center (MSC): The fundamental component inside the center system region of the general GSM arrange engineering is the Mobile exchanging Services Center (MSC). The MSC demonstrations like a typical exchanging hub inside a PSTN or ISDN, additionally gives extra usefulness to empower the necessities of a portable client to be upheld. These incorporate enlistment, verification, call area, between MSC handovers and call steering to a portable supporter. It additionally gives an interface to the PSTN so calls can be directed from the portable system to a telephone associated with a landline. Interfaces to different MSCs are given to empower calls to be made to mobiles on various systems.

2) Home Location Register (HLR): This database contains all the regulatory data about every supporter alongside their last known area. Along these lines, the GSM system can course calls to the applicable base station for the MS. At the point when a client switches on their telephone, the telephone registers with the system and from this it is conceivable to figure out which BTS it speaks with so approaching calls can be steered suitably. Notwithstanding when the telephone is not dynamic (but rather exchanged on) it re-enrolls intermittently to guarantee that the system (HLR) knows about its most recent position. There is one HLR per organize, despite the fact that it might be dispersed crosswise over different sub-focuses to for operational reasons.

3) Visitor Location Register (VLR): This contains chose data from the HLR that empowers the chose administrations for the individual endorser of be given. The VLR can be actualized as a different substance, however it is generally acknowledged as a necessary part of the MSC, instead of a different element. Along these lines get to is made speedier and more advantageous.

(3)

permitted onto the system, banished get to, or observed on the off chance that its issues.

5) Authentication Center: It is an ensured database that contains the mystery enter likewise contained in the client's SIM card. It is utilized for verification and for figuring on the radio channel.

6) Gateway Mobile Switching Center (GMSC): The GMSC is the indicate which a ME ending call is at first steered, with no information of the MS's area. The GMSC is hence responsible for acquiring the MSRN (Mobile Station Roaming Number) from the HLR in light of the MSISDN (Mobile Station ISDN number, the "index number" of a MS) and steering the call to the right went to MSC. The "MSC" part of the term GMSC is misdirecting, since the passage operation does not require any connecting to a MSC.

7) SMS Gateway (SMS-G): The SMS-G or SMS door is the term that is utilized to all things considered portray the two Short Message Services Gateways characterized in the GSM measures. The two portals handle messages coordinated in various bearings. The SMS-GMSC (Short Message Service Gateway Mobile Switching Center) is for short messages being sent to a ME. The SMS-IWMSC (Short Message Service Inter-Working Mobile Switching Center) is utilized for short messages started with a portable on that system. The SMS-GMSC part is like that of the GMSC, while the SMS-IWMSC gives a settled get to indicate the Short Message Service Center.

4. Operation and Support Subsystem (OSS):

The OSS or operation bolster subsystem is a component inside the general GSM organize engineering that is associated with segments of the NSS and the BSC. It is utilized to control and screen the general GSM system and it is additionally used to control the movement heap of the BSS. It must be noticed that as the quantity of BS increments with the scaling of the supporter populace a portion of the upkeep errands are exchanged to the BTS, permitting funds in the cost of responsibility for framework. The engineering of a GSM is appeared in Figure 1.

Figure 1: GSM Architectural Elements

III. GSM Operation The GSM operation includes

1)

Mobile Phone to Public Switched Telephone Network (PSTN):

When a mobile subscriber makes a call to a PSTN telephone subscriber, the following sequence of events takes place:

(4)

Figure 2: GSM Operation for Event handling 2) PSTN to Mobile Phone:

At the point when a PSTN endorser calls a versatile station, the accompanying succession of occasions happens: The Gateway MSC gets the call and inquiries the HLR for the data expected to course the call to the serving MSC/VLR. The GMSC courses the call to the MSC/VLR. The MSC checks the VLR for the area region of the MS. The MSC contacts the MS by means of the BSC through a communicate message, that is, through a paging demand. The MS reacts to the page ask. The BSC dispenses a movement channel and makes an impression on the MS to tune to the channel. The MS produces a ringing signal and, after the supporter replies, the discourse association is built up. Handover, if required, happens, as examined in the before case. To transmit the discourse over the radio divert in the stipulated time, the MS codes it at the rate of 13 Kbps. The BSC transcodes the discourse to 64 Kbps and sends it over a land connect or a radio connection to the MSC. The MSC then advances the discourse information to the PSTN. In the turn around heading, the discourse is gotten at 64 Kbps at the BSC and the BSC transcodes it to 13 Kbps for radio transmission.GSM underpins 9.6 Kbps information that can be directed in one TDMA timeslot. To supply higher information rates, numerous upgrades were done to the GSM gauges (GSM Phase 2 and GSM Phase 2+).

(5)

toward the finish of 2016. GSM system or 2G organize has worked for over 20 years. At the time, simply making a telephone approach the move was a curiosity and everyone grasped the versatile marvel. Be that as it may, time changes, as innovation developed and cell phones have turned out to be more quick witted, clients have actually moved to 3G and 4G systems that offer quicker speeds and a client experience that we could just have envisioned around 20 years back. With new advances like LTE Advancement, the systems administration is keeping on developing much further.

REFERENCES

1. W. Xu and G. Campbell, “A Near Perfect

Stable Random Access Protocol for a Broadcast

Channel,” in IEEE Proc. ICC92,vol. 1, 1992, p. 370374.

2. X. W. and G. Campbell, “DQRAP, A

Distributed Queueing Random Access Protocol for

a Broadcast Channel,” in Compute Commun.Mag., vol. 23, no. 4, Oct. 1993, p. 370374.

3. Luis Alonso, Ramon Agust´ı, Oriol Sallent, “A

Near-Optimum MAC Protocol Based on the Distributed Queueing Random Access Protocol(DQRAP) for a CDMA Mobile

Communication System,” in IEEE J. Sel. Areas Commun., vol. 18, no. 9, Sep. 2000, pp. 1701–1718. 4. Bego˜na Otal, Luis Alonso, Ramon Agust´ı, “Design and analysis of a cellular mobile

communications

5. Luis Alonso, Ramon Agust, system based on

DQRAP/CDMA MAC protocol,” in IEEE

Electronic Lett., vol. 38, no. 3, Jan. 2002, pp. 138–
