FUNCTIONAL CLOSURE OF BLADDER EXSTROPHY

N/A
N/A
Protected

Academic year: 2020

Share "FUNCTIONAL CLOSURE OF BLADDER EXSTROPHY"

Copied!
13
0
0

Loading.... (view fulltext now)

Full text

(1)

FUNCTIONAL

CLOSURE

OF

BLADDER

EXSTROPHY

A

Review

of

Fifty

Cases

Stanley J. Landau, M.D., and John K. Lattimer, M.D.

Squier Urological Clinic, Presbyterian and Babies HospitaLs, Columbia-Presbyterian Medical Center,

New York City, New York

(Submitted for publication July 24, 1962; accepted September 21.)

This work was supported in part through the generosity of Governor and Mrs. Charles Edison.

ADDRESS: (S.J.L.) The Presbyterian Hospital, Columbia-Presbyterian Medical Center, 622 West 168th Street, New York 32, New York.

433

I

N 1955, a program of functional closure

for bladder exstrophy was initiated on

the Pediatric Urological Service of Babies

Hospital in New York. The experience with

functional closure on this Service has now

grown to more than 50 cases, and the length

of follow-up has exceeded 3 years in enough

cases to warrant an interim evaluation of

the operative procedure and results. This

review is part of a continuing study of

func-tional closure of the exstrophied bladder.

Earlier results have been reported

previ-2 Close follow-up has been

main-tamed on these patients in an effort to

answer many questions. For example, is

functional closure of tile exstrophied

blad-der compatible with preservation of normal

renal function and architecture? Is the

achievement of urinary continence possible

with this operation? Can a satisfactory

cos-metic result be expected? The information

collected in the quest of the answers to

these questions forms the basis for this

re-port.

MATERIALS AND METHODS

Fifty patients with exstrophy of the

blad-der treated by functional closure were

stud-ied (see Appendix). Thirty-four were males,

and 16 were females. All of the cases, with

one exception, were patients with complete

bladder exstrophy.3 The one patient with

incomplete exstrophy presented with

epi-spadias and exstrophy of the lower portion

of the bladder. Forty-two patients were

“virgin” cases operated upon by various

resident and attending urologists of the

Staff. Eight patients were operated upon

elsewhere and have been subsequently

fol-lowed and/or operated upon further at our

clinic, or were referred to us for a second

attempt at closure. It is our practice to

readmit these patients at periodic intervals

for complete re-evaluation of their urinary

tracts. The length of follow-up in these 50

cases is listed in Table I. The longest

fol-low-up was 6 years.

Age at Closure

In the past, the tendency was to defer

functional closure until the child had

at-tamed the age of one year. It was felt that

the child could then better withstand the

operation, and that the bladder and penis

would be larger, thereby facilitating the

procedure. More recently, the operations

have been performed on children between

the ages of 3 and 6 months. The children

have all tolerated the procedure well. There

has been no mortality, and in no instance

was it impossible to close and re-implant

the bladder even though some were so

tiny as to cause concern. Table II illustrates

the ages at which the operation was

car-ned out. The only adult patient on whom

the procedure was performed was a

21-year-old female.

Technique

The technique has been reported

else-wh245 except that one major

modifi-cation has been added: all patients are now

prepared for functional closure by

under-going bilateral iliac asteotomies 7 to 10 days

prior to closure. At the time this procedure

is performed by the orthopedic department,

(2)

TABLE I

LENGTH OF FoLi.ow-uP

TABLE II

AGE AT FUNCTIONAL CLOSIRE OF BLADDER ExSTIIOPHY

0-3mo 2

3-6mo 7

6-12 mo 17

1-2yr 15

2-4yr 5

4-6yr S

6-12 yr I

>l2yr I

:&

. #{149}

,i.. . - .

SI.j:’i

,

434

.

Time Patients

(no.)

0-6mo 12

6-l2mo 9

1-2yr 4

2-3yr 5

>3yr 20

Total 50

the child is placed in a body cast which

tends to bend the sides of the pelvis

to-gether. Two or three days following the

osteotomies, the cast is wedged further,

bringing the tissues together. A large

“win-dow” (Fig. 1) is cut in the cast prior to the

bladder surgery through which the

urologi-Patients

Age

(no.)

Total 50

cal procedure is carried out. There has been

no lack of operating space as a result of

the cast, which is removed 6 to 8 weeks after

its application. The purpose of the iliac

(3)

TABLE IV

ABNORMAL PREOPERATIVE UROGRAPHIC CHANGES IN

17 PATIENTS WITH EXSTROPHY OF THE BLADDER

ARTICLES

osteotomies is not primarily orthopedic.

In-deed, follow-up in our series has demon

strated no apparent impairment or

deform-ity of ambulation if osteotomy was not

performed. The children have been able to

participate in any athletic endeavor of their

choosing without difficulty, including ice

skating and skiing. Iliac osteotomy has,

however, made the closure of the

abdomi-nal wail easier, markedly reduced the

oper-ating time and significantly reduced the

incidence of wound breakdown. Bladder

closure and epispadias repair has been

per-formed in one stage in all but one of the

forty two “virgin” cases. The single case in

which a two stage procedure was done was

an early case in which the staging was

de-cided upon before surgery.

PREOPERATIVE FINDINGS

A significant number of patients had

as-sociated congenital anomalies, both urinary

and extraurinary. Except in the cases of

imperforate anus and pyloric stenosis,

which required immediate surgery, these

associated anomalies in no way interferred

with the functional closure. Inguinal

her-nias, which were the most common

associ-ated anomaly, were repaired at a later date

after the exstrophy repair (Table III).

Preoperative excretory urograms were

available in 45 cases. Twenty-eight were

read as normal, while the remainder

showed some degree of hydroureter and/or

TABLE III

ASSOCIATED CONGENITAL ANOMALIES IN 50 CHILDREN WITH EX.STROPHY OF THE URINARY BLADDER

Inguinal hernia 17

Prolapse of rectum 7

Double kidney (unilateral) 4

Anal stenosis 4

Undescended testicle 4

Congenital absence of a kidney

Osseous malformation of the spine 2

Absent vagina 1

Pyloric stenosis I

Imperforate anus 1

Total 43

Pathology Slight Moderate Severe

Hydronephrosis 8 5 1

Hydroureter 9 5 1

Urethral tortuosity 3 1 1

hydronephrosis, as indicated in Table IV.

The changes were most often unilateral.

Three patients demonstrated unilateral

de-creased renal function by intravenous

py-elogram, though all patients had normal

serum nonprotein nitrogen values

preopera-tively.

In the 37 cases in which the bladder size

was recorded preoperatively, 15 were noted

to be 4 cm or less in diameter. Eighteen of

34 bladders (53%) could be manually

in-verted into the abdomen preoperatively

when the child was not crying or straining.

Of 36 cases in which the observation was

recorded, the exposed bladder was

coy-ered with a thickened pad of urothelium

in 23 patients (64%). The hypertrophied

uro-thelium frequently required trimming at the

time of surgery before the bladder could be

closed.

Prolapsed ureters were not an uncommon

preoperative finding. This was recorded in

16 cases preoperatively. No attempt was

made at correction of the ureteral prolapse

at the time of the functional closure. In our

experience, amputation of the prolapsed

ureter invited stricture formation, while

meatotomy served only to accentuate the

vesicoureteral reflux which was usually

present postoperatively.

Biopsies of the bladder epithelium were

taken in 32 cases at the time of surgery.

The changes of chronic cystitis were seen

in all the specimens. In addition to this

ex-pected change, squamous metaplasia was

not an uncommon finding, with glandular

metaplasia and intestinal mucosa less fre..

quently seen (Table V).

While it will be important to note in

the

(4)

TABLE V

BLADDER Bios IN CHILDREN WITH EXSTROPHY

OF THE BLADDER

29 14 15 Reflux (86%) Unilateral Bilateral 26* 7 19

* #{216}fSOcases tested.

Pathology Report Cases(no)

.

Chronic cystitis

Squamous metaplasia

Glandular metaplasia

Intestinal mucosa

No biopsy taken

32 18 4 2

18

carcinoma of the bladder will be any higher

in this group as compared with the general

population, to date there has been no

evi-dence of malignant change in either the

preoperative or postoperative biopsies.

POSTOPERATIVE FINDINGS

Complications

The most frequent postoperative

compli-cation, occurring in 58% of cases, was fistula

formation requiring surgical closure. The

sites of the fistulae were almost equally

di-vided between the urethral and suprapubic

areas. Stricture, pyelonephritis, and stone

formation did occur but with considerably

less frequency (Table VI). Single or rare

attacks of clinical pyelonephritis were

diag-nosed in only 14% of cases and were often

related to stricture of the urethra. This is

a surprisingly low incidence when one

con-siders that positive urine cultures were

noted in 36 of 38 patients tested at their

last follow-up visit.

Vesicoureteral reflux was tested for in 30

patients, with use of the standard Columbia

cystogram method,6 and was present in 86%

of these cases. The reflux was bilateral in 19

cases and unilateral in 7 cases. In most of

the cases where urinary continence has not

yet been achieved, reflux has not been a

problem insofar as upper tract destruction

is concerned. As urinary continence

im-proved and bladder neck resistence

in-creased, progressive hydroureteronephrosis

secondary to reflux necessitated anti-refiux

operations in four patients.

Postoperative partial abdominal wound

breakdown occurred in 10 cases (20%). Eight

of these were early cases, in which tile

pa-tient did not have the benefit of an iliac

osteotomy preoperatively. This

complica-tion has become rare since the

incorpora-tion of tile osteotomies into the operative

program.

The number and variation of operative

procedures and treatments that have been

employed to correct tile above listed

com-plications are noted in Table VII. As was

anticipated, closure of pinhole vesical and

urethrocutaneous fistulae were the most

fre-quent operative procedures. Periodic

tire-theral calibration and dilation to correct or

prevent strictures along tile urethra and at

the bladder neck were done almost

rou-tinely at the time of follow-up cystoscopy.

Two of the eight epispadias repairs were

the second part of an elective two-stage

procedure. The remaining six were to

cor-rect major breakdown of the epispadias

re-pair performed at the time of the initial

surgery.

TABLE VI

POSTOPERATIVE COMPLICATIONS IN 50 C1III.DuEN

UNDERGOING FUNCTIONAL CLOSURE OF AN

EXSTROPHIED BLADDER Fistula (58%) Suprapubic Urethral Cases Complication (no.)

Stricture (20%) 10

Urethra and bladder neck 6

Urethral meatus 6

Uretero-vesical junction 4

Partial abdominal wound breakdown (20%) 10

Pyelonephritis (14%) 7

Stone formation (12%) 6

Kidney 1

Urethra 2

(5)

30

:

20

0.

0

10

0

Normal Abnormal No

. FollowJJp

POST-OP PYELOGRANS

PRE -OP

PY ELOGRAM

GROUP 8

20

‘:U

IIi_

Abnormal Normal Worse Improved No

Follow-Up

PYELOGRAM OP PYELOGRAMS

ARTICLES

PYELOGRAPHIC CHANGES

The preoperative intravenous pyelograms

were divided into two groups. Group A (28

Patielits) consisted of those patients with

normal preoperative pyelograms. Group B

(17 patients) were those patients with some degree of hydroureter of hydronephrosis

preoperatively. The postoperatively

pyelo-graphic changes are recorded in Figure 2.

Seventeen patients in Group A continued

to have normal upper urinary tracts, while

nine now demonstrate some degree of

up-per tract dilatation. Of the 17 patients in

Group B with abnormal preoperative

pyelo-grams, 8 have normal upper tracks now, 4

are improved, while 5 have shown some

pro-gression of their preoperative dilatation.

Bladder Size and Capacity

The preoperative bladder size has been

correlated with bladder capacity following

surgery. In tile 37 patients in whom the

bladder size was recorded before surgery,

22 were measured to be 4 cm or more in

diameter, while the remaining 15 were

smaller. Preoperative and postoperative

bladder capacities have been measured in

27 patients. Sixteen of these patients had a

bladder measurement of 4 cm or more

pre-operatively, and all but 4 of the 16 had a

TABLE VII

SURGICAL PROCEDURES SECONDARY TO FUNCTIONAL

CLosuuF oi TILE EXSTROPHIED BLADDER (50 CASES)

Procedure Cases

(no.)

Closure of fistula 17

Urethroplasty 6

Secondary epispadias repair 8

Urethral ineatotomy 5

Anti-reflux operation 7

Ureteral reimplantation I

Cystolithotomy 3

Y-V-plasty of bladder neck S

Nephrostomy 2

Ureteral meatotomy 2

TUR of bladder neck 2

Total 56

ffO1/P A

El

Normal

Fic. 2. Pyelographic changes in patients after

func-tional closure of the exstrophied bladder.

normal bladder capacity at follow-up. In

the group of 11 patients whose bladder

measured less than 4 cm before surgery, 6

had a normal capacity postoperatively

(Figure 3).

It should be noted that most of the

chil-dren in this latter group are our more

re-cent cases and had their operative

pro-cedures at 3 to 6 months of age, when the

bladder would be expected to be small. The

period of follow-up has not been long

enough in these cases to evaluate whether

or not the bladders will increase in

capac-ity. It would seem, on the basis of earlier

cases, that the bladder capacity does

in-crease with time, growth of the patient, and

increasing continence. In 31 patients tested

for residual urine, significant residuals were

present in only five cases. Cystometrics and

thermal sensation were tested in five

pa-tients; fairly normal results were found in

each patient.

ILIAC OSTEOTOMIES

Iliac osteotomies were performed before

(6)

pa-ACCEPTABLE BLADDER CAPACITY

96/.

0L

NO AFTER

OSTEOTOMY OSTEOTOMY

0/

Io00

50

I-0

4CM ormore

Less than 4cm

FIG. 3. Bladder capacity in 27 patients after

func-tional closure of the exstrophied bladder.

tients, iliac osteotomy was performed after

bladder closure to assist in closing fistuli,

and in 23 it was not performed at all.

Com-parison of the x-rays taken before and after

iliac osteotomy reveals no measurable

per-manent narrowing of the gap in the

sym-physis following surgery in 10 cases, and

some degree of narrowing in 8 cases. In the

remaining six cases, the films taken through

the casts were technically too unsatisfactory

to allow accurate measurements.

While the degree of reapproximation of

the pubic bones at the symphysis has been

slight, the closer reapproximation of the

abdominal wall tissues after iliac osteotomy

is very real. There is no question that the

performance of ileostomy prior to

func-tional closure has greatly facilitated the

ab-dominal closure. The need for flaps of

rec-tus muscle or sheath to close the defect in

the abdominal musculature as well as the

need for skin grafts, rotation of skin flaps,

or Z-plasty of the skin has virtually been

eliminated. Of the 23 patients who did not

have the benefit of iliac osteotomy prior to

their functional closure, 21 (91%) required

either flaps of rectus muscle or sheath and!

or skin grafts or flaps to close the

abdomi-nal wall defect. Of the 24 patients who did

have osteotomy prior to functional closure,

only 7 (30%) required a graft or flap (Fig.

4). Four of these seven patients were early

cases in our series.

The incidence of postoperative

abdomi-nal wound breakdown has also been

signifi-cantly reduced as a result of the

osteot-omies. Of the 10 cases of wound

break-down occurring in this series of 50 patients,

8 occurred in patients without osteotomies

as compared with only 2 in patients with

osteotomies (Fig. 5).

The cosmetic result has also been

im-proved since the osteotomies have been

done. Prior to their introduction, the

ab-dominal scars were frequently somewhat

unsightly due to the necessity for skin

grafts or flaps. Now the child is usually

left with a single midline suprapubic scar.

Tile only complication we have experienced

with the procedure is that occasionally

res-piratory embarrassment has occurred due

to abdominal distention within the cast.

This has been easily overcome by bivalving

and taping the cast to accommodate the

dis-tention.

Urinary Continence

We have arbitrarily chosen 3 years of age

as the age at which urinary continence

#{149}1

. I00

50

Fic. 4. Percentages of patients requiring plastic

closure of the abdominal wall with and without

(7)

0/ ‘0

I00

50

0 H

PARTIALLY

CONTI NENT INCONTINENT

0

8

(I)

I-.

z

Ui

5

0

w

z :#{149}:#{149}::#{149}::#{149}:#{149}::#{149}:#{149}:#{149}:#{149}:#{149}:

0

NO WITH

OSTEOTOMY OSTEOTOMY

FIG. 5. Abdominal wound breakdown with and

without iliac osteotomy.

could and should be forthcoming. Our

cri-tenon of continence has been (1) the ability

to appreciate the need to void, (2) the ability

to defer the act of voiding until an

ap-propriate place can be reached, and (3) the

ability to initiate voiding voluntarily.

All 30 patients below 3 years are

incon-tinent by the above criteria. None are

nor-mal, although seven of the group are

begin-ning to show some degree of continence.

They are able to remain dry for long

pen-ods of time and are able to void with a

forceful stream. Of the 20 patients who are

3 years or older, 6 are partially continent

and 14 are incontinent by the above

cii-teria. Ten of these 14 children are able to

void with a forceful stream. An additional

female patient operated upon recently

re-ports complete continence (Fig. 6).

COMMENT

As our experience with tile procedure has

increased over tile past 6 years, several of

our early questions and fears have been

answered to our satisfaction; some still

re-main unsolved. An important consideration

in aiiy new operative technique is its

re-producibility by surgeons other than the

ABDOMINAL WOUND BREAKDOWN

WITH 6 WITHOUT ILIAC OSTEOTOMY

Over 3yrs of ge

20

Patients

FIG. 6. Urinary continence in patients after func-tional closure of the exstrophied bladder.

innovators. Functional closure of the

ex-strophied bladder has been modified and

perfected to a point where it is part of the

surgical armentariuni of tile attending and

senior resident staff of our clinic. There has

been no mortality to date. Recently the

operation ilas been performed at an earlier

age (3 to 6 months), and no untoward

tech-nical or clinical difficulties as a result have

been noted. Since the children are now

be-ing operated upon at an earlier age, the

bladder diameter preoperatively has

fre-quently been 3 cm or less. In spite of this,

it has always been possible to close and

re-implant the bladder. The bladder has, in

the majority of cases, attained an

accept-able bladder capacity. The operating time

has been diminished. Tile need for flaps

of rectus sheath or muscle as well as skin

grafts and flaps has almost been eliminated.

The incidence of wound separation and

breakdown has been reduced, and the

cos-metic results have been very acceptable to

the parents. These improvements have been

largely the result of the incorporation of

(8)

pro-440

gram. While the results of this procedure

have been equivocal in so far as

diminish-ing the degree of separation of the

sym-physis, there has been a very definite

re-ap-proximation of the tissues of the abdominal

wall, affording a much easier and less

complicated closure.

Postoperative pyelograms have remained

normal or improved from the preoperative

picture in 65% of cases, with only minor

de-grees of hydroureter or hydronephrosis

ap-pearing in 20% of cases. Preoperative upper

tract dilatation was worse postoperatively

in only 11% of cases.

Vesicoureteral reflux seems to be inherent

in the ureterovesical junction of exstrophied

bladders and was present in 86% of the

cases tested. Reflux, with its potential for

upper tract dilatation and destruction,

in-creases as bladder neck resistance and

con-tinence improve. Severe reflux and upper

tract dilatation has necessitated seven

anti-reflux procedures in four patients. They

have been either of the

Leadbetter-Poli-tano7 or Bischoff8 technique and, in our

hands, have not been uniformly successful

in correcting the reflux. We are presently

engaged in evaluating new antireflux

pro-cedures, which we are hopeful will

im-prove on the limitations of the present

pro-cedures.

The most disquieting feature of our

fol-low-up has been the small percentage of

patients who have achieved complete

con-tinence. While there are encouraging

num-bers of children who are able to void with

a strong stream and are dry for periods of

time, these patients as yet remain partially

incontinent and as yet cannot control their

stream and time of voiding. While we are

hopeful that with further growth and

train-ing, the number who achieve complete

con-tinence will increase, we are alert to the

possible necessity of an operative procedure

on the urethra and bladder neck that will

improve the degree of continence in these

children.

The most appealing feature of functional

closure of bladder exstrophy has always

been that it offered the possibility of

re-storing a major congenital malformation to

as normal a state as was possible. While

cystectomy and some form of urinary

diver-sion (which is still the preferred treatment

in many areas) might have been simpler,

the long-term complications of urinary

di-version, their psychological implications,

and the wish to avoid, if possible, the

con-demnation of a child to a permanent

ex-ternal appliance made the functional

do-sure desirable. We have further felt that

functional closure was not irrevocable and

a urinary diversion could always be

re-sorted to if the functional closure was not

satisfactory.

ADDENDUM

Since this article was written, 10 additional

pa-tients have been operated upon, bringing the total

number of functional closure cases to 60.

REFERENCES

1. Lattimer, J. K., et al.: Reconstruction of urinary

bladder in children with exstrophy. J. Urol., 77:424, 1957.

2. Lattimer, J. K., et al.: Functional closure of the

bladder in children with exstrophy. J. Urol.,

83:647, 1960.

3. Uson, A. C., Lattimer, J. K., and Melicow,

M. M. : Types of exstrophy of urinary bladder

and concomitant malformations : a report based on 82 cases. PEDIATRICS, 23:927, 1959.

4. Young, H. H. : The first case in which a normal

bladder and urinary control have been

ob-tamed by plastic operation: exstrophy of the

bladder. Surg. Gynec. Obst., 74:729 1942

5. Sweetser, T. H., et al.: Exstrophy of the blad-der: its treatment by plastic surgery. J. Urol.,

75:448, 1952.

6. Dean, A., Jr., Lattimer, H. K., and McCoy, C.:

The standard Columbia University cystogram.

J. Urol., 78:662, 1957.

7. Politano, V. A. and Leadbetter, W. F. : An oper-alive technique for the correction of vesico-ureteral refiux. J. Urol., 79:932, 1958.

8. Bischoff, P. : Operative treatment of megalo-ureter. J. Urol., 85:268, 1961.

9. Landau, S. J.: Ureteroneocvstostomv : a review of 72 cases with a comparison of two

tech-niques. J. Urol., 87:343, 1962.

Acknowledgment

The author wishes to express his appreciation to Drs. George \V. Fish, Ralph J. Veenema,

Stan-ley B. Braham, and Archie L. Dean, Jr., for

(9)

Continued on next page Appendix

-Patient Sex

-Iear of

Closure

Age at Closure

(yr)

Come nts

1. (ILC.) M 1954 Operated upon elsewhere; P0StOP IVP worse; diminished bladder

262I24 capacity; incontinent

2. (ME.) F 1954 Primary closure elsewhere; wire approximating pul)is eroded

#1278896 through urethra with secondary urethral stones; wire removed

here; postop IVP normal; incontinent

3. (kB.) M 1954 Primary closure eLsewhere; cystolithotomy for stones here; severe #1184811 refiux required antirefiux operation; postop IVP worse;

incon-tinent

4_ (MM.) iI 1955 1)eveloped bladder stones; required cystolithotomy and Y-V-#232470 plasty of bladder neck; postop IVP normal; incontinent l)ut voids

with a stream

5. (R.F.) 1I 1955 Urethral stricture requiring meatotomy; postop IVP normal;

hi-#1228298 lateral refiux; incontinent but voids with a stream

6. (l)B.) ii: 1955 I Primary closure elsewhere; secondary epispadias repair here;

#1347166 postop IVP normal; incontinent

7. (MJ%I.) F 1955 i1r Partial breakdown of abdominal wound; postop IVP improved;

#1218969 incontinent

8. (5K.) M 1955 1 Primary closure elsewhere resulted in bladder slough; colocysto-#1362456 plasty here; postop IVP worse; incontinent

9. (L.S.) F 1956 3 Primary closure elsewhere; no ganglion cells on ureteral biopsy;

#300018 spinal bifida; postop IVP worse; incontinent

10. (A.P.) M 1956 4 Closure successful on third attempt; postop IVP normal;

incon-f293852 tinent

11. (J.S.) M 1956 44 Uncomplicated postop course; postop IVP normal; now almost

#1274204 completely continent

12. (A.V.) iI 1956 Uncomplicated postop course; postop IVP normal; refiux;

pa-#1414716 tially continent

13. (E.P.) M 1956 24 Incomplete exstrophy; postop urethral stricture required,

urethro-152838 plasty; postop IVP normal; incontinent

14. (P.R.) F 1956 Uncomplicated postop course; postop IVP normal; bilateral refiux; #271519 incontinent but voids with a stream

15. (R.M.) rsi: 1956 i Primary closure elsewhere; secondary epispadias repair here; postop

#1356670 IVP normal; reflux; partially continent

16. (J.C.) F 1957 1 Nephrolithotomy; urethral stricture; bilateral antireflux

opera-#182223 tions and Y-V-plasty of bladder neck; postop IVP worse; partially

(10)

Continued on next page

Appendix (Continued)

Patient Sex

Year

of

Closure

Age

at

Closure (yr)

COflhlflSflt*

17. (C.P.) F 1957 Left double kidney; uncomplicated postop course; postop IVP

nor-#1S2992 mal; incontinent

18. (R.H.) isi: 1957 Postop skin slough; postop IVP normal; small bladder;

incon-#1331812 tinent

19. (D.C.) M 1957 1 Uncomplicated postop course; postop IVP normal; reflux;

incon-#1380343 tinent but voids with good stream

20. (J.A.) 1I 1958 1 Wires approximating pubis eroded into urethra requiring their re-#1384507 moval and urethroplasty; postop IVP improved; incontinent

21. (G.McK.) M 1958 f Wires approximating pubis eroded into urethra requiring their re-#1344083 moval and urethroplasty; postop IVP worse; incontinent

22. (N.L.) 11 1958 Wires approximating pubis eroded into urethra requiring their

re-#1365578 moval, ureterolithotomy and ureteroplasty; postop IVP worse;

refiux; incontinent

23. (K.P.) M 1958 Urethral stone; postop IVP normal; refiux; incontinent but voids

#1350624 with a stream

24. (A.B.) M 1958 Cystolithotomy; postop IVP worse; partially continent #1378248

25. (MM.) F 1958 24 Urethral stricture; dilated bladder; bilateral anti-reflux operation;

#1388528 postop IVP worse; partially continent

26. (MB.) M 1958 Dermal graft for facial defect; unsuccessful partial abdominal

#1359694 wound breakdown; diminished bladder capacity; postop IVP

worse; refiux; incontinent

27. (K.K.) M 1958 14 Uncomplicated postop course; postop IVP normal; reflux;

incon-#305089 tinent

28. (S.W.) M 1958 I Uncomplicated postop course; postop IVP normal; reflux;

incon-#1375104 tinent

29. (J.L.) M 1959 5 Suprapubic uistula closed surgically; postop 1VP normal;

incon-#1417423 tinent

30. (R.D.) M 19.59 I Required urethroplasty for urethral fistula; postop IVP normal;

#1448625 no reflux; partially continent

31. (M.Mc.) M 1959 6 Rectal prolapse; U.V.J. stricture requiring ureteral re-implantation;

#1393420 postop IVP worse; incontinent

32. (M.V.) 1I 1959 24 Urethroplasty for urethral fistula; postop IVP normal;

incon-#1424427 tinent but voids with a stream

33. (D.S.) M 1959 (?) Breakdown of epispadias repair required secondary procedure;

(11)

Appendix (Continued)

Patient Sex

Year

of Closure

Age

at

Closure (1ff)

Commenia

34. (M.Mc.) F 1959 1 Uncomplicated postop course; postop IVP normal; reflux;

incon-#1437089 tinent

35. (S.C.) F 1960 Uncomplicated postop IVP improved; incontinent

#1490355

36. (L.S.) M 1960 1 Urethral stricture; bilateral antirefiux operations; postop IVP

#1483679 worse; incontinent

37. (J.Y.) F 1960 Vesicoeutaneous fistula closed surgically; postop IVP normal;

in-#1461397 continent

38. (D.W.) M 1960 Uncomplicated postop course; postop IVP improved from preop;

#1497519 incontinent

39. (SR.) F 1960 Suprapubic fistula not yet closed; postop IVP normal; incontinent

#1490369

40. (P.Q.) M 1960 Bladder reimplanted, epispadias repair planned as a secondary

#1467826 procedure; postop IVP normal

41. (S.V.) F 1960 34 First closure failed elsewhere; second attempt here followed by #1472523 abdominal wound breakdown; severe upper tract dilatation and

nonfunction of left kidney

42. (RB.) 1L 1960 1 Uncomplicated postop course; postop IVP normal; incontinent

#1468805

43. (R.M.) F 1961 21 Vesicocutaneous fistula closed surgically; preop upper tract

dilata-#1508590 tion unchanged postop; incontinent

44. (T.K.) F 1960 3 Uncomplicated postop course; postop IVP worse; reflux;

corn-#1480658 pletely continent

45. (J.M.) M 1961 Breakdown of epispadias repair; urethroplasty planned; poetop

#1518869 IVI’ normal; incontinent

46. (D.T.) F 1961 Uncomplicated postop course; postop IVP normal; incontinent

#1531013

47. (D.G.) M 1961 4 Required tracheostomy postop for laryngoepasmn; incontinent

#1527809

48. (J.B.) M 1961 Uncomplicated postop course; postop IVP normal; incontinent

#1527788

49. (ST.) M 1961 1 Uncomplicated poetop course; preop upper tract dilatation

un-#1487801 changed postop; incontinent

50. (S.Mc.) F 1961 Uncomplicated postop course; postop IYP normal; reflux

(12)

1963;31;433

Pediatrics

Stanley J. Landau and John K. Lattimer

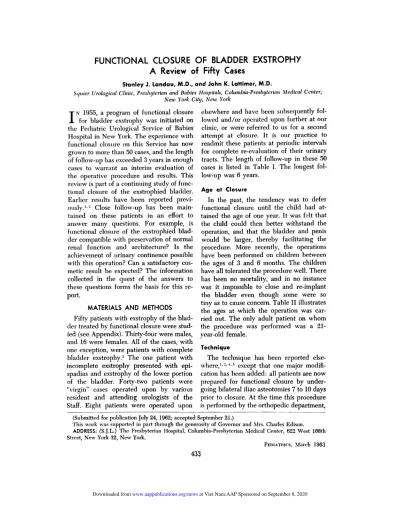

FUNCTIONAL CLOSURE OF BLADDER EXSTROPHY: A Review of Fifty Cases

Services

Updated Information &

http://pediatrics.aappublications.org/content/31/3/433

including high resolution figures, can be found at:

Permissions & Licensing

http://www.aappublications.org/site/misc/Permissions.xhtml

entirety can be found online at:

Information about reproducing this article in parts (figures, tables) or in its

Reprints

http://www.aappublications.org/site/misc/reprints.xhtml

(13)

1963;31;433

Pediatrics

Stanley J. Landau and John K. Lattimer

FUNCTIONAL CLOSURE OF BLADDER EXSTROPHY: A Review of Fifty Cases

http://pediatrics.aappublications.org/content/31/3/433

the World Wide Web at:

The online version of this article, along with updated information and services, is located on

American Academy of Pediatrics. All rights reserved. Print ISSN: 1073-0397.

References

Related documents

Additionally, surprisal is injected in the process by equipping the autoencoder with an auxiliary deep paramet- ric estimator learning the prior distribution p ( z ) of latent

(See Section 4.4 for a discussion of changes in the frequency of timing of goodwill evaluations in our sample.) Alternatively, financial performance often suffers during economic

Malocclusion, arc length discrepancy (crowding or excess space), molar ratio, permanent tooth loss, dental development stage, teeth size, state of eruption of the second premolar

The aim of this study is also to show that: (iv) the redefinition of coefficients which is consequent to the imposition of constraints (6,8-10) allows the theories of any order

In the next section, I show practical ways in which Text World Theory concepts can ‘map on’ to National Curriculum grammar to provide an intuitive and accessible method for

more patterns ADDRESSES DUE DATES CLASSIFICATIONS BUSINESS TRANSACTIONS RESOURCES EVENTS AGENTS (REA) CONTRACTS CLAIMS ACCOUNTS Start here Record history Conform to general

About the effect of this type of voting on participation, some re- searchers like Sloop reason that it could be used as a motivator for more participation of voters

conservation efficacy across state (reserve) and community (‘unclassed’) forests, by analysing landscape changes across large spatiotemporal scales (to detect
