Construction Management & Engineering CIEG

(1)

Construction Management & Engineering

(2)

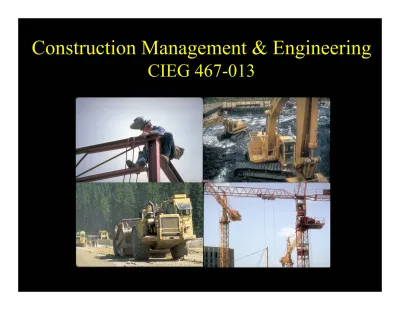

Construction Management & Engineering CIEG 467-013

Construction Managers

must be

both…

…business and technically

oriented

(3)

Construction Education

• Engineering (civil or architectural)

–Specialization/area of concentration

–Curriculum Elective

(4)

Construction Management

• Foundation of business and

science courses

• Architectural & engineering

coursework

(5)

B.S.C.M. Coursework

Engineering subjects • Strength of Materials • Statics and Structures • Soil Mechanics

• Steel and Concrete Design

• Surveying

(6)

B.S.C.M. Coursework

Business Management • Accounting • Economics • Statistics • Financial Mgt. • Contract Law

(7)

B.S.C.M. Curriculum Course Distribution

Engineering (incl math &

science) 34% Construction Mgt. 30% Liberal Arts 13% Business 15% Architecture 8%

(8)

Licensing/Certifications

• Professional Engineer’s License issued by state or local governing board.

• Certified Constructor issued by the American Institute of Constructors (AIC).

• Certified Construction Manager issued by Construction Management Association of America (CMAA)

(9)

Basic Skills needed by Construction Managers

– Estimating – Computer

– Leadership/supervisory

– Communication = writing and oral skills

– Negotiating

(10)

Construction Management Functions

• Coordination

• Planning & Scheduling • Purchasing & Expediting • Supervision

• Cost Control

(11)

Construction Management Functions

• Quality Control/Quality Assurance • Estimating

• Safety and Risk Management • Contract Administration

(12)

Additional Skills & Knowledge

needed by Construction Engineers

• Surveying (GPS, GIS, Hydrographic) • Structural Design

• CADD/Drafting

• Specialization in Mechanical, Electrical, Chemical, or Environmental disciplines

(13)

Construction Engineering Functions

• Preparation and Review of Shop Drawings

• Constructibility & Sequencing Studies • Value Engineering

• Erection Diagrams and Procedures • Survey & Layout

(14)

Executive Functions

• Corporate Management • Strategic Planning

• Marketing & Business Development • Public Relations

(15)

Executive Functions

• Ultimately responsible for quality,

safety, production, and general

(16)

Construction training can be valuable

to design professionals……

• To enable them to produce practical and efficient designs

• Develop needed management skills

• Learn scheduling techniques that can be applied to the preconstruction process

(17)

(18)

Life Cycle of a Constructed Facility

1. Concept and Feasibility 2. Engineering and Design 3. Procurement

4. Construction

5. Startup and Implementation 6. Operation or Utilization

(19)

What is Construction?

¾ Application of art and science

¾ Inherently dangerous

¾ Organized chaos

¾ Man using creativity, knowledge, strength, determination, and persistence to control his environment

(20)

Construction differs from manufacturing

in that:

• Not performed in controlled conditions,

therefore highly impacted by weather and other environmental conditions

• Seasonality

• Each project is unique

(21)

Construction differs from manufacturing

in that:

• Process is not as predictable

• Difficulty in applying automation

• High potential for encountering unforeseen conditions

(22)

Construction differs from manufacturing

in that:

• Difficult to manage and supply utilities and other resources.

• Technical innovations are adopted slower. • Success is dependent upon the quality of

its people.

• Very custom-oriented

• Product can be of mind-boggling size, cost, and complexity

(23)

Problems Facing Construction

Industry:

• Highly traditional and fragmented; slow to embrace new technology

• Restrictive/outdated building codes

• Labor agreements and craft jurisdictional issues

• Liability and legal considerations

(24)

Problems Facing the Construction

Industry:

• Government regulation • Environmental constraints • NIMBY syndrome • Global competition

(25)

(26)

Industry Divisions

1. Residential Construction

2. (Institutional & Commercial) Building Construction

3. Heavy Construction

(27)

Residential

• Types

– Single family houses – Multi family dwellings – High-rise apartments • 30-35 % of the industry

(28)

Residential

(continued)

• Largely private

• Often speculative

• Developers = surrogate owners • Designed by architects,

(29)

Building Construction

• Institutional and Commercial Construction – Schools and universities

– Medical clinics and hospitals

– Recreational facilities and sports stadiums

(30)

Building Construction

– Retail stores and shopping centers – Warehouses and light manufacturing – Office buildings (single story to sky

scrappers)

(31)

Building Construction

• Institutional and Commercial

Construction

– Churches and Synagogues – Prisons

– Courthouses and other government buildings

(32)

Building Construction

• 35-40 % of construction market

• Larger and more complex than

residential

• Various owners (mostly private)

(33)

Heavy Construction

• Also referred to as “Horizontal Construction”, “Heavy Civil Construction”, “Heavy

Engineering Construction”, “Infrastructure & Heavy Construction” and “Heavy/Highway Construction”.

• 20-25% of the construction industry

(34)

Heavy Construction

• Highway & bridges • Railroads & urban

transit systems

• Tunnels and Dams • Airports

• Canals

(35)

Heavy Construction

• Pipelines

• Sewer Systems

• Water treatment & distribution systems • Power &

communication networks

(36)

Heavy Construction

• Accounts for 20-25% of the construction market

• Heavy public works projects • Mostly public financing

• Owner is a governmental agency or large consortium

(37)

Heavy Construction

• Mass quantities of basic materials: earth, rock, steel, timber, and concrete

• Constructors need knowledge of engineering and geology

(38)

Heavy Construction

• Greatest impact and manipulation of land and water

• High degree of mechanization • Contracts awarded through

(39)

Industrial Construction

• Very large scale projects

• High degree of technological complexity

• Designed and built by the largest firms with the highest level of technical sophistication

• Represent 5-10% of the market.

(40)

Industrial Construction

• Petroleum refineries • Steel mills &

aluminum plants • Chemical

(41)

Industrial Construction

• Fossil fuel & nuclear power plants

• Other heavy manufacturing facilities

(42)

Industrial Construction

• Complex mechanical systems, process piping, and instrumentation

• Civil, but also mechanical, chemical, and electrical engineering disciplines involved • Mostly private ownership (in western

(43)

Industrial Construction

• Negotiated contracts are typical

• “Turnkey” contract arrangements are common

• Design-constructor must be intimately familiar with the technology and

(44)

Construction Industry is further subdivided into sectors or segments by:

• Public vs. private ownership/funding • Union labor vs. open shop

• Organization and method of project delivery

• Type of work: new vs. rehab/retrofit/restoration • Contract type

(45)

Participants in the Construction Process

1. Owner

• Private or public

• Conceives the construction project • Increasing level of sophistication

(46)

2. Designer

• Architects

• Size of firms ranging form single practitioner to large integrated firms

• Mostly building and residential construction • Engineers

• Civil, mechanical, structural, electrical,chemical, environmental, geotechechnical, and

(47)

3. General Contractor

• General contractor also called “Prime” contractor • Specialty contractors working as subcontractors • Organization ranges from small, one-person

company to large, integrated A/E/C firms • Part of a design-build team

(48)

4. Construction Manager

Two principle divisions of CM

• CM for Fee (management services only) • CM At Risk

– Operates similarly to a GC or DB with no labor or capital equipment

• Can encompass the management of the design process as well as construction

• CM services including inspection and overall project or program management

(49)

5. Suppliers

Manufactures, distributors, research, promotions

Materials and equipment sales

Equipment Rental

6. Fabricators

Structural steel, pre-castors, wood products

(50)

8. Government

Federal, State, local, and quasi-government

Owner/client

8 GSA, DOT’s, School Districts, USACOE

Non-ownership functions

8 Taxation and regulation

8 Federal: IRS, OSHA, USACOE, DOL, NLRB, HUD (FHA), FHWA, FAA, EPA, and several others

8 State: DOL, DEP/DNREC, historic preservation (SHPO)

8 Local: County/City/Township Building Officials, Planning Boards, and Zoning Commissions

8 Quasi-government agencies: development authorities, bridge and turnpike commissions

(51)

9. Utility Companies

Electric, communications, water, gas,sanitary sewer

Private petroleum pipelines

Owner or service provider

Integral part of the process

Existing facilities in conflict with new construction

(52)

10. Industry Associations

Organizations of construction contractors

Organizations of the design and management professions

Construction material and equipment suppliers and product research

Construction labor organizations

Coordination and arbitration

(53)

10. Industry Associations Functions and services

• Industry information and communication

• Development and maintenance of standards • Interindustry coordination

• Collective bargaining

• Statistics (market & industry) • Meetings and conventions

(54)

10. Industry Associations Functions and services

• Public relations

• Joint industry promotions • Management education • Market development • Apprenticeship training • Legislative • Government relations • Product research

(55)

11. Professional Services Business/management consultants Legal council CPA firms Surety Companies Financial Institutions/Lenders Insurance agents

(56)

12. Adjacent Owners and the Public At-Large

Existing businesses, institutions, and residences adjacent to the constructed facility

Civic organizations and community groups

(57)

Project Delivery Organization

• Construction by owners forces • Owner-managed construction

• Construction by general contractor • Design-build team

(58)

Construction employing owner forces

– Usually small in-house construction or renovations

– Industrial projects or institutional (such as hospitals or schools

Owner-managed construction

– Residential/commercial building developers – Industrial or institutional

(59)

Construction by General Contractor

– Also referred to as “Prime Contractor” – Most common method of delivery

– Contractor bears substantial risks and financial responsibility

– Facility designed by in-house

architect/engineer or by design consultants – Often requires specialty subcontractors

(60)

Specialty contractors might include those specializing in one of the following:

• Excavation • Steel erection • Concrete – Cast-in-place – Prestressed/Precast • Masonry • Timber/wood framing • Piping/plumbing

• Clearing and grubbing • Blasting/demolition • Electrical • Painting • HVAC • Environmental remediation

(61)

Design-Build (Turnkey)

– Single firm or team responsible for design and construction minimizes coordination problems – More efficient designs with the interjection of

constructibility and innovation

– Often employees fast-track construction

– Benefits include reduced overall delivery time and “one-stop shopping” for the owner

– Disadvantages include complexity of evaluating proposals

(62)

CM Contract -- Fee (management services

only) also referred to as “Agency”

– Specialized construction skills through all stages of project

– Provides close coordination between design and construction

– Eliminates impact of conflicts of interest

– Independent and objective evaluation of costs, schedules, and performance

– Potential saving in time and cost

– Disadvantages include no risks associated with costs increase

(63)

CM Contract – “At-Risk”

– CM assumes financial risks similar to a GC – CM manages all phases of the work without

performing any actual work tasks

– CM’s only resources are management personnel – Contractors/subcontractors have a direct contract

privity with CM

– Contract form is often a negotiated guaranteed maximum price arrangement

(64)
