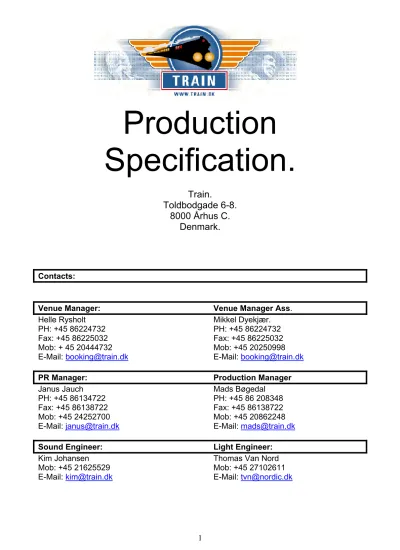

Production Specification.

(1)

Production

Specification.

Train.

Toldbodgade 6-8.

8000 Århus C.

Denmark.

Contacts:

Venue Manager: Venue Manager Ass.

Helle Rysholt Mikkel Dyekjær.

PH: +45 86224732 PH: +45 86224732 Fax: +45 86225032 Fax: +45 86225032 Mob: + 45 20444732 Mob: +45 20250998 E-Mail: [email protected] E-Mail: [email protected]

PR Manager: Production Manager

Janus Jauch Mads Bøgedal

PH: +45 86134722 PH: +45 86 208348 Fax: +45 86138722 Fax: +45 86138722 Mob: +45 24252700 Mob: +45 20862248 E-Mail: [email protected] E-Mail: [email protected]

Sound Engineer: Light Engineer:

Kim Johansen Thomas Van Nord

Mob: +45 21625529 Mob: +45 27102611 E-Mail: [email protected] E-Mail: [email protected]

(2)

PA Specs:

PA System:

2 x 3 Turbosound Floodlight TFL 760h top boxes 2 x 3 Turbosound TSW–721 subs

PA Amps:

Powered by Lab amps

Mixer:

1 x Midas Heritage 2000 46 mono 2 stereo

FOH Outboard: 1 x TC 2290 digital delay 2 x TC M 4000 1 x TC M 3000 1 x Yamaha SPX 990 1 x TC D-Two Delay 4 x TC C300 dual comp/gate 8 x DBX 160 A compressor

4 x Drawmer DS 201 dual noise gates 1 x TC EQ station – 4 channels with remote 1 x HBB CD recorder

1 x Denon Mini Disc Recorder DNM-1050 R 1 x Fostex D-5 Digital DAT

(3)

Monitor specs.

The monitors at Train are primarily driven from the FOH mixing console. The system consists of 6 independent pre fade aux sends.

System:

8 x Turbosound TFM 330 bi amped wedges. 15” + 2” 4 x TC XO-24 + Lab Amps( 8 sends)

1 x TC EQ station, 8 channels with remote

Stage box 40 ch XLR passive splits are available for artists who carries own monitor system.

Power supply:

Power for sound:

All sound equipment is connected to its own mutual earth. No lights, bars refrigerators etc. All Train PA, FOH and monitor amps runs on separate 3x63A, which is not accessible to bands.

For external sound and backline equipment we have the following available: 10 x 1 x 10A 3 pin LK 230V onstage

1 x 3 x 32A 5 pin CEE stage left 1 x 3 x 16A 5 pin CEE stage left 5 x 1 x 16A 3 pin CEE stage left

All above powered by one 3 x 32A outlet 1 x 110 V transformer 1200W

Power for light:

1 x 3 x 32A 5 pin CEE stage left 3 x 3 x 16A 5 pin CEE stage left

6 x 1 x 16A 3 pin CEE 230 V stage left All above powered by one 3 x 32A outlet 2 x 3 x 63A 5 pin CEE stage left

(4)

Microphones, DI boxes, Stands, Risers, Stage Size.

Microphones:

2 x Shure SM 58 8 x Shure Beta 58A 12 x Shure SM 57 1 x Shure Beta 91 5 x Shure SM 98 3 x Shure SM 81 3 x AKG C 535 EB 3 x AKG CK 91 2 x AKG D 112 5 x Sennheiser 604 1 x Neumann KMS 105 1 x Shure Beta 52 DI Boxes: 12 x BSS AR 133 Stands:

10 x K&M short stands with boom 12 x K&M tall stands with boom 4 x K&M straight stands

Risers: 6 x 1x2 meter risers Optional heights: 40 cm + 60 cm + 90 cm Stage size: Height: 0,9 m Depth: 5,0 m Width: 8,0 m Clearance: 4,0 m

(5)

Light spec:

Instruments:

8 x Martin Mac 250 Entour (16 bit mode) 8 x Martin Mac 300 (Mode 4)

4 x Selecon Cond Zoom spot 4 x Par 64 1000W CP60 floor cans 30 x Par 64 1000W CP60

8 x Par 64 1000 W (frontlight) 1 x Emil Niethammer follow spot

Dimmers: 28 x Pulsar Datapak DMX Controls: 1 x Avolite Saphire Misc: Euro Truss FD33 1 x Black backdrop 1 x White backdrop 8 x Black side legs 1 x Black front curtain 1 x Le Maitre crack oil 1 x Fly bar for backdrop Lee gels

(6)

Dressing room:

1 x 20 m2 room with toilet and shower. Access to stage by staircase. If needed other possibilities can be arranged.

Production Office:

Train Main office.

Computer with internet access. In addition wireless internet is also available. PH: +45 86 134722

Fax: + 45 86 138722

Load In:

By ramp from Train Main Entrance. Street name: Toldbodgade Because of heavy traffic stage doors cannot be used for load in.

Load Out:

By ramp straight out from stage. Street name: Dynkarken. Please notify your driver.

Parking:

(7)

Driving Directions:

From the south:

1. Leave highway E45 at exit 50.

2. Turn left at the third light.

Street name: Skanderborgvej/ De Mezasvej/ Frederiks Alle.

3. Turn right at the sixth light. Street name: Sønder Alle.

4. Go straight over 4 lights. Street name: Toldbodgade Landline power( 220 V.) available.

From the north:

1. Leave highway E45 at exit 47.

2. Turn left at the end of the exit. Street name: Viborgvej.

3. Turn left at the end of the road. Street name: Vesterbrogade.

4. Turn right at the second light. Street name: Vester Allé.

5. Go straight over 6 lights. Street name: Toldbodgade. Landline power ( 220 V.) available.

(8)

Local Hotels

Hotel Atlantic Hotel Royal

Europaplads 10-14 Store Torv 4

8000 Århus C 8000 Århus C

PH: +45 86131111 PH: +45 86120011 Fax: +45 86132343 Fax: +45 86760404 Web: www.choicehotels.dk Web: www.hotelroyal.dk

Located in the same building as Train. 5 min walk/drive from Train.

Hotel Guldsmeden Radisson SAS Hotel

Guldsmedgade 40 Magrethepladsen 1

8000 Århus C 8000 Århus C

PH: +45 86134550 PH: +45 86128665 Fax: +45 86137676 Fax: ´45 86128675

Web: www.hotelguldsmeden.dk Web: www.radissonsas.com

10 min walk/drive from Train. 5 min walk/drive from Train.

(9)

C270 C271 C272 C273 C246 C247 C248 C249 C249 C248 C247 C246 C263 Link C: C270 - C273: Profil - 1,2 kW C246 - C265: PAR64 - CP 60 C266 - C267: Free Dimmers C268 - C 269: House Light

1,

1 m

1,1m

0,5m

5,

0m

A1

A105 A123 A141 A14 A159

Up Down Down Up Entour Entour Entour Entour M300 M300 C262 C265 C265 A213 A79 A92 A231 C264 C262 Entour Entour M300 Entour Entour M300 M300 M300 C258 C259 C260 C261 C261 C260 C259 C258 A27 A177

A40 A53 _A195

M300 M300 A66 C251 C250 C253 C252 C251 C253 C250 C252 C256 C257 C254 C255

8,0m

Train - Stage

C256 C257 C254 C255

(10)

(11)

Toldbodgade 6 H av neg ad e Fred erik s Al lé Fred erik s Al lé De M ezas Vej Skan derb orgv ej Skan derb orgv ej Skan derb orgv ej Skan derb orgv ej Min det Sko leb akke n Kys tvej en Nø rre po_rt Nør rega de Nørre Allé Nørre Allé Sko vvej en Dro nnin g M arg reth es V ej G re n åv ej Skovvang_svej Nord re R ingga de Nordre R inggade R an de rs ve_j Pa lud an_-M ülle rs _Ve j Pa_lu da n-_M ülle rs _Ve j Pa lud_an -M ülle rs V_ej Vest re R ingg ade Vest re R ingg ade V es tr e R in g g ad e Vibo_rgve j Vibo_rgve j Vib_org vej Viborg_vej Viborg_vej R in gg ad eb ro en Sø nd re_R in gg ad_e Sø nd_re R ing ga de Joh. Baunes Plads Marsellis Boulevard Marsellis B_oulevard Åhavevej E45 E45 E45

Ormslevvej Ormslevvej

Ormslevve j Ormslev vej Brabrand Sø Badeanstalt Politi (Police) Rutebil-station (Bus-Station) Banegården (TrainStation) Råd-hus (Town-Hall) Musikhuset Scandinavian Center Århu s Å Årh us Å Århu_{s Å} Århus_Å Vesterbro gade Silkeborg vej Silkeborgvej Silkeborgvej Silkeborgvej Å b y R in_g ve j Åby Ring vej Hasle Ring vej Hasle R ingvej Hasle Ring vej R an de rs ve_j Sydh avns gade Sydh avns gade Str and veje n Str and veje n Sp an ien S tr an dv ej en Marselis Bouleva rd S tr an d ve je n Odd erve j Harald Jensens Plads Viby Torv R Ravn sbjer_gvej Vib y R in gv ej V ib y _R in_g ve_j Søren Fri chs Vej Søren Fri chs Vej Søren F_{richs Ve} j Carl Bloc hs G ade Gågader (Pedestrian only) Lan gel and sgad e Lan g elan d sgad e Lang elan dsga de Stjerne-pladsen N ør_re br_og ad_e Tho rvald_sen sga_de Ve ste r A llé Sønder Allé Dyn kark en Fred ensg ade Ny Ban egårds -gade M . P . B ru_u n s G ad_e Banegårdsgade Park Allé Rye sgad e N o rd h av n sg ad e Nor dh avn sgad e Åb ou lev ard_en Åbo ule-varden Mind eb ro-gaMde ind e-ga de Vestergade Vestergade Hjo rte ns_ga de G rø_nn eg ad_e G rø nn e-ga de La ng ela nd sg ad_e N y _M u_n ke_g ad_e N y M un ke ga de Dro nnin g M arg reth es V ej Skovvang_svej Nord re R ingga de R an de rs ve_j Lang elan dsga de Stjerne-pladsen

Train - Toldbodgade 6 - 8000 Århus C

Tlf. 86 13 47 22 - Fax: 86 13 87 22 - E-mail: [email protected] - www.train.dk

E45 [south]

Grenå Randers

Viborg
