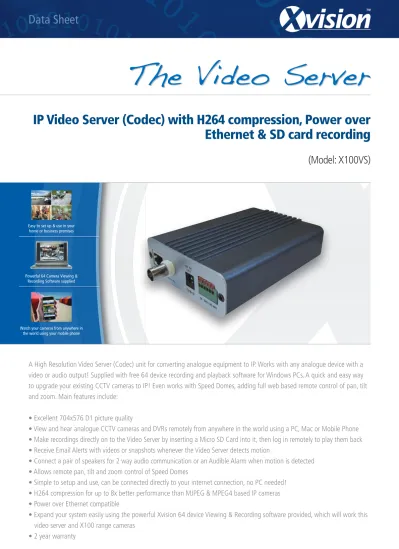

Data Sheet
A High Resolution Video Server (Codec) unit for converting analogue equipment to IP. Works with any analogue device with a
video or audio output! Supplied with free 64 device recording and playback software for Windows PCs. A quick and easy way
to upgrade your existing CCTV cameras to IP! Even works with Speed Domes, adding full web based remote control of pan, tilt
and zoom. Main features include:
• Excellent 704x576 D1 picture quality
• View and hear analogue CCTV cameras and DVRs remotely from anywhere in the world using a PC, Mac or Mobile Phone
• Make recordings directly on to the Video Server by inserting a Micro SD Card into it, then log in remotely to play them back
• Receive Email Alerts with videos or snapshots whenever the Video Server detects motion
• Connect a pair of speakers for 2 way audio communication or an Audible Alarm when motion is detected
• Allows remote pan, tilt and zoom control of Speed Domes
• Simple to setup and use, can be connected directly to your internet connection, no PC needed!
• H264 compression for up to 8x better performance than MJPEG & MPEG4 based IP cameras
• Power over Ethernet compatible
• Expand your system easily using the powerful Xvision 64 device Viewing & Recording software provided, which will work this
video server and X100 range cameras
IP Video Server (Codec) with H264 compression, Power over
Ethernet & SD card recording
(Model: X100VS)
Powerful 64 Camera Viewing &
Recording Software supplied
Watch your cameras from anywhere in the world using your mobile phone
Easy to set up & use in your home or business premises
The Video Server
Camera Performance
Resolution:
z
z
The Video Server will capture video at a maximum resolution of 704x576 pixels, which is often referred to as D1.Other Picture Quality Enhancements:
z
z
Brightness, Contrast. Colour and Sharpness control for adjusting the camera image characteristics to obtain the best picture qualityz
z
Digital Zoom for seeing extra detailz
z
Vertical Flip and Mirror functions for rotating the image if requiredz
z
Full Screen function for viewing the image full screen on your monitorMain Features
Excellent Network Performance:
z
z
The Video Server uses H264 compression to create efficient video streams that can be accessed over the local network or the internet without requiring large amounts of bandwidth. Resulting in a better picture quality and higher refresh rates than MJPEG and MPEG4 based Video Servers.Speed Dome & Pan, Tilt, Zoom Camera Support:
z
z
The Video Server has an RS485 port for connecting to Pelco D/P compatible cameras that feature Pan/Tilt/Zoom functionality.z
z
The Pan/Tilt/Zoom function of these cameras can be controlled through the web browser or using the free Multi Camera/Device Software suppliedPC free operation:
z
z
The Video Server does not need to be connected to a PC to operate, it can connect directly to a wired or wireless network or internet connection.Network/Internet free operation:
z
z
The Video Server does not need to be connected to a Network/Internet connection to record video and audio. Simply pop in a Micro SD memory card, use a PC/Mac to set up the Video Server and then leave it plugged in to the mains.Remote Viewing & Recording:
z
z
When connected to a local network or an internet connection the cameras can be accessed remotely by a:- z
Windows PC - allowing you to:View live images Pan and Tilt the camera Zoom In to the image (digital) Configure the camera Listen to audio Make recordings Playback recordings Take snapshots
- z
Mac - allowing you to:View live images Zoom In to the image (digital) Configure the Video Server Listen to audio (using Quicktime) Take snapshots
- z
Mobile Phone (including iPhone, Android, Nokia, Windows Mobile) - allowing you to:View live images Listen to Audio (Nokia & Windows Mobile only) Take snapshots
- z
3GPP compatible device - allowing you to:View live images Listen to Audio
On Board Recording & Easy Playback:
z
z
The Video Server has on board recording, whenever it detects any motion it will record on to a Micro SD Card (not supplied)z
z
These recordings can then played back by:- z
Remotely accessing the Video Server using a Windows PC- z
Removing the Micro SD Card and playing back on a PC/MacRemote (Across the LAN or Internet) Recording:
z
z
Recordings can be made across a LAN or over the Internet (offsite) in the following ways:- z
When logging in to the Video Server via a Windows PC- z
Using a Windows PC running the free Multi Camera/Device Software- z
Using a Mac running the Mac Multi Camera/Device Software (available to purchase)- z
Using a compatible NVR- z
Using a compatible Hybrid DVRFeatures
Intelligent Motion Detection:
z
z
The Video Server has built in intelligent motion detection, the Video Server will detect movement from 10 different zones and will allow you to specify the size of object it is looking for (eliminating any chance of false alarms).z
z
When it detects motion the Video Server can respond in the following ways:- z
Send an Email Alert with video or snapshots of the image that triggered the motion detection- z
Sound an Alarm if speakers are connected- z
Record directly on to a Micro SD Card- z
Send images via FTP- z
Send images via HTTP- z
Send images to a SAMBA server- z
Trigger the Alarm Output and any equipment connected to it, for example a Siren or Light Switch (additional relays etc... may be required for this function)- z
Move a Speed Dome or Pan Tilt Zoom camera, if connected, to a preset position, or start a Guard TourEmail Alerts:
z
z
The Video Server features Email Alerts, these are sent to the email address of your choice whenever the Video Server detects movement, along with a video or snapshot of what triggered the detection.z
z
This is a great function for being alerted of any intruders at your premises whilst you are away.Alarm (Voice Alert):
z
z
When speakers are connected to the Video Server the Video Server will make an Alarm noise through the speakers, to scare of intruders and let passers know that an intrusion is taking place.Microphone/Audio Input:
z
z
The Video Server has a built in microphone/audio input for recording and monitoring sound from the analogue device connected or a microphone2 Way Audio Communication:
z
z
When speakers are connected to the Video Server it is possible to have a 2 way conversation from your Windows PC with someone that is near the Video Server.This function can be used to verify who people are, to warn of intruders or simply to have a conversation with staff or family.
Multiple Users:
z
z
The Video Server supports multiple users with different rights, so you can setup Administrators who can change the Video Server settings and playback recordings and Guests who can view only.Industrial Grade Access Security:
z
z
Password Protection -To access the Video Server a user name and password is required, this ensures that your Video Server is secure and can be accessed by authorised users only.z
z
IP Filtering - It is also possible to specify which IP addresses are allowed to access the Video Server, further increasing the security of the Video Server.Multi Camera Software:
z
z
If you require permanent recording or want to record and view multiple Xvision X100 range IP cameras and video servers from a single PC, free Windows Multi Camera/Device Software is provided. This software offers:- z
Recording and viewing of up to 64 cameras or Video Servers on a single Windows PC- z
The ability to view and record cameras/video servers from the local network or from remote sites via the internet- z
Smart (Object) Searching of recordingsz
z
Mac compatible Multi Camera/Video Server Software is also available for an extra charge.Connectivity
Wired Networks:
z
z
The video server supports wired networks.DDNS:
z
z
The camera supports DDNS for use in environments where a static external IP address is not available.UPNP:
z
z
The Video Server supports UPNP for easy plug & play setup.Alarm Input & Output:
z
z
The Video Server has an Alarm Input and an Alarm Outputz
z
The Alarm Input can be used to connect an external sensor like a PIR, when this is triggered the Video Server can:- z
Send an Email Alert with videos or snapshots of the image that triggered the motion detection- z
Sound an Alarm if speakers are connected- z
Record directly on to a Micro SD Card- z
Send images via FTP- z
Send images via HTTP- z
Send images to a SAMBA server- z
Trigger the Alarm Output and any equipment connected to it, for example a Siren or Light Switch (additional relays etc... may be required for this function)- z
Move a Speed Dome or Pan Tilt Zoom camera, if connected, to a preset position, or start a Guard TourDesign and Mounting
z
z
The Video Server is small in form factor and designed for indoor use only.Features
Specifications
Model: X100VS
Type
Style IP Video Server (Codec) with H264 compression, Power over Ethernet & SD card recording
Weather Resistant Yes
Audio Audio In
Audio Out
Mounting Type Desk
Product Dimensions
(without bracket) Width: 125mm, Height: 31mm, Depth: 90mm
ProductWeight 0.36 Kg
ShippingDimensions Width: 225mm, Height: 75mm, Depth: 170mm
ShippingWeight 0.68 Kg
Warranty 2 Year Warranty
Inputs/Outputs
Video In BNC Socket
Audio In Headphone Socket
Loopthroughs (Audio Out) Headphone Socket (Headphone Plug to Video/Audio Phono Sockets lead supplied) Power Output for
powering Camera 12V DC 400mA (DC Plug to DC Plug lead supplied)
RS485 Output For Speed Domes and Pan Tilt Zoom cameras that support Pelco D or P protocol
Performance
Video Compression H264, MPEG4, MJPEG
Video Streams 9 Independent Streams + 2 Region Of Interest Streams
StreamTypes HTTP, RTSP, RTP, TCP, RTCP, 3GPP
Video Resolution & Frame Rates
160x120 (QQVGA) at up to 30 fps 320x240 (QVGA) at up to 30 fps
704x576 (D1) at up to 30 fps
Networking
Network Connection RJ45 Socket (10BASE-T / 100BASE-TX)
Wi-Fi Support N/A
Network Protocols Supported TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP, IGMP, SAMBA
Remote Access
Specifications
Model: X100VS
Power Requirements
Power over Ethernet Yes
Operating Voltage 12V DC (UK Type power supply supplied)
Power Consumption 500mA
Other Features
Motion Detection 10 Independent Zones with Schedule & Object Size Filtering
Presets: Yes (when connected to RS485 Pelco D or P Speed Dome or Pan Tilt Zoom camera) Guard Tours Yes (when connected to RS485 Pelco D or P Speed Dome or Pan Tilt Zoom camera)
Email Alerts Yes
On Board Recording Yes - Micro SD Card (not included - Kingston 8GB recommended)
Alarms 1 Input & 1 Output
Multi Camera Software Yes - Included free for Windows XP, Vista & 7 - Available as an additional purchase for Mac OSX
Minimum PC Specifications for running the Multi Camera Software
Estimated Total Display &
Recording FPS:
QVGA: 120 120 to 360 360 to 540 540 to 960 960+
VGA: 30 30 to 90 90 to 135 135 to 240 240+
SXGA: 8 8 to 23 23 to 34 34 to 60 60+
QVGA = 320x240 pixels VGA = 640x480 pixels SXGA = 1280x1024 pixels
CPU: Intel P4 2.4
GHz
Intel P4 3.2 GHz
Intel Pentium D 3.4 GHz
Intel Core 2 Duo E8600 3.3 GHz
Intel Core 2 Quad Q9650 3.0 GHz
RAM: 512 MB 1 GB 2 GB
Display:
1024x768 resolution or above DirectX 9.0c or above Intel 945G/965G or above
OS: Windows XP, Windows Vista*, Windows 7
Hard Drive: Minimum 60GB recommended
Ethernet: 100 Mbps 1 Gbps
*When using Vista it is recommended that extra memory is installed
RECOMMENDED ACCESSORIES
High Speed IP CCTV optimised Ethernet over Mains Adaptor
200 Mbps Ethernet over Mains*
(Homeplug) adaptor. Creates a virtual network over the mains ring in any building. Specially designed for use with IP CCTV video and audio streams for optimised performance in critical applications. Requires two adaptors to make a network and then one additional adaptor per an additional port required.
With mains passthrough socket for camera power supply.
ORDER CODE
XHP210 2 Year Warranty
ORDER CODES
X100VS High Resolution Video Server (Codec) & Power Supply
