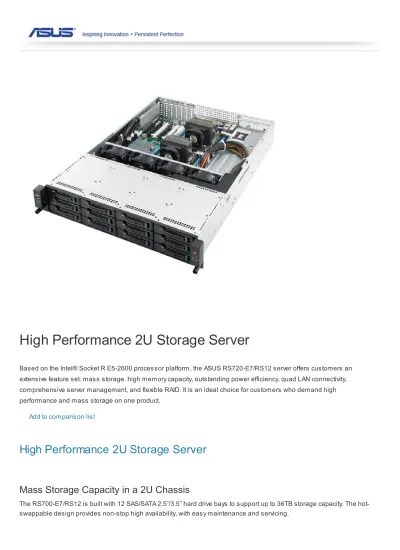

High Performance 2U Storage Server
Based on the Intel® Socket R E5-2600 processor platform, the ASUS RS720-E7/RS12 server offers customers an extensive feature set: mass storage. high memory capacity, outstanding power efficiency, quad LAN connectivity, comprehensive server management, and flexible RAID. It is an ideal choice for customers who demand high performance and mass storage on one product.
Add to comparison list
High Performance 2U Storage Server
Mass Storage Capacity in a 2U Chassis
The RS700-E7/RS12 is built with 12 SAS/SATA 2.5”/3.5” hard drive bays to support up to 36TB storage capacity. The hot- swappable design provides non-stop high availability, with easy maintenance and servicing.
6+1 Expansion
The RS720-E7/RS12 has high expandability with six expansion slots, including two PCI Express 3.0 x16 slots (x8 link) or one PCI Express 3.0 x16 slot (x16 link), three PCI Express 3.0 x16 slots, and one PCI Express 3.0 x16 slot (x8 link), meeting the demands of future expansion. In addition, a dedicated slot for ASUS PIKE SAS RAID upgrade kits is included.
Up to 92% Power Efficiency
The use of 1+1 redundant 770W 80Plus Gold power supplies offers high power efficiency for HPC applications. Also hot- swappable, power supplies can be serviced individually without shutting down the server.
Quad LAN Support
Quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. The server supports ASUS-made and most market-available 10Gb LAN cards for fast networking.
Comprehensive RAID
The RS720-E7/RS12 supports ASUS RAID PIKE RAID Solution. Users may upgrade the server from SATA to SAS storage by re-connecting the cable from the onboard SATA to the PIKE riser card’s SAS port, creating multiple storage options!
Complete Remote Server Management
By installing an optional web GUI-based ASMB6-iKVM module, users get full control of the server with out-of-band management (IPMI 2.0 standard) and 24/7 real-time remote monitoring. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flashing, remote control, power control, and asset management through a user-friendly interface. This gives users an effective tool for remote server management.
Specifications
Processor / System Bus
2 x Socket 2011
Intel Xeon processor E5-2600 product family (115W/130W/135W/150W) * Intel Xeon processor E5-2600 v2 product family
QPI 6.4 / 7.2 / 8.0 GT/s
*Refer to www.asus.com for CPU Support list
Core Logic
Intel® C602-A PCH
Memory
® ® 1
® ®
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM Memory Type :
DDR3 1866/1333/1066/800 LRDIMM*
DDR3 1866/1600/1333/1066/800 RDIMM*
DDR3 1866/1600/1333/1066 UDIMM with ECC*
Memory Size :
32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM 8GB, 4GB, 2GB, 1GB UDIMM
32GB, 16GB, 8GB LRDIMM
Expansion Slots
Low-profile
4* PCI-E x16 (Gen3 x16 Link) + 1*PCI-E x16 (Gen3 x8 Link) Or
3* PCI-E x16 (Gen3 x16 Link) + 3*PCI-E x16 (Gen3 x8 Link)
1* PIKE Slot for Stroage Enhancement
Storage
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card ASUS PIKE 2208 8-port SAS 6G HW RAID card
HDD Bays
12 * Hot-swap 3.5" "HDD Bays
Networking
1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
Graphic
Aspeed AST2300 with 16MB VRAM
On Board I/O
5 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 keyboard port 1 x PS/2 mouse port
OS Support
CentOS 5.6 32/64-bit
Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1
*(Subject to change without any notice)
Management Solution
default 1 x ASMB6-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CE, C-Tick, FCC(Class A)
Dimensions
615mm * 444mm * 87mm
Form Factor
2U
Weight
23Kg
Power Supply
770W (80+) (Gold level) 1+1 Redundant Power Supply (following different configuration by region)
Environment
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box
1 x RS720-E7 User's Guide
1 x ASUS ASWM Enterprise User's Guide (15060-01800100) 1 x Bag of Screws
2 x AC Power Cable
1 x RS720-E7 Support DVD (15091-02P00000) 1 x ASWM ENTERPRISE DVD
1 x ASMB6 SERIES DVD (15091-01H00000) 1 x ASMB6 User's Guide (15060-01U00000)
Optional Items
Second 770W Redundant Power Supply Module (04G184004921) Heatsink for CPU 135W upgrade kit (13071-00090100)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) ASUS PIKE 2208 H/W RAID card
Note
*1 >115W support with optional thermal upgrade kit
* DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest momory AVL update
Part List
Chassis
ASUS R20D 2U Rackmount Chassis
MB
ASUS Z9PE-D16 Server board
HDD Backplane
1 x RS720-E7/RS12-E SAS/SATA Backplane (BP12EX-R20C) (90-C1SEQ0-00P0T)
Front Panel Board
1 x Front I/O Board (FPB-R20A) (60SC00V0-SC0A02)
USB Board
1 x USB Board (USB-R20A) (60SC00U0-SC0A01)
Power Distribution Board
1 x Redundant Power Supply Power Distribution Board (PDB-R20A/E7) (90-C1SDH5-10P0T)
CPU Heatsink/ Cooler
2 x CPU Heatsink (13071-00090800)
Power Supply Unit
1 x 770W Redundant Power Supply (04G184004921) (2 x Power Supply Module default for North America)
HDD Tray
12 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Fan
4 x System Fans (80mm x 38mm) (13G074154010)
Fan Holder
4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
Air Duct/Mylar
1 x Air Duct (13GS1700P180-1)
Mounting Rails
1 x Friction rail kit (13GS190AM042-1)
Cable
1 x PMBUS CABLE 5P TO 5P L=500mm (14G000611200) 1 x USB CABLE 2*4 TO 2*5,L=850mm (14G000509430) 1 x POWER CABLE 8P TO 8P,L=70mm (14G000610110) 2 x POWER CABLE 8P TO 8P,L=420mm (14G000610120) 1 x POWER CABLE 24P TO 24P,L=460mm (14G000603750) 4 x SATA 7P*2 TO 7P*2,L=400mm (14G000128040)
4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552) 1 x FPB CBL 2*8 TO 2*10+1*L=6,950mm (14003-00110000)
