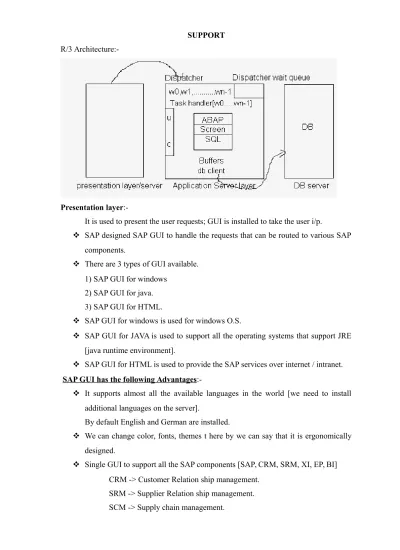

SUPPORT R/3 Architecture:-
Presentation
layer:-It is used to present the user requests; GUI is installed to take the user i/p.
SAP designed SAP GUI to handle the requests that can be routed to various SAP components.
There are 3 types of GUI available. 1) SAP GUI for windows
2) SAP GUI for java. 3) SAP GUI for HTML.
SAP GUI for windows is used for windows O.S.
SAP GUI for JAVA is used to support all the operating systems that support JRE [java runtime environment].
SAP GUI for HTML is used to provide the SAP services over internet / intranet. SAP GUI has the following
Advantages:- It supports almost all the available languages in the world [we need to install additional languages on the server].
By default English and German are installed.
We can change color, fonts, themes t here by we can say that it is ergonomically designed.
Single GUI to support all the SAP components [SAP, CRM, SRM, XI, EP, BI] CRM -> Customer Relation ship management.
SRM -> Supplier Relation ship management. SCM -> Supply chain management.
BI -> Business intelligence.
Function keys F1 provides field help and F4 provides list of possible values. E.g.: Currency and country.
Provides to specify the name of the country and currency. Frequently queued inputs are stored as parameters. GUI supports all the operating systems and Databases.
SAP GUI has various versions. [46C, 600, 620, 640, 46D, 700, 710] It has its own patch levels.
SAP GUI is downward compatible i.e., higher version of GUI can access lower versions.
SAP GUI is accessed over low speed connection when the n/w bandwidth is slow. Low speed connectivity disables OS suppress expensive GUI components like logs, pictures etc.
SAP GUI provides command window to execute the transactions directly. GUI also provides menus to access the functionality.
It is used to create favorites.
Favorites are logon specific and they are displayed on any desktop for that user favorites are stored in DB.
Installation of
GUI:-SAP provides presentation server DVD along with the GUI:-SAP s/w.
We can download from WWW.SAP.COM [It requires SAP partner / sap customer, SAP certification SAP EMPID]
SAP provides installation tool SAPINST. SAP inst is used to install SAP components.
SAPGUI requires around 200MB of space to install on windows [It depends upon the type of components we choose.]
SAPGUI for HTML doesn’t require any space. Navigate to presentation server DVD.
Select setup.exe or SAPINST.exe [for windows] Use. /sapinst [on Non-windows or UNIX] Double click on it [based on version]
Specify the path c:\, d:\, d: -> windows. Specify the path /usr/opt -> UNIX.
Select the GUI components. Click on install.
Configuring SAP
GUI:-SAPGUI, SAP logon pad icons are installed on the user desktop.
-> We need to configured various SAP components [SCM, SRM, CRM, BI etc] -> Click on SAPGUI icon.
-> Click on New to add the entries into SAPGUI.
-> Specify the details and click on Add to add the entry. Initialization files:-1. Saplogon.ini. 2. SApmsg.ini 3. Saproute.ini 4. Sapdoccd.ini 5. Saprfc.ini
Saplogon.ini:-It consists the entries of all the components.
It is initialized to display all the entries when user clicks on SAP GUI it maintains the details of each entry, if this file is lost all the entries are lost.
Sapmsg.ini:-It is initialized when logon load balancing is configured. It is used to identify the last loaded server in the landscape.
Saproute.ini:-It is initialized to access the server across the routers [across the n/w]
Sapdoccd.ini:-It is initialized when SAP library is configured.
Saprfc.ini:- It is initialized when to communicate b/w servers. All there initialization files are resides in C:\windows
Sapmsg.ini:-Sapmsg.ini contains the details of message server.
Message server is the agent which is used to route the request to the least loaded server. Presentation Server: SAP GUI
It is used to communicate with SAP systems. -> Click on SAPlogon.exe [windows]
->. /sap logon on [UNIX machines] to open up sapgui.
-> This executable reads from SAPLOGON.INI and display the GUI along with entries. -> Entries area nothing but servers.
-> In every company it is advised to create one saplogon.ini and populate it to users through a shared file server / mail.
-> The naming conventions of the entries should be meaningful. Creating
Entries:-Logon to SAPGUI Click on new
-> Select user specified system and specifies description [Application server.] -> Presentation server -> Application server –> DB server.
-> System number is a 2 digit number varies from 00 – 97
-> System ID is three characters ID like [DEV, QAS, PRD, TES, MIG] -> Router string:- Provide the ID address of the router. Save the entries. -> The creation of the entries is only performed under
-> The following circumstances:-1) During Implementation
2) During upgrade.
3) During induction of new application server.
Installation of presentation server:- 1. Download the current version of GUI from www.service.sap.com or from SAP DVD kit.
2. Navigate to GUI folder and click on Setup.exe / sapinst.exe on windows ./setup on UNIX.
3. Click on next to display the available components. 4. Select the components and click on install.
Installation
Types:-Now let us say I need to install on Scenario 1: 1 – 10 users.
Copy the DVD into the files server and access the file server to install or use DVD to manually copy and install manually.
Scenario 2: 10 – 100 users.
Create a batch file pointing to file server and send the screen shot for self installation.
Scenario 3: 100 – 1000 users.
Use third party windows SMS or SAPGUI installation server. It automats the installation from a central shared system.
Adoption:-1. Command
Window:-It is used to take the transactions as input. Window:-It is the fastest and easiest way to navigate to the programs.
2. Menu
based:-It provides menus to access the functionality, but consumes dialog steps. [Dialog step means it is a keyboard enter or a mouse click or a screen change.]
-> /n current screen to main menu. -> /n <Transaction> open the.
-> /o <Transaction> opens the txn in another screen. -> /NEX exits the screen.
-> /need pops up a message to logoff. The GUI screen provides various icons
[Create, change, Display, delete, lock, unlock, copy, save, print, back (moved to old screen) transport, search, create session]
-> Make use of legends, which gives description about status of icons. Note:- You can work simultaneously on 6 windows at a time.
Handling End user Front end problems:- [GUI problems]
-> Host name not known / host system is not reachable [cannot ping to the system]. -> Partner not reached “WSAE connect Refused” checks the hostname and port number. Probably ports might be blocked at firewall / proxy.
-> User complains the GUI request is timed out and could not connect to the system. -> Identify the detailed error, check n/w band width, n/w connectivity and select the option low speed connections.
-> User is able to connect to GUI, but GUI displays special characters like [! @ # $ % ^ &] check the
-> Could not display the logged on language…. Select the language [select the check box internationalization].
-> GUI could not open up to logon check for virus. If required we may need to reinstall GUI.
-> How do you install GUI from off shore to onsite?
-> Use remote desktop, Net meeting, team viewer, go to my pc, pcay where tools to install GUI remotely.
Problems with SAPGUI:--> Patch levels difference:
a) Application server has updated at o/s level executable b) Database at o/s level executables, DB patch.
c) R/3 system patches / support packages. -> Unable to add entries.
a) No write permissions on SAP GUI folder. [SAPlogon.ini] b) Option is set to not editable or user uses logon pad. -> GUI installation files corrupted. [Re-install GUI].
-> Menu functions or menus are not available. a) Check authorization.
1) Patch level differences.
Q: - The system is working fine until yesterday, but I am unable to logon today?
A: - These can be patch level differences at presentation server, application server [o/s, executables (kernel) and database (o/s executables (kernel)) and R/3 patch level update. 2) Unable to add entries in the SAPGUI.
No write permissions on GUI folder or user is provided with SAP logon pad or the option is set to non-editable mode in GUI.
-> We do not want the end users to changes the entries on their own, if there is any changes in the application server names, port numbers, we will notify (populate) the respective saplogon.ini.
-> Update GUI patch level check GUI version. 3) Libraries are missing.
If you uninstall any services in the user front-end the SAPGUI required Dll’s might be un-installed or it can be due to virus. Re-install GUI by taking he backup of SAPlogon.ini.
4) Menus are not available.
Check the Authorizations [permissions for the users]. 5) GUI display special characters
It can be due to virus, lower patch levels, and update the patch level.
6) I couldn’t login to Chinese, Korean etc languages even though languages are installed. Check the option internationalization in the 118N but in older version, you need to select the character set [Chinese / Korean / Japanese etc]
7) Could not connect to GUI with error Network failure, connection broken, partner could not be reached.
Check the N/W connectivity using the command ping you are disconnected from the n/w, or your servers are not reachable.
8) Load-program-not found... [Syntax error].
The program that allows you to log on is having problem with syntax.
Identify the error and error code and apply the relevant patch if it could not be resolved write to SAP with high priority.
9) GUI is not compatible to access the SAP component.
GUI is down words compatible, i.e. higher version can access lower version components. I.e. GUI 7.10 can access 7.00, 640, 620 components unless there is a bug in the specific release.
10) We cannot get screen painter, business explorer, business analyzer….
These are selected during installation reinstall the GUI by selecting the missing components.
Some components depend on Microsoft office (Excel) so we may need to update Microsoft office.
Q: - I could not login to the system? A: - Check if the client exists.
-> It exists but the entry might be deleted. 2) Check the username exists
-> Go to SU01 and check for the username.
-> User exists but user is inactive or locked due to admin reasons, locked due to incorrect logins, user account validity is expired. (Contract users).
3) Password mismatch.
4) The logged on language is not installed.
-> We can set various parameters for users and passwords that is a part of security. Application
-> Application server is used to handle the user requests.
-> Application server has its dispatcher to mange the system, [keeps the requests in queue, assign the processes etc].
Dispatcher:-There will be only one dispatcher for each instance; dispatcher has its own post [3200].
-> It is used to handle the user requests and assign them to freely available resources based on FIFO [first in first out].
-> Dispatcher manages all the work processes and keeps their status [waiting, running etc] Work
process:-It is process which actually interprets the user requests using its task handler [TSKH].
Task handler consists of three
interpreters:-1) Screen Interpreter:- It is used to interpret the screens that are in the user requests and convert then to understand format [identify the user request what screen it is like purchase order creation, display, delete, modify]
2) ABAP interpreter:- It is used to interpret the user inputs based on the logic [if, else conditions]. And helps to define the SQL statements.
Ex: Reads the user inputs and based on the inputs process them. -> User login to us site, state: Washington
It helped to finalize the inputs to define SQL
Select * from population where country = “US” and State=”Washington” and year=’1947’ and gender = ‘male’, age>18;
3) SAL Interpreter:-
It interprets the SQL commands and define the SQL statements that needs to be sent to database.
-> The SQL statement that is defined is based on OPEN SQL. -> Open SQL is the database language used by SAP.
-> In order to convert open SQL to native SQL, we need native DB client installed on application server.
-> Native SQL is the language used by the database. Oracle -> PL / SQL
SQL Server -> Transactional SQL [T-SQL]. SAP -> open SQL.
Advantages of Native SQL:-
-> It communicates with database without any DB client there by avoiding conversion from open SQL to Native SQL.
Disadvantage:--> Loss of independency as it is particular to one database.
-> Each statement hits the database because the frequently used data is not stored in Native SQL.
-> Open SQL: It is independent of database, and it costly for the first Time and later it is stored in buffers which will reduce the response time drastically.
Buffers:-This is a temporary memory area where the frequently accessed data is stored. -> There are various buffer elements which will be discussed during fine tuning of the system.
DB
Client:-This is used to communicate with the database using there own protocols. Oracle DB client -> Oracle database server.
Workflow-1:-1) User sends requests using SAPGUI.
2) The request is sent from presentation server using DIAG protocol. [DIAG stands for Dynamic information Action Gateway].
3) Dispatcher receives the request and keeps them in queue. 4) Dispatcher allocates WP based on free resources and on FIFO.
5) Work process contains task handler to interpret the user request.[The interpretation of logon screen that contains user id, password, client, logon language].
6) Based on ABAP, screen, SQL interpretation the request is [SQL] compiled to sent to database as the database communicates only in native SQL.
7) DB client connects to the database and handover the requests.
8) The user request is handled by the database processes and the response is sent to the R/3 process.
9) R/3 process identifies the frequently accessed data and stores a copy in R3 buffers. [This data is available to all the users].
Ex. Logon screen home page, SAP menu, logos,
10) R3 work process stores user related information in the USERCONTEXT. User context:
It is a temporary work area where user related information is stored. [The information can be user authorizations, parameters, earlier access screens…… etc.] -> The process of copying user related information to user contest is referred as roll-out. -> It will not the content that is buffered in R/3 buffers. It will just point to it.
11) The response is send to the user. 12) User gets the logon home page. Workflow-2:
1) The user wants to crate sales order and executes transaction VA01. 2) The request processes by dispatcher and work process handles it.
3) Work process goes to the user context [Roll buffer or user buffer which is specific to user] and rolls the user related information into task handler.
4) Task handler interprets the user request and it needs sales order screen.
5) It checks in the user buffer and it is available the response it sent to the user [it avoids open to native SQL conversion and database traffic.]
6) The work process Rolls-out by storing the screen [pointing to R/3 buffer]. Workflow – 3:.
2) Request is handled by dispatcher and the work process rolls-in user related information in to task handler to create sales order / PO.
3) Now the buffers are not used because we are going to update the database. 4) Once the record is created or updated, a copy is stored in R/3 buffer again. Dialog
Step:-The dialog step is nothing but a screen change or act based on keyboard input or mouse click.
Types of processes:- DVEBMGS
1) Dialog process:- It is the only process that is used to communicate with users. -> Dispatcher assigns user requests to dialog process only.
-> There should be at least 2 dialog processes only.
-> Users directly cannot interact with any other processes except dialog.
-> As the dialog process is serving end-users the run time should be restricted the maximum run time to execute a task by dialog process is 600 sec.
-> The average dialog response time is measured as 600 milli sec to 1200 mille sec. 2) Background
process:-It is used to run the expensive programs, reports in the background mode [in the non-interactive mode].
-> There is no time limit to execute these jobs.
Ex. Payroll run, dunning reports, monthly reports. It will generate pay slip based on other wise it will converted in to PDF format and sent it to all the employees in the company] 3) Update
process:-Dialog process updates the records in the database temporary tables.
-> As per the logical unit of work, if all the txn are committed then update process update the database from temporary tables.
4) Spool
Process:-It is used to print the documents, it is initialized by either dialog or background work process. These processes write the prints request into Tense. [Temporary Sequential objects].
-> Spool process reads Temse and converts them into printer specific requests. 5) Gateway Process:-
It is the process which is used to allow the communication b/w systems. It has it own port [3200].
6) Message server:- It is used to manage all the dispatchers [application servers, instances]
-> When log-on load balancing is configured it is used to identify the least loaded dispatcher and route the user request to the dispatcher.
-> Message server assists in getting the locks [While updating the record] from the Enqueu process, it he request is coming from dialog instance.
7) Enque
Process:-It is used to lock and unlock the records while updating a record. -> It ensures the transaction consistency.
SUPPORT
It is used to support the runtime environment for SAP systems and it is advantages in the following
areas:-1) Proactive
Monitoring:--> Check the CPU’s, disks, clustering, SAN, backup, log files etc. -> Check the database fill level, file size fill level.
-> Check the response time of the dialog process. -> Monitor the status of each process.
Note:--> We define proactive checklist to be monitored periodically [hourly, by hourly, daily once or twice]
-> This has to be initiated by the consultant to avoid and prevent the bottle neck on the system.
2) Reactive
support:-Users submit the requests to the SAP basis team in the following ways where the consultant needs to react based on the criticality of the request.
a) Telephone requests [provides IVR is available]. b) Fax
c) Email
d) More familiarized ticketing tool. Ticketing
tool:-It is based on CRM, where the user submits request and gets a token ID/ticket/case ID/request ID/TT number [Trouble ticket] based on the type of CRM used.
1) Siebel CRM 2) SAP CRM
3) Microsoft navision. 4) Remedy
6) Clarify 7) HP open view 8) Peregrine.
Ticketing tool is and unique ID to identify end-user problems.
Priorities:-1) Low 2) Medium 3) High. 4) Very high. 1) Low
[Normal]:--> End user problem.
-> It is only related to that desktop.
Ex. User cannot login, GUI issues, probably a new user joined in the company requires end user training.
2)
Medium:--> User cannot create documents [Do, Invoice, billing delivery] Ex. Authorization issues [user does not have roles] access to printer. 3)
High:--> Business is affected. [Also called as dollar problem]
-> Could not print documents to a printer [sales order, purchase order] -> A group of users could not login.
Ex: vendor is waiting for a purchase order to supply goods.
-> If PO is not delivered goods are not supplied by effects production->sales->Marketing. 4) Very
High:--> Dialog instances are down.
-> Most of the business is affected. [It can be due to accidental errors, h/w errors] -> Performance effected.
5) Disaster:- The complete system is down. SLA [Service level Agreement]:-
It is and agreement made b/w customer and the support partner.
-> Except some sensitive issues and financial values the remaining, SLA is open to all the consultants.
-> SLA can be of the following types:-1) Ticket based
That is the company pays to the partner based on number of tickets.
-. Customer fix minimum no of tickets i.e. 1000 tickets per month each ticket cost varies from 15$ to 30$.
Amount:--> A fixed Amount to provide the support services. -> We will include in scope and out scope tasks. In scope
activities:-- Supporting the system regularly - Monitoring
- Supporting end user related activities - GUI installation, GUI patching - Printer related issues
Out scope
activities:-- Support packages and patches - Kernel upgrade
- Backup restore
- Installation and post installation activities.
- Connectivity to external devices. [Printer, fax, barcode machine etc) - The out scope tasks needs evaluation there by charged accordingly. Ex: Support package [100$]
-> System copy [restore] [150$ - 300$]
-> Installation [750$ to 1000$] ->depending upon the component probably a new component like CRM may costs thousands of dollars.
3) Time and material [T &
M]:-This is used for out scope activities and fixed bit or fixed amount contracts. -> It is calculated based on no of hours / man days incurred on a particular task. Ex: Applying support stack in a 3 system landscape
1. We need to check dependencies.
2. Apply in the sequence [development, quality, production].
3. We need to provide at least one week for testing the support stack in each system. SLA
Timings:-- It is calculated based o n type of support [24*7*365].
Escalation
12 4 1 1 15min 18 6 2 1 15 24 8 3 1 15 30 10 3 1 15 min Low Medium High Very High Disaster 36 hours 12 hours 4 hours 1 hours 15 min 72 hours 36 hours 8 hours 4 hours 1 hours
Response time:- We need to respond to the customer request or the ticket saying that “We are going to work on the ticket” and assigns yourself to the ticket.
Closer time:- Once the ticket is assigned to the user [consultant] we need to ensure that it is closed with in time.
-> Response time is calculated based time on date and time of request / ticket and date and time of response.
-> Closure time is also calculated as similar to response time. Status of
Tickets:-1) New:- When the ticket is created by customer the status of the consultant in the team. 2) Assigned:- The ticket is assigned by the team leader to one of the consultant in the team.
3) WIP [work in progress]:- Consultant is working on the ticket.
4) Hold / pending:- The ticket is waiting or approval from the customer [It is not considered for SLA and escalation]
5) Temp fix:- The issue is resolved temporarily
Ex: The user could not print the document ask the user to change the printer or ask the user to use the common queues. KOSK – common queue.
6) Finished:- The consultant change the status to finished if the work is completed. 7) Closed:- Customer closes the ticket.
Note:- The status changes are notified through email to the customer and PDL [public distribution list].
Types of Supports:-1) On-site support. 2) Off shore support 3) Right shore support.
On-sit support:- The consultants works with the customer directory or works at data centre.
Ex: HP, Sinsenatec.
-> HP provides off shore services from their Bangalore office. -> Sony provides off shore services from their Bangalore office. But servers are located in Japan.
Right shore support:- The consultants are available on shore and available to work either off shore or on-site.
Main line
1. ISDN line [dedicated line] 2. VPN [virtual private Network] 3. Internet
Pc any where Go to my pc Team viewer
RSA cards -. Random password. 1. Go to office
2. Logon to your system. 3. Check the connectivity
If [VPN], ISDN [not required] connect to customer site. 4. a) Check tickets / Inbox.
b) Handover from your colleague. 5. Check list.
Check list:- It contains the list of activities which needs to perform pro-actively and ensure that system health is maintained as per threshold values.
-> It depends upon company to company and in the schedule [every 1 hour for production system, every 4 hours for pre-production system, weekly once for development system. The following activities are
checked:-1. CPU utilization.
2. File system fill level [May effects logon problems] 3. Database fills level
4. Work process utilization 5. Users logon report
6. Critical users that who are causing bottle necks problems by using expensive programs, reports, txn, etc.
7. Memory utilization [consider various parts of memory]. 8. Buffer utilization.
9. Backup schedules and monitoring the success or failure of backup. 10. Monitoring the background jobs [house keeping jobs].
11. Monitoring the interface jobs [data transfer from one system to another system i.e. SAP to SAP, SAP to Non-SAP]
12. Monitor logs at OS level, D/B level and R/3 level. Dialog
processing:-It is used to process the user requests and initiate background, update, spool processes. On behalf of users because it is only the process that communicates interactively with the user.
-> Each instance requires at least 2 dialog work process.
Instance:- It is a logical entity that is installed on an application server which has its own dispatcher, work process, memory, buffers etc.
-> It is possible to have more than one instance on a single application server provided they are differentiated by a 2 digit instance number.
-> Instance number varies from 00 – 97 [98, 99 are reserved for roxting purpose]. -> Dialog process are configured by using parameter Rdisp/WP – NO-dia.
-> Each WP requires around 75 to 150 MB of memory on an average. Dialog work process
Multiplexing:-The dialog work process is not restricted to user but internal server n no of users similarly user is not restricted to a work process but in turn served by multiple work process to complete the transaction.
-> The process of serving multiple users without restricting to a user is called as Multiplexing.
-> Each dialog process executes the part of transaction only.
-> In order to execute the part of txn, it should be completed with in 600 sec. If not he job is timed out.
-> The time out parameter is defined by rdisp/max-wp run-time=600 sec.
-> It is a dynamic parameter which can be modified based on the customer requirement. Ex: Pay roll run, monthly sales reports, dunning reports etc.
-> The time should not be more than 1800 sec. I.e. 1800/600 = 30 minutes.
-> Each dialog work process is used to serve 5 to 10 users and each WP requires around 75 – 150 MB of memory.
NOTE:-The sum of dialog WP should be more than sum of non dialog WP.
-> The dialog WP are monitored using the txn SM50 using executable demon or SM66. -> Dialog process initiates background, update and spool processes.
-> It updates temporary tables so that the above processes are executed by reading the “Temp” tables.
Monitoring of dialog work process / work process:--> Go to SM 50 or SM 66 txn to monitor the work process.
-> It is a regular activity to monitor the processes SM 50 – locally and SM 66 – Globally. -> It is used to monitor the status of WP.
* NO: - The WP number (serial number)
* Type: - Type of the WP (Dialog, update, Btc, spool) * PID: - Process ID at os level.
-> use task manager to check the WP ID [windows]. -> Use ps –ef grep|| dw* [UNIX]
STATUS:- The status of the work process. Waiting:- It is waiting to handle the request. Running:- Currently executing the user request. Stopped:- Work process is stopped.
Holding:- It is processing the request but hold due to the response from the target system. Terminated:- The process is terminated the status only determines whether [terminated / working] the actual reason for the status is displayed in reason field.
Reason:- The reason for the status of work process there are various reason field. 1) Sleep:- The w/p is waiting for a response from the target system.
3) PRIV:- [private mode] W/P is restricted by the user.
4) Enq.vb.ms.spo:- Waiting for the respective process to process the request.
5) START:- Start the work process after termination end. We need to specify this option if automatic start after an error is required if it is set number we can root cause the error.
6) ERR:- The number of times work process terminated /
C.P.U:- It displays the time [The amount of time taken by the work process utilizes the C.P.U resources.
TIME:- The total time of the work process in executing the dialog step. Report:- The name of the report executed by work process.
Client:- The client number
USER:- The client name who is executing task.
ACTION:- The type of active [read, insert, sequential read direct read] TABLE:- The name of the table.
What to
monitor:- We need to monitor the status of the w/p and ensure that the work processes are in waiting state.
We need to alarm the status is hold/running/stopped with reason private, sleep, etc..
We have the option of killing the work process with core and without core.
We use excel sheet to maintain the system health check.
SM66 it is similar to SM50 but display all the work process globally. It also display’s the memory utilization of the work processes.
Analysis: Go to SM50 or SM66
Select the w/p that is continuously running and double check on it to find the details of the w/p. It clearly demonstrates the SQL statements and the nature of work [insert, read, direct read, physical read, sequential read]
Find the expensive w/p [which consumes more time then the threshold value] 600 seconds. Select the processes goes to user info and get the contact details. Call the user to know the significance of the task that is being executed, and if it is the major bottleneck kill the process with [log file] or without core. If you cannot login to the system, use dpmon and identify the name of the user [for communication] and kill the w/p. It is better to kill any user work process instead of restart.
Each w/p execute a part of the transaction. That is complete transaction cannot be handle by a dialog w/p.
Any transaction that consumes more than 600 sec is timed out.
NOTE:- Above two are advantages in dialog perspective to facilitate the problem is user can not execute long running, time consuming expensive program.
Background W/P
[BTCH]:-It is used to run the long running, time consuming programs in the background mode during half peak hours without any user interaction.
Ex:- Pay role run: Pay role runs in the background and generates page structure, print pay slips [Email pay slips to all the employees].
During reports are the account receivable month and reports, quarter reports, yearly reports. Background process executes the job completely by dedicating to the user request till the completion of the job. It will not out the user request. There are background jobs which runs for days background job are configured by parameter rdisp/wp – No – BTC. There should be at least two background w/p in the SAP system.
Background job
mechanism:-1 User schedules a pay role run using dialog process to run in the background mode during half peak hours with variant.
Variant:- It is predefined value which will be populated on the screen during run time. It is also referred as program selection criteria. That is required to run the program.
Ex:- Pay role run requires the month, pay role duration. [daily, weekly, fort night, monthly]
These variants are stored in table TVARV [table variants] Variants are defined in transaction SA38 or SE38.
Go to SA38 specify the program or report name execute to display the selection screen provide the I/P’s and choose the option go to variants and save as variant.
When the job is schedule it is stored in the table TBTCT [table background time] and TBTCS
A background scheduler SAP MSSY runs periodically for every 60 sec in the dialog mode The time is specified in the parameter. Rdisp / btc time = 60 sec
The scheduler reads the background tables and runs them or queue them.
2. Release:- The job is specified to run at a specified time.
3. Ready:- The schedule time is execute of and the job is ready to be picked up by the scheduler.
4. Active:- The job is being to be executed or the job is running. This task can be displayed in SM50, SM66 and SM37 to know the process of the job.
5. Finished:- We can assume that job is completed successfully. We need to evaluate thoroughly because finished status may also result in abnormal terminations, memory issues, space fill levels etc..
6. Cancelled:- The background job is cancelled. Dispatcher
monitor:-When you cannot login to the system use “DPMON” at o/s level to monitor the status of the w/p
Use option ‘K’ kill the process based on the time.
“DPMON” is an executable in \usr\SAP\SID\sys\exe\run in earlier versions. \usr\SAP\SID\sys\exe\UC\nt 138C in current Netweaver version. On UNIX you need to login as <SID> adm to work with dpmon.
Defining background
jobs:-Background jobs are defined in transaction SM36 or in SA38 or SE38. SM36 has various options to define a job.
1 Go to SM36
Specify the job name: [Job class a,b,c. there are three types of job classes.]
a. Class A:- It is used to schedule high priority job. These jobs will be executed by class A background w/p only [class A is defined in operation mode] Transaction “RZ03”, RZ04, SM63.
b. Class B:- It is used to schedule medium priority jobs that runs periodically
Ex:- System housekeeping, performance, statistics jobs. These are executed before the class C jobs are executed.
c. It is used to schedule low priority jobs this is the default class. Status:- It is scheduled until you define time.
Execute target serve:- To execute the specify the name of the server to execute the job. RFC server groups are used [RZ12] to determine the least loaded background server. Spool lost recipients:- It is used to schedule the output to the printer, Fax, Email, PDL. Start
Condition:-Immediate: It will be scheduled immediately
After job:- The job will be scheduled to run based on success or failure of a predecease in order to schedule the background jobs with various conditions it is not possible using ‘SM36’
SAP recommends and certifies the following tools. 1. Maestro
2. Tidal
3. SAP job scheduler.
These tools schedule the jobs with various conditions. But the jobs still can be monitored in SM37.
Each company provides training on the above tools.
After event:- Events are the programs that are triggered at o/s level by using an executable SAPEVT. It is used to trigger the transports, archiving, data transfer and other financial related jobs.
Events are maintained in transaction SM62.
SAP defined their own variants which are triggered in the above scenarios. Ex:- While reporting a transport request.
SAP_TRIGGER_RDDIMPOP SAP_IMPORT_START SAP_IMPORT_STOP
At operation mode:- Operation mode is used to convert the dialog to background and background to dialog dynamically without restarting the system. The job will be triggered during the operation mode.
Factory calendar:- Job can be executed either being of the month or end of the month. Job steps:- The job can be defined by using
1. ABAP program 2. External command 3. External program.
1 ABAP program:- Specify an ABAP program with variant.
2 External command:- External commands are defined in SM69 and executed in SM49. These are the commands. Which are executed in o/s level?
Ex: Backup, Ping, Listener, Router, TP, SAPDBA
3 External program:- It is used to trigger the executable SAPXPG. SAPXPG is used to trigger the external programs.
monitoring:-- Go to SM37 to monitor the background job - Select the job
- Click on job log to display the job steps
- SM37 is used to display background jobs based on job name, username, status, start condition, ABAP program name.
- Select based on date time and status ready, active, finished and cancelled.
- Double click on the job to identify the problem if job is failed. If the status is ready for longer time.
- Check SM50 and SM66 for free background w/p’ s. If the process are freee check for the free dialog w/p. If dialog w/p is free than check background scheduler time.
Analyze the finished and cancelled status:-1. File system problems:
File could not opened File with old data
File is opened but not in the desired format File is filtered or corrupted.
2. The target system is not available; it is available but not enough resources to handle the source request.
3. User ID and password required to communicate the systems.
4. Check if the user ID is active. If active check for password expiring or password locked due to incorrect logon’s or requires a password change for every 30 days. 5. The target system is not allowing any connections due to ports blocked.
6. The program is using expensive reports that require more memory an timed out due to lack of memory. [Increase memory].
7. The program is terminated with PXA_NO_FREE_SPACE. This is program buffer error.
8. It is terminated with error ora – 1653. Ora – 1653 table space overflow. Resolution:- Add data file or resize data file.
9. Error message ora – 1631, ora – 1632 max extends reached. 10. Ora – 255, 272 Archive struck
Resolution:- Increase space in ORA ARCH.
11. Unable to het lock on the record to update dead lock issue. 12. Lock table overflow.
Pausing the BTC job:- Use BTCTRNS1 and BTCTRNS2 to pause and un pause the background job. However we delay the schedule by using parameter rdisp /btc time to maximum.
Scheduling background jobs or Housekeeping background jobs - Go to SM36
- Set standard background jobs and schedule them to run with default time
1 RSBTCDEL: It is used to delete the background jobs based on job name, user name, and status, older than 10 days.
2 RSSNAPDEL: It is used to delete old ABAP dumps. 3 RSBDCREO: It is used delete old Batch o/p files. 4 RSPO41: Used to delete old spool files.
5 RSM13002: used to delete old update requests and other jobs related to performance and statistics to calculate the work load on the system.
UPDATE W/P
Logical unit of
work:-It is a transaction where it consists of one or more tasks. If any one of the task is failed the LUW is failed. If both tasks are successful then LUW is successful. That is LUW either commits or roll back. It was not be in hanging state.
Transaction:- A transaction consists of one or more LUW’s which are committed or rolled back together
SAP
Transaction:-It consists of one or more transaction that can be committed together or rolled back. An SAP transaction is handled by one or more dialog process.
The dialog process is a speedy process and needs to commit transaction with in 600 sec. If it commits the transactions in to database main table. The transaction cannot be reverted. That is why SAP uses update mechanism. For the transactions that have more than one LUW there are three types of updates.
1. Local update:- It updates directly on the database some standard job’s uses this mechanism.
2. Asynchronous update:- The dialog process updates the temporary tables with out getting any confirmation from the system. It update’s the temp table’s which can be reverted back.
3. Synchronous update:- Update process read’s the temp tables and update’s the database synchronously.
mechanism:-1. User login to the system using dialog process
2. User submit’s request to create sales order, purchase order which consists of more than one dialog step.
Ex: A sales order consist of more than 8 dialog step’s that means 8 dialog w/ps are required to complete the transaction.
3. User submits the part of the transaction [dialog step]. As we are going to update user need to lock the record. So that it is not modified by other user.
Dialog process communicates with the ENQUE process and obtains a lock on the record that is going to be updates.
ENQUE process assigns the locks [SM12] for the entire SAP transaction from the main memory of the ENQUE instance.
Dialog process updates the temporary tables asynchronously. Upon commit the transaction no or ID from the number rename buffers [SNRO] issued to user and updated in the temp tables.
Update process in herit the locks from the dialog process and foes to the database.
Update process now lock the record’s at database level table by table and update synchronously.
The database locks are displayed in transaction ‘DB01’. Types of UPDATE work
process:-There are two types of updates w/p
SAP defined three V1, V2, V3 [V3 reserved] V1 and V2
V1 – It is used to handle high priority updates or critical updates V2 – It is used to handle non critical updates.
It is recommended to configure at least on ‘V1’ update for SAP system. If V2 is not configured ‘V1’ handles V2 updates.
Updates are defined by parameter. 1 V1 – R disp /WP – No – VB 2 V2 – R disp /WP – No – VB2
A thumb rule for each five dialog w/p three should be at least one update w/p. Temporary tables:- These are stored in the database [SE12]
1 VB HDR [update
herder]:-It consists of the header information like Enque, update program and Transaction. 2 VB
MOD:-Update function module to update database function module specify the logic to update the tables.
[One module can update few hundred tables.] 3 VB
DATA:-The data to be updated
4 VB ERROR:- Update error information.
Update Re organization:- Set the parameter R disp / vbreorg = 1
To re organized that is to delete incomplete update request at the start of server. We can also scheduled RSN13002 background job to delete the incomplete update request.
Rdisp / Vb _ delete _ after _ execution
To delete update after execution SAP recommend using the above background job instead of setting up the parameter.
Update Monitoring: [SM 13]
Update are monitored in transaction SM13 Updates status are
1 INIT: The update is being initialized update database. 2 RUN: The update running [updating the database]
3 Auto:- If the update is deactivated if the updates are thrown into error states upon activation the update is started with status “Auto” [The updates are automatically initialized]
4 ERR: The update is thrown into error. ST 07:
Is used to display the most servers’ total number of users’ w/p’s, total number of users, buffer utilization, memory utilization, component wise users, servers, and w/p.
UPDATE MONITORING:
Go to sm13 and check the status of the updates we need to check the updates that are thrown into the errors or running.
Double click the record and check the low it is not committed on the database due to the following reasons:
1. Programmatically error.
2. Deadlocks (The lock required by one by one user is held by another user vice versa)in this scenario none of the user can commit the transaction we need to release the lock of either one of the user by ending their sessions.
4. A particular module is in the unit stage and locks are released with error message we could not be updates or restart is not possible. Analyze the module which is not updated and refer technical team
5. Lock table overflow. UPDATE DEACTIVATION:
When ever there is a problem in the system the updates are automatically deactivated by using the parameter R disp \ VB – stop – active.
Reset to 1
Ex: Table space overflow, max extension reached archive struck.
During deactivation an email will be sent to the user provided that parameter R disp \ vb mail is set.
Go to SM14 and to deactivate update mechanism manually. The active updates will be running or error status
Up on activation the updates are moved into auto status If the update does not happened. Go to SM13.
Check the information. If update restart is possible select the record repeat update. If the error is due to update deactivation.
Go to SM37 update all records.
While repeating the update ensure that transaction
Consistencies are maintained. If necessary communicate with SAP. ENQUE PROCESS
Enque process:- It is used to lock and unlock the records while updating a record. Enque process is configured mostly on the central instance along with message server. In most of the companies these will be only one Enque but depending up on the update frequency we can increase the no of Enque by using parameter Rdisp / WP – No – ENQ Provided the lock table is shared by all the w/p. The lock table is configured by parameter ENQUEUE / Table – size = 4 MB.
Which can be increase up to 100 MB? Lock table memory of the Enqueu instance [central instance] Enqueu process is used to logically lock the record at application server lever for an SAP transaction. These are also referred as SAP locks. This locks the complete SAP transaction. It is different from database locks.
Database locks are used while updating permanent tables by the update process, which course inherited from the dialog w/p.
ENQUE WORK
- Dialog process communicates with Enque process to issue lock on the record. - Enqueu process issues the lock based on availability in the lock table and if no
lock is issued on the table.
- Enqueu process should provide the lock with in the 5 mill sec. If the request is coming from dialog instance. The dialog process communicates with message server, message server communicates with Enqueu to lock the record [that needs to be updated] and issue the lock and wise versa.
- The communication that is Enqueu time should not go beyond. ENQUE
MONITORING:-- Go to SM12 specify the user ID, client and executes to display the lock tables and their arguments. We need to monitor the locks that are older than 12 hrs and include them in the check list.
Process of releasing
locks:-1. User complaints that he could not update the request due to the record lock y Enqueu process.
2. Go to SM12 and check the lock weather it exits is not. If it exits inform the user that the record is locked by the user who has locked the record.
3. Lock exists but it older than 12 hrs.
4. User again comes back to the update problem saying that we locked user is not in the office and while communicating over mobile we conformed that we did not hold any locks write a mail to the manager.
5. Write a mail to reporting manager, company and table locked user saying that we are releasing the lock or ending the particular session. Get the response from the reporting manager and end the user session and release the lock.
Note:- Do not release the locks on verbal approval ensure that you have black and white document.
ENQUE PROBLEMS
1. Dead lock situation during dead lock the locks will be pending more than 12 hrs has to be deleted [Depending up on the SOP (standard operation procedure)]. 2. Unable to get the lock even though the records not locked by any other user
[SMR] and the Enqueu time is shooting up that is going more than 5 milliseconds and more than 100 milliseconds. In dialog instance. This could be due to Enqueu process over loading. In this scenario increase the no of w/p
ENQUE TABLE OVER
Note:- There will be only one Enqueu which is instead on central instance. Along with message server. There will be only one lock table for each instance.
SPOOL PROCESS
It is only the process which is used to o/p the documents to printer email, fax etc... Spool process is initialized by either dialog or background w/p.
Spool mechanism:- Dialog or BKC don’t print directly to the printer. But interm the generates spool requests. Which are later printed by spool process?
Work
flow:-1. User uses dialog process to print a document or to print documents [sales order, purchase order, invoices for the week, pay roles of the employees]
2. The dialog or the background generates spool requests which can be stored either at o/s or data base.
3. The storage location can be referred as temse or temporary sequential file. 4. The storage location is determined by a parameter rspo / store – location = G/DB
G of o/s level DB for data base.
- G means global which resides in \usr\SAP\<SID>\sys\global - If it is db it is stored in two tables TST01 and TST03.
- TST01: consist spool information like name of the author who made the print requests, no of copies, name of the printer etc.
- TST03: It is consist of Temse data that needs to be printed.
O/p requests are nothing but the printer specific request. - The o/p requests are printed either locally or remotely
Storing the Temse at o/s level [G]:- When you have small no of requests ‘G’ is recommended. If the request size is increases it is very difficult to identify them because we don’t have indexes and primary key and foreign key relationships to avoid duplicates. We need to take special care to backup the requests at o/s level.
Strong the temse at DB level:- It is used for log no of spool requests. It takes the advantage of database features like indexing, primary key and foreign key relationships. As the tables are included in the database no special case is required to do. Default is database.
Access
methods:-It specifies the process of converting the spool requests into o/p requests either locally or globally., There are two types of methods 1. Local access method
2. Remote access method. 1 Local Access
method:-It is used by spool process to convert the spool request into o/p request. When the spool requests and then o/p spool resides on the same server.
Access method ‘C’ it is used on windows and works with Windows NT print manager. Access method ‘L’ it is used on UNIX o/s.
Access method ‘F’ It is used for front end printing that is the printer is connected to presentation server. Front end printing has the disadvantages.
a. The printer is specific to the user b. It cannot be used
c. The spool process is restricted to the user and can be used only when print request is completed.
NOTE:- It is recommended to configure maximum spool process that can use front end printing using parameter.
Rdisp / WP – No- spo – Fro – Max = 2/3
The above number can be changed based on available spool process. 2 Remote Access
method:-If the spool process and the o/w spool resides on two different server remote access method is used.
Access method ‘U’ It uses UNIX Berkeley protocol to print the documents on UNIX environment.
Access method S [SAP]: It is an SAP property protocol to print the documents on WINDOW’S may need
NOTE: We to initialize SAP LPD [Line printer] on windows on environments to print the documents.
NOTE: In the remote access method a spool server [print server] is used to mange all the printers on UNIX environments use command ‘LP’ [line print] or LP STAT [Printing status of the application server].
SPOOL
ADMINISTRATION:-Use T – code ‘SPAD’ to define printers [o/p devices] spool servers.
Spool servers: The server which consist at least one spool w/p is referred as spool server. It is also referred as real spool server.
Logical spool server: The server which does not exists physically but used for load balancing or for fail over.
Each logical server is mapped to one or more real spool servers. Definition:
1. Go to ‘SPAD’
2. Click on spool server. 3. Click on change Icon. 4. Click on create.
5. Specify the server name.
6. Specify the server class [Test,, production]
7. Specify the logical server to define a server that does not exist. 8. Specify load balancing if this server is a part of a group. 9. Specify alternate server for fail over.
10. Save the logical spool server save.
Definition of an o/p device:
An o/p device is a printer [barcode printer, Scanner, label printer], an archiving device to o/p the document’s
1. Click on o/p devices 2. Click on create.
3. Specify the name of the printer.
NOTE:- Name of the printer should be define the accordingly naming convections to identify the printer uniquely in the company.
4. Specify the device type. Device type specifies the type of printer, manufacture, model no, if the device type is not available write to SAP to send the device types. Device type is a small program which provides interface to the printer.
5. Go to ‘SPAD’ – Device type – Import – specify the file name and execute the import.
Assigned the spool server so that the spool server assign’s the process to the printer. The spool server can be logical or real [physical].
If it is logical it can communicate with one or more real spool servers [dunning load balancing or fail over].
Device class;- It specify the standard printer, Fax, archiving etc. Authorization
Group:-It is used to provide security to the printer and ensure that only the people with this authorization group can print documents.
Specify the model ---Location
---Message
---Select the option – to lock printer in SAP system click on TAB “Access method” Select C or L ro F for local access method.
Select U or S for remote access method along with printer name and host name.
Check the box do not query host spooler for o/s status. If it is not checked w/p goes to host spooler and request the status periodically.
Tab o/p attributes:- To specify the printer customizing. Tray into:- Specify the no of trays in the printer. SPOOL Monitoring:- [SP01]
- Spool request and o/p request are monitored in transaction SP01.
- Go to Transaction SP01 specify user name, date and time to display a spool request and their status.
- Note:- Spool request are related to SAP and they are stored in “Temse” until we delete or reorganize the ‘Temse’.
1. -: not yet send to host system [n o/p request exists]. 2. + Spool request is being generated.
3. Waiting: It is waiting to be processed by the spool process. 4. In proc: The spool w/p is formatting the o/p
5. Printing: The host spool is printing the request the status cannot be printing for more than a 1 min because the spool process will be blocked. If it is printing the status is completed. If not throws in to error.
6. Compl: The o/p request printed successfully. If the spool system doesn’t receive any info from host spool the status is marked as Compl.
Note:- It is possible to have more than o/p request for a single transaction. Each o/p request can have various statuses which can be monitored by the tab o/p.
7. Problem: The print is generated but with minor problems due to incorrect character set, page setting, page out etc.
8. Error: The request is not printed at all. It can be due to a network issue [printer not available, printer is not defined. Printer is out of network.
9. Archive: The spool request will be deleted from the temse periodically. In order to keep a copy, it is advice to archive the spool requests to a separate storage location.
SPOOL Problems:
1. User complains that he cannot print the documents. The error could be temse overflow. In an SAP system the max: permitted spool numbers are 99000 which are defined by parameter.
2. Rspo / spool_ID/max-number = 99000 i.e. the temse cannot store not more than 99000 entries.
3. Spool congestion occurs with spool requests status waiting. There couldn’t be enough spool processes or the existing processes are busy or hold by front end printers
Analysis:- If the spool process couldn’t print use SP01 to evaluate or ask the user to use SP02 to evaluate their own spool requests. If the user couldn’t print, he can reprint to the same printer or redirect to any other printer by changing the print priority to very high. However we can forward the o/p request to the other users in the system.
Re-organization:-
The Temse has to be reorganized from time to time so that Temse doesn’t go beyond 99000. Go to SPAD select option Admin select the option delete old spool
requests. Alternatively periodically to delete the jobs based on age, client etc. Depending upon the spool frequency we may need to schedule periodically. [Daily or weekly]
Spool consistency
check:-Go to SPAD go to admin, check the option consistency check of spool data or use the report RSP01043 / RSP00043 to check the consistency.
Monitoring
Temse:-Go to SP12 to monitor and administer Temse. It is used to check the memory allocation of the Temse objects.
Message
server:-It is used to manage all the dispatcher in the SAP system. server:-It is used to direct the user requests to the least loaded server when logon load balancing is configured. It is also used to communicate with Enqueu to obtain the locks for the dialog process of the other instances. Message server is the 1st process to be started to start SA system. If this is not started SAP system is not reachable.
Msg server is monitored in Transaction SMMS. Msg sever couldn’t be started if ports [3600] series is blocked. If there is a change in host name, hardware [32-bit], change in network card, IP address, SID the Msg server doesn’t start.
Gate way services;-
It is used to provide the entry to the system. It is used to communicate b/w the system using RFC, TCP/IP, and HTTP etc. Gate way is monitored in Transaction SMGW.
Go to transaction SMGW to display the connections to the gateway. Click on Go to configure gateway. Gateway will be timed out if max. Gate ways are opened which is configured by parameter.
R disp / max – gateways = 100
We can increase this value to 500. We can also trace the gateway connections. Go to – Trace – gateway
To reset the trace, increase or decrease the trace levels. From Netweaver on wards, in order to avoid gateway congestion we can install gateway separately. There will be 1 gateway for each SAP instance.
ICM [Internet Communication Manager]
It is introduced in SAP web application server that is from 4.7 onwards. ICM is used to provide internet services to the SAPP system. I.e. SAP can be accessed over the internet for the predefined web-dynpro content. It is accessed over port 8000. ICM is monitored by using Transaction SMICM. There will be only 1 ICM process for each
instance. If the page can’t be displayed with in 60 sec. If will be timed out. This is defined by parameter.
ICM/Keep – alive-timeout = 60
When the ICM is implemented we need to specify the host name along with domain i.e. the host name should consist of 2 dots and defined by parameter.
ICM/host – name – full – Willsys 07. SAPERD.NET [Fqdn: Fully qualified domain name]
ICM traces can be increased based on the requirement [use the option go to]. If the ICM congestion occurs increase the value of threads by using parameter.
ICM / Min – threads = 10 ICM / Max – threads = 50 ICM / Min – spare – threads = 3 DATA TRANSFETR
It is used to transfer the data from SAP to SAP systems. And SAP to non – SAP systems. Data transfer is required in the following circumstances.
1. To transfer the legacy data from non – SAP systems to sap systems.
Ex: Customer is having a JAVA based, Siebel based or any other system. In order to replace the system with SAP we need to transfer the data from traditional system to SAP system. If the amount of details small we can user data entry operators to keying in the data but if the data is large volume let us say few thousands of customers, vendors, suppliers, employers, partners.
2. Periodic data transfer during parallel run [both SAP system and non – SAP system runs in parallel. As the SAP system is leading system we need to transfer the data from non – sap to sap periodically.
3. To reduce the license cost by using the 3rd party interfaces.
4. Business to business [B to B], B to C [Business to customer] E commerce applications gets the information during B to B and B to C.
Ex: HP, SONY, Kodak [SAP systems] communicate with distributers, whole sellers, retailers, like metro, digital shops, carry for circuit city.
B to C customer login to the website and order the goods over the web. The order is transferred in to SAP system and an available or deliver date is provided to the user. Business analysis / Data ware housing
solutions;-In order to analyze the data we need to get information from various system. Ex: SAP BW server communicates with ERP, SRM, SCM etc.
RFC: Remote function call
Used to call the system remotely using host name, instance number, or IP address, user name, password etc.
There are various types of RFC’s used 1. Synchronous RFC [SRFC]
2. Asynchronous RFC [ARFC] 3. TRFC [Transactional RFC] 4. Queued RFC [QRFC] Synchronous RFC
[SRFC]:-It is used to communicate with the target system synchronously and ensure that the task I completed and gets the acknowledgement by using this method the resource is blocked at the target system. Waiting to be served by the target system. If the target system is not available or the resources are not available on the target system the w/p goes in to sleep mode, RFC+CPIC mode.
CPIC:- Common programming interface for communication it is a SAP proprietary protocol. This is used for communication between systems.
ARFC:- It is used to communicate with the target system and does not guarantee any acknowledgement. It will not wait for target system or resources or response from the target system.
Transactional RFC:- It is an extension of ARFC. The source system resource communicated with target system. If it available delivers the message. If not the transaction ID is generated which is display in SM58. The background job RSARFCSE runs in the background for every 60 sec and ensures the message is delivered to the target system without any failures. TRFC is reliable communication between the systems. Ex: Central user administration parent client create the users and transmits to the child client based on availability.
QRFC:- It is similar to TRFC but ensures that the jobs are queued and serves based on first in first out [FIFO]
EOIO: Exactly once in order.
QRFC’s are monitored in SM01 [out bound queue] SM02 [In bound queue]
SMQR is a QRFC monitor, Defining RFC
connection:-Go to SM59 to define RFC connection. 1. Click on create
2. Specify the name [it should able to identify the target system]
3. Specify the type of connection [R/3 for BW, CRM, SRM, SCM, for three tire architecture systems]
Choose 3 for 3 tire
Choose 2 for client server architecture system Choose T or TCP/IP systems
Choose H for HTTP based connection [web] T is used for email, JAVA, Fax systems,
4. Provide description [this connection is used to connect to active directory server, exchange, Fax server]
5. Specify hostname, IP address, instance number etc
6. If T is used TCP specify program ID, for JAVA base system 7. Specify gateway host name and gateway instance.
Host name: Willsys, Gateway instance: SAP GW 00
8. Specify client number, user id, password and logon language. 9. Save the connection
10. Test the connection 11. Test remote connection 12. Test authorization.
Note: The user should be a communication or system user so that user cannot logon to the target system interactively.
DATA TRANSFER METHODS
1. LSMW: [legacy system migration workbench]
T-code: LSMW to perform one time data time data transfer from legacy system to SAP system.
Process:- Identify the legacy data to be transferred. Let us say employee master, material master, customer master etc.
Pursing, placing, truncating/choosing based on ETL standards [extraction, transformation and loading]
Identify the mapping program and run it. 2. Periodic data
transfer:-It is used to load the data periodically from various backend systems. The schedule can be hourly, daily two times or four times, daily, weekly. It is used during.
1 Parallel run
3 B to C
SM35:-The data is always entered through SAP screens only. Either it is a dialog or background. In dialog inputs are interactive where as in background we use variants. VA01: Sales order
MM01: material
In SM35 to check for the incorrect sessions. All the background jog problems are application to batch input processing.
Customizing Batch i/p: 1 Call transaction method 2 BDC session method
1 Call transaction method:- It is used to call the transaction and pass the values in the background. While using call transaction method Ws-upload. Ws – download are used to upload the files. These are replaced by GUI down to load the application in to SAP application server.
Call transaction is used for only one time and error handling has to be preformed explicitly.
2 BDC sessions: It is an advanced version of cal transaction. Where the data transfer is scheduled in terms of sessions. We use open-form, close – form, Read – form, Write – form. These sessions are stored and executed periodically. It has predefined error message and the session can be executed by correcting the error message. It is used for periodic data transfer.
Communication mechanism between SAP to SAP system;-ALE:- [Application linking Enabling]:
It is used to transfer data between two loosely coupled systems that is SAP to SAP – based on logical system names. Each client needs to be assigned with a logical system name in transaction SALE.
Go to SALE
Define logical system Click on new entries <SID> CLNT<000>
Name of the system <CLNT> three digit Client number.
Define the sending system and receiving system. Go to BD64 and define the model view
And add BAPI
BAPI:- Business application programming interface to determine the data transfer between sending and receiving system.
BAPI are predefined in the Sap system they are based on interface and method Ex: of ALE is central user administration.
Communication Mechanism [B/W SAP – non SAP]
In ode rot communicate b/w sap to non sap systems we need to use EDI [Electronic data interchange] EDI is the mechanism used to transfer the data from SAP to non SAP systems using IDOC.
IDOC is an intermediate document which is in the understandable format of both the sender and receiver. IDOC is defined by functional and Technical consultants.
IDOC are checked and maintained in T code IDOC.
SMQ1 is used to monitor the outbound queues. It is used to monitor the data that needs to send to a receiver.
SMQ2 is used to monitor the inbound queues. It is used to monitor the data that needs to receive from a sender.
WE21 is used to find the ports that are used for IDOC processing.
WE05 is used to monitor the IDOC based on IDOC number and status, partner, partner type and partner port.
Go to WE05 and select the date and display all the IDOC’s. Look for the status and action on the type of status: 0 – 49 are outbound errors [SMQ1]
50 and above are inbound errors SMQ2 01:- IDOC generated
02:- Error is passing data to port. Check the port in WE21 03:- Data passed to port ok.
07:- Error during syntax check 09:- Error during inter change.
Frequently occurred error is 51: document not posted. Based on the type of error we may need to inform. Business process owners / functional consultants.
External
connections:-SCOT is used to define the external connections like pager, Fax, SMTP etc. Go to SCOT click on create / copy to define new connections.
