Spontaneous Assessment Packet Origination
Ms.B.Prasuna1,Ms.P.Hema Venkataramana2
M.Tech(Research scholar in SE)1,Assistant Professor2in Dept. of Computer science & Engineering 1,2Kakinada Institute of engineering & Technology for women, korangi.
Abstract:
Nowadays systems aren't getting any slighter, they are expanding in size and it's transforming into a monotonous employment for system chairmen to adjust the system since they put trust in conventional instruments like ping and follow course for this work. Our paper tosses a development chronic and precise way to deal with test and right a system allowed to as Automatic Test Packet Generation (ATPG). ATPG produces a model that isn't dependent on strategy once perusing course of action from switches. The model is utilized to get least mixed bag of check packets to should every connection amid a system and each statute net. ATPG is skillful of work. Each down to earth and execution issues check packets are sent at standard in terms and separate strategy is utilized to limit issues. The working of few disconnected from the net instruments that mechanically produce Test packets too are given. On the other hand, ATPG goes on the far side and soon the work in static (Checking aliveness and shortcoming limitation). Systems is created numerous mind boggling heads devices in the season of troubleshoot issues. We propose the computerized and delivers 0rinted testing and investigating systems called "Unmanned Quality Container Prompting peruses switch setups and produces little devises show This model is utilized to produce a base arrangement of test compartment to practice each connection in the system changes each principle in the system model Test holder are sent to information and identified mistakes a different models to limit the issue ATPG can distinguish both utilitarian and execution issues supplements yet goes past prior work in static confirm shortcoming environment We take our convention usage and results it distinctive applications Stanford University's spine system and Internet2 We observe that a little number of test holder everyone to test all guidelines in diverse systems models .
Keywords: Fault Localization, Test Packet Selection,
Network Debugging, Automatic Test packet Generation (ATPG), Forwarding Information Base (FIB).
I. Introduction
It is famously known us, exceptionally hard to investigate or distinguish and evacuate blunders in systems. Consistently, system specialists battle with mislabeled links, programming bugs, switch misconfigurations, fiber cuts, defective interfaces and different reasons that make systems drop down. System designers chase down bugs with different devices (e.g., Ping, follow course, SNMP) and track down the explanation behind system disappointment utilizing a blend of accumulated knowledge and impression. Troubleshooting systems is turning out to be more harder as systems are developing bigger (cutting edge server farms may contain 10 000 switches, a grounds system may serve 50 000 clients, a 100-Gb/s whole deal connection may convey 100 000 streams) and are getting convoluted (with more than 6000 RFCs, switch programming depended on a huge number of lines of source code, and system chips contain billions of entryways.
sending state was composed by the control plane (that could be nearby or remote) and ought to effectively actualize the system manager's plan. Illustrations of the plan include: "Security bunch X was confined from security Group Y," "Use OSPF for directing," and "Feature movement got no less than 1 Mb/s." We could think about the controller incorporating the plan (An) into gadget particular arrangement records (B), which thus focus the sending conduct of every bundle (C). To guarantee the system act as composed, the three stages ought to stay predictable each times. Insignificantly, obliges that adequate connections and hubs are working; the control plane recognizes that a portable workstation can get to a server, the obliged result can come up short if connections come up short. The principle explanation behind system disappointment is equipment and programming disappointment, and this issue is perceived themselves as reachability disappointments and throughput/inactivity debasement. We will likely consequently discover these sorts of disappointments.
The expectation of this paper is to produce a base arrangement of parcels naturally to cover each connection in the system. This device can consequently produce parcels to test execution attestations like bundle inactivity. ATPG identifies lapses freely and comprehensively testing sending sections and parcel handling principles in system. In this apparatus, test bundles are made algorithmically from the gadget design records and First data base, with least number of parcels required for complete scope. Test bundles are sustained into the system in which each principle was practiced straightforwardly from the information arrangement. Since ATPG treats connects simply like ordinary sending principles, the full scope gives testing of each connection in system. It could be particularized to produce an insignificant arrangement of parcels that test each connection for system liveness. For responding to disappointments, numerous system administrators like Internet proactively test the system's soundness by pinging between all sets of sources.
Associations can alter ATPG to confront their needs; for instance, they can choose to test for system liveness (connection cover) or test each tenet (standard spread) to verify security arrangement. ATPG could be changed to test reachability and execution. ATPG can adjust to imperatives, for example, taking test bundles from just a couple places in the system or utilizing specific switches to create test parcels from each port.
The commitments of this paper are as per the following:
1) A review of system administrators uncovering regular disappointments and main drivers.
2) A test parcel era calculation.
3) A flaw restriction calculation to discrete defective gadgets and Rules.
4) ATPG use cases for practical and throughput testing.
5) Evaluation of model ATPG framework utilizing rulesets assembled from the Stanford and Internet2 spines.
II. RELATED WORK
Sabba tum issue solver to execute study. If the structure state overlook unite invariant, Anteater gives a particular invalidation, for occurrence a bundle header, FIB entries, and way that brings concerning the potential bug.
Insect eating animal discovers mistakes through differed steps. 1st of all, Anteater assembles the substance of FIBs from systems administration hardware through terminals, SNMP, or administration sessions kept up to switches. These FIBs will be either direct data preparing longest prefix match standards, or a ton of entangled activities like access administration records or alterations of the parcel header. Furthermore, the administrator shapes new invariants or chooses from a menu of typical invariants range unit to be checked against the system. This may be done through ties in Ruby or in an exceedingly explanatory dialect that we have a tendency to intended to redesign the outflow of invariants. Third deed is with the purpose of, Anteater translates each the FIBs and invariants into tests of Sabbatum, which range unit determined by Sabbatum inconvenience solver. Finally, if the result from the Sabbatum issue solver demonstrate that the gave invariants range unit debased, Anteater can get an invalidation to bolster acknowledgment. Just a brief time past analysts have return up with SOFT acclimated demonstrate the consistency between shifted open stream specialists that area piece obligated to assessment for including administration and learning plane in the connection of SDN.
Other Related works
Since long haul, to take a gander at shortcomings in systems they're analyzed on completion to complete
fundamental. Right away specialist’s territory unit
enthusiastic about mining mediocre quality chaotic data for sample, we will consider switch arrangement and system tickets. On the inverse hand, primary giving of ATPG framework is giving thick arrangement of completion to complete evaluation
that may involve each principle or every connection, and not just blame limitation. Numerous analysts have escort totally distinctive measure generous blueprints. Our methodology is extra to all or any these. Bunch by data in conjunction with port impulses ATPG produces check bundles and reason for infusion for these parcels with the help of circulation of gauge gadgets. 2.3 Header Space Analysis
The programmed check parcel era utilizes the structure of Header region examination, amid which it utilizes a geometrical model, which allows the ATPG framework to factually check the system details and arrangements to bombshell essential classes of disappointments like sending circles, reachability disappointments, activity seclusion and linkage drawback. Another point of interest of header region investigation is ability to attempt and do cutting.Cutting guarantees disengagement between frameworks has, clients then again movement. Consider virtual LAN as partner sample of cutting. Once the virtual LAN is sorted out legitimately it offers ensure that traffic from one cut can't spill into option cut, so it gives extra security. Amid this case cut is virtual LAN. At an equal time by exploitation geometric model of header zone examination, once sanctionative the static investigation of system cut in more broad way the assessment of disengagement will be taken any. A cut is made of mixed bag of different header fields and comprising of topology of mixture of switches and connections. There is situated of headers on every connection and its share of ability comparing to each header. Each cut has the
different control plane, and it’s dependent upon its
proprietor to pick however parcels are directed and prepared in that cut. In header zone, the method for header that is specific to conventions in not considered: A header is seen as unbroken game plan of double outline i.e. zeros and ones. A header could be a reason and stream will be seen as district amid a set containing zero and one as parts, that is to the capacity L region wherever, L is higher cutoff on length of header. By making utilization of header region system one can do new, vector free and convention nonreligious individual model of system that encourage the system for parcel era by a superb arrangement.
III. NETWORK DESIGN
As mentioned in the last section, the automatic test packet generation (ATPG) system makes use of geometric model of header space analysis [4]. This section explains some of the key terms associated with geometric framework of header space analysis.
Packet
port to show position of packet in a network at instantaneous time. Each one of the port is allotted with one and only one unique number [1].
Switch
Another term used in geometric model of header space analysis is switches. It is the job of switch transfer Function T, to model devices in a network. Example of devices can be switches or routers. There is a set of forwarding rules contained in each device, which decides how the packets should be processed. When a packet comes at a switch, a switch transfer function comperes it with each rule in descending order of priority. If packet does not match with any of the rule then it is dropped. Each incoming packet is coupled with exactly single rule [1].
Rules
Piece of work for rules is generation of list of one or more output packets associated with those output ports to which the packet is transferred, and explain how fields of port are modified. In other words, rules explains how the region of header space at entrance in changed into region of header space at exit [1].
Rule History
At any moment, every packet has its own rule history, which can be described as ordered list of rules packet have matched up to that point as it covers the network. Rule history provides necessary and important unprocessed material for automatic test packet generation (ATPG). That is the reason why it is fundamental to ATPG [1].
Topology
The network topology is modeled by topology transfer function. The topology transfer function gives the specification about which two ports are joined by links. Links are nothing but rules that forwards a packet from source to destination with no modification. If there is not a single topology rule matching an input port, the port is situated at edge of a network and packet has come to its desired destination [1].
Life of a Packet
One can see life of a packet as carrying out or executing switch transfer function and topology transfer function at length. When a particular packet comes in a network port p, firstly a switch function is applied to that packet. Switch transfer function also contains input port pk.p of that packet. The result of applying switch function is list of new packets [pk1, pk2, pk3,]. If the packet reached its destination it is recorded, and if that is not the case, topology transfer function is used to call upon switch function of new port. This process is done again and again unless packet is at its destination [1].
IV. Proposed System
Contender framework generates minimum no of packets automatically to debug the false occurring in
the network model This tool could automatically generate packets for checking performance assertions such as like packet loss finds and determines errors by independently testing all forwarding entries any packet processing rules and security models in network test packets are generated algorithmically from device configuration files and from FIBs which requires minimum number of packets for complete coverage Test packets are fed into the network in which that every rule is covered directly from the data plane Since treats links like normal forwarding conditions its full coverage provides testing of every link in the network model It can also best specialized to form a minimal set of packets that obviously test every link for network likeness At least in this basic form, we would feel that some different technique is fundamental to networks Instead of reacting to failures many network operators such as proactively check the health of their network using pings between all pairs of sources all-pairs does not provide testing of all links and has been found to be unsalable for large networks such as Planet Lab.
ATPG SYSTEM

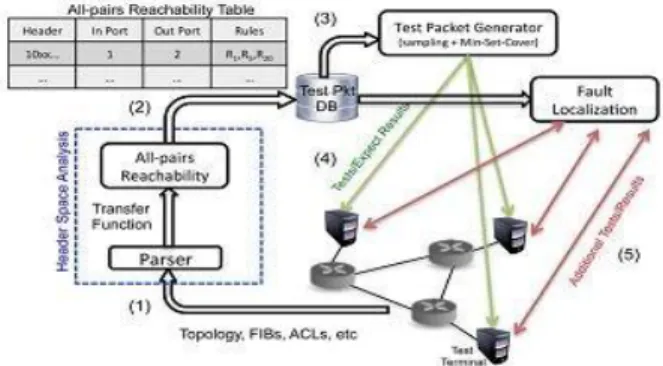

In view of the system model, ATPG creates the insignificant number of test parcels so that each sending govern in the system is practiced and secured by no less than one test bundle. At the point when a slip is distinguished, ATPG utilizes a flaw limitation calculation to focus the coming up short principles or connections. Fig. is a square chart of the ATPG framework. The framework first athers all the sending state from the system (step 1). This enerally includes perusing the FIBs, ACLs, and con fig documents, as well as acquiring the topology. ATPG utilizes Header Space Analysis [16] to register reachability between all the test terminals (step 2). The outcome is then utilized by the test parcel choice calculation to figure a negligible arrangement of test bundles that can test all standards (step 3). These parcels will be sent occasionally by the test terminals (step 4). In the event that a lapse is identified, the flaw restriction calculation is summoned to tight down the reason for the blunder (step 5).
A. Test Packet Generation
1) Algorithm: We accept an arrangement of test terminals in the system can send and get test parcels. Our objective is to produce a set of test bundles to practice each tenet in every switch capacity, so that any flaw will be seen by no less than one test bundle. This is comparable to programming test suites that attempt to test each conceivable branch in a system. The more extensive objective can be restricted to testing each connection or each line.

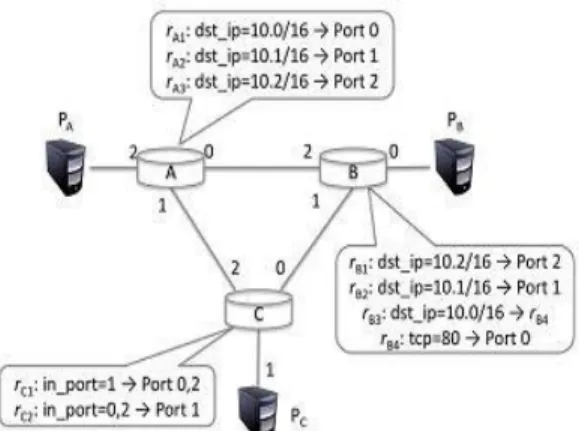

Fig. Example Topology with all three switches At the point when producing test parcels, ATPG must regard two key imperatives: 1) Port: ATPG should just utilize test terminals that are accessible; 2) Header: ATPG should just utilize headers that every test terminal is allowed to send. For instance, the system overseer may just permit utilizing a specific set of VLANs. Formally, we have the accompanying issue. Issue 1 (Test Packet Selection): For a system with the switch capacities, and topology capacity, focus the base arrangement of test bundles to practice every single reachable standard, subject to the port and header requirements.
ATPG picks test bundles utilizing a calculation we call Test Bundle Selection (TPS). TPS first discovers every comparable class between every pair of accessible ports. A proportional class is a set of bundles that activities the same blend of tenets. It at that point tests every class to pick test parcels, lastly packs the subsequent arrangement of test bundles to locate the base covering set. B. Fault Localization: ATPG occasionally sends an arrangement of test bundles. In the event that test parcels fizzle, ATPG pinpoints the fault(s) that brought on the issue. Fault Model: A tenet comes up short if its watched conduct varies from its normal conduct. ATPG stays informed concerning where rules fizzle utilizing an outcome capacity. For a principle, the outcome capacity is defined as
"Achievement" and "disappointment" rely on upon the way of the principle: A sending principle falls flat if a test bundle is not conveyed to the proposed yield port, though a drop standard acts effectively when bundles are dropped. So also, a connection disappointment is a disappointment of a sending manage in the topology capacity. Then again, if a yield connection is congested, disappointment is caught by the inactivity of a test bundle going over an edge. We separation shortcomings into two classifications: activity blames and match flaws. An activity shortcoming happens when each parcel coordinating the guideline is handled erroneously. Cases of activity flaws incorporate startling bundle misfortune, a missing run, clogging, and miswiring. Then again, match flaws are harder to distinguish in light of the fact that they just influence a few bundles coordinating the principle: for instance, when a tenet matches a header it ought not, or when a guideline misses a header it ought to coordinate.
V. Conclusion:
System chiefs now a day’s generally rely on upon old
apparatuses for example ping and trace route to right a system. It is watched that they need more refined instrument for this work. In everyday life, network access suppliers and also huge server farm administrators face issues in testing livens of a system. Then again, directing tests between each Pair of outskirt ports is fragmented as well as unappreciable. One can leave this issue by processing on gadget particular setup documents, making headers and connections came to by them. Ultimately discovering slightest number of test parcels to cover every connection. To beat every one of these issues oblige system like ATPG. By testing all guidelines comprehensive of all drop rules ATPG has the capacity test reachability method. That is not all; by utilizing execution scales, for example, deferral and loss of test parcels ATPG can figure execution soundness of a system. ATPG employments straightforward issue restriction strategy developed with the assistance of header space investigation to confine deficiencies. Customary model of ATPG framework serves to cover most extreme connections or standards in a system with least number of test bundles.
