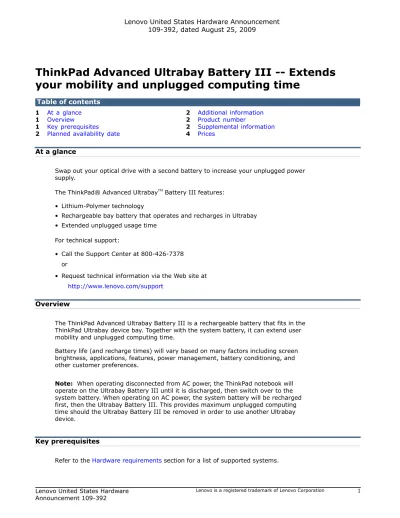

Lenovo United States Hardware Announcement
109-392, dated August 25, 2009
ThinkPad Advanced Ultrabay Battery III -- Extends
your mobility and unplugged computing time
Table of contents
1 At a glance 2 Additional information
1 Overview 2 Product number
1 Key prerequisites 2 Supplemental information
2 Planned availability date 4 Prices
At a glance
Swap out your optical drive with a second battery to increase your unplugged power supply.
The ThinkPad® Advanced UltrabayTM Battery III features:
• Lithium-Polymer technology
• Rechargeable bay battery that operates and recharges in Ultrabay • Extended unplugged usage time
For technical support:
• Call the Support Center at 800-426-7378 or
• Request technical information via the Web site at
http://www.lenovo.com/support
Overview
The ThinkPad Advanced Ultrabay Battery III is a rechargeable battery that fits in the ThinkPad Ultrabay device bay. Together with the system battery, it can extend user mobility and unplugged computing time.
Battery life (and recharge times) will vary based on many factors including screen brightness, applications, features, power management, battery conditioning, and other customer preferences.
Note: When operating disconnected from AC power, the ThinkPad notebook will operate on the Ultrabay Battery III until it is discharged, then switch over to the system battery. When operating on AC power, the system battery will be recharged first, then the Ultrabay Battery III. This provides maximum unplugged computing time should the Ultrabay Battery III be removed in order to use another Ultrabay device.
Key prerequisites
Planned availability date
August 25, 2009Additional information
All offers are subject to availability. Lenovo® reserves the right to alter product offerings and specifications at any time without notice. Lenovo is not responsible for photographic or typographic errors.
Lenovo makes no representation or warranty regarding third-party products or services.
Product number
Part Description Number ThinkPad Advanced Ultrabay 57Y4536 Battery III
Supplemental information
Technical information
• Three cells
• Lithium Polymer (Li-Polymer)
Performance specifications
• Output voltage: 10.8 V dc (nominal) • Battery Performance Amp-Hour: 2.9Ah • Battery Performance Watt-Hour: 32Wh
Note: Battery life (and recharge times) will vary based on many factors including screen brightness, applications, features, power management, battery conditioning and other customer preferences.
Physical specifications
• Approximate height: 10.5 mm (0.41 in) • Approximate width: 128.3 mm (5.05 in) • Approximate depth: 138.5 mm (5.45 in) • Weight: 235 g (0.52 lb)
Operating environment
• Temperature: 5° to 35°C (41° to 95°F) • Relative humidity: 8% to 80%
• Shock: 50cm free drop
• Vibration (Random RMS): 0.67 G (5 Hz to 500 Hz)
Agency approvals
• CE MARK • UL-60950
• ACA/C-Tick • KC
Hardware requirements
The ThinkPad Advanced Ultrabay Battery III is supported on the following Lenovo systems:
Machine
Description type Model ThinkPad Z60t 2511, 2512, 2513, All 2514 ThinkPad Z60m 2529, 2530, 2531, All 2532 ThinkPad Z61t 9440, 9441, 9442, All 9443, 9448 All ThinkPad Z61m 9450, 9451, 9452, All 9453, 0674 All ThinkPad T60 All All ThinkPad T61 All All ThinkPad R60 All All ThinkPad R61 All All ThinkPad T400 All All ThinkPad T500 All All ThinkPad R400 All All ThinkPad R500 All All ThinkPad W500 All All ThinkPad SL300 All All ThinkPad SL400 All All ThinkPad SL500 All All
Compatibility
Some configurations may not be compatible.
Planning information
Cable orders required
No
Installation time
Approximately five minutes
Packaging
One box (plain brown box not packaged for consumer)
Shipment group
• Battery • Publications
Security, auditability, and control
This product uses the security and auditability features of the system on which it is installed.
Terms and conditions
Field-installable Yes Customer setup Yes Warranty period* 1 year Service type CRU Maintenance agreement No Optional upgrade No Licensed programs No
All other terms and conditions are the same as those applicable to the Lenovo machine type in which the feature is installed.
* To obtain copies of the Lenovo Statement of Limited Warranty, contact your reseller
or call Lenovo. In the United States, call 800-426-7378, or write to: Warranty Information
1009 Think Place Morrisville, NC 27560 Attn: Dept. ZPYA/Bldg. 3
Help and service information -- Features and options
During the warranty period, support for a warranty related issue can be obtained by accessing Lenovo's online services (requires Internet access account, not included) or calling the Support Center, 24 hours a day, 7 days a week, to answer any questions regarding your new Lenovo option. Response time will vary depending on the number and nature of calls received. If you need warranty service, return or exchange is available. In addition, if your Lenovo option is installed in an Lenovo computer, you may be entitled to service at your location. For general questions related to the use of your options, fee-based support is available. Your technical support representative can help you determine the best alternative.
Accessing Lenovo online services
http://www.lenovo.com/support
Placing the call to Lenovo
Use one of the following numbers when calling Lenovo for technical support: • Within the United States, call the Support Center at 800-426-7378. • Within Canada
– For support, call HelpPC at 800-565-3344.
– For more information or to place an order, call 1-877-884-6572.
Prices
Order List
Description number price*
ThinkPad Advanced 57Y4536 $119.00
Ultrabay Battery III
* List price does not include tax or shipping and is subject to change without notice.
