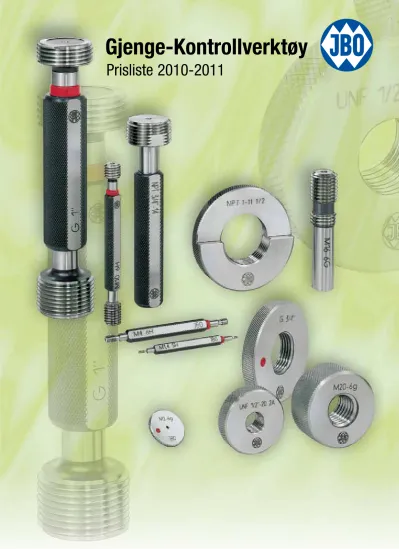

Gjenge-Kontrollverktøy. Prisliste

(1)

Gjenge-Kontrollverktøy

Prisliste 2010-2011

(2)

2 Thread gauges

Special thread gauges and inspection machine mountings 3

Metric ISO-thread

M

4 Metric fine ISO-thread

MF

6 British Standard Whitworth coarse thread

BSW

12 British Standard pipe thread

G

13 R

14 Pg-thread

Pg

15 Electrical conduit thread

MF-EL

15 UNC-thread

UNC

16 UNF-thread

UNF

17 UNEF-thread

UNEF

18 NPT/NPTF-thread

NPT, NPTF

19 Eg-M/Eg-UNC/Eg-UNF-threads

Eg

20 Inspection certificates

21 British Standard pipe thread taper

(3)

3

JBO thread gauges and inspection machine mountings made to drawings or samples or specially designed for particular customer applications.

Inspection machine mounting (1)

for checking the radial runout of external threads. Manufacturing tolerance for radial and axial runout ≤ 0,01 mm. HSS TiCN coated GO plug gauge (2) with adjustable screw-in depth. NOT GO plug gauge (3) for checking deep seated threads. Thread plug limit gauge (4) with adjustable depth stop for ensuring the required thread depth. Thread plug limit gauge (5) with increased stem diameter for checking small, deep seated threads.

GO thread plug gauge (6) with hexagon shank for quick mounting in inspection machine.

HSS TiCN coated GO plug gauges

(7+8) with dirt collecting groove for mechanised inspection.

The TiCN (Balzers) coated thread gauges are extremely wear resistant and have excellent anti-friction properties. Gauge life is thereby increased about tenfold. The check intervals can therefore be increased appreciably which means further cost savings.

1

4

5

8

7

6

2

3 Special thread gauges

(4)

Precision thread gauges

ISO metric threads DIN 13

4 M

Order-Code

_A

LD LD-6G LD-TiCN LD-6G-TiCN GR AR GR-6e AR-6e

D

d P 6H 6G 6H 6G 6g 6g 6e 6e

mm Plug gauge Plug gauge incl. insp. cert. incl. insp. cert. GO ring gauge NO GO ring GO NO GO up to GO: HSS-TiCN GO: HSS-TiCN up to gauge, up to ring gauge ring gauge M 1,4 = 5 H NO GO: tool steel NO GO: tool steel M 1,4 = 6 h M 1,4 = 6 h

Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

M 1 0,25 1195 1133 1133 M 1,1 0,25 1483 1405 1405 M 1,2 0,25 1117 1058 1058 M 1,4 0,3 958 958 958 M 1,6 0,35 894 1052 828 828 M 1,7 0,35 1038 1058 1058 M 1,8 0,35 802 p 756 756 M 2 0,4 766 842 706 706 812 812 M 2,2 0,45 775 p 706 706 p p M 2,3 0,4 844 805 805 M 2,5 0,45 661 727 958 1150 554 554 638 638 M 2,6 0,45 821 902 744 744 M 3 0,5 566 625 929 1115 463 463 533 533 M 3,5 0,6 575 634 474 474 545 545 M 4 0,7 533 589 929 1115 422 422 485 485 M 4,5 0,75 677 p 671 671 M 5 0,8 520 575 929 1115 422 422 485 485 M 6 1 503 554 929 1115 422 422 485 485 M 7 1 538 592 1097 1318 492 492 568 568 M 8 1,25 520 575 958 1150 433 433 498 498 M 9 1,25 662 p 590 590 M 10 1,5 557 614 1002 1201 498 498 574 574 M 11 1,5 706 p 685 685 M 12 1,75 596 656 1068 1282 554 554 636 636 M 14 2 642 707 1282 1541 593 593 683 683 M 16 2 689 757 1490 1786 658 658 756 756 M 18 2,5 743 892 764 764 878 878 M 20 2,5 797 955 1721 2059 844 844 970 970 M 22 2,5 842 929 929 M 24 3 949 994 994 M 27 3 1057 1104 1104 M 30 3,5 1171 1208 1208 M 33 3,5 1274 1326 1326 M 36 4 1376 1428 1428 M 39 4 1519 1555 1555 LD-TiCN LD-6G-TiCN GR, GR-6e AR, AR-6e LD LD-6G

A

4h

,

6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

p

= in stock

price on

request

A

LH

– LD, LD-6G, GR,

AR,

GR-6e, AR-6e

for left hand

threads 25% extra charge

(5)

5 Precision thread gauges

ISO metric threads DIN 13

M

Orer-code

_A

GD AD GR AR

D

d P 6H 6H 6g 6g

mm GO NO GO GO NO GO

plug gauge plug gauge ring gauge ring gauge

Pris Kr. Pris Kr. Pris Kr. Pris Kr.

M 42 4,5 1006 900 1692 1692 M 45 4,5 1080 974 1786 1786 M 48 5 1164 1052 1894 1894 M 52 5 1246 1128 2038 2038 M 56 5,5 1378 1246 2174 2174 GD AD GR AR

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

A

LH

– GD, AD,GR, AR,

for left hand threads

25% extra charge

(6)

Precision thread gauges

ISO metric fine threads DIN 13

6 MF

LD-TiCn LD-6G-TiCn

Order-Code

_A

LD LD-6G GD AD LD-TiCN LD-6G-TiCN GR AR

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

mm Plug gauge Plug gauge GO NO GO incl. insp. cert. incl. insp. cert. GO NO GO plug gauge plug gauge GO: HSS-TiCN GO: HSS-TiCN ring gauge ring gauge

NO GO: tool steel NO GO: tool steel

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

M 2,5 0,35 1078 869 869 M 3 0,35 995 762 762 M 3,5 0,35 955 720 720 M 4 0,35 931 690 690 M 4 0,5 883 1008 1685 646 646 M 4,5 0,5 919 1051 684 684 M 5 0,5 847 967 1598 636 636 M 6 0,5 841 960 1598 650 650 M 7 0,5 883 1008 682 682 M 8 0,5 872 998 700 700 M 9 0,5 936 755 755 M 10 0,5 929 1081 782 782 M 11 0,5 1037 943 943 M 12 0,5 1008 898 898 M 13 0,5 1145 1082 1082 M 14 0,5 1102 1037 1037 M 15 0,5 1232 1164 1164 M 16 0,5 1195 1145 1145 M 17 0,5 1368 1310 1310 M 18 0,5 1325 1296 1296 M 19 0,5 1483 1440 1440 M 20 0,5 1483 1440 1440 M 5 0,75 656 p 614 614 M 6 0,75 619 682 1296 514 514 M 7 0,75 619 743 614 614 M 8 0,75 619 682 1296 534 534 M 9 0,75 655 787 648 648 M 10 0,75 655 787 1369 593 593 M 11 0,75 701 842 742 742 M 12 0,75 720 864 1526 768 768 M 13 0,75 764 856 856 M 14 0,75 764 p 856 856 M 15 0,75 818 913 913 M 16 0,75 818 p 938 938 M 17 0,75 934 1002 1002 GR AR LD LD-6G

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

p

= in stock

price on

request

A

LH

– LD, LD-6G, GR,

AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

(7)

Precision thread gauges

ISO metric fine threads DIN 13

7 MF

Order-Code

_A

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

mm plug gauge plug gauge GO NO GO incl. insp. cert. incl. insp. cert. GO NO GO plug gauge plug gauge GO: HSS-TiCN GO: HSS-TiCN ring gauge ring gauge

M 18 0,75 863 956 956 M 19 0,75 965 1067 1067 M 20 0,75 955 1024 1024 M 21 0,75 1024 1171 1171 M 22 0,75 1093 1114 1114 M 23 0,75 1135 1260 1260 M 24 0,75 1171 1201 1201 M 25 0,75 1208 1246 1246 M 26 0,75 1246 1289 1289 M 27 0,75 1260 1333 1333 M 28 0,75 1303 1385 1385 M 29 0,75 1414 p p M 30 0,75 1414 1462 1462 M 8 1 571 632 1223 1476 478 478 M 9 1 596 714 1260 589 589 M 10 1 604 667 1260 1512 535 535 M 11 1 642 770 667 667 M 12 1 655 725 1385 1670 607 607 M 13 1 746 895 808 808 M 14 1 696 838 1490 1786 655 655 M 15 1 780 848 848 M 16 1 740 892 1562 1879 710 710 M 17 1 830 996 823 823 M 18 1 775 943 1642 782 782 M 19 1 871 884 884 M 20 1 828 994 1757 840 840 M 21 1 986 1002 1002 M 22 1 920 1102 929 929 M 23 1 1063 1070 1070 M 24 1 989 1187 991 991 M 25 1 1093 1312 1050 1050 M 26 1 1128 1086 1086 M 27 1 1171 1114 1114 M 28 1 1201 1157 1157 M 29 1 1296 p p GR AR LD LD-6G LD-6G-TiCNLD-TiCN

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

p

= in stock

price on

request

A

LH

– LD, LD-6G, GR,

AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

(8)

Precision thread gauges

ISO metric fine threads DIN 13

8 MF

Order-Code

_A

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

M 30 1 1462 1230 1230 M 32 1 1253 1312 1312 M 33 1 1296 1340 1340 M 34 1 1333 1362 1362 M 35 1 1421 1392 1392 M 36 1 1447 1447 1447 M 38 1 1555 1498 1498 M 40 1 1678 1577 1577 M 42 1 958 892 1656 1656 M 45 1 1024 941 1764 1764 M 48 1 1100 1009 1865 1865 M 50 1 1150 1056 1930 1930 M 52 1 1201 1097 2016 2016 M 55 1 1267 1157 2102 2102 M 56 1 1282 1171 2146 2146 M 58 1 1333 1223 2225 2225 M 60 1 1385 1274 2304 2304 M 10 1,25 703 842 640 640 M 12 1,25 746 895 815 815 M 14 1,25 805 965 898 898 M 12 1,5 596 655 1319 1584 575 575 M 13 1,5 683 661 661 M 14 1,5 636 700 1392 1685 612 612 M 15 1,5 737 794 794 M 16 1,5 667 733 1476 1771 635 635 M 17 1,5 758 775 775 M 18 1,5 707 776 1562 1879 714 714 M 19 1,5 p p p M 20 1,5 758 834 1679 2016 791 791 M 21 1,5 p p p M 22 1,5 835 1002 1829 2196 852 852 M 24 1,5 898 1075 1987 2383 905 905 M 25 1,5 922 1106 2023 938 938 M 26 1,5 950 1142 2102 971 971 M 27 1,5 979 1175 2138 1006 1006 LD-TiCN LD-6G-TiCN GD AD GR AR LD LD-6G

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H price

p

= in stock

price on

request

A

LH

– LD, LD-6G, GD, AD,

GR, AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

(9)

9 Precision thread gauges

ISO metric fine threads DIN 13

9 MF

Order-Code

_A

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

M 28 1,5 1008 1210 2209 1025 1025 M 30 1,5 1087 1304 2400 1078 1078 M 32 1,5 1114 1333 1142 1142 M 33 1,5 1142 1369 1171 1171 M 34 1,5 1208 p 1237 1237 M 35 1,5 1195 1434 2629 1223 1223 M 36 1,5 1224 1469 1253 1253 M 38 1,5 1325 1591 1319 1319 M 39 1,5 1421 1428 1428 M 40 1,5 1397 p 1385 1385 M 42 1,5 833 766 1447 1447 M 45 1,5 884 811 1519 1519 M 48 1,5 936 863 1598 1598 M 50 1,5 965 892 1670 1670 M 52 1,5 1002 922 1742 1742 M 55 1,5 1068 988 1814 1814 M 56 1,5 1090 1002 1850 1850 M 58 1,5 1128 1038 1894 1894 M 60 1,5 1171 1082 1966 1966 M 62 1,5 1208 1114 2038 2038 M 64 1,5 1253 1157 2102 2102 M 65 1,5 1296 1194 2138 2138 M 68 1,5 1333 1230 2218 2218 M 70 1,5 1369 1267 2318 2318 M 72 1,5 1462 1340 2398 2398 M 75 1,5 1519 1399 2527 2527 M 78 1,5 1577 1462 2664 2664 M 80 1,5 1620 1505 2750 2750 M 82 1,5 1670 1534 2822 2822 M 85 1,5 1728 1591 2966 2966 M 88 1,5 1778 1649 3096 3096 M 90 1,5 1822 1692 3182 3182 M 92 1,5 1872 1735 3269 3269 M 95 1,5 1908 1764 3384 3384 M 100 1,5 2023 1865 3600 3600 LD-TiCN LD-6G-TiCN GD AD GR AR LD LD-6G

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

p

= in stock

price on

request

A

LH

– LD, LD-6G, GD, AD,

GR, AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

(10)

10 Precision thread gauges

ISO metric fine threads DIN 13

10 MF

Order-Code

_A

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

M 105 1,5 2131 1973 3802 3802 M 110 1,5 2232 2066 4018 4018 M 18 2 778 934 804 804 M 20 2 806 965 828 828 M 22 2 862 1034 888 888 M 24 2 913 1096 936 936 M 25 2 971 994 994 M 26 2 1002 1022 1022 M 27 2 994 1194 1037 1037 M 28 2 1063 1080 1080 M 30 2 1094 1310 1121 1121 M 32 2 1138 1186 1186 M 33 2 1171 1406 1195 1195 M 36 2 1260 1512 1282 1282 M 38 2 1390 1378 1378 M 39 2 1421 1714 1399 1399 M 40 2 1483 1462 1462 M 42 2 858 790 1476 1476 M 45 2 910 842 1555 1555 M 48 2 964 888 1642 1642 M 50 2 994 919 1706 1706 M 52 2 1032 956 1778 1778 M 55 2 1100 1016 1894 1894 M 56 2 1121 1039 1922 1922 M 58 2 1164 1070 1973 1973 M 60 2 1208 1114 2052 2052 M 62 2 1246 1150 2124 2124 M 64 2 1289 1194 2196 2196 M 65 2 1333 1230 2225 2225 M 68 2 1369 1267 2326 2326 M 70 2 1414 1303 2398 2398 M 75 2 1519 1399 2592 2592 M 80 2 1620 1502 2815 2815 M 85 2 1728 1591 3038 3038 M 90 2 1822 1692 3254 3254 GD AD GR AR LD LD-6G

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

A

LH

– LD, LD-6G, GD, AD,

GR, AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

(11)

MF

GD AD GR AR LD LD-6G

11

11 Precision thread gauges

ISO metric fine threads DIN 13

A

4h, 6h

GR and AR 4h and 6h

25% extra charge on 6g prices

A

LD-4H

25% extra charge

on 6H prices

A

LH

– LD, LD-6G, GD, AD,

GR, AR

for left hand threads

25% extra charge

A

6e

– GR and AR

for tolerance 6e

15% extra charge

Order-Code

_A

D

d P 6H 6G 6H 6H 6H 6G 6g 6g

M 92 2 1865 1728 3341 3341 M 95 2 1908 1764 3485 3485 M 98 2 1973 1822 3600 3600 M 100 2 2023 1865 3701 3701 M 105 2 2131 1973 3888 3888 M 110 2 2232 2066 4104 4104 M 30 3 1289 1216 1216 M 33 3 1319 1319 1319 M 36 3 1369 1399 1399 M 39 3 1598 1469 1469 M 42 3 1006 928 1570 1570 M 45 3 1061 979 1663 1663 M 48 3 1121 1032 1750 1750 M 52 3 1207 1115 1886 1886

(12)

Precision thread gauges

British Standard Whitworth

coarse thread BS 84 and BS 919

Specification:

Medium class tolerance

12 BSW

Order-Code

_A

LD GD AD GR AR

D

dd x d P thread GO NO GO GO NO GO mm tpi plug gauges plug gauge plug gauge ring gauge ring gauge

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

BSW 1/8 _? _3,175 ₄₀ ₁₁₇₁ ₁₀₁₆ ₁₀₁₆ BSW 3/16_? _4,763 ₂₄ ₈₁₈ ₇₅₁ ₇₅₁ BSW 1/4_? _6,35 ₂₀ ₇₉₀ ₇₂₂ ₇₂₂ BSW 5/16_? _7,938 ₁₈ ₈₁₁ ₇₈₀ ₇₈₀ BSW 3/8_? _9,525 ₁₆ ₈₂₆ ₈₁₈ ₈₁₈ BSW 7/16_? _11,113 ₁₄ ₈₆₃ ₈₆₃ ₈₆₃ BSW 1/2_? _12,7 ₁₂ ₉₁₃ ₉₁₃ ₉₁₃ BSW 9/16_? _14,288 ₁₂ ₉₇₂ ₁₀₀₂ ₁₀₀₂ BSW 5/8_? _15,875 ₁₁ ₁₀₃₈ ₁₀₉₇ ₁₀₉₇ BSW 3/4_? _19,05 ₁₀ ₁₁₈₇ ₁₂₀₈ ₁₂₀₈ BSW 7/8_? _22,225 ₉ ₁₃₄₀ ₁₃₉₂ ₁₃₉₂ BSW 1 ? 25,4 8 1555 1562 1562 BSW 11/8 _? _28,575 ₇ ₁₇₃₅ ₁₇₃₅ ₁₇₃₅ BSW 11/4_? _31,75 ₇ ₁₈₅₈ ₁₉₀₁ ₁₉₀₁ BSW 13/8_? _34,925 ₆ ₂₀₆₆ ₂₀₉₅ ₂₀₉₅ BSW 11/2_? _38,1 ₆ ₂₂₇₅ ₂₂₇₅ ₂₂₇₅ BSW 13/4 _? _44,45 ₅ ₁₄₉₀ ₁₃₅₅ ₂₆₅₇ ₂₆₅₇ BSW 2 ? 50,8 41/2 ₁₇₅₀ ₁₅₇₇ ₃₀₅₃ ₃₀₅₃ GD AD GR AR LD

(13)

13 Precision thread gauges

British Standard pipe thread

DIN ISO 228

G

Order-Code

_A

LD GD AD LD-TiCN GR AR

D

d x d P plug gauge GO NO GO incl. insp. cert. tol. class A tol. class A mm tpi plug gauge plug gauge GO: HSS-TiCN GO NO GO

NO GO: tool steel ring gauge ring gauge

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

G 1/8_? _9,728 ₂₈ ₆₁₉ ₁₃₅₅ ₅₅₃ ₅₅₃ G 1/4_? _13,157 ₁₉ ₆₈₂ ₁₄₉₈ ₆₄₇ ₆₄₇ G 3/8_? _16,662 ₁₉ ₇₈₂ ₁₇₂₁ ₇₄₆ ₇₄₆ G 1/2_? _20,955 ₁₄ ₈₉₈ ₁₉₄₄ ₈₈₃ ₈₈₃ G 5/8_? _22,911 ₁₄ ₉₅₈ ₉₈₆ ₉₈₆ G 3/4_? _26,441 ₁₄ ₁₀₄₂ ₂₂₅₄ ₁₀₇₂ ₁₀₇₂ G 7/8_? _30,201 ₁₄ ₁₂₆₀ ₁₂₈₉ ₁₂₈₉ G 1 ? 33,249 11 1260 2736 1289 1289 G 11/8_? _37,897 ₁₁ ₁₄₃₅ ₁₄₆₂ ₁₄₆₂ G 11/4? 41,91 11 908 840 1598 1598 G 11/2_? _47,803 ₁₁ ₁₀₅₀ ₉₇₀ ₁₇₈₆ ₁₇₈₆ G 13/4_? _53,746 ₁₁ ₁₂₁₆ ₁₁₂₁ ₂₀₀₂ ₂₀₀₂ G 2 ? 59,614 11 1310 1208 2196 2196 G 21/4_? _65,71 ₁₁ ₁₄₇₆ ₁₃₅₅ ₂₆₅₀ ₂₆₅₀ G 21/2_? _75,184 ₁₁ ₁₆₅₆ ₁₅₃₄ ₂₉₈₁ ₂₉₈₁ G 23/4_? _81,534 ₁₁ ₁₈₄₃ ₁₇₀₆ ₃₂₁₁ ₃₂₁₁ G 3 ? 87,884 11 1944 1793 3470 3470 G 31/2_? _100,33 ₁₁ ₂₃₀₄ ₂₁₂₄ ₄₁₇₆ ₄₁₇₆ G 4 ? 113,03 11 2606 2414 4853 4853 LD-TiCN GD AD GR AR LD

Prices for

special tolerances

on request

A

LH

– LD, GD, AD,

GR, AR

for left hand threads

25% extra charge

(14)

14 Precision thread gauges

Whitworth pipe threads

R

LR LR-ISO 7 LR-ISO 7-2 LD LD-ISO 7 LD-ISO 7-2

DIN 2999

Internal parallel and

external

taper thread

ISO 7

Internal parallel and

taper thread,

external taper thread

ISO 7-2/2000 and

EN 10226-3

Internal parallel and

taper thread,

external taper thread

LD gauges are marked Rp. They are used for gauging DIN 2999 internal parallel thread that are jointed with external taper thread.

LR gauges are marked R.

They are used for gauging DIN 2999 external taper thread.

LD-ISO 7 gauges are marked R ISO 7 They are used for gauging ISO 7 internal parallel and taper thread that are jointed with external taper thread.

LR-ISO 7 gauges are marked R ISO 7 They are used for gauging ISO 7 external taper thread.

LD-ISO 7-2 gauges are marked Rc/ Rp ISO 7 No. 1.

They are used for gauging ISO 7 Rp internal parallel and Rc internal taper thread intended for connection to R external taper thread.

LR-ISO 7-2 gauges are marked R ISO 7 No. 3.

They are used for gauging ISO 7 R external taper thread.

ISO 7-2/2000 is a new international standard gauging system and supersedes the DIN 2999, ISO 7-2/1982 and BS 21 systems.

Order-Code

_A

LD LR LD-ISO 7 LR-ISO 7 LD-ISO 7-2 LR-ISO 7-2

D

d P plug gauge ring gauge plug gauge ring gauge plug gauge ring gauge tpi tapered parallel tapered tapered tapered parallel

No. 1 No 3

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

R 1/8_?₂₈ ₁₇₅₀ ₁₁₃₅ ₂₃₆₉ ₃₃₄₁ ₂₇₃₆ ₃₁₃₉ R 1/4_?₁₉ ₁₈₅₀ ₁₂₀₈ ₂₄₉₈ ₃₅₁₄ ₂₈₉₄ ₃₃₁₂ R 3/8_?₁₉ ₂₀₀₂ ₁₄₅₄ ₂₇₁₄ ₃₇₁₅ ₃₁₁₀ ₃₅₁₄ R 1/2_?₁₄ ₂₁₇₄ ₁₆₉₉ ₂₉₃₈ ₄₀₄₆ ₃₃₉₈ ₃₈₀₂ R 3/4_?₁₄ ₂₄₃₄ ₁₉₃₇ ₃₂₈₃ ₄₄₃₅ ₃₇₄₄ ₄₁₇₆ R 1? 11 2858 2182 3802 4997 4363 4723 R 11/4_?₁₁ ₃₃₉₈ ₂₄₇₀ ₄₅₃₆ ₅₈₄₆ ₅₂₁₃ ₅₅₃₀ R 11/2_?₁₁ ₃₈₃₀ ₂₉₀₉ ₅₇₁₇ ₆₄₆₆ ₅₈₇₅ ₆₁₀₆ R 2 ? 11 4694 3384 6293 7877 7114 7459 R 21/2_? ₁₁ ₅₅₃₀ ₄₀₀₃ ₇₁₅₇ ₉₀₂₉ ₈₃₉₅ ₈₅₂₅ R 3 ? 11 6552 4723 8726 11462 10051 10915

(15)

15 Steel conduit threads

DIN 40430

NO GO plug gauges have

no thread and check only

the minor diameter.

NO GO ring gauges have no

thread and only check the

major diameter.

DIN EN 60423 electrical conduit

threads supersede the DIN 40430

conduit threads.

Order-Code

_A

LD GD AD GR AR

D

d x d P plug gauge plug gauge NO GO GO NO GO mm tpi ring gauge ring gauge ring gauge

Pg 7 12,5 20 715 1097 487 Pg 9 15,2 18 792 1201 524 Pg 11 18,6 18 898 1260 542 Pg 13,5 20,4 18 965 1348 568 Pg 16 22,5 18 1028 1428 589 Pg 21 28,3 16 1223 1735 625 Pg 29 37 16 1620 2210 648 Pg 36 47 16 1454 806 2714 743 Pg 42 54 16 1656 922 3067 919 Pg 48 59,3 16 1800 1001 3355 978

Precision thread gauges

LD GR AR

_Pg

Order-Code

_A

LD-7H GD-7H AD-7H GR-8g AR-8g

D

d P 7H 7H 7H 8g 8g

mm plug gauge plug gauge NO GO GO ring gauge NO GO ring gauge

ring gauge

M 8 1 1022 792 576 M 10 1 1094 850 619 M 12 1,5 1181 907 662 M 16 1,5 1267 1022 706 M 20 1,5 1382 1138 749 M 25 1,5 1656 1282 806 M 32 1,5 1958 1483 878 M 40 1,5 2347 1771 1008 M 50 1,5 2030 1130 2102 1267 M 63 1,5 2534 1411 2621 1627 M 75 1,5 2952 1642 3024 1901

Electrical conduit threads

(16)

Precision thread gauges

UNC-threads

Unified national coarse thread ANSI B 1.1

16 UNC

A

LH

– LD, GR, AR,

for left hand threads

25% extra charge

Order-Code

_A

LD LD-3B LD-TiCN GR AR GR-3A AR-3A

D

d x d P 2 B 3 B 2 B 2 A 2 A 3 A 3 A

mm tpi plug gauge plug gauge incl. insp. cert. GO NO GO GO NO GO GO: HSS-TiCN ring gauge ring gauge ring gauge ring gauge NO GO: tool steel

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

UNC Nr. 1 1,854 64 878 1054 814 814 1138 1138 UNC Nr. 2 2,184 56 800 960 1454 754 754 1054 1054 UNC Nr. 3 2,515 48 756 907 697 697 977 977 UNC Nr. 4 2,845 40 712 854 1454 646 646 902 902 UNC Nr. 5 3,175 40 642 770 563 563 787 787 UNC Nr. 6 3,505 32 625 749 1369 523 523 733 733 UNC Nr. 8 4,166 32 593 712 1296 491 491 689 689 UNC Nr. 10 4,826 24 576 691 467 467 653 653 UNC Nr. 12 5,486 24 576 691 467 467 653 653 UNC 1/4_? _6,35 ₂₀ ₅₇₄ ₇₀₃ ₁₂₆₀ ₄₆₁ ₄₆₁ ₆₄₆ ₆₄₆ UNC 5/16_? _7,938 ₁₈ ₅₇₄ ₇₀₃ ₁₂₆₀ ₄₈₈ ₄₈₈ ₆₈₃ ₆₈₃ UNC 3/8_? _9,525 ₁₆ ₅₉₀ ₇₀₈ ₁₂₉₆ ₅₃₄ ₅₃₄ ₇₄₈ ₇₄₈ UNC 7/16_? _11,113 ₁₄ ₆₂₂ ₇₄₈ ₅₇₅ ₅₇₅ UNC 1/2_? _12,7 ₁₃ ₆₅₆ ₇₈₇ ₁₄₅₄ ₆₃₈ ₆₃₈ UNC 9/16_? _14,288 ₁₂ ₆₉₂ ₈₃₀ ₆₈₂ ₆₈₂ UNC 5/8_? _15,875 ₁₁ ₇₃₄ ₈₈₀ ₇₅₀ ₇₅₀ UNC 3/4_? _19,05 ₁₀ ₈₃₆ ₁₀₀₃ ₈₈₃ ₈₈₃ UNC 7/8_? _22,225 ₉ ₉₅₅ ₁₁₄₂ ₁₀₂₈ ₁₀₂₈ UNC 1 ? 25,4 8 1068 1282 1164 1164 UNC 11/8_? _28,575 ₇ ₁₂₀₁ ₁₂₉₆ ₁₂₉₆ UNC 11/4_? _31,75 ₇ ₁₂₉₆ ₁₄₁₄ ₁₄₁₄ UNC 13/8_? _34,925 ₆ ₁₅₀₂ ₁₅₇₇ ₁₅₇₇ UNC 11/2_? _38,1 ₆ ₁₆₇₀ ₁₆₈₅ ₁₆₈₅ GR, GR-3A AR, AR-3A LD-TiCN LD LD-3B

(17)

17 Precision thread gauges

UNF-threads

Unified national fine thread

ANSI B 1.1

UNF

A

LH

– LD, GR, AR,

for left hand threads

25% extra charge

Order-Code

_A

LD LD-3B LD-TiCN GR AR GR-3A AR-3A

D

d x d P 2 B 3 B 2 B 2 A 2 A 3 A 3 A

mm tpi plug gauge plug gauge incl. insp. cert. GO NO GO GO NO GO GO: HSS-TiCN ring gauge ring gauge ring gauge ring gauge NO GO: tool steel

Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr. Pris Kr.

UNF Nr. 0 1,524 80 1032 1238 988 988 1382 1382 UNF Nr. 1 1,854 72 878 1054 814 814 1138 1138 UNF Nr. 2 2,184 64 821 985 754 754 1054 1054 UNF Nr. 3 2,515 56 772 926 697 697 977 977 UNF Nr. 4 2,845 48 727 872 646 646 902 902 UNF Nr. 5 3,175 44 668 800 584 584 818 818 UNF Nr. 6 3,505 40 648 778 542 542 761 761 UNF Nr. 8 4,166 36 617 739 510 510 714 714 UNF Nr. 10 4,826 32 576 691 467 467 653 653 UNF Nr. 12 5,486 28 576 691 467 467 653 653 UNF 1/4_? _6,35 ₂₈ ₅₇₄ ₆₈₉ ₁₂₆₀ ₄₆₂ ₄₆₂ ₆₄₆ ₆₄₆ UNF 5/16_? _7,938 ₂₄ ₅₇₄ ₆₈₉ ₁₂₆₀ ₄₈₈ ₄₈₈ ₆₈₃ ₆₈₃ UNF 3/8_? _9,525 ₂₄ ₅₉₂ ₇₀₈ ₁₂₉₆ ₅₃₄ ₅₃₄ ₇₄₈ ₇₄₈ UNF 7/16_? _11,113 ₂₀ ₆₁₇ ₇₄₀ ₁₃₅₅ ₅₇₅ ₅₇₅ ₈₀₅ ₈₀₅ UNF 1/2_? _12,7 ₂₀ ₆₅₆ ₇₈₇ ₁₄₅₄ ₆₃₈ ₆₃₈ ₈₉₃ ₈₉₃ UNF 9/16_? _14,288 ₁₈ ₆₈₅ ₈₂₃ ₆₈₂ ₆₈₂ ₉₅₃ ₉₅₃ UNF 5/8_? _15,875 ₁₈ ₇₃₄ ₈₈₀ ₁₆₁₃ ₇₅₀ ₇₅₀ ₁₀₅₁ ₁₀₅₁ UNF 3/4_? _19,05 ₁₆ ₈₂₂ ₉₈₆ ₁₈₀₇ ₈₈₃ ₈₈₃ ₁₂₃₇ ₁₂₃₇ UNF 7/8_? _22,225 ₁₄ ₉₁₇ ₁₁₀₀ ₂₀₂₃ ₁₀₂₈ ₁₀₂₈ UNF 1 ? 25,4 12 1016 1219 1164 1164 UNF 11/8_? _28,575 ₁₂ ₁₁₅₀ ₁₂₉₆ ₁₂₉₆ UNF 11/4_? _31,75 ₁₂ ₁₂₂₃ ₁₄₁₄ ₁₄₁₄ UNF 13/8_? _34,925 ₁₂ ₁₃₆₂ ₁₅₇₇ ₁₅₇₇ UNF 11/2_? _38,1 ₁₂ ₁₄₉₈ ₁₆₈₅ ₁₆₈₅ GR, GR-3A AR, AR-3A LD-TiCN LD LD-3B

(18)

Order-Code

_A

LD GR AR

D

d x d P 2 B 2 A 2 A

mm tpi plug gauge GO NO GO ring gauge ring gauge

Pris Kr. Pris Kr. Pris Kr.

UNEF No. 12 5,486 32 744 612 612 UNEF 1/4_? _6,35 ₃₂ ₇₄₄ ₆₁₂ ₆₁₂ UNEF 5/16_? _7,938 ₃₂ ₇₇₃ ₆₇₁ ₆₇₁ UNEF 3/8_? _9,525 ₃₂ ₇₉₀ ₇₀₀ ₇₀₀ UNEF 7/16_? _11,113 ₂₈ ₈₁₈ ₇₃₇ ₇₃₇ UNEF 1/2_? _12,7 ₂₈ ₈₃₃ ₇₈₀ ₇₈₀ UNEF 9/16_? _14,288 ₂₄ ₈₇₀ ₈₅₆ ₈₅₆ UNEF 5/8_? _15,875 ₂₄ ₈₉₉ ₉₃₆ ₉₃₆ UNEF 11/16_?_17,463 ₂₄ ₉₃₆ ₁₀₁₆ ₁₀₁₆ UNEF 3/4_? _19,05 ₂₀ ₉₆₅ ₁₀₈₂ ₁₀₈₂ UNEF 13/16_? _20,638 ₂₀ ₁₀₀₉ ₁₁₆₄ ₁₁₆₄ UNEF 7/8_? _22,225 ₂₀ ₁₀₆₁ ₁₂₅₃ ₁₂₅₃ UNEF 15/16_?_23,813 ₂₀ ₁₁₀₄ ₁₃₄₀ ₁₃₄₀ UNEF 1 ? 25,4 20 1135 1406 1406 UNEF 11/16_?_26,988 ₁₈ ₁₂₀₈ ₁₄₉₀ ₁₄₉₀ UNEF 11/8 _? _28,575 ₁₈ ₁₂₆₀ ₁₅₅₅ ₁₅₅₅ UNEF 13/16_?_30,163 ₁₈ ₁₃₄₀ ₁₆₄₉ ₁₆₄₉ UNEF 11/4_? _31,75 ₁₈ ₁₃₆₉ ₁₇₀₆ ₁₇₀₆ UNEF 15/16_?_33,338 ₁₈ ₁₄₀₆ ₁₈₀₀ ₁₈₀₀ UNEF 13/8_? _34,925 ₁₈ ₁₄₇₆ ₁₈₈₆ ₁₈₈₆ UNEF 17/16_?_36,513 ₁₈ ₁₅₄₇ ₁₉₅₈ ₁₉₅₈ UNEF 11/2_? _38,1 ₁₈ ₁₆₀₆ ₂₀₄₅ ₅₄₅₃ GR AR LD

UNEF

UNEF-threads

Unified national extra fine thread

ANSI B 1.1

Precision thread gauges

18 A

LH

– LD, GR, AR,

for left hand threads

25% extra charge

(19)

19 Precision thread gauges

NPT-threads

American Standard taper pipe thread

ANSI B 1.20.1,

taper 1: 16, for threads used

with jointing compound

NPTF-threads

Dryseal American Standard taper pipe

thread, ANSI B 1.20.5,

taper 1: 16, for threads used

without jointing compound

NPT

NPTF

LD-NPT LD-NPTF LR-NPT LR-NPTF Order-Code

_A

LD-NPT LR-NPT LD-NPTF LR-NPTF

D

d P plug gauge ring gauge plug gauge ring gauge tpi (L1) (L1) (L1) (L1)

Pris Kr. Pris Kr. Pris Kr. Pris Kr.

1/16_? ₂₇ ₁₄₈₄ ₂₄₆₉ ₁₆₃₅ ₂₇₁₅ 1/8_? ₂₇ ₁₅₃₂ ₂₅₃₁ ₁₆₈₉ ₂₇₇₇ 1/4 _? ₁₈ ₁₆₃₅ ₂₅₃₁ ₁₇₉₂ ₂₇₇₇ 3/8 _? ₁₈ ₁₇₅₈ ₂₅₃₁ ₁₉₃₆ ₂₇₇₇ 1/2 _? ₁₄ ₁₉₁₅ ₂₇₄₉ ₂₁₀₀ ₃₀₂₃ 3/4 _? ₁₄ ₂₁₂₇ ₃₀₁₀ ₂₃₃₉ ₃₃₁₁ 1 ? 111/2 ₂₄₆₂ ₃₄₀₇ ₂₇₀₈ ₃₇₄₉ 11/4 _? ₁₁1/2 ₃₀₉₁ ₃₉₉₅ ₃₄₀₇ ₄₄₀₅ 11/2 _? ₁₁1/2 ₃₄₈₈ ₄₄₀₅ ₃₈₄₄ ₄₈₄₃ 2 ? 111/2 ₄₂₉₆ ₅₃₇₆ ₄₇₃₃ ₅₉₁₀ 21/2 _? ₈ ₄₈₉₇ ₆₁₄₃ ₅₃₉₀ ₆₇₅₈ 3 ? 8 5951 7866 6553 8659

(20)

20 Precision thread gauges

Threads for receiving

wire thread inserts

Threads for ISO metric wire

thread inserts

Tolerance class 6H mod. or 5 H

Threads for UNC wire thread

inserts

, Tolerance class 2B

Threads for UNF wire thread

inserts

, Tolerance class 2B

Eg-M

Eg-UNC

Eg-UNF

LD

Threads for wire thread inserts

are gauged before the insert

is screwed in

Prices for

further threads

on request

Order-Code: Eg

_A

LD

_A

LD

D

d P plug limit gauge d P plug limit gauge

mm tpi Pris Kr. Pris Kr. M 2,5 0,45 1026 UNC No. 2 56 1464 M 3 0,5 917 UNC No. 4 40 1300 M 4 0,7 684 UNC No. 5 40 1204 M 5 0,8 821 UNC No. 6 32 1176 M 6 1 793 UNC No. 8 32 1108 M 8 1,25 793 UNC No. 10 24 1081 M 10 1,5 862 UNC No. 12 24 1081 M 12 1,75 1150 UNC 1/4 ? 20 1081 M 14 2 UNC 5/16 ? 18 1176 M 16 2 UNC 3/8 ? 16 1286 M 18 2,5 UNC 1/2 ? 13 2134 M 20 2,5 2244 UNC 5/8 ? 11 2244 M 24 3 2640 UNF No. 4 48 1300 M 8 1 1573 UNF No. 6 40 1176 M 10 1 1778 UNF No. 8 36 1108 M 12 1,5 1860 UNF No. 10 32 1081 M 14 1,5 1943 UNF 1/4 ? 28 1081 M 16 1,5 2024 UNF 5/16 ? 24 1176 M 20 1,5 2189 UNF 3/8 ? 24 1286 UNF 1/2 ? 20 2134

(21)

21 Inspection certificates

Inspection and documentation conform to pages 23 and 24 of the guidelines No. 2618 issued by the VDI (Association of German Engineers), the VDE (Association of German Electrical Engineers) and the DGQ (German Society for Quality Promotion). The inspection certificates show the actual pitch (effective) diameter and conform to the requirements for the checking of inspection equipment specified in EN ISO 9001.

Inspection certificate for used gauges sent for checking

Thread Net unit price for inspection certificate Pris Kr. major dia. _{GO/NO GO} _{GO plug} _{GO ring} _{Thread gauges} mm plug gauge gauge NO GO gauge NO GO for taper thread

plug gauge ring gauge

1 - 2,9 228 228 228

3 - 40 228 228 228 399 41 - 80 228 228 399 81 - 200 285 285 on request larger sizes on request on request on request

Inspection certificate for new thread gauges

Thread Net unit price for inspection certificate Pris Kr. major dia. _{GO/NO GO} _{GO plug} _{GO ring} _{Thread gauges} mm plug gauge gauge NO GO gauge NO GO for taper thread

plug gauge ring gauge

1 - 2,9 160 160 160

3 - 40 160 160 160 274 41 - 80 160 160 319 81 - 200 182 205 on request larger sizes on request on request on request

Mahr 828 measuring machines and an IAC Master Scanner are used for inspection.

Ring gauges for the threads listed in our catalogue with major dia meters ≥ 2 mm and pitches

≥ 0,35 mm are checked by the three ball method.

Both gauge and inspection certifi-cate bear the same serial number.

Used gauges that already have a serial number retain that number. If any gauges sent to us for che-cking are no longer within the spe-cified tolerances and are

replaced by new gauges, no charge is made for the inspection of the discarded gauges.

Subject to a surcharge, we can also extend the inspection to include the thread angle and the pitch, as well as the major diameter on thread plug gauges and the minor diameter on thread ring gauges. For permanent protection, we supply our thread gauges in individual transparent packing.

Surcharges: for multi-start threads 50 % – for extended inspection as described above 50 % The final inspection of JBO

preci sion thread gauges and the issue

of inspection certificates conforms to national and international stan dards. The slip gauges and inspection equipment used are recalibrated by recognized insti-tutes at regular intervals. This is testified in detail on the inspection certificate. “Our air conditioned inspection department is entirely independent from manufacture.

(22)

Advantages of using the „MultiCheck“

thread plug gauge

■

A single gauge checks both thread

and thread depth

■

Thread gauging cycle time reduced

by 50%

■

Thread depth up to 3xD can be

measured

■

Use of standard gauge plugs

■

Simple replacement of worn gauge

plugs

■

A single MultiCheck can be used for

several thread sizes and pitches

■

Reliable measurement of thread

depth by measuring sleeve or by

digital readout on DigiMulticheck

Vorteile für den Einsatz eines

„MultiCheck“ Gewindegrenzlehrdorns

■

Gewindelehrenhaltigkeit und

Gewindetiefe mit einem Werkzeug

prüfen

■

Die Dauer eines Gewindeprüfzyklus

wird um 50% reduziert

■

Gewindetiefe bis 3xD ablesbar

■

Verwendung von Standard

Gewindelehrdornen

■

Einfacher Austausch von nicht

mehr maßhaltigen Lehrdornen

■

Einsatz von verschiedenen

größen und Gewindesteigungen in

einer MultiCheck

■

Sichere Ablesung der Gewindetiefe

auf Meßhülse oder auf Digitalanzeige

mit DigiMultiCheck

1 Gewindegutlehrdorn 2 Gewindeausschußlehrdorn 3 Längenmeßeinheit 1 GO thred plug gauge 2 NO GO thred plug gauge 3 Length measuring unit

Aufbau eines „MultiCheck“ Gewindegrenzlehrdorns

Construction of „MultiCheck“ thread limit gauge

MultiCheck

Gewindelehrdorn

MultiCheck

(23)

Zusätzliche Adaptionen zum Prüfen

mit „MultiCheck“

Optional adaptors for inspection with

„MultiCheck“

Durchmesservergrößerung für größere Anlageflächen. Enlarged diameter for large abutment surface.

Durchmesserreduzierung für vertiefte Bohrungen. Reduced diameter for counterbores.

Kegelige Anlagefläche für spezielle Bohrungsansätze. Conical abutment for holes with special shape entry.

Schräge Anlageflächenhülse für schräge Bohrungen. Inclined abutment sleeve for inclined holes.

Gewindedornverlängerung für sehr vertiefte Bohrungen. Plug gauge extension for very deep holes.

MultiCheck Gewindelehrdorn

In der zerspanenden Bearbeitung von mecha-nischen Bauteilen gewinnt das Kombinieren und somit das Zusammenfassen von möglichst vie-len Operationen in ein Werkzeugsystem immer mehr an Bedeutung. Durch diesen Effekt erzielt der Anwender eine enorme Zeiteinsparnis. Die Zeit einsparung beim Zerspanen wird durch Kombinationswerkzeuge gelöst.

Nach der Bearbeitung kommt ein weiterer Zeitfaktor auf den Anwender zu, das Prüfen der Gewindelehrenhaltigkeit auf eine vor gegebene Gewindetiefe.

Bisher wurde in ein Innengewinde ein Gewindegrenzlehrdorn einge schraubt und anschließend etwas umständlich durch Tiefenmessung mit Meßschieber die Gewindetiefe ermittelt.

Um diese Aufgabe wesentlich zeiteinspa-render und exakter durch führen zu können hat JBO einen kombinierten Gewindelehrdorn mit Tiefenmesshülse ins Fertigungs- und Lieferprogramm aufgenommen. Dieser Lehrdorn mit der Bezeichnung „MultiCheck“ ermöglicht nach dem Einschrauben des Messbolzens das Ablesen der Gewindetiefe

auf einer Meßhülse bis 3x Gewindenenndurchmesser.

MultiCheck Thread Plug Gauge

In the machining of mechanical parts, ever more importance is being attached to com-bining as many operations as possible with a single tooling system. An enormous amount of time can be saved thereby, in the case of metal cutting operations by the use of combination tools.

After thread cutting however, checking of the thread over a specified depth with a thread gauge is yet another time consuming process. Up to now, a plug limit gauge has been screwed into internal threads, followed by the somewhat cumbersome measuring of the thread depth with a Vernier depth gauge. To enable this task to be carried appreciably faster and more accurately, we have added the „MultiCheck“ thread plug gauge with depth measuring sleeve to the JBO product range. When this plug gauge

has been screwed in, the depth of the thread up to 3x nominal thread diameter can be read off the scale on the sleeve accurate to 0.5 mm. If this does not suffice, a Vernier MultiCheck with 0.1 mm resolution or a digital readout MultiCheck with 0.01 mm resolution can be used.

Funktionsprinzip von „MultiCheck”

1. MultiCheck über Gewindebohrung stellen

2. Gewindedorn ansetzen und auf Gewindetiefe eindrehen

3. Nach Erreichen der Gewindetiefe Tiefenmaß an Skala ablesen

4. MultiCheck ausdrehen

„MultiCheck“ sequence of operation

1. Position MultiCheck over internal thread

2. Screw in plug gauge to bottom of thread

3. Read depth of thread off scale

4. Unscrew MultiCheck

Weitere Möglichkeiten aus unserem Lager sind auch Linksgewindedorne, Dorne mit spe-ziellen Sondertoleranzen, Sondergewinde oder TiCN-beschichtete Dorne. Auf Anfrage bieten wir weitere Lösungen an.

Some plug gauges for left hand threads, or with special tolerances, or with TiCN coating are also available ex stock.

(24)

Tr yk k: W er a A S

Herstellung von „MultiCheck“ Gewindelehrdornen

Wir fertigen unsere Gewindelehren ausschließlich in unserem Werk in Albstadt. Unser QM-System ist zertifiziert nach DIN EN ISO 9001. Die Endprüfung und Kalibrierung unserer Gewindelehren erfolgt in unserem klimatisierten Messlabor auf modernsten Messmaschinen wobei die Rückführbarkeit auf nationale und internationale Normale sichergestellt ist.

Manufacture of „MultiCheck“ thread plug gauges

All our thread gauges are manufactured in our Albstadt works. Our QM system has received DIN EN ISO 9001 certification. The final inspection and calibration of our thread gauges is carried out in our climate con-trolled metrology laboratory using the ultra modern measuring machi-nes traceable to national and international reference standards.

JBO Prüfzertifikate

JBO Prüfzertifikate entsprechen den Nachweisforderungen zur Prüf-mittelüberwachung der DIN EN ISO 9001:2000. Diese fordert die Kali-brierung von Meßmitteln z.B. Gewindelehren unter Verwendung von Messnormalen. Auf Wunsch erstellen wir Ihnen Abnahmeprüfzeugnisse (Prüfzertifikate) gemäß DIN EN 10204 3.1.B wobei die Rückführbarkeit auf nationale und internationale Messnormale sichergestellt ist. Die Kalibrierung von gebrauchten Gewindelehren erledigen wir für Sie innerhalb von wenigen Tage.

MultiCheck Inspection Certificates

JBO inspection certificates comply with the requirements of the DIN EN ISO 9001-2000 standard for monitoring inspection equipment. These requirements specify that measuring equipment, such as thread gauges, must be calibrated using reference standards. On request we can issue inspection certificates that conform to DIN EN 10204 3.1.B and are traceable to national and international reference standards. Calibration of used thread gauges can be carried out by us within a few days.

Lagerhaltige Gewindearten Toleranzen Threads for which gauges are stocked Tolerance grades

M Metrisches ISO-Gewinde DIN 13 6H, 7H, 4H, 5H, 7G

Metric ISO threads to DIN 13

MF Metrisches ISO-Feingewinde DIN 13 6H, 7H, 4H, 5H, 7G

Metric ISO fine threads to DIN 13

BSW Whitworth-Gewinde BS 84 und BS 919

Whitworth threads to BS 84 and BS 919

G Whitworth-Rohrgewinde DIN ISO 228

Whitworth pipe threads to DIN ISO 228

Pg Stahlpanzerrohr-Gewinde DIN 40430

Steel conduit threads to DIN 40430

MF-EI Gewinde für Elektroinstallationsrohre DIN EN 60423 7H

Electrical conduit threads to DIN 60423

UNC Unified national coarse thread ANSI B1.1 2B, 3B

UNF Unified national fine thread ANSI B1.1 2B, 3B

UNEF Unified national extra fine thread ANSI B1.1 2B

Eg-M Einsatzgewinde metrisch DIN 8140 6H mod.

Threads to DIN 8140 for metric thread wire inserts

Eg-UNC Einsatzgewinde Unified coarse thread 2B

Threads for UNC thread wire inserts

Eg-UNF Einsatzgewinde Unified fine thread 2B

Gjenge-Kontrollverktøy. Prisliste
