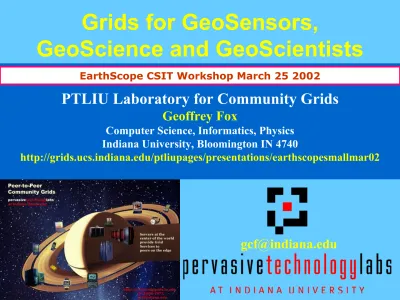

Grids for GeoSensors,

GeoScience and GeoScientists

PTLIU Laboratory for Community Grids

Geoffrey Fox

Computer Science, Informatics, Physics Indiana University, Bloomington IN 4740

http://grids.ucs.indiana.edu/ptliupages/presentations/earthscopesmallmar02

[email protected]

Trends of Importance

n

Resources

of increasing performance or functionality

•

Computers (ASCI, Earth Simulator to TeraGrid),

storage, sensors, networks, PDA’s

n

Applications

of increasing sophistication

•

Size, multi-scales, multi-disciplines

n

New

algorithms

and mathematical techniques

n

Computer science

•

Compilers, Parallelism, Objects, Components

n

Grid

and

Internet

Concepts and Technologies

•

Enabling new applications

Projected Top 500 Until Year 2009

n First, Tenth, 100th, 500th, SUM of all 500 Projected in Time

Earth Simulator from Japan

http://geofem.tokyo.rist.or.jp/

PACI 13.6 TF Linux TeraGrid

Cisco 6509 Catalyst Switch/Router 32 quad-processor McKinley

Servers

(128p @ 4GF, 8GB memory/server)

Fibre Channel Switch HPS S HPS S ESnet HSCC MREN/Abilene Starlight 10 GbE

16 quad-processor McKinley Servers

NCSA

500 Nodes 8 TF, 4 TB Memory

240 TB disk

SDSC

256 Nodes 4.1 TF, 2 TB Memory

225 TB disk

Caltech 32 Nodes

0.5 TF 0.4 TB Memory 86 TB disk

Argonne 64 Nodes

1 TF 0.25 TB Memory 25 TB disk

IA-32 nodes 4 Juniper M160 OC-12 OC-48 OC-12 574p IA-32 Chiba City 128p Origin HR Display & VR Facilities

= 32x 1GbE

= 64x Myrinet

= 32x FibreChannel

MyrinetClos

Spine Spine MyrinetClos Chicago & LA DTF Core Switch/Routers

Cisco 65xx Catalyst Switch (256 Gb/s Crossbar)

= 8x FibreChannel

OC-12 OC-12 OC-3 vBNS Abilene MREN Juniper M40

1176p IBM SP Blue Horizon OC-48 NTON 32 24 8 32 24 8 4 4 Sun E10K 4 1500p Origin UniTree 1024p IA-32 320p IA-64 2 14 8 Juniper M40 vBNS Abilene Calren ESnet OC-12 OC-12 OC-12 OC-3 8 Sun Starcat 16 GbE

= 32x Myrinet

HPS S 256p HP X-Class 128p HP V2500 92p IA-32 24 Extreme Black Diamond

32 quad-processor McKinley Servers (128p @ 4GF, 12GB

memory/server) OC-12 ATM

Calren

The HPCC Track

n

The

1990 HPCC 10 year initiative

was largely aimed at

enabling large scale simulations for a broad range of

computational science and engineering problems

n

It was in many ways a success and we have methods and

machines that can (begin to)

tackle most 3D simulations

•

ASCI simulations particularly impressive

•

DoE still putting substantial resources into basic software

and algorithms from adaptive meshes to PDE solver

libraries

n

Machines are still increasing in performance exponentially

and should achieve

petaflops

in next 7-10 years

n

EarthScope

community needs to harness these capabilities

•

Japan’s

Earth Simulator

activity major effort with large

hardware and software (

GEOFEM

) efforts

Some HPCC Advice to EarthScope

n

Important to build

Sustainable modular software

n

Use

MPI

and

openMP

if needed for performance

on shared memory nodes

n

Adaptive Meshes

n

Load Balancing

n

PDE Solvers including

fast multipoles

n

Particle dynamics

n

Other areas such as datamining, visualization

and data assimilation quite advanced but still

significant research

}

Are well understoo

to get high performanc parallel simulation

Use of Object Technologies

n There is emerging HPCC component architecture allowing

production of more modern libraries (integration Infrastructure)

• DoE has very large CCA – Common Component Architecture

– effort

• Package software (“system and applications”) as distributed

objects – not as traditional libraries

n CORBA Java and Web Services are not naturally high

performance as component models but OK for coarse grain objects (“full programs”)

n As a language, C++ can be high performance but Java is not uniformly so (it is improving)

• Fortran (including Fortran90) will continue to decline in importance and

interest – the community should prefer not to use it

n Not essential to write modules in object oriented language

• It is essential to package modules in object framework

What is a Web Service I

n A web service is a computer program running on either the local or remote machine with a set of well defined interfaces (ports) specified in XML (WSDL)

n In principle, computer program can be in any language (Fortran .. Java .. Perl .. Python) and the interfaces can be implemented in any way what so ever

• Interfaces can be method calls, Java RMI Messages, CGI Web

invocations, totally compiled away (inlining) but

n The simplest implementations involve XML messages (SOAP) and programs written in net friendly languages like Java and Python

n Web Services separate the meaning of a port (message) interface

from its implementation so CAN get high performance in spite of voluminous XML format

What is a Web Service II

n

Web Services have important implication that

ALL

interfaces are XML messages based.

In contrast

n

Web Services

in some sense

replace distributed object

paradigms such as

CORBA

and

Java

but can wrap these

other technologies as

Web Services

• We wrapped our CORBA + Java Computing Portal Gateway

as Web services straightforwardly

Securit

y Catalog

Paymen Credit

Card

Warehous e

shipping

WSDL interfaces

WSDL interfaces

etc. XML WS to WS Interfaces

(Virtual) XML Knowledge (User) Interface

Clients

(Virtual) XML Data Interface Raw Data

Ra

Resource

s

S WS WS

W S

Render to XML Display Format

(Virtual) XML Rendering

Classic Grid Architecture

Database Database

Netsolv e

Computin g

Securit y Collaboratio

n

Compositio n

Content Access

Resources

Client

s Users and Devices

Middle Tie Brokers Service Providers

Middle Tier becomes Web Services

Examples of System Web Services I

n OGSA (Open Grid Service Architecture)

• Integrate Web Service and Grid Concepts and allows Globus

to be implemented as Web Services

n Audio-Video Conferencing as a Web Service

• Integrates H323, SIP, JXTA (etc.) protocols by mapping to

single XML Interface

• Provides VRVS reflector model from Messaging Web Service

n Messaging or Event Web Service provides intelligent routing and buffering of messages

n Computing as a Web service

• Job submittal, status, composition, data services, visualization • Performance WS allows access to distributed monitoring

EarthScope Peer to Peer Grid Community

Distributed Scientists usin Collaboration Web Servic

to access/use Application Web Services

“Everything

(people/sensors applications) connected b XML messages

Gateway and Web Services

n

We can use the Gateway Computing Portal as an

example (

http://www.gatewayportal.org)

• It is largely built using CORBA with a Java Server Pages

front end

n

Several capabilities have been interfaced using WSDL

• Job Submission (11 Methods including execute local and

remote command, copy files etc. as well as Submit Job)

• Manage WebFlow Session (67 Methods)

• Generate Batch Script (just 1 method but two

implementations developed – one at SDSC and one at Indiana – with UDDI to manage)

• Each is one service – could have used finer grain services • Sample files are a

WSDL Abstractions

n

WSDL

abstracts a program

as an entity that does

something given one or more inputs with its results

defined by streams on one or more outputs.

n

Functions are defined by method name and

parameter

methodname(parm1,parm2, … parmN)

•

Where parameters are “Input” “Output” or both

n

In WSDL, we will have a

Web Service

which like a

(Java or CORBA Program) can be thought of as a

(distributed) object with many methods

•

Instead of a function call, the “calling routine” sends an

XML message to the Web Service specifying

methodname

and values of the parameters

•

Note name of function is just another parameter

WSDL Message Example

<message name="

submitRequest

">

<part name="

xmljob

" type="

xsd:string

"/>

</message>

<message name="

submitResponse

">

<part name="

response

" type="

xsd:string

"/>

</message>

For the batch script service, we pass the XML description of the job as a string and get back the script as a string. In general, any XML primitive or complex types can be used in messages.

SOAP and Gateway Portal I

n

Having specified service in WSDL, the run-time is

implemented in SOAP which is “just” an XML header

(info needed by transport – empty here) and body

n

Here is SOAP transported by HTTP message

n

This is

execLocalCommand

WSDL operation to run

one particular command (

ls

) on current WebFlow

directory

Specify ls as

Argument of operation

HTTP Header

SOAP Envelope and body ₁₇

Examples of System Web Services II

n

Education

as a Web Service

• One of easiest to do as object standards well defined (IMS)

and little performance issues

• Grading, Homework submission, registration, assessment etc.

n

Universal Access

and Web Services

• As Web Services allow multiple implementation of a

particular interface, one can adjust to needs of particular clients (PDA v. versus, impaired sight etc.)

• Can build custom implementations of certain web services for

particular communities but re-use others

n

Collaborative Web Services

• As interfaces all message based, much easier to share Web

Education as a Web Service

n Can link to Science as a Web Service and substitute educational modules

n “Learning Object” XML standards already exist from IMS/ADL http://www.adlnet.org – need to update architecture

n Web Services for virtual university include: n Registration

n Performance (grading) n Authoring of Curriculum

n Online laboratories for real and virtual instruments n Homework submission

n Quizzes of various types (multiple choice, random parameters) n Assessment data access and analysis

n Synchronous Delivery of Curricula

n Scheduling of courses and mentoring sessions

n Asynchronous access, data-mining and knowledge discovery n Learning Plan agents to guide students and teachers

Sensor Web Service

Distributed Sensor Web Service

Out Web Service port

Universal sensor acces for people/computers

In Web Service port Different forma

Application Web Services

n Note Service model integrates sensors, sensor analysis, simulations and people n An Application Web Service is a capability used either by another service or

by a user

• It has input and output ports – data is from users, sensors or other services • Big services built hierarchically from “basic” services

Sensor Data as a We

service (WS) Data Analysis WS Sensor Managemen WS Visualization WS Simulation WS Filter

WS FilterWS FilterWS

Build as multiple Filter Web Services

Prog

WS ProgWS

Build as multiple interdisciplinar Programs Data Analysis WS Simulation WS Visualization WS

Message Or Event Based Inte

Connection

Reso urce

Data base

Reso urce Sof

ware Sof ware

XM Skin

e-Science is XML Specified Resource

connected by XML specified messages

XM Skin

e-Science is just a pile of XML

n Each leaf is a piece of XML either defining a nugget of

information and/or containing links to other XML or “raw resources”

Database

XML (RSS) Specification of Information Nuggets

n <item rdf:about="http://xml.com/pub/2000/08/09/xslt/xslt.html"> n <title> Processing Inclusions with XSLT </title>

n <link> http://xml.com/pub/2000/08/09/xslt/xslt.html </link>

n <description>

n Processing document inclusions with general XML tools can be n problematic. This article proposes a way of preserving inclusion n information through SAX-based processing.

n </description>

n </item>

n <item rdf:about="http://xml.com/pub/2000/08/09/rdfdb/index.html"> n <title> Putting RDF to Work </title>

n <link> http://xml.com/pub/2000/08/09/rdfdb/index.html </link>

n <description>

n Tool and API support for the Resource Description Framework n is slowly coming of age. Edd Dumbill takes a look at RDFDB, n one of the most exciting new RDF toolkits.

n </description>

n </item>

n </rdf:RDF>

Distributed Information

Actually the XML is distributed

all around in a dynamic Grid

Structured (XML) Information

earthscope://root/one/two/botto m

roo t

one

two

bottom

Note XML specifie both internal an

Matching Information/Service

Providers and Consumers I

n

Classic Centralized Approach

n

Those with services

publish information

as to location –

this is percolated

up and down the tree of brokers

n

At simplest, publish location; better publish location

and meta-data allowing easier discovery of value

n

Those wanting service, look it up using either

•

Some search of information registered with brokers

•

A search using a system like Google

•

Because they were told some key

n

Like using an

encyclopedia

; very

reliable

and

fast for

well established

information

Unstructured and Structured XML

earthscope://root/one/two/mes s

roo t

one

two

mess

“mess” can be multiple levels of tree Hoosier National Forest showin

Peer to Peer Grid

Database Database

JXTA

JXTA

Peer to Peer Grid

Web Service Interfaces

Web Service Interfaces

Event Messag Brokers

Integrate P2P and Grid/WS

Event Messag Brokers

Matching Information/Service

Providers and Consumers II

n Peer-to-peer Approach (or how to search the “mess”)

n Those with services publish XML advertisements to their friends; their friends may forward it to other friends

n Those wanting a service, publish an XML request to a chosen set of friends

n Friends use their personal idiosyncratic approach to matching requests with advertisements and to choosing who else should be asked

n Analogous to way communities exchange information as in a meeting like this

n Uncertain reliability but scales well (communities intra-exchange information independently) and supports rapidly varying

information (Web Services)

n Allows many different approaches – EarthScope imposes

Grid/P2P Use of Internet I

ROBERT B. COHEN, PH.D. COHEN COMMUNICATIONS GROUP [email protected] 212-986-7720

Global Grid Forum Toronto Feb 18 2002

Cohen’s Rival Estimate Mainl

Digital Video

Grid/P2P Use of Internet II

S2S Server to Server

Semantic Grid & Digital Brilliance I

n

The (XML) advertisement-request matching provides a

publish-subscribe linkage

between resources – these are

people, computers

and

raw/processed data

n

The richer the meta-data, the more precise the linkage

•

This is spirit of

Semantic Web

– RDF/DAML/OIL

metadata enables meaningful linkage

n

In a physics analogy,

resources

can be thought of as

spins

and the

meta-data

induced linkage as

forces

or

interactions

n

Phase transitions

will occur when “enough” resources

are linked – one will get associated spins to align in the

direction of

new knowledge

•

Term this

digital brilliance

Semantic Grid & Digital Brilliance II

n

This suggests ways of quantifying value of

metadata

induced linkages

and ways of identifying where one

“should” add more resource specifications

n

Note that related

resources

are

not

necessarily

directly

connected

but rather messages are forwarded through

friends

n

Study of Peer to Peer

networks teach us that we can

build “

small worlds

” where distance between resources

is logarithmic in number of nodes

n

This physics based picture provides an interesting

underlying formalism to give a

theory of e-Science

….

• All you need to do is to build a lot of XML Meta-data

Semantic Grid & Digital Brilliance III

n EarthScope Collaboratory consists of a set of connected “spins” (being a physicist; resources if I was W3C)

n Resources are anything with a digital signature

• Raw data, Analysers, Simulators, Simulations, Processed

Information, Extracted Knowledge, Scientists ….

n The linkage of Earthquake Fault Simulator Web Service to the

Greens Function Solver Web Service is as program to

subroutine; must have agreement on both syntax and Semantics

n The linkage of Granular Physics model to (my) remark that Los Alamos has interesting new simulation technology is less precise

n So linkages with very precise ontologies and those which are more qualitative are both part of Semantic Grid

Portals and Web Services

n

Web Services

allow us to build a

component model

(see

CCA) for resources.

n

Each resource

naturally has a

user interface

(which

might be customized for user)

n

Web Service <--> Portlet

n

Natural to use a component model for portal building

displayed web page from collection of portlets

• So can customize each portlet and customize which portlets

you want

n

Apache Jetspeed

seems good open source technology

supporting this model

• JSP model is better than say a client-side Java integration in

Jetspeed Computing Portal: Choose Portlets

4 available portlet

linking to Web Service I choose two

Choose Portlet Layout

Choose 1-column Layout

Two Computing

Portlets

EarthScope CSIT Strategy

n

Make a list of

resources

with a hierarchical

arrangement

• People, Places, Results (Publications, meeting archives,

Simulation Output), Activities, Sensors (Instruments), Data (raw and processed), Earth features, Computers, Software

n

Decide on component (Web Service) model and

URI

labeling (

earthscope://devices/satellites/year/label

…)

• Respect performance requirements

• Design so modules can be re-used, re-arranged and replaced

for outreach (education)

n

Study related CSIT architectures of other fields

• Grid Forum, PACI, ASCI for computing issues • W3C Web Consortium for basic IT infrastructure • openGIS XMML for related fields

EarthScope HPCC Strategy

n Decide what services are well enough understood and useful enough to be encapsulated as application Web Services

• Parallel FEM Solvers • Visualization

• Parallel Particle Dynamics • Access to Sensor Data

• Image Processing

n Make services as small as possible – smaller is simpler and more sustainable but with higher communication needs

• Compose large services from smaller ones

n Design Portals and portal components that allow one to manipulate services – set parameters, compose, invoke

n Install chosen System Web Services (job submit, performance, queue) on central machines and local clusters

• Make certain infrastructure supports compute, data,

middleware needs

• Set necessary hardware/software meta-data

EarthScope IT Strategy

n Design an internal EIF (EarthScope Internal Framework)

defining architecture and interface standards of internal Web Services and data structures

n Design EEF (EarthScope External Framework) which maps external raw data into sensor web services

n Support diverse set of explorations as many new approaches to Earth Science enabled by EarthScope

n Choose some appropriate (mix of) middleware frameworks • .net, IBM, BEA, Sun, Oracle

n Look at special requirements for key system services • Hardware/Data systems (new and legacy issues)

• Security

• Collaboration including Audio/Video conferencing • Peer-to-peer networking
