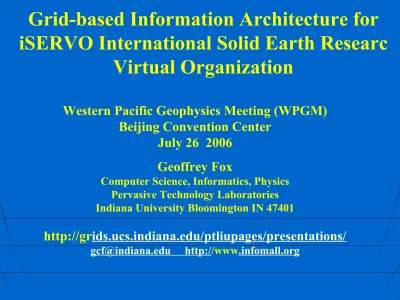

Grid based Information Architecture for iSERVO International Solid Earth Research Virtual Organization

Grid-based Information Architecture for

iSERVO International Solid Earth Researc

Virtual Organization

Western Pacific Geophysics Meeting (WPGM) Beijing Convention Center

July 26 2006 Geoffrey Fox

Computer Science, Informatics, Physics Pervasive Technology Laboratories Indiana University Bloomington IN 47401

http://grids.ucs.indiana.edu/ptliupages/presentations/

APEC Cooperation for Earthquake Simulation

n ACES is a seven year-long collaboration among scientists interested in earthquake and tsunami predication

• iSERVO is Infrastructure to suppor

work of ACES

• SERVOGrid is (completed) US Grid that is

a prototype of iSERVO

• http://www.quakes.uq.edu.au/ACES/

Participating Institutions

n CSIRO Australia

n Monash University Australia

n University of Western Australia, Perth,

Australia

n University of Queensland Australia n University of Western Ontario Canada n University of British Columbia Canada n China National Grid

n Chinese Academy of Sciences

n China Earthquake Administration n China Earthquake Network Center n Brown University

n Boston University

n Jet Propulsion Laboratory n Cal State Fullerton

n San Diego State University

n UC Davis n UC Irvine n UC San Diego

n University of Southern California n University of Minnesota

n Florida State University n US Geological Survey

n Pacific Tsunami Warning Center PTWC

Hawaii

n National Central University, Taiwan

(Taiwan Chelungpu-fault Drilling Project)

n University of Tokyo

n Tokyo Institute of Technology (Titech) n Sophia University

n National Research Institute for Earth

Science and Disaster Prevention (NIED) Japan

Role of Information Technology

and Grids in ACES

Numerical simulations of physical, biological and social systems

Engineering design

Economic analysis and planning Sensor networks and sensor webs High performance computing

Data mining and pattern analysis Distance collaboration

Distance learning

Public outreach and education

Emergency response communication and planning Geographic Information Systems

Grids and Cyberinfrastructure

Cyberinfrastructure i.e. support eScience or science as a team sport

• Internet scale managed services that link computers data

repositories sensors instruments and people

n There is a portal and services in SERVOGrid for

• Applications such as GeoFEST, RDAHMM, Pattern

Informatics, Virtual California (VC), Simplex, mesh generating programs …..

• Job management and monitoring web services for running

the above codes.

• File management web services for moving files between

various machines.

• Geographical Information System services • Quaketables earthquake specific database • Sensors as well as databases

• Context (dynamic metadata) and UDDI system long term

metadata services

Database Database

Analysis and Visualizatio Portal

Repositorie Federated Databases

Data Filte Services

Field Trip Data

Streaming Data Sensor

s

?

Discovery Services

SERVOGrid

Researc Simulation s

Research Education

Customization Services

From Researc to Education

Educatio Grid

Computer Farm

Grid of Grids: Research Grid and Education Grid

GI Grid

Sensor Grid Database Grid

SERVOGrid has a portal

Semantically Rich Services with a Semantically

Rich Distributed Operating Environment

Database S S S S S S S S S S S S S S S S S S _S

S SS SS SS SS SS SS SS SS

F S F S F S F S F S F S F S F S F

S SF

F S F S F S F S F S F S F S F S F S F S F

S Por_tal

F S O S O S O S O S O S O S O S O S O S O S O S O S MD MD MD MD MD MD MD MD MD

MetaData Filter Service Sensor Service Other Service SOAP Message Streams SOAP Message Streams

Raw Data Raw Data

Raw Data Raw Data Data Data _Data Data Information Information Knowledge Knowledge Wisdom Decisions Information Anothe Servic e Anothe Servic e Anothe

Grid Grids of Grids Architecture AnotheGrid

is same as outward facing applicatio

Linking Grids and Services

n Linkage of Services and Grids requires that messages sent by one

Grid/Service can be understood by another

n Inside SERVOGrid all messages use

• Web service system standards we like (UDDI, WS-Context, WSDL,

SOAP) and

• GML as extended by WFS so that data sources and simulations all

use same syntax

n All other Web service based Grids use their favorite Web service

system standards but these differ from Grid to Grid

• Further there is no agreement on application specific standards –

not all Earth Science Grids use OGC standards

• OGC standards include some capabilities overlapping general Web

Services

• Use of WSDL and SOAP is agreed although there are versioning

issues

n So there is essentially there is no service level interoperability between

Grids but rather interoperation is at diverse levels with shared technology

• SQL for databases, PBS for Job scheduling, Condor for job

Grids in Babylon

n Presumptuous Tower of Babel (from the web)

• In the Bible, a city (now thought to be Babylon) in Shinar where God

confounded a presumptuous attempt to build a tower into heaven by confusing the language of its builders into many mutually

incomprehensible languages.

n For Grids, everybody likes to do their own thing and Grids are complex multi-level entities where no obvious points of

interoperation

• so one does not need divine intervention to create multiple Grid specifications

• But data in China, Tsunami sensors in Indian ocean and simulations in

USA etc. will not be linked for better warning and forecasting unless the national efforts can interoperate

n Two interoperation strategies:

• Make all Grids use the same specifications (divine harmony)

• Build translation services (filters!) using say OGF standards as a common

target language (more practical)

n Don’t need computers (jobs) to be interoperable (although this would be good) as each country does its own computing

Interoperability Summary

n Need to define common infrastructure and domain specific

standards

• Build Interoperable Infrastructure gatewayed to existing legacy applications and Grids

n Generic Middleware

• Grid software including workflow

• Portals/Problem Solving environments incl. visualization

• We need to ensure that we can make security, job submission, portal, data access (sharing) mechanisms in different economies interoperate

n Geographic Information Systems GIS

• Use services as defined by Open Geospatial Consortium (Web Map and Feature Services) http://www.crisisgrid.net/

n Earthquake/Tsunami Science Specific

• Satellites, sensors (GPS, Seismic)

Pacific Rim Universities

(APRU ) PRAGMA SERVOGrid GEON SCECGrid Vlab Earth Simulator Naregi

China National Grid Access Infrastructure Institutions IMS International TeraShake Pattern Informatics ALLCAL GeoFEST, PARK, VirtualCalifornia QuakeTables Sesismic InSAR PBO (GPS) U.S.A. FORMOSAT-3/COSMIC (F/C) Chines Taipei JST-CREST GeoFEM GPS Seismic Daichi (InSAR) Japan CAS LURR Seismic GPS P.R. China Pattern Informatics Polaris Radarsat Canada prototype Finley, LSM PANDAS Seismic data, fault database, GPS Australia Wave Motion Earthquake Forecast/Model Data (shared

as part of collaboration) Country

and/or Economies

National Earthquake Grids of Relevance

n ACcESS – Some link to SERVOGrid n China National Grid – GOS GT3 GT4 n ChinaGrid – CGSP built on GT4

n CNGI – China’s Next Generation Internet has significant earthquake data component

n Naregi – Uses GT4 and Unicore with much enhancements n Japanese Earthquake Simulation Grid – unclear

n K*Grid Korea Enhanced SRB, GT2 to GT4

n TIGER Taiwan Integrated Grid for Education and Research unclear technology and unclear earthquake relevance

n SERVOGrid – Uses WS-I+ simple Web Services

TeraGrid: Integrating NSF Cyberinfrastructure

TeraGrid is a facility that integrates computational, information, and analysis resources at the San Diego Supercomputer Center, the Texas Advanced Computing Center, the University of Chicago / Argonne National Laboratory, the National Center for Supercomputing Applications, Purdue University,Indiana University, Oak Ridge National Laboratory, the Pittsburgh

Supercomputing Center, and the National Center for Atmospheric Research.

Today 100 Teraflop; tomorrow a petaflop; Indiana 20 teraflop today.

SDSC

TACC

UC/ANL

NCSA

ORNL

PU IU

PSC NCAR

Caltech

USC-ISI Utah

Iowa

Cornell Buffalo

QPSF

ANU VPAC

ac3

TPAC

CSIRO

Network:

GrangeNet / AARNet

APAC Private Network (AARNet) Security:

APAC CA MyProxy VOMRS

APAC National Gri

Core Grid Services

Portal Tools: GridSphere

Info Services: APAC Registry INCA2?

IVEC

SAPAC

APAC National

Facility

Systems: Gateways Partners’ systems

QPSF

(JCU)

National “Grid Projects” in China

Net-based Res. Env.

Plan

Research

Develop

Production

Procur Deplo Operat Manage

CAS e-Science

Science and Technology R &D Assets Foundation Platform

Next-Generation Network Initiative Edu. & Res. Grid Chin

National Grid

Stat

Council

NSF

CAS MoE MoST Nationa Plannin

Commission Semantic

Grid China e-Nation Strategy (2006-2020)

Virtual Comp. Env.

CNGrid (2006-2010)

•

HPC Systems

– 100 Tflop/s by 2008, Pflop/s by 2010?

•

Grid Software Suite: CNGrid GOS

– Merge with

international efforts

– Emphasize production

•

CNGrid Environment

– Nodes, Centers, Policies

•

Applications

– Science

– Resource & Environment

– Manufacturing

– Services

Cyber Science Infrastructure toward Petascale Computing (planned 2006-2011)

Cyber-Science Infrastructure（ＣＳＩ）

（_{IT Infra. for Academic Research and Education)}

Operation/ Maintenan ce （_Middlewa re） Networkin g Contents

NII

Delivye r

Delivery

Networking Infrastructure (Super-SINET）

　　_{Univ./National} Supercomputing 　　_VO Domain Specific VO (e.g ITBL) Feedback Feedback R&D Collaboration Operaontional Collaborati Middlewa re CA NAREGI Site Research Dev.（　

　）βver.V1.0 V2.0 International Collaboration - EGEE - UNIGRIDS -Teragrid　 -GGF etc. Feedback Deliver y Project-Oriented VO Delivery Domain Specific VOs Customization Operation/Maintenance

ナノ分野 実証・評価

分子研 ナノ分野 実証・評価

分子研 Nano Proof of al.Concept Eval. IMS Nano Proof, Eval. IMS Joint Project

（_Bio）

Osaka-UJoint Project AIST R&D Collaboration Industrial Projects Project-oriented VO

Note: names of VO are tentative） Peta-scale System VO Core Site R&D Collaboration Operation/ Maintenance

（_UPKI,CA）

Japanese Earthquake Simulation Gri

Integrated

Observation-Simulation Data Grid

PC Cluster

ERI, 64xOptero

n paraAVS

Data-Server

GSI 8xOpteron

20TB

Data-Server

NIED 48xG5,

15TB

PC Cluster

EPS, 64xOptero

n paraAVS

Super SINET (10Gbps)

Earth Simulator

GONET _Hi-net K-NET

Database for Model Construction Plate

Motion

Platform for Integrated Simulation

Data Processing, Visualization, Linear Solvers

Simulation Output

PC clusters for small-intermediate problems

Earth Simulator for large-scale problems

GIS Urban Information Tectonic

Loading

Earthqua keRuptur

e Structure

Oscillatio n Wave

Propagati on Tsunami Generatio

n

Earthquake Generation

Strong Motion and Tsunami Generation

JST-CREST Integrated Predictive Simulation System

Artificial Structure Oscillation

Crustal Movement

Data Analysis

Seismic Activity

Data Analysis

Current PTWC Network of Seismic Stations

The NCES/WS-*/GS-* Features/Service Areas I

Portlets JSR168, NCES Capability Interfaces NCES7

WS10

FS11: Portals and Users

ECS WS9 FS10: Policy CIM NCES1 GS6 WS8 FS9: Management Globus MDS

Semantic Grid, WS-Context WS7

FS8: System Metadata & State

UDDI and extensions NCES4

WS6

FS7: Discovery

Grid-Shib, Permis Liberty Alliance ... NCES2 GS7 WS5 FS6: Security Grid Programming NCES5 WS4 FS5: Workflow

JMS, MQSeries, WS-Eventing, Notification NCES3

WS3

FS4: Notification

Core Infrastructure including reliability, publish-subscribe messaging cf. FS13C

NCES3 WS2

FS3: Service Internet, Messaging

B: Core Services (Mainly Service Infrastructure and W3C/OASIS focus)

Strategy for legacy subsystems: modular architecture

FS2: Grid of Grids

Core Service Architecture, Build Grids on Web Services. Industry best practice

WS1

FS1: Use SOA: Service Oriented Arch. A: Broad Principles

Comments NCES

(DoD)

GS-*

The NCES/WS-*/GS-* Features/Service Areas II

NCES3, 8

WS 2,3 GS4 GridFTP or WS Interface to non SOAP transport

FS13C: Data Transport

B: Core Services (Mainly Higher level and OGF focus)

VOSpace for IVOA, JBI for DoD, WFS for OGC Federation at this layer major research area

NCOW Data Strategy

NCES8

GS4

FS14B: Information, Knowledge, Wisdom part of D(ata)IKW

OGC SensorML

FS13B: Data as Sensors and Instruments

Current work only addresses scheduling “batch jobs”. Need networks and services

GS3

FS18: Scheduling and matching of Services and Resources

XGSP, Shared Web Service ports

NCES6

GS7

FS17: Collaboration and Virtual Organizations

Ad-hoc networks; Network Monitoring GS5

FS16: Resources and Infrastructure

Standalone Services Proxies for jobs

NCES9

GS2

FS15: Applications and User Services

Major Grid effort for job status etc. GS4

FS14A: Information as Monitoring

Distributed Files, OGSA-DA Managed Data is FS14B

NCES8

GS4

FS13A: Data as Repositories: Files and Databases

Job Management major Grid focus GS3

FS12: Computing

Comments NCES

GS-* WS-*
