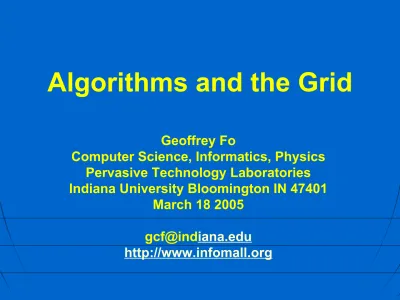

Algorithms and the Grid

(1)

Algorithms and the Grid

Geoffrey Fo

Computer Science, Informatics, Physics Pervasive Technology Laboratories Indiana University Bloomington IN 47401

March 18 2005

[email protected]

(2)

Trends in Simulation Research

n 1990-2000 the HPCC High Performance Computing and

Communication Initiative

• Established Parallel Computing

• Developed wonderful algorithms – especially in partial

differential equation and particle dynamics areas

• Almost no useful software except for MPI – messaging

between parallel computer nodes

n 1995-now Internet explosion and development of Web Service

distributed system model

• Replaces CORBA, Java RMI, HLA, COM etc.

n 2000- now: almost no USA academic work in core simulation • Major projects like ASCI (DoE) and HPCMO (DoD) thrive n 2003-? Data Deluge apparent and Grid links Internet and HPCC

(3)

e-Business e-Science and the Grid

n

e-Business

captures an emerging view of corporations as

dynamic

virtual organizations

linking employees, customers

and stakeholders across the world.

n

e-Science

is the similar vision for scientific research with

international participation in large accelerators, satellites or

distributed gene analyses.

n

The

Grid

or

CyberInfrastructure

integrates the best of the

Web, Agents, traditional enterprise software, high

performance computing and Peer-to-peer systems to provide

the information technology

e-infrastructure

for

e-moreorlessanything

.

n

A

deluge of data

of unprecedented and inevitable size must

be managed and understood.

n

People

,

computers

,

data

and

instruments

must be linked.

(4)

Some Important Styles of Grids

n Computational Grids were origin of concepts and link

computers across the globe – high latency stops this from being used as parallel machine

n Knowledge and Information Grids link sensors and information

repositories as in Virtual Observatories or BioInformatics

• More detail on next slide

n Collaborative Grids link multidisciplinary researchers across

laboratories and universities

n Community Grids focus on Grids involving large numbers of

peers rather than focusing on linking major resources – links Grid and Peer-to-peer network concepts

n Semantic Grid links Grid, and AI community with Semantic web

(ontology/meta-data enriched resources) and Agent concepts

n Grid Service Farms supply services-on-demand as in

(5)

Information/Knowledge Grids

n

Distributed

(10’s to 1000’s) of

data sources

(instruments,

file systems, curated databases …)

n

Data Deluge

: 1 (now) to 100’s

petabyte

s/year (2012)

• Moore’s law for Sensors

n

Possible

filters

assigned dynamically (

on-demand

)

•

Run image processing algorithm on telescope image

•

Run Gene sequencing algorithm on compiled data

n

Needs

decision support

front end with “what-if”

simulations

n

Metadata

(

provenance

)

critical to annotate data

n

Integrate

across experiment

(6)

Virtual Observatory Astronomy Gri

Integrate Experiments

Radio Far-Infrared Visible

Visible + X-ray

Dust Map

Galaxy Density

(7)

e-Business and (Virtual) Organizations

n Enterprise Grid supports information system for an

organization; includes “university computer center”, “(digital) library”, sales, marketing, manufacturing …

n Outsourcing Grid links different parts of an enterprise together Manufacturing plants with designers

• Animators with electronic game or film designers and

producers

• Coaches with aspiring players (e-NCAA or e-NFL etc.) • Outsourcing will become easier ……..

n Customer Grid links businesses and their customers as in many web sites such as amazon.com

n e-Multimedia can use secure peer-to-peer Grids to link

creators, distributors and consumers of digital music, games and films respecting rights

(8)

In flight data Airline Maintenance Centre Ground Station Global Network Such as SITA

Internet, e-mail, pager

Engine Health (Data) Center

DAME

Rolls Royce and UK e-Science Progra

Distributed Aircraft Maintenance

Environment

~ Gigabyte per aircraft per Engine per transatlantic

flight

~5000 engines

(9)

(10)

e-Defense and e-Crisis

n Grids support Command and Control and provide Global

Situational Awareness

• Link commanders and frontline troops to themselves and to archival and

real-time data; link to what-if simulations

• Dynamic heterogeneous wired and wireless networks • Security and fault tolerance essential

n System of Systems; Grid of Grids

• The command and information infrastructure of each ship is a Grid; each

fleet is linked together by a Grid; the President is informed by and informs the national defense Grid

• Grids must be heterogeneous and federated

n Crisis Management and Response enabled by a Grid linking

sensors, disaster managers, and first responders with decision support

n Define and Build DoD relevant Services – Collaboration,

(11)

Large Scale Parallel Computers

Old Style Metacomputing Grid

Analysis and Visualization

(12)

Classes of Computing Grid Applications

n

Running “

Pleasing Parallel Jobs

” as in United Devices,

Entropia (Desktop Grid) “cycle stealing systems”

n

Can be managed (“inside” the

enterprise

as in Condor)

or more informal (as in SETI@Home)

n

Computing-on-demand

in Industry where jobs spawned

are perhaps very large (SAP, Oracle …)

n

Support

distributed file systems

as in Legion (Avaki),

Globus with (web-enhanced) UNIX programming

paradigm

• Particle Physics will run some 30,000 simultaneous jobs this

way

n

Pipelined

applications linking data/instruments,

compute, visualization

n

Seamless Access

where Grid portals allow one to choose

(13)

What is Happening?

n Grid ideas are being developed in (at least) two communities • Web Service – W3C, OASIS

• Grid Forum (High Performance Computing, e-Science) • Open Middleware Infrastructure Institute OMII currently

only in UK but maybe spreads to EU and USA

n Service Standards are being debated

n Grid Operational Infrastructure is being deployed n Grid Architecture and core software being developed

n Particular System Services are being developed “centrally” –

OGSA framework for this in

n Lots of fields are setting domain specific standards and building

domain specific services

n Grids are viewed differently in different areas

• Largely “computing-on-demand” in industry (IBM, Oracle,

HP, Sun)

(14)

A typical Web Service

n In principle, services can be in any language (Fortran .. Java ..

Perl .. Python) and the interfaces can be method calls, Java RMI Messages, CGI Web invocations, totally compiled away (inlining)

n The simplest implementations involve XML messages (SOAP) and

programs written in net friendly languages like Java and Python Paymen Credit Card Warehous e Shipping control WSDL interfaces WSDL interfaces Securit

y Catalog

Porta Service

(15)

Services and Distributed Objects

n A web service is a computer program running on either the local

or remote machine with a set of well defined interfaces (ports) specified in XML (WSDL)

n Web Services (WS) have many similarities with Distributed

Object (DO) technology but there are some (important) technical and religious points (not easy to distinguish)

• CORBA Java COM are typical DO technologies

• Agents are typically SOA (Service Oriented Architecture)

n Both involve distributed entities but Web Services are more

loosely coupled

• WS interact with messages; DO with RPC (Remote Procedure Call) • DO have “factories”; WS manage instances internally and

interaction-specific state not exposed and hence need not be managed

• DO have explicit state (statefull services); WS use context in the messages to

link interactions (statefull interactions)

n Claim: DO’s do NOT scale; WS build on experience (with

(16)

Grid impact on Algorithms I

n

Your favorite parallel algorithm will often run

untouched

on a Grid node linked to other simulations

using traditional algorithms

n

Algorithms

tolerant of high latency

n

Algorithms for

new applications

enabled by the Grid

n

Data assimilation

for data-deluged science generalizing

data mining

• Where and how to process data

• Incorporation of data in simulation

n

Complex Systems algorithms for non traditional

simulations as in biology, social systems

(17)

Grid impact on Algorithms II

n MPI software model not suited for Grid; use SOAP and

publish/subscribe

• Microseconds and milliseconds Latency

n Grid workflow needs “integration algorithms”

• Multidisciplinary algorithms for loose code coupling • Workflow scheduling algorithms (data oriented)

• Data caching algorithms

n Algorithms like distributed hash tables for distributed storage

and look up of data

n Algorithms for Grid security

• Efficient support of group keys for multicast • Detection of Denial of Service attacks

n Much better software available for building toolkits and

(18)

Data Deluged Science

n In the past, we worried about data in the form of parallel I/O or

MPI-IO, but we didn’t consider it as an enabler of new algorithms and new ways of computing

n Data assimilation was not central to HPCC

n DoE ASCI set up because didn’t want test data!

n Now particle physics will get 100 petabytes from CERN • Nuclear physics (Jefferson Lab) in same situation

• Use around 30,000 CPU’s simultaneously 24X7 n Weather, climate, solid earth (EarthScope)

n Bioinformatics curated databases (Biocomplexity only 1000’s of

data points at present)

(19)

(20)

Data

Information

Ideas Simulation

Model

Assimilation

Reasoning

Datamining

Computationa Science

Informatics

Data Deluge

Scienc

(21)

(22)

a

Topography 1 km

Stress Change

Earthquakes

PBO

Site-specific Irregular

Scalar Measurements Constellations for Plate Boundary-Scale Vector Measurements

a

Ice Sheets Volcanoes

Long Valley, CA

Northridge, CA

Hector Mine, CA Greenland

(23)

Database Database

Researc Simulation

s _{Analysis and}

Visualizatio Repositorie Federated Databases Data Filte Services

Field Trip Data

(24)

SERVOGrid Requirements

n

Seamless Access

to Data repositories and large scale

computers

n

Integration

of

multiple data sources

including sensors,

databases, file systems with analysis system

• Including filtered OGSA-DAI (Grid database access)

n

Rich meta-data

generation and access with

SERVOGrid specific Schema

extending openGIS

(Geography as a Web service) standards and using

Semantic Grid

n

Portals

with component model for user interfaces and

web control of all capabilities

(25)

HPC Simulation Data Filter Data Filter Filter Data Filt er Data Filt_er Distributed Filters massage data For simulation Other Gri

(26)

Data Assimilation

n Data assimilation implies one is solving some optimization problem which might have Kalman Filter like structur

n Due to data deluge, one will become more and more dominated

by the data (Nobs much larger than number of simulation

points).

n Natural approach is to form for each local (position, time)

patch the “important” data combinations so that optimization doesn’t waste time on large error or insensitive data.

n Data reduction done in natural distributed fashion NOT on HPC machine as distributed computing most cost effective if calculations essentially independent

(27)

Distributed Filtering

HPC Machine Distribute

Machine

Data Filter

Nobslocal patch 1

Nfilteredlocal patch 1

Nobslocal patch 2

Nfilteredlocal patch 2 Geographicall

y

Distribute

Sensor patches

N

obslocal patch

>> N

filteredlocal patch

≈

Number_of_Unknowns

local patch

Send needed Filter Receive filtered data In simplest approach, filtered data gotten by linear transformations on original data based on Singular Value Decomposition of Least

squares matrix

Factorize Matri to product of

(28)

Non Traditional Applications: Critical

Infrastructure Simulations

n

These include

electrical/gas/water

grids and

Internet

,

transportation

, cell/wired

phone

dynamics.

n

One has some “classic

SPICE

style” network

simulations in area like power grid (although load and

infrastructure data incomplete)

• 6000 to 17000 generators

• 50000 to 140000 transmission lines • 40000 to 100000 substations

n

Need algorithms both fo

(29)

Non Traditional Applications: Critical

Infrastructure Simulations

n

Activity data

for people/institutions essential for

detailed dynamics but again these are not “classic” data

but need to be “fitted” in

data assimilation

style in

terms of some assumed lower level model.

• They tell you goals of people but not their low level movement

n

Disease

and

Internet virus

spread and

social network

simulations can be built on dynamics coming from

infrastructure simulations

• Many results like “small world” internet connection structure

are qualitative and unclear if they can be extended to detailed simulations

(30)

(Non) Traditional Structure

n 1) Traditional: Known equations plus boundary values

n 2) Data assimilation: somewhat uncertain initial conditions and

approximations corrected by data assimilation

n 3) Data deluged Science: Phenomenological degrees of freedom

swimming in a sea of data

Known Data

Predictio n

Known Equations on

Agreed DoF

Phenomenologica Degrees of Freedom Swimming in a Sea of

(31)

Some Questions for Non Traditional

Applications

n No systematic study of how best to represent data deluged

sciences without known equations

n Obviously data assimilation very relevant

n Role of Cellular Automata (CA) and refinements like the New

Kind of Science by Wolfram

• Can CA or Potts model parameterize any system?

n Relationship to back propagation and other neural network

representations

n Relationship to “just” interpolating data and then extrapolating

a little

n Role of Uncertainty Analysis – everything (equations, model,

data) is uncertain!

n Relationship of data mining and simulation

n A new trade-off: How to split funds between sensors and

(32)

When is a High Performance Computer?

n We might wish to consider three classes of multi-node computers n 1) Classic MPP with microsecond latency and scalable internode

bandwidth (tcomm/tcalc ~ 10 or so)

n 2) Classic Cluster which can vary from configurations like 1) to 3)

but typically have millisecond latency and modest bandwidth

n 3) Classic Grid or distributed systems of computers around the

network

• Latencies of inter-node communication – 100’s of milliseconds

but can have good bandwidth

n All have same peak CPU performance but synchronization costs

increase as one goes from 1) to 3)

n Cost of system (dollars per gigaflop) decreases by factors of 2 at

each step from 1) to 2) to 3)

n One should NOT use classic MPP if class 2) or 3) suffices unless

some security or data issues dominates over cost-performance

n One should not use a Grid as a true parallel computer – it can

(33)

Building PSE’s with th

Rule of the Millisecond I

n Typical Web Services are used in situations with interaction

delays (network transit) of 100’s of milliseconds

n But basic message-based interaction architecture only incurs fraction of a millisecond delay

n Thus use Web Services to build ALL PSE components

• Use messages and NOT method/subroutine call or RPC

Interaction

Nugget

1 Nugget2

Nugget

(34)

Building PSE’s with th

Rule of the Millisecond II

n Messaging has several advantages over scripting languages

• Collaboration trivial by sharing messages

• Software Engineering due to greater modularity

• Web Services do/will have wonderful support

n “Loose” Application coupling uses workflow technologies

n Find characteristic interaction time (millisecond programs; microseconds

MPI and particle) and use best supported architecture at this level

• Two levels: Web Service (Grid) and C/C++/C#/Fortran/Java/Python

n Major difficulty in frameworks is NOT building them but rather in supporting them

• IMHO only hope is to always minimize life-cycle support risks

• Simulation/science is too small a field to support much!

n Expect to use DIFFERENT technologies at each level even though possible to do everything with one technology

• Trade off support versus performance/customization

(35)

Requirements for MPI Messaging

n MPI and SOAP Messaging both send data from a source to a

destination

• MPI supports multicast (broadcast) communication;

• MPI specifies destination and a context (in comm parameter) • MPI specifies data to send

• MPI has a tag to allow flexibility in processing in source processor • MPI has calls to understand context (number of processors etc.) n MPI requires very low latency and high bandwidth so that

tcomm/tcalc is at most 10

• BlueGene/L has bandwidth between 0.25 and 3

Gigabytes/sec/node and latency of about 5 microseconds

Latency determined so Message Size/Bandwidth > Latency

tcomm

(36)

Requirements for SOAP Messaging

n Web Services has much of the same requirements as MPI with

two differences where MPI more stringent than SOAP

• Latencies are inevitably 1 (local) to 100 milliseconds which is

200 to 20,000 times that of BlueGene/L

n 1) 0.000001 ms – CPU does a calculation n 2) 0.001 to 0.01 ms – MPI latency

n 3) 1 to 10 ms – wake-up a thread or process n 4) 10 to 1000 ms – Internet delay

• Bandwidths for many business applications are low as one

just needs to send enough information for ATM and Bank to define transactions

n SOAP has MUCH greater flexibility in areas like security,

fault-tolerance, “virtualizing addressing” because one can run a lot of software in 100 milliseconds

• Typically takes 1-3 milliseconds to gobble up a modest

(37)

Structure of SOAP

n

SOAP defines a very obvious message structure with a

header

and a

body

just like email

n

The

header

contains information used by the “

Internet

operating system

”

• Destination, Source, Routing, Context, Sequence Number …

n

The

message body

is partly further information used by

the operating system and partly information for

application

when it is not looked at by “operating

system” except to encrypt, compress it etc.

• Note WS-Security supports separate encryption for different

parts of a document

n

Much discussion in field revolves around

what is

referenced in header

(38)

MPI and SOAP Integration

n

Note SOAP Specifies format and through WSDL

interfaces

n

MPI only specifies interface and so interoperability

between different MPIs requires additional work

• IMPI http://impi.nist.gov/IMPI/

n

Per

vasive networks can support high bandwidth

(Terabits/sec soon) but latency issue is not resolvable in

general way

n

Can combine MPI interfaces with SOAP messaging but

I don’t think this has been done

n

Just as walking, cars, planes, phones coexist with

(39)

NaradaBrokering

n

http://www.naradabrokering.org

n

W

e have built a messaging system that is designed to

support traditional Web Services but has an

architecture that allows it to support high performance

data transport as required for Scientific applications

• We suggest using this system whenever your application can

tolerate 1-10 millisecond latency in linking components

• Use MPI when you need much lower latency

n

Use SOAP approach when MPI interfaces required but

latency high

• As in linking two parallel applications at remote sites

n

Technically it forms an overlay network supporting in

(40)

Pentium-3, 1GHz, 256 MB RAM

100 Mbps LAN

JRE 1.3 Linux

hop-3 0 1 2 3 4 5 6 7 8 9 100 1000 Transit Delay (Milliseconds)

Message Payload Size (Bytes)

Mean transit delay for message samples in NaradaBrokering: Different communication hops

(41)

(42)

Fast Web Service Communication I

• Internet Messaging systems allow one to optimize message

streams at the cost of “startup time”,

• Web Services can deliver the fastest possible

interconnections

with or without reliable messaging

• Typical results from Grossman (UIC) comparing Slow

SOAP over TCP with binary and UDP transport (latter

gains a factor of

1000

)

Pure SOAP SOAP over UDP Binary over UDP

(43)

Fast Web Service Communication II

• Mechanism only works for

streams

– sets of related

messages

• SOAP header in streams is constant

except for

sequence number (Message ID), time-stamp ..

• One needs two types of new Web Service

Specification

• “

WS-StreamNegotiation

” to define how one can use

WS-Policy to send messages at start of a stream to

define the methodology for treating remaining

messages in stream

• “

WS-FlexibleRepresentation

” to define new

(44)

Fast Web Service Communication III

• Then use “WS-StreamNegotiation” to negotiate stream in Tortoise

SOAP – ASCII XML over HTTP and TCP –

–

Deposit basic SOAP header through connection – it is

part of context for stream (linking of 2 services)

–

Agree on firewall penetration, reliability mechanism,

binary representation and fast transport protocol

–

Naturally transport UDP plus WS-RM

• Use “WS-FlexibleRepresentation” to define encoding of a Fast

transport (On a different port) with messages just having

“FlexibleRepresentationContextToken”, Sequence Number, Time stamp if needed

–

RTP packets have essentially this structure

–

Could add stream termination status

• Can monitor and control with original negotiation stream

• Can generate different streams optimized for different end-points

(45)

Role of Workflow

n

Programming SOAP and Web Services (the Grid)

:

Workflow describes linkage between services

n

As distributed,

linkage must be by messages

n

Linkage is two-way and has both control and data

n

Apply to disciplinary, scale linkage,

multi-program linkage, link

visualization to simulation

, GIS to

simulations and visualization filters to each other

n

Microsoft-IBM specification

BPEL

is current preferred

Web Service XML specification of workflow

Service-1 Service-3

(46)

Example workflow

Here a sensor feeds a

data-mining application

(We are extending

data-mining in DoD applications

with Grossman from UIC)

The data-mining

application drives a

visualization

(47)

(48)

SERVOGrid Codes, Relationships

Elastic Dislocation

Pattern Recognizers

Fault Model BEM

Viscoelastic Layered BEM

Viscoelastic FEM Elastic Dislocation Inversion

(49)

Two-level Programming I

• The Web Service (Grid) paradigm implicitly assumes a

two-level Programming Model

• We make a

Service

(same as a “distributed object” or

“computer program” running on a remote computer) using

conventional technologies

– C++ Java or Fortran Monte Carlo module – Data streaming from a sensor or Satellite – Specialized (JDBC) database access
