Component Based Portals for Grid Computing

(1)

Component-Based Portals for

Grid Computing

Marlon Pierce

(2)

OGCE

Consortiu m

NSF NMI Project for Reusable Portal

Components: Who We Are

• University of Chicago

–

Gregor von Laszewski

• Indiana University

–

Marlon Pierce, Dennis Gannon, Geoffrey Fox, and

Beth Plale

• University of Michigan

–

Charles Severance, Joseph Hardin

• NCSA/UIUC

–

Jay Alameda, Joe Futrelle

• Texas Advanced Computing Center

(3)

What Is Grid Computing?

• Grid Computing provides an overlay infrastructure that

can be used to bind computing and data resources

from multiple organizations into “virtual

organizations”.

–

Security, information services, resource access protocols, file

transfer, etc.

• Open Grid Services Architecture recasts Grid

capabilities as Web Services

–

WSDL descriptive conventions, advanced features for

transient services, etc.

–

Service hosting environments manage service lifecycles,

interactions with requestor agents.

• But what about the clients?

(4)

OGCE

Consortiu m

Towards A Common Grid

Client Hosting Environment

Grid portal background and

(5)

What Is a Computing Portal?

• Browser based user interface for accessing grid and

other services

–

“Live” dynamic pages for accessing grid services

–

Use(d) Java/Perl/Python COGs

–

Manage credentials, launch jobs, manage files, etc.

–

Hide Grid complexities

–

Can run from anywhere

–

Unlike user desktop clients, connections go through portal

server, so overcome firewall/NAT issues

• Combine “Science Grid” with traditional web

capabilities

–

Get web pages for news feeds

–

Post and share documents

–

And other more traditional web page features

(6)

OGCE

Consortiu m

Let 10000 Flowers Bloom

• Many portal projects have been launched since

late ’90s.

–

HotPage from SDSC, NCSA efforts, DOD, DOE

Portals, NASA IPG

–

2002 Special Issue of Concurrency and

Computation

• Continue to be important component of many

large projects

–

NEESGrid, DOE SciDAC projects, NASA, NSF, many

international efforts

• Global Grid Forum’s Grid Computing

Environments Research Group

(7)

Port

al

User

Int

erf

ace

Grid Resource Broker Service Grid and Web Protocol s Information and Data Services Database Service Database HPC or Compute Cluster Grid Information Services, SRB Portal Client Stub Portal Client Stub Portal Client Stub JDBC, Local, or Remote Connectio n

Three-Tiered Architecture

(8)

OGCE

Consortiu m

Problem with Portals

• GCE revealed two things

–

Everyone was doing the same thing

• Not quite, but significant

• Everyone builds secure logins, remote file manipulation, command execution, access to info servers.

• Everyone would at least like support for multiple user roles (administrators, users) and customization

–

No one could share components with other groups

• No well defined way of sharing UI components or making services interoperate.

• No well defined interfaces to portal services.

• A research opportunity!

–

Two levels of integration: user interfaces and services

• Our challenges

–

Stop reinventing things and provide ways for groups to reuse

components.

–

Provide a portal marketplace for competing (advanced) services.

(9)

A Solution based on components

• A software component is object defined by

–

A precise public interface

–

A semantics that includes a set of “standard”

behaviors.

• A Software component architecture is:

–

A a set of rules for component behavior &

–

A framework in which components can be easily

installed and interoperate.

• The component architecture of choice for the

Portal community is the one based on portlets

–

Java components that generate content, make local

and remote connections to services.

(10)

OGCE

Consortiu m

A Portlet Approach to Grid Services

• A Portlet is a portal server component that provides

basic services rendered in a user-configurable window

in a portal pane.

Portal

Server

MyProx

y

Server

Metadat

a

Director

y

Service(

s)

Director

y

& index

Service

s

Applicati

on

Factory

Service

(11)

The Grid Portal

• Provides Portlets for

–

Management of user proxy

certificates

–

Remote file Management via

Grid FTP

–

News/Message systems

• for collaborations

–

Grid Event/Logging service

–

Access to OGSA services

–

Access to directory services

–

Specialized Application

Factory access

• Distributed applications

• Workflow

–

Access to Metadata Index

tools

(12)

OGCE

Consortiu m

(13)

Portlet Component and Container

Technologies

• Jakarta Jetspeed

–

Open source Java portlet project

–

Jetspeed is both a framework and reference

implementation

–

Defines portlets, portal service APIs (login,

authorization, customization, etc.)

• CHEF from University of Michigan

–

Uses Jetspeed as a framework

• Reimplements many of the core classes

–

Basis for UM CourseTools

–

NEESGrid portal

(14)

OGCE

Consortiu m

Background

• CHEF is organized around groups of users

• Portals in CHEF are group based (a group

can consist of only one person!)

• A user sees the Portals for each group of

which that person is a member

• The Portal is a collection of Portal pages

(15)

Portal

Engine:

Jetspeed

Velocity

CHEF

Teamlets:

Written in JAVA

Responsible for GUI

Operate in the

context of a session.

Rely on services for

any persistent or

“cross-user”

information.

Services

Persistent

System-wide

Multiple

implementations of

services

Configurable as to

what

implementation

provides what

service

Servlets

Access services outside of the

portal engine: AccessServlet and

(16)

OGCE

Consortiu m

What is a Teamlet?

• A teamlet is a portal-like presentation of

information and possible user actions

• It can be placed in multiple places with a

portal in across multiple portals; each

placement is independent

• Each placement is configurable

(17)

Design Process - Elements

• The design of a teamlet consists of three

elements

–

A service (the Java class or classes that implement

the interface to a source/store of information)

–

An action (the Tool in CHEF; one of more Java

classes that present information to the user and

respond to user actions)

(18)

OGCE

Consortiu m

Java CoG Kit

• Provides interfaces to elementary Grid

functionality

–

Copy a file from here to there

–

Execute a remote job on the Grid

–

Authenticate to the Grid

• Provides interfaces to more advanced Grid

functionality such as simple job queues and

task graphs

• Provides a convenient API level interface that

(19)

What does the user see?

Portlet

Java CoG Kit High-Level

GT2

GT3

GT4

Condor

SSH

Java CoG Kit Low-Level

interface

(20)

OGCE

Consortiu m

Portal Capabilities

(21)

Access context services for managing metadata GridContext Portlets

Access to Anabas shared display applets Anabas

View, interact with HPC status, job, etc information.

GPIR Portlets

Run simple executables on remote hosts GRAM Job Submission

Live chat services and interfaces Chat

Persistent topic-based discussion for groups Discussion

Interactive individual and group calendars Schedule

WEBDav based document system for group file sharing

Document managers

Upload, download, crossload remote files. GridFTP

Basic Globus MDS browsing and navigating MDS/LDAP Browsers

Get MyProxy certs after logging in. Grid Proxy Certificate Manager

Description

Portal Capabilities

(22)

OGCE

Consortiu m

Grid Portlet Examples

• We’ll next overview several portal

capabilities.

• Jetspeed/CHEF acts as a clearing house

for portal capabilities

–

User interface components can be added in

well defined ways.

–

First level of integration

(23)

Example Capability: Portals for Users

• The MyProxy Manager

–

The user contacts the portal

server and asks it to do

“grid” things on behalf of the

user.

–

To make this possible the

server needs a “Proxy

Certificate”

• The user has previously stored a proxy cert in a secure MyProxy Server stored with a temporary password.

• User give the portal server the password and the portal server contacts the proxy server and loads the proxy.

• The portal server will hold the proxy for the user for a “short amount of time” in the

Portal

Server

1. Load my Proxy

Certificate!

User “Beth”

MyProxy

Server

(24)

OGCE

Consortiu m Java CO G

Example Capability: File Management

• Grid FTP portlet– Allow

User to manage remote

file spaces

–

Uses stored proxy for

authentication

–

Upload and download files

–

Third party file transfer

• Request that GridFTP

server A send a file to

GridFTP server B

• Does not involve traffic

through portal server

(25)

Example Capability: Grid Context

Service

• User’s want to be able to use the portal to keep

track of lots of things

–

Application and experiment records

• File metadata, execution parameters, workflow scripts

–

“Favorite” services

• Useful directory services, indexes, links to important

resources

–

Notes and annotations

(26)

OGCE

Consortiu m

XDirectory: A Grid Context Service

• XDirectory is itself a Grid Service that is

access by the portal.

–

An index over a relational database

–

Each node is either a “directory node” or a leaf.

(27)

Portlet Interfaces to Grid Context

Services

• A Remote Service

Directory Interface

–

Holds references and

metadata about application

services.

• User selects interface to

application service from

the directory browser.

• Examples: (near

completion)

–

Select a link to a Dagman

document and invoke the

Condor service on the script.

–

Same for GridAnt/Ogre or

BPEL workflow script.

(28)

OGCE

Consortiu m

Example Capability: Topic Based

Messaging Systems

• Indiana University has implemented a

XML metadata system based on

messages.

• Newsgroups

–

Topic based posting and administration

• Citation/reference browsers

–

Topic based, export/import bibtex

(29)

(30)

OGCE

Consortiu m

User Privileges for Group Channels

• Users request access to specific

topics/channels.

–

Granted by administrator for that topic

• Can request

–

Read/write by browser

–

Read/write by email (newsgroups)

–

Receive/don’t receive attachments.

• Topic admin can edit these requests.

(31)

GPIR Data

• Load - aggregated CPU

• Downtime data for a

machine

–

Jobs: aggregated queue

• MOTD

• Nodes: job usage for

each machine node

• NWS: based on VO and

Click model

• Grid Monitoring

–

Based on TACC GMS

System

–

Custom providers

–

Plans to include MDS3.0

and INCA data uderway

• Expanding to include:

–

queuing system

–

application profiles

–

performance data

–

Application profiles

–

Doc links

• Model allows generic

inclusion of any XML

data from any

recognized source

–

Need schema

(32)

OGCE

Consortiu m

(33)

GPIR Components

• Web Services Ingestor

–

Web Services Ingestor and clients

–

XML Schemas - can be changed

• Data Repository

–

Local Cache

–

Archival --> PostgreSQL

• Web Service Query

–

retrieve data – XML Queries

–

Retrieving current snapshot and archived data

• Clients

–

GridPort services

–

Portal/Web Interface (Portlets, servlets, JSP)

–

Command line

(34)

OGCE

Consortiu m

(35)

Major Theme: Grid Application

Support

• Current portal’s job submission

capabilities are vanilla

–

Type desired machine, executable, output

file

–

Generates RSL, runs command

• Actual job management requires more

–

Integration of information, scheduling

(36)

OGCE

Consortiu m

Capability: Job Sequencer Portlets

User uses Portal to generate XML description of sequence. " xsi:schemaLocation="http://grids.tacc.utexas.edu/schemas/sequencer/jobSequence C:\DOCUME~1\Maytal\Desktop\Maytal\Work\GP-IR\GP-IRX~1\motd.xsd"> <<Status>New</Status> <Step> <Status>Unscheduled</Status> <Type>CSFJob</Type> <Parameter name="jobFactoryServiceHandle">http://129.116.218.36:15080/ogsa/services/metasche duler/JobFactoryService</Parameter> <Parameter name="queue">normal</Parameter> <Parameter name="executable">pam</Parameter> <Parameter name="arguments">-g 1 mpichp4_wrapper /home/monitor/mpi_jobs/mpimd_5</Parameter> <Parameter name="directory">/home/monitor/mpi_jobs</Parameter> <Parameter name="count">4</Parameter> <Parameter name="stdIn">/dev/null</Parameter> <Parameter name="stdOut">/home/monitor/mpi_jobs/tomislavSequencerJobOut</Parameter> <Parameter name="stdErr">/home/monitor/mpi_jobs/tomislavSequencerJobErr</Parameter> </Step> <Step><Status></Status> <Type>GridFTP</Type> <Parameter name="fromHost">[Previous]</Parameter> <Parameter name="toHost">blanco.tacc.utexas.edu:2811</Parameter> <Parameter name="fromFileFullName">/home/monitor/mpi_jobs/tomislavSequencerJobOut</Paramet er> <Parameter name="toFileFullName">/home/monitor/mpi_jobs/tomislavSequencerJobOutCopied</">/h ome/monitor/mpi_jobs/tomislavSequencerJobErr</Parameter><Parameter name="toFileFullName">/home/monitor/mpi_jobs/tomislavSequencerJobErrCopied</Par ameter> </Step> </JobSequence> Currently, sequence steps can consist of File Transfers and Job

Submissions to the CSF meta scheduler

GPIR

The XML is then decomposed and persisted to GPIR where the status information of each step in the sequence

and of the sequence as a whole can be

stored

Sequencer

GridPort returns a Sequence ID to the Portal immediately and

then begins executing the Sequence to completion or to error. Status information can be obtained at any time

(37)

Capability: Community

Scheduling Framework Portlets

CSF Use Case

• Researcher submits job through User Portal

• User Portal uses GridPort to

–

authenticate user

–

optionally make advanced reservation to visualization system

–

submit job to CSF

• CSF selects compute cluster with best fit and forwards job

• Gridport sends results to visualization system

User

Workstation User PortalGridPort

CSF

Visualization System

Bandera Blanco

(38)

OGCE

Consortiu m

O.G.R.E.—A Job Management

Engine

• See Thursday Demo

• O.G.R.E. =

O

pen

G

rid Computing Environments

R

untime

E

ngine

• What Ant lacked, but we needed:

•Broader conditional execution,

•Ant: based on write-once String properties.

•A general “loop” structure for Task execution.

•Data-communication between Tasks (and with their containers).

•Specialized tasks

•File reading and writing

•Local and remote file management (gridftp)

•Web service related tasks

(39)

Data and Metadata Management

• When the job is through…

• Simulations, experiments generate both data

and metadata

–

Metadata includes from code input parameters, host

machines, data formats, owners of data, generators

of data,…

• NEESGrid metadata system will be integrated

into the portal release.

• Another example of integrated Grid services

(40)

OGCE

Consortiu m

Metadata Repository Capabilities

• Data store

–

Files

–

Logical naming

–

Format translation

• Metadata store

–

Structured (RDF-like

schemas)

–

Random-access (tuple

store)

–

Version control

• Archiving

–

Mass store

–

“nar” archive format

• Security

–

Single signon

–

Secure reliable file transfer

with GridFTP

–

Authorization via CAS

• Grid service

interfaces

–

NFMS: NEESgrid File

Management Service

–

NMDS: NEESgrid Metadata

Service

–

Repo. service (Façade)

(41)

Portal

Repository architecture

NFMS

NMDS

Fil

system

GridFT

P

Rep

browser

File xfe

servlet

user

repository

HTTPS

JDBC

_File

I/O

Repo

servic

(Façade

)

GSDL

GridFTP

Java API

GridFTP

(42)

OGCE

Consortiu m

(43)

Architectural Upgrades

(44)

OGCE

Consortiu m

“A Bag of Portlets…”

• Portlet/container systems provide a

simple level of user interface integration.

–

A clearing house for pluggable components

of all sorts

• User interfaces are actually to a diverse

set of backend services.

–

A mixture of UIs to Web services, grid

services, communication/collaboration

services,….

• We are a portlet marketplace…

(45)

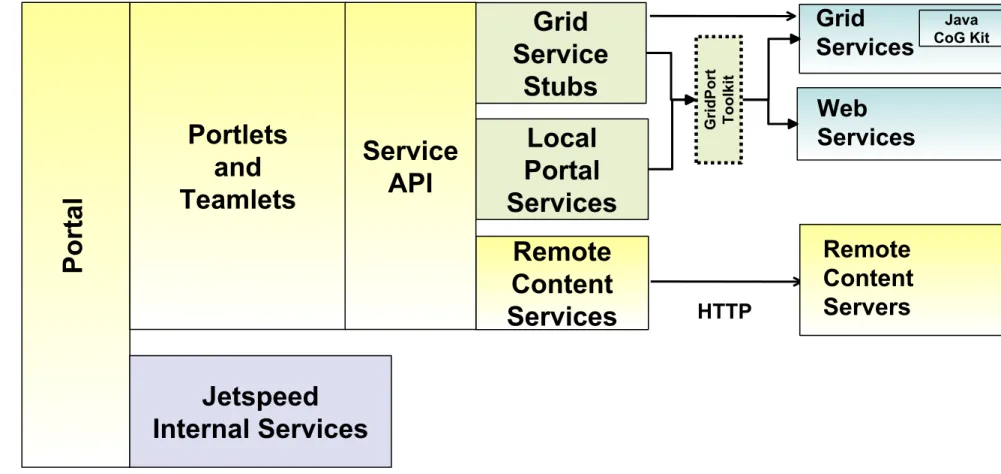

OGCE Initial Architecture

Po rtal Local Portlets Teamlets Proxy Portlets Jetspeed Internal Services Jav aCO GAPI Java Co GKi t Grid Services Grid Protocols GRAM, MDS-LDAD MyProx y Servic
