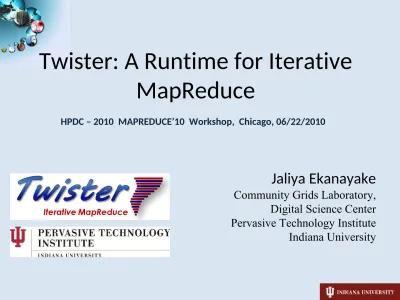

Twister: A Runtime for Iterative

MapReduce

Jaliya Ekanayake

Community Grids Laboratory,

Digital Science Center

Pervasive Technology Institute

Indiana University

S

A

L

S

A

Acknowledgements to:

•

Co authors:

Hui Li, Binging Shang, Thilina Gunarathne

Seung-Hee Bae, Judy Qiu, Geoffrey Fox

School of Informatics and Computing

Indiana University Bloomington

S

A

L

S

A

Motivation

Data

Deluge

MapReduce

Runtimes (MPI)

Classic Parallel

Experiencing in

many domains

Data Centered, QoS

Efficient and

Proven techniques

Input

Output

map

Input

map

reduce

Input

map

reduce

iterations

Pij

Expand the Applicability of MapReduce to more

classes

of Applications

S

A

L

S

A

Features of Existing Architectures(1)

•

Programming Model

–

MapReduce (Optionally “

map-only

”)

–

Focus on

Single Step

MapReduce computations (DryadLINQ supports

more than one stage)

•

Input and Output Handling

–

Distributed data access (HDFS in Hadoop, Sector in Sphere, and shared

directories in Dryad)

–

Outputs normally goes to the distributed file systems

•

Intermediate data

–

Transferred via file systems (Local disk-> HTTP -> local disk in Hadoop)

–

Easy to support fault tolerance

–

Considerably high latencies

S

A

L

S

A

Features of Existing Architectures(2)

•

Scheduling

–

A

master

schedules tasks to

slaves

depending on the availability

–

Dynamic Scheduling

in Hadoop, static scheduling in Dryad/DryadLINQ

–

Naturally load balancing

•

Fault Tolerance

–

Data flows through

disks->channels->disks

–

A master keeps track of the data products

–

Re-execution of failed or slow tasks

S

A

L

S

A

A Programming Model for Iterative

MapReduce

•

Distributed data access

•

In-memory MapReduce

•

Distinction on static data

and variable data (

data

flow vs. δ flow

)

•

Cacheable

map/reduce

tasks (long running tasks)

•

Combine operation

•

Support fast intermediate

data transfers

Reduce (Key,

List<Value>)

Iterate

Map(Key, Value)

Combine

(

Map

<Key,Value>)

User

Program

Close()

Configure()

Static

data

δ flow

Twister Constraints for

Side Effect Free

map/reduce tasks

S

A

L

S

A

Twister

Programming Model

configureMaps(..)

Two configuration options :

1. Using local disks (only for maps)

2. Using pub-sub bus

configureReduce(..)

runMapReduce(..)

while(

condition

){

} //end while

updateCondition()

close()

User program’s process space

Combine()

operation

Reduce()

Map()

Worker Nodes

Communications/data transfers

via the pub-sub broker network

Iterations

May send <Key,Value> pairs directly

Local Disk

S

A

L

S

A

Twister API

1.

configureMaps

(PartitionFile partitionFile)

2.

configureMaps

(Value[] values)

3.

configureReduce

(Value[] values)

4.

runMapReduce

()

5.

runMapReduce

(KeyValue[] keyValues)

6.

runMapReduceBCast

(Value value)

7.

map

(MapOutputCollector collector, Key key, Value val)

8.

reduce

(ReduceOutputCollector collector, Key key,List<Value>

values)

S

A

L

S

A

Twister Architecture

Worker Node

Local Disk

Worker Pool

Twister Daemon

Master Node

Twister

Driver

Main Program

B

B

B

B

Pub/sub

Broker Network

Worker Node

Local Disk

Worker Pool

Twister Daemon

Scripts perform:

Data distribution, data collection,

and partition file creation

map

reduce

_{Cacheable tasks}

S

A

L

S

A

Input/Output Handling

•

Data Manipulation Tool:

–

Provides basic functionality to manipulate data across the local

disks of the compute nodes

–

Data partitions are assumed to be files (Contrast to fixed sized

blocks in Hadoop)

–

Supported commands:

•

mkdir, rmdir, put,putall,get,ls,

•

Copy resources

•

Create Partition File

Node 0

Node 1

Node n

A common directory in local

disks of individual nodes

e.g. /tmp/twister_data

Data

Manipulation Tool

S

A

L

S

A

Partition File

•

Partition file allows duplicates

•

One data partition may reside in multiple nodes

•

In an event of failure, the duplicates are used to

re-schedule the tasks

File No

Node IP

Daemon No

File partition path

S

A

L

S

A

The use of pub/sub messaging

•

Intermediate data transferred via the broker network

•

Network of brokers used for load balancing

–

Different broker topologies

•

Interspersed computation and data transfer minimizes

large message load at the brokers

•

Currently supports

–

NaradaBrokering

–

ActiveMQ

100 map tasks, 10 workers in 10 nodes

Reduce()

map task queues

Map workers

Broker network

E.g.

~ 10 tasks are

S

A

L

S

A

Scheduling

•

Twister supports long running tasks

•

Avoids unnecessary initializations in each

iteration

•

Tasks are scheduled statically

–

Supports task reuse

–

May lead to inefficient resources utilization

•

Expect user to randomize data distributions to

minimize the processing skews due to any

S

A

L

S

A

Fault Tolerance

•

Recover at iteration boundaries

•

Does not handle individual task failures

•

Assumptions:

–

Broker network is reliable

–

Main program & Twister Driver has no failures

•

Any failures (hardware/daemons) result the

following fault handling sequence

–

Terminate currently running tasks (remove from

memory)

–

Poll for currently available worker nodes (& daemons)

–

Configure map/reduce using static data (re-assign data

S

A

L

S

A

Performance Evaluation

•

Hardware Configurations

•

We use the academic release of DryadLINQ, Apache Hadoop

version 0.20.2, and Twister for our performance comparisons.

•

Both Twister and Hadoop use JDK (64 bit) version 1.6.0_18, while

DryadLINQ and MPI uses Microsoft .NET version 3.5.

Cluster ID

Cluster-I

Cluster-II

# nodes

32

230

# CPUs in each node

6

2

# Cores in each CPU

8

4

Total CPU cores

768

1840

Supported OSs

Linux (Red Hat Enterprise Linux

Server release 5.4 -64 bit)

Windows (Windows Server 2008

-64 bit)

S

A

L

S

A

Pair wise Sequence Comparison using

Smith Waterman Gotoh

•

Typical MapReduce computation

•

Comparable efficiencies

S

A

L

S

A

Pagerank – An Iterative MapReduce Algorithm

•

Well-known pagerank algorithm [1]

•

Used ClueWeb09 [2] (1TB in size) from CMU

•

Reuse of map tasks and faster communication pays off

[1] Pagerank Algorithm,

http://en.wikipedia.org/wiki/PageRank

[2] ClueWeb09 Data Set,

http://boston.lti.cs.cmu.edu/Data/clueweb09/

M

R

Current

Page ranks

(Compressed)

Partial

Adjacency

Matrix

Partial

Updates

S

A

L

S

A

Multi-dimensional Scaling

•

Maps high dimensional data to lower dimensions (typically 2D or 3D)

•

SMACOF (Scaling by Majorizing of COmplicated Function)[1]

[1] J. de Leeuw, "Applications of convex analysis to multidimensional

scaling,"

Recent Developments in Statistics, pp. 133-145, 1977.

While(condition)

{

<X> = [A] [B] <C>

C = CalcStress(<X>)

}

While(condition)

{

<T> = MapReduce1([B],<C>)

<X> = MapReduce2([A],<T>)

C = MapReduce3(<X>)

S

A

L

S

A

Conclusions & Future Work

•

Twister extends the MapReduce to iterative algorithms

•

Several iterative algorithms we have implemented

–

K-Means Clustering

–

Pagerank

–

Matrix Multiplication

–

Multi dimensional scaling (MDS)

–

Breadth First Search

•

Integrating a distributed file system

S

A

L

S

A

Related Work

•

General MapReduce References:

–

Google MapReduce

–

Apache Hadoop

–

Microsoft DryadLINQ

–

Pregel

: Large-scale graph computing at Google

–

Sector/Sphere

–

All-Pairs

–

SAGA: MapReduce

S

A

L

S

A

S

A

L

S

A

Questions?

S

A

L

S

A

S

A

L

S

A

Hadoop (Google) Architecture

•

HDFS stores blocks, manages replications, handle failures

•

Map/reduce are Java processes, not long running

•

Failed maps are re-executed, failed reducers collect data from maps again

HDFS

M

Local

R

Task

Tracker

Job

Tracker

Task

Tracker

Local

Map task reads Input data from HDFS

Task tracker notifies job tracker

Job tracker assigns some map outputs to a reducer Reducer downloads map outputs using HTTP Reduce output goes to HDFS

1

2

3

4

S

A

L

S

A

Twister Architecture

•

Scripts for file manipulations

•

Twister daemon is a process, but Map/Reduce tasks are Java

Threads (Hybrid approach)

M

Local

R

Twister

Daemon

Twister

Daemon

Local

1

3

4

1

B

B

B

B

Broker Connection Receive static data (1)

OR

Variable data (key,value) via the brokers (2)

4

2

Twister

Driver

1. configureMaps(PartitionFile partitionFile)

2. configureMaps(Value[] values)

3. configureReduce(Value[] values)

4. String key=addToMemCache(Value value)

5. removeFromMemCache(String key)

6. runMapReduce()

7. runMapReduce(KeyValue[] keyValues)

8. runMapReduceBCast(Value value)

S

A

L

S

A

Twister

•

In-memory MapReduce

•

Distinction on static data

and variable data (

data flow

vs. δ flow

)

•

Cacheable

map/reduce

tasks

(long running tasks)

•

Combine operation

•

Support fast intermediate

data transfers

Different

S

A

L

S

A
