Available Online atwww.ijcsmc.com
International Journal of Computer Science and Mobile Computing
A Monthly Journal of Computer Science and Information Technology
ISSN 2320–088X
IMPACT FACTOR: 6.017
IJCSMC, Vol. 7, Issue. 6, June 2018, pg.16 – 22
A NOVEL ARCHITECTURE FOR
VIDEO STEGANOGRAPHY USING
PIXEL PATTERN MATCHING
Chandini B
1, Ganesh Kumar M.T
2¹M.Tech student, G. Madegowda Institute of Technology, Karnataka, India ²Assistant professor, Dept. of ECE, GMIT Mandya, Karnataka, India
1
[email protected]; 2 [email protected]
Abstract— With the strong stimulation of computer networks, computer users increasingly important to find better ways to protect personal and confidential information. A common way to ensure that such information is unreadable string encryption of sensitive data to prevent unauthorized access and viewing. Steganography is the process of hiding confidential data in the media files such as audio, images, videos etc. The point is to plan a steganography calculation which conceal the message behind the picture as well as give more security than others. In the proposed system, the data is encrypted using Advance Encryption Standard and divided using arithmetic division method. In this approach, the data will be stored in the form of divisor, quotient & remainder. The location key is also distributed, encrypted and stored in different frames. Along with this pixel, pattern matching is also used to avoid distortion of the video frame. This system will be difficult to crack since the location key is divided as well as encrypted and stored in different video frames along with this the secret message is stored in the form of a quotient, a divisor and a remainder. Even if the system is attacked the chance of the intruder to predict the pattern will be difficult as the secret data is embedded with dual protection.
Keywords— Advanced encryption standard (AES), Steganography, Pixel pattern matching, Key segmentation
I. INTRODUCTION
As exhibited in Fig. 1 Steganography is categorised into four types based on the medium used.
Fig. 1: Types of Steganography
Image Steganography- In this scheme, the information is covered up inside an image file. Images contain much irrelevant information in which the classified data can be implanted efficiently.
Audio Steganography- Here the data is concealed in sound. Secret information is embedded by revising the audio signal so that unauthorized person cannot easily intercept the changes.
Video Steganography- It is a manner to suppress the information in a video file. The pixel variations of the respective frame where the secret data is stored are harder to detect than image steganography.
Text Steganography- This scheme hides the data behind a cover text file.
Develop a system for giving a high security to the text data. Hence the architecture combines both
steganography and cryptography. Our project goals are the given below.
High security to the data.
Reduce complexity
High speed
Reduce the complexity in handling different data base.
II. ADOPTED ALGORITHM 1. AES algorithm
Initially, the secret information is encrypted using AES algorithm. It is a block cipher algorithm which encrypts the data in blocks. It partitions the input into blocks of 128 bits each. It supports the key range of 128 bits, 192 bits and 256 bits respectively. AES being symmetric block cypher technique, for both encryption and decryption same key is used. 10 rounds of operations are performed to the chunk of plain text. These operations consist of substitution, shifting, transposition and shuffling of input message which produces the cipher text.
2. Division method
The output of AES algorithm is then taken as input for this module. Then it is converted into decimal value with the help of ASCII code, this value will act as the dividend. A random number is generated which will be the divisor as exhibited in Fig. 2. The mathematical division is performed with the obtained dividend and divisor. The quotient and remainder of the division performed will be stored in the form of Quotient, Divisor and Remainder in the pixel. And at the receiver side, the data can be retrieved by using the formula:
Fig. 2. Division Technique
3. Pixel Pattern Matching Technique
Pixel pattern matching is used for embedding the secret data into the frames of a video file. In this algorithm, the data is embedded into the video without changing the original pixel value of the video. Here such pixels are selected from the video whose value matches the data to be embedded. Moreover, the location of these pixels is noted. As in this method, the original pixel value is not altered. As a result, there is no distortion due to the embedding of data [10].
4. Key Segmentation
In the proposed system, the location key is segmented and stored in different video frame. As exhibited in Fig. 3 the address of the embedded pixel is stored in different frames in a linked list fashion.
Fig. 3. Division Technique
The flow of linked list method is as follows:
Initial frame is selected by the system randomly.
A random pixel in this frame will contain the location of the pixel in which the secret data is embedded and the location of the next node.
This process continuous until all the location key is stored.
III. PROPOSED METHODOLOGY

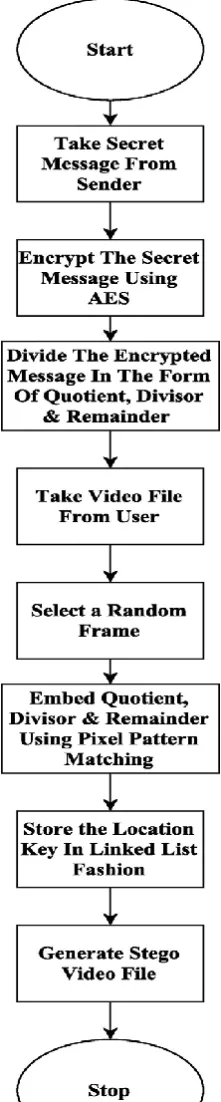

The methodology includes two techniques, they are: A)Encoding Technique
security, this encrypted secret message is further divided in the form of Quotient, Divisor and Remainder. The system now asks the user for a video file for embedding the data. After the user provides with a video, a random frame is selected where the encrypted message in the form of Quotient, Divisor and Remainder is embedded using Pixel Pattern Matching. As the message is embedded, a location key is generated for each pixel. This location key is embedded in different frames in a linked list fashion using LSB technique. After embedding the secret message and the Location key, a stego video file is generated. This file is then shared with the respective receiver.
B) Decoding Technique

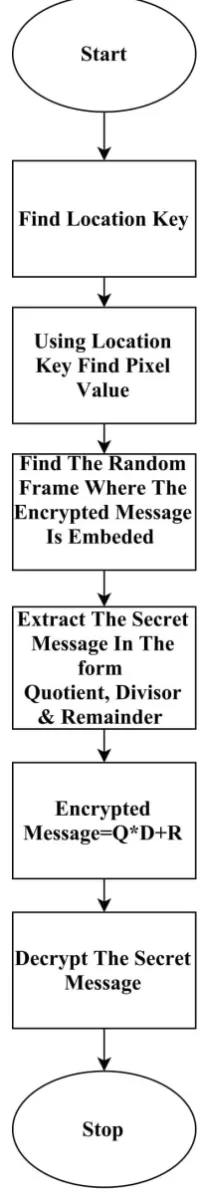

Fig. 5. System Flow-Decoding
Divisor(D) and Remainder(R). The Encrypted message is computed using the formula Q*D+R. As the Encrypted message is obtained, the AES encryption is decrypted leaving behind the Original secret message.
IV. RESULT
After embedding the encrypted data into the stego video the results achieved are better than the previous systems in terms of minimum distortion and a negligible increase in file size. Secret message of a significant amount characters can be efficiently embedded into the video frames. As the proposed system make use of pixel pattern matching the distortion is negligible and we can store a significant amount of data into the frame without increasing the video file size. Fig. 6 and Fig. 7 exhibits the frame before and after embedding the encrypted message respectively. As it can be observed, there is no noticeable variation between the two frames.
Fig. 6. Frame – Before Embedding
Fig. 7. Frame – After Embedding
Also, the location key is segmented and embedded into the different video frames using linked list fashion. Due to which the retrieval of the embedded data becomes easy and fast at the receiver’s end.
TABLE I. RESULTS OF PROPOSED SYSTEM
Original videofile size in(KB)
Amount of
characteristics in secret message
Stego video file size in (KB)
Result
5210 100,000 5210 Success
5210 200,000 5210 Success
5210 350,000 5210 Success
V. CONCLUSION
The proposed system aims to secure the hidden message by Dividing the encrypted message and then embedding it into the video. Hence the intruder cannot ascertain the presence of concealed message which in turn increases the security. Also, distortion is observed in the systems where encrypting method like LSB is used where data bits are stored in the video frame by manipulating the pixel value. Such distortion is effortlessly perceived by the human eye. Hence the suspicion of secret data stored in video file increases. The proposed system will use Pixel Pattern Matching along with various enhanced encryption and data embedding algorithms to encrypt and embed the secret message, and the location key of the pixels where the information is implanted is stored in different frames. This will result in a safe system with insignificant mutilation so that regardless of the possibility that the intruder gets hold of the stego video they won't be able to get hold of the information. Therefore, the proposed system gives a remarkable approach of covering data in a video with negligible bit distortion.
