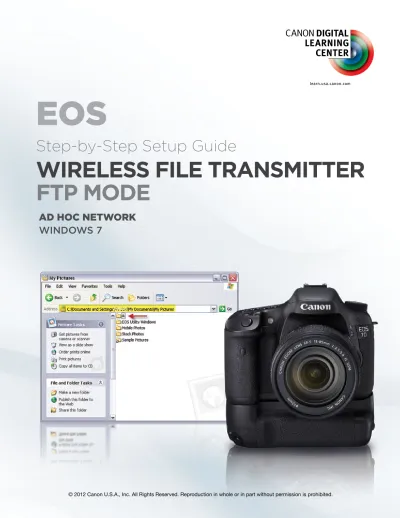

EOS
Step-by-Step Setup Guide
Wireless File TransmiTTer
FTP mode
Ad HOc NEtwOrk
WindoWs 7
FTP Mode
Ad Hoc Network Setup
Ad Hoc Network Setup
Overview
FTP Mode allows you to wirelessly transfer images from your EOS DSLR to a WiFi-enabled computer that you have set up as a remote FTP server. The EOS Wireless File Transmitter will function as the FTP client.
This guide will describe how to create an ad hoc network FTP server on a PC running the Premium or Professional versions of Microsoft Windows 7. If you do not have either version installed on your PC you will either need to upgrade or, if you prefer, you can use one of the available third-party FTP server soft-
ware applications. Follow the software provider’s instructions for how to configure the server, login, password, and Windows firewall.
This setup requires you to assign a login name, password and WEP encryption. Please check to be sure you are operating in a secure environment before setup. Do not change the network settings on any computer without the permission of the network administrator. Be sure to write down your original network settings so that you can restore them later when necessary.
1
Click Start, then Control Panel, then Network and Internet, then Network and Sharing Center.Below Change your net- working settings, select Set up a new connection or network.
3
3
Read the explanation and instructions regarding ad hoc networks, then click the Next button.2
On the Choose a con- nection option window, select, Set up a wireless ad hoc (computer-to- computer) network, then click the Next button.5
You will see a dialog box in- forming you that Windows is setting up a network with the name you assigned in Step 4. (The name you see here is only an example.)4
Enter the name you want to assign to your ad hoc network in the Network name field. For Security type select WEP. For Security key enter five (5) ASCII characters. If you want to save this network setup for future use, click Save this network. Click the Next button.5
6
After a few seconds you will see a dialog box informing you that your network is ready to use. You can now move on to creating an FTP server.1
Click Start, thenControl Panel, then Programs. On the Programs window click Turn Windows features on or off.
Install FTP Server
2
Expand the option for Internet Information Services (IIS).Select FTP Server and IIS Management Console. Click OK and wait for the installation to complete. This may take a few minutes. When the instal- lation has finished your FTP server will be ready for use.
3
Click Control Panel, then System and Security, then Admin- istrative Tools to open Internet Information Services Manager.Under connections, right click on sites and click Add FTP Site as shown in the screenshot.
7
4
Under Connections, right-click on the name of your computer.Select Add FTP Site on the dropdown menu that appears.
5
Under Site Information, enter a name for your FTP site, click the ellipsis (...) to select a path to the folder you want to share, then click the Next button.6
Under Binding and SSL Set- tings, select the default IP ad- dress from the dropdown menu.Select No SSL from the list of SSL options, then click the Next button. Enter FTP Server IP address here for reference:
_____ . _____. _____ . _____
7
Under Authorization and Authentication Informa- tion, choose the settings you prefer. Click Finish to complete your FTP server setup. You now need to set up the WFT.9
1
Turn on your camera with the WFT attached.Navigate to the first Tool menu and select [WFT Settings].
WFT Setup
2
Select [Connection wizard].3
Select [FTP trans.], then select [OK].4
Select [Wireless].Select [OK].
5
Select [Connect with wizard].Select [OK].
6
Select the name of the wireless network you created during the computer setup. Select [OK].7
Select Key Index [1].Select [OK].
11
9
Enter the 5-character password that you used when you created the network on your com- puter. Press the Menu button on your camera to select [OK].10
Select Network [Manual setting].Select [OK].
11
Select IP address set. [Manual setting].Select [OK].
12
Enter an IP address for the WFT unit. The first six digits should be “192.168.” Either one of the last two must be different from the ones you assigned to the computer. (Write this number down--you will need it later.) Select [OK].15
On FTP server select [Address setting], then select [OK].13
On Gateway leave the gateway set to [Dis- able]. Select [OK}.14
On DNS address select Disable, then select [OK].16
13
17
The FTP server screen will display the IP ad- dress and port numbering setting. The Port number should be 00021. The IP address should match what you entered in Step 16. If so, select [OK].18
On Passive Mode select [Disable].Select [OK].
19
On Proxy server select [Disable].Select [OK].
20
On Login method select [Login password].Select [OK].
21
On Login name, enter the name of your computer. (To find the name of your computer, click Start button/Control Panel, System and Maintenance, then System.You will find the computer name under the Computer name tab.
22
On your camera’s Password screen, enter the password you use to log onto your PC.You must enter a login password for this setup to work.
23
15
24
The camera and WFT will now connect to your computer/FTP server. Select [OK].25
Assign your settings to a Set for later retrieval. You can assign any number from 1 - 4.1
Go to the WFT settings menu.Select [Set up].
Optional Automatic File Transfer Settings
2
On the Set up menu enable [Automatic transfer].Press the Menu button on your camera to confirm settings.
3
Image files from your camera will automatically be transferred to a “house folder” identified on your computer as folder A.Note that any images you erase from the camera will not be erased from the house folder.
Once the ad hoc network is set up you can turn the camera off and back on again. When you turn it back on it will automatically reconnect.
When you have finished using FTP mode, return to the WFT settings menu to select [Discon- nect.]
How to Disconnect
Once the adhoc network is set up you can turn the camera off and back on again. When you
How to Reconnect
17 1. When you set up an ad hoc manual FTP network con-
nection, you must disconnect from whatever network setup you previously had. You will then have to re-con- nect your original network setup once you’re through with the FTP connection. Reverse the TCP/IP connec- tion from manual to DHCP (or the original manual IP address), then reselect the network being distributed by the router.
2. The ad hoc network is temporary. When you switch back to your normal configuration the ad hoc network settings on your PC will disappear and must therefore be set up again for re-use.
Additional Notes
