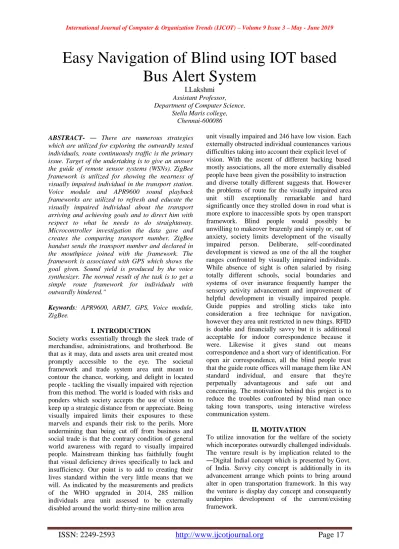

Easy Navigation of Blind using IOT based
Bus Alert System
I.Lakshmi
Assistant Professor, Department of Computer Science,
Stella Maris college, Chennai-600086
ABSTRACT- ― There are numerous strategies which are utilized for exploring the outwardly tested individuals, route continuously traffic is the primary issue. Target of the undertaking is to give an answer the guide of remote sensor systems (WSNs). ZigBee framework is utilized for showing the nearness of visually impaired individual in the transport station. Voice module and APR9600 sound playback frameworks are utilized to refresh and educate the visually impaired individual about the transport arriving and achieving goals and to direct him with respect to what he needs to do straightaway. Microcontroller investigation the data gave and creates the comparing transport number. ZigBee handset sends the transport number and declared in the mouthpiece joined with the framework. The framework is associated with GPS which shows the goal given. Sound yield is produced by the voice synthesizer. The normal result of the task is to get a simple route framework for individuals with outwardly hindered."
Keywords: APR9600, ARM7, GPS, Voice module, ZigBee.
I. INTRODUCTION
Society works essentially through the sleek trade of merchandise, administrations, and brotherhood. Be that as it may, data and assets area unit created most promptly accessible to the eye. The societal framework and trade system area unit meant to contour the chance, working, and delight in located people - tackling the visually impaired with rejection from this method. The world is loaded with risks and ponders which society accepts the use of vision to keep up a strategic distance from or appreciate. Being visually impaired limits their exposures to these marvels and expands their risk to the perils. More undermining than being cut off from business and social trade is that the contrary condition of general world awareness with regard to visually impaired people. Mainstream thinking has faithfully fought that visual deficiency drives specifically to lack and insufficiency. Our point is to add to creating their lives standard within the very little means that we will. As indicated by the measurements and predicts of the WHO upgraded in 2014, 285 million individuals area unit assessed to be externally disabled around the world: thirty-nine million area
unit visually impaired and 246 have low vision. Each externally obstructed individual countenances various difficulties taking into account their explicit level of vision. With the ascent of different backing based mostly associations, all the more externally disabled people have been given the possibility to instruction and diverse totally different suggests that. However the problems of route for the visually impaired area unit still exceptionally remarkable and hard significantly once they strolled down in road what is more explore to inaccessible spots by open transport framework. Blind people would possibly be unwilling to makeover brazenly and simply or, out of anxiety, society limits development of the visually impaired person. Deliberate, self-coordinated development is viewed as one of the all the tougher ranges confronted by visually impaired individuals. While absence of sight is often salaried by rising totally different schools, social boundaries and systems of over insurance frequently hamper the sensory activity advancement and improvement of helpful development in visually impaired people. Guide puppies and strolling sticks take into consideration a free technique for navigation, however they area unit restricted in new things. RFID is doable and financially savvy but it is additional acceptable for indoor correspondence because it were. Likewise it gives stand out means correspondence and a short vary of identification. For open air correspondence, all the blind people trust that the guide route offices will manage them like AN standard individual, and ensure that they're perpetually advantageous and safe out and concerning. The motivation behind this project is to reduce the troubles confronted by blind man once taking town transports, using interactive wireless communication system.
II. MOTIVATION
III. EXISTING SYSTEM
Consider the case of dazzle how he goes up against the going with issues, when utilizing open transport. Trip organizing – finding a stop/station - finding a way to the station - investigating interior the station - finding the correct organize and holding up spot – knowing when the proper vehicle arrives - finding a vehicle path - installment - finding a situate – pull back on right halt - investigating interior the station - finding the way out of the station - finding the goal The tremendous lion's share of these assignments are irrelevant for the found, however outstandingly troublesome for the ostensibly weakened. There are situations when a outwardly impeded person has went through a number of hours on the transport halt, since he couldn't see passage of the proper vehicle. What's more, show system has taking after disadvantages.
Manual operation
Monitoring depends upon driver
Alertness of the framework is less
System is unsafe
IV. PROBLEM STATEMENT
With extension in development and masses of the city ranges the daze individuals go up against a incredible bargain of impediments whereas wandering out beginning with one point at that point onto the another. Since of this most of the daze individuals are compelled to remain interior and forsake their destinations and dreams because it might incorporate driving from one spot to diverse spots and in this way costing them their profession/future. This expect files the arrangement and utilization of a secure outwardly impeded course system for the dazzle individuals to assist them in going from their display region to their pined for goal.
V. PROPOSED SYSTEM
To overcome the disadvantages of accessible open assistive contraptions, we propose a Remote sensor framework system with ZigBee for daze recognizable proof within the transport station and introduced system for giving the transport data, finally GPS for goal sign. Proposed framework has taking after highlights.
Safety concerns for blinds
Automatic operation
Continuously fast monitor
High caution system.
VI. SCOPE OF THE PROPOSED SYSTEM
Blind can without a doubt get the information around the transport to realize goal, so voyaging makes straightforward to him.
Can travel independent of any people need.
User – neighbourly intelligent with the user.
Easy to use.
Audio and vibration alert.
Voice based input for goal target.
This isn't constrained to fair outwardly impeded person it moreover makes a difference senior individual.
Communication is given between the outwardly impeded and driver in the event that there ought to be an event of any crisis.
VII. BLOCK DIAGRAM
Fig 1: Blind unit.
Fig 2: Bus unit.
VIII. WORKING DESCRIPTION
Stage 1: Procurement of transport entry data The ZigBee within the daze module gets the flag which is transmitted by the ZigBee within the transport module inside the 30 meters extend. So that the dazzle individual can effortlessly get the data around transport arrival.
Stage 2: Admissions of the goal to be voyage by the dazzle individual The daze individual gives an sound input of the goal he wishes to reach to the system. Stage 3: Gathering of data by the transport the daze individual gives the input approximately goal to the voice module V2 and voice module deciphers the voice of daze individual to content and sends it to microcontroller.
transport module so that the system can light up the dazzle individual in case that transport is heading off to his wanted destination and within the occasion that he have to be take that particular transport or hold up for the following one.
Stage 5: Sound yield for dazzle interaction once they got flag has been decoded, the data is utilized to energize the sound interface. A voice playback module is interfaces for overhauling the person approximately diverse information’s, for illustration, getting on and off the transport. In this expect GPS is utilized for the outwardly impeded person to get it that his halt has arrived. At the point when the transport contacts the outwardly impeded individual's needed goal he is once more taught by his module that he got to get off the transport.

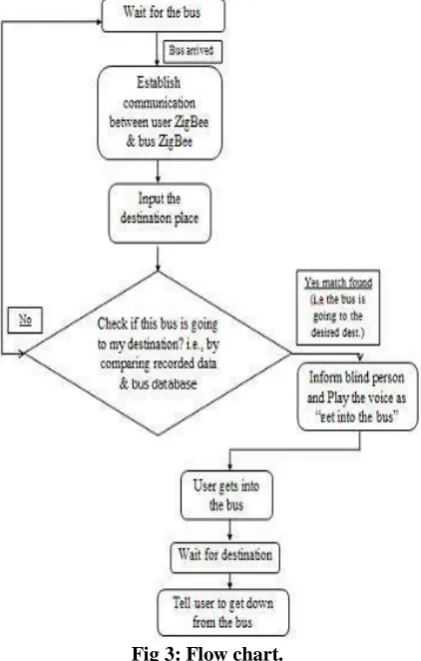

Fig 3: Flow chart.
The over figure illustrates stream chart. At the point when the dazzle module is turned ON, the ARM7 controller is initialized. The framework holds up for the ZigBee to set up the communication. The APR9600 plays that the bus has arrived boisterously conjointly vibration caution for the daze upon the gathering of the flag from the ZigBee on transport module. Presently the framework holds up for the daze to deliver the goal as voice input. All of the over forms are shown on the LCD Once the transport module is turned ON it gets initialized and in case it is in extend of the client module ZigBee then it builds up association and gets the information that's input from the dazzle individual and the 8051 compares it
with the database display on it. It sends back affirmation back to the client whether the transport goes to the goal or not.
IX. SYSTEM DESIGN MODEL
A. SOFTWARE DESIGNING:
The modules are required to be modified for the operation. In this can be extend, Inserted C programming dialect is used by utilizing KEIL vision program. This is often well known program that makes a difference in creating inserted C programs; source code altering and investigating, compiling, execution can be exhausted one single environment. Created program is dumped into the microcontroller memory by the software engineer by the assistance of Streak Enchantment computer program.
B. HARDWARE DESIGN MODULE
Each single operation got to be controlled. For the control exercises, microcontrollers are utilized. ARM7 and 8051 controller are utilized within the daze and transport module separately. ARM Board-LPC214X could be a breakout board for LPC2148, ARM7TMDI based microcontroller. The LPC2148 microcontrollers depend on a 32-bit ARM7TDMI-S CPU with implanted follow bolster and genuine time emulation, which connect the microcontroller with introduced streak memory. Since the transport module does not require a 32- bit controller because it doesn't have the more number of capacities as the blind module, 8051 uC is utilized instead of another arm7 to save cost without exchanging off on the convenience. The Intel 8051 could be a 8-bit microcontroller which infers that most available operations are compelled to 8 bits. There are 3 basic "sizes" of the 8051: Brief, Standard, and Amplified. The Brief and Standard chips are routinely available in Plunge (twofold in-line bundle) structure, however the Expanded 8051 models regularly have an substitute structure figure, and are not "drop-in culminate". To have the communication between the both modules, ZigBees are utilized. ZigBee gives farther RF correspondence. It Works on IEEE 802.15.4 standard and has moo control utilization and encompasses a scope of 30 meters which is fitting for this application. The goal is given as commitment to the arm7 controller through voice module. There are distinctive voice modules available like V1, V2, and V3. Differentiated with V1, V2 is simple to control. But fair serial data or surrender of V1, V2 has other accommodating approaches to control and abdicate the result. APR9600 could be a sound recorder IC with playback constrain for 60 seconds.
giving vibration alert. This is often one of the irrefutable preferences with cellular phones, you'll get notices when the contraption is in your stash without annoying those around client. GPS grants recording or making zones from spots on the soil and making a difference client investigate to and from those spots. Here it is utilized to recognize the goal. Worldwide Situating Framework (GPS) satellites telecast signals from space that GPS beneficiaries, utilize to grant three-dimensional range (scope, longitude, and rise) in expansion to correct time. GPS collectors gives strong arranging, course, and timing organizations to in general clients on a ceaseless preface in all climate, day and night, wherever on or near to the Soil.
GPS collectors gives strong arranging, course, and timing organizations to generally clients on a ceaseless introduce in all climate, day and night, wherever on or near to the Soil. GPS recipients can secure GPS signals from 65 stations of satellites and surrender position data with tall precision in to a awesome degree testing circumstances and beneath destitute sign conditions since of its energetic radio wire and tall affectability. LCD is utilized here to appear the operations which are happening. A LCD may be a small negligible exertion appear. It is simple to interface with a microcontroller due to an introduced controller(the dull blob on the back of the board).This controller is standard crosswise over various introductions (HD 44780) which infers various microcontrollers (checking the Arduino) have libraries that make appearing messages as straightforward as a single line of code. In this way it is basic contraption in embedded system. It offers tall adaptability to client as he can appear the specified data on it.
X. CONCLUSION
With this proposed scheme, a visually impaired person can successfully travel from his location to his desired destination using a bus independently without any hassle.
XI. FUTURE SCOPE
This system can further be improved by using GSM to provide communication between blind and his/her relatives in case of any emergency about more realistic location of his arrival and destination.
XII. RESULTS

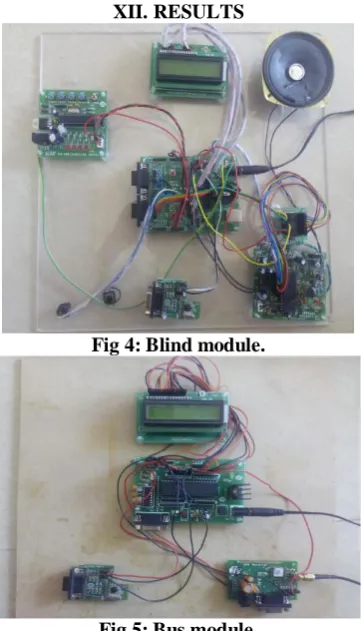

Fig 4: Blind module.
Fig 5: Bus module.
