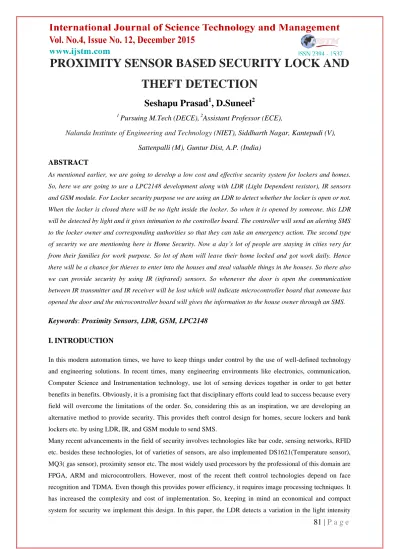

PROXIMITY SENSOR BASED SECURITY LOCK AND THEFT DETECTION
Seshapu Prasad
1, D.Suneel
21 Pursuing M.Tech (DECE), 2Assistant Professor (ECE),
Nalanda Institute of Engineering and Technology (NIET), Siddharth Nagar, Kantepudi (V), Sattenpalli (M), Guntur Dist, A.P. (India)
ABSTRACT
As mentioned earlier, we are going to develop a low cost and effective security system for lockers and homes.
So, here we are going to use a LPC2148 development along with LDR (Light Dependent resistor), IR sensors and GSM module. For Locker security purpose we are using an LDR to detect whether the locker is open or not.
When the locker is closed there will be no light inside the locker. So when it is opened by someone, this LDR will be detected by light and it gives intimation to the controller board. The controller will send an alerting SMS to the locker owner and corresponding authorities so that they can take an emergency action. The second type of security we are mentioning here is Home Security. Now a day’s lot of people are staying in cities very far from their families for work purpose. So lot of them will leave their home locked and got work daily. Hence there will be a chance for thieves to enter into the houses and steal valuable things in the houses. So there also we can provide security by using IR (infrared) sensors. So whenever the door is open the communication between IR transmitter and IR receiver will be lost which will indicate microcontroller board that someone has opened the door and the microcontroller board will gives the information to the house owner through an SMS.
Keywords: Proximity Sensors, LDR, GSM, LPC2148
I. INTRODUCTION
In this modern automation times, we have to keep things under control by the use of well-defined technology and engineering solutions. In recent times, many engineering environments like electronics, communication, Computer Science and Instrumentation technology, use lot of sensing devices together in order to get better benefits in benefits. Obviously, it is a promising fact that disciplinary efforts could lead to success because every field will overcome the limitations of the order. So, considering this as an inspiration, we are developing an alternative method to provide security. This provides theft control design for homes, secure lockers and bank lockers etc. by using LDR, IR, and GSM module to send SMS.
Many recent advancements in the field of security involves technologies like bar code, sensing networks, RFID etc. besides these technologies, lot of varieties of sensors, are also implemented DS1621(Temperature sensor), MQ3( gas sensor), proximity sensor etc. The most widely used processors by the professional of this domain are FPGA, ARM and microcontrollers. However, most of the recent theft control technologies depend on face recognition and TDMA. Even though this provides power efficiency, it requires image processing techniques. It has increased the complexity and cost of implementation. So, keeping in mind an economical and compact system for security we implement this design. In this paper, the LDR detects a variation in the light intensity
82 | P a g e
when the bank locker is open and it intimates the microcontroller board when high light intensity is detected.
The controller board is programmed in a way that it sends a message to the account holder and concerned officials by using GSM module which is serially connected to the controller board indicating that locker is opened. The LDR circuit will be attached to the inner side of the locker so that it detects any light from outside immediately. Reaming circuit will be fixed outside to the locker and it is invisible to the human eye as it is attached behind the locker case. As mentioned earlier, we are going to develop a low cost and effective security system for lockers and homes. So, here we are going to use a LPC2148 development along with LDR (Light Dependent resistor), IR sensors and GSM module. For Locker security purpose we are using an LDR to detect whether the locker is open or not. When the locker is closed there will be no light inside the locker. So when it is opened by someone, this LDR will be detected by light and it gives intimation to the controller board. The controller will send an alerting SMS to the locker owner and corresponding authorities so that they can take an emergency action. The second type of security we are mentioning here is Home Security. Now a day’s lot of people is staying in cities very far from their families for work purpose. So lot of them will leave their home locked and got work daily. Hence there will be a chance for thieves to enter into the houses and steal valuable things in the houses. So there also we can provide security by using IR(infrared) sensors.IR sensor works on a point to point communication formula that means whenever an IR transmitter and IR receiver comes in straight line then communication between IR transmitter and receiver will takes place. So we will fix an IR pair to the door of a home in such a way that the IR receiver will continuously receive the signal from IR transmitter. So whenever the door is open the communication between IR transmitter and IR receiver will be lost which will indicate microcontroller board that someone has opened the door and the microcontroller board will gives the information to the house owner through an SMS.
Like this we are going to provide security for both bank lockers and homes by using LDR and IR attached to the microcontroller board and a GSM modem. As we are using LDR and IR as the sensing devices our system is called as low cost system because of the low cost of these LDR and IR. GSM (Global System for Mobile communications) is used to send an alerting message to the authorized persons.
II.LITERATUREREVIEW
Prototype Modelling of Security System with Metal Detector: The security system provides the convenience to folks so as to manage their mall easier and this method is concern on the safety of every item. This method can offer not solely the things identification however additionally the anti-theft security. Nowadays, everything made have a barcode that's written on its surface as product code. The previous system appears to not totally utilize the barcode on every item. This method combines the barcode with magnetic attraction security strips so as to scale back the safety value. The barcode strip is going to be developed in 2 layers, the barcode and also the magnetic strip. The system is functioning like the shoppers self-service within the library. The things ought to be check at the counter before it been taking away from the shop. If the item isn't registered then, the alarm can provide a warning once it passes through the magnetic attraction gate. The Lab VIEW program developed by National Instrument is discovered to be the simplest choice because the wave recognition to the present system.
Identification of patrons and materials by barcode may be a reliable technique and gave nice service once combined with electro-magnetic security device.
83 | P a g e
Design of GSM-based Tele-Monitoring and Alarm System for Disposable Diaper: The Internet of Things offers North American country a concept of connecting what we tend to care concerning along. Supported this concept, this paper provides a way to attach the knowledge of the aim place's temperature or wetness to users through GSM network. The paper additionally presents the steps of the look and our winning experiments.
Firstly, Associate in nursing overall style is bestowed. It’s primarily concerning however the MCU detects wetness and controls GSM module to send a brief message. Then, the required parts area unit chosen.
ATmega16A is chosen because the small controller. SIM900A is chosen because the GSM Module. SHT11 is chosen because the detector. After that, the hardware circuit is intended. At last, the paper introduces a close methodology of aggregation knowledge by SHT11 and causation message by SIM900A.
III. HARDWARE DESIGN
Fig 1: Block Diagram
It is made out of different equipment and programming modules. The accompanying piece outline demonstrates the assessment of equipment parts covered in the gadget.
3.1 LPC2148 Microcontroller
The LPC2148 microcontroller load up construct absolutely in light of a sixteen-piece/32-bit ARM7TDMI-S CPU with ongoing imitating, sixteen-piece/32-bit ARM7TDMI-S microcontroller in a small LQFP64 bundle bargain, 8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip streak memory; 128-piece enormous interface/quickening agent permits high-pace 60 MHz operation, In-framework Programming (ISP), unmarried 10-bit DAC manages variable simple yield, 32-bit clocks/outside occasion counters (with four catch and 4 look at channels each), PWM unit (six yields) and guard dog, Low quality real Time Clock (RTC), more than one serial interfaces which incorporates two UARTs , fast I2C-transport (400kbit/s), SPI and SSP with buffering and variable data length skills. The framework involves of a smaller scale controller, shrewd card peruser, unique mark gadget, reed sensor, LCD and ringer. The controller assumes a critical part to execute the few errands. The controller, which we utilized as a part of this framework i.e. LPC2148.
Firstly, we ought to check the condition, whether the safety belt is wearied or not and after next procedure confirmation check i.e. Keen Card and Fingerprint. The brilliant card is utilized to distinguish whether the individual is authorized or not. In the event that the card is authorized on the other hand check the unique mark for confirmation. In the event that it matches them naturally ignition on or else off.
84 | P a g e 3.2 Lcd
LCD, an acronym for Liquid Crystal Display reformed the present day show innovation with its conservativeness and adaptability. Today it is seen implanted in different electronic contraptions and gadgets like T.V., Computers, Laptops, Watches, and so on. A Liquid gem covering is the heart of the presentation which is sandwiched between two captivated glasses. LCD's are accessible in different shapes and sizes relying upon the arrangements. A 16x2 LCD appeared in the picture beneath can show 32 characters with 16 characters in every column. It is proficient to show any character with ASCII qualities running from 0 to 255. LCD remains for fluid precious stone presentation. They come in numerous sizes 8x1 , 8x2 , 10x2 , 16x1 , 16x2 , 16x4 , 20x2 , 20x4 ,24x2 , 30x2 , 32x2 , 40x2 and so forth . Numerous multinational organizations like Philips Hitachi Panasonic make their own uncommon sort of lcd's to be utilized as a part of their products. All the lcd's performs the same functions(display characters numbers extraordinary characters ASCII characters etc).Their writing computer programs is likewise same and they all have same 14 pins (0-13) or 16 pins (0 to 15).
Fig: 2 LCD Display.
3.3 GSM Modem
In our test circumstance, the GSM modem is utilized for close to approve individual when somebody is in basic circumstance. On the off chance that a man is in crisis situation then the machine over and again get the readiness the use of this period. The GSM modem is interfaced with microcontroller LPC2148 which has inbuilt various capacities comprising of UART, SPI, PWM, I2C et cetera. By method for use of a few capacities we manufacture our own special required application and execute the test circumstance progressively way. The GSM Modem which works in light of by means of AT orders. The GSM has a few AT guidelines like sending SMS, CALLING, HOLD, CUT and so on. In our test, we utilize the summon alluded to as AT+CMGS which decide sending SMS to an one of a kind individual. Hence The GSM modem is utilized to get sharpness when a man is in crisis conditions.
Fig 3 : GSM modem
85 | P a g e
3.4 LDR
A Light Dependent Resistor (LDR) or a photograph resistor is a gadget whose resistivity is a component of the occurrence electromagnetic radiation. Henceforth, they are light touchy gadgets. They are additionally called as photograph conductors, photograph conductive cells or just photocells. They are comprised of semiconductor materials having high resistance. There are a wide range of images used to demonstrate a LDR; a standout amongst the most ordinarily utilized image is appeared as a part of the figure underneath. The bolt shows light falling on it. LDR A light ward resistor takes a shot at the rule of photograph conductivity. Photograph conductivity is an optical wonder in which the materials conductivity (Hence resistivity) decreases when light is consumed by the material. At the point when light falls i.e. at the point when the photons falls on the gadget, the electrons in the valence band of the semiconductor material are eager to the conduction band. These photons in the episode light ought to have vitality more prominent than the band crevice of the semiconductor material to make the electrons hop from the valence band to the conduction band. Subsequently when light having enough vitality is episode on the gadget more and more electrons are eager to the conduction band which brings about huge number of charge bearers. The consequence of this procedure is more present begins streaming and thus it is said that the resistance of the gadget has decreased. This is the most widely recognized working guideline of LDR.
Fig 4: LDR
3.5 IR Sensor
Infrared waves are not unmistakable to the human eye. In the electromagnetic range, infrared radiation can be found between the noticeable and microwave districts. The infrared waves regularly have wavelengths somewhere around 0.75 and 1000µm. The wavelength area which extends from 0.75 to 3µm is known as the close infrared locales. The district somewhere around 3 and 6µm is known as the mid-infrared and infrared radiation which has a wavelength more prominent higher than 6µm is known as far infrared. Infrared innovation discovers applications in numerous ordinary items. TVs utilize an infrared indicator to translate the signs sent from a remote control. The key advantages of infrared sensors incorporate their low power prerequisites, their basic hardware and their compact element.
Fig 5: IR pair.
86 | P a g e IV. SOFTWARE DESIGN
In this proposed device, as we utilized LPC2148 we need to utilize taking after programming hardware to program for it.
1. KeiluVision 2. Flash Magic
The KeiluVision is an Integrated Development environment (IDE) which comprise of all the C/C++ Debugger, Editor and complier. By existing those component you can manufactured our own application. We compose code in such an approach to actualize our application in installed c. In this IDE, we need to import the utilities and libraries as indicated by the controller we're the utilization of. This IDE is less troublesome and in easy to understand approach to apply. It comprises of all the C/C++ compilers, constructing agents, and debuggers in it.
It rearranges the way of implanted reenactment and experimenting with in conjunction with Hex record innovation. The blaze enchantment is a programming utility. The C/C++ programming written in IDE may be handled into Hex record i.e. in .hex design. By utilizing hex record we dump the code into microcontroller and perform the errand with separate application.
V.WORKING DESCRIPTION
Here we are using LPC 2148 MICRO-controller. The LCD is connected to the PORT-1. We are using 8-bit LCD.
So we used 8-data lines. The register select is connected to the P1.16 and enable is connected to P1.17. So whatever the data we want we can display it on LCD.Here LDR is connected to the P0.3 pin. And IR sensor is connected to P0.4 these two are detection of Door locking and opening the door’s works on serial communication so whatever the information we need to send should be sent using serial communication. So we have connected the GSM to the UART 0. So when the theft has been detected, then it is going to send the information about the authorized person
VI. RESULTS
The results observed in this project can be given as below, and observed as in general when door is locked condition no sunlight will appears inside of the door, when someone door is opened LDR detects and by turn the doors IRs attached in side of the door also detected, and another thing is Theft intimation to authentic person by sending message through GSM when device protection IRs detected.
87 | P a g e
Fig 6: Complete system for Photo sensitive security system.
VI. CONCLUSION
Hence we conclude from this project by using photosensitive system like LDR (Light dependent resistor) and IR (Infrared) sensors we are providing locking system and making security alerts continuously , if in case any device/Money may stole by thieves it sends message to authorized person using GSM module for security purpose.
