IFARMS: IOT BASED SMART DRIBBLE WATER SYSTEM AND

INTERLOPER DETECTION SYSTEM ON CLOUD

Shembade Kalyani

1

_{, Pisal Samata}

2

_{, Jadhav Priyanka}

3

_{, Budhwant Megha}

4

_{, Prof. R. B. Rathod}

5

1,2,3,4_{Student, BE COMP, Manjari(BK), Pune} 5_{Professor, P.D.E. A’s COEM, Manjari(BK), Pune}

---***---Abstract -In India, the central calling is the cultivating.

Almost the greater part of the cultivating is driven in the peaceful zones, however there is the insufficiency of the lodging and the carelessness about the different new innovations and the gadgets, because of which people groups are meandering towards developed territories. Thus, there is reprobate in horticulture. To overcome this issue, we go for splendid cultivating strategies using IOT. This endeavor fuses different features like GPS based remote

checking, temperature identifying, clamminess

distinguishing, appropriate usage of water in the residence. It makes usage of remote sensor frameworks for seeing the regular factors continually Various sensor center points are arranged at better places in the residence. Controlling these parameters with the assistance of any remote gadget or web administrations and the tasks are acknowledged by interfacing sensors, Wi-Fi, camera with microcontroller. The method, Image preparing is utilized for interloper's discovery perseverance. Gatecrasher recognition is finished by utilizing camera and additionally different calculations. After identification of interloper, the appropriate move is made by framework. General framework in the field can totally advance the yield of the harvests and general generation.

Key Words: IoT, Sensors, GPS, Microcontroller, Wi-Fi,

Camera, etc.

I. INTRODUCTION

Farming is the help of Indian economy. The key issue looked in numerous country territories is that absence of automation in agrarian exercises. Horticulture is considered as most key wellsprings of wage and sustenance generation around the world. India is the country of cultivating. Most of the overall public of India live in towns and are totally subject to agribusiness. The center of the cultivation is water framework. In India cultivating practices is finished by troublesome work, using common instruments, for instance, wrinkle, sickle et cetera. Our Smart Farming System lessens the manual work and mechanizes the horticultural exercises. Actually, the sensor hubs are conveyed into the farmland. They begin to gather ecological data and screen soil qualities. At that point, they coordinate as indicated by planned conventions to impart the gathered information to an overwhelming hub. Starting now and into the foreseeable future, this information is arranged and treated to settle on a conceivable decision. The security perspective is

instance of by what means can the WSN improve the agricultural yield. All things considered, crops are antagonistically impacted by human or animal interlopers. Furthermore, the age system is still deficiently controlled which provoke a potential thing disaster. To overcome this point, the video surveillance centers can be used to perceive and recognize intruders and to better manage the creation method. The objective of this errand is to modernize the standard water framework structure. The standard target of this wander is to save work, diminishes misusing of water, from time to time the harvests may waste in light of over water framework, in like manner using a SMS based strategy to checking the method which is important for the digitalize the robotized technique.

Cultivating is standard wellspring of the all-inclusive community in current circumstance. It gives sustenance

and what's more tremendous work. Thusly, modernization of agribusiness is basic in light of the way that customary developing can't bolster up the collect yield. Subsequently, agriculturist start to use the diverse advancement to achieve better yield and decrease the required work.

In our endeavor, we are basically concentrating on following applications.

For an instance:

To reliably screen the soil sogginess.

To reliably screen the water level. To check the temperature, stickiness.

To screen and control the whole structure.

Give the detail information about the field condition to the customer.

A) An Internet of Things:

(2)

Dispersed registering engages IT and associations to utilize all the preparing resources. Dispersed registering involves a couple of ideal conditions in business ventures and endeavors. A bit of the upsides of conveyed processing are:

• Elasticity: If the enrolling demands grows, the associations scale up and if the figuring demands decreases then the associations cut back.

• Self-advantage provisioning: End customers can use the figuring resources for a work to be balanced on ask

• Pay per usage: All the preparing resources all given with an authenticity level allowing the customers for pay of advantages.

II. LITERATURE SURVEY

In case of developing, a champion among the most basic term is just the Drip Irrigation System. The method for spill water framework structure using remote sensor frameworks [1] are displayed on the start of TDMA (Time Division Multiple Accesses) assume that enables the center points to endeavor to ON/OFF with the help of degree according to organized spaces. This model is moreover including the earth clamminess sensor, temperature and weight sensors for checking the water framework activities in the property zone. At each and every technique, each one of the centers are in at work till there is basic of a couple of center points so to speak. Thusly, there is usage of centers essentialness in the correspondence which causes the less data throughput as a rule structure.

The advancement, testing and usage of a planned passed on remote sensor network(WSN) are existing in Remote Sensing and Control of an Irrigation System Using a Distributed Wireless Sensor Network [2] for sensor based ephemeral rate water framework structure. This system is similarly given wide purposes important to remote correspondence interface of sensors from in-field sensor station to the PC at a base station. Bluetooth is used as remote radio Communication in the structure. By using this strategy, it grows the productivity while saving water. In any case, the hypothesis would be broad as a result of various sensors are all the while and furthermore information exchange limit of Bluetooth is cut down appear differently in relation to wi-fi.

An aggregate assurance for the motorized water arrangement of rice crops using water level sensors, remote supervision structure (SCADA) and remote correspondence (GPRS) is delineated in Automatic Control of Irrigation Systems Aiming at High Energy Efficiency in Rice Crops [3]. It having the gainful use of water and power is required in whole plan. As gave controller is used, it abstains from the usage of PC on area. Regardless,

it is proper the for-rice yields and changes in nature like temp, air turbulence impacts ultrasonic reaction.

With the true objective of negligible exertion multi-mode control for a water framework structure worked around a PC is determine in PC-Based Automation of a multi-mode control for an Irrigation System [4]. The embedded chip-based gear with its firmware and totally committed Delphi based graphical UI were delivered and viably attempted. It extending imperativeness costs and decreasing water supplies. Be that as it may, there is the probability of information disasters in correspondence as a result of deferment.

A remote utilization of spill water framework maintained by soil moistness sensors [5] is attempted and recognized for insignificant exertion multi-mode control for a water framework structure. Effective water directing is a fundamental dread for yield of items since it is depending upon the fragmentary basic of water supply. Regardless, in neglectful spill structure, water framework will do only if there will be duty of water and besides to take consider absurd measure of watering is makes afflictions plants and there is believability of stop to exist the plant in addition. This system has 3 units which are Base Station Unit(BSU), Valve Unit(VU) and Sensor Unit(SU) for the assurance to keeping up a vital separation from suddenness apprehension of trees and diminishing of silly water use.

III. Proposed Work

[image:2.595.316.554.575.746.2]

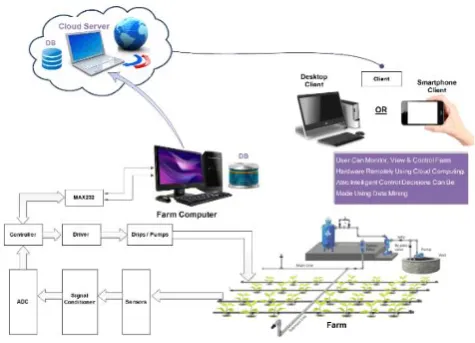

The sensors are sent in the horticultural field. Temperature sensor is used to measure temperature of the field, water level sensor is used to check the level of water, suddenness sensor is used to check clamminess in soil and moisture sensor is used to measure proximity of water drops discernible all around. The assembled data from these sensors is send to the microcontroller through RS-232. On the preface of readings, the equipment is observed and controlled by client utilizing android application. The got information is contrasted and the edge esteems.

(3)

esteem the notice is sent to the client on android telephone. The qualities are created in the website page so the client gets all insights about sensor esteems.

The equipment is controlled by the client in 3 diverse ways. viz. manual mode, programmed mode and time planning. In manual mode, the client needs to control the microcontroller by squeezing the catch in android application. In programmed mode, if the esteem surpasses the edge microcontroller is turn ON or OFF consequently. In time planning, based on current sensor readings client plan an opportunity to turn ON or OFF the equipment.

Alongside this, A camera is sent in the field for Intruder discovery and it is finished utilizing picture preparing. On the off chance that any interloper enters the field region, a picture is caught in a camera at that point handling is done on that picture. for this, blob discovery calculation is utilized. at the point when the interloper is identified ringer is exchanged ON and notice is sent on a client's android application. as indicated by the computed perspective proportion it is anything but difficult to check whether it is human or creature so as to make a move on it.

Hardware Components

1) AVR microcontroller: An AVR microcontroller is a sort of contraption manufactured by Atmel, which has particular points of interest over other essential chips. AVR microcontrollers come in different groups, some planned for through-opening mounting and some surface mount. AVRs are available with 8-pins to 100-pins, regardless of the way that anything 64-stick or over is surface mount figuratively speaking.

The AVR is significantly simpler and oversees data in 8-bit pieces as its data transport is 8-bit wide, regardless of the way that there is as of now an AVR32 with 32-bit transport and an AT super family with a 16-bit data transport. A 8-bit microcontroller like the AVR doesn't as a general rule have a working structure, despite the way that it could run a fundamental one if required, and rather it just runs a lone program. So also, as your PC would betrivial if you didn't present any activities, an AVR must have a program acquainted with be any use. This program is secured in memory worked in to the AVR, not on an

outside plate drive like a PC. Stacking this program into the AVR is done with an AVR programming engineer.

2) Sensors

a) Soil Moisture Sensor

This Moisture Sensor utilizes Immersion Gold which shields the nickel from oxidation. Electro less nickel splashing gold (ENIG) has two or three great conditions over more standard (and more moderate) surface plantings, for example, HASL (settle), including splendid surface planarity (especially obliging for PCB's with huge BGA packs), staggering oxidation protection, and accommodation for untreated contact surfaces, for example, film switches and contact focuses.

This Moisture Sensor can read the measure of clamminess show up in the earth including it. It's a low-tech sensor, however perfect for checking a urban garden, or your pet plant's water level. This is a verifiable essential have contraption for a related create! This Moisture Sensor can be utilized to perceive the clamminess of soil or judge if there is water around the sensor, let the plants in your garden interface for human offer assistance. They can be to an awesome degree to utilize, basically introduce it into the dirt and a while later read it. With help of this sensor, it will be possible to affect the plant to remind you: Hey, I am dry now, please give me some water. This Moisture Sensor utilizes the two tests to go current through the dirt, and after that it inspects that security from get the wetness level. More water impacts the earth to arrange control all the more suitably (less protection), while dry soil conducts control inadequately. It will be profitable to remind you to water your indoor plants or to screen the earth wetness in your garden. This thing has low power utilize, and high affectability, which are the best attributes of this module.

b) Temperature Sensor:

A temperature sensor is a contraption, generally, a thermocouple or RTD, that obliges temperature estimation through an electrical banner. A thermocouple (T/C) is delivered utilizing two different metals that make electrical voltage in control degree to changes in temperature. The coolant temperature sensor is used to check the temperature of the engine coolant of an inside start engine. The readings from this sensor are then urged back to the engine control unit (ECU), which uses this data to change the fuel mixture and begin timing.

(4)

Utilizing the high precision SY-HC-1 clamminess sensor, SY-HC-1000 is a committed dampness and temperature transducer proposed for OEM (special apparatus maker) applications that require strong and exact estimation. It incorporates a significantly decreased for basic, handy mechanical mounting.

It is achievable for SY-HC-1 to have the modules straight repeat yield by methods for coordinate interface with a microcontroller. Dampness sensors are little in appraise, low power eating up. Stickiness sensor have high constancy and whole deal security.

d) Water Level Sensor:

In Water Level Sensors, Level sensors are used to recognize the level of substances that can stream. Such substances join fluids, slurries, granular material.

Such estimations can be utilized to pick the measure of materials inside a nearby compartment or the surge of water in open channels. Hydrostatic weight. Hydrostatic weight level sensors are submersible or remotely mounted weight sensors fitting for estimating the level of

powders.

Fig.water level sensor

Harming fluids in critical tanks or water in stores. Something different, common changes in barometric weight will exhibit broad screw up in the sensor yield signal.

3) Dc Motor essentials:

Arrange current (DC) motors are for the most part used to make development in a grouping of things. Interminable magnet DC (facilitate current) motors are getting a charge out of growing noticeable quality in applications requiring negligible size, high torque, high profitability, and low power usage.

In a brushed DC motor, the brushes achieve a plan of electrical contacts gave on a commutator secured to an armature, forming an electrical circuit between the DC electrical source and circle windings on the armature. As the armature rotates on a center point, the stationary brushes come into contact with different fragments of the turning commutator.

Never-ending magnet DC motors use no less than two brushes achieving a commutator which gives the quick current stream to the windings of the rotor, which in this way give the desired appealing stun/interest with the enduring magnets arranged around the edge of the motor. The brushes are conventionally arranged in brush boxes and utilize some U-shaped spring which slants the brush into contact with the commutator.

Enduring magnet brushless dc motors are comprehensively used as a piece of a collection of employments as a result of their straightforwardness of plan, high viability, and low uproar. These motors work by electronic substitution of stator windings rather than the customary mechanical pay accomplished by the pressing engagement of brushes against a turning commutator.

(5)

recognized appropriate alarm is produced by this framework. Along these lines framework is helpful for gatecrasher discovery.

IV. WORKING MODEL

i)Flowchart for Intruder Detection

Interloper location is done in this venture. Right off the bat, the pictures are caught by the camera as edge, at that point this edge are separated. Obscure calculation is connected to these casings there is one essential foundation picture and other is present picture caught by camera, by obscure calculation the foundation picture is getting obscured and the present picture stays as it seems

to be, after that the subtraction calculation is connected and obscured picture is subtracted, just the present picture is obvious to client, at that point the blob location is connected and blob examination is done and movement is distinguished. As indicated by movement recognized appropriate alarm is produced by this framework. Thusly framework is valuable for interloper discovery

1) Blob Detection Analysis:

Blob detection methods are aimed at detecting regions in a Digital Image that differ in properties, such as brightness or color, compared to surrounding regions. Informally, a blob is a region of an image in which some properties are constant or approximately constant; all the points in a blob can be considered in some sense to be similar to each other. The most common method for blob detection is convolution.

Center of the bounding box is a fast approximation ofthe center of mass. In mathematical terms the center of the bounding box, (xbb,ybb) is calculated as,

2) Blur Algorithm:

In image terms blurring means that each pixel in the source image gets spread over and mixed into surrounding pixels. Another way to look at this is that each pixel in the destination image is made up out of a mixture of surrounding pixels from the source image.

Blurring an image reduces the sharpening effect, this makes the detection more accurate.

The value of surrounding pixel is like if ‘1’ is at center, then we will get the average value of all the surrounding zeros “0” and that value will be assign to the center”1”.

| 0 0 0 |

| 0 1 0 |

| 0 0 0 |

3) Subtraction Method:

Image subtraction or pixel subtraction is a process

(6)

detecting changes between two images.

The subtraction of two images is performed straightforwardly in a single pass. The output pixel values are given by:

Or if the operator computes absolute differences between the two input images then:

Or if it is simply desired to subtract a constant value C from a single image then:

ii) Working of sensors after deployment:

After deployment of the sensors in the farm, this is the actual working is done with desktop application side. This working conducts the two processes, as fig.(a) shows reading of all sensors which are deployed in a farm as well as detected the intruder using camera interfacing process and it generate the alert by ON alarm or buzzer. This is done by automatic as well as manual mode, at desktop and android based also.

Fig.(a) Fig.(b)

The Fig.(b) shows how the sensors are work according to the environment and takes the reading by sensors and if any sensor is crossed its threshold then it gives the alert in the notification form and ON the alarm to start or stop the motor in the farm.

The hardware is connected with desktop using serial communication cable as a RS232, the communication is done with the help of RXTX software, which is supportive for transmission and receiver process. In this way, the sensors are easily communicating with software to read the values.

Above graph shows the best-case scenario of our project that is, X- axis indicates the no. of sensor nodes deployed in the farm where as the Y-axis shows the performance of each sensor node.

There are three columns, 1st_{column (blue color) shows} our method, 2nd_{column (yellow color) shows low-cost} multi-mode and 3rd_{column (gray color) shows the field.} Depending upon the environment, the performance of every sensor changes and according to that appropriate alert will be generated.

Best case is nothing but, the case in which the system works properly.

[image:6.595.37.285.113.261.2]

(7)

properly. In case of our project if sensors are not working properly, camera is not working, hardware is damaged at that time our system goes into worst case scenario.

In the above graph X-axis indicates the no. of image samples captured by the camera where Y-axis indicates the no. of successful detections.

Lob is nothing but any intruder or obstacle which comes in the farm.

Step-by-step execution of each project module is given below:

Fig. a Fig. b

Fig. c Fig. d

Fig. e Fig. f

a) In fig a. there is a registration form, in which firstly we have to fill registration form. If it will fill correctly, then the message “Registration Successful” will display. Otherwise, “Registration Failed” will display.

b) Fig b. shows the Login Form by using which we logged into the system. For that we have to enter the username and password. If both are correct then message “Login Successful” will display, otherwise “Login Failed” will display.

c) Fig c. shows the overall performance of the system which includes sensors, devices, web-based control, etc.

d) In Fig d. We can set the threshold values for each sensor, according to which the performance of sensor will be varying.

e) We can do devices or sensors ON or OFF as shown in Fig e.

f) In fig f. The motion detection is carried out. The threshold for motion is 50%. If 50% or more than 50% motion is there then message “Motion Detected” will display. As soon as motion is detected, the Buzzer will “ON” automatically.

We can also check the status of all the devices and sensors. In this way the overall system will work.

V. CONCLUSION AND FUTURE WORK

[image:7.595.36.288.140.304.2]

(8)

that an electronic remote control of water framework motorization will be possible. Likewise, the interloper location is done in this venture, in light of which the harming of the harvest is maintained a strategic distance from everywhere broaden. We can get productive outcome from this framework which will be exceptionally compelling for our rural field.

The future work of the project will be we can store the images captured by camera for future use as per the requirement. i.e. if there is need of previous data for someone purpose then we can retrieve that data from database. If a farmer wants to yield a particular type of crop in a specific area, then he will check that details in database that, is whether the any other farmer yield the same type of crop in the same area? If yes then farmer get an idea about either he yields or not in a given area. In previously, any farmer done the yielding, then he entered the feedback about his results and stored in a database, if another farmer who want to conduct a farming then first check the feedback and on the basis of that he concludes his decision about crop is yield or not in a specific area.
