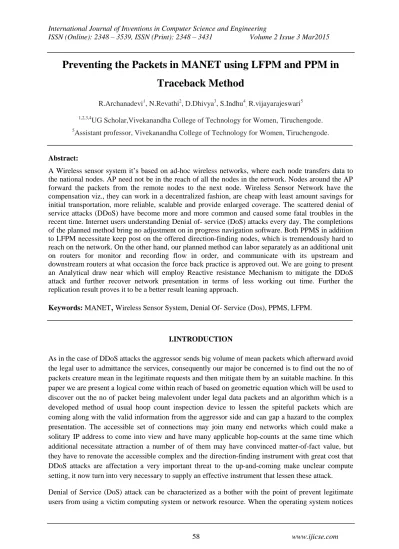

Preventing the Packets in MANET using LFPM and PPM in
Traceback Method
R.Archanadevi1, N.Revathi2, D.Dhivya3, S.Indhu4, R.vijayarajeswari 5
1,2,3,4
UG Scholar,Vivekanandha College of Technology for Women, Tiruchengode. 5
Assistant professor, Vivekanandha College of Technology for Women, Tiruchengode.
Abstract:
A Wireless sensor system it’s based on ad-hoc wireless networks, where each node transfers data to the national nodes. AP need not be in the reach of all the nodes in the network. Nodes around the AP forward the packets from the remote nodes to the next node. Wireless Sensor Network have the compensation viz., they can work in a decentralized fashion, are cheap with least amount savings for initial transportation, more reliable, scalable and provide enlarged coverage. The scattered denial of service attacks (DDoS) have become more and more common and caused some fatal troubles in the recent time. Internet users understanding Denial of- service (DoS) attacks every day. The completions of the planned method bring no adjustment on in progress navigation software. Both PPMS in addition to LFPM necessitate keep post on the offered direction-finding nodes, which is tremendously hard to reach on the network. On the other hand, our planned method can labor separately as an additional unit on routers for monitor and recording flow in order, and communicate with its upstream and downstream routers at what occasion the force back practice is approved out. We are going to present an Analytical draw near which will employ Reactive resistance Mechanism to mitigate the DDoS attack and further recover network presentation in terms of less working out time. Further the replication result proves it to be a better result leaning approach.
Keywords: MANET
,
Wireless Sensor System, Denial Of- Service (Dos), PPMS, LFPM.I.INTRODUCTION
As in the case of DDoS attacks the aggressor sends big volume of mean packets which afterward avoid the legal user to admittance the services, consequently our major be concerned is to find out the no of packets creature mean in the legitimate requests and then mitigate them by an suitable machine. In this paper we are present a logical come within reach of based on geometric equation which will be used to discover out the no of packet being malevolent under legal data packets and an algorithm which is a developed method of usual hoop count inspection device to lessen the spiteful packets which are coming along with the valid information from the aggressor side and can gap a hazard to the complex presentation. The accessible set of connections may join many end networks which could make a solitary IP address to come into view and have many applicable hop-counts at the same time which additional necessitate attraction a number of of them may have convinced matter-of-fact value, but they have to renovate the accessible complex and the direction-finding instrument with great cost that DDoS attacks are affectation a very important threat to the up-and-coming make unclear compute setting, it now turn into very necessary to supply an effective instrument that lessen these attack. Denial of Service (DoS) attack can be characterized as a bother with the point of prevent legitimate users from using a victim computing system or network resource. When the operating system notices
the high workload on the flooded service, it will start to provide more computational power to cope with the additional workload. The attacker can flood a single, system based address in order to perform a full loss of availability on the intended service. A Distributed Denial of Service (DDoS) attack is a large scale, corresponding attack on the ease of use of services of a victim system or set-up resource, launch in a roundabout way from beginning to end many compromise computers on the Internet. The services under attack are those of the "primary victim", while the compromise system used to launch the attack are often called the "minor victims”. The use of secondary victims in performing arts a DDoS attack provides the aggressor with the ability to wage a much better and more unsettling attack, while manufacture it more hard to track down the innovative aggressor. A disseminated Denial of Service (DDoS) attack uses many computers to launch a synchronized DoS attack against one or more target. By client and server knowledge, the performer is able to grow the success of the Denial of Service attack. To keep in view the importance of DDoS attack’s we meeting point our study to supply a device to lessen this attack by using a logical advance.
The DDoS attacks on setting that merit additional investigate as the obtainable scheme may join many end networks which could make a only IP address to become visible and have numerous valid hop-counts at the identical time which more require charm in the our future algorithm HCI-MPR to check the documentation of the sender for genuine packets Secondly we need a methodical process for setting the parameter according to the cloud setting for our proposed algorithm so that it demonstrate effectual results next to real spoofed DDoS traffics. The data-compression technique may get in the way with latency supplies compulsory by the submission, as the nodes must wait to mount up and combined received in sequence. Some scenario does not have need of take from all layers. Believe a Multihop local place organization based on system-by-system detachment capacity to estimate the relation detachment connecting a subjective node and a fasten node. The network layer and convey layer, used to handle the back-to-back data transmission, are not required in this request. As a result, these layers can be not there.If the medium-access control (MAC) layer is not optimized therefore, the routing protocol may experience as a result. There is promising conflict among optimization goals in different layers. Some optimization solutions at distinct layers are orthogonal in design. For example, at the system layer, it may be attractive to lessen the amount of overhead maintain at personality nodes. However, this may result in a subordinate excellence of service at the convey layer since less in sequence is transmit with person packets.
With the propagation of transportable devices such as smart phone and tablets, location-based services are attractive ever more accepted. DDOSs, albeit useful and expedient, pose a solemn danger to users’ safety as they are entice to reveal their location to DDOS provider via their queries for location-based in sequence. How to defend users’ sanctuary against potentially compromise DDOS provider is of vital meaning to the well organism of the DDOS bionetwork, given that the DDOS bazaar can expand and do well only if users feel contented about using DDOSs. This editorial presents a inclusive overview of the accessible scheme for defensive DDOS users’ security. We first introduce potential security threats to DDOS users, followed by a argument on sanctuary metrics. We then classify the fortification schemes according to their architectural property (i.e., server-based or mobile-device-based) and safety metrics (e.g., k-anonymity or location entropy). in conclusion, we discuss more than a few shows potential information for future explore into DDOS users’ safety protection. To supply modified service to Smartphone tablet users by exploit their place in sequence. As elegant phone become all the time more popular and resource-rich, DDOSs have turn into more features rich and flexible, civilizing users’ daily lives by, for example, decision restaurant with their much loved menu, obtain just-in-time coupons from close shopping centers, and track their corporal health. This trouble has customary
significant attention from users/customers; overhaul provider, and management organization. From the consumers’ side, according to a recent examination custom-built by Microsoft, users are disturbed about the use of their location in sequence and would like to have organized over such in sequence.
II.RELATED WORK
Most of the accessible scheme shot to detect attacks by analyzing the small package title information, package entrance rate and so on. They treat anomaly as deviation in the IP attribute, e.g., source IP address, TTL, and the grouping of several attribute. Wang, Jin, and Shin, planned a sufferer based solution where a established IP small package is superfluous if major discrepancy exist between its hop count and the value stored in the before built table. In StackPi, a packet is noticeable deterministically by routers along its path towards the purpose. The victim can connect Stackpi marks with source IP address to detect source IP address spoofing. In degree of difference Packet filters touching DDoS Flood attack; writer relies on probabilistic means to decide dicey packets. This system is adaptive to travel change and attempts to maintain quality of service. Used the organization in order base (MIB) data which embrace parameters that point to dissimilar pack and direction-finding figures from routers to get the early discovery. Yuan and Mills used the cross-correlation breakdown to confine the traffic pattern and then to make a decision where and when a DDoS attack maybe arises. Varied from PPM Dean Future an extra packet marking device that is called Deterministic packet marking (DPM).This policy symbols the IP address of packets that are accepted through boundary routers. The major problem of both the packet marking policy is that they can’t amplify the package size to avoid supplementary downstream division. Because of this there is a likelihood of growing system passage. Furthermore, PPM approach can only notice that source of bother that are positioned in outer surface of ISP complex. And also experience from the storage space quandary to accumulate large amount of marking in order.DPM strategy may necessitate very large amount of symbols for small package renovation. Both strategies require alteration and update of routing protocol. Quite than this, fake optimistic sound the alarm are also shaped in both the device. In this come near marks are reconstructing from the suggestion professionally. The cord is quite large and believes as a chance number which is hard for hackers to forecast. FIT device to get better PPM system. This was quick Internet draw back (FIT). This trace back instrument can recognize assault paths with high likelihood after getting only tens of packet and scalable in attendance of thousands of attack source in network. disseminated Link List Trace back (DLLT) and the Probabilistic Pipelined Packet Marking (PPPM).In Distributed Link List Trace back, marking in sequence is conserved at all routers in the complex and packet are noticeable, store and forward based on likelihood. The second one, group the complete container that has comparable target and propagates the IP addresses of all the routers that are involved in marking process to the same destination. The main quandary in both the technique is exactness because mark in order that is together by routers which are next to to the sufferer can be overwritten by downstream routers.
There are two categories of DDoS attack, typical DDoS attacks and distributed similarity Denial-of-Service (DRDoS) attacks. In a typical DDoS attack, the master computer commands the zombies to run the show hostility begin to throw colossal extent of packets to the casualty, to fatigue the victim’s resources. different the archetypal DDoS attacks, the services of a DRDoS attack consists of master zombies, slave zombies, and reflectors. The disparity in this type of attack is that slave zombies are led by master zombies to send a stream of packets with the victim’s IP address as the source IP address to other uninfected apparatus (known as reflectors), exhort these apparatus to connect with the victim.
Then the reflectors send the sufferer a great volume of traffic, as a reply to its catchphrase for the aperture of a new connection, because they believe that the sufferer was the host that asked for it.
III.PROPOSED SYSTEM
Our designed organization a record trace back process for DDoS attacks that is base on entropy variation sandwiched stuck between normal and DDoS assault traffic, which is basically dissimilar from normally used packet mark technique.
Fig 1 Proposed System A. Applying Security Patches
Many observers have stated that there are currently no successful defenses against a fully distributed denial of service attack. This may be true. Nevertheless, there are numerous safety measures that a host or network can perform to make the network and neighboring networks more secure. These measures include: Filtering all packets entering and leaving the network protects the network from attacks conducted from neighboring networks, and prevents the network itself from being an unaware attacker. This measure requires installing ingress and egress packet filters on all routers. Disabling IP Broadcasts By disabling IP broadcasts, host computers can no longer be used as amplifiers in ICMP Flood and Smurf attacks. However, to defend against this attack, all neighboring networks need to disable IP broadcasts.
To guard against denial of service attacks, host computers must be updated with the latest security patches and techniques. For example, in the case of the SYN Flood attack, there are three steps that the host computers can take to guard themselves from attacks: increase the size of the connection queue, decrease the time-out waiting for the three-way handshake, and employ vendor software patches to detect and circumvent the problem. Disabling Unused Services: If UDP echo or charge services are not required, disabling them will help to defend against the attack. In general, if network services are unneeded or unused, the services should be disabled to prevent tampering and attacks.
The PPM (Probilistic Packet Marking) or LFPM (Local flow Packet marking) trace reverse mechanism and it break the accessible PPM and LFPM method. Since of this necessary change, the planned strategy overcome the present at birth drawback of small package mark methods, such as imperfect scalability, huge anxiety on storage space, and susceptibility to small package pollutions. The completion of the planned process brings no modification on current steering software. Both PPM and LFPM require bring up to date on the accessible steering nodes, which is extremely hard to achieve on the Internet. On the other hand, our proposed method can work separately as an added module on routers for monitor and video recording flow in sequence, and communicate with its upstream and downstream routers when the drive back modus operandi is accepted out.
One of the most serious threats to the Internet security is a DoS (Denial of Service) attack; where an attacker attempts to make a target host (called a victim) fail by sending a huge number of packets to the host. In particular, in recent years, a DDoS (Distributed DoS) attack, where there are many attackers scattered over the Internet, has become more prevailing. Such a DDoS attack can be represented by an attack tree, the leaves and the root of which are the attackers and the victim, respectively. Furthermore, we call a path along which an attack packet traverses from one attacker to the victim an attack path. A promising countermeasure against DoS/DDoS attacks is called IP trace back. In IP trace back schemes, each router on attack paths stores information about the paths on itself or on packets. Then the victim uses the information to recover the attack tree and to find out the attackers. IP trace back schemes are roughly classified two-fold: probabilistic packet marking (PPM for short) protocols and logging ones. In PPM protocols, each router probabilistically writes path information onto the packets it receives. On the other hand, logging IP trace back protocols make each participating router sample packets and store path information on itself
IP trace back schemes are roughly classified into probabilistic packet marking (PPM) protocols and logging ones. PPM does not need storage resource of routers, although, it generally requires the victim to receive a large number of packets before he can reconstruct the attack tree. On the other hand, in logging schemes, the number of packets for attack tree recovery can be small. However, logging schemes impose heavy load and require extremely large storage space on the routers. Now, for a recent example of IP trace back protocols. The protocol exploits entropy variation for IP trace back and is very interesting itself. However, the proposed flow monitoring algorithm and IP trace back algorithm are rather intricate. Furthermore, the false positive/negative rates in the trace back process are not discussed. In summary, we still do not have an established IP trace back scheme. However, we consider hybrid IP trace back schemes to be promising because they can take advantage of both PPM and logging approaches. In particular, proposed one of the most important hybrid IP trace back schemes. The protocol of Li et al. was successful in improving sampling correlation. Unfortunately, they consider only the correlation between neighboring routers. We can develop a highly efficient IP trace back scheme by considering correlation of packet sampling all over a whole attack path.
IV.RESULTS AND DISCUSSION
We now discuss the results obtained from our simulation study. For each queuing algorithm, except Drop Tail, we simulate topologies A, B, and C. In the case of Drop Tail queuing algorithm, we only simulate topology A because only two attackers were required to overload the target router. The legitimate user has 0.1 Mbps, while the two attackers each have allocated 0.6 Mbps bandwidth. Since the target router has a buffer size of 1 Mbps, and the input links have 1.3 Mbps bandwidth, overloading the buffer in the router only requires two attackers and packet loss in the router is to be
expected. The legitimate user’s bandwidth was reduced to zero once the attack executed by the two attack daemons was fully engaged. Two queuing algorithms (Random Early Detection and Class Based queuing) are successful in providing bandwidth requested by the legitimate user during the simulations using network topology C. Fair Queuing, Stochastic Fair Queuing, and Deficit Round Robin Queuing are algorithms that provided little or no bandwidth to the legitimate user during the attack. Although the user did not receive full throughput with Random Early Detection queuing, he/she continued to receive service through most of the duration of the attack scenario.
A. DDoS Attacks
After being a part of attack, the victim either to stop providing services to the client or the services are de- graded that means some of the services are still being provided to the client even the victim’s system is under the attack. Network of machines which follows the instructions of master attacker to send request for a service on a victim’s machine to consume it’s all the resources. Sometime attacker make down the websites very quickly by sending large no of request more than its ca- pacity, is known as constant attack rate. While some- times attacker takes time to make it down by sending packets in variable length of request that is not constant, known as variable attack rate.
Fig 2 Comparison of RCD and PPM
Attackers can be classified by automated tools also and their skills. Attack can be performed manually; semi automated or fully automated tools.We used network simulation tools to examine the performance of various queuing algorithms in alleviating the distributed denial of service attacks and in providing desired service to the users. It was found that the majority of Routing algorithms that we considered provided no bandwidth to the legitimate user during the attack. Nevertheless, even under persistent denial of service attacks, Class Based Queuing algorithm could guarantee bandwidth for certain classes of input flows, while Random Early Detection was successful in providing limited bandwidth to legitimate users. Since implementation of a Class Based Queuing algorithm required additional effort, there is a tradeoff between its performance and the implementation overhead. In
0 1 2 3 4 5 6 B an d wi d th R e ci ve d d ata( m b p s) Time(se)
Bandwith Recived data vs Time
RCD (Rank Correlation based Detection) PPM (Probilistic Packet Marking),LFPM(L ocal flow Packet marking)
summary, our simulation results indicated that implementing queuing algorithms in network routers may provide the desired solution in rotating users in cases of distributed denial of service attacks.
V.CONCLUSION
In our work we have using present are still numerous issues concerning the DDoS attacks on Cloud compute setting that warrant additional investigate as the obtainable system may attach many stub networks. Which could make a single IP address to appear and have numerous valid hop-counts at the same time which additional require attraction in the proposed algorithm Multipath routing to check the credential of the sender for legitimate packets. Distributed Denial-of-Service (DDoS) attacks are a growing threat across Internet, disrupting access to information and services. Now days, these attacks are targeting the application layer. Attackers are employing techniques that are very difficult to detect and lessen. This paper proposes a hybrid discovery scheme based on the trust information and information theory based metrics. Initial filtering is based on the trust value score by the client. Then the information based metric, entropy, is applied for final filtering of suspicious flow. Trust value for a client is assigned by the server based on the access model of the client and updated every time when the client contacts the server. The request from the client for eternity includes this trust value to identify itself to the server. The Web user browsing behavior rate, page viewing time and sequence of the request objects) of the client is capture from the system log during non-attack cases. Based on the observation, Entropy of requests per session is planned and used for rate limiting the flow further. A scheduler is incorporated to timetable the meeting based on the belief value of the user and the organization workload.
REFERENCES
[1] S.Prathyusha1, M.V.Sruthi , “A Novel Attack Path Reconstruction Based on Packet Logging & Marking Scheme”
[2] S. Renuka Devi , “A hybrid approach to counter application Layer DDoS attacks” [3] Shree Om1 and Mohammad Talib ,“Wireless Ad-hoc Network under Black-hole Attack” [4] Professor Wanlei Zhou, “Finding the real source of Internet crimes”
[5] Anusha. J , “Entropy Based Detection of DDOS Attacks”
[6] Pragya Katiyar, U.Senthil Kumarn “Detection and Discrimination of DDoS Attacks from Flash Crowd Using Entropy Variations” Vol 5 No 4 Aug-Sep 2013
[7] Tomoyuki Karasawa, “A Novel Hybrid IP Trace back Scheme with Packet Counters” [8] “ETM: a novel Efficient Trace back Method for DDoS Attacks”, Vol 1 Issue 3 October 2012 [9] Mehmud Abliz, “Internet Denial of Service Attacks and Defense Mechanisms”
