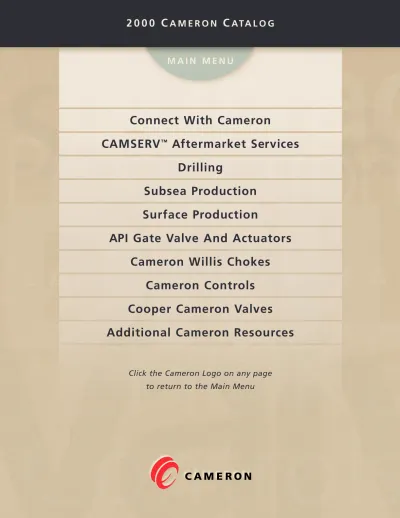

Cameron - 2000 Cameron Catalog

(1)

2 0 0 0

C

A M E R O N

C

ATA L O G

M A I N M E N U

Connect With Cameron

CAMSERV

™

_{Aftermarket Services}

Drilling

Subsea Production

Surface Production

API Gate Valve And Actuators

Cameron Willis Chokes

Cameron Controls

Cooper Cameron Valves

Additional Cameron Resources

Click the Cameron Logo on any page

to return to the Main Menu

Y2K Catalog home page 2/2/00 4:04 PM Page 1

(2)

136

Table of Contents

CAMSERV Aftermarket Services . . . . 137

Drilling . . . 140

Subsea Production . . . 147

Surface Production . . . 153

API Gate Valve and Actuators . . . 158

Cameron Willis Chokes . . . 162

Cameron Controls. . . 164

Cooper Cameron Valves . . . 166

Connect With Cameron

Electronic Information

Cameron maintains a comprehensive website at www.camerondiv.com. Cameron offers more than 50,000 pages of information on all product lines: Drilling, Surface, Subsea, Aftermarket, Cameron Controls, Cameron Willis, and Cooper Cameron Valves.

The most powerful tool available to Cameron customers via the website is the Transact section. Transact is a secure extranet within the Cameron website available only to Cameron customers. Future Transact features include E-Commerce which will soon enable authorized customers to place orders from their desktop. Current sections within Transact are:

• Technical Library - access operation and maintenance manuals, engineering bulletins and reports, assembly and testing procedures, inspection criteria, technical papers, and experience lists.

• Parts and Pricing - review the list prices of Cameron standard products.

• Training - access fully interactive, dynamic product-specific training modules which include installation procedures and service requirements.

• Mainframe Access- read product bills of material, verify revision status, check customer property, review consigned inventory levels, and much more in the Cameron SAP database. • Document Ordering System - order free

printed brochures or download Acrobat .pdf files to print to your local printer.

• Projects - review project management information such as planning and scheduling, document control, costs expended, status reports and engineering deliverables.

Printed Information

Cameron maintains a comprehensive library of sales and marketing brochures and catalogs in printed format. Customers can utilize one of several alternatives to obtain these materials. • Internet - customers can access the

Cameron Document Ordering System to receive free, printed copies of brochures via the mail or they can email Cameron at [email protected] to request specific product brochures.

• Phone or Fax - customers can receive product brochures by telephoning the Cameron Marketing Communications epartment in Houston at 713-939-2711 or by faxing 713-939-2735.

• Cameron Sales Force - Customers can contact their local Cameron representative who can order brochures to be mailed directly to them anywhere in the world. Cameron offers training CDs on many of its products and services. Customers can order these CDs through local sales representatives.

CD ROMs

This catalog, along with other Cameron sales and marketing information, is available on CD ROM. Customers can order the CD catalog via the Internet, phone or fax or through the Cameron sales force. In addition, Cameron offers a library of training CD ROMs on many of our products.

CONNECT

C O N N E C T

This catalog offers an introduction to Cameron systems and products. For additional information on prod-ucts in this catalog or prodprod-ucts which do not appear on these pages, Cameron has a myriad of additional resources available to you. Whether you prefer information in electronic or printed format; on the Internet or CD ROM; on your desktop or on your library shelf; Cameron can get you the comprehensive information you need quickly.

Cameron is a name that is unsurpassed for quality, dependability and technology in the oil and gas industry today. As a leader in the industry, Cameron provides total system solutions for both drilling and production applications.

But, while other suppliers are content to simply supply equipment, Cameron provides so much more. Like our world-wide network of CAMSERV Service Centers. And our comprehensive internet site. Our preengineered MOSAIC subsea production system. Decades of experi-ence. Industry standard products like the U BOP. Electronic commerce. Project management. Proprietary elastomers from Cameron Elastomer Technology. Brand names you know and trust -Cameron, Willis, W-K-M - to name a few. Highly trained service technicians. Ongoing research and development projects. Award-winning technology. The list goes on and on, much more than we could possible present in one catalog.

So, whether you need a single gate valve, or an entire system from the BOP stack to the controls, put Cameron to work for you.

(3)

137 CAMSERV

™

_{Aftermarket Services}

Cameron’s CAMSERV Aftermarket Services program has redefined the term “oilfield service.”

CAMSERV provides the most comprehensive offering of aftermarket products and services in the industry today. Each CAMSERV option

is designed to reduce the Total Cost of Ownership and to offer unmatched value in service after-the-sale. And, when used in combination, these options can signifi-cantly reduce CAPEX and OPEX costs for our customers worldwide.

CAMSERV begins with a network of service centers located in every major oil and gas producing region of the world and continues with Cameron’s team of service technicians. In addition, many new and innovative programs have been added which make CAMSERV the premier aftermarket program in the industry.

CAMWARE™_Software

Cameron’s CAMWARE Asset Management Software is designed to track, manage and report on customer equipment from acquisition to disposal. CAMWARE is available in versions for operators and drilling

contractors, and for mainframe computers or PCs. CAMWARE provides a full history of all serialized equipment, including maintenance and performance factors. CAMWARE can track a variety of items such as next-scheduled service, status of completed service jobs, recommended maintenance, well condi-tions, well performance, inventory control including certificate numbers, document references, part numbers and serial numbers. The system can even reference a storage location for original documents.

Through-Life Cost Management (TLC)

TLC is a comprehensive program to reduce the Total Cost of Ownership. TLC Starts at equipment acquisi-tion and covers ownership, usage, maintenance and

finally, disposal. It is truly a “cradle to grave” perspective. Cameron can develop TLC

programs for anything from annual maintenance agreements to global alliances. These programs can contain any number of CAMSERV options, depending on customer needs.

CAMSERV Advantage Program

CAMSERV Advantage is an incentive program designed to encourage customers to maximize their savings by utilizing a full array of CAMSERV service options. Due to the complex nature of aftermarket service needs, CAMSERV facility managers are autho-rized to customize CAMSERV

Advantage packages to meet individual customer require-ments. CAMSERV Advantage incentives may include pricing frame

agreements, volume discounts, consignment programs, electronic information interfaces or faster turnarounds. Individual CAMSERV Advantage options may include:

Field Services - CAMSERV field service technicians

are on call 24-hours a day, 7-days a week to handle on-site service needs. These people are highly skilled in providing installation assistance, making field repairs and performing routine, scheduled mainte-nance. They also provide technical support and well services such as decompletion, recompletion, trim changes and installation of safety equipment.

Customer Equipment Reconditioning - CAMSERV

Service Centers offer a full range of equipment repair services for all types and brands of oilfield equipment. In addition to disassembly, inspection, re-assembly and testing services, Cameron provides machining, welding, heat-treating and other re-manufacturing operations. Cameron offers reconditioned products in first class, fit for function, and working condition performance standards.

Customer Property Management - Property

management services can be arranged to extend and complement existing warehousing capabilities. Services provided include storage/warehousing, equipment utilization services, brokering and equip-ment buy-back.

Reconditioned Equipment - Reconditioned drilling

and production equipment meeting API standards is available in a broad range of products including

blowout preventers, choke manifolds, well-heads, gate valves, and Christmas trees.

Reconditioned equipment can be obtained through direct purchase, equipment exchange or rental.

Replacement Parts - CAMSERV Service Centers

stock replacement parts (new and reconditioned) for many Cameron products for immediate delivery. Less frequently needed items or parts for older equipment can be quickly located through our Global Product Search Engine (GPSE). In addition, a secure, restricted-access “Transact” section of the Cameron website has been set-up to offer electronic ordering of many types of replacement parts.

(4)

139

Legend

Cameron Geographic Regions

Western Hemisphere Eastern Hemisphere Asia Pacific/ Middle East

Cameron Worldwide Locations Service Centers and Manufacturing Plants Sales Offices

I N D I A N

O C E A N

P A C I F I C

O C E A N

A R C T I C O C E A N

• ••

• •

_•

•

• ••

•

138 Worldwide CAMSERV Service Centers

Worldwide Presence

Cameron maintains a worldwide network of sales, service and manufacturing facili-ties. Each facility is strategically located to meet the specific meets of the customers in the area.

Cameron’s management matrix gives customers two groups of people directly accountable to their business - one by geo-graphic location, another by product line.

Cameron geographic business units include the Western Hemisphere, based in Houston, Texas; the Eastern Hemisphere, based in London, England; and Asia Pacific/Middle East based in Singapore. Separate product business units for drilling, surface production, subsea production, aftermarket services, chokes, and controls remain focused on individual product lines.

P A C I F I C

O C E A N

A T L A N T I C

O C E A N

•

• _•

• •

• _•

_•

•

• ••

_••

•

• • •

•

• _•

•

• _••

•

(5)

Drilling

Products Overview . . . .140

Drilling Capabilities Overview . . . .141

Surface Drilling Systems . . . .142

Cameron BOP Stack . . . .142

Choke Manifold . . . .142

BOP Control System . . . .142

Subsea Drilling Systems . . . .143

Subsea Drilling System Components (Surface)

Control System . . . .143

Choke System . . . .143

Riser System . . . .143

Subsea Drilling System Components (Subsea)

Control System . . . .143

Riser System . . . .143

Lower Marine Riser Package . . . .143

BOP Stack . . . .143

Ram-Type BOPs

TL

™

_{BOP . . . .144}

U

™

_{BOP . . . .144}

UM

™

_{BOP . . . .144}

Annular BOP

DL Annular BOP . . . .144

Rams and Ram Packers

FlexPacker

™

_{. . . .145}

FlexPacker-NR

™

_{. . . .145}

Dual Bore FlexPacker . . . .145

VBR-II

™

_{. . . .145}

Inserted Packer for Stripping and Snubbing . .145

CAMRAM 350

™

_{Packer . . . .145}

Cameron Elastomer Technology . . . .145

Collet Connectors

Model 70 Collet Connector . . . .146

HC Collet Connector . . . .146

DWHC Collet Connector . . . .146

Riser Systems . . . .146

140 Products Overview

D r i l l i n g

Surface Drilling Systems Subsea Drilling Systems Ram-Type BOPs Ram-Type BOPs

TL BOPs TL BOPs UM BOPs UM BOPs U BOPs U BOPs

Rams Rams

Shearing Bind Rams Shearing Blind Rams DVS Shear Rams DVS Shear Rams Super Shear Rams Super Shear Rams VBR-II Variable Bore Rams VBR-II Variable Bore Rams FlexPacker Rams FlexPacker Rams Dual FlexPacker Rams Dual FlexPacker Rams Pipe Rams Pipe Rams

Ram Packers and Top Seals Ram Packers and Top Seals

CAMRAM CAMRAM CAMRAM 350 CAMRAM 350 CAMLAST CAMLAST Low Temperature Low Temperature Stripping and Snubbing Stripping and Snubbing

Annular BOPs Annular BOPs

Single and Double DL Annular BOPs Single and Double DL Annular BOPs

Connectors Connectors

FastLock Connectors DWHC Collet Connector FastClamp Connectors HC Collet Connectors FlangeLock Connectors HCH4 Collet Connectors API Clamps Model 70 Collet Connector

Choke Manifold Systems Choke Manifold Systems

Hydraulic and Manual Drilling Chokes Hydraulic and Manual Drilling Chokes H2 and H2I Adjustable and Positive Chokes H2 and H2I Adjustable and Positive Chokes Hydraulic and Manual Gate Valves Hydraulic and Manual Gate Valves Tailrod Gate Valves Tailrod Gate Valves

MS Check Valves MS Check Valves J-2 Pressure Transmitters J-2 Pressure Transmitters Buffer Tanks Buffer Tanks

Control Systems Control Systems

Hydraulic Hydraulic Multiplex Acoustic Deadman (DMS)

Riser Systems

LoadKing Riser Systems

LoadKing Riser Connectors and Joints LoadKing Spiders

LoadKing Manual and Hydraulic Running Tools RF Riser Systems

RF Riser Connectors and Joints RF Spiders

RF Manual and Hydraulic Running Tools Telescoping Joints

Goosenecks Riser Fill-Up Valves Termination Spools Instrumentation Joints Flex Joints

RST Swivel Tensioning Rings

This product overview represents the Cameron preferred products for surface and subsea drilling applications. Not all products which appear on this list are represented in this catalog. For additional information, contact the Cameron website at camerondiv.com or contact your Cameron representative.

(7)

141 Drilling Capabilities Overview

Cameron Drilling Systems Delivered Worldwide for Varied Applications

Varied Drilling Applications

Cameron has delivered complete drilling systems for drillships, semisubmersibles, platforms and jackups. These rigs have rated water depths from several hun-dred to over 10,000 feet and operate from 5000 to 15,000 psi working pressure.

BOP Stack Systems

The vast majority of these rigs are using Cameron’s 18-3/4” TL BOPs in 4-, 5- and 6- cavity body styles. BOP Stack systems also include Cameron collet connectors including the Model 70, HC, DWHC and HCH4 designs.

Riser Systems

The Cameron LoadKing and RF riser systems are being utilized on several of these rigs to meet the demands of drilling in deepwater. Both riser systems accommodate high tension loads and provide for multiple control lines.

Control Systems

Many of the control systems used on these rigs are Cameron Controls’ Multiplex (MUX) BOP Control Systems. Cameron’s MUX system features the lightest weight, most compact pod in the industry today. In addition, Cameron offers the industries only fully

retrievable MUX pods. The popularity of the Cameron MUX control system has made Cameron Controls the industry leader in the supply of drilling control systems. Cameron Controls also offers direct hydraulic control systems for subsea and land applications.

Choke Manifold Systems

Cameron has also provided the manifold systems for these drilling rigs. Cameron provides complete manifold systems from the surface panels to the chokes, valves, actuators and pressure transmitters.

Cameron Puts Experience to Work to Develop New and Innovative Solutions for Future Challenges

Hybrid (Free-Standing Production) Riser System

Cameron’s Free-Standing Production Riser System (FSPR) represents an economical alternative to tradi-tional deepwater development concepts including the steel catenary riser system.

Cameron’s FSPR was installed in 1521 feet (463 meters) of water for an early production system, later retrieved, modified and rerun in 2096 feet (639 meters) of water for a deeper field. This represents the only hybrid riser system installed. Cameron can now supply various hybrid riser options for the free standing riser including towed-out and up-ended and stalked-in designs. Cameron’s options offer the opportunity to decrease the risks and costs typically associated with steel catenary riser systems particu-larly for the larger deeper fields.

The FSPR system was the winner of the 1989 Petroleum Engineer International Meritorious Award for Engineering Innovation.

Free-Standing Drilling Riser System

Based on the field-proven Free-Standing Production Riser System, Cameron’s Free-Standing Drilling Riser System (FSDR) provides an alternative to the time-consuming operation of drilling riser deployment and retrieval in deepwater.

In this system, a retrievable upper section and a free-standing lower section are mated 300 to 500 feet (91 to 152 meters) below the surface of the water. When disconnect is required, either in an

emergency or for standard rig operations, the upper section is retrieved and the lower section is left to free-stand on the ocean floor. The retrievable riser section can be pulled in several hours, saving rig time during both retrieval and redeployment.

Cameron’s free-standing drilling riser is the winner of the prestigious 1999 Petroleum Engineer International Meritorious Award for Engineering Innovation and provides savings by increasing the operating window, lowering development drilling costs and lowering maintenance costs.

SPARs and TLPs

Cameron has the unique ability to provide a total system for a SPAR or tension leg platform (TLP). Cameron systems are based on field experience and represent the most efficient, cost-effective systems possible for each individual application.

Cameron’s broad scope of supply includes subsea, platform and adjustable wellhead systems, BOP stacks, drilling and production risers (including free-standing, integral and non-integral systems), completion systems, subsea manifolds, connection systems, and drilling and production control systems. Each component, as well as the total system is designed based on the best individual solution for each specific field application. Cameron designs are backed by numerous computer based analysis programs, basin testing and prototype testing, all based on field data collected from instrumentation packages.

Slender Well Systems

The industry trend today is to look for ways to utilize second or third generation vessels for deepwater. Cameron’s Slender Well Systems provide the contrac-tor with the opportunity to do just that. With Cameron’s wellhead, small bore BOP stacks, and reduced bore riser systems, variable deck loads and tension requirements are substantially reduced, and the drilling process is optimized to reduce drilling time.

Hybrid (Free-Standing Production) Riser System

Cameron’s vast experience with both drilling and production systems provides a unique opportunity to design and manufacture integrated systems specifically designed to optimize customer operations. Cameron has provided, designed, or is actively designing Free-Standing Production Riser Systems, Free-Standing Drilling Riser Systems, systems designed for SPAR/TLP applications and Slender Well Systems.

Cameron has designed, manufactured and delivered surface and subsea drilling systems from the wellhead through the manifold to meet a wide variety of customer requirements and drilling applications. These systems are on their way to projects from Africa to the Gulf of Mexico, and represent Cameron system solutions and their array of design configurations.

(8)

Surface Drilling System Components

Cameron has a definite advantage in the supply of complete drilling systems for surface applications. From the BOP to the control system, the manifold to the wellhead, Cameron offers a variety of systems to meet different requirements. Cameron components for surface systems include all the following:

Cameron BOP Stack

1. Annular BOP 2. Double Ram-Type BOP 3. Drilling Spool 4. Manual Gate Valve 5. Hydraulic Gate Valve 6. Check Valve 7. Single Ram-Type BOP 8. Casing Head Spool 9. Casing Head Housing

Choke Manifold

10. Transmitter 11. Pressure Gauge 12. Manual Gate Valve 13. Hydraulic Gate Valve 14. Drilling Choke 15. Choke Control Console 16. Standpipe Pressure Gauges,

Gate Valves, Transmitter

BOP Control System

17. Closing Unit 18. Pipe Rack

19. Remote Control Panel 20. Mud Pumps and Manifold,

Pressure Gauges

21. Mud Tanks, Mud Valves, Degasser

1 2 3 4 6 5 7 8 9 18 17 15 19 16 12 14 13 10 20 21 11

142 Surface Drilling Systems

(9)

143 Subsea Drilling Systems

Cameron supplies integrated subsea drilling systems designed specifically to tackle the demands of deepwater, high pressure applications including BOP stack systems, control systems, riser systems and choke systems. Cameron subsea drilling components include the following:

Subsea Drilling System Components (Surface)

Control System

1. Auxiliary Remote Control Panel and Battery Bank 2. Driller’s Panel

3. Hydraulic Power Unit 4. Accumulator Bank 5. Hose/Cable Reels

Choke System

6. Choke Manifold

7. Choke Manifold Control Console

Riser System

8. Telescoping Joint

Subsea Drilling System Components (Subsea)

Control System

1. Hydraulic Conduit Supply Line 2. MUX Control Pod

3. Conduit Valve

Riser System

4. Riser Joint 5. Riser Connector 6. Termination Spool

Lower Marine Riser Package

7. Flex Joint 8. Annular BOP 9. Choke/Kill Connector

BOP Stack

10. Subsea Gate Valve

11. Double Ram-Type BOP with Super Shear 12. Double Ram-Type BOP

13. Guide Structure 14. Collet Connector 1 2 3 4 1 2 3 6 5 4 7 8 9 10 11 12 13 14 5 6 7 8 SD24454 SD24450-96 Riser System Stack System

(10)

144 Ram-Type and Annular BOPs

Cameron developed the TL and UM ram-type BOPs based on the highly success-ful U BOP design to meet today’s demand for reduced weight, lower height and easier maintenance. Cameron also makes the DL Annular BOP which features a lightweight, low profile design available in single or double body styles.

TL™_BOP

The TL BOP integrates all of the design features of Cameron’s popular T and U BOPs into a lightweight unit. The TL offers side ram removal and other features which reduce maintenance and rig time.

Application: Surface and subsea

Bore Sizes and Working Pressures: 18-3/4” 5000, 10,000, 15,000 psi

13-5/8” 10,000 psi

Body Styles: Single, double, triple Pressure-Energized Rams: Yes

Bonnet Seal Carrier: Standard

Hydromechanical Lock: RamLocks (5000, 10,000, 15,000 psi WP)

ST Lock (10,000, 15,000 psi WP) Wedgelocks (5000 psi WP)

Hydraulically Opening Bonnets: Yes Bonnet Studs Instead of Bolts: Yes

U™_BOP

The Cameron U BOP is the most widely used ram-type BOP in the world and offers the widest range of sizes of any Cameron ram-type BOP.

Bore Sizes and Working Pressures: 7-1/16”, 11”, 13-5/8” 3000 - 15,000 psi

16-3/4” 3000 -10,000 psi 18-3/4” 10,000 psi 20-3/4” 3000 psi

21-1/4” 2000, 5000, 10,000 psi 26-3/4” 3000 psi

Body Styles: Single, double Pressure-Energized Rams: Yes Bonnet Seal Carrier: Available

Hydromechanical Lock: Wedgelocks (with pressure balance

chambers)

Hydraulically Opening Bonnets: Yes

UM™_BOP

The UM BOP is a lightweight BOP designed for easy maintenance and long life. The UM complements the existing line of U preventers and includes bonnets which can be installed on any comparable size U BOP.

Application: Surface, subsea, snubbing

(7-1/16” only)

Bore Sizes and Working Pressures: 7-1/16” and 11” 3000 - 15,000 psi Body Styles: Single, double

Pressure-Energized Rams: Yes Bonnet Seal Carrier: Available Hydromechanical Lock: Wedgelocks Hydraulically Opening Bonnets: Yes Bonnet Studs Instead of Bolts: Yes

DL Annular BOP

The Cameron DL annular preventer features a quick-release top for quick packer change-out. It is shorter in height than comparable annulars.

Bore Sizes and Working Pressures: 7-1/16”- 21-1/4” 2000 - 20,000 psi Body Styles: Single, dual

Packer: High performance CAMULAR™

SD24877

TL Blowout Preventer (Shown With RamLocks)

UM Blowout Preventer SD24361

DL Annular Blowout Preventer SD24889

U Blowout Preventer SD5308

(11)

145 Rams and Ram Packers

Cameron offers the most comprehensive line of rams and ram packers in the industry. Cameron rams cover the full range of drilling requirements including shearing high strength casing, drill collars, etc. Cameron also offers a choice of rams for variable bore sealing and high temperature applications. Cameron is known as a pioneer in variable bore sealing technology. The name variable bore ram (VBR) is synonymous with the Cameron VBR. Cameron has now introduced the second generation VBR, the VBR-II. This design offers even more packer life than the original design. In addition, Cameron offers the FlexPacker, FlexPacker-NR and the Dual Bore FlexPacker which provide sealing on specific multiple bore sizes and fit into existing ram blocks.

Cameron Elastomer Technology

One of the many ways to differentiate Cameron drilling products from other manufacturers’ is the elastomers used in critical sealing areas such as ram packers and top seals.

Cameron drilling products exclusively use the proprietary elastomers designed and manufactured by Cameron Elastomer Technology (CET), located in Katy, Texas. CET provides engineered solutions to elastomeric material problems. For drilling applica-tions, CET has developed CAMRAM™, CAMRAM 350™, CAMULAR™, CAMLAST™and DUROCAM™

elastomer products to meet the rigorous demands of the oilfield.

These products, when used in Cameron ram-type BOPs and annular BOPs, improve performance, extend service life, reduce downtime and lower operating costs.

VBR-II™

FlexPacker-NR™

Dual Bore FlexPacker

SD24363 SD24364 FlexPacker™ SD10315 SD016389 CAMRAM 350™Packer SD7395 Inserted Packer for Stripping and Snubbing

SD24413

Description TL BOP UM BOP U BOP Elastomer Per NACE

Shearing

Shearing Blind Rams Available in Some Sizes Available Available CAMRAM Nitrile Yes

DVS Shear Rams Available in Some Sizes Available in Some Sizes Available in Some Sizes CAMRAM Nitrile Yes

Super Shear Rams Available Available in Some Sizes Available See Note No

Variable Bore Sealing

VBR-IIs Available in Some Sizes Available in Some Sizes Available in Some Sizes CAMRAM Nitrile Yes FlexPackers Available in Some Sizes Available in Some Sizes Available in Some Sizes CAMRAM Nitrile Yes FlexPacker-NRs * Available in Some Sizes Available in Some Sizes Available in Some Sizes CAMRAM Nitrile Yes Dual Bore FlexPackers Available in Some Sizes Available in Some Sizes Available in Some Sizes CAMRAM Nitrile Yes

Pipe Rams

Standard Service Yes Yes Yes CAMRAM Nitrile Yes

High Temperature Service Yes Yes Yes CAMLAST Yes

Snubbing/Stripping

Grip and Seal Rams Not Available 7” Only Not Available CAMRAM Nitrile Yes

Snubbing Insert Packers Not Available 7” Only Not Available CAMRAM Nitrile Yes

Cameron Ram Selection Chart

Note: Super Shear Rams do not seal

* Cameron also offers special hang-off FlexPacker-NR assemblies

(12)

146 Collet Connectors and Riser Systems

Collet Connectors

As drilling depths have increased, Cameron collet connectors have evolved to address issues concerning higher internal and external pressures, increasing applied bending and tension loads and extreme operating conditions. Cameron offers four collet connectors:

• Model 70 Collet Connector • High Capacity (HC) Collet Connector

• Deepwater High Capacity (DWHC) Collet Connector • HCH4 Collet Connector

The Model 70 is offered in sizes and pressure ratings for a wide variety of applications. The HC is similar to the Model 70 but is designed to provide greater preload to withstand higher separating forces. The DWHC is a high strength drilling and completion collet connector engineered for the high loads encountered in ultra deepwater applications. The HCH4 connector locks onto an H4 wellhead.

All Cameron connectors offer high strength and stiffness with a direct load path through the connector and metal-to-metal sealing AX gaskets on the collet end ensure seal integrity. Positively driven-open collet segments during unlock ensure that no overpull is required to disconnect. A secondary unlock function is also included in each design.

DWHC Collet Connector HC Collet Connector

Model 70 Collet Connector

Riser Systems

Cameron offers drilling riser systems which accommodate the stringent condi-tions encountered in deepwater drilling including high tension loads, multiple control lines, and the need to respond to changes in surface weather conditions.

The LoadKing™family of riser connectors is designed to meet the demands of ultra deepwater drilling in water depths of 7000 feet (2134 meters) or more. The RF riser connector is designed to meet API 16R requirements with fewer components and higher capacity than other flanged riser connectors.

SD24878 SD24879 SD24880

Collet Connector Model Availability and Performance

Model 70 HC DWHC HCH4

Available Bore Sizes 13-5/8” to 21-1/4” 13-5/8” to 21-1/4” 18-3/4” 18-3/4” Available Working Pressures 2000 - 15,000 psi 5000 - 15,000 psi 15,000 psi 10,000 - 15,000 psi

Bending at 10,000 psi WP, 549,000 ft-lb 2,063,000 ft-lb 10,300,000 ft-lb 2,109,000 ft-lb

2,000,000 lb Tension

Preload 245,000 lb 4,385,000 lb 12,000,000 lb 4,740,000 lb

Maximum Release Angle 30˚ 30˚ 7˚ 4˚

Note: Data for the Model 70, HC and HCH4 represents 10,000 psi WP connectors.

Description LoadKing RF

Rated Tension Load 3,500,000 lb 2,000,000 lb Auxiliary Lines Up to Six Positions Up to Six Positions

Fixed Interchangeable 2”- 6-3/4” OD 2” - 5-1/2” OD

Trim API 16 R API 16R

NACE MR-01-75

Riser System

SD24362

(13)

Subsea Production

Products Overview . . . .147

MOSAIC

™

_{Subsea Production Systems . . . .148-149}

SpoolTree

™

_{Production Systems . . . .150}

Dual Bore Production Systems . . . .151

Subsea Systems . . . .152

147 Products Overview

MOSAIC Elements Major Components Variations

Position Elements Drilling Guidebases Guideline, Guidelineless Production Guidebases One, Two or Three-Slot Templates Various Multiples of Guidebases Porches

Pressure Elements STM Wellhead To 15,000 psi WP Five String, Six String

Hub Profile, Mandrel Profile, DWHC Profile High Pressure Lockdown, Standard Lockdown STC Wellhead To 10,000 psi WP

Five String, Six String Hub Profile, Mandrel Profile Mudline Wellhead Centric 15, Centric 15 EX, WMSW

Distribution Elements Flowbases Satellite, Water Injector, Gas Lift, Daisy Chain Manifolds Varies Depending on Number of Modules and Size

and/or Quantity of Headers Valve Blocks

Connectors Structure Porch Extensions

Umbilical Termination Assemblies HUTA, EUTA, CDU

Access Elements SpoolTree Christmas Trees Guideline, Guidelineless

Production, Gas Lift, Water Injection Dual Bore Christmas Trees Guideline, Guidelineless

Production, Gas Lift, Water Injection Block Valves Up to 40 Wing Valve Arrangements

Single or Double Master Valves Gate Valves FL or FLS Gate Valves

Threaded, Flanged, Block Variety of Trims Gate Valve Actuators CM Actuator Chokes Non-Retrievable

Retrievable with Clamp Connector Retrievable with Crown Connector Choke Actuators Stepping Linear Choke Actuator (Pneumatic)

Aqua-Torq Actuator (Hydraulic)

Control Elements CAMTROL Advanced Multiplexed Control System Up to 32 Hydraulic Functions

Diver Assist, Guideline, Guidelineless or ROV

Connection Elements Horizontal Pull In or Lay Away Vertical

Diver-Assist

ROV Stab and Hinge Structural Mooring

S u b s e a P ro d u c t i o n

This product overview represents the Cameron preferred products for subsea production applications. Not all products which appear on this list are represented in this catalog. For additional information, contact the Cameron website at camerondiv.com or contact your Cameron representative.

(15)

149

148

Today’s Cameron Modular Subsea And Integrated Completion (MOSAIC) systems build on Cameron’s long history of subsea success. MOSAIC systems are a combination of standardized components that fit together in a modular fashion. In the MOSAIC system, six basic elements or component “families” have been designated.

Position Elements

MOSAIC Position Elements include drilling guidebas-es, production guidebasguidebas-es, templates and porches for other MOSAIC elements, like controls and remote connectors.

Position Elements come guideline and guideline-less, with one, two or three slots and in sizes ranging from small for single satellite or offset wells to large, multi-well templates. Templates are simply the

combination of four or more guidebases into a single, pre-tested unit. Any number of wells can be accommodated through multiples of the three basic guidebases. Position Elements are often combined with Distribution Elements, such as manifolds and umbilical termination assemblies, as complete, pre-engineered assemblies.

Pressure Elements

Subsea wellheads and pressure caps are categorized as Pressure Elements in the MOSAIC System. The pri-mary Cameron wellhead is the STM™Wellhead System, which is offered in standard and enhanced deepwater, high-capacity versions. The STM (single trip, metal-seal) wellhead is an all-purpose product for applications to 15,000 psi.

Distribution Elements

Distribution Elements in the MOSAIC system include flowbases, manifolds and umbilical termination assemblies. These assemblies are used to receive produced fluids from multi-well templates or satellite wells in order to control, commingle and divert the flow to a production riser or pipeline.

Pre-engineered MOSAIC flowbases are available for a variety of single well applications such as production satellite, water injector, gas lift production and intermediate daisy-chain base. For two wells or more, pre-engineered MOSAIC components can be configured into manifolds to be used with satellite producers, injectors, daisy-chains and combinations of these.

MOSAIC

™

_{Subsea Production Systems}

Access Elements

Access Elements include subsea Christmas trees, workover risers, pig launchers and removable pigging loops. Cameron has redesigned its subsea tree products into modular assemblies utilizing pre-engineered subcomponents. These subcompo-nents provide operators with standardized assem-blies, yet allow re-arrangement of the subcom ponents for flexibility in tailoring equipment systems to individual field requirements.

Cameron currently offers a choice of two highly reliable and feature-rich Christmas trees in its MOSAIC system: the innovative Cameron SpoolTree subsea tree, and the Cameron dual bore conven-tional tree. A standard mudline tree configuration is also available.

Control Elements

Control Elements supply power feedback, telemetry and logic to operate other MOSAIC elements. This MOSAIC family includes control systems, chokes, multiplex control modules or pods, Cameron HydraQuad™_{couplers and ROV panels.}

The CAMTROL™ Advanced Multiplexed Subsea Production Control System offers a modular approach to controlling subsea systems. The system is applicable to many field conditions and can be easily adapted for use in deepwater or

shallow water; with trees or manifolds; or with virtually any production scenario.

The CAMTROL system uses common intervention methods for the installation and retrieval of the sub-sea control module,chokes, accumulator modules and multi-phase flow meters. Methods may

include diver-assist, diverless, guideline, guideline-less, ROV assisted and totally autonomous.

The CAMTROL control module incorporates directional control valves which have been miniatur-ized and modularminiatur-ized into a single valve block capable of controlling four functions. Each module can accommodate up to eight directional control valves for control of 32 hydraulic functions.

Connection Elements

Connection Elements include pipeline, flowline and umbilical connection systems and are typically used in horizontal, vertical, diver-assist or ROV-driven applications. MOSAIC Connection Elements utilize common interfaces which allow a variety of different types of connection systems to be attached.

SD24982

(16)

SpoolTree

™

Production Systems

Modular SpoolTree System Spool Body and Valve Assembly Configurations

In the Cameron SpoolTree design,the spool body provides outlets to attach production, annulus and isolation valves for downhole functions and the electrical penetrator bonnet assembly. The tubing hanger landing shoulder is specially ported to accept control stabs and provides hydraulic continuity between the production control system and downhole hydraulics.

The valves are contained both as an integral part of the spool body, and in mini-blocks external to the vertical bore of the tree. A typical valve cluster includes production and annulus master valve, production and annulus wing valve, crossover valve, workover valve and isolation valves for SCSSV, CIV and other requirements. Assemblies are available for 3” through 7” completions.

Basic Chemical Injection Annulus Crossover

Gas Lift Choke

Production Choke The Cameron SpoolTree Production System is one of

the most widely used trees in the world and offers many time and cost saving advantages over conven-tional tree systems.

Instead of the typical wellhead-hanger-tree stack-up, the SpoolTree design has a wellhead-tree-hanger stackup. In this configuration, the Christmas tree consists of a concentric bore spool with a wellhead

connector below and a wellhead connector profile on top. The tubing hanger is hung off inside the spool on a dedicated load shoulder, and the valves are situated on the side of the spool. No valves are in the vertical bore of the wellhead/tree system. The completion is run after the tree is installed and the completion can be pulled with the tree in place and flowline connections undisturbed.

MOSAIC SpoolTree Production Systems can be configured with a wide array of component choices. The possible combinations of components, available pressure ratings and sizes are virtually endless. The result is a cost-effective system that can be adapted to virtually any subsea job.

SpoolTree Subsea Production System 1. Guidebase.

For template or satellite installation. Guideline or guidelineless. Variety of connection types available.

2. Valve Actuator.

25 Compact Modular (CM) modules available. Sizes from 2” to 7”. To 15,000 psi WP .

3. Internal Tree Cap.

WIth or without wireline plugs.

4. Tree Connector.

Mechanical or hydraulic. Deepwater high capacity (DWHC) model available.

5. Wellhead.

STM or STC wellhead. Metal-to-metal or metal end-cap seals. Five or six string configuration. Variety of casing programs.

6. Spool Body and Modular Gate Valve Assembly.

Configured for various production applications. Cameron FL, FLS or FLS-R gate valves. Working pressures up to 15,000 psi.

7. Flowline and Pipeline Connection.

Vertical, horizontal, diver assist or ROV. Common interfaces used throughout.

8. Tubing Hanger.

Up to six hydraulic and two electrical penetrations. 3” through 7” completions.

9. Subsea Choke.

Diver-assist or diverless. Inserts are retrievable or non-retrievable (fixed). Crown or clamp connectors.

10. Control Module.

Up to 32 hydraulic control points. Variety of intervention methods.

11. Debris Cap. (Not Shown)

Weight set or hydraulic

1 2 3 4 5 6 7 8 9 10

SpoolTree Production System

150

SD24881

(17)

Dual Bore Production Systems

Production

Production with

Internal Crossover Production with InternalCrossover and Choke Production with Choke andAnnulus Connection Production

with Choke Gas Lifted Production with Two Chokes

Cameron Dual Bore Production System Valve Assembly Configurations

The Cameron Modular Dual Bore Tree has a total of 320 pre-determined master valve block assemblies to choose from, covering most system arrangements. Valve assemblies are available in 4", 5", or 6-3/8" nominal bore sizes with 5,000, 10,000 or 15,000 psi WP ratings. Valve assemblies feature field-proven Cameron FLS gate valves with one-piece gate, spring-loaded seats and corrosion-resistant, metal-to-metal seals for maxi-mum sealing integrity.

A choice of 40 valve module arrangements is available for each wing valve block, covering requirements for production, water injection and gas lift. The modules offer flexibility in location of crossover valve, chemical injection valve, etc. Master and swab valves are located in the well bore. Either commercial cartridge-type isolation needle valves or Cameron heavy-duty isolation needle valves can be used for chemical injection and control line isolation.

Dual Bore Subsea Production System 1. Guidebase.

For template or satellite installation. Guideline or guidelineless. Variety of connection types available.

2. Valve Actuator.

25 Compact Modular (CM) modules available. Sizes from 2” to 7”. To 15,000 psi WP .

3. External Tree Cap. (Not Shown)

WIth or without wireline plugs.

4. Tree Connector.

Mechanical or hydraulic. Deepwater high capacity (DWHC) model available.

5. Wellhead.

STM or STC wellhead. Metal-to-metal or metal end-cap seals. Five or six string configuration. Variety of casing programs.

6. Modular Valve Assembly.

Total of 320 configurations available. Cameron FLS gate valves. Working pressures up to 15,000 psi.

7. Flowline and Pipeline Connection.

Vertical, horizontal, diver assist or ROV. Common interfaces used throughout.

8. Tubing Hanger.

Choice of tubing sizes, threads and wireline preps. Metal seals with resilient backup available. One to four SCSSC ports. With or without electrical penetrator.

9. Subsea Choke.

Diver-assist or diverless. Inserts are retrievable or non-retrievable (fixed). Crown or clamp connectors.

10. Control Module.

Up to 32 hydraulic control points. Variety of intervention methods.

The highly successful Cameron Dual Bore Production System has been the number one choice of opera-tors for many years. More than 300 have been delivered worldwide since it was introduced in 1985. Today’s version has been reengineered for modularity and standard interfaces that have been added to ensure compatibility with a wide range of systems and components.

The dedicated annulus bore and vertical full-bore access to both the production tubing and annulus provide several advantages. The tubing casing annulus can be circulated and pressure bled off. This simplifies troubleshooting by enabling annulus monitoring for downhole pressure and temperature, sand production and tubing and packer leaks. Well servicing and well conversion are easier and rig hands are familiar with the running tools. In

addition, one or more electrical penetrators can be provided for downhole pressure and temperature gauges and for electrical submersible pumps.

Versions of the dual bore tree are offered for 5000, 10,000 and 15,000 psi WP and water depths to 10,000 feet. They are used for oil and gas production, gas and water injection service on satellite wells, clusters or templates.

151

2 4 5 6 7 8 9 10

Dual Bore Production System SD24882

1

SD24883

(18)

152 Subsea Systems

MOSAIC Deepwater Cluster Manifold Production System

Four-Well Cluster Manifold System Deployed Through Moon Pool World’s First 15,000 psi WP Subsea Tree

Ultra-Deepwater, High Capacity Guidelineless SpoolTree System 12” Cameron Vertical Connection (CVC) Rigid Pipeline Jumper System

7” x 2” Dual Bore Subsea Tree

SD24966 SD24963

SD24964

SD24965 SD24826

SD24967

(19)

Surface Production

Products Overview . . . .153

Conventional Wellhead Systems

S Conventional Wellhead System . . . .154

IC Convention Wellhead System . . . .154

Compact and Multi-Bowl Wellheads

Standard Snapring Modular Compact (SSMC

™

₎

Wellhead . . . .155

Metal Seal Split Compact Wellhead . . . .155

Multi-Bowl Wellhead System (MBS) . . . .155

Wellhead Seals . . . .155

Conductor Sharing Wellhead (CSW

™

_{) . . . .156}

SpoolTree

™

_{Wellhead System . . . .156}

Adjustable Wellhead System . . . .156

Wellhead Connection Systems

CAMFORGE

™

_{Connection System . . . .157}

FastLock

™

_{Connector . . . .157}

FlangeLock

™

_{Connector . . . .157}

FastClamp

™

_{Connector . . . .157}

SlipLock

™

_{Connection System . . . .157}

₁₅₃

Products Overview

S u r f a c e P ro d u c t i o n

Components Variations Wellhead Systems Conventional S Wellhead IC Wellhead

Compact Standard Snapring Modular Compact (SSMC) Wellhead

Metal Seal Split Compact Wellhead

Multi-Bowl MBS Wellhead

Innovative Conductor Sharing Wellhead (CSW)

SpoolTree Wellhead Adjustable Wellhead WMSW

Mudline Suspension Centric 15

Centric 15 EX

Geothermal Conventional

Compact

Completion Systems

Single Completions Standard (Single or Dual)

Metal Sealing (MTBS)

Dual Completions CD-2 Tubing Spool with CD-2, CD-2T, CD-2T-CL Hangers

Wellhead Connection Systems

Cold Forged CAMFORGE Wellhead Connection Systems Mechanical SlipLock Connection Systems

FastLock Connectors FastClamp Connectors FlangeLock Connectors

Gate Valves

Slab-Style Gates FL Gate Valves

FLS Gate Valves FLS-R Gate Valves

Expanding Gates M Gate Valves

M215 Gate Valves

Gate Valve Actuators

Pneumatic MP Series Piston Saf-T-Gard Actuators

MA Series Diaphragm Saf-T-Gard Actuators

Hydraulic MH 70 Series Saf-T-Gard Actuators

MH 60 Series Saf-T-Gard Actuators

Hydraulic Wireline Cutting MSVW Saf-T-Gard Actuators

MWH Saf-T-Gard Actuators

Chokes

Control Chokes Plug and Cage Control Chokes

External Sleeve Control Chokes

Needle and Seat Chokes H2 Classic Positive and Adjustable Chokes

H2I Positive and Adjustable Chokes

Multiple Orifice Valves (MOVs) MC10 Choke

MC20 Choke

Choke Actuators

Electric Used on MOVs Stepping Linear Choke Actuator (SLCA ) Used on Control Chokes

This product matrix represents the Cameron preferred products for surface production applications. Not all products which appear on this list are represented in this catalog. For additional information, contact the Cameron website at camerondiv.com or contact your Cameron representative.

(21)

154

and interchangability required for a wide range of applications. Both the S and IC wellheads consist of the lower casing head housing and hanger, and the subsequent casing head spools and hangers. Although the wellheads are not interchangeable, the S wellhead may be used in place of the IC wellhead for all applications. Both wellheads are compatible with most Cameron tubing spool and hanger configurations

S Conventional Wellhead System

The Cameron S Conventional Wellhead System offers the industry’s highest capacity conventional spool-type wellhead and is designed for use with all well depths and all types of completions. It incorporates dual landing shoulders for maximum casing support. This wellhead is the preferred wellhead for the conditions noted in the chart below.

Working Pressure: Up to 15,000 psi (Excluding tubing spool) Operating Temperatures: -20°F to +250°F (-29°C to +121°C) Hang-Off Capacity: Up to 80% of pipe body yield Casing Head Housings: S, S-11, S-3

Casing Head Spools: S, S-11, S-3

Casing Hangers: SB-3, SB-5, SB-6 slip and seal assemblies Tubing Spools and Hangers: Standard spool: HT, HT-2, T, T-CL,

C-SRL, C-SRL-CL hangers MTBS spool: MTBS hanger

CD-2 spool: CD-2, CD-2T, CD-2T-CL hangers

IC Conventional Wellhead System

The Cameron IC Conventional Wellhead System is the preferred wellhead for the conditions noted in the chart below. Although components are not interchangeable, the S Wellhead may be used in place of the IC wellhead for these applications as well.

Working Pressure: Up to 10,000 psi (Excluding tubing spool) Operating Temperatures: -20°F to +150°F (-29°C to +65°C) Hang-Off Capacity: Up to 50% pipe body yield Casing Head Housings: IC-2, IC-2-BP

Casing Head Spools: IC-2, IC-2-BP, IC-2-L

Casing Hangers: IC-1, IC-1P, IC-2 slip and seal assemblies Tubing Spools and Hangers: Standard spool: HT, HT-2, T, T-CL,

C-SRL, C-SRL-CL hangers MTBS spool: MTBS hanger

CD-2 spool: CD-2, CD-2T, CD-2T-CL hangers

Completion Systems

Cameron offers a wide variety of tubing spools and hangers for all types of completions: single, dual and high pressure. Completion systems range from low pressure, conventional equipment to systems for severe service and geothermal applications. Like the S and IC wellhead components, all Cameron completion equipment meets or exceeds API 6A specifications. Cameron also offers a complete line of surface Christmas trees to suit all tubing programs for working pressures up to 30,000 psi.

Conventional Wellhead Systems

How to Select a Cameron Wellhead System

The first step in determining which Cameron wellhead system to use is to determine the casing hanger style that best suits the application. Each hanger profile is unique and is generally compatible with only a limited number of casing head/spool bowls. Cameron has a complete line of slip-type casing hangers divided into two types: SB and IC, each serving different applications.

Casing Hanger Selection Chart A P I T E M P E R A T U R E R A N G E 250°F 121°C 180°F 82°C 150°F 65°C 100°F 38°C 50°F 10°C 0°F -17°C -20°F -29°C 0 10% 20% 30% 40% 50% 60% 70% 80% U T S P Hang-Off Capacity (% of Pipe Body Yield)

(Operating conditions verified by API 6A, 17th Edition, Appendix F testing) IC -1 IC-1-P IC-2 SB-6 SB-5 SB-3 S Conventional Wellhead System IC Conventional Wellhead System

(22)

Standard Snapring Modular Compact (SSMC™_{) Wellhead}

The SSMC Wellhead is a total system designed to accommodate a variety of standard casing programs and working pressures, while using a minimum number of interchangeable components.

Sizes: 7-1/16” through 20-3/4” Working Pressures: Up to 10,000 psi

Temperature Range: -20°F to +250°F (-29°C to +121°C) Side Outlets: Line pipe threaded, studded Top Connection: FastLock or FlangeLock Annulus Seals: LS or metal-end-cap (MEC)

Tubing Hangers: Interchangeable single, dual and tensioned Tubing Hanger Neck Seal: Straight radial lip (SRL)

Metal Seal Split Compact Wellhead

The Metal Seal Split Compact Wellhead is a metal sealing compact wellhead which features a split design.

Sizes: 11” through 20-3/4” Working Pressures: Up to 15,000 psi

Temperature Range: -20°F to +350°F (-29°C to +177°C) Side Outlets: Line pipe threaded, studded Top Connection: FastLock or FlangeLock Annulus Seals: JS

Tubing Hangers: Interchangeable single, dual Tubing Hanger Neck Seal: Straight radial lip (SRL)

MBS Multi-Bowl Wellhead System

The Cameron MBS Multi-Bowl Wellhead System is a compact, multi-bowl wellhead which can be used as an alternative to conventional wellhead systems in platform applications.

Sizes: 11” through 13-5/8” Working Pressures: 10,000 psi

Temperature Range: -20°F to +250°F (-29°C to +121°C) Casing Connections: Casing box thread, slip-on weld with

O-ring, CAMFORGE, SlipLock

Side Outlets: Line pipe threaded, studded Lock Screws: Two sets of Type N Top Connection: Flanged Casing Hangers: Mandrel

Annulus Seals: Energized with plastic packing or lockscrew Tubing Hangers: Mandrel

Tubing Hanger Neck Seal: Elastomer/Metal

Wellhead Seals

Cameron wellheads offer a selection in sealing technology which increases versatility and ensures that the wellhead is adaptable for any production environment. Available seals include metal-to-metal seals in primary sealing applications and either LS elastomer seals of the Cameron-exclusive Metal End-Cap (MEC) seal in the annulus. All elastomer seals are available in premium elastomer materials developed by Cameron Elastomer Technology specifically for oilfield applications.

155 Compact and Multi-Bowl Wellheads

SSMC Compact Wellhead

SD016743 SD016777

Metal Seal Split Compact Wellhead

SD016742

(23)

156 Conductor Sharing, SpoolTree and Adjustable Wellheads

SpoolTree Wellhead CSW Wellhead

SD016746 SD016734

Adjustable Wellhead System SD24874

Conductor Sharing Wellhead (CSW™₎

The Cameron CSW system provides compact wellhead technology for drilling two or more wells through one conductor.

Sizes: 9” through 20-3/4” Working Pressures: Up to 10,000 psi

Temperature Range: -20°F to +250°F (-29°C to +121°C) Side Outlets: Line pipe threaded, studded Top Connection: Flanged, JB threaded Annulus Seals: LS or metal-end-cap (MEC)

Tubing Hangers: Interchangeable single, dual or tensioned Tubing Hanger Neck Seal: S or straight radial lip (SRL)

SpoolTree™_{Wellhead System}

The Cameron SpoolTree Wellhead System incorporates a unique design that allows maximum production flexibility while reducing costs and improving safety. Workover operations are optimized with minimal equipment handling.

Sizes: 7-1/16” through 20-3/4” Working Pressures: Up to 10,000 psi

Temperature Range: - 20°F to +250°F (-29°C to + 121°C) Side Outlets: Line pipe threaded, studded

Secondary Seals: Single P, Single T, Double T, NX Bushing,

Double P

Top Connection: Flanged, FastLock, FlangeLock Annulus Seals: LS or metal-end-cap (MEC) Tubing Hangers: Single spool type

Adjustable Wellhead System

The Cameron Adjustable Wellhead System is designed for deepwater comple-tions such as TLPs, SPARs and DDCVs where casing will be suspended at the mudline. Systems are available for both single and dual protective casing risers. All systems are designed with fire-resistant sealing and connection technology for maximum safety.

Sizes: 11” and 13-5/8” Working Pressures: Up to 15,000 psi

Temperature Range: - 20°F to +350°F (-29°C to + 177°C)

with API 6FA, 6FB and 6FC capability

Secondary Seals: Metal end-cap (MEC) or metal-to-metal Top Connection: FastLock

(24)

Cameron offers several connection systems which feature reduced make-up time and increased safety. The CAMFORGE and SlipLock systems are used primarily to attach wellhead housings to surface casing. The FastLock, FlangeLock and FastClamp connections are fast make-up connectors used as end connections for wellhead spools, housings and BOPs.

CAMFORGE™_{Connection System}

The CAMFORGE Connection System incorporates a weldless bottom connection that makes installation fast, safe and economical. Production losses created by shutting in adjacent wells due to welding are eliminated. Problems associated with welding are avoided because the CAMFORGE connection is made using hydraulic pressure to expand the surface casing and housing.

Application: Surface conductor-to-casing head housing connection Compatibility: S and IC wellheads, compact wellheads

Seal Type: Metal-to-metal Sizes: Wide range of sizes Working Pressures: Up to 10,000 psi

FastLock™_Connector

The FastLock Connector is designed to replace flanged connections for wellheads and reduce make-up time.

Application: Replaces standard flanged connection

Compatibility: Fits reduced diameter proprietary hubs and standard API

hubs

Gasket Type: CF, BX, RX Working Pressures: Up to 15,000 psi

Trim: Fire-tested to API 6FB Part I and II and thermal cycled per

API 6A Appendix F. Meets NACE and API specifications for H2S service.

FlangeLock™_Connector

The FlangeLock Connector has been designed as an alternative to the production version of the FastLock Connector and can be bolted directly to the Fastlock connector hubs. This allows for a smaller overall completion connection while providing maximum flexibility for drilling and workover operations.

Application: Alternative to production FastLock connector Compatibility: Bolts directly to FastLock hub

Gasket Type: CF Working Pressures: Up to 6500 psi

Trim: Fire-tested to API 6FB Part I and II and thermal cycled per

API 6A Appendix F. Meets NACE and API specifications for H2S service.

FastClamp™_Connector

The FastClamp Connector was developed as an alternative to the conventional clamp assemblies and fits standard clamp hub profiles using conventional API ring gaskets. The connector features reduced make-up torque, faster make-up times and improved safety over conventional clamps.

Application: Replaces standard clamp connections Compatibility: Fits all standard clamp hub profiles Gasket Type: Conventional API ring gaskets Working Pressures: Up to 15,000 psi

SlipLock™_{Connection System}

The SlipLock Connection System uses a simple slip-type mechanism to replace conventional casing threads or slip-on preparations which require field welding.

Application: Surface conductor-to-casing head housing connection Compatibility: S and IC conventional wellheads, compact wellheads Seal Type: Elastomer (P seal) or metal-to-metal (CANH™ _seal)

Sizes: Wide range of sizes Working Pressures: Up to 10,000 psi

157 Wellhead Connection Systems

SD016801 FastLock Connector SD016220 FlangeLock Connector SD016260 FastClamp Connector SD016259 SlipLock Wellhead Housing
