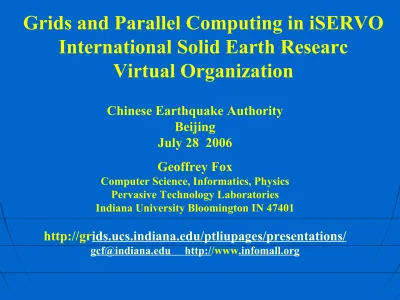

Grids and Parallel Computing in iSERVO

International Solid Earth Researc

Virtual Organization

Chinese Earthquake Authority Beijing

July 28 2006 Geoffrey Fox

Computer Science, Informatics, Physics Pervasive Technology Laboratories Indiana University Bloomington IN 47401

http://grids.ucs.indiana.edu/ptliupages/presentations/

(2)

APEC Cooperation for Earthquake Simulation

n ACES is a seven year-long collaboration among scientists

interested in earthquake and tsunami predication

• iSERVO is Infrastructure to suppor work of ACES

• SERVOGrid is (completed) US Grid that is a prototype of iSERVO

• http://www.quakes.uq.edu.au/ACES/

n Chartered under APEC –

(3)

Participating Institutions

n CSIRO Australia

n Monash University Australia

n University of Western Australia, Perth,

Australia

n University of Queensland Australia

n University of Western Ontario Canada n University of British Columbia Canada

n China National Grid

n Chinese Academy of Sciences

n China Earthquake Administration n China Earthquake Network Center

n Brown University n Boston University

n Jet Propulsion Laboratory n Cal State Fullerton

n San Diego State University

n UC Davis

n UC Irvine n UC San Diego

n University of Southern California n University of Minnesota

n Florida State University n US Geological Survey

n Pacific Tsunami Warning Center PTWC

Hawaii

n National Central University, Taiwan

(Taiwan Chelungpu-fault Drilling Project)

n University of Tokyo

n Tokyo Institute of Technology (Titech) n Sophia University

n National Research Institute for Earth

Science and Disaster Prevention (NIED) Japan

(4)

Grids v Parallel Computing

n

Computers Networks Sensors

C1 C2

Time?

(5)

Requirements for MPI Messaging

n MPI and SOAP Messaging both send data from a source to a

destination

• MPI supports multicast (broadcast) communication;

• MPI specifies destination and a context (in comm parameter)

• MPI specifies data to send

• MPI has a tag to allow flexibility in processing in source processor • MPI has calls to understand context (number of processors etc.)

n MPI requires very low latency and high bandwidth so that

tcomm/tcalc is at most 10

• BlueGene/L has bandwidth between 0.25 and 3

Gigabytes/sec/node and latency of about 5 microseconds

• Latency determined so Message Size/Bandwidth > Latency

tcomm

(6)

Requirements for SOAP Messaging

n Web Services has much of the same requirements as MPI with

two differences where MPI more stringent than SOAP

• Latencies are inevitably 1 (local) to 100 milliseconds which is

200 to 20,000 times that of BlueGene/L

n 1) 0.000001 ms – CPU does a calculation n 2) 0.001 to 0.01 ms – MPI latency

n 3) 1 to 10 ms – wake-up a thread or process n 4) 10 to 1000 ms – Internet delay

• Bandwidths for many business applications are low as one

just needs to send enough information for ATM and Bank to define transactions

n SOAP has MUCH greater flexibility in areas like security,

fault-tolerance, “virtualizing addressing” because one can run a lot of software in 100 milliseconds

• Typically takes 1-3 milliseconds to gobble up a modest

(7)

Database Database Analysis and Visualizatio Portal Repositorie Federated Databases Data Filte Services

Field Trip Data

Streaming Data Sensor s

?

Discovery Services SERVOGrid Researc Simulation s Research Education Customization Services From Researc to Education Educatio Grid Computer Farm

Grid of Grids: Research Grid and Education Grid

GI Grid

Sensor Grid Database Grid

(8)

What is e-Science?

‘e-Science is about global collaboration in key

areas of science, and the next generation of

infrastructure that will enable it.’

John Taylor

Director General of Research Councils

UK, Office of Science and Technology

Ø

e-Science is about developing tools and

(9)

Engine flight data

Airline office

Maintenance Centre

European data centre London Airport

New York Airport

American data center Gri

d Diagnostics Centre

DAME: Operational Scenario

Rolls Royce and UK e-Science Progra

Distributed Aircraft Maintenance

Environment

~ Gigabyte per aircraft per Engine per

transatlantic flight

(10)

UK National Grid Service

Grid Operation Support Centre

Web Services based

(11)

Computation Starlight (Chicago)

Netherlight (Amsterdam)

Leeds

PSC SDSC

UCL

Network PoP Service Registry NCSA

Manchester

UKLight Oxford

RAL

US TeraGrid

UK NGS

Steering clients

SC05

Local laptops in Seattle and UK All sites connected by

production network (not all shown)

Towards an

(12)

The Data Deluge

• In next 5 years e-Science projects will

produce more scientific data than has been

collected in the whole of human history

• Some normalizations:

–

The Bible = 5 Megabytes

–

Annual refereed papers = 1 Terabyte

–

Library of Congress = 20 Terabytes

–

Internet Archive (1996 – 2002) = 100 Terabytes

Ø

In many fields new high throughput

(13)

UNIVERSITY OF CALIFORNIA, SAN DIEGO SAN DIEGO SUPERCOMPUTER CENTER

Fran Berman

Hubble Telescope

Palomar Telescope

Sloan Telescope

“The Universe is now being explored systematically, in a panchromatic way, over a range of spatial and

temporal scales that lead to a more complete, and less biased understanding of its constituents, their evolution, their origins, and the

physical processes governing them.”

Towards a National Virtual Observatory

(14)

Virtual Observatory Astronomy Gri

Integrate Experiments

Radio Far-Infrared Visible

Visible + X-ray

Dust Map

(15)

eDiaMoND Project

Mammograms have different

appearances, depending on image settings and acquisition systems

Stand ard Mamm

o Forma

t

Temporal

mammography

Computer Aided Detection

(16)

(17)

a

Topography 1 km

Stress Change

Earthquakes

PBO

Site-specific Irregular

Scalar Measurements Constellations for Plate Boundary-Scale Vector Measurements

a

Ice Sheets Volcanoes

Long Valley, CA

Northridge, CA

(18)

Grid Workflow Datamining in Earth Science

n Work with Scripps Institute

n Grid services controlled by workflow process real time

data from ~70 GPS Sensors in Southern California

Streaming Data Support

Transformations Data Checking

Hidden Marko Datamining (JPL)

Display (GIS)

NASA GPS

(19)

SERVOGrid has a portal

(20)

Background: Earthquake Forecast – Published Feb 19, 2002, in PNAS.

( JB Rundle et al., PNAS, v99, Supl 1, 2514-2521, Feb 19, 2002; KF Tiampo et al., Europhys. Lett., 60, 481-487, 2002; JB Rundle et al.,Rev. Geophys. Space Phys., 41(4), DOI 10.1029/2003RG000135 ,2003. http://quakesim.jpl.nasa.gov )

Color Scale  Decision Threshold

D.T. => “false alarms” vs. “failures to predict”

CL#03-2015

Plot of Log10 (Seismic Potential)

Increase in Potential for significant events, ~ 2000 to 2010

Eighteen significant earthquakes (M > 4.9; blue circles) have occurred in Central or Southern California. Margin of error of the anomalies is +/- 11 km; Data from S. CA. and N. CA catalogs:

After the work was completed

1. Big Bear I, M = 5.1, Feb 10, 2001 2. Coso, M = 5.1, July 17, 2001

After the paper was in press ( September 1, 2001 ) 3. Anza I, M = 5.1, Oct 31, 2001

After the paper was published ( February 19, 2002 ) 4. Baja, M = 5.7, Feb 22, 2002

5. Gilroy, M=4.9 - 5.1, May 13, 2002 6. Big Bear II, M=5.4, Feb 22, 2003 7. San Simeon, M = 6.5, Dec 22, 2003

8. San Clemente Island, M = 5.2, June 15, 2004 9. Bodie I, M=5.5, Sept. 18, 2004

10. Bodie II, M=5.4, Sept. 18, 2004 11. Parkfield I, M = 6.0, Sept. 28, 2004 12. Parkfield II, M = 5.2, Sept. 29, 2004 13. Arvin, M = 5.0, Sept. 29, 2004

14. Parkfield III, M = 5.0, Sept. 30, 2004 15. Wheeler Ridge, M = 5.2, April 16, 2005 16. Anza II, M = 5.2, June 12, 2005

17. Yucaipa, M = 4.9 - 5.2, June 16, 2005 18. Obsidian Butte, M = 5.1, Sept. 2, 2005

(21)

Grid Workflow Data Assimilation in Earth Science

n Grid services triggered by abnormal events and controlled by workflow process real

time data from radar and high resolution simulations for tornado forecasts

(22)

TeraShake

Simulation

area

600 km by 300 km by 80 km

dx=200m

(23)

Peak Velocity

NW-SE Rupture SE-NW rupture

(24)

Grids and Cyberinfrastructure

n Grids are the technology based on Web services that implement

Cyberinfrastructure i.e. support eScience or science as a team sport

• Internet scale managed services that link computers data

repositories sensors instruments and people

n There is a portal and services in SERVOGrid for

• Applications such as GeoFEST, RDAHMM, Pattern

Informatics, Virtual California (VC), Simplex, mesh generating programs …..

• Job management and monitoring web services for running

the above codes.

• File management web services for moving files between

various machines.

• Geographical Information System services

• Quaketables earthquake specific database

• Sensors as well as databases

• Context (dynamic metadata) and UDDI system long term

metadata services

(25)

Pacific Rim Universities

(APRU ) PRAGMA SERVOGrid GEON SCECGrid Vlab Earth Simulator Naregi

China National Grid Access Infrastructure Institutions IMS International TeraShake Pattern Informatics ALLCAL GeoFEST, PARK, VirtualCalifornia QuakeTables Sesismic InSAR PBO (GPS) U.S.A. FORMOSAT-3/COSMIC (F/C) Chines Taipei JST-CREST GeoFEM GPS Seismic Daichi (InSAR) Japan CAS LURR Seismic GPS P.R. China Pattern Informatics Polaris Radarsat Canada prototype Finley, LSM PANDAS Seismic data, fault database, GPS Australia Wave Motion Earthquake Forecast/Model Data (shared

as part of collaboration) Country

and/or Economies

(26)

Current PTWC Network of Seismic Stations

(27)

National/Earthquake Grids of Relevance

n APAC –GT2 GT4 gLite

n ACcESS – Some link to SERVOGrid

n China National Grid – GOS GT3 GT4

n ChinaGrid – CGSP built on GT4

n CNGI – China’s Next Generation Internet has significant

earthquake data component

n Naregi – Uses GT4 and Unicore with much enhancements

n Japanese Earthquake Simulation Grid – unclear

n K*Grid Korea Enhanced SRB, GT2 to GT4

n TIGER Taiwan Integrated Grid for Education and Research

unclear technology and unclear earthquake relevance

n SERVOGrid – Uses WS-I+ simple Web Services

n TeraGrid – Uses GT4 but not a clear model except for core job

(28)

TeraGrid: Integrating NSF Cyberinfrastructure

TeraGrid is a facility that integrates computational, information, and analysis resources at the San Diego Supercomputer Center, the Texas Advanced Computing Center, the University of Chicago / Argonne National Laboratory, the National Center for Supercomputing Applications, Purdue University,Indiana University, Oak Ridge National Laboratory, the Pittsburgh

Supercomputing Center, and the National Center for Atmospheric Research.

Today 100 Teraflop; tomorrow a petaflop; Indiana 20 teraflop today.

SDSC

TACC

UC/ANL

NCSA

ORNL

PU

IU

PSC NCAR

Caltech

USC-ISI Utah

Iowa

Cornell Buffalo

(29)

QPSF ANU VPAC ac3 TPAC CSIRO Network:

GrangeNet / AARNet

APAC Private Network (AARNet)

Security:

APAC CA MyProxy VOMRS

APAC National Gri

Core Grid Services

Portal Tools: GridSphere Info Services: APAC Registry INCA2? IVEC SAPAC APAC National Facility Systems: Gateways Partners’ systems QPSF (JCU)

(30)

National “Grid Projects” in China

Net-based Res. Env. Plan Research Develop Production Procur Deplo Operat Manage CAS e-Science

Science and Technology R &D Assets Foundation Platform

Next-Generation Network Initiative Edu. & Res. Grid Chin National Grid Stat Council NSF CAS MoE MoST Nationa Plannin Commission Semantic Grid China e-Nation Strategy (2006-2020)

Virtual Comp. Env.

(31)

CNGrid (2006-2010)

• HPC Systems

– 100 Tflop/s by 2008, Pflop/s by 2010?

• Grid Software Suite: CNGrid GOS

– Merge with

international efforts

– Emphasize production

• CNGrid Environment

– Nodes, Centers, Policies

• Applications

– Science

– Resource & Environment – Manufacturing

– Services

(32)

Cyber Science Infrastructure toward Petascale Computing (planned 2006-2011)

Cyber-Science Infrastructure（ＣＳＩ）

（_{IT Infra. for Academic Research and Education)}

Operation/ Maintenan ce （_Middlewa re） Networkin g Contents

NII

Collaborative Operation Center

Delivye r

Delivery

Networking Infrastructure (Super-SINET）

　　_{Univ./National} Supercomputing 　　_VO Domain Specific VO (e.g ITBL) Feedback Feedback R&D Collaboration Operaontional Collaborati Middlewa re CA NAREGI Site Research Dev.（　

　）βver.V1.0 V2.0 International Collaboration - EGEE - UNIGRIDS -Teragrid　 -GGF etc. Feedback Deliver y Project-Oriented VO Delivery Domain Specific VOs Customization Operation/Maintenance

ナノ分野実証・評価

分子研ナノ分野実証・評価

分子研

Nano Proof of al.Concept Eval. IMS Nano Proof, Eval. IMS Joint Project

（_Bio）

Osaka-UJoint Project AIST R&D Collaboration Industrial Projects Project-oriented VO

Note: names of VO are tentative） Peta-scale System VO Core Site R&D Collaboration Operation/ Maintenance

（_UPKI,CA）

(33)

(34)

GONET _Hi-net K-NET

Database for Model Construction Plate

Motion

Platform for Integrated Simulation

Data Processing, Visualization, Linear Solvers

Simulation Output

PC clusters for small-intermediate problems

Earth Simulator for large-scale problems

GIS Urban Information Tectonic Loading Earthqua keRuptur e Structure Oscillatio n Wave Propagati on Tsunami Generatio n Earthquake Generation

Strong Motion and Tsunami Generation

JST-CREST Integrated Predictive Simulation System

Artificial Structure Oscillation
