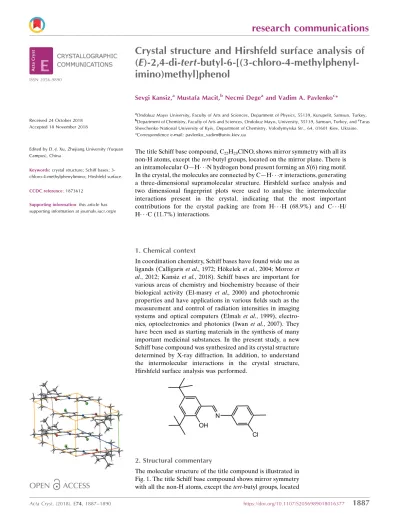

Crystal structure and Hirshfeld surface analysis of

(

E

)-2,4-di-

tert

-butyl-6-[(3-chloro-4-methylphenyl-imino)methyl]phenol

Sevgi Kansiz,aMustafa Macit,b Necmi Degeaand Vadim A. Pavlenkoc*

a

Ondokuz Mayıs University, Faculty of Arts and Sciences, Department of Physics, 55139, Kurupelit, Samsun, Turkey,

b

Department of Chemistry, Faculty of Arts and Sciences, Ondokuz Mayıs, University, 55139, Samsun, Turkey, andcTaras Shevchenko National University of Kyiv, Department of Chemistry, Volodymyrska Str., 64, 01601 Kiev, Ukraine. *Correspondence e-mail: [email protected]

The title Schiff base compound, C22H28ClNO, shows mirror symmetry with all its

non-H atoms, except thetert-butyl groups, located on the mirror plane. There is an intramolecular O—H N hydrogen bond present forming anS(6) ring motif. In the crystal, the molecules are connected by C—H interactions, generating a three-dimensional supramolecular structure. Hirshfeld surface analysis and two dimensional fingerprint plots were used to analyse the intermolecular interactions present in the crystal, indicating that the most important contributions for the crystal packing are from H H (68.9%) and C H/ H C (11.7%) interactions.

1. Chemical context

In coordination chemistry, Schiff bases have found wide use as ligands (Calligariset al., 1972; Ho¨keleket al., 2004; Morozet al., 2012; Kansiz et al., 2018). Schiff bases are important for various areas of chemistry and biochemistry because of their biological activity (El-masry et al., 2000) and photochromic properties and have applications in various fields such as the measurement and control of radiation intensities in imaging systems and optical computers (Elmalı et al., 1999), electro-nics, optoelectronics and photonics (Iwan et al., 2007). They have been used as starting materials in the synthesis of many important medicinal substances. In the present study, a new Schiff base compound was synthesized and its crystal structure determined by X-ray diffraction. In addition, to understand the intermolecular interactions in the crystal structure, Hirshfeld surface analysis was performed.

2. Structural commentary

The molecular structure of the title compound is illustrated in Fig. 1. The title Schiff base compound shows mirror symmetry with all the non-H atoms, except thetert-butyl groups, located

on the mirror plane. The C14—O1 bond distance is 1.349 (3) A˚ , the C8 N1 and C5—N1 bond lengths are 1.278 (4) and 1.412 (4) A˚ , respectively, and the C7—Cl1 bond distance is 1.744 (3) A˚ . There is an intramolecular O—H N hydrogen bond present (Table 1), forming an S(6) ring motif.

3. Supramolecular features

In the crystal, the molecules are connected by C1—H1B interactions, generating a three-dimensional supramolecular structure (Table 1 and Fig. 2).

4. Database survey

There are no previous reports of the title structure. However, several related structure have been reported (CSD, version 5.39, update May 2018; Groomet al., 2016), including bis{(E )- 1-[(3-chloro-4-methylphenylimino)methyl]naphthalen-2-ol-ate-N,O}copper(II) (SICXOU; Topraket al., 2018), 2-{(E )-[(3- chloro-4-methylphenyl)imino]methyl}-4-(trifluoromethoxy)-phenol (TERTUI; Atalay et al., 2017), {2,20

-[4-chloro-5-methyl-o -phenylenebis(nitrilomethylidyne)]diphenolato}nick-el(II) (WABDEK; Wang, 2010) and 4-[(E )-(3-chloro-4-methylphenyl)iminomethyl]-2-methoxy-3-nitrophenyl acetate (GAPPOE; Suet al., 2012). In all four compounds, the C—Cl bond lengths vary from 1.724 to 1.743 A˚ . In the title compound, the C7—Cl1 bond length is 1.744 (3) A˚ .

5. Hirshfeld surface analysis

The Hirshfeld surface analysis was performed using Crystal-Explorer(Turneret al., 2017). The Hirshfeld surfaces and their associated two-dimensional fingerprint plots were used to quantify the various intermolecular interactions in the synthesized complex. The Hirshfeld surfaces mapped over

dnorm,deanddiare illustrated in Figs. 3 and 4. The red spots on

1888

Kansizet al. _C

22H28ClNO Acta Cryst.(2018). E74, 1887–1890

[image:2.610.312.566.74.131.2]

research communications

Table 1

Hydrogen-bond geometry (A˚ ,_).

Cgis the centroid of the C9–C14 benzene ring.

D—H A D—H H A D A D—H A

O1—H1 N1 0.82 1.84 2.582 (3) 149 C1—H1B Cg1i _{0.96 2.77 3.5072 (4) 134}

[image:2.610.44.294.107.148.2]

Symmetry code: (i)xþ1;yþ1 2;zþ1.

Figure 2

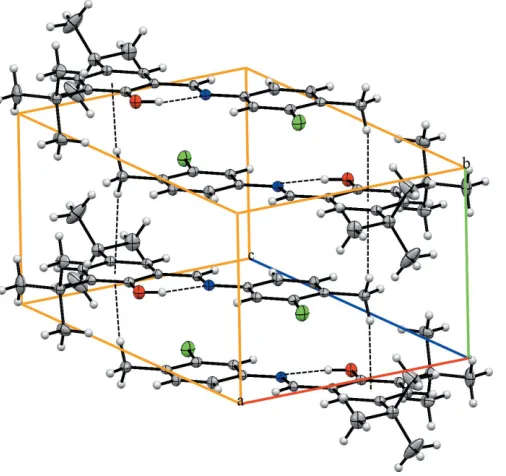

A view of the crystal packing of the title compound. Dashed lines denote the intramolecular and intermolecular hydrogen bonds.

Figure 3

[image:2.610.46.295.265.420.2]

The Hirshfeld surface of the title compound mapped overdnorm,diandde.

Figure 1

The molecular structure of the title compound, showing the atom labelling. Displacement ellipsoids are drawn at the 10% probability level. Symmetry code: (i)x,y+1

[image:2.610.49.302.480.718.2]

2,z.

Figure 4

Hirshfeld surface mapped overdnormfor visualizing the intermolecular

[image:2.610.313.563.567.712.2]

the surfaces indicate the intermolecular contacts involved in strong hydrogen bonds and interatomic contacts (S¸en et al., 2017; Kansız & Dege, 2018; Sen et al., 2018; Gumus et al., 2018). The Hirshfeld surfaces were calculated using a standard (high) surface resolution with the three-dimensional dnorm

surfaces mapped over a fixed colour scale of0.031 (red) to

2.139 (blue) a.u. The red spots identified in Fig. 3 correspond to the near-type H contacts resulting from the C—H interactions (Table 1).

Fig. 5 shows the two-dimensional fingerprint of the sum of the contacts contributing to the Hirshfeld surface represented in normal mode. The graph shown in Fig. 6(a) (H H) shows the two-dimensional fingerprint of the (di, de) points

asso-ciated with hydrogen atoms. It is characterized by an end point that points to the origin and corresponds todi=de= 1.08 A˚ ,

which indicates the presence of the H H contacts in this study (68.9%). The graph shown in Fig. 6(b) shows the (C H/H C) contacts between the carbon atoms inside the surface and the hydrogen atoms outside the Hirshfeld surface and vice versa, which contribute 11.7%. There are two symmetrical wings on the left and right sides. Furthermore, there are also Cl H/H Cl (11%), C C (4.5%), C N/ N C (2.2%), O H/H O (1.3%) and N H/H N (0.4%) contacts.

A view of the three-dimensional Hirshfeld surface of the title compound plotted over electrostatic potential energy in the range0.030 to 0.044 a.u. using the STO-3G basis set at the Hartree–Fock level of theory is shown in Fig. 7 where the C—H donors and acceptors are shown as blue and red areas around the atoms related with positive (hydrogen-bond donors) and negative (hydrogen-bond acceptors) electrostatic potentials, respectively.

6. Synthesis and crystallization

[image:3.610.44.297.70.321.2]

The title compound was prepared by refluxing a mixture of a solution containing 3,5-di-tert-butyl-2-hydroxybenzaldehyde (46.8 mg, 0.2 mmol) in ethanol (30 mL) and a solution containing 3-chloro-4-methylaniline (28.32 mg, 0.2 mmol) in ethanol (20 mL). The reaction mixture was stirred for 4 h under reflux. Crystals suitable for X-ray analysis were obtained by slow evaporation of an ethanol solution (m.p. 417–419 K; yield 84%).

Figure 7

A view of the three-dimensional Hirshfeld surface of the title compound plotted over electrostatic potential energy.

Figure 5

[image:3.610.45.298.450.695.2]

Overall fingerprint plot for the title compound.

Figure 6

Two-dimensional fingerprint plots with a dnormview of the (a) H H

[image:3.610.319.563.543.712.2]

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. C-bound H atoms were positioned geometrically with C—H distances of 0.93–0.97 A˚ and refined as riding, withUiso(H) = 1.2Ueq(C).

Acknowledgements

The authors acknowledge the Faculty of Arts and Sciences, Ondokuz Mayıs University, Turkey, for the use of the Stoe

IPDS 2 diffractometer (purchased under grant F.279 of the University Research Fund).

References

Atalay, S¸., Gerc¸eker, S., Meral, S. & Bu¨lbu¨l, H. (2017).IUCrData,2, x171725.

Calligaris, M., Nardin, G. M. J. & Randaccio, C. (1972).Coord. Chem. Rev.7, 385–403.

Elmalı, A., Kabak, M., Kavlakog˘lu, E. & Elerman, Y. (1999).J. Mol. Struct.510, 207–214.

El-masry, A. H., Fahmy, H. H. & Ali Abdelwahed, S. (2000). Molecules,5, 1429–1438.

Farrugia, L. J. (2012).J. Appl. Cryst.45, 849–854.

Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016).Acta Cryst.B72, 171–179.

Gumus, M. K., Kansiz, S., Dege, N. & Kalibabchuk, V. A. (2018).Acta Cryst.E74, 1211–1214.

Ho¨kelek, T., Bilge, S., Demiriz, S¸., O¨ zgu¨c¸, B. & Kılıc¸, Z. (2004).Acta Cryst.C60, o803–o805.

Iwan, A., Kaczmarczyk, B., Janeczek, H., Sek, D. & Ostrowski, S. (2007).Spectrochim. Acta A Mol. Biomol. Spectrosc.66, 1030–1041. Kansız, S. & Dege, N. (2018).J. Mol. Struct.1173, 42–51.

Kansiz, S., Macit, M., Dege, N. & Tsapyuk, G. G. (2018).Acta Cryst. E74, 1513–1516.

Moroz, Y. S., Demeshko, S., Haukka, M., Mokhir, A., Mitra, U., Stocker, M., Mu¨ller, P., Meyer, F. & Fritsky, I. O. (2012).Inorg. Chem.51, 7445–7447.

Sen, P., Kansiz, S., Golenya, I. A. & Dege, N. (2018).Acta Cryst.E74, 1147–1150.

S¸en, F., Kansiz, S. & Uc¸ar, I˙. (2017).Acta Cryst.C73, 517–524. Sheldrick, G. M. (2015a).Acta Cryst.A71, 3–8.

Sheldrick, G. M. (2015b).Acta Cryst.C71, 3–8. Spek, A. L. (2009).Acta Cryst.D65, 148–155.

Stoe & Cie (2002). X-AREAand X-RED32. Stoe & Cie GmbH, Darmstadt, Germany.

Su, D.-C., Wang, F.-T., Mao, C.-G. & Qian, S.-S. (2012).Acta Cryst. E68, o303.

Toprak, S¸., Tanak, H., Macit, M., Dege, N. & Orbay, M. (2018).J. Mol. Struct.1174, 184–191.

Turner, M. J., MacKinnon, J. J., Wolff, S. K., Grimwood, D. J., Spackman, P. R., Jayatilaka, D. & Spackman, M. A. (2017). CrystalExplorer17.5. University of Western Australia, Perth. Wang, H. (2010).Acta Cryst.E66, m1571.

1890

Kansizet al. _C

22H28ClNO Acta Cryst.(2018). E74, 1887–1890

[image:4.610.44.296.90.365.2]

research communications

Table 2

Experimental details.

Crystal data

Chemical formula C22H28ClNO

Mr 357.90

Crystal system, space group Monoclinic,P21/m

Temperature (K) 296

a,b,c(A˚ ) 9.6753 (10), 7.0072 (6), 15.3749 (13) (

) 93.425 (7)

V(A˚3_{) 1040.51 (17)}

Z 2

Radiation type MoK

(mm1) 0.19

Crystal size (mm) 0.740.650.48

Data collection

Diffractometer Stoe IPDS 2

Absorption correction Integration (X-RED32; Stoe & Cie, 2002)

Tmin,Tmax 0.879, 0.940

No. of measured, independent and observed [I> 2(I)] reflections

5895, 2300, 1298

Rint 0.028

(sin/)max(A˚

1

) 0.628

Refinement

R[F2_{> 2(F}2_)],wR(F2_{),S 0.053, 0.168, 1.00}

No. of reflections 2300

No. of parameters 145

H-atom treatment H-atom parameters constrained max, min(e A˚

3

) 0.28,0.22

sup-1
