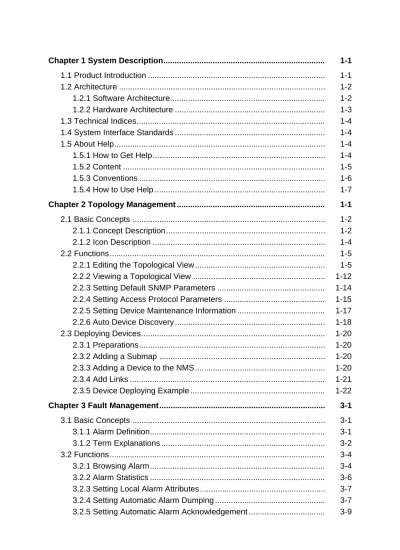

Chapter 1 System Description
...
1-1
1.1 Product Introduction
...
1-1
1.2 Architecture
...
1-2
1.2.1 Software Architecture
...
1-2
1.2.2 Hardware Architecture
...
1-3
1.3 Technical Indices
...
1-4
1.4 System Interface Standards
...
1-4
1.5 About Help
...
1-4
1.5.1 How to Get Help
...
1-4
1.5.2 Content
...
1-5
1.5.3 Conventions
...
1-6
1.5.4 How to Use Help
...
1-7
Chapter 2 Topology Management
...
1-1
2.1 Basic Concepts
...
1-2
2.1.1 Concept Description
...
1-2
2.1.2 Icon Description
...
1-4
2.2 Functions
...
1-5
2.2.1 Editing the Topological View
...
1-5
2.2.2 Viewing a Topological View
...
1-12
2.2.3 Setting Default SNMP Parameters
...
1-14
2.2.4 Setting Access Protocol Parameters
...
1-15
2.2.5 Setting Device Maintenance Information
...
1-17
2.2.6 Auto Device Discovery
...
1-18
2.3 Deploying Devices
...
1-20
2.3.1 Preparations
...
1-20
2.3.2 Adding a Submap
...
1-20
2.3.3 Adding a Device to the NMS
...
1-20
2.3.4 Add Links
...
1-21
2.3.5 Device Deploying Example
...
1-22
Chapter 3 Fault Management
...
3-1
3.1 Basic Concepts
...
3-1
3.1.1 Alarm Definition
...
3-1
3.1.2 Term Explanations
...
3-2
3.2 Functions
...
3-4
3.2.1 Browsing Alarm
...
3-4
3.2.8 Setting Alarm Correlation
...
3-11
3.2.9 Locating Alarm/Event
...
3-12
3.2.10 Managing Alarm Maintenance Tips
...
3-12
3.3 Troubleshooting
...
3-13
3.3.1 Preparation
...
3-14
3.3.2 Getting Alarm Information
...
3-15
3.3.3 Analyzing Alarm
...
3-16
3.3.4 Eliminating Fault
...
3-16
3.3.5 Acknowledging and Recovering Alarm
...
3-16
3.3.6 Sharing Alarm Maintenance Tips
...
3-17
3.3.7 An Example of Troubleshooting
...
3-17
Chapter 4 Performance Management
...
4-1
4.1 Realtime Performance Management
...
4-2
4.1.1 Adding/deleting Performance Indexes
...
4-2
4.1.2 Saving Data
...
4-2
4.1.3 Adjusting Refresh Frequency
...
4-2
4.2 Task Management
...
4-3
4.2.1 Viewing Tasks
...
4-3
4.2.2 Creating Tasks
...
4-4
4.2.3 Suspending Tasks
...
4-7
4.2.4 Resuming Tasks
...
4-7
4.2.5 Deleting Tasks
...
4-7
4.3 Data Management
...
4-8
4.3.1 Querying Performance Data by Measuring Object
...
4-8
4.3.2 Querying Performance Data by Task
...
4-10
4.3.3 Setting Data Security Term
...
4-11
4.4 Data Integrity Management
...
4-12
4.4.1 Querying Data Integrity
...
4-12
4.4.2 Mending Data
...
4-13
4.5 Performance Alarm Threshold Management
...
4-14
4.5.1 Querying Performance Alarm Threshold
...
4-14
4.5.2 Adding a Performance Alarm Threshold
...
4-15
4.5.3 Modifying a Performance Alarm Threshold
...
4-16
4.5.4 Deleting a Performance Alarm Threshold
...
4-17
4.6 Performance Measurement
...
4-17
4.6.1 Time Distribution Analysis
...
4-17
4.6.2 Global Traffic Flow Analysis
...
4-18
4.6.3 Call Failure Analysis
...
4-19
4.7 Other Functions
...
4-20
4.7.1 Changing Graph Settings
...
4-20
4.7.2 Saving Measurement Data
...
4-21
4.7.3 Printing Measurement Data
...
4-22
4.7.4 Deleting Measurement Data
...
4-22
4.7.5 Creating a Conditional Expression
...
4-23
Chapter 5 Security Management
...
5-1
5.1 Basic Conception
...
5-1
5.2 Functions
...
5-2
5.2.1 Creating a User
...
5-2
5.2.2 Modifying User Attributes
...
5-3
5.2.3 Assigning a User to User Groups
...
5-3
5.2.4 Assigning Operation Right to a User
...
5-3
5.2.5 Assigning Management Right to a User
...
5-5
5.2.6 Creating a User Group
...
5-5
5.2.7 Modifying User Group Attributes
...
5-6
5.2.8 Assigning Operation Right to a User Group
...
5-6
5.2.9 Assigning Operation Right to a User Group
...
5-7
5.2.10 Creating an Operation Set
...
5-8
5.2.11 Modifying Operation Set Attributes
...
5-8
5.2.12 Setting Operations in an Operation Set
...
5-8
5.2.13 Setting User ACL Right
...
5-9
5.2.14 Setting System ACL
...
5-9
5.2.15 Realtime Monitoring User Operation Logs
...
5-9
5.2.16 Browsing/Dumping User Operation Logs
...
5-10
5.3 User Right Management
...
5-12
5.3.1 Preparations
...
5-12
5.3.2 Creating Users
...
5-12
5.3.3 Adding Users to User Groups
...
5-13
5.3.4 Adjusting User Operation Right
...
5-13
5.3.5 Adjusting User Management Right
...
5-13
5.3.6 Configuring ACL
...
5-13
5.3.7 User Log In
...
5-13
5.4 License Management
...
5-15
5.4.1 Querying License
...
5-15
5.4.2 Upgrading License
...
5-15
6.4.1 Configuring Synchronizing Period
...
6-5
6.4.2 Synchronizing Monitoring Unit List
...
6-6
6.4.3 Synchronizing Environment Monitoring Device
...
6-7
6.4.4 Refreshing Environment Monitoring Unit List
...
6-7
6.4.5 Browsing Legend
...
6-8
Chapter 7 Database Backup Tool
...
7-1
7.1 Functions
...
7-1
7.1.1 Starting/Exiting a Database Backup Tool
...
7-1
7.1.2 Viewing a Database
...
7-2
7.1.3 Viewing Logs
...
7-3
7.1.4 Configuring a Database Server
...
7-4
7.1.5 Configuring a Database Set
...
7-5
7.1.6 Configuring an Auto Backup Policy
...
7-6
7.1.7 Configuring a Backup Device
...
7-7
7.1.8 Manual Backup
...
7-7
7.1.9 Configuring an Auto Backup Task
...
7-8
7.1.10 Restoring a Database
...
7-9
7.2 Backing Up/Restoring a Database
...
7-9
7.2.1 Preparations
...
7-10
7.2.2 Backing Up a Database
...
7-10
7.2.3 Restoring a Database
...
7-11
Chapter 8 System Monitor
...
8-1
8.1 Starting/Exiting a System Monitor
...
8-1
8.2 Starting/Closing an NMS Server
...
8-2
8.3 Querying Processes
...
8-3
8.4 Querying Database Information
...
8-4
8.5 Querying System Resource Information
...
8-4
8.6 Querying Disk Information
...
8-4
8.7 Querying Component Information
...
8-5
8.8 Setting a System Monitor
...
8-5
Chapter 9 NMS Security Policy
...
9-1
9.1 Overview
...
9-1
9.2 Security of Operating System
...
9-1
9.2.1 Security Policy for UNIX System
...
9-2
9.2.2 Security Policy for Windows System
...
9-12
9.3 Security of NMS Database
...
9-15
9.4 Equipment Access Control
...
9-15
9.5 Network Security Monitoring
...
9-16
Chapter 10 Routine Maintenance
...
10-1
10.1 NMS Maintenance Suggestions
...
10-1
10.2 Daily Maintenance Suggestions
...
10-2
10.2.1 Monitoring Running Environment
...
10-2
10.2.2 Checking Network Running Status
...
10-2
10.2.3 Checking Running Status of NMS Processes
...
10-3
10.2.4 Checking Server Performance
...
10-4
10.2.5 Checking Running Status of Equipment
...
10-4
10.2.6 Checking Running Status of Boards
...
10-5
10.2.7 Saving Configuration Data of Equipment
...
10-5
10.2.8 Monitoring and Processing Alarms
...
10-6
10.2.9 Monitoring User Operations
...
10-7
10.2.10 Backing up NMS Database
...
10-8
10.2.11 Shift Maintenance
...
10-8
10.3 Weekly Maintenance Suggestions
...
10-9
10.3.1 Checking Performance Data
...
10-9
10.3.2 Managing Hard Disk Space of Server
...
10-10
10.3.3 Managing Database Space
...
10-10
10.3.4 Backing up NMS Database
...
10-11
10.3.5 Managing User Authority
...
10-12
10.3.6 Outputting Weekly Report
...
10-13
10.4 Monthly Maintenance Suggestions
...
10-13
10.4.1 Checking NMS Running Performance
...
10-13
10.4.2 Checking NMS Workstation Security
...
10-14
10.4.3 Checking NMS Installation Disk
...
10-15
10.4.4 Saving or Deleting History Data in NMS Database
...
10-16
10.4.5 Exporting or Clearing Data Files
...
10-16
10.4.6 Checking Hardware, Power Supply and Equipment Room
Environment of Workstation
...
10-17
10.4.7 Checking SUN Terminal and PC Terminal of NMS
...
10-18
10.4.8 Outputting Monthly Report
...
10-18
10.5 Quarterly Maintenance Suggestions
...
10-19
10.5.1 Checking NMS by Remote Logon
...
10-19
10.5.2 Communicating Maintenance Experience
...
10-19
10.5.3 Outputting Quarterly Report
...
10-20
11.2.1 PC and PC workstation
...
11-2
11.2.2 SUN workstation
...
11-2
11.3 Software Configuration for Communication Connections
...
11-3
11.3.1 PC/Windows2000 as PSTN dial-up access server
...
11-3
11.3.2 PC/Windows2000 as PSTN dial-up client
...
11-3
11.3.3 SUN workstation as PSTN dial-up access server
...
11-4
11.4 Remote Maintenance Schemes
...
11-10
11.4.1 SUN workstation serves as the dial-up server
...
11-10
11.4.2 PC/Windows2000 serves as the dial-up server
...
11-11
11.5 Troubleshooting
...
11-11
Appendix A FAQs
...
A-1
A.1 Workstation
...
A-1
A.1.1 How to Start Sun Workstation from CD-ROM (Sun/Solaris)
...
A-1
A.1.2 Sun Workstation Abnormally Shut Down (Sun/Solaris)
...
A-1
A.1.3 How to Set IP Address of Sun Workstation (Sun/Solaris)
...
A-1
A.1.4 How to Change Host Name of Sun Workstation (Sun/Solaris)
...
A-2
A.1.5 Failed to Connect PC to Sun Workstation through
Direct-connect Cable ( Sun/ Solaris)
...
A-2
A.1.6 Keyboard No Response for Sun Workstation (Sun/Solaris)
...
A-2
A.1.7 How to Configure Maximum Terminals for Sun Workstation (
Sun/ Solaris)?
...
A-2
A.1.8 How to Use CD-ROM Drive (Sun/Solaris)
...
A-2
A.1.9 How to Use Tape Drive (Sun/Solaris)
...
A-3
A.1.10 Failed to Log in to the System as a Root User While Using
FTP ( Sun/ Solaris)
...
A-4
A.1.11 Can’ t Use Services Such as Telnet After the NMS is
Installed
...
A-4
A.1.12 File Size Changed When FTP is Used to Send Files
...
A-4
A.1.13 Execution Authority of Files is Lost When FTP is Used to
Send Files
...
A-5
A.2 Database
...
A-5
A.2.1 How to Change the Password of "sa" (Sun/Solaris/Sybase)?
...
A-5
A.2.2 How to Set the sa Password (Windows/SQL Server 2000)
...
A-5
A.2.3 Sun Workstation Abnormally Shut Down (Sun/Solaris/Sybase)
....
A-6
A.2.4 Unable to Start Sybase(Sun/Solaris/Sybase)
...
A-6
A.3 NMS
...
A-6
A.3.1 No Response from Left Mouse Button
...
A-6
A.3.2 Some NMS Functions Abnormal Due to OS Time Changed
...
A-7
A.3.3 Alarm Window Display Abnormal Due to Alarm Panel Closed
...
A-7
A.3.4 Installation Interface No Response (Windows)
...
A-7
A.3.5 Shortcut No Response
...
A-8
A.3.6 Help Window No Response
...
A-8
A.3.7 Topology Display Abnormal
...
A-8
A.3.8 Nonstop Alarm Sound
...
A-8
A.3.9 How to View Text Completely
...
A-9
A.3.10 Abnormality Occurs When Selecting Multiple Records in
Table
...
A-9
A.3.11 Failed to Restore Database
...
A-9
A.3.12 "Admin" Fails to Log in
...
A-9
A.3.13 Device Name Overlap
...
A-10
HUAWEI
HUAWEI
iManager N2000 Fixed Network Integrated
Management System
User Manual
V200R003
HUAWEI
iManager N2000 Fixed Network Integrated Management
System
User Manual
Manual Version T2-100140-20040430-C-2.30 Product Version V200R003 BOM 31013840Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Administration Building, Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, P. R. China Postal Code: 518129
Website: http://www.huawei.com
Copyright © 2004 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks
, HUAWEI, C&C08, EAST8000, HONET, , ViewPoint, INtess, ETS, DMC, TELLIN, InfoLink, Netkey, Quidway, SYNLOCK, Radium, M900/M1800, TELESIGHT, Quidview, Musa, Airbridge, Tellwin, Inmedia, VRP, DOPRA, iTELLIN, HUAWEI OptiX, C&C08iNET, NETENGINE, OptiX, iSite, U-SYS, iMUSE, OpenEye, Lansway, SmartAX, infoX, TopEng are trademarks of Huawei Technologies Co., Ltd.
All other trademarks mentioned in this manual are the property of their respective holders.
Notice
The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied.
About This Manual
Release Notes
This manual applies to iManager N2000 Fixed Network Integrated Management System V200R003 (hereinafter referred to as iManager N2000).
Related Manuals
Manual Content HUAWEI iManager N2000 Fixed
Network Integrated Management System Installation Manual
It introduces the installation procedures of iManager 2000, including operating system, database, NMS software and client.
HUAWEI iManager N2000 Fixed Network Integrated Management System User Manual
It introduces the basic operations of iManager N2000, including system description, topology management, fault management, performance management, security management, database backup, and system monitor. Security strategy, daily maintenance and remote maintenance are also described in this manual.
For the operations on network elements (NEs), please refer to the user manuals of the corresponding subsystem.
Organization
The manual introduces basic functions and operations of iManager N2000 and the maintenance guide as well.
Chapter 1 System Description covers function features, architecture of iManager N2000 and introduction to help system.
Chapter 2 Topology Management describes basic concepts, function features of topology management. The procedures of device deployment are illustrated with examples.
Chapter 3 Fault Management describes basic concepts, function features of fault management. The procedures of fault processing are illustrated with examples.
Chapter 4 Performance Management introduces a group of management tools, through which the user can query performance data on different layers such as network layer, device layer and port layer.
Chapter 5 Security Management introduces the user authority management of iManager N2000.
Chapter 6 Environment Monitoring Management presents the integrated environment monitoring function of the iManager N2000 on the devices of the whole network.
Chapter 7 Database Backup Tool introduces the usage of this database backup tool, which provides auto and manual database backup and recover function. It also supports the remote maintenance.
Chapter 8 System Monitor introduces the usage of the system monitoring client and its maintenance functions.
Chapter 9 NMS Security Policy provides security policies from four aspects, such as operating system, database, NM applications and network.
Chapter 10 Routine Maintenance gives suggestions and guides to routine maintenance.
Chapter 11 Remote Maintenance introduces the methods of remote maintenance on the NMS.
Appendix collects the frequent asked questions (FAQs) about the NMS maintenance and the abbreviations used in the manual.
Intended Audience
The manual is intended for the following readers:
z Network design & management personnel z Network maintenance personnel
z Engineer for iManager N2000 NMS
Conventions
I. General conventions
Convention Description Arial Normal paragraphs are in Arial.
Convention Description Boldface Headings are in Boldface.
Courier New Terminal Display is in Courier New.
II. GUI conventions
Convention Description < > Button names are inside angle brackets. For example, click <OK> button.
[ ] Window names, menu items, data table and field names are inside square brackets. For example, pop up the [New User] window.
/ Multi-level menus are separated by forward slashes. For example, [File/Create/Folder].
III. Keyboard operation
Format Description <Key> Press the key with the key name inside angle brackets. For example, <Enter>, <Tab>, <Backspace>, or <A>.
<Key1+Key2> Press the keys concurrently. For example, <Ctrl+Alt+A> means the three keys should be pressed concurrently.
<Key1, Key2> Press the keys in turn. For example, <Alt, A> means the two keys should be pressed in turn.
IV. Mouse operation
Action Description Click Press the left button or right button quickly (left button by default).
Double Click Press the left button twice continuously and quickly.
Drag Press and hold the left button and drag it to a certain position.
V. Symbols
Caution, Warning, Danger: Means reader be extremely careful during the operation.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Table of Contents
Table of Contents
Chapter 1 System Description ... 1-1 1.1 Product Introduction... 1-1 1.2 Architecture... 1-2 1.2.1 Software Architecture... 1-2 1.2.2 Hardware Architecture ... 1-3 1.3 Technical Indices ... 1-3 1.4 System Interface Standards ... 1-4 1.5 About Help ... 1-4 1.5.1 How to Get Help... 1-4 1.5.2 Content... 1-5 1.5.3 Conventions ... 1-6 1.5.4 How to Use Help ... 1-6 Chapter 2 Topology Management... 2-1 2.1 Basic Concepts... 2-2 2.1.1 Concept Description... 2-2 2.1.2 Icon Description... 2-4 2.2 Functions ... 2-5 2.2.1 Editing the Topological View ... 2-5 2.2.2 Viewing Topological View ... 2-12 2.2.3 Setting Default SNMP Parameters... 2-14 2.2.4 Setting Access Protocol Parameters ... 2-15 2.2.5 Setting Device Maintenance Information ... 2-16 2.2.6 Auto Device Discovery ... 2-18 2.3 Deploying Devices ... 2-19 2.3.1 Preparations ... 2-19 2.3.2 Adding Submaps... 2-20 2.3.3 Adding Devices to the NMS ... 2-20 2.3.4 Add Links... 2-21 2.3.5 Device Deploying Example ... 2-21 Chapter 3 Fault Management ... 3-1 3.1 Basic Concepts... 3-1 3.1.1 Alarm Definition... 3-1 3.1.2 Term Explanations ... 3-2 3.2 Functions ... 3-4
3.2.4 Setting Automatic Alarm Dumping ... 3-7 3.2.5 Setting Automatic Alarm Acknowledgement ... 3-9 3.2.6 Setting Alarm Synchronization ... 3-9 3.2.7 Setting Remote Alarm Notification ... 3-10 3.2.8 Setting Alarm Correlation ... 3-11 3.2.9 Locating Alarm/Event ... 3-12 3.2.10 Managing Alarm Maintenance Tips... 3-12 3.3 Troubleshooting ... 3-13 3.3.1 Preparation... 3-14 3.3.2 Getting Alarm Information ... 3-15 3.3.3 Analyzing Alarm ... 3-16 3.3.4 Eliminating Fault... 3-16 3.3.5 Acknowledging and Recovering Alarm ... 3-16 3.3.6 Sharing Alarm Maintenance Tips ... 3-17 3.3.7 An Example of Troubleshooting ... 3-17 Chapter 4 Performance Management... 4-1 4.1 Realtime Performance Management... 4-2 4.1.1 Adding/deleting Performance Indexes ... 4-2 4.1.2 Saving Data... 4-2 4.1.3 Adjusting Refresh Frequency... 4-2 4.2 Task Management ... 4-3 4.2.1 Viewing Tasks ... 4-3 4.2.2 Creating Tasks ... 4-4 4.2.3 Suspending Tasks... 4-7 4.2.4 Resuming Tasks... 4-7 4.2.5 Deleting Tasks... 4-7 4.3 Data Management ... 4-8 4.3.1 Querying Performance Data by Measuring Object ... 4-8 4.3.2 Querying Performance Data by Task... 4-10 4.3.3 Setting Data Security Term ... 4-11 4.4 Data Integrity Management ... 4-12 4.4.1 Querying Data Integrity ... 4-12 4.4.2 Mending Data ... 4-13 4.5 Performance Alarm Threshold Management... 4-14 4.5.1 Querying Performance Alarm Threshold ... 4-14 4.5.2 Adding a Performance Alarm Threshold... 4-15 4.5.3 Modifying a Performance Alarm Threshold... 4-16 4.5.4 Deleting a Performance Alarm Threshold... 4-17 4.6 Performance Measurement ... 4-17 4.6.1 Time Distribution Analysis... 4-17 4.6.2 Global Traffic Flow Analysis... 4-18 4.6.3 Call Failure Analysis... 4-19
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Table of Contents 4.7 Other Functions ... 4-20
4.7.1 Changing Graph Settings... 4-20 4.7.2 Saving Measurement Data... 4-21 4.7.3 Printing Measurement Data ... 4-22 4.7.4 Deleting Measurement Data ... 4-22 4.7.5 Creating a Conditional Expression... 4-23 Chapter 5 Security Management... 5-1 5.1 Basic Conception... 5-1 5.2 Functions ... 5-2 5.2.1 Creating a User ... 5-2 5.2.2 Modifying User Attributes ... 5-3 5.2.3 Assigning a User to User Groups... 5-3 5.2.4 Assigning Operation Right to a User... 5-3 5.2.5 Assigning Management Right to a User ... 5-5 5.2.6 Creating a User Group ... 5-5 5.2.7 Modifying User Group Attributes ... 5-6 5.2.8 Assigning Operation Right to a User Group... 5-6 5.2.9 Assigning Operation Right to a User Group... 5-7 5.2.10 Creating an Operation Set ... 5-8 5.2.11 Modifying Operation Set Attributes ... 5-8 5.2.12 Setting Operations in an Operation Set ... 5-8 5.2.13 Setting User ACL Right ... 5-9 5.2.14 Setting System ACL ... 5-9 5.2.15 Realtime Monitoring User Operation Logs... 5-9 5.2.16 Browsing/Dumping User Operation Logs... 5-10 5.3 User Right Management... 5-12 5.3.1 Preparations ... 5-12 5.3.2 Creating Users ... 5-12 5.3.3 Adding Users to User Groups ... 5-13 5.3.4 Adjusting User Operation Right... 5-13 5.3.5 Adjusting User Management Right ... 5-13 5.3.6 Configuring ACL... 5-13 5.3.7 User Log In... 5-13 5.4 License Management ... 5-15 5.4.1 Querying License ... 5-15 5.4.2 Upgrading License ... 5-15 Chapter 6 Environment Monitoring Management ... 6-1 6.1 Monitoring Power Parameters ... 6-1 6.2 Monitoring Environment Parameters ... 6-3
6.4.2 Synchronizing Monitoring Unit List... 6-6 6.4.3 Synchronizing Environment Monitoring Device ... 6-7 6.4.4 Refreshing Environment Monitoring Unit List... 6-7 6.4.5 Browsing Legend ... 6-8 Chapter 7 Database Backup Tool ... 7-1 7.1 Functions ... 7-1 7.1.1 Starting/Exiting a Database Backup Tool ... 7-1 7.1.2 Viewing a Database ... 7-2 7.1.3 Viewing Logs ... 7-3 7.1.4 Configuring a Database Server... 7-4 7.1.5 Configuring a Database Set ... 7-5 7.1.6 Configuring an Auto Backup Policy... 7-6 7.1.7 Configuring a Backup Device... 7-7 7.1.8 Manual Backup... 7-7 7.1.9 Configuring an Auto Backup Task... 7-8 7.1.10 Restoring a Database ... 7-9 7.2 Backing Up/Restoring a Database... 7-9 7.2.1 Preparations ... 7-10 7.2.2 Backing Up a Database ... 7-10 7.2.3 Restoring a Database ... 7-11 Chapter 8 System Monitor... 8-1 8.1 Starting/Exiting a System Monitor... 8-1 8.2 Starting/Closing an NMS Server... 8-2 8.3 Querying Processes ... 8-3 8.4 Querying Database Information... 8-4 8.5 Querying System Resource Information... 8-4 8.6 Querying Disk Information ... 8-4 8.7 Querying Component Information... 8-5 8.8 Setting a System Monitor... 8-5 Chapter 9 NMS Security Policy ... 9-1 9.1 Overview ... 9-1 9.2 Security of Operating System ... 9-1 9.2.1 Security Policy for UNIX System... 9-2 9.2.2 Security Policy for Windows System... 9-12 9.3 Security of NMS Database ... 9-15 9.4 Equipment Access Control ... 9-15 9.5 Network Security Monitoring... 9-16 Chapter 10 Routine Maintenance... 10-1 10.1 NMS Maintenance Suggestions ... 10-1 10.2 Daily Maintenance Suggestions ... 10-2 10.2.1 Monitoring Running Environment... 10-2
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Table of Contents 10.2.2 Checking Network Running Status ... 10-2 10.2.3 Checking Running Status of NMS Processes... 10-3 10.2.4 Checking Server Performance ... 10-4 10.2.5 Checking Running Status of Equipment ... 10-4 10.2.6 Checking Running Status of Boards ... 10-5 10.2.7 Saving Configuration Data of Equipment... 10-5 10.2.8 Monitoring and Processing Alarms ... 10-6 10.2.9 Monitoring User Operations ... 10-7 10.2.10 Backing up NMS Database ... 10-8 10.2.11 Shift Maintenance ... 10-8 10.3 Weekly Maintenance Suggestions... 10-9 10.3.1 Checking Performance Data ... 10-9 10.3.2 Managing Hard Disk Space of Server... 10-10 10.3.3 Managing Database Space... 10-10 10.3.4 Backing up NMS Database ... 10-11 10.3.5 Managing User Authority... 10-12 10.3.6 Outputting Weekly Report ... 10-13 10.4 Monthly Maintenance Suggestions... 10-13 10.4.1 Checking NMS Running Performance ... 10-13 10.4.2 Checking NMS Workstation Security ... 10-14 10.4.3 Checking NMS Installation Disk... 10-15 10.4.4 Saving or Deleting History Data in NMS Database... 10-16 10.4.5 Exporting or Clearing Data Files ... 10-16 10.4.6 Checking Hardware, Power Supply and Equipment Room Environment of
Workstation ... 10-17 10.4.7 Checking SUN Terminal and PC Terminal of NMS ... 10-18 10.4.8 Outputting Monthly Report ... 10-18 10.5 Quarterly Maintenance Suggestions ... 10-19 10.5.1 Checking NMS by Remote Logon... 10-19 10.5.2 Communicating Maintenance Experience ... 10-19 10.5.3 Outputting Quarterly Report ... 10-20 10.6 Yearly Maintenance Suggestions ... 10-20 10.6.1 Summarizing Yearly Maintenance Experience ... 10-20 10.6.2 Outputting Yearly Report... 10-20 Chapter 11 Remote Maintenance... 11-1 11.1 Setting Up Remote Maintenance Channels ... 11-1 11.2 Hardware Requirements and Connection Methods... 11-1 11.2.1 PC and PC workstation ... 11-2 11.2.2 SUN workstation ... 11-2
11.3.3 SUN workstation as PSTN dial-up access server... 11-4 11.4 Remote Maintenance Schemes... 11-10 11.4.1 SUN workstation serves as the dial-up server ... 11-10 11.4.2 PC/Windows2000 serves as the dial-up server ... 11-11 11.5 Troubleshooting ... 11-11 Appendix A FAQs ...A-1 A.1 Workstation...A-1 A.1.1 How to Start Sun Workstation from CD-ROM (Sun/Solaris)...A-1 A.1.2 Sun Workstation Abnormally Shut Down (Sun/Solaris)...A-1 A.1.3 How to Set IP Address of Sun Workstation (Sun/Solaris) ...A-1 A.1.4 How to Change Host Name of Sun Workstation (Sun/Solaris) ...A-2 A.1.5 Failed to Connect PC to Sun Workstation through Direct-connect Cable (Sun/Solaris) ...A-2 A.1.6 Keyboard No Response for Sun Workstation (Sun/Solaris)...A-2 A.1.7 How to Configure Maximum Terminals for Sun Workstation (Sun/Solaris)?...A-2 A.1.8 How to Use CD-ROM Drive (Sun/Solaris) ...A-2 A.1.9 How to Use Tape Drive (Sun/Solaris)...A-3 A.1.10 Failed to Log in to the System as a Root User While Using FTP (Sun/Solaris)...A-4 A.1.11 Can’t Use Services Such as Telnet After the NMS is Installed ...A-4 A.1.12 File Size Changed When FTP is Used to Send Files...A-4 A.1.13 Execution Authority of Files is Lost When FTP is Used to Send Files ...A-5 A.2 Database ...A-5 A.2.1 How to Change the Password of "sa" (Sun/Solaris/Sybase)?...A-5 A.2.2 How to Set the sa Password (Windows/SQL Server 2000) ...A-5 A.2.3 Sun Workstation Abnormally Shut Down (Sun/Solaris/Sybase)...A-6 A.2.4 Unable to Start Sybase(Sun/Solaris/Sybase)...A-6 A.3 NMS...A-6 A.3.1 No Response from Left Mouse Button ...A-6 A.3.2 Some NMS Functions Abnormal Due to OS Time Changed...A-7 A.3.3 Alarm Window Display Abnormal Due to Alarm Panel Closed...A-7 A.3.4 Installation Interface No Response (Windows)...A-7 A.3.5 Shortcut No Response...A-8 A.3.6 Help Window No Response...A-8 A.3.7 Topology Display Abnormal...A-8 A.3.8 Nonstop Alarm Sound...A-8 A.3.9 How to View Text Completely...A-9 A.3.10 Abnormality Occurs When Selecting Multiple Records in Table ...A-9 A.3.11 Failed to Restore Database ...A-9 A.3.12 "Admin" Fails to Log in...A-9 A.3.13 Device Name Overlap...A-10 Appendix B Abbreviations ...B-1
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Chapter 1 System Description
Chapter 1 System Description
1.1 Product Introduction
The iManager N2000 Fixed Network Integrated Management System (called iManager N2000 in this manual) maintains and manages the fixed-network devices in a unified manner.
Residing at the management layer of network solutions, the iManager N2000 manages Network Elements (NEs) and networks.
The iManager N2000 provides different network management solutions:
z Broadband Network Management System (BMS)
z U-SYS Management System (UMS) of the Next Generation Network (NGN).
The iManager N2000 is developed on the unified network management (NM) platform of Huawei.
It employs the mature and widely-used client/server architecture. Therefore, it supports multiple clients and can manage large and complex networks.
With a multi-process design mechanism, the iManager N2000 can be flexibly extended to meet different requirements.
The iManager N2000 provides a concise and consistent management mode. It provides unified device panel and operation interfaces for the function supported. The functions are shown below.
z Topology management z Fault management
z Performance management z Security & log management.
Considering the user habits, the iManager N2000 puts the distributed devices together in a unified visual style. In this way, the operators can easily monitor, operate and manage the devices on the network.
The iManager N2000 BMS is designed to manage the broadband devices and services. It manages the broadband access devices and Asynchronous Transfer Mode (ATM) backbone convergence devices. They are:
z MD5500
z Radium 8750/BAS
z HONET (Home Optical Network)
The iManager N2000 UMS manages NGN components. They are:
z Trunk Media Gateway (TMG) z Access Media Gateway (AMG) z Signaling Gateway (SG) z Media Resource Server (MRS) z Integrated Access Device (IAD) z Universal Media Gateway (UMG) z iGateway Bill (iGWB)
z Integrated Access Device Management System (IADMS).
The iManager N2000 also manages NGN services. It provisions IAD, AMG and UMG services and manages the users. It also manages the NGN resources, including device resources and service resources.
The Data Management System (DMS) is developed on the same NM platform. It is designed to manage data communications devices, such as routers, switches and access servers. It can manage both devices and networks.
The iManager N2000 BMS, UMS and UMS can manage all devices of Huawei on the fixed network.
1.2 Architecture
1.2.1 Software Architecture
Figure 1-1 shows the software architecture of the iManager N2000.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Chapter 1 System Description The design of the iManager N2000 is object-oriented. The iManager N2000 has a multi-process and modular structure. It supports distributed system management and has high scalability.
The iManager N2000 schedules and monitors the real-time stauts of the NE daemon process in a unified way. The daemon processes transfer messages through one message distribution center (MDC). In this way, the NE daemons become highly independent. One NM application can initiate multiple real-time tasks, which can be quickly switched.
The iManager N2000 provides NM components for different devices. You can choose the components that you want, so the iManager N2000 is highly scalable. You can easily add new components, device types and functions to it.
1.2.2 Hardware Architecture
The iManager N2000 consists of one system server and multiple clients. The system server communicates with the clients through a Local Area Network (LAN) or Wide Area Network (WAN).
Figure 1-2 shows the hardware architecture of the iManager N2000.
DCN System server/database server
Client Client Client To NEs Managed devices
Figure 1-2 Hardware architecture of the iManager N2000
The NMS server runs on Solaris or Windows 2000 Server platform. The NMS server can be SUN workstation or a PC.
You can install client and server software on the same PC, instead of a workstation, and install SQL Server as database. In this way, you are provided with a cost-effective
z browse through the navigation tree z do some basic configurations z receive and query alarms
z monitor the device performance in real time.
1.3 Technical Indices
1) The iManager N2000 supports up to 6,000 equivalent nodes. 2) The iManager N2000 supports 50 clients at the same time.
3) The current alarm table can store up to 100,000 alarm records. The maximum number of records in the history alarm and event alarm tables can by the user. Once the tables are full, the data is to be dumped.
4) The time delay to display the alarms that is received at the fault management module at the client is less than 8 seconds.
5) The log database contains three months’ log. In refreshing of the displayed log information, the latency time does not exceed 3 seconds.
6) The iManager N2000 supports up to 255 users.
7) The iManager N2000 deals with up to 100 alarm records per second. The alarm buffer can store up to 100,000 alarm records.
1.4 System Interface Standards
z Downstream SNMP V1/V2/V3 interfaces: management interfaces of the NMS to
the broadband devices.
z Downstream Man Machine Language (MML) interfaces: management interfaces
of the NMS to the narrowband devices.
z Downstream SYSLOG interface: Some devices report the operation information
through the SYSLOG interface.
z Downstream File Transfer Protocol/Trivial File Transfer Protocol (FTP/TFTP)
interfaces: standard FTP/TFTP interfaces used to load and backup device versions.
z Downstream Telnet interface: command line interface of the NMS to the
broadband device.
z Upstream SNMP (V1/V2/V3) interfaces: interfaces of the NMS to the upper NMS
and other NMSs.
1.5 About Help
1.5.1 How to Get Help
To start the iManager N2000 help, do one of these.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Chapter 1 System Description
z Start the iManager N2000 client, click on any area of the client, and then press
<F1>. The context-sensitive Help appears.
To browse the Help while the client is not started, do one of these.
z On the Solaris operating system (OS), right click on the Common Desktop
Environment (CDE), and then select [Applications/iManager N2000/N2000 Online Manual].
z On Windows OS, select [Start/Program/iManager N2000/N2000 Online Manual].
The help window is as shown in Figure 1-3.
Figure 1-3 Help browser
1.5.2 Content
The Help covers these major topics:
z Product Brief Introduction: It introduces the orientation, function features, and
typical applications of the iManager N2000.
z N2000 Quick Start: It introduces the client interface, customized settings, and
z Device Troubleshooting: It introduces how to do troubleshooting through the
iManager N2000. For example, it tells you how to collect alarms, locate and eliminate faults, and summarize alarm processing experiences.
z User Right Management: It introduces how to manage user rights to ensure the
reliability and security of the iManager N2000.
z View Device Running Performance: It introduces how to query, collect and
analyze the real-time performance data of devices. It helps you identify the performance bottleneck and provides reference for optimizing the network status.
z Backup/Restore Database: It introduces how to back up and restore the NMS
database.
z NE Management: It tells how to manage the devices and finish the service
configuration.
z Service Management: It presents how to provision and maintain services. z Device Resource Management: It introduces how to measure and query network
device resources and logical resources.
z Routine Maintenance: It introduces the contents, methods and references of the
routine maintenance. This helps you effectively maintain devices and ensure the reliability of the iManager N2000.
z FAQ: It describes common problems and solutions to them.
z Basic Operation List: It lists all basic operations. Through the basic operation list,
you can know the operations quickly.
z Terms and Abbreviations: It lists the relevant terms and abbreviations.
1.5.3 Conventions
The conventions in the help system include:
z Pop-up: It is blue. Clicking it displays a window giving an explanation of the blue
word.
z Hyperlink: It is underlined and blue. Clicking it leads you to the linked page. z The relationship between interface and Help.
—If the active dialog box or tab has a basic, independent function, press <F1>. The related help page is shown. For example, open the "Auto Discovery" dialog box, and then click <F1>. The "Set Device" page is shown.
—If the active dialog box can implement many functions, click <F1>. The default help page is shown. For example, in the topological view, press <F1>. The "Topology Management" page is shown. On the page, the links of all topology management operations are listed.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System Chapter 1 System Description
1.5.4 How to Use Help
I. How to find a topic
In the "Help" window, do one of the following:
z To search for a topic from the topic list, select [View/Topic] or click the "Help
Topics" tab. On the navigation tree, click the desired topic.
z To search for a topic from the index list, select [View/Index] or click the "Index"
tab. On the tab, enter the keyword, and then press <Enter>. The related help appears in the right pane.
II. How to print a topic
1) In the right pane of the "Help" window, click the topic you want to print.
2) On the "Help" title bar, click .
3) In the dialog box that appears, set the parameters, and then <OK>. III. How to set the Help window
1) Hide or show directories
z To hide the directories in the left pane of the help window, click on the boundary
between the left and right panes. The right pane occupies the entire help window. Click on the left boundary to restore.
z To make the directories in the left pane occupy the entire help window, click on
the boundary between the left and right panes. Click on the right boundary to restore.
2) Set the window size
z To resize the left and right panes, move the pointer to the boundary. When the
pointer becomes a double-headed arrow, drag it to the left or the right.
z To resize the "Help" window proportionately, move the pointer to the corner of the
"Help" window. When the pointer becomes a double-headed arrow, drag it to resize the window.
z To change the height or width of the "Help" window, move the pointer to the top,
bottom, left, or right boundary of the window. When the pointer becomes a double-headed arrow, drag it to resize the window.
Chapter 2 Topology Management
Topology management enables you to construct and manage the topology structure of the network. You can keep track of the operation status of the entire network by browsing topological views of the network.
In topology management, you can upload topological data of network devices through topology auto discovery or by manually adding topology nodes. You can also add, delete, modify, and query topological devices. According to different management requirements of users, topology management provides such functions as non-hierarchically zooming, setting background, and auto layout. In this way, you can manage networks and devices easily.
Topology management can poll network devices and refresh their status regularly, thus making the network view display consistent with the actual network topology. In addition, topology management can monitor polling status and alarm status of network devices through color changes of the topological nodes.
Figure 1–1 shows the main window for topology management.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
2.1 Basic Concepts
The topology is a map of the managed telecommunications network in the NMS. It displays managed devices and links on the user interface using graphs and trees. Through the topology, users can perform such operations as configuration, alarm and performance.
The topological objects that can be managed include nodes, submaps and links.
2.1.1 Concept Description
I. Submap
In the NMS, a large network can be divided into several smaller networks by region or something else to facilitate network management. In the topology, these smaller networks are known as submaps.
II. Node
A node refers to a managed device that is mapped into the topology. For a single-frame device, a node represents the device. For a multiple-frame device, a node usually represents a frame in the device. Therefore, in the topology, a node and a device do not mean exactly the same.
III. Link
A link refers to a connection between devices that is mapped into the topology. In the topological view, the displaying of links follows these rules:
z If there is any connection relation between two objects in the same submap, a
link is drawn between the icons of the two objects. Double click the link, and you can query the detailed attributes, including the link name, link type and link status.
z If there is any connection relation between two objects in two submaps, a
shortcut icon is drawn at the lower right corner of each icon.
z If there is any connection relation between the lower submaps or nodes in two
submaps, a link is drawn between the two objects (two submaps). IV. View
In the NMS, different views can be used to display the topology, depending on the angle of observing network or the service range concerned. As examples, a physical view divides network topology structure based on regions or any other rules; an IP view divides a network into several smaller networks based on the IP network segment.
Each view corresponds to a device explorer and is concerned about different service points. Each device explorer includes several submaps, which show the network composition in the view. Each submap includes several nodes, as shown in Figure 1–2.
Figure 1–2 View V. Role
Switches in a cluster can play different roles based on the locations and functions. A cluster is a manageable network that comprises of multiple interconnected switches. It is assigned with a single IP address. All switches in the cluster must support Huawei Group Management Protocol V2 (HGMP V2). With the cluster management, the user can manage a group of switches without assigning an IP address to each member switch.
In the NMS, depending on different service angles, device nodes of the same type can be defined as different roles to implement different operation and configuration modes. For example, a Quidview device node, which is not defined in the physical view, may be defined as a command switch or member switch in the Virtual Local Area Network (VLAN) view.
The switches in a cluster can play the following roles.
z Command switch
The switch is assigned with a public network IP address and provides the main management interfaces for the overall cluster. A management command is first sent to the command switch for processing. If it finds that the command is destined to a certain member switch, it will redirect the command to the member switch.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
z Member switch
The switch is a member of a cluster, which is not assigned with a public network IP address in normal situations. It only receives the management commands redirected from the command switch.
z Candidate switch
The switch does not join any cluster, but has the cluster capability and can become a member of a cluster.
z Independent switch
The switch can be discovered in the process of gathering cluster topology information, but has no cluster capability and cannot become a cluster member.
VI. Filter
Filter is a special topological node. It can contain members. Currently, the filter often represents a multi-frame device. The multiple nodes under the filter represent the frames of the device.
VII. Polling status and alarm status
Polling status: The NMS queries the status and other configuration data of devices regularly, and displays the queried status information in the topological view.
The possible polling statuses include:
Normal, unknown, offline, insignificant, minor, major fault, critical, loopback, and test. Alarm status: The device reports trap information to the NMS. Then the trap information is displayed in the topological view.
The possible alarm statuses include: Critical, major, minor, and warning.
2.1.2 Icon Description
Corresponding to the concepts provided in the previous section, the topological view uses different icons to indicate submap, node, link, view objects and their statuses, and role.
For a node, a submap, or a link, the color of its icon shows its polling status. The status at the upper left corner of the icon shows its alarm status, lock status (locked or unlocked), and its role.
Below list the legends of the status icons. I. Polling status color legend
Normal Unknown Offline Insignificant Fault Minor Fault Major Fault Critical Fault Loopback Test II. Alarm icon
Critical Major Minor Warning III. Lock icon
indicates that the object is locked. IV. Shortcut icon
indicates a cross-submap link. V. Filter icon
indicates a filter.
2.2 Functions
2.2.1 Editing the Topological View
I. Adding/deleting a submap
1) Select [Edit/Add Object] to display the "Add Object" dialog box.
2) On the “Object Type” pane, select the submap type to be added, and enter the related parameters, as shown in Figure 1–4.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
Figure 1–4 Adding submaps 3) Then click <Add>.
If the operation succeeds, the status bar prompts the success. If the operation fails, a dialog box shows the failure.
4) In the topological view or on the device explorer, select the submap to be deleted. Click [Edit/Delete From This Submap] or press <Delete>, and then confirm the operation.
The selected submap is then deleted. II. Adding/deleting a device
1) Select [Edit/Add Object] to display the "Add Object" dialog box.
2) On the “Object Type” pane, select the device type to be added, and enter the related parameters, as shown in Figure 1–5.
Figure 1–5 Adding devices 3) Then click <Add>.
If the operation succeeds, the status bar prompts the success. If the operation fails, a dialog box shows the failure.
4) In the topological view or on the device explorer, select the device to be deleted. Select [Edit/Delete From This Submap] or [Edit/Delete From All Submaps] or press <Delete>, and then confirm the operation.
The selected device is then deleted.
Note:
z If there are several copies of the specified device, all of them are deleted after you select a copy and
then [Edit/ Delete From All Submaps].
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management III. Adding/deleting a link
1) Select [Edit/Add Object] to display the "Add Object" dialog box. You can also select two objects in the topological view, right click and select [Create Link] to pop up the “Add Object” dialog box.
2) On the “Object Type” panel, select the link type to be added, enter the related parameters, as shown in Figure 1–6.
Figure 1–6 Adding links 3) Then click <Add>.
If the operation succeeds, the status bar prompts the success. If the operation fails, a dialog box shows the failure.
4) In the topological view, select the link to be deleted, and then select [Edit/Object Attributes]. In the “Object Attributes” dialog box that appears, click the “Link” tab to display the link attribute list.
5) Select one or more records in the link attribute list, right click, and then select [Delete].
IV. Editing object attributes
1) In the topological view, select the desired object, and then select [Edit/Object Attributes]. The “Object Attributes” dialog box then appears, as shown in Figure 1–7.
Figure 1–7 Object attributes
2) On this interface, batch modify the attributes of the objects such as links, nodes, submaps, and so on.
V. Searching for objects
1) Select [Edit/Search], or press <Ctrl+F>, or click on the toolbar. Then the “Search” dialog box appears, as shown in Figure 1–8.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
Figure 1–8 Searching for objects
2) In this dialog box, specify the searching conditions, including:
z Find Type: the object type to search for, such as device, board or port.
z Find Mode: the searching mode, such as device name, IP or physical address. z Find What: the keyword to search for.
z Match whole word only: whether to use the default fuzzy search.
3) Click <Search> to perform the operation. All the matching records will appear in the "Find Result" list.
4) Select the record you want to locate in the "Find Result" list, and double click to locate the corresponding record in the topological view or on the panel.
5) Click <Close> to cancel the operation and close the "Search" dialog box. VI. Refreshing a topological view
Select [Edit/Refresh View], or press <F9>, or click on the toolbar. Then the current topological view is refreshed.
If the operation succeeds, the status prompts the success. The status of the device node is refreshed on the device explorer and in the topological view. If the operation fails, a dialog box shows the failure.
VIII. Setting a start view
Select [Edit/Set as Home View], then the current view is set as a start view. It will be displayed when you log in to the NMS next time.
The start view is locally saved and is applied to the local terminal. IX. Saving an icon position
Select [Edit/Save Position], or click on the toolbar. Then the current icon position is saved.
If the icon position is not saved after being changed, the icon position remains unchanged after the view is refreshed or after you log in again.
X. Copying/cutting/pasting an object
With this function, you can copy or move the selected device node/submap from one submap to another.
1) On the topological view, switch to the original submap where the object locates. 2) Select [Edit/Copy] or [Edit/Cut] to copy or move the selected object to the
Clipboard.
3) Select the target view, and then select [Edit/Paste] to paste the object from the Clipboard.
Caution:
z If you select the cut/paste operation, the selected object is copied to the target view and deleted from
the source view.
z Neither the copy/paste operation nor the cut/paste operation can be performed across multiple
views.
z No recursive copy operation can be performed. For example, you are not allowed to copy submap A
to a view under A.
z Multiple objects can be copied and pasted at one time. To select multiple objects, press and hold
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
2.2.2 Viewing a Topological View
I. Zooming a topological view
1) Select [View/Zoom In] or click on the toolbar to zoom in the current view to 1.2 times of its original size.
2) Select [View/Zoom Out] or click on the toolbar to zoom out the current view to the 1.2 times of its original size.
3) Select [View/Zoom In Partially] or click on the toolbar. Press and hold the left mouse button and select an area in the view. When you release the left mouse button, the selected area is displayed on the full screen.
4) Select [View/Fit Window] or click on the toolbar to display the whole view on the full screen.
5) Select [View/Restore] or click on the toolbar to display the view at its original size.
II. Browsing topological view
1) In the topological view, double click the icon of the submap you want to enter. Then the submap is switched to, and its topological structure is displayed.
2) Select [View/UP] or click on the toolbar, or press <F6>.
Then the parent view of the current submap is switched to, and the topological structure of the parent view is displayed.
III. Printing topological view 1) Select [View/Print Preview].
2) In the “Preview” dialog box that appears, click <Previous> or <Next> to browse the topological view page by page.
3) Select [View/Print].
4) In the “Print” dialog box that appears, select a printer, specify printing range, copies and other desired parameters, and then click <OK>. Then the current topological view is printed.
2) In the topological view, select the nodes you want to lay out, and then switch to the desired layout mode to lay them out.
3) Select [View/Auto Layout] to lay out the nodes selected on the interface in the default mode.
Note:
z We recommend that the objects with obvious star or tree connection be laid out in star or tree mode;
those with obvious closed loop be laid out in loop or round mode; those with complicated connection be laid out in dispersal or uniform length mode; and those with simple connection be laid out in uniform length mode or loop mode.
z You can select some nodes on the interface and try different layout modes to get the best effect.
V. Showing filter and legend
1) Select [View/Filter&Legend], or click on the toolbar, or press [Ctrl+F2]. Then the “Filter/Legend” panel appears on the right side of the topological view. 2) Select the “Legend” panel to view the legend of the graphics in the topological
view. Select the “Filter” panel to filter the objects displayed in the topological view by category.
VI. Showing an aerial view
If the size of the topological view is larger than 1024*768 pixels, only part of it can be displayed in the topology window. In this case, you can display the entire topological view and locate the displayed area in the aerial view.
1) Select [View/Aerial View], or click on the toolbar, or press<Ctrl+F3>. Then the “Aerial View” window appears in the right part of the topological view. The rectangle area is the visible range of the current topological view.
2) Click in the "Aerial View" window or press and hold the left mouse button and drag the rectangular area in the window.
Then the display area of the current view is changed. 3) Click [View/Aerial View] again.
Then the "Aerial View" window is closed. VII. Showing view navigation tree
Select [View/Network Explorer], or click on the toolbar, or press <Ctrl+F4>. Then the view navigation on the “Device Explorer” panel is displayed.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management VIII. Showing topology on full screen
Select [View/Full Screen Mode].
Then the topological window occupies the full screen, and the toolbar and system menus are hidden. After the window is closed, the interface shows its actual status again.
IX. Setting icon size
1) Select [View/Icon Size Setting/Small]. Then the size of the currently displayed icons becomes 16*16 pixels.
2) Select [View/ Icon Size Setting/Medium]. Then the size of the currently displayed icons becomes 32*32 pixels.
3) Select [View/Icon Size Setting/Large]. Then the size of the currently displayed icons becomes 64*64 pixels.
2.2.3 Setting Default SNMP Parameters
In manual creating of the SNMP device or in device auto discovery, the system uses the default SNMP parameter profile to adapt to the specified device. This can determine the SNMP parameters supported by the device.
This operation allows you to modify, add, or delete a default SNMP parameter profile of the system.
1) Select [Edit/Default SNMP Configuration].
Then the “Default SNMP Configuration” dialog box appears, as shown in Figure 1–9. It lists all of the SNMP parameter profiles in the system.
Figure 1–9 Setting default SNMP parameters
2) Click the desired SNMP parameter type tab. It includes the SNMP V1 parameter type, SNMP V2 parameter type and SNMP V3 parameter type.
3) Configure the SNMP parameter profile of the selected type:
z To add a parameter profile, click <Add>. A configuration area appears in the
lower part of the dialog box. Enter the parameters and then click <OK>. The parameter profile then appears in the profile list.
z To modify a parameter profile, double click the desired profile in the profile list.
Then a configuration area appears in the lower part of the dialog box. Modify the parameters, and then click <Apply> to confirm the operation. The profile list is also refreshed.
z To delete a parameter profile, select the desired profile in the profile list, and then
click <Delete>. In the confirmation dialog box that appears, confirm the operation. Then the selected profile is deleted.
4) After the configuration, click <Close> to close the dialog box.
2.2.4 Setting Access Protocol Parameters
With this function, you can modify or test the access protocol parameters of the specified device at the NMS side.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management 2) Select [Edit/Device Access Protocol] to display the “Device Access Protocol” dialog box, as shown in Figure 1–10. The configuration list displays the SNMP parameter/MML parameter configuration of the selected device. The “Detailed Information” text box in the lower part of the dialog box displays the details of the record selected in the list.
Figure 1–10 Setting device access protocol
3) Click <Display> or double click the selected record in the SNMP/MML parameter configuration list. Then the details of the record appear in the lower part of the dialog box.
z Modify the desired parameters.
z Click <Test> to test whether the parameters are properly configured. A prompt
box pops up showing the operation results.
z Click <Apply> to confirm the operation.
If the operation succeeds, the status bar prompts the success. If the operation fails, a dialog box prompts the failure.
2.2.5 Setting Device Maintenance Information
With this function, you can add, delete and modify the device maintenance profiles. 1) Select [Edit/Device Maintenance Info].
Then the “Device Maintenance Info” dialog box appears, as shown in Figure 1–11. It lists all the device maintenance information.
Figure 1–11 Setting device maintenance information
2) To add the device maintenance, click <Add>. Then a parameter configuration area appears in the lower part of the dialog box.
3) Set the following parameters:
z [Supporter]: The name of the maintainer. It is mandatory.
z [Department]: The name of the company in which the maintainer works. z [Phone]: The phone number of the maintainer.
z [Email]: The E-mail address of the maintainer. It should be in standard form, such
After the setting, click <OK>. Then the maintenance information appears in the information list.
4) To modify the device maintenance, double click the maintenance you want to modify in the information list. Then a parameter configuration area appears in the lower part of the dialog box.
5) Modify the desired parameters and then click <Apply> to confirm the operation and refresh the information list.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management 6) To delete the device maintenance, select the maintenance you want to delete
from the information list, and then click <Delete>. In the confirmation dialog box that appears, confirm the operation.
7) Click <Close> to close from the "Device Maintenance Info" dialog box.
2.2.6 Auto Device Discovery
With this function, the NMS can search the specified IP network segment and device type automatically. It can further add the device to the topological view.
1) Select [Edit/Auto Discovery] to display the “Auto Discovery” dialog box. The dialog box is as shown in Figure 1–12.
Figure 1–12 Setting auto discovery
2) Select the desired auto discovery mode from the "Protocol" drop-down list. It is the "IP and SNMP" mode by default.
3) Select the desired device type from the "Device Type" drop-down list. It is "All Devices" by default.
The PING retries should be no more than 5 so that the operation will not last for too long.
5) Enter “Timeout(s)”. This parameter specifies a time limit of the ping operation. When the time is up, the operation will be stopped. The range is 5–15 seconds. It depends on the complexity of the network.
6) Enter "Layers", which is 0 by default.
This parameter refers to how many subnet layers the system will search to discover the router in an IP segment. The subnet layer should be no more than 5 so that the operation will not last for too long.
7) Click the "Physical Path" input box, and move the mouse pointer onto the "Device Explorer" tab or in the topological view. Click the target submap in which the desired device resides.
The path of the target submap then appears in the "Physical Path" input box.
8) In the "IP Address Range" frame, click <Add> to add a new IP address range record.
This record should specify the start IP address, end IP address, and subnet mask of the IP segment that the system needs to search.
9) Click <Delete> to delete the IP address range. 10) Click <Filter> to set the filtered IP address.
For example, the IP address range is set as 10.11.242.86~10.11.242.90, and the filtered IP address is set as 10.11.242.87. Then the IP address will not be automatically discovered.
11) Click <Discover All> and <Discover None> to set whether to discover in the default IP address range.
12) Click <Default SNMP Parameter> to pop up the "Default SNMP Parameter" dialog box. Select the SNMP parameter profile that is used to adapt to the device you want to search for. By default, all default SNMP parameter parameters are used.
13) Click <Start> to confirm the operation.
Note:
For the time being, the auto device discovery function is only applicable to the devices that use the SNMP.
User Manual
HUAWEI iManager N2000 Fixed Network Integrated Management System
Chapter 1 Topology Management
2.3 Deploying Devices
Reasonable device deployment in the NMS can make the communication network more visual and improve the operability of the NMS.
Generally, deploying device should experience four phases: Preparations–>Creating a Submap–>Adding a Device to the NMS–>Creating a Link.
2.3.1 Preparations
Deploying a device is to deploy communication devices in the network in the topological view. Before deploying a device in the topological view, you should plan the topological submaps reasonably. If there are too many devices in a very large network, it is very difficult to locate and manage a device in one topological view. You can classify the topological view into topological submaps by:
z Geographical region, that is, the region where the communication device is
located.
z Device type, that is, the type of the communication device.
z IP network segment, that is, the IP address of the communication device. z Manager of the device.
Note:
z Up to 300 devices can be added to each submap. If there are too many devices in a submap, the
interface of the NMS will be much crowded and the devices will be overlapped. This will make locating devices inconvenient.
z Submaps should be arranged in 5 layers at most. If they are arranged in too many layers, it will cause
much trouble to operate on the NMS.
2.3.2 Adding a Submap
There is a very large and complex communication network. To ease the management and operation, you can divide it into several subnets based on the geographical region, type or IP network segment of devices. Each subnet is mapped to a submap in the topology.
Adding a submap helps you to manage the communication network easily. Each subnet can correspond to a submap.
