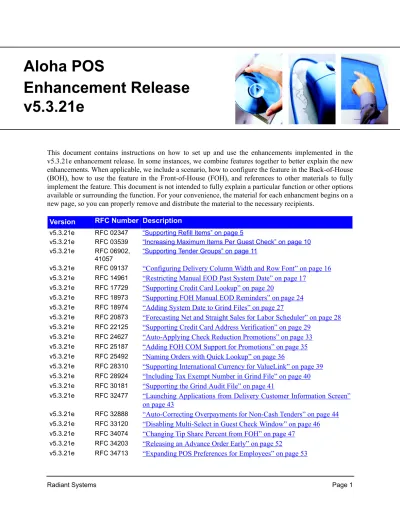

Aloha POS Enhancement Release v5.3.21e

(1)

Enhancement Release

v5.3.21e

This document contains instructions on how to set up and use the enhancements implemented in the v5.3.21e enhancement release. In some instances, we combine features together to better explain the new enhancements. When applicable, we include a scenario, how to configure the feature in the Back-of-House (BOH), how to use the feature in the Front-of-House (FOH), and references to other materials to fully implement the feature. This document is not intended to fully explain a particular function or other options available or surrounding the function. For your convenience, the material for each enhancment begins on a new page, so you can properly remove and distribute the material to the necessary recipients.

Version RFC Number Description

v5.3.21e RFC 02347 “Supporting Refill Items” on page 5

v5.3.21e RFC 03539 “Increasing Maximum Items Per Guest Check” on page 10 v5.3.21e RFC 06902,

41057

“Supporting Tender Groups” on page 11

v5.3.21e RFC 09137 “Configuring Delivery Column Width and Row Font” on page 16 v5.3.21e RFC 14961 “Restricting Manual EOD Past System Date” on page 17

v5.3.21e RFC 17729 “Supporting Credit Card Lookup” on page 20

v5.3.21e RFC 18973 “Supporting FOH Manual EOD Reminders” on page 24 v5.3.21e RFC 18974 “Adding System Date to Grind Files” on page 27

v5.3.21e RFC 20873 “Forecasting Net and Straight Sales for Labor Scheduler” on page 28 v5.3.21e RFC 22125 “Supporting Credit Card Address Verification” on page 29

v5.3.21e RFC 24627 “Auto-Applying Check Reduction Promotions” on page 33 v5.3.21e RFC 25187 “Adding FOH COM Support for Promotions” on page 35 v5.3.21e RFC 25492 “Naming Orders with Quick Lookup” on page 36

v5.3.21e RFC 28310 “Supporting International Currency for ValueLink” on page 39 v5.3.21e RFC 28924 “Including Tax Exempt Number in Grind File” on page 40 v5.3.21e RFC 30181 “Supporting the Grind Audit File” on page 41

v5.3.21e RFC 32477 “Launching Applications from Delivery Customer Information Screen” on page 43

v5.3.21e RFC 32888 “Auto-Correcting Overpayments for Non-Cash Tenders” on page 44 v5.3.21e RFC 33120 “Disabling Multi-Select in Guest Check Window” on page 46 v5.3.21e RFC 34074 “Changing Tip Share Percent from FOH” on page 47

v5.3.21e RFC 34203 “Releasing an Advance Order Early” on page 52

(2)

v5.3.21e RFC 34766 “Displaying Depleted Gift Cards on Checkout” on page 54 v5.3.21e RFC 34896 “Adding Tip Breakdown to Clock Out Chit” on page 55 v5.3.21e RFC 35681 “Supporting Stored Value Systems via Dialup” on page 58 v5.3.21e RFC 37296 “Limiting Single Order Mode Per Check” on page 60 v5.3.21e RFC 39031 “Supporting Tip % Threshold by Job Code” on page 62 v5.3.21e RFC 39767 “Automating the EDC Batch Transaction Export” on page 65 v5.3.21e RFC 39921 “Implementing the Employee Tip Report” on page 67 v5.3.21e RFC 40811,

41466, 41621 “Updating Processor Names in Aloha” on page 72 v5.3.21e RFC 41680 “Supporting CAS PD1 Scale” on page 73

(3)

Enhancement List by Product

Use the following list to view the v5.3.21e enhancements separated by the product in which they were implemented. You can click the page number to the right to access the corresponding documentation for the feature.

QuickService and TableService Enhancements

Supporting Tender Groups ...11

Configuring Delivery Column Width and Row Font ...16

Restricting Manual EOD Past System Date ...17

Supporting FOH Manual EOD Reminders ...24

Adding System Date to Grind Files ...27

Forecasting Net and Straight Sales for Labor Scheduler ...28

Supporting Credit Card Address Verification ...29

Auto-Applying Check Reduction Promotions ...33

Adding FOH COM Support for Promotions ...35

Naming Orders with Quick Lookup ...36

Supporting International Currency for ValueLink ...39

Including Tax Exempt Number in Grind File ...40

Supporting the Grind Audit File ...41

Launcing Applications from Delivery Customer Information Screen ...43

Auto-Adjusting for Overpayment Tenders ...44

Expanding POS Preferences for Employees ...53

Displaying Depleted Gift Cards on Checkout ...54

Adding Tip Breakdown to Clock Out Chit ...55

Supporting Tip % Threshold by Job Code ...62

Implementing the Employee Tip Report ...67

Supporting CAS PD1 Scale ...72

QuickService Only Enhancements

Disabling Multi-Select in Guest Check Window ...46

Releasing an Advance Order ...52

TableService Only Enhancements

Supporting Refill Items ...5

Increasing Maximum Items Per Guest Check ...10

Supporting Credit Card Lookup ...20

Changing Tip Share Percent From FOH ...47

(4)

EDC Enhancements

Supporting SVS via Dialup ...58

Automating the EDC Batch Transaction Export ...65

Updating Processor Names in Aloha EDC ...71

(5)

Supporting Refill Items

Currently, once you order an item, you cannot make changes to that item. In all-you-can-eat scenarios, however, you need to be able to call an item back up and order a refill. The Refill Support feature enables you to order refills for an item previously ordered.

To implement the Refill Support feature, you create a modifier group with the ‘Refill’ check box selected, qualifying the modifier group as a ‘refill modifier group’. You then assign the refill modifier group to the menu item in which you allow the customer to order refills, qualifying the menu item as a ‘refillable menu item’. When you initially add the refillable menu item to an order, only non-refillable modifier groups dis-play for selection. Upon accessing the refillable menu item to add a refill, all refill modifier groups assigned to the item display for selection.

SCENARIO: The guest orders an all-you-can-eat platter of items from the server. The server orders the first round of requested items.The guest orders another round of different items. The server recalls the check, selects the ordered menu item, and orders from only the modifiers available on the refill modifier groups for the menu item.

Configuring Refill Support

Configuring the Refill Support feature requires a separate modifier group in the Modifiers function and an access level to override the maximum refills. Then refresh the system to update your configuration.

Creating a Refill Modifier Group

You must create at least one refill modifier group for each item in which you allow the customer to order a refill. This modifier group only appears when you order a refill for the menu item. In some instances, you might create two identical modifier groups, one for the initial entry of the menu item, and one for the refill trip. As with all modifier groups, you must assign the group to an item in Maintenance > Menu > Items, to be able to modify the item in the FOH.

Version RFC Number Products Audience

v5.3.21e RFC 2347 Aloha TableService Configuration Technicians

Store Managers End User

Refer to the Aloha TableService User’s Guide for more information on creating items and modi-fiers.

(6)

To create a refill modifier group:

1. Select Maintenance > Menu > Modifiers.

2. Type an unused number or select an existing modifier group, and press Enter.

3. If this is a new modifier group, type the short name for the text to display on the FOH button, such as NEPB (Never Ending Pasta Bowl) Refill. For multiple lines of text, type \n for each break. 4. If this is a new modifier group, type the long name for the text to use on reports.

5. Type the minimum number of modifiers required for the group. 6. Type the maximum number of modifiers required for the group. 7. Type the number of free modifiers allowed for the group.

8. Select Refill.

Refill — Configures the modifier group to allow refills of the menu item. Touch the ordered menu item, then the Modify button on the FOH Order Entry screen, to display this modify group for refills.

9. Type the indicator for the refill modifiers to display on the kitchen chit, such as REF.

Refill Indicator — Displays up to three-digit alphanumeric characters, such as REF, on the kitchen chit to indicate the item is a refill. The refill indicator overrides any defined order mode indicator associated with the item.

10. Type the number of refill trips allowed for the group.

Number of Refills Allowed — Indicates the maximum number of times, from 1 to 99, you can modify the menu item and order a refill before the manager approval screen appears. Related

Option: Select ‘Override Maximum Refills’ in Maintenance > Labor >Access Levels > Financials,

to override this setting.

(7)

13. Type the weight selection value of the modifier, or accept the default of one. For example, type 2 to make a baked potato count as two vegetables.

14. Click OK.

15. Repeat steps 11 through 14 to add all modifiers for the group. 16. Click Save.

17. Repeat the procedure for all refill modifier groups. 18. Exit the Modifiers function.

Providing the Ability to Override Maximum Refills

To allow a guest to order more than the maximum refill trips defined in the modifier group, you must pro-vide an employee the ability to override the maximum and keep ordering. You accomplish this using access levels. Employees who are not assigned to this access level receive the Manager Approval screen, once the guest exceeds the maximum number of refill trips.

To provide the ability to override maximum refills: 1. Select Maintenance > Labor > Access Levels.

2. Select an access level, such as Manager, from the ‘Level’ drop-down list. 3. Select Financials.

4. Select Override Maximum Refills.

Override Maximum Refills — Allows you to override the maximum number of refills defined for a modifier group in Maintenance > Menu > Modifiers.

5. Repeat steps 2 through 4 for all access levels that can perform tax exemption on a check. 6. Click Save and exit the Access Levels function.

(8)

Using the Refill Support Feature

After configuring the Refill Support feature and running Refresh Data, you can modify an ordered item only with a modifier group defined as refillable. The Manager Approval screen appears, if you exceed the number of refill trips, and you must have sufficient access to order another refill. You cannot use the Repeat or Quantity buttons on a refill trip. To track the number of times you order the menu item and refill items, use the PMix report.

Ordering the Initial Item

Enter a menu item as normal, using modifiers, and touch Done when you are finished. The text for all items display as black, indicating they are ordered. The refill modifier groups do not display for selection.

Ordering a Refill

1. From the Working with Tables screen or a floor plan in use, touch the table with the ordered item. The Order Entry screen appears with the check in the guest check window.

2. Select the ordered item in the guest check window.

1. Select Modify to display the Modify screen for the item. The refill modifier groups appear in the center of the screen.

2. Touch the modifier group containing the modifier you want. The modifier group properties appear above the modifiers, which dictate how many selections you can make, such as ‘Choose

The Refill Support feature does not support remote video display systems.

(9)

5. Continue entering modifiers until you meet the properties of the modifier group. The screen either advances to the next refill modifier group, or returns to the Order Entry screen, based on the properties of the modifier group.

6. Repeat steps 4 through 7 until you complete the refill order.

7. Touch OK, if the Modify screen does not automatically return to the Order Entry screen. The menu item and modifiers appear in the guest check window.

If you have exceeded the number of refill trips you can order, the Manager Approval screen appears. A manager, or an employee with sufficient access, must enter their employee ID and touch OK to continue with the procedure.

8. Touch Done to send the item to the kitchen, exit to the floating logo, and print a receipt. Pasta ---01/27/2003 Nick 12:27 PM Tbl 11 1 of 1 Dine In REF ~ NEPB FETT ALFREDO REF~ NEPB MEAT SAUCE

(10)

Increasing Maximum Items Per Guest Check

Currently, you are able to add a maximum of 999 items to a guest check, including line items, such as blank lines, balance due line, tax lines, subtotal and total lines, and others. You can now set the maximum number of items to either 1000 or 2000 items, to accommodate environments such as banquets, cruise ships, and others.

To set the maximum number of items per guest check: 1. Select Maintenance > Store Settings.

2. Select System from the ‘Group’ drop-down list. 3. Select the Aloha Settings tab.

4. Type either 1 or 2 in ‘Maximum Number of Items on a check: ___ Thousand.’

Maximum Number of Items on a Check: __ Thousand — Indicates the maximum number of items, in one or two thousand, which you can add to the check. Items include lines such as blank

Adding more than 1000 items on a guest check uses an extreme amount of mem-ory and affects processor speed. If you implement this feature, please ensure your terminal has a fast processor. Our tests discovered that Celeron processors were the most vulnerable.

(11)

Supporting Tender Groups

Currently, all employees have access to any active tender, regardless of the job function the employee per-forms. You can now enable the system to restrict the use of a tender, or a group of tenders, to certain employees depending on their access level. You accomplish this with the concept of tender groups. If an employee attempts to apply a tender from a tender group for which they do not have access, the manager approval screen appears.

SCENARIO: A restaurant wants to allow only floor supervisors the ability to accept a personal check. When an employee attempts to apply a personal check as payment, the manager approval screen appears, and the floor supervisor must enter their ID number to allow the transaction.

Configuring a Tender Group

To configure a tender group, you must do the following: • Provide access to the Tender Groups function. • Configure a tender group.

• Assign the tender group to an access level. Then refresh the system to update your configuration.

Providing Access to Tender Groups

With the addition of Tender Groups to Aloha Manager, you must have a sufficient Back Office security level to access the Tender Groups option on the Payments menu. If your Back Office security level does not include access to Tender Groups, the menu option does not appear when you log in to the BOH. To provide access to the Tender Groups option:

1. Select Maintenance > Labor > BackOffice Security Levels. 2. Select the security level from the ‘ID’ drop-down list.

3. Select Tender Groups from the ‘Function’ list. 4. Select Run, Add, Edit, Delete, where applicable.

5. Click Save and exit the Back Office Security Levels function.

v5.3.21e RFC 06902, 41057

Aloha TableService, Aloha QuickService Configuration Technicians Store Managers

End User

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on tenders and access levels.

(12)

Configuring a Tender Group

A tender group is similar to a printer and video group. Each tender group contains a grouping of tenders for which the employee can apply payments, without manager approval.

To define a tender group:

1. Select Maintenance > Payments > Tender Groups.

2. Type an unused number in the ‘Number’ drop-down list and press Enter. 3. Type a name for the tender group.

4. To include a tender in the tender group, select the tender from the ‘Available’ list box and click Include.

To exclude a tender from the tender group, select the tender from the ‘Included’ list box and click Remove.

5. Repeat Step 4 until the tender group contains all the necessary tenders.

6. Click Save.

7. Repeat Steps 2 through 6 until you add all necessary tender groups. 8. Exit the Tender Groups function.

You can exclude certain cash denominations from a tender group, however, the system does not safeguard against the employee entering multiple cash tenders to achieve a higher denomination. For example, if you want to require approval for $100.00 bills, the employee can still receive a $100.00 bill, but enter five $20.00 bills to equal $100.00.

(13)

Assigning a Tender Group to an Access Level

Assign the tender group the employee can use without manager approval to the access level in which they will clock in. Select ‘All (0)’ to use all active tenders without a restriction.

To assign a tender group to an access level:

1. Select Maintenance > Labor > Access Levels.

2. Select an existing access level or type an unused number from the ‘Level’ drop-down list, and press Enter.

3. Select Financial.

4. Select the tender group from the ‘Tender Group’ drop-down list.

Tender Group — Restricts the employee clocked in under this job code to applying payments using only the tenders defined in the specified tender group. An employee with sufficient access must approve any tender not available within the assigned tender group. Select ‘All (0)’ to allow the use of all tenders. If the tender group is not available from the drop-down list, click the Tender Group button to create a new tender group.

5. Click Save.

6. Repeat Steps 2 through 5 until you assign the correct tender group to all necessary access levels. 7. Exit the Access Levels function.

(14)

Using a Tender Group

After you make the necessary changes, all employees assigned to an access level with a designated tender group can only apply payments using tenders from that group. If they try to apply a tender that is not found in their tender group, the manager approval screen appears. Once the tender is approved by an employee with sufficient access, the employee can adjust the tip, force the tender, and delete the payment, however, the employee cannot adjust the payment amount without another manager approval.

To use a tender group:

1. Start a check and enter items as normal.

2. Navigate to the Close screen for TableService operations, or a tender panel for QuickService operations.

3. When you touch a tender that is not included in your designated tender group, the manager approval screen appears.

4. A manager, or an employee with sufficient access, must enter their employee number and touch OK.

5. Apply the payment and close the check as normal.

(15)

Reporting Tender Approvals

Use the Audit report to report the time, the type of transaction, the name of the tender, and the employees involved in the transaction.

To perform an audit on tender authorizations: 1. Select Reports > Audit.

2. Select a date to report. The Select Transactions to Audit dialog box appears.

3. Select Tender Authorization.

4. Click View or Print. The entry appears in the Audit report, as shown in the following example:

Figure 8 Select Transactions to Audit Dialog Box

Time: Type Transaction

09:52 AM TENDER APPROVAL Emp 200 Francis, VISA tender approved by Emp 101 Lamar Lamb

10:18 AM TENDER APPROVAL Emp 201 Lynn, CASH tender approved by Emp 101 Lamar Lamb

(16)

Configuring Delivery Column Width and Row

Font

You can now adjust the width of columns in FOH screens related to the Delivery function, to make reading and accessing the contents of the columns easier. You can also specify the font size to use in the rows, to make them wider and easier to select., as an example of the Delivery Drivers screen shows in Figure 9. These font selections also enlarge font size in the Customer Select screen. Select Maintenance > Store Set-tings > Delivery, and specify the font sizes on the Delivery Setup 2 tab.

v5.3.21e RFC 09137 Aloha Delivery Frequent Buyer Support Technicians, Store Managers, End Users

Figure 9 Delivery Drivers Screen

Refer to the Aloha Delivery Frequent Buyer User’s Guide for more information on the Delivery Frequent Buyer product.

(17)

Restricting Manual EOD Past System Date

The date of business (DOB) should always match the current system date, to report sales properly and pre-vent errors from occurring between the BOH and FOH. Most sites configure the Aloha system to run the End-of-Day (EOD) process at a certain time via an event, to ensure the DOB increases to the next business day; however, some sites, such as 24-hour operations, invoke the EOD manually either from the BOH or the FOH. This increases the possibility of a site invoking the EOD process multiple times for the same business day, which creates multiple dated subdirectories containing sales from that day. You can now con-figure the Aloha system to prevent you from invoking a manual EOD if the date of business is ahead of the system date. The system date must increase to the next day before you can invoke an End-of-Day.

SCENARIO: A 24-hour operation has two managers running the restaurant with both the system date and the date of business of 04302005. The first manager invokes a manual EOD at 10:00 p.m. to increase the business date to 05012005. Unknowingly, the second manager invokes a manual EOD at 11:00 p.m. which increases the business date to 05022005; however, the system date is still the date of 04302005. The restau-rant must call their support number to merge the two dated subdirectories together.

Configuring the Restriction of Manual EOD Past System Date

To configure the restriction of a manual end-of-day past the system date, you must select the ‘DOB Can Not Exceed System Date’ option in Maintenance > Store Settings > System > End of Day. Then refresh the system to update your configuration.

To restrict a manual end-of-day past the system date: 1. Select Maintenance > Store Settings.

2. Select System from the ‘Group’ drop-down list.

v5.3.21e RFC 14961 Aloha TableService, Aloha QuickService Configuration Technicians Store Managers

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on the End-of-Day process.

(18)

3. Select the End of Day tab.

4. Select DOB Can Not Exceed System Date. 5. Click Save and exit the Store Settings function.

FOH Behavior When Restricting Manual EOD Past System

Date

After configuring the restriction of manual EOD past the system date, you cannot invoke a manual EOD if the DOB is equal to or greater than the system date. If you attempt to invoke the EOD process from the FOH under these conditions, an error message appears.

Figure 10 Store Settings - System Group - End of Day Tab

(19)

If you attempt to invoke the EOD process from the BOH, by selecting Utilities > Force End of Day, an error message appears.

(20)

Supporting Credit Card Lookup

Currently, when tendering a check, you must select a tender button associated with a specific credit card type, such as Master Card or Visa. You can now implement the Credit Card Lookup feature which allows you to use a generic credit card button on the FOH Tenders screen, therefore, reducing the number of credit card buttons from which to select. The system searches the credit cards defined in the BOH, based on the prefix number, and reports to the appropriate credit card.

SCENARIO: The guest hands a Visa card to the employee for payment. The employee recalls the check, navigates to the Close screen, and touches the credit card lookup button. When they swipe the card across the mag swipe reader, the system identifies the tender as a Visa based on the prefix defined for the card.

Configuring the Credit Card Lookup Feature

To implement the Credit Card Lookup feature, you must define each credit card tender type honored at your store as normal, but with a valid prefix number and without an assigned button position. Then create a generic credit card lookup tender to assign to the ‘Credit Card Lookup ID’ drop-down list in Maintenance > Store Settings > Credit Card. When finished, refresh the system to update your configuration.

Creating a Credit Card Lookup Tender

You must define a credit card lookup tender as a non-applicable credit card tender and clear the ‘Report As’, ‘Tender Type’, ‘Require Identification’, and ‘Require Authorization’ options.

1. Select Maintenance > Payments > Tenders. 2. Type an unused number, and press Enter. 3. Type the name, such as CreditCard.

4. Use one of the following methods to determine where the button displays on the FOH Tender screen:

• Type the button position in the Position text box.

• Click the Position button to display the Button Position dialog box, and select an available button position.

• Select First Available Button to place the tender in the first available button position. 5. Select Active.

(21)

6. Click Type to display the Type tab.

7. Select Credit Card.

8. Select Not Applicable from the ‘Credit Card’ drop-down list.

9. Click Identification and clear Require Identification. This disables all settings on the Identifica-tion tab.

10. Click Authorization and clear Require Authorization. This disables all settings on the Authori-zation tab.

11. Click Save and exit the Tenders function.

Designating the Tender ID to Display on the FOH Tenders Screen

After you create the generic credit card, you must designate the credit card tender to display in the FOH.

1. Select Maintenance > Store Settings.

2. Select Credit Card from the ‘Group’ drop-down list.

Figure 13 Tenders - Type Tab

(22)

3. Select the credit card lookup tender from the ‘Credit Card Lookup ID’ drop-down list.

Credit Card Lookup ID — Designates a pre-defined generic tender to search all active tenders based on the prefix number and detect the correct credit card type. Related Options: You must access Maintenance > Payments > Tenders, create a generic credit card tender type as ‘Not Appli-cable’, and clear ‘Report As’, ‘Require Identification’, and ‘Require Authorization’ cleared. All other credit card tenders must have a valid prefix number and no button position assigned.

4. Click Save and exit the Store Settings function.

Using the Credit Card Lookup

After configuring the Credit Card Lookup feature, you can display a single credit card button on the FOH Tenders screen, as shown in Figure 15. Select the button to access a generic credit card screen and swipe the credit card, or enter the card number manually. The system searches the hard-coded prefixes of the credit card type, then continues with the process of applying a credit card payment.

(23)

To use the credit card lookup screen:

1. With the check displayed in the guest check window, touch the credit card lookup tender. The Enter the Credit Card Number screen appears.

2. Swipe the credit card across the mag stripe reader, or enter the credit card number using the numeric keypad, and touch OK. The screen for the corresponding credit card appears with the credit card number and expiration date populated. For example, if the system matched the prefix numbers to a Visa card, the Visa Card screen appears.

3. Enter the requirements of the detected credit card, such as the correct purchase amount and a tip. 4. Close the check as normal.

(24)

Supporting FOH Manual EOD Reminders

Most sites configure the Aloha system to run the End-of-Day (EOD) process at a certain time via an event; however, some sites, such as 24-hour operations, invoke the EOD manually either from the BOH or the FOH. With the many duties a manager must perform, this increases the possibility of forgetting to run the EOD, which could result in multiple days for one Trans.log. You can now set a reminder to appear on the FOH terminals at the time in which you want to perform the EOD process, based on a 48-hour clock.

SCENARIO: A restaurant wants to perform a manual End-of-Day at 1:00 a.m, and creates a reminder to appear at 25:00. At 1:00 a.m., a message appears over the floating logo on all FOH terminals, reminding the manager to run an EOD. Clear the message, finish all orders in progress, and perform a manual EOD.

Configuring a FOH End-of-Day Reminder to Appear

To configure a FOH End-of-Day reminder to appear, type the time, based on a 48-hour clock, in the ‘Man-ual EOD Target’ text box. Then refresh the system to update your configuration.

To configure a FOH End-of-Day reminder to appear: 1. Select Maintenance > Store Settings.

v5.3.21e RFC 18973 Aloha TableService, Aloha QuickService Configuration Technicians Restaurant Managers, End Users.

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on the End-of-Day process.

(25)

3. Select the End Of Day tab.

4. Type the time, in the ‘Manual EOD Target’ text box, in which you want the reminder to appear. Manual EOD Target — Designates the time, using a 48-hour clock, in which you want a FOH message to appear over the floating logo screen reminding you to perform a manual End-of-Day. The message appears each time the floating logo appears until you run the EOD. For example, to define the reminder to appear at 1:00 a.m., type 25:00. To disable the reminder, type 00:00. Related

Options: If the ‘DOB Can Not Exceed System Date’ check box is selected, and the date of

busi-ness is equal to, or greater than the system date, you cannot run a manual EOD. The message con-tinues to appear until the system date is greater than the date of business, at which time you are able to run the EOD.

(26)

FOH Behavior with Manual EOD Reminders from FOH

After you make the necessary changes, the EOD reminder, as shown in Figure 18, appears on top of the floating logo screen on all terminals, at the designated time defined in the BOH. The message continues to appear until you perform an EOD.

(27)

Adding System Date to Grind Files

The Aloha system now includes the system date in the grind files. This allows 24-hour operations to deter-mine the actual date on which a transaction occurred, rather than the date of business. The date of the trans-action could be different than the date of business, depending on when the End-of-Day occurred.

v5.3.21e RFC 18974 Aloha TableService, Aloha QuickService Configuration Technicians Support Technicians Store Managers

The field for the system date was inserted to the right of the date of business, which shifted all subsequent fields over by one. If you have custom reports that generate information from one of these fields, you must alter your configuration.

Refer to the Aloha TableService and Aloha QuickService User’s Guide for more information on 24-hour operations.

(28)

Forecasting Net and Straight Sales for Labor

Scheduler

You can now configure Aloha Labor Scheduler to use net sales or straight sales as the basis for forecasting labor needs, and creating work schedules to support anticipated sales. Select Edit > Options > Miscella-neous tab to define the global setting for the type of sales to use in reporting and labor forecasting.

Select Requirements > Sales History (or Projections), and then select Sales or NetSales from the ‘Key Vol-ume’ drop-down list to define the basis for specific projections.

v5.3.21e RFC 20873 Aloha Labor Scheduler Support Technicians

Store Managers

Figure 19 Options Dialog Box

(29)

Supporting Credit Card Address Verification

To increase fraud protection, many credit card companies offer reductions in credit card fees to merchants, if they submit the cardholder’s zip code with the transaction for verification. This verification is referred to as an Address Verification System (AVS).

The Aloha system can now capture and include the cardholder’s zip code in the files sent to the processor, and is AVS certified with the following processors:

• AlohaNet (Universal Payment Interface) • Visanet

• BA Merchant Services (formerly known as NPC) • RBS Lynk (formerly known as Lynk Systems)

SCENARIO: A guest wants to pay for their order with a credit card. Enter the card number and the Secu-rity Verification screen appears. Enter the zip code supplied by the guest.

Configuring the Zip Code Prompt

Configuring the prompt for the cardholder’s zip code requires settings in the Tenders function and an access level to bypass the entry of the zip code, if required. Then refresh the system to update your config-uration.

Configuring a Tender to Prompt for the Zip Code

Using settings in the Tenders function, you must define each credit card tender for which you want to prompt for the zip code. You can enforce the entry of the zip code for all transactions, or only those in which you enter the card number manually. You can also specify the prompt text to appear on the screen, and the minimum number of digits you can enter for the zip code.

To configure a tender to prompt for the zip code: 1. Select Maintenance > Payments > Tenders.

2. From the ‘Number’ drop-down list, select a credit card tender for which to prompt for the zip code.

3. Select the Identification tab.

4. Select Require Identification, if necessary, to enable the options on the Security Verification tab.

v5.3.21e RFC 22125 Aloha TableService, Aloha QuickService Installers,

Configuration Technicians Restaurant Managers, End Users.

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on configuring tenders. Refer to the Aloha POS 5.3.x Documentation Updates for more information on other security features.

(30)

5. Select the Security Verification tab.

6. Select Enter Address Verification Code. This enables the options in the Address Verification group box.

Enter Address Verification Code — Requires you to enter the cardholder’s zip code for the credit card tender. The system includes the zip code in the files sent to the processor; therefore, could reduce the credit card fees imposed by the credit card processor. You must determine if the Aloha system is certified for AVS verification with the processor in use. Related Options: You must select ‘Require Identification’ on the Identification tab to enable the options in the Address Verification group box. To allow an employee to override the entry of the zip code, select ‘ Over-ride Security Verification’ in Maintenance > Labor > Access Levels > Financials.

7. Select All Cards to require the entry of the zip code for all transactions, whether you enter the card number manually or electronically.

All Cards — Requires you to enter the zip code for all transactions, whether you enter the card number manually or electronically. Clear the check box to only prompt for the zip code for manu-ally entered card numbers.

8. Select the minimum required number of characters, or digits, you can enter for the zip code in the ‘# of Characters’ drop-down list. If zip codes in your region contain five digits, then select 5.

Figure 21 Tender - Security Verification Tab

The Address Verification security feature is independent, but also utilizes the security code fea-tures implemented in v5.3.10, as explained in RFC 33798 in this document. When you upgrade to v5.3.21e, all tender security features are now located in Maintenance > Payments > Tenders > Security Verifications.

(31)

9. Select Numeric Only to require numeric entries only for the zip code.

Numeric Only — Requires you to always enter numeric entries for the zip code from a numeric keypad. Clear the check box to allow characters from an alphanumeric keypad.

10. Type up to 20 characters of text to appear as the prompt, such as ‘Billing Zip Code.’

Prompt — Specifies the text to prompt for the zip code on the FOH Security Verification screen. You can enter up to 20 characters.

11. Click Save.

12. Repeat steps 3 through 11 for each credit card tender for which you want to require the entry of the zip code.

13. Exit the Tenders function.

Providing the Ability to Bypass the Zip Code Prompt

If for some reason you need to bypass the entry of the zip code, you can use access levels to configure the system to allow certain employees, such as a manager, to bypass the prompt. When you do not enter the zip code in the FOH, the Manager Approval screen appears, requiring an employee with access to enter their password before continuing. If you do not configure the system to allow an employee to bypass the prompt, an error message appears stating that you must enter the verification.

To provide the ability to bypass the zip code prompt: 1. Select Maintenance > Labor > Access Levels.

2. Select an access level, such as Manager, from the ‘Level’ drop-down list. 3. Select the Financial tab.

4. Select Override Security Verification. 5. Click Save.

6. Repeat steps 2 through 5 for each access level that can override the entry of the zip code. 7. Exit the Access Levels function.

(32)

Using the Zip Code Prompt

When you require zip code verification, the Security Verification screen appears when you enter the trans-action amount on the credit card screen, and only on the initial request to the processor. Tip adjustments do not require the entry of the zip code.

To use the zip code prompt:

1. With the check displayed in the guest check window, select a credit card tender configured to require the zip code.

2. Enter the sales amount, tip amount, and expiration date, as required, and touch OK. The Secu-rity Verification screen appears.

3. With the information provided by the guest, enter the zip code of the cardholder, using the numeric keypad, and touch OK.

If you do not enter the zip code, the Manager Approval screen appears. A manager, or an employee with access, must enter their employee number and touch OK to bypass the entry of the zip code and continue with the procedure.

4. Close the check as normal.

(33)

Auto-Applying Check Reduction Promotions

To increase your speed of service and eliminate screen touches, you can now configure check reduction promotions to auto-apply when you enter the qualifying items on the check. This also bypasses the confir-mation message asking if this is correct.

SCENARIO: A restaurant offers a 10% discount if you order more than $50.00 on the check and wants to avoid employees having to select and confirm the promotion. Enter the items individually and the system automatically applies the promotion and discounts the check.

Configuring a Check Reduction Promo to Auto-Apply

To configure your system to automatically apply a check reduction promotion, you must select the ‘Auto Apply’ check box for each necessary check reduction promotion. Then refresh the system to update your configuration.

To configure a check reduction promotion to auto-apply:

1. Select Maintenance > Payments > Promotions. The Promotions function tab appears. 2. Select a promotion for which you want to auto-apply the check reduction from the ‘Number’

drop-down list, and press Enter.

3. Click Type Specifics to display the Promotion - Check Reduction dialog box.

4. Select Auto Apply.

5. Click OK to exit the dialog box.

6. Click Save and exit the Promotions function.

Configuration Technicians Restaurant Managers, End Users.

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on configuring promotions.

(34)

FOH Behavior with Auto-Apply Check Reduction Promotions

After you configure the Check Reduction promotion and refresh your data, the system automatically applies the discount without the need of touching a promotion button or approving a confirmation mes-sage. For TableService operations, the system automatically applies the promotion after you order the items. For QuickService operations, the system automatically applies the promotion as you enter the items. If you have multiple auto-apply promotions that qualify, the system applies the promotion with the lowest ID number. All other qualifying promotions in sequence discount the check with the adjusted price.

(35)

Adding FOH COM Support for Promotions

The Aloha system now provides full support for applying promotions to a guest check using external devices that communicate with Aloha via the COM interface, such as handheld computers and the Radiant interactive confirmation display. When you add items that qualify for a promotion, the external device reads the information and displays promotional prompts for suggestive selling.

v5.3.21e RFC 25187 Aloha TableService, Aloha QuickService Configuration Technicians Support Technicians Store Managers

(36)

Naming Orders with Quick Lookup

To increase your speed-of-service and to add a personal touch, you can use the Quick Lookup feature to store the names of your regular, repeat customers so you can rapidly name an order or tab. When a regular customer comes into your restaurant, you need only enter the first few characters of their name, and then select their full name from a filtered list.

BARTENDER SCENARIO: A sports bar has regular customers who frequent the establishment and run a tab. Use the Quick Lookup feature to quickly name the order each time the guest comes in.

QUICKSERVICE SCENARIO: A QuickService restaurant has regular customers and likes to call out the name of the guest for pick up, rather than an order number. Use the Quick Lookup feature to quickly asso-ciate the name of the guest with their order.

Configuring the Customer Quick Lookup Feature

To configure the Quick Lookup feature, add the names of your frequent guests to a text file called NameLkUp.txt, which you place in a new ExtData directory on the Aloha file server. In the event the file server loses connectivity, you cannot add any new additions to the file.

To configure the customer Quick Lookup feature: 1. Navigate to the Aloha or Alohaqs directory. 2. Select File > New > Folder.

3. Type ExtData and press Enter to add the ExtData folder to the directory. 4. Double-click to open the folder.

5. Select File > New > Text Document.

6. Type NameLkUp and press Enter to add NameLkUp to the ExtData folder.

v5.3.21e RFC 25492 Aloha TableService, Aloha QuickService Configuration Technicians, Store Managers,

End Users

Refer to the Aloha TableService and Aloha QuickService User’s Guide for more information on naming orders and using tabs.

To use this feature effectively in TableService, access Maintenance > Store Settings > Order Entry > Tables & Tabs, and select ‘Allow Duplicate Table Numbers’ to allow you to have multi-ple checks open simultaneously with the same name.

To remove a name from the list, you must manually delete the name from the NameLkUp.txt. You cannot remove names from the list from the FOH.

(37)

8. Type the list of names of your regular guests who frequent the restaurant and press Enter.

9. When finished, select File > Save and exit Notepad. 10. Restart the file server or wait for the End-of-Day to occur.

Using the Quick Lookup Feature

When naming orders using the Quick Lookup feature, the system displays the Enter Order Name screen with a selection list of frequent guests. Each time you add a new name, the name appears in the list the next time you name the order. In QuickService operations, you must touch the ‘Name Order’ button. In TableService operations, enter names each time you name a tab.

To use the Quick Lookup feature:

1. Begin entering a new order as normal from the Order Entry screen.

Figure 25 NameLkUp.txt

It is also common for servers to use tabs instead of tables, such as in country club environments. For these environments, touch New Order to prompt for the Enter Name Order screen.

(38)

2. Touch New Tab for TableService environments, or the Name Order button for QuickService environments. The Enter Order Name screen appears.

The names appear in alphabetical order and each name truncates to 20 characters of text. 3. Touch the name of the guest in the list.

To filter the list of names, enter the first few letters of the name, using the alphanumeric keypad until you find a unique match. For example, to find Morgan from a list that also contains the name Morrison, enter M-O-R-G.

To add a new name to the list, enter the full name with the alphanumeric keypad.

To add a new name that is shorter than an existing name in the list, enter a space after the last let-ter. For example, to add the name Jen to a list that also contains the name Jennifer, enter J-E-N-(space).

4. Touch OK to exit the screen. The system associates the order with the name you selected.

(39)

Supporting International Currency for ValueLink

In Aloha POS v5.3.12, the Aloha system introduced the concept of local and base currencies to support gift cards across countries that use different currencies. You define the local currency used at your store so you can accept cards purchased with a foreign currency and have the system automatically calculate the exchange rate. Each currency has a three-digit International Organization for Standardization (ISO) code to use when identifying and calculating the exchange rate. The currency symbol defined in Maintenance > Payments > Foreign Currency is not affected.

With v5.3.21ee, the Aloha system can now return international currency values from the ValueLink gift card host. The corresponding exchange rate prints on the guest check receipt and voucher when you redeem the card or perform a balance inquiry, as shown in the following example:

v5.3.21e RFC 28310 Aloha TableService, Aloha QuickService Configuration Technicians, Store Managers,

End Users

Gift Card Balance: $2.96

***International*** Currency: Pound Sterling

Currency value: 42.50 Exchange rate: 1.70 Currency balance: 5.03

*****************************

Refer to “Supporting Multi-Currency Transactions” in the Maintenance Update v5.3.x document for information on configuring your base and local currencies. Refer to the Aloha TableService User’s guide for more information on configuring International settings.

(40)

Including Tax Exempt Number in Grind File

The Aloha system supports tax exemption on guest checks for qualifying organizations such as churches, military officials, and others. The employee receives proof of exemption from the guest and enters the number into the system to remove the tax from the check. In a corporation, the store fills out an IRS form with the tax exempt number and sends it to the corporate office, however, if the hard-copy form is lost, the store cannot recover the number for polling and reporting. You can now retrieve the exemption number entered by the employee from the ‘Ident’ field in GndTndr.dbf.

v5.3.21e RFC 28924 Aloha TableService, Aloha QuickService Support Technicians Store Managers Corporate Accountants

Refer to the Aloha TableService and Aloha QuickService User’s guide for more information on tax exemption.

(41)

Supporting the Grind Audit File

The Grind Audit (GndAudit.dbf) file contains auditing information you can use for troubleshooting and reporting. Using the Grind Audit file, you can track when employees perform the following actions:

• Transfer an item (TableService only). • Print a check.

• Transfer a check (TableService only). • Reopen a check.

• Adjust a payment. • Delete a promotion. • Reprint a closed check. • Delete a checkout.

• Split a check (TableService only). • Run a checkout.

To generate the GndAudit.dbf file:

1. Select Maintenance > Store Settings.

Configuration Technicians Restaurant Managers,

Refer to the Aloha TableService or Aloha QuickService User’s Guide for more information on the grind process.

(42)

3. Select Aloha Settings.

4. Select Enable Grind Audit.

Enable Grind Audit — Enables you to generate a file during the “grind process” called GndAu-dit.dbf. The “grind” process typically runs during the End-of-Day, or when you view reports. This file contains information you can use for troubleshooting and reporting, such as the number of times an employee reopens a check, reprints a check, deletes a promotion, and more.

(43)

Launching Applications from Delivery Customer

Information Screen

Delivery Frequent Buyer can now launch an external application, and pass information about the customer and their purchases to a third-party program, for purposes such as a map finder to help you find the loca-tion of delivery customers. You can specify the text that appears on the new button, in the Customer Lookup screen, when enabled. You can also specify path and command line arguments, as required, to cor-rectly launch the program.

v5.3.21e RFC 32477 Aloha Delivery Frequent Buyer Configuration Technician, Support Technician, Store Managers,

Refer to the Aloha Delivery Frequent Buyer User’s Guide for more information on configuring Delivery Frequent Buyer.

(44)

Auto-Correcting Overpayments for Non-Cash

Tenders

You can configure non-cash tenders so that you can apply a payment that is greater than the amount of the guest check, resulting in an overpayment and cash back to the customer. However, if you do not allow overpayments for non-cash tenders, and the scenario where you apply a non-cash tender to the check prior to applying a promotion, or other reduction such as a void, occurs, an over-payment situation is in effect. The system displays a message, as shown in Figure 28, letting you know overpayments are not allowed, and a correction needs to occur.

You must click Yes to have the system automatically make the correction to the non-cash tender, or click No to exit the message and correct the problem using another method. You can now configure the system to automatically correct an overpayment of a non-cash tender without a confirmation message. Gift certifi-cates and gift cards do not support overpayment scenarios.

SCENARIO: A guest pays for the check with a non-cash tender for which you do not allow an overpay-ment. You apply the payment and then the guest informs you they did not order one of the items for which they are being charged. You void the item from the check, resulting in an overpayment. When you close the check, the system automatically corrects the payment amount to the new total of the guest check, without prompting you for a confirmation.

v5.3.21e RFC 32888 Aloha TableService, Aloha QuickService Support Technicians Store Managers

Figure 28 Overpayment Confirmation Message

(45)

To configure auto-correcting overpayments for non-cash tenders: 1. Select Maintenance > Payments > Tenders.

2. Select the tender from the ‘Number’ drop-down list. 3. Select Auto Fix Without Prompt.

Auto Fix Without Prompt — Enables the system to automatically correct an overpayment on a check, without a confirmation message. This applies for non-cash tenders, excluding gift card and gift certificate tender types, for which you do not allow overpayments. When an overpayment situ-ation occurs due to a reduction in the check after you have already applied the payment, such as a void, the system corrects the overpayment without a confirmation prompt to which you must respond. This check box is disabled when you select ‘Allow Overpayment.’

4. Click Save and exit the Tenders function.

(46)

Disabling Multi-Select in Guest Check Window

The Aloha system has the unique ability to select multiple successive items from the guest check window for performing order entry functions, such as repeating items, ordering items, and more. Simply touch each item you want to select, and they all appear highlighted in the guest check window. If you select an item in error, touch the incorrect item again to clear it from the selection.

You can now configure the system to disable the multi-selection feature and require the employee to select single items from the guest check window. When you select a different item, it clears the previously selected item. This prevents employees from deleting multiple items in one transaction, and provides a more accurate audit of the number of deletions being performed by an employee.

To disable the multi-select feature:

1. Select Maintenance > Store Settings. 2. Select the User Interface group. 3. Select Order Screen.

4. Select Disable Multi-Select.

v5.3.21e RFC 33120 Aloha QuickService Support Technicians

Store Managers End Users

(47)

Changing Tip Share Percent from FOH

The tip share concept takes a percentage of earnings from tipped employees and divides the amount among non-tipped employees, such as bussers and dishwashers. If a non-tipped employee does not come in to work or is not needed for the shift, the tip share percent is usually reduced. Currently, you set the default percent in Maintenance > Store Settings > Labor > Employee Settings, or you can change the tip share cent using an event, both of which require a refresh to the system. You can now change the tip share per-cent from the FOH, on demand.

SCENARIO: The default tip share percent is 2% for tipped employees to distribute to five non-tipped employees. You tell one non-tipped employee not to work, which changes the distribution to four. Using the Functions > Employee function screen in the FOH, you adjust the tip share percent to 1.5% to apply to all tipped employees working the current day part. The adjustment remains in effect until an event fires for the next day part, or you make another adjustment to the tip share percent.

Configuring the Ability to Adjust Tip Share from the FOH

To allow an employee to adjust the tip share percent on demand from the FOH, you must select ‘Adjust Tip Share’ for their access level in Maintenance > Labor > Access Levels. Then refresh the system to update your configuration.

To configure the ability to adjust the tip share from the FOH: 1. Select Maintenance > Labor > Access Levels.

2. Select the Employee tab.

v5.3.21e RFC 34074 Aloha TableService Support Technicians

(48)

3. Select an access level, such as Manager, from the ‘Level’ drop-down list and press Enter. 4. Select Adjust Tip Share.

Adjust Tip Share — Allows you to adjust the tip share percent from the FOH and displays the ‘Adjust Tip Share’ button on the Functions > Employee screen.

5. Click Save and exit the Access Levels function.

Adjusting the Tip Share Percent from FOH

After you select ‘Adjust Tip Share’ and refresh the system, the ‘Adjust Tip Share’ button appears on the Functions > Employee screen. When you select the Adjust Tip Share button, all job codes with ‘Pays Tip Share’ selected appear. The function allows you to select one or more job codes and adjust the tip share percent for all employees clocked in under the job codes you select.

To adjust the tip share percent from the FOH:

1. From the Functions screen, touch Employee to display the Employee screen.

(49)

2. Touch Adjust Tip Share to display the Select Job Code to Adjust Tip Share screen.

3. Touch the job codes for which you want to adjust the tip share percent, and touch OK. To clear a selection, touch the job code again. The Enter Tip Share % screen appears.

4. Enter the adjusted tip share percent, using the numeric keypad, and then touch OK to return to the Employee screen.

Figure 33 Select Job Code to Adjust Tip Share Screen

(50)

Reporting Tip Share with FOH Adjustments

When you change the default tip share percent from the FOH, the change is in effect for all tipped employ-ees clocked in for the current day part, and all following day parts until a Set Tip Share event occurs or you make another adjustment. The tip share calculations adhere to the following hierarchy from lowest to high-est:

1. Default tip share percent, as defined in Maintenance > Store Settings > Labor > Employee Set-tings.

2. Set Tip Share event, as defined in Maintenance > System > Events.

3. Adjusted tip share percent from the FOH, until a Set Tip Share event occurs. The following scenario depicts how the reporting aspects of the tip share calculates: Setup:

Four tipped employees distribute a default percentage of 1.5% to the tip pool for four non-tipped employ-ees. The Lunch day part spans 11:00 a.m.- 4:00 p.m. and the Dinner day part spans 4:00 p.m. - 10:00 p.m:

Scenario:

Figure 35 Tip Share Calculation

Time Action Tip Share Calculation Explanation

2:00 Mary checks out with $100.00 in sales.

$100.00 x 1.5% = $1.50 Mary contributed 1.5% of her sales to the pool, because she checked out before the manager made the tip adjustment in the FOH.

2:30 Manager decides that busi-ness is dropping, sends a non-tipped employee home, and changes the tip share percent to 1% in the FOH. 3:00

4:00

Bob checks out with $200.00 in sales.

Alice checks out with $300.00

$200.00 x 1.0% = $2.00.

$300.00 x 1.0% = $3.00

Bob and Alice contributed 1% each, because they both checked out after the manager adjusted the tip share percent to

(51)

5:00 A scheduled ‘Set Tip Share’ event occurs for the Dinner day part, and adjusts the tip share percent to 2.5%. 6:00 Luis checks out with $400.00

in sales for the Lunch day part, and $100.00 in sales for the Dinner day part.

$400.00 x 1.0% = $4.00 $100.00 x 2.5% = $2.50

Luis contributed 1% for the sales he made during the Lunch day part, as that is the percent in effect at the time the day part ended. He also contributed 2.5% for the sales he made during the Dinner day part, because the tip share percent for the Dinner day part was adjusted by a ‘Set Tip Share’ event.

Time of Distribution

Tip share pool / Total indi-rectly tipped employees

$13.00 / 4 = $3.25 Each indirectly tipped employee receives $3.25 from the tip share pool.

(52)

Releasing an Advance Order Early

The Advance Orders feature enables you to place orders in advance and specify the time to prepare the order. This accommodates environments that accept orders to be prepared and picked up at a later time. Currently, if the guest arrives earlier than their scheduled pickup time, the employee must touch Edit on the Manage Advance Orders screen and change the ‘serve time’ to the current time. You can now touch the ‘Release’ button on the same screen, to send the advance order earlier than expected.

SCENARIO: At 11:00 a.m. the guest places an order to be picked up at 5:00 p.m. The order takes 30 min-utes to prepare. Enter the order as an advance order with a serve time of 5:00 p.m. and a prep time of 30 minutes. The system calculates 4:30 p.m. as the time to send the order to the kitchen (Serve Time - Prep Time). The guest arrives early and is waiting for the order to prepare. Touch the order from the Manage Advance Orders screen, and then touch Release.

To release an advance order early:

1. Locate and touch the Manage Advance Orders button. The Manage Advance Orders screen appears.

v5.3.21e RFC 34203 Aloha QuickService Support Technicians

Refer to the Aloha Advance Orders Feature Profile for more information on advance orders.

(53)

Expanding POS Preferences for Employees

The Aloha POS system now uses the sorting and filtering preferences you establish for employees in Utili-ties > Preferences in more functions than just those available on the Employee Maintenance menu. The system now uses your employee preferences in the following functions, as well:

• Functions > Edit Punches • Reports > Audit

• Reports > Sales > Server Sales Detail • Reports > Employee > Labor

• Reports > Employee > Speed of Service

• Reports > Employee > Time and Attendance Detail

If you have a function open when you change your employee preferences, you must close the function to update your sorting preferences, and then reopen the function.

v5.3.21e RFC 34713 Aloha TableService, Aloha QuickService Configuration Technicians, Support Technicians, Store Managers

Refer to the Aloha TableService and Aloha QuickService User’s guides for more information on using employee preferences.

(54)

Displaying Depleted Gift Cards on Checkout

To reduce the risk of theft, most operations require you to take the gift card from the guest when the card reaches a $0.00 balance. You then turn in the card during the checkout process. The Aloha system now prints an additional line on the Server Checkout and Drawer Checkout reports, showing the number of gift cards redeemed with a remaining balance of $0.00.

The line prints at the bottom of the Payments section.

You must have ‘Print Non-cash Tenders’ selected in Maintenance > Store Settings > Printing > Employee Checkout Cfg to print a count of redeemed gift cards with a remaining balance of $0.00.

Print Non-cash Tenders — Prints a separate listing of non-cash tenders, by type, on the checkout report. For gift cards, the checkout report includes a total for the number of gift cards redeemed with a remaining balance of $0.00.

This feature is primarily used for pre-denominated gift cards, however, each time an open-value card reaches a $0.00 balance, the number is increments. If the depletion occurs during an off-line transaction, the card is not counted because there is no connection to the host to determine if the card has a remaining balance of $0.00.

v5.3.21e RFC 34766 Aloha TableService, Aloha QuickService Support Technicians Store Managers End Users

***PAYMENTS***

01 Holiday Gift Card 24.44 ( - ) 02 MGR Gift Card 18.22 ( - ) 05 $25.00 Gift Card 45.67 ( - )

10 Visa 1875.45 ( - )

Total Zero Balance G/C Redeemed 2

Refer to the respective Feature Profile for the gift card processor for more information on gift cards.

(55)

Adding Tip Breakdown to Clock Out Chit

You can now add a tip breakdown and a defined footer information section to the bottom of the clock out chit, which prints each time the employee clocks out. The tip breakdown includes information such as the declared tip rate, charge and cash tip rate, and more. The responsibility falls on the employee to retain their clock out chits to safeguard against IRS audits.

Configuring Tip Breakdown on the Clock Out Chit

To configure the tip breakdown to appear on the clock out chit, you must enable the system to add the tip breakdown section and define a guest check message to print at the bottom of the chit. Then refresh the system to update your configuration.

To add the tip breakdown section to the clock out chit: 1. Select Maintenance > Store Settings.

2. Select the Financials group. 3. Select the Reports tab.

v5.3.21e RFC 34896 Aloha TableService, Aloha QuickService Configuration Technicians Support Technicians Store Managers End Users

(56)

4. Select Tip Breakdown Prints on Clock Out Chit.

Tip Breakdown Prints on Clock Out Chit — Prints a tip breakdown section, such as the tip rate %, total charge sales and tip rate, total cash tips and tip rate, and more, at the bottom of the clock out chit. Related Options: The tip breakdown appears on the clock out chit for all employees clocked in with an access level with ‘Order Entry’ selected.

5. Select a defined message from the ‘Clock Out Chit Footer’ drop-down list.

Clock Out Chit Footer — Prints a defined guest check message as a footer at the bottom of the clock out chit. Select ‘00000 None’ to disable the feature. Related Options: Access Maintenance > Messages > Guest Checks to define a footer message.

6. Click Save and exit the Store Settings function. To define the clock out footer message:

1. Select Maintenance > Messages > Guest Check.

2. Type an unused number in the ‘ID’ drop-down list and press Enter. 3. Type a name for the message.

4. Type a title for the message.

5. Type the message you want to appear after the tip breakdown section of the clock out chit. 6. Click Save and exit the Guest Check Messages function.
