Event Extraction for Post Translational Modifications

Event Extraction for Post-Translational Modifications

Tomoko Ohta∗ Sampo Pyysalo∗ Makoto Miwa∗ Jin-Dong Kim∗ Jun’ichi Tsujii∗†‡ ∗_{Department of Computer Science, University of Tokyo, Tokyo, Japan}

†_{School of Computer Science, University of Manchester, Manchester, UK} ‡_{National Centre for Text Mining, University of Manchester, Manchester, UK}

{okap,smp,mmiwa,jdkim,tsujii}@is.s.u-tokyo.ac.jp

Abstract

We consider the task of automatically extracting post-translational modification events from biomedical scientific publica-tions. Building on the success of event extraction for phosphorylation events in the BioNLP’09 shared task, we extend the event annotation approach to four major new post-transitional modification event types. We present a new targeted corpus of 157 PubMed abstracts annotated for over 1000 proteins and 400 post-translational modification events identifying the modi-fied proteins and sites. Experiments with a state-of-the-art event extraction system show that the events can be extracted with 52% precision and 36% recall (42% F-score), suggesting remaining challenges in the extraction of the events. The an-notated corpus is freely available in the BioNLP’09 shared task format at the GE-NIA project homepage.1

1 Introduction

Post-translational-modifications (PTM), amino acid modifications of proteins after translation, are one of the posterior processes of protein biosyn-thesis for many proteins, and they are critical for determining protein function such as its ac-tivity state, localization, turnover and interac-tions with other biomolecules (Mann and Jensen, 2003). Since PTM alter the properties of a pro-tein by attaching one or more biochemical func-tional groups to amino acids, understanding of the mechanism and effects of PTM are a major goal in the recent molecular biology, biomedicine and pharmacology fields. In particular, epige-netic (“outside conventional geepige-netics”) regulation

1_{http://www-tsujii.is.s.u-tokyo.ac.jp/} GENIA

of gene expression has a crucial role in these fields and PTM-like modifications of biomolecules are a burning issue. For instance, tissue specific or con-text dependent expression of many proteins is now known to be controlled by specific PTM of his-tone proteins, such asMethylationandAcetylation (Jaenisch and Bird, 2003). ThisMethylation and Acetylationof specific amino acid residues in his-tone proteins are strongly implicated in unwinding the nucleosomes and exposing genes to transcrip-tion, replication and DNA repairing machinery.

The recent BioNLP’09 Shared Task on Event Extraction (Kim et al., 2009a) (below, BioNLP shared task) represented the first community-wide step toward the extraction of fine-grained event representations of information from biomolecular domain publications (Ananiadou et al., 2010). The nine event types targeted in the task included one PTM type,Phosphorylation, whose extraction in-volved identifying the modified protein and, when stated, the specific phosphorylated site. The re-sults of the shared task showed this PTM event to be single most reliably extracted event type in the data, with the best-performing system for the event type achieving 91% precision and 76% recall (83% F-score) in the extraction of phosphorylation events (Buyko et al., 2009). The results suggest both that the event representation is well applica-ble to PTM and that current extraction methods are capable of reliable PTM extraction. Most of the proposed state-of-the-art methods for event extrac-tion are further largely machine-learning based. This suggest that the coverage of many existing methods could be straightforwardly extended to new event types and domains by extending the scope of available PTM annotations and retrain-ing the methods on newly annotated data. In this study, we take such an annotation-based approach to extend the extraction capabilities of state of the art event extraction methods for PTM.

Term Count

Phosphorylation 172875 50.90%

Methylation 49780 14.66%

Glycosylation 36407 10.72%

Hydroxylation 20141 5.93%

Acetylation 18726 5.51%

Esterification 7836 2.31%

Ubiquitination 6747 1.99%

ADP-ribosylation 5259 1.55%

Biotinylation 4369 1.29%

Sulfation 3722 1.10%

. . .

TOTAL 339646 100%

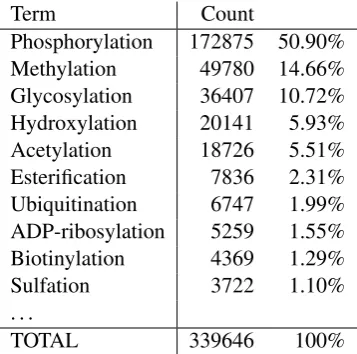

Table 1: PTM mentions in PubMed. The number of citations returned by the PubMed search engine for each PTM term shown together with the frac-tion of the total returned for all searches. Searches were performed with the terms as shown, allow-ing MeSH term expansion and other optimizations provided by the Entrez search.

2 Corpus Annotation

We next discuss the selection of the annotated PTM types and source texts and present the rep-resentation and criteria used in annotation.

2.1 Event Types

A central challenge in the automatic extraction of PTMs following the relatively data-intensive BioNLP shared task model is the sheer number of different modifications: the number of known PTM types is as high as 300 and constantly grow-ing (Witze et al., 2007). Clearly, the creation of a manually annotated resource with even mod-est coverage of statements of each of the types would be a formidable undertaking. We next present an analysis of PTM statement occurrences in PubMed as the first step toward resolving this challenge.

We estimated the frequency of mentions of prominent PTM types by combining MeSH ontology2 PTM terms with terms occurring

in the post-translational protein

modification branch of the Gene Ontology

(The Gene Ontology Consortium, 2000). After removing variants (e.g.polyaminationfor amina-tion or dephosphorylation for phosphorylation) and two cases judged likely to occur frequently

2_{http://www.nlm.nih.gov/mesh/meshhome.} html

in non-PTM contexts (hydration and oxidation), we searched PubMed for the remaining 31 PTM types. The results for the most frequent types are shown in Table 1. We find a power-law - like distribution with phosphorylation alone accounting for over 50% of the total, and the top 6 types together for over 90%. By contrast, the bottom ten types together represent less than a percent of total occurrences.

This result implies that fair coverage of individ-ual PTM event mentions can be achieved without considering even dozens of different PTM event types, let alone hundreds. Thus, as a step toward extending the coverage of event extraction systems for PTM, we chose to focus limited resources on annotating a small selection of types so that a num-ber of annotations sufficient for supervised learn-ing and stable evaluation can be provided. To maximize the utility of the created annotation, the types were selected based on their frequency of oc-currence.

2.2 Text Selection

Biomedical domain corpora are frequently anno-tated from selections of texts chosen as a sample of publications in a particular subdomain of inter-est. While several areas in present-day molecu-lar biology are likely to provide ample source data for PTM statements, a sample of articles from any subdomain is unlikely to provide a well-balanced distribution of event types: for example, the most frequent PTM event type annotated in the GENIA event corpus occurs more than 10 times as often as the second most frequent (Kim et al., 2008). Further, avoiding explicit subdomain restrictions is not alone sufficient to assure a balanced distri-bution of event types: in the BioInfer corpus, for which sentences were selected on the basis of their containing mentions of protein pairs known to in-teract, the most frequent PTM type is again anno-tated nearly four times as often as the second most frequent (Pyysalo et al., 2007).

PTM type AB FT

Acetylation 103 128

Glycosylation 226 336

Methylation 72 69

Phosphorylation 186 76

Hydroxylation 71 133

Table 2: Number of abstracts (AB) and full-text ar-ticles (FT) tagged in PIR as containing PTM state-ments.

statements expressing PTMs in text and thus poor material for either meaningful evaluation or for training methods with good generalization perfor-mance.3 To avoid such bias, we decided to base our selection of the source texts on an indepen-dently annotated PTM resource with biological (as opposed to textual) criteria for inclusion. Owing in part to the recent interest in PTMs, there are currently a wealth of resources providing different levels of annotation for PTMs.

Here, we have chosen to base initial annotation on corpora provided by the Protein Information Resource4(PIR) (Wu et al., 2003). These corpora contain annotation for spans with evidence for five different PTM types (Table 2), corresponding to the five PTMs found above to occur in PubMed with the highest frequency. A key feature setting this resource apart from others we are aware of is that it provides text-bound annotations identifying the statement by which a PTM record was made in the context of the full publication abstracts. While this annotation is less specific and detailed than the full BioNLP shared task markup, it could both serve as an initial seed for annotation and assure that the annotation agrees with relevant database curation criteria. The PIR corpora have also been applied in previous PTM extraction studies (e.g. (Hu et al., 2005; Narayanaswamy et al., 2005)).

We judged that the annotated Phosphorylation events in the BioNLP shared task data provide sufficient coverage for the extraction of this PTM type, and chose to focus on producing annota-tion for the four other PTM types in the PIR data. As the high extraction performance for phospho-rylation events in the BioNLP shared task was

3_{One could easily gather PTM-rich texts by performing}

protein name tagging and searching for known patterns such as “[PROTEIN] methylates [PROTEIN]”, but a corpus cre-ated in this way would not necessarily provide significant novelty over the original search patterns.

4_{http://pir.georgetown.edu}

Protein Site PTM Count

collagen lysine Hydroxylate 44

myelin arginine Methylate 17

M protein N-terminal Glycosylate 2

EF-Tu lysine Methylate 1

Actobindin NH2 terminus Acetylate 0 Table 3: Example queried triples and match counts from Medie.

achieved with annotated training data containing 215 PTM events, in view of the available resources we set as an initial goal the annotation of 100 events of each of the four PTM types. To assure that the annotated resource can be made publicly available, we chose to use only the part of the PIR annotations that identified sections of PubMed ab-stracts, excluding full-text references and non-PubMed abstracts. Together with the elimination of duplicates and entries judged to fall outside of the event annotation criteria (see Section 2.4), this reduced the number of source texts below our tar-get, necessitating a further selection strategy.

For further annotation, we aimed to select ab-stracts that contain specific PTM statements iden-tifying both the name of a modified protein and the modified site. As for the initial selection, we fur-ther wished to avoid limiting the search by search-ing for any specific PTM expressions. To imple-ment this selection, we used the Medie system5 (Ohta et al., 2006; Miyao et al., 2006) to search PubMed for sentences where a specific protein and a known modified site were found together in a sentence occurring in an abstract annotated with a specific MeSH term. The (protein name, modified site, MeSH term) triples were extracted from PIR records, substituting the appropriate MeSH term for each PTM type. Some examples with the num-ber of matching documents are shown in Table 3. As most queries returned either no documents or a small number of hits, we gave priority to responses to queries that returned a small number of docu-ments to avoid biasing the corpus toward proteins whose modifications are frequently discussed.

We note that while the PIR annotations typically identified focused text spans considerably shorter than a single sentence and sentence-level search was used in the Medie-based search to increase the likelihood of identifying relevant statements, after selection all annotation was performed to full ab-stracts.

Event type Count Protein modification 38

Phosphorylation 546

Dephosphorylation 28

Acetylation 7

Deacetylation 1

Ubiquitination 6

Deubiquitination 0

Table 4: GENIA PTM-related event types and number of events in the GENIA event corpus. Type names are simplified: the full form of e.g. thePhosphorylationtype in the GENIA event on-tology isProtein amino acid phosphorylation.

Event type Arguments Count

Protein modification Theme 31

Phosphorylation Theme 261

Phosphorylation Theme, Site 230

Phosphorylation Site 20

Phosphorylation Theme, Cause 14

Dephosphorylation Theme 16

Table 5: GENIA PTM-related event arguments. Only argument combinations appearing more than 10 times in the corpus shown.

2.3 Representation

The employed event representation can capture the association of varying numbers of participants in different roles. To apply an event extraction approach to PTM, we must first define the tar-geted representation, specifying the event types, the mandatory and optional arguments, and the ar-gument types – the roles that the participants play in the events. In the following, we discuss alterna-tives and present the representation applied in this work.

The GENIA Event ontology, applied in the annotation of the GENIA Event corpus (Kim et al., 2008) that served as the basis of the BioNLP shared task data, defines a general Pro-tein modificationevent type and six more specific modification subtypes, shown in Table 4. While the existingAcetylationtype could thus be applied together with the generic Protein modification type to capture all the annotated PTMs, we be-lieve that identification of the specific PTM type is not only important to users of extracted PTM events but also a relatively modest additional bur-den for automatic extraction, owing to the unam-biguous nature of typical expressions used to state

Figure 1: Alternative representations for PTM statements including a catalyst in GENIA Event corpus. PTM events can be annotated with a di-rect Cause argument (top, PMID 9374467) or us-ing an additionalRegulationevent (middle, PMID 10074432). The latter annotation can be applied also in cases where there is no expression directly “triggering” the secondary event (bottom, PMID 7613138).

PTMs in text. We thus chose to introduce three additional specific modification types, Glycosyla-tion,HydroxylationandMethylationfor use in the annotation.

events with a stated cause (e.g. a catalyst) can be alternatively represented with a Cause argument on the PTM event or using a separateRegulation event (Figure 1). The interpretation of these event structures is identical, and from an annotation per-spective there are advantages to both. However, for the purpose of automatic extraction it is impor-tant to establish a consistent representation, and thus only one should be used.

In this work, we follow the latter representation, disallowing Cause arguments for annotated PTM events and applying separate Regulation events to capture e.g. catalyst associations. This choice has the benefits of providing an uniform repre-sentation for catalysis and inhibition (one involv-ing a Positive regulation and the other a Nega-tive regulation event), reducing the sparseness of specific event structures in the data, and matching the representation chosen in the BioNLP shared task, thus maintaining compatibility with exist-ing event extraction methods. Finally, we note that while we initially expected that glycosylation statements might frequently identify specific at-tached side chains, necessitating the introduction of an additional argument type to accurately cap-ture all the stated information regarding Glycosy-lation events, the data contained too few examples for either training material or to justify the mod-ification of the event model. We adopt the con-straints applied in the BioNLP shared task regard-ing the entity types allowed as specific arguments. Thus, the representation we apply here annotated PTM events with specific types, taking as Theme argument a gene/gene product type entity and as Site argument a physical (non-event) entity that does not need to be assigned a specific type.

2.4 Annotation criteria

To create PTM annotation compatible with the event extraction systems introduced for the BioNLP shared task, we created annotation fol-lowing the GENIA Event corpus annotation cri-teria (Kim et al., 2008), as adapted for the shared task. The criteria specify that annotation should be applied to statements that involve the occurrence of a change in the state of an entity – even if stated as having occurred in the past, or only hypotheti-cally – but not in cases merely discussing the state or properties of entities, even if these can serve as the basis for inference that a specific change has occurred. We found that many of the spans

an-notated in PIR as evidence for PTM did not ful-fill the criteria for event annotation. The most fre-quent class consisted of cases where the only evi-dence for a PTM was in the form of a sequence of residues, for example

Characterization [. . . ] gave the follow-ing sequence, Gly-Cys-Hyp-D-Trp-Glu-Pro-Trp-Cys-NH2 where Hyp = 4-trans-hydroxyproline. (PMID 8910408)

Here, the occurrence of hydroxyproline in the se-quence implies that the protein has been hydrox-ylated, but as the hydroxylation event is only im-plied by the protein state, no event is annotated.

Candidates drawn from PIR but not fulfilling the criteria were excluded from annotation. While this implies that the general class of event extrac-tion approaches considered here will not recover all statements providing evidence of PTM to bi-ologists (per the PIR criteria), several factors mit-igate this limitation of their utility. First, while PTMs implied by sequence only are relatively fre-quent in PIR, its selection criteria give emphasis to publications initially reporting the existence of a PTM, and further publications discussing the PTM are not expected to state it as sequence only. Thus, it should be possible to extract the correspond-ing PTMs from later sources. Similarly, one of the promises of event extraction approaches is the potential to extract associations of multiple enti-ties and extract causal chains connecting events with others (e.g. E catalyzes the hydroxylation of P, leading to . . .), and the data indicates that the sequence-only statements typically provide little information on the biological context of the modi-fication beyond identifying the entity and site. As such non-contextual PTM information is already available in multiple databases, this class of state-ments may not be of primary interest for event ex-traction.

2.5 Annotation results

Event type Count

Glycosylation 122

Hydroxylation 103

Methylation 90

Acetylation 90

Positive reg. 12

Phosphorylation 3

Protein modification 2

TOTAL 422

Table 6: Statistics of the introduced event annota-tion.

Arguments Count Theme, Site 363

Theme 36

Site 6

Table 7: Statistics for the arguments of the anno-tated PTM events.

types were annotated, matching the initial annota-tion target in number and giving a well-balanced distribution of the specific PTM types (Table 6). Reflecting the selection of the source texts, the argument structures of the annotated PTM events (Table 7) show a different distribution from those annotated in the GENIA event corpus (Table 5): whereas less than half of the GENIA event corpus PTM events include a Site argument, almost 90% of the PTM events in the new data include a Site. PTM events identifying both the modified protein and the specific modified site are expected to be of more practical interest. However, we note that the greater number of multi-argument events is ex-pected to make the dataset more challenging as an extraction target.

3 Evaluation

To estimate the capacity of the newly annotated resource to support the extraction of the targeted PTM events and the performance of current event extraction methods at open-domain PTM extrac-tion, we performed a set of experiments using an event extraction method competitive with the state of the art, as established in the BioNLP shared task on event extraction (Kim et al., 2009a; Bj¨orne et al., 2009).

3.1 Methods

We adopted the recently introduced event extrac-tion system of Miwa et al. (2010). The system

applies a pipeline architecture consisting of three supervised classification-based modules: a trig-ger detector, an event edge detector, and an event detector. In evaluation on the BioNLP shared task test data, the system extracted phosphory-lation events at 75.7% precision and 85.2% re-call (80.1% F-score) for Task 1, and 75.7% preci-sion and 83.3% recall (79.3% F-score) for Task 2, showing performance comparable to the best re-sults reported in the literature for this event class (Buyko et al., 2009). We assume three precondi-tions for the PTM extraction: proteins are given, all PTMs have Sites, and all arguments in a PTM co-occur in sentence scope. The first of these is per the BioNLP shared task setup, the second fixed based the corpus statistics, and the third a property intrinsic to the extraction method, which builds on analysis of sentence structure.6 In the experiments reported here, only the four novel PTM event types with Sites in the corpus are regarded as a target for the extraction.

The system extracted PTMs as follows: the trigger detector detected the entities (triggers and sites) of the PTMs, the event edge detector tected the edges in the PTMs, and the event de-tector detected the PTMs. The evaluation setting was the same as the evaluation in (Miwa et al., 2010) except for the threshold. The thresholds in the three modules were tuned with the develop-ment data set.

Performance evaluation is performed using the BioNLP shared task primary evaluation criteria, termed the “Approximate Span Matching” crite-rion. This criterion relaxes the requirements of strict matching in accepting extracted event trig-gers and entities as correct if their span is inside the region of the corresponding region in the gold standard annotation.

3.2 Data Preparation

The corpus data was split into training and test sets on the document level with a sampling strategy that aimed to preserve a roughly 3:1 ratio of oc-currences of each event type between training and test data. The test data was held out during sys-tem development and parameter selection and only applied in a single final experiment. The event ex-traction system was trained using the 112 abstracts of the training set, further using 24 of the abstracts

6_{We note that in the BioNLP shared task data, all}

Figure 2: Performance of PTM extraction on the development data set.

Event type Prec Rec F

Acetylation 69.6% 36.7% 48.1%

Methylation 50.0% 34.2% 40.6%

Glycosylation 36.7% 42.5% 39.4% Hydroxylation 57.1% 29.3% 38.7%

Overall 52.1% 35.7% 42.4%

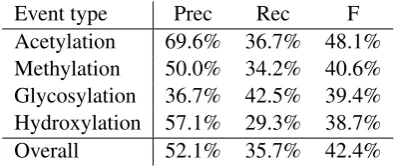

Table 8: Event extraction results on the test set.

as a development test set.

3.3 Results

We first performed parameter selection, setting the machine learning method parameter by estimating performance on the development data set. Figure 2 shows the performance of PTM extraction on the development data set with different values of pa-rameter. The threshold value corresponding to the best performance (0.3) was then applied for an ex-periment on the held-out test set.

Performance on the test set was evaluated as 52% precision and 36% recall (42% F-score), matching estimates on the development data. A breakdown by event type (Table 8) shows that Acetylationis most reliably extracted with extrac-tion for the other three PTM types showing sim-ilar F-scores despite some variance in the preci-sion/recall balance. We note that while these re-sults fall notably below the best result reported for Phosphorylation events in the BioNLP shared task, they are comparable to the best results re-ported in the task for Regulation and Binding events (Kim et al., 2009a), suggesting that the dataset allows the extraction of the novel PTM events with Theme and Site arguments at levels comparable to multi-argument shared task events.

Figure 3: Learning curve of PTM extraction on the development data set.

Further, a learning curve (Figure 3) plotted on the development data suggests roughly linearly increasing performance over most of the curve. While the increase appears to be leveling off to an extent when using all of the available data, the learning curve indicates that performance can be further improved by increasing the size of the an-notated dataset.

4 Discussion

Post-translational modifications have been a fo-cus of interest in the biomedical text mining com-munity, and a number of resources and systems targeting PTM have been proposed. The GE-NIES and GeneWays systems (Friedman et al., 2001; Rzhetsky et al., 2004) targeted PTM events such as phosphorylation and dephosphorylation under the more generalcreatebondandbreakbond types. Hu et al. (2005) introduce the RLIMS-P rule-based system for mining the substrates and sites for phosphorylation, which is extended with the capacity to extract intra-clausal statements by Narayanaswamy et al. (2005). Saric et al. (2006) present an extension of their rule-based STRING-IE system for extracting regulatory networks to capture phosphorylation and dephosphorylation events. Lee et al. (2008) present E3Miner, a tool for automatically extracting information related to ubiquitination, and Kim et al. (2009b) present a preliminary study adapting the E3Miner approach to the mining of acetylation events.

extraction targets and evaluation criteria compli-cate direct comparison. Perhaps more importantly, our aim here is to extend the capabilities of gen-eral event extraction systems targeting multiple types of structured events. Pursuing this broader goal necessarily involves some compromise in the ability to focus on the extraction of individual event types, and it is expected that highly focused systems will provide better performance than re-trained general systems.

The approach to PTM extraction adopted here relies extensively on the availability of annotated resources, the creation of which requires consider-able effort and expertise in understanding the tar-get domain as well as the annotation methodology and tools. The annotation created in this study, performed largely on the basis of partial existing annotations drawn from PIR data, involved an es-timated three weeks of full-time effort from an ex-perienced annotator. As experiments further in-dicated that a larger corpus may be necessary for reliable annotation, we can estimate that extending the approach to sufficient coverage of each of hun-dreds of PTM types without a partial initial anno-tation would easily require several person-years of annotation efforts. We thus see a clear need for the development of unsupervised or semisupervised methods for PTM extraction to extend the cover-age of event extraction systems to the full scale of different PTM types. Nevertheless, even if reliable methods for PTM extraction that entirely avoid the need for annotated training data become available, a manually curated reference standard will still be necessary for reliable estimation of their perfor-mance. To efficiently support the development of event extraction systems capable of capturing the full variety of PTM events, it may be beneficial to reverse the approach taken here: instead of anno-tating hundreds of examples of a small number of PTM types, annotate a small number of each of hundreds of PTM types, thus providing both seed data for semisupervised approaches as well as ref-erence data for the evaluation of broad-coverage PTM event extraction systems.

5 Conclusions and Future Work

We have presented an event extraction approach to automatic PTM recognition, building on the model introduced in the BioNLP shared task on event extraction. By annotating a targeted cor-pus for four prominent PTM types not considered

in the BioNLP shared task data, we have created a resource that can be straightforwardly used to extend the capability of event extraction systems for PTM extraction. We estimated that while sys-tems trained on the original shared task dataset could not recognize more than 50% of PTM men-tions due to their types, the introduced annotation increases this theoretical upper bound to nearly 90%. An initial experiment on the newly intro-duced dataset using a state-of-the-art method indi-cated that straightforward adoption of the dataset as training data to extend coverage of PTM events without specific adaptations of the method is feasi-ble, although the measured performance indicates remaining challenges for reliable extraction. Fur-ther, while the experiments were performed on a dataset selected to avoid bias toward e.g. a partic-ular subdomain or specific forms of event expres-sions, it remains an open question how extraction performance generalizes to biomedical literature beyond the selected sample. As experiments in-dicated clear remaining potential for the improve-ment of extraction performance from more train-ing data, the extension of the annotated dataset is a natural direction for future work. We considered also the possiblity of extending annotation to cover small numbers of each of a large variety of PTM types, which would place focus on the challenges of event extraction with little or no training data for specific event types.

The annotated corpus covering over 1000 gene and gene product entities and over 400 events is freely available in the widely adopted BioNLP shared task format at the GENIA project home-page.7

Acknowledgments

We would like to thank Goran Topic for automat-ing Medie queries to identify target abstracts. This work was partially supported by Grant-in-Aid for Specially Promoted Research (MEXT, Japan) and Japan-Slovenia Research Cooperative Program (JSPS, Japan and MHEST, Slovenia).

References

Sophia Ananiadou, Sampo Pyysalo, Junichi Tsujii, and Douglas B. Kell. 2010. Event extraction for sys-tems biology by text mining the literature. Trends in Biotechnology. (to appear).

Jari Bj¨orne, Juho Heimonen, Filip Ginter, Antti Airola, Tapio Pahikkala, and Tapio Salakoski. 2009. Ex-tracting complex biological events with rich graph-based feature sets. In Proceedings of the BioNLP 2009 Workshop Companion Volume for Shared Task, pages 10–18, Boulder, Colorado, June. Association for Computational Linguistics.

Ekaterina Buyko, Erik Faessler, Joachim Wermter, and Udo Hahn. 2009. Event extraction from trimmed dependency graphs. InProceedings of the BioNLP 2009 Workshop Companion Volume for Shared Task, pages 19–27, Boulder, Colorado, June. Association for Computational Linguistics.

Carol Friedman, Pauline Kra, Hong Yu, Michael Krauthammer, and Andrey Rzhetsky. 2001. GE-NIES: A natural-language processing system for the extraction of molecular pathways from journal arti-cles. Bioinformatics, 17(Suppl. 1):S74–S82.

Z. Z. Hu, M. Narayanaswamy, K. E. Ravikumar, K. Vijay-Shanker, and C. H. Wu. 2005. Literature mining and database annotation of protein phospho-rylation using a rule-based system. Bioinformatics, 21(11):2759–2765.

Rudolf Jaenisch and Adrian Bird. 2003. Epigenetic regulation of gene expression: how the genome in-tegrates intrinsic and environmental signals. Nature Genetics, 33:245–254.

Jin-Dong Kim, Tomoko Ohta, and Jun’ichi Tsujii. 2008. Corpus annotation for mining biomedical events from lterature. BMC Bioinformatics, 9(1):10.

Jin-Dong Kim, Tomoko Ohta, Sampo Pyysalo, Yoshi-nobu Kano, and Jun’ichi Tsujii. 2009a. Overview of bionlp’09 shared task on event extraction. In Pro-ceedings of the BioNLP 2009 Workshop Companion Volume for Shared Task, pages 1–9, Boulder, Col-orado, June. Association for Computational Linguis-tics.

Youngrae Kim, Hodong Lee, and Gwan-Su Yi. 2009b. Literature mining for protein acetylation. In Pro-ceedings of LBM’09.

Hodong Lee, Gwan-Su Yi, and Jong C. Park. 2008. E3Miner: a text mining tool for ubiquitin-protein ligases. Nucl. Acids Res., 36(suppl.2):W416–422.

Matthias Mann and Ole N. Jensen. 2003. Proteomic analysis of post-translational modifications. Nature Biotechnology, 21:255–261.

Makoto Miwa, Rune Sætre, Jin-Dong Kim, and Jun’ichi Tsujii. 2010. Event extraction with com-plex event classification using rich features. Jour-nal of Bioinformatics and ComputatioJour-nal Biology (JBCB), 8(1):131–146, February.

Yusuke Miyao, Tomoko Ohta, Katsuya Masuda, Yoshi-masa Tsuruoka, Kazuhiro Yoshida, Takashi Ni-nomiya, and Jun’ichi Tsujii. 2006. Semantic Re-trieval for the Accurate Identification of Relational

Concepts in Massive Textbases. In Proceedings of COLING-ACL 2006, pages 1017–1024.

M. Narayanaswamy, K. E. Ravikumar, and K. Vijay-Shanker. 2005. Beyond the clause: extraction of phosphorylation information from medline ab-stracts. Bioinformatics, 21(suppl.1):i319–327.

Tomoko Ohta, Yusuke Miyao, Takashi Ninomiya, Yoshimasa Tsuruoka, Akane Yakushiji, Katsuya Masuda, Jumpei Takeuchi, Kazuhiro Yoshida, Ta-dayoshi Hara, Jin-Dong Kim, Yuka Tateisi, and Jun’ichi Tsujii. 2006. An Intelligent Search Engine and GUI-based Efficient MEDLINE Search Tool Based on Deep Syntactic Parsing. InProceedings of the COLING/ACL 2006 Interactive Presentation Sessions, pages 17–20.

Tomoko Ohta, Jin-Dong Kim, Sampo Pyysalo, and Jun’ichi Tsujii. 2009. Incorporating GENETAG-style annotation to GENIA corpus. InProceedings of Natural Language Processing in Biomedicine (BioNLP) NAACL 2009 Workshop, pages 106–107, Boulder, Colorado. Association for Computational Linguistics.

Sampo Pyysalo, Filip Ginter, Juho Heimonen, Jari Bj¨orne, Jorma Boberg, Jouni J¨arvinen, and Tapio Salakoski. 2007. BioInfer: A corpus for infor-mation extraction in the biomedical domain. BMC Bioinformatics, 8(50).

Andrey Rzhetsky, Ivan Iossifov, Tomohiro Koike, Michael Krauthammer, Pauline Kra, Mitzi Mor-ris, Hong Yu, Pablo Ariel Dubou´e, Wubin Weng, W. John Wilbur, Vasileios Hatzivassiloglou, and Carol Friedman. 2004. GeneWays: A system for extracting, analyzing, visualizing, and integrating molecular pathway data. Journal of Biomedical In-formatics, 37(1):43–53.

Jasmin Saric, Lars Juhl Jensen, Rossitza Ouzounova, Isabel Rojas, and Peer Bork. 2006. Extraction of regulatory gene/protein networks from Medline.

Bioinformatics, 22(6):645–650.

The Gene Ontology Consortium. 2000. Gene ontol-ogy: tool for the unification of biology. Nature Ge-netics, 25:25–29.

Eric S Witze, William M Old, Katheryn A Resing, and Natalie G Ahn. 2007. Mapping protein post-translational modifications with mass spectrometry.

Nature Methods, 4:798–806.
