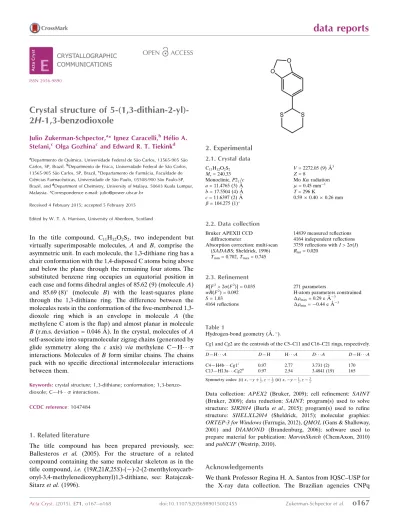

Crystal structure of 5 (1,3 di­thian 2 yl) 2H 1,3 benzodioxole

Crystal structure of

5-(1,3-dithian-2-yl)-2

H

-1,3-benzodioxole

Julio Zukerman-Schpector,a* Ignez Caracelli,bHe´lio A. Stefani,cOlga Gozhinacand Edward R. T. Tiekinkd

a_{Departmento de Quı´mica, Universidade Federal de Sa}

˜o Carlos, 13565-905 Sa˜o Carlos, SP, Brazil,b_{Departmento de Fı´sica, Universidade Federal de Sa}

˜o Carlos, 13565-905 Sa˜o Carlos, SP, Brazil,cDepartamento de Farma´cia, Faculdade de Cieˆncias Farmaceˆuticas, Universidade de Sa˜o Paulo, 05508-900 Sa˜o Paulo-SP, Brazil, andd_{Department of Chemistry, University of Malaya, 50603 Kuala Lumpur,} Malaysia. *Correspondence e-mail: [email protected]

Received 4 February 2015; accepted 5 February 2015

Edited by W. T. A. Harrison, University of Aberdeen, Scotland

In the title compound, C11H12O2S2, two independent but

virtually superimposable molecules, A and B, comprise the asymmetric unit. In each molecule, the 1,3-dithiane ring has a chair conformation with the 1,4-disposed C atoms being above and below the plane through the remaining four atoms. The substituted benzene ring occupies an equatorial position in each case and forms dihedral angles of 85.62 (9) (moleculeA) and 85.69 (8) _{(molecule B) with the least-squares plane}

through the 1,3-dithiane ring. The difference between the molecules rests in the conformation of the five-membered 1,3-dioxole ring which is an envelope in molecule A (the methylene C atom is the flap) and almost planar in molecule B(r.m.s. deviation = 0.046 A˚ ). In the crystal, molecules ofA self-associate into supramolecular zigzag chains (generated by glide symmetry along the c axis) via methylene C—H interactions. Molecules of Bform similar chains. The chains pack with no specific directional intermolecular interactions between them.

Keywords:crystal structure; 1,3-dithiane; conformation; 1,3-benzo-dioxole; C—H interactions.

CCDC reference:1047484

1. Related literature

The title compound has been prepared previously, see: Ballesteros et al. (2005). For the structure of a related compound containing the same molecular skeleton as in the title compound,i.e. (19R,21R,25S)-( )-2-(2-menthyloxycarb-onyl-3,4-methylenedioxyphenyl)1,3-dithiane, see: Ratajczak-Sitarzet al.(1996).

2. Experimental

2.1. Crystal data

C11H12O2S2 Mr= 240.33 Monoclinic,P2₁=c a= 11.4765 (3) A˚

b= 17.5504 (4) A˚

c= 11.6397 (2) A˚ = 104.275 (1)

V= 2272.05 (9) A˚3

Z= 8

MoKradiation = 0.45 mm1 T= 296 K

0.590.400.26 mm

2.2. Data collection

Bruker APEXII CCD diffractometer

Absorption correction: multi-scan (SADABS; Sheldrick, 1996)

Tmin= 0.702,Tmax= 0.745

14839 measured reflections 4164 independent reflections 3759 reflections withI> 2(I)

Rint= 0.020

2.3. Refinement

R[F2_{> 2(F}2_{)] = 0.035} wR(F2_{) = 0.092} S= 1.03 4164 reflections

271 parameters

H-atom parameters constrained max= 0.29 e A˚

3

min=0.44 e A˚

3

Table 1

Hydrogen-bond geometry (A˚ ,_).

Cg1 andCg2 are the centroids of the C5–C11 and C16–C21 rings, respectively.

D—H A D—H H A D A D—H A

C4—H4b Cg1i

0.97 2.77 3.731 (2) 170 C13—H13a Cg2ii

0.97 2.54 3.4841 (19) 165

Symmetry codes: (i)x;yþ1 2;z

1

2; (ii)x;y 1 2;z

3 2.

Data collection: APEX2 (Bruker, 2009); cell refinement: SAINT (Bruker, 2009); data reduction:SAINT; program(s) used to solve structure: SIR2014 (Burla et al., 2015); program(s) used to refine structure: SHELXL2014 (Sheldrick, 2015); molecular graphics: ORTEP-3 for Windows(Farrugia, 2012),QMOL(Gans & Shalloway, 2001) and DIAMOND (Brandenburg, 2006); software used to prepare material for publication:MarvinSketch (ChemAxon, 2010) andpublCIF(Westrip, 2010).

Acknowledgements

(305626/2013-2 to JZS, 306121/2013-2 to IC and 308320/2010-7 to HAS), FAPESP (2012/00424-2 and 2013/21925-2) and CAPES are acknowledged for financial support.

Supporting information for this paper is available from the IUCr electronic archives (Reference: HB7361).

References

Ballesteros, L., Noguez, O., Arroyo, G., Velasco, B., Delgado, F. & Miranda, R. (2005).J. Mex. Chem. Soc.49, 302–306.

Brandenburg, K. (2006).DIAMOND. Crystal Impact GbR, Bonn, Germany.

Bruker (2009).APEX2andSAINT. Bruker AXS Inc., Madison, Wisconsin, USA.

Burla, M. C., Caliandro, R., Carrozzini, B., Cascarano, G. L., Cuocci, C., Giacovazzo, C., Mallamo, M., Mazzone, A. & Polidori, G. (2015).J. Appl. Cryst.48, 306–309.

ChemAxon (2010).Marvinsketch.http://www.chemaxon.com. Farrugia, L. J. (2012).J. Appl. Cryst.45, 849–854.

Gans, J. & Shalloway, D. (2001).J. Mol. Graph. Model.19, 557–559. Ratajczak-Sitarz, M., Naruszewicz, M., Kosturkiewicz, Z., Jozkowiak, J. &

Rozwadowska, M. D. (1996).Pol. J. Chem.70, 310–319.

Sheldrick, G. M. (1996).SADABS. University of Go¨ttingen, Germany. Sheldrick, G. M. (2015).Acta Cryst.C71, 3–8.

supporting information

Acta Cryst. (2015). E71, o167–o168 [doi:10.1107/S2056989015002455]

Crystal structure of 5-(1,3-dithian-2-yl)-2

H

-1,3-benzodioxole

Julio Zukerman-Schpector, Ignez Caracelli, H

é

lio A. Stefani, Olga Gozhina and Edward R. T.

Tiekink

S1. Experimental

A solution of the corresponding 2H-1,3-benzodioxole-5-carbaldehyde (0.037 mol, 1 equiv.) in chloroform (20 ml) was combined with an equimolar amount of propane-1,3-dithiol (3.7 ml, 0.037 mol) at room temperature. The solution was stirred for 1 h at this temperature, then cooled to -20 °C after which BF3 etherate (0.46 ml, 0.0037 mol, 0.1 equiv.) was

added drop-wise. The reaction solution was allowed to warm to room temperature and stirred overnight. After this time, the solution was washed three times each with water, 10% aqueous KOH, then water followed by drying over MgSO4.

Evaporation of the solvent furnishes a pure product as colourless crystals in 97% yield. To obtain crystals suitable for X-ray analysis, the product was crystallized from CH3OH. The spectroscopic data matched those reported in the literature

(Ballesteros et al., 2005).

S2. Refinement

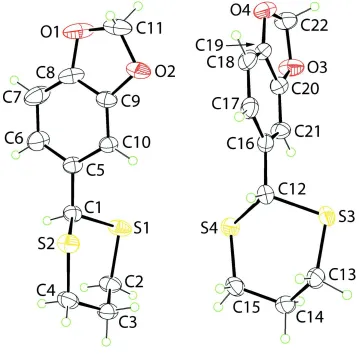

Figure 1

Figure 2

Figure 3

A view of the zigzag supramolecular chain comprising molecules of A along the c axis (glide symmetry) mediated by C— H···π interactions are shown as purple dashed lines.

Figure 4

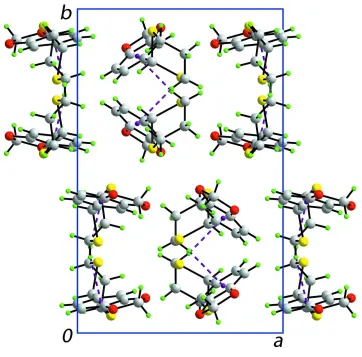

A view in projection down the c axis of the unit-cell contents. The C—H···π interactions are shown as purple dashed lines.

5-(1,3-Dithian-2-yl)-2H-1,3-benzodioxole

Crystal data

C11H12O2S2

Mr = 240.33

Monoclinic, P21/c

b = 17.5504 (4) Å c = 11.6397 (2) Å β = 104.275 (1)° V = 2272.05 (9) Å3

Z = 8

F(000) = 1008 Dx = 1.405 Mg m−3

Mo Kα radiation, λ = 0.71073 Å Cell parameters from 9068 reflections θ = 2.9–25.4°

µ = 0.45 mm−1

T = 296 K Prism, colourless 0.59 × 0.40 × 0.26 mm

Data collection

Bruker APEXII CCD diffractometer φ and ω scans

Absorption correction: multi-scan (SADABS; Sheldrick, 1996) Tmin = 0.702, Tmax = 0.745

14839 measured reflections

4164 independent reflections 3759 reflections with I > 2σ(I) Rint = 0.020

θmax = 25.4°, θmin = 1.8°

h = −13→13 k = −21→19 l = −14→8

Refinement

Refinement on F2

Least-squares matrix: full R[F2 _{> 2σ(F}2_{)] = 0.035}

wR(F2_{) = 0.092}

S = 1.03 4164 reflections 271 parameters 0 restraints

Hydrogen site location: inferred from neighbouring sites

H-atom parameters constrained w = 1/[σ2_(F

o2) + (0.0459P)2 + 0.9363P]

where P = (Fo2 + 2Fc2)/3

(Δ/σ)max = 0.001

Δρmax = 0.29 e Å−3

Δρmin = −0.44 e Å−3

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.
