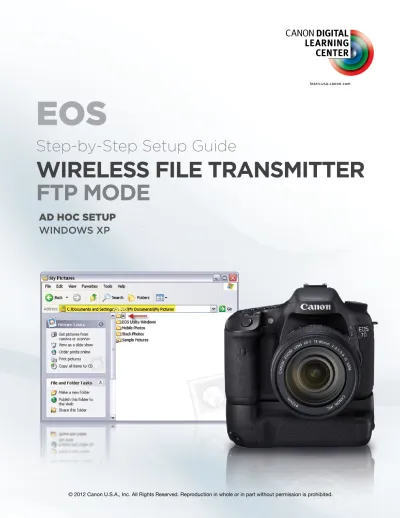

EOS
Step-by-Step Setup Guide
Wireless File TransmiTTer
FTP mode
Ad HOc SEtup
FTP Mode
Ad Hoc Network Setup
FTP Server Setup
OverviewFTP Mode allows you to wirelessly transfer images you capture on your EOS DSLR to a WiFi-enabled computer that you have set up as a remote FTP server. The EOS Wireless File Transmitter will func-tion as the FTP client.
This setup guide will describe how to create an ad hoc FTP network on a PC running the Profes-sional versions of Microsoft Windows XP. You must first install Internet Information Services (IIS) and FTP Service, which is available on the Professional installation CD. For detailed information on how to install IIS, please visit http://www.microsoft.com/ resources/documentation/windows/xp/all/proddocs/ en-us/iiiisin2.mspx?mfr=true.
If you prefer, or if are using a version of Win-dows that does not support IIS, you can use one of the many third-party FTP server software ap-plication available. Follow the software provider’s instructions for how to configure the server, login, password, and Windows firewall.
This setup requires you to assign a login name, password and WEP encryption. Please check to be sure you are operating in a secure environment before setup. Do not change the network settings on any computer without the permission of the network administrator. Be sure to write down your original network settings so that you can restore them later if you choose.
1
Click Start, then Con-trol Panel, then clickon Administrative Tools. You should see
an icon for Internet Information Services.
(If not, refer to the Overview above.)
2
Under Internet In-formation Services,click the + symbol
next to name of your local computer, then click the + symbol
next to FTP Sites.
Click the + next to Default FTP Site to
select it.
3
The Internet Informa-tion Services windowshould look as you see here, with the Play arrow grayed out. This indicates that FTP is “up and running.” The default path to the root folder will be “c:\inet-pub\ftproot\”.
5
Fill in the Identifica-tion fields as shown.The description should be the name you want to assign to the FTP server. The last three digits of the FTP ad-dress you enter can be any number other than the one you assign to your WFT. The port number should be 21. Click the Apply button
to save your settings.
4
Right-click on Default FTP Site. Select Proper-ties from the dropdown6
Click the Security Accounts tab. Check Allow Anonymous Connections and Allow IIS to control password. Leave theusername and pass-word fields blank.
7
Click the Home Direc-tory tab. Click the a di-rectory located on this computer radio button.To change the default path to the root directory, click the Browse...
but-ton and navigate to the folder of your choice. Se-lect the Read, Write, and Log visits check boxes.
Click Apply to register
your settings, click OK,
8
You now need to manually assign the IP address you created in Step 5 to your wireless networkconnec-tion. Click Start, then navigate to All Programs/Accessories/Communi-cations/Network Connections.
9
Right-click the Wireless Network Connectionicon, then select Proper-ties from the dropdown
menu that appears.
10
On the Local Area Connection Properties window, select Internet Protocol (TCP/IP), then click the Properties button.11
Click the Use the following IP address radio button, then enterexactly the same IP address you entered in Step 5. The subnet mask should be 255.255.255.0. Click the OK button to exit TCP/
IP, then OK to exit Local Area
13
On the Network Connectionsscreen select
Wireless Net-work Connec-tion, then click Change settings of this connec-tion.
12
The next step is to configure the Wireless Network for an ad hoc connection. Click Start,then navigate to All Programs/ Accessories/Communica-tions/Network Connections.
Configure Wireless Network
14
Click the Wireless Networks tab.(This tab may not appear if Wireless Network Connection is disabled. If you have installed a third party wireless connection application, follow the instructions provided by the manufacturer.) Select Use Window to configure my wireless network settings,
then click the Add button.
15
On the Association tab, enter the name youwant to assign to your ad hoc network in the Network name field. Click the This is a computer-to-computer (ad hoc) network
checkbox. Clear the The key is provided for me automatically check box. Below Wireless Network Key, enter:
Network Authentication: Open Data Encryption: WEP
Network key: Enter a 5-digit security key Confirm network key: Re-enter the
5-digit WEP key
Key index (advanced): 1
net-1
Turn on your camera with the WFT attached. Navigate to the first Tool menu and select [WFTSettings].
Camera/WFT Setup
2
Select [Connection wizard].5
Select [Connect with wizard]. Select [OK].6
Select the name of the wireless network you created during the computer setup. Select [OK].7
Select Key Index [1].Select [OK].
9
Enter the 5-character password that you used when you created the network on your com-puter. Press the Menu button on your camera to select [OK].10
Select Network [Manual setting].Select [OK].
11
Select IP address set. [Manual setting].15
On FTP server select [Address setting], thenselect [OK].
13
On Gateway leave the gateway set to[Dis-able]. Select [OK}.
14
On DNS address select Disable, then select[OK].
17
The FTP server screen will display the IP ad-dress and port numbering setting. The Port number should be 00021. The IP address should match what you entered in Step 16. If so, select [OK].18
On Passive Mode select [Disable].Select [OK].
19
On Proxy server select [Disable].21
On Login name, enter the name of yourcomputer. (To find the name of your com-puter, click Start button/Control Panel, System and Maintenance, then System.
You will find the computer name under the
Computer name tab.
22
On your camera’s Password screen, enterthe password you use to log onto your PC. You must enter a login password for this setup to work.
24
The camera and WFT will now connect to your computer/FTP server. Select [OK].25
Assign your settings to a Set for later retrieval. You can assign any number from 1 - 4.1
Go to the WFT settings menu.Select [Set up].
Optional Automatic File Transfer Settings
3
Image files from your camera will automatically be transferred to a “house folder” identified on your computer as folder A. Notethat any images you erase from the camera will not be erased from the house folder.
© 2011 Canon U.S.A., Inc. All Rights Reserved. Reproduction in whole or in part without permission is prohibited.
Once the ad hoc network is set up you can turn the camera off and back on again. When you turn it back on it will automatically reconnect. When you have finished using FTP mode, return to the WFT settings menu to select
[Discon-nect.]
How to Disconnect
Once the adhoc network is set up you can turn the camera off and back on again. When you turn it back on it will automatically reconnect. If you have disconnected the network you must return to the WFT settings menu, re-select [FTP
trans.], and repeat the PC setup steps.
1. When you set up an ad hoc manual FTP network con-nection, you must disconnect from whatever network setup you previously had. You will then have to re-con-nect your original network setup once you’re through with the FTP connection. Reverse the TCP/IP connec-tion from manual to DHCP (or the original manual IP address), then reselect the network being distributed by the router.
2. The ad hoc network is temporary. When you switch back to your normal configuration the ad hoc network settings on your PC will disappear and must therefore be set up again for re-use.
