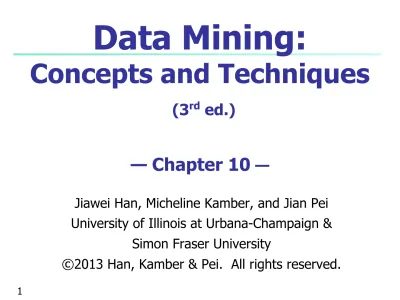

Data Mining:
Concepts and Techniques
(3rd ed.)
— Chapter 10
—Jiawei Han, Micheline Kamber, and Jian Pei University of Illinois at Urbana-Champaign &
2
Chapter 10. Cluster Analysis: Basic
Concepts and Methods
■ Cluster Analysis: Basic Concepts ■ Partitioning Methods
■ Hierarchical Methods ■ Density Methods
■ Grid Based Methods
■ Evaluation of Clustering ■ Summary
What is Cluster Analysis?
■ Cluster: A collection of data objects
■ similar (or related) to one another within the same group ■ dissimilar (or unrelated) to the objects in other groups
■ Cluster analysis
■ Finding similarities between data according to the
characteristics found in the data and grouping similar data objects into clusters
■ Unsupervised learning: no predefined classes ■ Typical applications
■ As a stand-alone tool to get insight into data distribution
What is Clustering
■ Clustering is the classification is the classification
of objects into different groups, or more precisely,
the partitioning is the classification of objects into
different groups, or more precisely, the
partitioning of a data set is the classification of objects into different groups, or more precisely, the partitioning of a data set into subsets is the classification of objects into different groups, or more precisely, the partitioning of a data set into
Considerations for Cluster Analysis
■ Partitioning criteria
■ Single level vs. hierarchical partitioning (often, multi-level
hierarchical partitioning is desirable)
■ Separation of clusters
■ Exclusive (e.g., one customer belongs to only one region) vs.
non-exclusive (e.g., one document may belong to more than one class)
■ Similarity measure
■ Distance-based (e.g., Euclidian) vs. connectivity-based (e.g.,
density)
■ Clustering space
■ Full space (often when low dimensional) vs. subspaces (often in
high-dimensional clustering)
Quality: What Is Good Clustering?
■ A good clustering method will produce high quality clusters
■ high intra-class similarity: cohesive within clusters ■ low inter-class similarity: distinctive between clusters
■ The quality of a clustering method depends on
■ the similarity measure used by the method ■ its implementation, and
Types of Clustering
1. Partitioning approach:
■ Construct various partitions and then evaluate them by
some criterion
2. Hierarchical approach:
■ Create a hierarchical decomposition of the set of data
(or objects) using some criterion 3. Density-based approach:
■ Based on connectivity and density functions
4. Grid-based approach:
■ based on a multiple-level granularity structure
Chapter 10. Cluster Analysis: Basic
Concepts and Methods
■ Cluster Analysis: Basic Concepts ■ Partitioning Methods
■ Hierarchical Methods ■ Evaluation of Clustering ■ Summary
1) Partitioning Method
10
* Data Mining: Concepts and
Algorithm for Partitioning methods
■ K-Mean Algorithm ■ K-Mediods Algorithm
■ CLARANS (Clustering Based Algorithm for Randomize Search)
2-Hierarichal Methods
12
* Data Mining: Concepts and
Algorithm for Hierarchal methods
■ AGNES (AGglomerative NESting Clustering) ■ DIANA (DIisive ANalysis Clustering )
■ BIRCH (Balance Iterative Reducing and Clustering)
■ CAMELEON (CLUSTERING USING DYNAMIC MODELING)
3-Density Based Method
Algorithm for Density Based methods
■ DBSCAN (Density-Based Clustering Based on Connected
■ Regions with High Density)
■ OPTICS (Ordering Points to Identify the Clustering
4-Grid Based Clustering
Algorithm for Grid Based methods
■ STING (STatistical Information Grid)
■ CLIQUE: An Apriori-like Subspace Clustering Method
Common Distance measures:
■ Distance measure will determine how the similarity of two
elements is calculated and it will influence the shape of the clusters.
They include:
1. The Euclidean distance (also called 2-norm distance) is given by:
2. The Manhattan distance (also called taxicab norm or 1-norm) is given by:
Partitioning Algorithms: Basic Concept
■ Partitioning method: Partitioning a database D of n objects into a set of
k clusters, such that the sum of squared distances is minimized (where ci is the centroid or medoid of cluster Ci)
■ Global optimal: exhaustively enumerate all partitions ■ Heuristic methods: k-means and k-medoids algorithms
K-MEANS CLUSTERING
■ The k-means algorithm is an algorithm to cluster n objects based on attributes into k partitions, where k
< n.
■ It is similar to the expectation-maximization
algorithmIt is similar to the expectation-maximization
algorithm for mixtures of Gaussians in that they both attempt to find the centers of natural clusters in the data.
■ It assumes that the object attributes form a vector
■ An algorithm for partitioning (or clustering) N data points into K disjoint subsets Sj containing data
points so as to minimize the sum-of-squares criterion
where xn is a vector representing the the nth data point and uj is the geometric centroid of the data points in Sj.
■ Simply speaking k-means clustering is an
algorithm to classify or to group the objects based on attributes/features into K number of group.
■ K is positive integer number.
■ The grouping is done by minimizing the sum of squares of distances between data and the
An Example of
K-Means
Clustering
K=2 Arbitrarily partition objects into k groups Update the cluster centroids Update the cluster centroids Reassign objects Loop if needed The initial data set■ Partition objects into k nonempty
subsets
■ Repeat
■ Compute centroid (i.e., mean
point) for each partition Assign each object to the
How the K-Mean Clustering algorithm
works?
■ Step 1: Begin with a decision on the value of k =
number of clusters .
■ Step 2: Put any initial partition that classifies the
data into k clusters. You may assign the
training samples randomly,or systematically as the following:
1.Take the first k training sample as single-element clusters
2. Assign each of the remaining (N-k) training
sample to the cluster with the nearest centroid. After each assignment, recompute the centroid of the gaining cluster.
■ Step 3: Take each sample in sequence and
compute its distance from the centroid of
each of the clusters. If a sample is not currently in the cluster with the closest
centroid, switch this sample to that cluster and update the centroid of the cluster gaining the new sample and the cluster
losing the sample.
■ Step 4 . Repeat step 3 until convergence is
achieved, that is until a pass through the training sample causes no new assignments.
A Simple example showing the
implementation of k-means algorithm
(using K=2)
Step 1:
Initialization: Randomly we choose following two centroids (k=2) for two clusters.
In this case the 2 centroid are: m1=(1.0,1.0) and m2=(5.0,7.0).
Step 2:
■ Thus, we obtain two clusters
containing:
{1,2,3} and {4,5,6,7}.
■ Their new centroids are:
Step 3:
■ Now using these centroids
we compute the Euclidean distance of each object, as shown in table.
■ Therefore, the new
clusters are:
{1,2} and {3,4,5,6,7}
■ Next centroids are:
m1=(1.25,1.5) and m2 = (3.9,5.1)
■ Step 4 :
The clusters obtained are: {1,2} and {3,4,5,6,7}
■ Therefore, there is no
change in the cluster.
■ Thus, the algorithm comes
to a halt here and final
result consist of 2 clusters {1,2} and {3,4,5,6,7}.
Exercise
■ Consider the 1D data set as {1,2,3,4,7,9}
Where K=2
Identify the clusters and their centroid. Tip use
Home work
■ Use the k-means algorithm and Euclidean distance to cluster the following 8 examples into 3 clusters: ■ A1=(2,10), A2=(2,5), A3=(8,4), A4=(5,8),
A5=(7,5), A6=(6,4), A7=(1,2), A8=(4,9). ■ Map the resultant values in Scattered Plot
What Is the Problem of the K-Means Method?
■ The k-means algorithm is sensitive to outliers !
■ Since an object with an extremely large value may substantially
distort the distribution of the data
■ K-Medoids: Instead of taking the mean value of the object in a
cluster as a reference point, medoids can be used, which is the most
Determine the Number of Clusters
■
Empirical method
■
# of clusters: k ≈√n/2
for a dataset of n points,
■
e.g., n = 200, k = 10
■
How many for the n=900???
Measuring Clustering Quality
■ 3 kinds of measures: External, internal and relative
■ External: supervised, employ criteria not inherent to the
dataset
■ Compare a clustering against prior or expert-specified knowledge using certain clustering quality measure
■ Internal: unsupervised, criteria derived from data itself
■ Evaluate the goodness of a clustering by considering how well the clusters are separated, and how compact the
clusters are, e.g., Silhouette coefficient
■ Relative: directly compare different clusterings, usually those
42
Chapter 10. Cluster Analysis: Basic
Concepts and Methods
■ Cluster Analysis: Basic Concepts ■ Partitioning Methods
■ Hierarchical Methods ■ Evaluation of Clustering ■ Summary
Summary
■ Cluster analysis groups objects based on their similarity and has wide
applications
■ Clustering algorithms can be categorized into partitioning methods,
hierarchical methods, density-based methods, grid-based methods, and model-based methods
■ K-means and K-medoids algorithms are popular partitioning-based
clustering algorithms
■ Birch and Chameleon are interesting hierarchical clustering
algorithms, and there are also probabilistic hierarchical clustering algorithms
■ DBSCAN, OPTICS, and DENCLU are interesting density-based
algorithms
■ STING and CLIQUE are grid-based methods, where CLIQUE is also a
subspace clustering algorithm
■ Quality of clustering results can be evaluated in various ways
