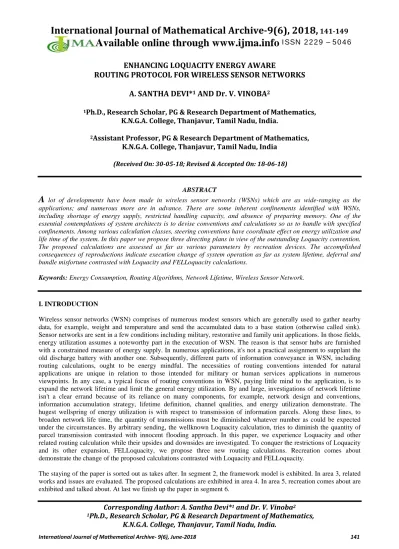

ENHANCING LOQUACITY ENERGY AWARE
ROUTING PROTOCOL FOR WIRELESS SENSOR NETWORKS
A. SANTHA DEVI*
1AND Dr. V. VINOBA
21
Ph.D., Research Scholar, PG & Research Department of Mathematics,
K.N.G.A. College, Thanjavur, Tamil Nadu, India.
2
Assistant Professor, PG & Research Department of Mathematics,
K.N.G.A. College, Thanjavur, Tamil Nadu, India
(Received On: 30-05-18; Revised & Accepted On: 18-06-18)
ABSTRACT
A
lot of developments have been made in wireless sensor networks (WSNs) which are as wide-ranging as the applications; and numerous more are in advance. There are some inherent confinements identified with WSNs, including shortage of energy supply, restricted handling capacity, and absence of preparing memory. One of the essential contemplations of system architects is to devise conventions and calculations so as to handle with specified confinements. Among various calculation classes, steering conventions have coordinate effect on energy utilization and life time of the system. In this paper we propose three directing plans in view of the outstanding Loquacity convention. The proposed calculations are assessed as far as various parameters by recreation devices. The accomplished consequences of reproductions indicate execution change of system operation as far as system lifetime, deferral and bundle misfortune contrasted with Loquacity and FELLoquacity calculations.Keywords: Energy Consumption, Routing Algorithms, Network Lifetime, Wireless Sensor Network.
I. INTRODUCTION
Wireless sensor networks (WSN) comprises of numerous modest sensors which are generally used to gather nearby data, for example, weight and temperature and send the accumulated data to a base station (otherwise called sink). Sensor networks are sent in a few conditions including military, restorative and family unit applications. In those fields, energy utilization assumes a noteworthy part in the execution of WSN. The reason is that sensor hubs are furnished with a constrained measure of energy supply. In numerous applications, it's not a practical assignment to supplant the old discharge battery with another one. Subsequently, different parts of information conveyance in WSN, including routing calculations, ought to be energy mindful. The necessities of routing conventions intended for natural applications are unique in relation to those intended for military or human services applications in numerous viewpoints. In any case, a typical focus of routing conventions in WSN, paying little mind to the application, is to expand the network lifetime and limit the general energy utilization. By and large, investigations of network lifetime isn't a clear errand because of its reliance on many components, for example, network design and conventions, information accumulation strategy, lifetime definition, channel qualities, and energy utilization demonstrate. The hugest wellspring of energy utilization is with respect to transmission of information parcels. Along these lines, to broaden network life time, the quantity of transmissions must be diminished whatever number as could be expected under the circumstances. By arbitrary sending, the wellknown Loquacity calculation, tries to diminish the quantity of parcel transmission contrasted with innocent flooding approach. In this paper, we experience Loquacity and other related routing calculation while their upsides and downsides are investigated. To conquer the restrictions of Loquacity and its other expansion, FELLoquacity, we propose three new routing calculations. Recreation comes about demonstrate the change of the proposed calculations contrasted with Loquacity and FELLoquacity.
The staying of the paper is sorted out as takes after. In segment 2, the framework model is exhibited. In area 3, related works and issues are evaluated. The proposed calculations are exhibited in area 4. In area 5, recreation comes about are exhibited and talked about. At last we finish up the paper in segment 6.
Corresponding Author: A. Santha Devi*
1and Dr. V. Vinoba
2 1Ph.D., Research Scholar, PG & Research Department of Mathematics,
II. RADIO MODEL
To demonstrate the conduct of the sensor, we utilize an exemplary radio model, the model accept that transmission and gathering of bundles devours some measure of energy which is corresponding to the parcel length. The piece graph portrayal of the radio model is appeared in fig. 1. The model comprises of a couple of transmitter and collector with remove "d" between them. Etx, Erx are the measure of energy utilization in processor and electronic piece of transmitter and collector separately. Eamp is the measure of energy consumption in transmitter intensifier which is in connection to the kind of proliferation demonstrate, either free space or multipath. The parameter k in the model speaks to the extent of parcel in bits and parameter n is the way misfortune type. The estimation of n is 2 with the expectation of complimentary space and 4 for multipath proliferation. At the point when a hub transmits a bundle, each piece in a parcel expends Etx measure of transmitter energy, and Eamp measure of enhancer energy. At that point, a parcel of length k devours a general energy of Et as appeared in condition (1).
Figure-1: Radio model
* *
(
) (
n)
t tx amp
E
=
k E
+
k
∗
E
d
(1)The recipient part of every hub devours Erx measure of vitality per bit. At that point the aggregate volume of energy consumption at the beneficiary can be figured by condition (2).
(
)
r rx
E
= ∗
k E
(2)III. RELATED ROUTING ALGORITHMS
The straightforward and innocent routing technique is flooding. In flooding, every sensor accepting an information bundle communicates it to the greater part of its neighbors and this procedure proceeds until the point that the parcel touches base at the goal or the most extreme number of bounces for the parcel is come to. In spite of the fact that flooding is anything but difficult to actualize, it has a few disadvantages. We allude to Figures 2 and 3 which are embraced from. Such downsides incorporate implosion issue which is caused by copied messages sent to a similar hub and cover issue which happens when two hubs in a similar district send comparative bundles to a similar neighbor hub. Clearly, flooding approach causes a lot of energy wastage and in view of energy confinement in wireless sensor network isn't a decent possibility for routing procedure.
Loquacity is an enhanced variant of flooding where the accepting hub sends the parcel to a haphazardly chose neighbor, which picks another irregular neighbor to forward the bundle to et cetera. Loquacity stays away from the issue of implosion by simply choosing an arbitrary hub to send the bundle instead of broadcasting. Nonetheless, this can cause a substantial postponement in proliferation of information through the hubs. In the interim, daze choice of the sending neighbors would expand the likelihood of parcel misfortune.
Figure-3: The cover issue. Two sensors cover a covering geographic locale and C gets a similar duplicate of information frame these sensors.
FLossiping Protocol: consolidates the methodologies of both Flooding and Loquacity routing conventions. At the point when a hub has a bundle to send, it picks an edge and spares it in the parcel header, at that point haphazardly chooses a neighbor to send the bundle in Loquacity mode, while the other neighbor hubs tune in to this parcel and create an irregular number. The neighbors whose arbitrarily produced numbers are littler than the limit will communicate the bundle in Flooding mode. Thus, FLossiping enhances the acquired issues of Flooding and the postpone issue of Loquacity.
PLDF Protocol: Particular Loquacity with Directional Flooding routing convention is isolated into two stages: Network Topology Initialization and Routing Scheme. In the primary stage, every hub produces an inclination that speaks to the quantity of jumps to the sink. In the second stage, keeping in mind the end goal to convey the bundle, PGDF utilizes single loquacity and directional flooding routing plans. Accordingly (see Figure 4), PGDF accomplishes a high bundle conveyance proportion, low message multifaceted nature, and short parcel delay. In any case, the unwanted symptom of this convention is that the extensive measure of redundant bundles still exists because of directional flooding.
Figure-4: Routing scenario in PGDF
SLoquacity Protocol: In Situation based Loquacity protocol, it is accepted that every hub knows its area and additionally its neighbor areas (e.g., by GPS). At the point when a hub has an occasion to send, it arbitrarily picks a neighboring hub inside its transmission span and towards the sink. Once the neighbor hub gets this occasion, arbitrarily picks another hub inside its transmission sweep and sends it thus. This procedure will proceed until the point that the sink is come to. Thus, the postpone issue has been comprehended to some degree. Figure.5 demonstrates the primary target of SLoquacity.
Despite the fact that by SLoquacity, the postpone issue of Loquacity has been settled to some degree, there is as yet the issue of numerous occasions not coming to the sink. Also, this protocol utilizes GPS to decide the area of every hub. Henceforth, it brings about extra equipment, which implies additional costs and more energy utilization.
ESLoquacity Protocol: In Energy Situation base Loquacity protocol, when a hub distinguishes an occasion and needs to send data, it chooses a neighboring hub inside its transmission sweep with the briefest separation to the sink (way with the base number of jumps) and additionally remaining energy contrasted with different neighbors. Once the neighboring hub gets the occasion, it will thus choose another neighboring hub inside its transmission range and the most limited separation to the sink, et cetera. Thus, the issues of inactivity and parcel misfortune have been expelled to some degree. Figure 6 indicates more points of interest of this protocol. Two vital measurements have been misused in this protocol: Energy of the neighbors and separation to the base station. Nonetheless, all the neighboring choice is done deterministically and with no irregularity.
Figure-6: Routing in ESLoquacity
FELLoquacity protocol comprises of three stages: Initialization, Information Gathering and Routing. In the main stage, every hub produces the slope to the sink. In the second stage, the FELLoquacity sends a demand message to alternate hubs to get the data of different individuals or neighboring hubs. Once the jump check and the rest of the energy of the part hubs are known, FELLoquacity picks two neighbors which have shorter separation to the sink at the third stage. In the wake of choosing two hopeful hubs with least number of bounce check to the sink, the protocol needs to just pick one of them to send the bundle. At this stage, the hub with more leftover energy is chosen to forward the bundle towards the sink. See Figure 7. This protocol, builds lifetime of the network and reductions normal deferral of the bundles contrasted with other Loquacity based protocols. The issue of FELLoquacity is that determination of the neighbor depends on residual energy of the neighbor, while different hubs along the way towards the sink may experience the ill effects of energy starvation. Another disadvantage of the FELLoquacity is that every one of the determinations are deterministic. In a few conditions, arbitrariness can improve the execution of the routing protocols. In the following area we propose three new routing calculations in light of Loquacity procedure and demonstrate that they would outflank Loquacity and also FELLoquacity as far as network life time, postponement and bundle misfortune.
IV. PROPOSED ALGORITHMS
So as to determine the disadvantages of the Loquacity calculation, three new calculations are proposed as expansions to Loquacity.
(i) Proposed Methodology-1
The new calculation comprises of three stages named as, sending control bundle stage, way choosing stage, and information parcel sending stage. The principle thought for expanding network life time is to choose a way through which there are no basic energy state hubs. This segment takes after with the clarification of three sections of the calculation.
A: Sending Control Packet Phase
Sending control parcel stage begins after the sensor hubs are arbitrarily circulated in the application region. Before all else, the base station makes an irregular number and communicates a "control bundle" to its neighbors. The control bundle incorporates the accompanying data:
Base Station: the Base Station Address (settled). Source: Source address of the source hub (occasion hub).
Hop: Hop tally from the present hub to the base station.
Emin: Energy of the hub with minimal measure of energy along the way.
GPS: Geographic location.
ID0…IDn: Every sensor hub creates control bundles and puts its ID and an arrangement number in this parcel as a
source hub and communicates this parcel to its neighbor hubs.
Rand number: every hub puts its Rand number in this bundle and communicates this parcel to its neighbor hubs. The Fig.8 demonstrates the organization of the control bundle.
Figure-8: Control Packet Format.
In the wake of broadcasting the control parcel, contiguous hubs are chosen haphazardly and base station sends control bundle to them. The accompanying conditions must be met by the hubs keeping in mind the end goal to have the capacity to forward the control parcel:
a) Every hub spares the hop check in its memory and expands the hop tally by 1. The new hop tally is then supplanted with the old one. After every hub has gotten the control bundle it will keep on broadcasting this message to more distant hubs. At the point when a hub gets a control parcel it will contrast its hop check an incentive with the hop tally of its own message. In the event that the last is littler, it will add 1 to the hop check before communicating it. Else, it will dispose of the message. This case happens because of already communicated messages through various courses. Thus, the briefest course is chosen through control bundle broadcasting stage. Since utilizing the flooding-based procedure in the network makes it feasible for the bundles to go a long way from the sink hub, a hop field is utilized as a part of the control parcels to control this issue.
b) The topographical position of hubs (say hub R) is characterized by condition (3). d(x,y) remains for the separation between hubs x and y. On the off chance that this parameter is under zero, the hub sends control bundle. Else, it will dispose of the message. We take note of that in the event that sensor hubs are not outfitted with GPS, hop check can be utilized rather than topographical separation.
( ,
)
( ,
)
AS R d S D
=
−
d R D
(3) c) Along the way, the measure of hubs' energy is contrasted and the energy contained in the control bundle and the bigger esteem is supplanted with the littler one. This approach is utilized to locate the base measure of hub's energy along the way, the esteem which will be utilized as a part of way choice stage.d) Every sensor hub creates control bundles and puts its ID in this parcel as a source hub and communicates this bundle to its neighbor hubs. Here, the possibility of the calculation DSR is utilized as a part of request to send the parcel.
e) An irregular number is produced by the hub contrasted and the arbitrary number contained in the parcel and in the event that it is more, hub sends control bundle. Else, it will dispose of the message. In this segment, the accompanying suspicion is embraced that if a hub gets one control parcel more than once, it would disregard the dull bundles. This presumption keeps the production of the circles in the network.
B: Track Selecting Phase
C: Sending Data Packet
After the second stage, the way toward choosing the best way is done. Source hub sends Data parcel to the relating sink, through the chose course. This procedure proceeds for quite a while and afterward the past stages are rehashed to locate the proper new course.
(ii) Proposed Methodology-2
Like the proposed technique 1, this calculation is made out of three stages: sending control bundle stage, way choosing stage, and sending information parcel stage. The distinction is that the main phase of the course choosing isn't irregular and control parcel is communicated in Flooding technique. Different parts stay in place. Figure.9 indicates proposed Method-2 in unique.
(iii) Proposed Method-3
This calculation is fundamentally like the second calculation aside from its second stage. Along these lines, the sink hub proliferates control parcels and neighboring hubs exchange the bundle until the point that it scopes to the source hub as indicated by the conditions said above. In this strategy the best way is characterized as the way with greatest utility, where the utility of a way is characterized in condition (4). In reality, notwithstanding the lingering energy of the hubs, in this calculation the quantity of hops amongst source and sink is additionally taken in to thought. We watch that this alteration enhances the execution of the calculation essentially.
( min)
Max E
Utility
hop count
=
(4)V. SIMULATION AND EVALUATION
In this segment the execution of proposed calculations are contrasted with FELLoquacity and Loquacity regarding the quantity of live hubs, add up to network energy, parcel deferral and bundle misfortune. We have utilized NS2 test system while the parameters and qualities utilized as a part of reenactment are given in Table 1. The suspicions of the reproduction is as per the following:
Figure-9: Routing Method in Proposed Method-2 → Span: the sweep of scope of the sensors is 40¬m.
→ Every one of the hubs are static and are area mindful. → Standard IEEE 802.11 MAC is utilized.
→ The greatest hop esteem is thought to be Network Size Number Of Nodes Initial Energy ETX
ERX
k (Control packet) k (Data packet) Network's Radius
100 * 100 (m) 100
(i) Network Life period
Computing the quantity of live hubs in the network demonstrates its lifetime, which is the time that the principal hub drains the greater part of its energy. Figure.10 represents network life time for every one of the five calculations. As it is introduced in chart, the proposed calculations have expanded network lifetime altogether contrasted with FELloquacity and Loquacity calculations. The reason is that, we endeavor to disallow determination of low battery hubs in way choice. Among the proposed calculations, strategy 3 beats different techniques in light of the fact that in this strategy, number of hops is considered and in addition leftover energy of the hubs. This approach makes the calculation all the more convincing.
Figure-10: Measure of live hubs
(ii) Energy Consumption
A standout amongst the most imperative parameters for advancement in wireless sensor networks is energy utilization of the hubs. To assess the energy utilization of hubs under proposed routing calculations, the aggregate energy utilization of the hubs in the network is computed amid reproduction time and appeared in Figure.11. Note that the all proposed calculations expend much energy in contrast with FELLoquacity, while they accomplish longer life time.
Figure-11: Energy Consumption
The fascinating outcome that may appears negating. In any case, these two figures (10 and 11) are in reality supporting a typical actuality that the need to expand network life time is to develop differing ways from source towards sink amid time. Before long that hubs along shorter ways exhaust their energy, determination of longer ways is unavoidable to preclude battery consumption of particular hubs along short ways. Because of choice of longer ways, more energy is devoured. Be that as it may, in spite of expending more energy than FELLoquacity, since energy utilization in the network is dispersed, the lifetime of the network as appeared in Figure.10 has enhanced essentially.
(iii) Delay
Figure-12: Delay
The reason that our proposed calculations expend less handling time is that usage of the calculation is done only once in the source hub and the course is conveyed by the bundle in its header. Accordingly, the halfway hubs don't have to execute a particular calculation and assume just the part of a hand-off hub. Yet, in the FELLoquacity strategy, in every hub the calculation must be executed and between the two neighbors, with less advances, the neighbor that has more energy ought to be chosen. This has prompted the expansion of the preparing deferral of FELLoquacity as its effect is appeared by reproduction in Figure.12.
(iv) Packet Loss
Figure-13: Packet loss
The measure of bundle misfortune, is equivalent to the distinction between the quantity of information parcels created at the source, and the quantity of parcels got at the goal. Figure.13 demonstrates the measure of bundle misfortune amid recreation time. As it is watched, the quantity of lost parcels in the proposed calculations are less than FELLoquacity and Loquacity. The principle reason is bigger number of dead hubs along the sending way in FELLoquacity calculation, the way that is represented in Figure.10.
VI. CONCLUSION
REFERENCES
1. J.Liu, K.Xiong, P.Fan, Z.Zhong, “Resource Allocation in Wireless Powered Sensor Networks With Circuit Energy Consumption Constraints”, IEEE Access, Vol.5, PP.22775 – 22782, 2017.
2. I.Flint, H.B.Kong, N.Privault, P.Wang, D.Niyato, “Wireless Energy Harvesting Sensor Networks: Boolean– Poisson Modeling and Analysis”, IEEE Transactions on Wireless Communications, Vol.6, No.11, PP.7108 – 7122, 2017.
3. T.Bui, P.Xu, W.Zhu, G.Wu, N.Jiang, “Energy-Efficient Localization Game for Wireless Sensor Networks”, IEEE Communications Letters, Vol.21, No.11, PP.2468 – 2471, 2017.
4. F.Li, H.Jiang, H.Li, Y.Cheng, Y.Wang, “SEBAR: Social-Energy-Based Routing for Mobile Social Delay-Tolerant Networks”, IEEE Transactions on Vehicular Technology, Vol.66, No.8, PP.7195 – 7206, 2017. 5. Z.Huang, H.Tian, C.Qin, S.Fan, X.Zhang, “A Social-Energy Based Cluster Management Scheme for
User-Centric Ultra-Dense Networks”, IEEE Access, Vol.5, PP.10769 – 10781, 2017.
6. S.Pourazarm, C.G.Cassandras, “Energy-Based Lifetime Maximization and Security of Wireless-Sensor Networks With General Nonideal Battery Models”, IEEE Transactions on Control of Network Systems, Vol.4, No.2, PP.323 – 335, 2017.
7. Q.Sun, Y.Zhang, H.He, D.Ma, H.Zhang, “A Novel Energy Function-Based Stability Evaluation and Nonlinear Control Approach for Energy Internet”, IEEE Transactions on Smart Grid, Vol.8, No.3, PP.1195 – 1210. 8. S.Ganesh, R.Amutha, “Efficient and secure routing protocol for wireless sensor networks through SNR based
dynamic clustering mechanisms”, Journal of Communications and Networks, Vol.15, No.4, PP.422 – 429, 2013.
9. D.F.Lima, J.R.Amazonas, “TCNet: Trellis Coded Network - Implementation of QoS-aware Routing Protocols in WSNs”, IEEE Latin America Transactions, Vol.11, No.3, PP.969 – 974, 2013.
10. H.R.Karkvandi, E.Pecht, O.Y.Pecht, “Effective Lifetime-Aware Routing in Wireless Sensor Networks”, IEEE Sensors Journal, Vol.11, No.12, PP.3359 – 3367, 2011.
11. I.M.Khalil, “ELMO: Energy Aware Local Monitoring in Sensor Networks”, IEEE Transactions on Dependable and Secure Computing, Vol.8, No.4, PP.523 – 536, 2011.
12. J.Shen, A.Wang, C.Wang, P.C.K.Hung, C.F.Lai, “An Efficient Centroid-Based Routing Protocol for Energy Management in WSN-Assisted IoT”, IEEE Access, Vol.5, PP.18469 – 18479, 2017.
13. G.S.Brar, S.Rani, V.Chopra, R.Malhotra, H.Song, S.H.Ahmed, “Energy Efficient Direction-Based PDORP Routing Protocol for WSN”, IEEE Access, Vol.4, PP.3182 – 3194, 2016.
14. Mohammad Hammoudeh, Fayez Al-Fayez, Huw Lloyd, Robert Newman, Bamidele Adebisi, Ahcène Bounceur, Abdelrahman Abuarqoub, “A Wireless Sensor Network Border Monitoring System: Deployment Issues and Routing Protocols”, IEEE Sensors Journal, Vol.17, No.8, PP.2572 – 2582, 2017.
15. S.Sharma, D.Puthal, S.Tazeen, M.Prasad, A.Y.Zomaya, “MSGR: A Mode-Switched Grid-Based Sustainable Routing Protocol for Wireless Sensor Networks, IEEE Access, Vol.5, PP.19864 – 19875, 2017.
16. S.Sasirekha, S.Swamynathan, “Cluster-chain mobile agent routing algorithm for efficient data aggregation in wireless sensor network”, Journal of Communications and Networks, Vol.19, No.4, PP.392 – 401, 2017. 17. J.Luo, J.Hu, D.Wu, R.Li, “Opportunistic Routing Algorithm for Relay Node Selection in Wireless Sensor
Networks”, IEEE Transactions on Industrial Informatics, Vol.11, No.1, PP.112 – 121, 2015.
