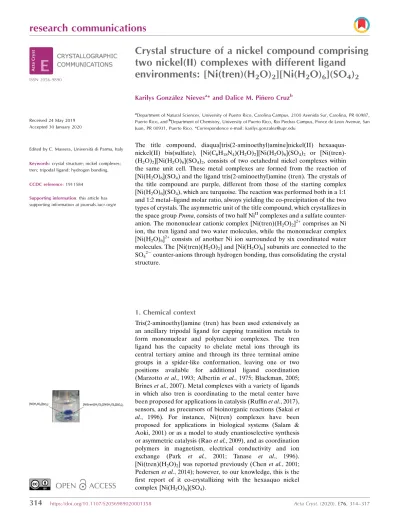

Crystal structure of a nickel compound comprising

two nickel(II) complexes with different ligand

environments: [Ni(tren)(H

₂

O)

₂

][Ni(H

₂

O)

₆

](SO

₄

)

₂

Karilys Gonza´lez Nievesa* and Dalice M. Pin˜ero Cruzb

a

Department of Natural Sciences, University of Puerto Rico, Carolina Campus, 2100 Avenida Sur, Carolina, PR 00987, Puerto Rico, andbDepartment of Chemistry, University of Puerto Rico, Rio Piedras Campus, Ponce de Leon Avenue, San Juan, PR 00931, Puerto Rico. *Correspondence e-mail: [email protected]

The title compound, diaqua[tris(2-aminoethyl)amine]nickel(II) hexaaqua-nickel(II) bis(sulfate), [Ni(C6H18N4)(H2O)2][Ni(H2O)6](SO4)2 or

[Ni(tren)-(H2O)2][Ni(H2O)6](SO4)2, consists of two octahedral nickel complexes within

the same unit cell. These metal complexes are formed from the reaction of [Ni(H2O)6](SO4) and the ligand tris(2-aminoethyl)amine (tren). The crystals of

the title compound are purple, different from those of the starting complex [Ni(H2O)6](SO4), which are turquoise. The reaction was performed both in a 1:1

and 1:2 metal–ligand molar ratio, always yielding the co-precipitation of the two types of crystals. The asymmetric unit of the title compound, which crystallizes in the space groupPnma, consists of two half NiIIcomplexes and a sulfate counter-anion. The mononuclear cationic complex [Ni(tren)(H2O)2]

2+

comprises an Ni ion, the tren ligand and two water molecules, while the mononuclear complex [Ni(H2O)6]

2+

consists of another Ni ion surrounded by six coordinated water molecules. The [Ni(tren)(H2O)2] and [Ni(H2O)6] subunits are connected to the

SO4 2

counter-anions through hydrogen bonding, thus consolidating the crystal structure.

1. Chemical context

Tris(2-aminoethyl)amine (tren) has been used extensively as an ancillary tripodal ligand for capping transition metals to form mononuclear and polynuclear complexes. The tren ligand has the capacity to chelate metal ions through its central tertiary amine and through its three terminal amine groups in a spider-like conformation, leaving one or two positions available for additional ligand coordination (Marzotto et al., 1993; Albertinet al., 1975; Blackman, 2005; Brineset al., 2007). Metal complexes with a variety of ligands in which also tren is coordinating to the metal center have been proposed for applications in catalysis (Ruffinet al., 2017), sensors, and as precursors of bioinorganic reactions (Sakaiet al., 1996). For instance, Ni(tren) complexes have been proposed for applications in biological systems (Salam & Aoki, 2001) or as a model to study enantioselective synthesis or asymmetric catalysis (Raoet al., 2009), and as coordination polymers in magnetism, electrical conductivity and ion exchange (Park et al., 2001; Tanase et al., 1996). [Ni(tren)(H2O)2] was reported previously (Chenet al., 2001;

Pedersenet al., 2014); however, to our knowledge, this is the first report of it co-crystallizing with the hexaaquo nickel complex [Ni(H2O)6](SO4).

(2)

2. Structural commentary

Fig. 1 shows the molecular structure of the title compound, which crystallizes in the space group Pnma. Its asymmetric unit comprises two half NiIIcomplexes and a sulfate counter-anion. Each Ni complex shows a different ligand environment: (i) the mononuclear cationic complex [Ni(tren)(H2O)2]

2+

includes Ni1, the tren ligand and two water molecules; (ii) the mononuclear complex [Ni(H2O)6]

2+

consists of Ni2

surrounded by six coordinated water molecules.

Ni1 exhibits an octahedral geometry of the type N4O2, with

the central N1 atom of the tren ligand occupying one of the axial positions and atoms N2, N3 and N2ioccupying three of the equatorial positions [symmetry code: (i)x,y+12,z]. The

remaining two positions, one axial (O2) and one equatorial (O1), are occupied by two oxygen atoms from the two water molecules. The bond lengths are similar for the Ni1—N bonds that are trans to oxygen atoms; for instance, Ni1—N1ax is

2.064 (2) A˚ and Ni1—N3eq is 2.069 (2) A˚ ; a longer bond

distance is observed between Ni1—N2eq, 2.122 (2), which is

transby symmetry to another nitrogen atom, N2i. The nickel– oxygen bond length is shorter for Ni1—O2axat 2.094 (2) A˚ , in

comparison to Ni1—O1eq, which is 2.140 (2) A˚ . The N3 and

C3 atoms of the tren ligand lie on a mirror plane perpendicular to [010]. This results in a symmetry-induced disorder of the N3/C4/C3 fragment. The octahedral geometry around the Ni1 ion is reflected by the angles N1—Ni1—O2 = 178.42 (8)_,

N2—Ni1—N2i= 164.74 (9), and N3—Ni1—O1 = 177.27 (8).

The Ni2 ion of the mononuclear complex [Ni(H2O)6] 2+

also shows an octahedral geometry. In the asymmetric unit, the atom Ni2 sits on an inversion center on a screw axis along the b-axis direction. The Ni2—Owaterbond lengths with O3, O4

and O5 range between 2.051 (1) and 2.074 (1) A˚ , respectively, with angles of 180_{due to symmetry.}

3. Supramolecular features

The crystal structure of the title compound is consolidated through intermolecular hydrogen bonding between the water molecules from the [Ni(tren)(H2O)2] complex, the sulfate

oxygen atoms and the water molecules from the [Ni(H2O)6]

complex (Fig. 2 and Table 1). In particular, the two water molecules of [Ni(tren)(H2O)2] form O1—H1 O8

i

and O2— H2 O6 hydrogen bonds of 2.05 (2) and 1.96 (2) A˚ respec-tively, involving two neighboring SO4

2

anions [symmetry code: (i)x+1

2,y,z+ 3

2). The [Ni(H2O)6] complex is hydrogen

bonded to adjacent SO4 2

anions through O3—H3E O9ii, O3—H3F O7i, O4—H4C O6, O4—H4D O8i, O5— H5B O7, O5—H5A O7iii contacts [symmetry codes: (ii)

x + 1

2, y + 1, z 1

2; (iii) x + 1

2, y + 1, z + 1 2]. These

hydrogen-bond distances range from 1.905 (15) to

2.047 (18) A˚ . Additional weak hydrogen bonds are formed between the hydrogen atoms from the primary amine groups of the tren ligand and the sulfate oxygen atoms.

research communications

Acta Cryst.(2020). E76, 314–317 Gonzalez Nieves and Pin˜ero Cruz _[Ni(C

[image:2.610.60.277.79.188.2]

6H18N4)(H2O)2][Ni(H2O)6](SO4)2

315

Figure 2

The hydrogen-bonding network (cyan dotted lines) in the title compound. Symmetry codes: (i)x+1

2,y,z+ 3

2; (ii)x+ 1

2,y+ 1,z 1

2; (iii)x+ 1 2,

[image:2.610.315.566.88.209.2]

y+ 1,z+1 2. Table 1

Hydrogen-bond geometry (A˚ ,_).

D—H A D—H H A D A D—H A

O1—H1 O8i _{0.78 (2)} _{2.05 (2)} _{2.8212 (16)} _{172 (2)}

O2—H2 O6 0.81 (2) 1.96 (2) 2.7342 (15) 162 (3) O3—H3E O9ii _{0.81 (2)} _{1.94 (2)} _{2.731 (2)} _{167 (2)}

O3—H3F O7i 0.85 (2) 2.05 (2) 2.8403 (18) 155 (2) O4—H4C O6 0.83 (2) 1.91 (2) 2.7249 (18) 171 (2) O4—H4D O8i 0.83 (2) 1.95 (2) 2.7810 (18) 179 (2)

O5—H5A O7iii _0.88 _2.02 _{2.8125 (19)} ₁₅₀

O5—H5B O7 0.88 1.95 2.7826 (17) 160

Symmetry codes: (i) xþ1 2;y;zþ

3

2; (ii) xþ 1

2;yþ1;z 1 2; (iii)

xþ1

[image:2.610.46.297.540.677.2]

2;yþ1;zþ 1 2.

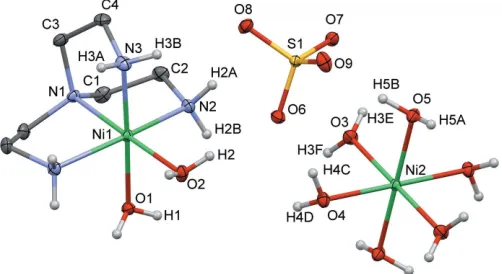

Figure 1

View of the molecular structure of the title compound with displacement ellipsoids drawn at the 20% probability level and labeling scheme for the symmetry-independent atoms. The CH2 hydrogen atoms have been omitted for clarity. The symmetry operations generating the equivalent atoms are 1 x, 1 y, 2zand x,1

2y,z for [Ni(H2O)6] 2+ _and

[image:2.610.313.563.558.707.2]

(3)

4. Database survey

A search for tris(2-aminoethyl)aminenickel complexes in the Cambridge Structural Database (CSD version 5.38, updated February 2019; Groom et al., 2016) yielded 222 hits. Among these results, 124 hits contained the ligand tris(2-aminoeth-yl)amine capping the nickel ion, along with other types of ligands on the remaining coordination sites. Only two hits contain the diaqua[tris(2-aminoethyl)amine]nickel(II) complex, [Ni(tren)(H2O)2] (LUMVIY; Chen et al., 2001;

TIYQAT; Tanaseet al., 1996). More precisely, the asymmetric unit in LUMVIY comprises the [Ni(tren)(H2O)2]

2+

cation with two independent halves of a 1,5-naphthalenedisulfonate (1,5nds) ligand as counter-anion. A common feature of this structure with the title compound is the hydrogen bond network formed between the water molecules on the Ni(tren) motif with the counter anions. However, in the title compound, also the hydrogen atoms on the primary amine groups form hydrogen bonds with the sulfate anions, albeit quite weak. In TIYQAT, sulfate anions act as counter-ions for the [Ni(tren)(H2O)2]

2+

complex, and uncoordinated water molecules are included in the crystal lattice. The angle between the Ni center and the two oxygen atoms from the coordinated water molecules are 86.52 (5) _{(O7—Ni1—O8)}

and 86.9 (4) _{(O5—Ni1—O6) for LUMVIY and TIYQAT,}

respectively. The corresponding angle O2—Ni—O1 in the tittle compound has a value of 88.70 (8)_{, which is in good}

agreement with the reported values. The title compound is the first example of a crystal structure of [Ni(tren)(H2O)2]2+

co-crystallizing with the [Ni(H2O)6]2+complex.

5. Synthesis and crystallization

The synthesis of the title compound is summarized in the reaction scheme shown in Fig. 3. NiSO46H2O and

tris(2-aminoethyl)amine (tren) were used without further purifica-tion. A methanolic solution of NiSO46H2O (0.0265 g,

0.1 mmol) was added slowly to a tren (0.0146 g, 0.1 mmol) solution (4 mL MeOH) at room temperature. The resulting solution was stirred for two h and it changed color from light green to purple. The solution was then filtered through celite and evaporated under reduced pressure. Single crystals of the title compound were obtained by vapor diffusion of methanol into 2-propanol. In the crystallization process, two types of crystal were formed: the starting reagent hexahydrate nickel (II) complex (turquoise crystals) and the nickel(II) tren complex (purple crystals, Fig. 4). The reaction was performed both in a 1:1 and 1:2 metal–ligand molar ratio, always yielding

the title compound. IR data: 3265 (m), 3171 (m), 2937 (w), 2891 (w), 1607 (m), 1472 (w) 1338 (w), 1054 (s), 984 (m), 885 (m), 750 (w), 685 (w).

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were included in geometrically calculated positions for the alkyl and amine groups using a riding model: C—H = 0.97 A˚ and N—H = 0.89 A˚ withUiso(H) =1.2Ueq(C, N). The hydrogen atoms of the

water molecules were located from the difference-Fourier map; they were refined freely in the case of O1 and O2, with a DFIX of 0.85 (2) A˚ andUiso(H) =1.5Ueq(O) in the case of O3

and O4, and riding with O—H = 0.88 A˚ and Uiso(H)

[image:3.610.314.564.88.385.2]

=1.5Ueq(O) in the case of O5.

Figure 3

Reaction scheme for the synthesis of [Ni(tren)(H2O)2][Ni(H2O)6](SO4)2.

Figure 4

[image:3.610.311.566.630.717.2]

Crystallization of [Ni(tren)(H2O)2][Ni(H2O)6](SO4)2and [Ni(H2O)6]SO4 in the same reaction vial.

Table 2

Experimental details.

Crystal data

Chemical formula [Ni(C6H18N4)(H2O)2

][Ni(-H2O)6](SO4)2

Mr 599.91

Crystal system, space group Orthorhombic,Pnma

Temperature (K) 293

a,b,c(A˚ ) 11.8937 (1), 21.3933 (2), 8.4468 (1)

V(A˚3₎ _{2149.25 (4)}

Z 4

Radiation type CuK

(mm1₎ _4.76

Crystal size (mm) 0.280.210.09

Data collection

Diffractometer Rigaku Oxford Diffraction

Super-Nova, Single source at offset/far, HyPix3000

Absorption correction Multi-scan (CrysAlis PRO; Rigaku OD, 2015)

Tmin,Tmax 0.353, 0.661

No. of measured, independent and observed [I> 2(I)] reflections

17858, 2044, 1996

Rint 0.023

(sin/)max(A˚

1₎ _0.605

Refinement

R[F2_{> 2(}_F2_)],_wR₍_F2_),_S _{0.023, 0.063, 1.12}

No. of reflections 2044

No. of parameters 173

No. of restraints 8

H-atom treatment All H-atom parameters refined max,min(e A˚

3

) 0.37,0.35

Computer programs:CrysAlis PRO(Rigaku OD, 2015),olex2.solve(Bourhiset al., 2015),

[image:3.610.45.294.661.728.2]

(4)

research communications

Acta Cryst.(2020). E76, 314–317 Gonzalez Nieves and Pin˜ero Cruz _[Ni(C

6H18N4)(H2O)2][Ni(H2O)6](SO4)2

317

The N3 and C3 atoms of the tren ligand lie on a mirror plane

perpendicular to [010]. This results in a symmetry-induced disorder of the N3/C4/C3 fragment.

Acknowledgements

We are grateful to the Department of Natural Science at UPR Carolina Campus (Department of Education, grant No. PO31S130068; however, those contents do not necessarily represent the policy of the Department of Education, and you should not assume endorsement by the Federal Government) and the University of Puerto Rico’s Molecular Sciences Research Center for the use of the Rigaku XTLab SuperNova diffractometer. Special thanks to Dr Indranil Chakraborty for consultation on the final refinement of the structure.

Funding information

This material is based upon work supported by the National Science Foundation under grant No. 1626103. This study was supported by an Institutional Development Award (IDeA) INBRE grant No. P20GM103475 from the National Institute of General Medical Sciences (NIGMS), a component of the National Institutes of Health (NIH), and the Bioinformatics Research Core of the INBRE. Its contents are solely the responsibility of the authors and do not necessarily represent the official view of NIGMS or NIH.

References

Albertin, G., Bordignon, E. & Orio, A. A. (1975).Inorg. Chem.14,

1411–1413.

Blackman, A. G. (2005).Polyhedron,24, 1–39.

Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K. &

Puschmann, H. (2015).Acta Cryst.A71, 59–75.

Brines, L. M., Shearer, J., Fender, J. K., Schweitzer, D., Shoner, S. C.,

Barnhart, D., Kaminsky, W., Lovell, S. & Kovacs, J. A. (2007).Inorg.

Chem.46, 9267–9277.

Chen, C., Cai, J., Feng, X. & Chen, X. (2001).J. Chem. Crystallogr.31,

271–280.

Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. &

Puschmann, H. (2009).J. Appl. Cryst.42, 339–341.

Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016).Acta

Cryst.B72, 171–179.

Marzotto, A., Clemente, D. A., Ciccarese, A. & Valle, G. (1993).J.

Crystallogr. Spectrosc. Res.23, 119–131.

Park, H. W., Sung, S. M., Min, K. S., Bang, H. & Suh, M. P. (2001).Eur.

J. Inorg. Chem.pp. 2857–2863.

Pedersen, K. S., Bendix, J. & Cle´rac, R. (2014).Chem. Commun.50,

4396–4415.

Rao, S. A., Pal, A., Ghosh, R. & Das, S. K. (2009).Inorg. Chem.48,

10476.

Rigaku OD (2015). CrysAlis PRO. Rigaku Oxford Diffraction,

Yarnton, England.

Ruffin, H., Boussambe, G. N. M., Roisnel, T., Dorcet, V., Boitrel, B. &

Le Gac, S. (2017).J. Am. Chem. Soc.139, 13847–13857.

Sakai, K., Yamada, Y. & Tsubomura, T. (1996). Inorg. Chem. 35,

3163–3172.

Salam, A. Md. & Aoki, K. (2001).Inorg. Chim. Acta,314, 71–82.

Sheldrick, G. M. (2015).Acta Cryst.C71, 3–8.

Tanase, T., Doi, M., Nouchi, R., Kato, M., Sato, Y., Ishida, K.,
