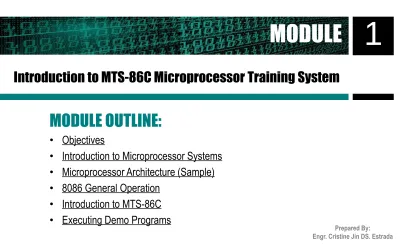

Introduction to MTS-86C Microprocessor Training System

(1)

MODULE

Introduction to MTS-86C Microprocessor Training System

1 MODULE OUTLINE:

• Objectives

• Introduction to Microprocessor Systems

• Microprocessor Architecture (Sample)

• 8086 General Operation

• Introduction to MTS-86C

• Executing Demo Programs

Prepared By:

(2)

MODULE

Objectives

1 PRE-LAB DISCUSSION

• To give an overview of the microprocessor systems, its components and

architecture

• To introduce the general operation of the 8086 processor

(3)

Three Main Components of a

Basic Computer Organization

A. CPU or Microprocessor

_{– performs}

many operations and controls the

computer.

B. Memory Subsystem

_{– used to store}

programs being executed by the CPU,

along with the program’s data.

C. Input/Output Subsystem

– allows

the CPU to interact with input and output

devices, such as the keyboard and

monitor.

INTRODUCTION

GENERIC COMPUTER ORGANIZATION

(4)

What is a System Bus?

A System Bus is a set of wires or a

physical group of signal lines that has a

related function within a microprocessor system.

It is used to send information from one component into another.

INTRODUCTION

How is the system bus classified?

A. Address Bus – a unidirectional bus used to locate a memory location or an I/O device connected to the system.

B. Control Bus – a bus (collection of individual control signals) used by the microprocessor to send its

generated control signals to any element of the computer system

C. Data Bus – a bidirectional bus that carries data back and forth to a specified location with basis to the

address location provided by the address bus.

(5)

What is a Microprocessor?

A Microprocessor is considered to be the

Central Processing Unit (CPU) or the

brain of all computers and electronic

devices. It acts as a complete computation

engine that is fabricated on a single chip.

INTRODUCTION

(6)

BASIC MICROPROCESSOR

STRUCTURE

A. Bus Unit – has the job of

establishing communication with

the external unit

B. Arithmetic Logic Unit (ALU)

–

performs data processing

operations specified during the

execution phase of the

instruction being interpreted

C. Control Unit

– generates the

set of timings and control signals

necessary to activate different

parts of the circuit

D. Register Set

– set of data

holding places

MICROPROCESSOR ARCHITECTURE

MICROPROCESSOR BLOCK DIAGRAM

GENERAL PURPOSE REGISTER INSTRUCTION REGISTER PROGRAM COUNTER ACCUMULATOR STATUS REGISTER MEMORY ADDRESS REGISTER MEMORY DATA REGISTER ALU CONTROL UNIT engrcjdse©2016

(7)

A. Bus Unit

Data Bus

• A bidirectional bus that

carries data back and forth to

a specified location with basis

to the address location

provided by the address bus.

NOTE:

The width of a data bus refers to the

number of bits (electrical wires) that

make up a bus.

e.g. 1-, 4-, 8-, 16-, 32-, and 64-bit

_{BASIC STRUCTURE OF MICROPROCESSOR}

MICROPROCESSOR ARCHITECTURE

(8)

A. Bus Unit

Address Bus

• It is a group of wires or lines that

are used to transfer the addresses

of Memory or I/O devices. It is

bidirectional.

NOTE:

A 16-bit address bus can transfer

maximum address which means it can address 65,536 different memory

locations.

The number of bits of address bus

determines the maximum size of memory which the processor can access.

BASIC STRUCTURE OF MICROPROCESSOR

MICROPROCESSOR ARCHITECTURE

(9)

Structure of Data

Storage

• For multiple byte data

items to be stored in the

memory, there is a need

to know how the order

is done.

• Otherwise, problem may

occur when transferring

data between machines.

• The order of storage of

data can be classified

into two: the Little

Endian and Big Endian

MICROPROCESSOR ARCHITECTURE

LITTLE ENDIAN vs. BIG ENDIAN

What is the difference between

these two storage structures?

• LITTLE ENDIAN – the least

significant 8 bits (byte) are to be

stored in a lower address.

• BIG ENDIAN – the most

significant 8 bits (byte) are to be

stored in a lower address.

(10)

B. Arithmetic Logic Unit (ALU)

• It contains the microprocessor’s data processing major logic.

• Performs arithmetic and logic operations.

• Composed of adders/subtracters, comparators, and different

combinational circuits.

NOTE:

Example of arithmetic operations are: 1. addition/subtraction

2. increment/decrement

3. shift left/right, circular shift left/right

Example of logic operations are: AND, OR, XOR, and NOT.

MICROPROCESSOR ARCHITECTURE

ALU

(11)

C. Control Unit

• Made up of instruction decoder,

timing circuits, and control logic

1. Instruction Decoder – the circuit

responsible for synthesizing and

decoding the instructions fed or

received by the microprocessor.

2. Timing Circuits – used to

synchronize the operation of the

different parts of the

microprocessor.

3. Control Logic – send the control

signals flowing in the control bus

to enable the different parts of the

microprocessor unit.

MICROPROCESSOR ARCHITECTURE

CONTROL UNIT

(12)

D. Register Set

• In the given structure, the

register set is composed of

the following:

1. General Purpose

Registers A and B

2. Accumulator

3. Status Register

4. Instruction Register

5. Program Counter

6. Memory Data Register

7. Memory Address Register

MICROPROCESSOR ARCHITECTURE

GENERAL PURPOSE REGISTER INSTRUCTION REGISTER PROGRAM COUNTER ACCUMULATOR STATUS REGISTER MEMORY ADDRESS REGISTER MEMORY DATA REGISTER engrcjdse©2016

(13)

D. Register Set

2. Accumulator

• The register that works very

closely with the ALU.

• All results of the processes

performed by the ALU is

stored in this register.

• This is the major register that

holds data for manipulation.

• It is considered as the most

versatile register because its

content always changes.

MICROPROCESSOR ARCHITECTURE

ACCUMULATOR

(14)

D. Register Set

1. General Purpose

Registers (A and B)

• They are generally used as

data storage and are

directly connected to the

data bus.

NOTE:

The more the number of GPR,

the more powerful the

microprocessor is.

MICROPROCESSOR ARCHITECTURE

GENERAL PURPOSE REGISTER

(15)

D. Register Set

3. Status Register

• It is sometimes referred to as Flag

Register, Condition Code Register, or the Indicator Register.

• It is used to hold the status of the microprocessor after performing an operation.

Commonly Used Flags:

 CARRY – end carry of the parallel adder.

 ZERO – if the result of the ALU are all

zero

 SIGN – if the MSB in a signed operation

has a value of 1

 OVERFLOW – if the result of ALU

operation exceeds the defined range of numbers

 PARITY – used for error detection

MICROPROCESSOR ARCHITECTURE

STATUS REGISTER

(16)

D. Register Set

4. Instruction Register

• It is used to hold the

instruction code or

operation code (opcode).

NOTE:

The outputs of this register

are the inputs to the

instruction decoder.

MICROPROCESSOR ARCHITECTURE

INSTRUCTION REGISTER

(17)

D. Register Set

5. Program Counter

• It contains the address of

the next instruction to be

performed by the MPU.

• It automatically increments

as soon as it is finished

with the memory location.

MICROPROCESSOR ARCHITECTURE

PROGRAM COUNTER

(18)

D. Register Set

6. Memory Data Register

• This is where the data to be

stored to or retrieved from the

memory are placed.

• This register also loads the

fetched instruction from the

memory going to instruction

register.

7. Memory Address Register

• This is where the addresses

of data and instructions can

be located.

MICROPROCESSOR ARCHITECTURE

(19)

HARDWARE OVERVIEW

MTS-86C is an Intel 8086 based

microprocessor training system

designed for teaching purposes.

It is composed of 5 parts:

• MPU (8086)

• Memory

• Chip Sets

• I/Os

• External Interface

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(20)

HARDWARE OVERVIEW

MPU

The MPU of the MTS-86C is an

Intel based 8086 microprocessor

which has the following elements:



16-bit internal data bus



20-bit address bus



Control bus



Execution Unit



Bus Interface Unit

MTS-86C

MTS-86C FUNCTION BLOCKS

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(21)

HARDWARE OVERVIEW

MEMORY

 ROM (Read Only Memory)

The memory has two 27,256 UV EPROM (32Kb x 8), serving as the storage of demo programs and

system monitoring program.

 RAM (Random Access Memory)

The memory also has two 62,256 SRAM (32Kb x 8), serving as the storage of user programs/data and

interrupt vector table.

 USER MEMORY

The user memory allows the user to store programs in their own ROM or RAM. (Optional)

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(22)

HARDWARE OVERVIEW

CHIP SETS

 8255 – General purpose

programmable parallel

input/output interface (3 sets)  8251 – Serial data communications interface (2 sets)  8259 – Programmable Interrupt Control Unit  8253 – Programmable timer/counter

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(23)

HARDWARE OVERVIEW

CHIP SETS



8279 – Programmable

keypad/display interface



74LS373 – Octal D-Type

latches



DAC0808 – 8-bit multiplying

digital to analog converter



ADC0809 – 8 channels 8-bit

analog to digital converter

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(24)

HARDWARE OVERVIEW

I/Os



Switch – 8-bit logic TACT

switch



LED – 8-BIT logic LED



FND – 1 Flexible Numeric

Display



Keypad – 4x6 keys



Display – 16x2 line LCD



Speaker – 2 W Speaker



ADC Input – microphone,

variable resistor, thermistor,

and phototransistor

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(25)

HARDWARE OVERVIEW

External Interface

 PPI-1 – 1st_{Prototyping area for}

8225 parallel port

 PPI-2 – 2nd_{Prototyping area for}

8225 parallel port

 PIT/PIC/AD/DA – External

interface for 8259, AD/DA Converter, and 8253,

respectively

 System Bus – connects to 8086

CPU

 RS232-1 – First serial port

interface for 8251

 RS232-2 – Second serial port

interface for 8251

MTS-86C

Memory

MPU

8086

Chip Sets

I/Os

External Interface

(26)

MEMORY MAP

• Monitor Program – allows user to

control and examine the

microprocessor from the keyboard

• Demo Program – stores demo

programs

• User Memory – allows user to

store/load programs in their own

ROM or RAM (Optional)

• Program and Data – user codes

and data are stored in this section

• Interrupt Vector Table

– reserved

location for interrupt vector table

MTS-86C

MTS-86C MEMORY MAP

Monitor Program _{64KB EPROM}

System Memory 27256 x 2

Demo Program

User Memory _{ROM, RAM}

(Optional)

Non-Use _OPEN

Program and Data _{64KB SRAM}

Program Memory 62256 x 2

Interrupt Vector Table

(27)

ADDRESSING MODE

Recall the elements of the

8086 processor:

The MPU of the MTS-86C is an Intel based 8086 microprocessor which has the following elements:

 16-bit internal data bus

 20-bit address bus

 Control bus  Execution Unit

 Bus Interface Unit

MTS-86C

PHYSICAL vs. LOGICAL ADDRESS

What is the difference between these two

address?

• LOGICAL ADDRESS – address generated

by the CPU and can be also referred to as

virtual address.

• PHYSICAL ADDRESS – address seen by

the memory unit.

(28)

ADDRESSING MODE

The physical address of the 8086 system is 20 bits in width. Hence, the generation of the

physical address requires the combination of

a 16-bit offset value and a 16-bit base value

located in one of the four segment registers: • Code Segment (CS) – holds the program

instruction codes

• Data Segment (DS) – stores data for the program

• Stack Segment (SS) – stores interrupt subroutine return address

• Extra Segment (ES) – an extra data segment often used for shared data

MTS-86C

CODE SEGMENT (CS)

DATA SEGMENT (DS)

STACK SEGMENT (SS)

EXTRA SEGMENT (ES)

SEGMENT REGISTERS

Width = 16 bits

(29)

How to generate a physical

address?

To generate a physical address, the value

in the segment register is shifted left by 4

bits with its

LSB filled with 0s

MTS-86C

(30)

EXECUTING DEMO PROGRAMS

TABLE 4-1. DEMO PROGRAMS

EXPERIMENT

Fill out the remarks of Table 4-1 Demo Programs by exploring MTS-86C.

OBJECTIVES

• To introduce the hardware devices of MTS-86C

• To introduce the memory map of MTS-86C

• And to learn how to execute the demo
