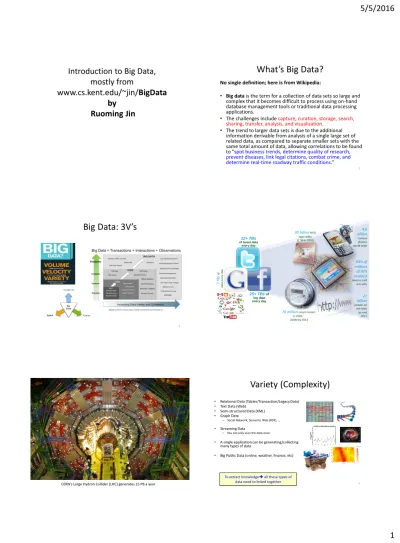

Introduction to Big Data,

mostly from

www.cs.kent.edu/~jin/BigData

by

Ruoming Jin

What’s Big Data?

No single definition; here is from Wikipedia:

• Big data is the term for a collection of data sets so large and

complex that it becomes difficult to process using on-hand

database management tools or traditional data processing

applications.

• The challenges include

capture, curation, storage, search,

sharing, transfer, analysis, and visualization

.

• The trend to larger data sets is due to the additional

information derivable from analysis of a single large set of

related data, as compared to separate smaller sets with the

same total amount of data, allowing correlations to be found

to "

spot business trends, determine quality of research,

prevent diseases, link legal citations, combat crime, and

determine real-time roadway traffic conditions

.”

2

Big Data: 3V’s

3 12+ TBs of tweet data every day 25+ TBs of log data every day ? TB s of d at a ev er y d ay 2+ billion people on the Web by end 2011 30 billionRFID tags today (1.3B in 2005) 4.6 billion camera phones world wide 100s of millions of GPS enabled devices sold annually

76 millionsmart meters in 2009… 200M by 2014

Maximilien Brice, © CERN CERN’s Large Hydron Collider (LHC) generates 15 PB a year

Variety (Complexity)

• Relational Data (Tables/Transaction/Legacy Data)

• Text Data (Web)

• Semi-structured Data (XML)

• Graph Data

– Social Network, Semantic Web (RDF), … • Streaming Data

– You can only scan the data once

• A single application can be generating/collecting many types of data

• Big Public Data (online, weather, finance, etc)

6 To extract knowledgeall these types of

(2)

Velocity (Speed)

• Data is begin generated fast and need to be

processed fast

• Online Data Analytics

• Late decisions



missing opportunities

• Examples

–E-Promotions: Based on your current location, your purchase history, what you like send promotions right now for store next to you

–Healthcare monitoring: sensors monitoring your activities and body 

any abnormal measurements require immediate reaction

7

Real-time/Fast Data

Social media and networks

(all of us are generating data) Scientific instruments(collecting all sorts of data)

Mobile devices

(tracking all objects all the time)

Sensor technology and networks

(measuring all kinds of data)

• The progress and innovation is no longer hindered by the ability to collect data

• But, by the ability to manage, analyze, summarize, visualize, and discover knowledge from the collected data in a timely manner and in a scalable fashion

8

Real-Time Analytics/Decision Requirement

Customer

Influence Behavior

Product Recommendations

that are Relevant & Compelling Friend Invitations to join a Game or Activity that expands business Preventing Fraud as it is Occurring & preventing more proactively

Learning why Customers Switch to competitors

and their offers; in time to Counter Improving the Marketing Effectiveness of a Promotion while it is still in Play

Harnessing Big Data

• OLTP: Online Transaction Processing (DBMSs)

• OLAP: Online Analytical Processing (Data Warehousing)

• RTAP: Real-Time Analytics Processing (Big Data Architecture & technology)

10

The Model Has Changed…

• The Model of Generating/Consuming Data has Changed

Old Model: Few companies are generating data, all others are consuming data

New Model: all of us are generating data, and all of us are consuming data

Big Data:

Batch Processing &

Distributed Data Store

Hadoop/Spark; HBase/Cassandra BI Reporting

OLAP & Data warehouse Business Objects, SAS, Informatica, Cognos other SQL

Reporting Tools

Interactive Business

Intelligence &

In-memory RDBMS

QliqView, Tableau, HANA

Big Data:

Real Time &

Single View

Graph Databases

THE EVOLUTION OF BUSINESS INTELLIGENCE

1990’s

2000’s

2010’s

Speed

Scale

(3)

Big Data Analytics

• Big data is more real-time in nature than traditional DW applications

• Traditional DW architectures (e.g. Exadata, Teradata) are not well-suited for big data apps

• Shared nothing, massively parallel processing, scale out architectures are well-suited for big data apps

13

Big Data Technology

15

Cloud Computing

• IT resources provided as a service

–

Compute, storage, databases, queues

• Clouds leverage economies of scale of

commodity hardware

–

Cheap storage, high bandwidth networks &

multicore processors

–

Geographically distributed data centers

• Offerings from Microsoft, Amazon, Google, …

Topic 2: Hadoop/MapReduce

Programming & Data Processing

• Architecture of Hadoop, HDFS, and Yarn

• Programming on Hadoop

• Basic Data Processing: Sort and Join

• Information Retrieval using Hadoop

• Data Mining using Hadoop (Kmeans+Histograms)

• Machine Learning on Hadoop (EM)

• Hive/Pig

• Spark vs. MapReduce on HDFS

• HBase and Cassandra

References

• References:

• Hadoop: The Definitive Guide, Tom White, O’Reilly

• Hadoop In Action, Chuck Lam, Manning

• Doing Data Science, Rachel Schutt and Cathy O’Neil, O’Reilly

• Data-Intensive Text Processing with MapReduce, Jimmy Lin and Chris Dyer ( www.umiacs.umd.edu/~jimmylin/MapReduce-book-final.pdf)

• Good tutorial presentation & examples at:

• http://research.google.com/pubs/pub36249.html

• The definitive original paper:

http://research.google.com/archive/mapreduce.html

(4)

Cloud Resources

• Hadoop on your local machine

• Hadoop in a virtual machine on your local

machine (Pseudo-Distributed on Ubuntu)

• Hadoop in the clouds with Amazon EC2

Introduction to

MapReduce/Hadoop

From Ruoming Jin’s Slides,

themselves adapted from Jimmy Lin’s

slides (at UMD)

Storage Only Grid (original raw data)

Instrumentation Collection RDBMS (aggregated data) BI Reports + Interactive Apps

Mostly Append ETL Compute Grid

Moving Data To Compute Doesn’t Scale

Can’t Explore Original High Fidelity Raw Data

Archiving = Premature Data Death

Limitations of Existing Data Analytics Architecture

Slides from Dr. Amr Awadallah’s Hadoop talk at Stanford, CTO & VPE from Cloudera

Key Ideas

• Scale “out”, not “up”

–

Limits of SMP and large shared-memory machines

• Move processing to the data

–

Cluster may have limited bandwidth

• Process data sequentially, avoid random access

–

Seeks are expensive, disk throughput is reasonable

• Seamless scalability

–

From the mythical man-month to the tradable

machine-hour

The datacenter is the computer!

_{Apache Hadoop}

• Scalable fault-tolerant distributed system for Big Data:

–Data Storage

–Data Processing

–A virtual Big Data machine

–Borrowed concepts/Ideas from Google; Open source under the Apache license

• Core Hadoop has two main systems:

–Hadoop/MapReduce: distributed big data processing infrastructure

(abstract/paradigm, fault-tolerant, schedule, execution)

–HDFS (Hadoop Distributed File System): fault-tolerant,

high-bandwidth, high availability distributed storage

• More recently (since 2014): Apache Spark on Hadoop/HDFS and ...

–Apache Spark is now the most active open source project in big data with more than 600 contributors within the past year.

(5)

MapReduce: Big Data Processing Abstraction

Example: word counts

Millions of documents in Word counts out:

brown, 2 fox, 2 how, 1 now, 1 the, 3 …

In practice, before MapReduce and related technologies: The first 10 computers are easy;

The first 100 computers are hard; The first 1000 computers are impossible;

But now with MapReduce, engineers at Google often use 10000 computers!

What’s wrong with 1000 computers?

Some will crash while you’re working…

If probability of crash = .001

Then probability of all up = (1-.001)

1000

_{= 0.37}

MapReduce expects crashes, tracks partial work, keeps going

Typical Large-Data Problem

• Iterate over a large number of records

• Extract something of interest from each

• Shuffle and sort intermediate results

• Aggregate intermediate results

• Generate final output

Key idea: provide a functional abstraction for these two

operations

(Dean and Ghemawat, OSDI 2004)

MapReduce

• Programmers specify two functions:

map

(k, v) → [(k’, v’)]

reduce

(k’, [v’]) → [(k’, v’’)] or simpler

–

All values with the same key (k’) are sent to the

same reducer, in k’ order for each reducer

–

Here [] means a sequence

• The execution framework handles everything

else…

• Spark: has map, reduce as operations, plus

others.

“Hello World”: Word Count

Map(String docid, String text):

for each word w in text: Emit(w, 1);

Reduce(String term, Iterator<Int> values):

int sum = 0; for each v in values:

sum += v; Emit(term, sum);

(6)

MapReduce “Runtime”

• Handles scheduling

–

Assigns workers to map and reduce tasks

• Handles “data distribution”

–

Moves processes to data

• Handles synchronization

–

Gathers, sorts, and shuffles intermediate data

• Handles errors and faults

–

Detects worker failures and restarts

• Everything happens on top of a distributed FS (later)

• This description also valid for Spark, but it uses

memory more, so can run faster in many cases.

MapReduce

• Programmers specify two functions:

map

(k, v) → [(k’, v’)]

reduce

(k’, [v’]) → [(k’, v’’)]

–

All values with the same key are reduced together

• The execution framework handles everything else…

• Not quite…usually, programmers also specify:

partition

(k’, number of partitions) → partition for k’

–

Often a simple hash of the key, e.g., hash(k’) mod n

–

Divides up key space for parallel reduce operations

•and eventual delivery of results to certain partitions

combine

(k’, [v’]) → [(k’, v’’)]

–

Mini-reducers that run in memory after the map phase

–

Used as an optimization to reduce network traffic

combine

combine combine combine

b

a1 2 c9 a5 c 2 b7 c8

partition partition partition partition

map

map map map

k1v1 k2v2 k3v3 k4v4 k5v5 k6v6

b

a1 2 c 3 c 6 a5 c 2 b7 c8

Shuffle and Sort: aggregate values by keys

reduce reduce reduce

a 1 5 b 2 7 c 2 9 8

r1s1 r2s2 r3s3

c 2 3 6 8

Word Count Execution

the quick brown fox

the fox ate the mouse how now brown cow Map Map Map Reduce Reduce brown, 2 fox, 2 how, 1 now, 1 the, 3 ate, 1 cow, 1 mouse, 1 quick, 1 the, 1 brown, 1 fox, 1 quick, 1 the, 1 fox, 1 the, 1 how, 1 now, 1 brown, 1 ate, 1 mouse, 1 cow, 1

Input Map Shuffle & Sort Reduce Output

brown: 1,1 fox: 1,1 how:1 now:1 the:1,1,1 ate: 1 cow: 1 mouse: 1 quick: 1

MapReduce Implementations

• Google has a proprietary implementation in C++

–

Bindings in Java, Python

• Hadoop is an open-source implementation in Java

–

Development led by Yahoo, used in production

–

Now an Apache project

–

Rapidly expanding software ecosystem

• Lots of custom research implementations

–

For GPUs, cell processors, etc.

Hadoop History

• Dec 2004

–

Google GFS paper published

• July 2005

–

Nutch uses MapReduce

• Apr 2007

–

Yahoo! on 1000-node cluster

• Jan 2008

–

An Apache Top Level Project

• Jul 2008

–

A 4000 node test cluster

• Sept 2008 – Hive becomes a Hadoop subproject

• Feb 2009 – The Yahoo! Search Webmap is a Hadoop application that runs

on more than 10,000 core Linux cluster and produces data that is now used in every Yahoo! Web search query.

• June 2009 – On June 10, 2009, Yahoo! made available the source code to

the version of Hadoop it runs in production.

• In 2010 Facebook claimed that they have the largest Hadoop cluster in the

world with 21 PB of storage. On July 27, 2011 they announced the data has grown to 30 PB.

• Feb 2014: Apache™ Spark™ starts as Top-Level Project. Originally

developed (2011+) at the University of California, Berkeley'sAMPLab, the Spark codebase was at this point donated to Apache (open source).

(7)

Who uses Hadoop?

• Amazon/A9

• Facebook

• Google

• IBM

• Joost

• Last.fm

• New York Times

• PowerSet

• Veoh

• Yahoo!

Example Word Count (Map)

public static class TokenizerMapper

extends Mapper<Object, Text, Text, IntWritable>{ private final static IntWritable one = new IntWritable(1); private Text word = new Text();

public void map(Object key, Text value, Context context ) throws IOException, InterruptedException { StringTokenizer itr = new StringTokenizer(value.toString()); while (itr.hasMoreTokens()) { word.set(itr.nextToken()); context.write(word,one); } } }

Example Word Count (Reduce)

public static class IntSumReducer

extends Reducer<Text,IntWritable,Text,IntWritable> { private IntWritable result = new IntWritable();

public void reduce(Text key, Iterable<IntWritable> values, Context context

) throws IOException, InterruptedException { int sum = 0;

for (IntWritable val : values) { sum += val.get(); } result.set(sum); context.write(key, result); } }

Example Word Count (Driver)

public static void main(String[] args) throws Exception { Configuration conf = new Configuration(); String[] otherArgs = new GenericOptionsParser(conf, args).getRemainingArgs();

if (otherArgs.length != 2) {

System.err.println("Usage: wordcount <in> <out>"); System.exit(2);

}

Job job = new Job(conf, "word count"); job.setJarByClass(WordCount.class); job.setMapperClass(TokenizerMapper.class); job.setCombinerClass(IntSumReducer.class); job.setReducerClass(IntSumReducer.class); job.setOutputKeyClass(Text.class); job.setOutputValueClass(IntWritable.class);

FileInputFormat.addInputPath(job, new Path(otherArgs[0])); FileOutputFormat.setOutputPath(job, new Path(otherArgs[1])); System.exit(job.waitForCompletion(true) ? 0 : 1); }

Word Count Execution

the quick brown fox

the fox ate the mouse how now brown cow Map Map Map Reduce Reduce brown, 2 fox, 2 how, 1 now, 1 the, 3 ate, 1 cow, 1 mouse, 1 quick, 1 the, 1 brown, 1 fox, 1 quick, 1 the, 1 fox, 1 the, 1 how, 1 now, 1 brown, 1 ate, 1 mouse, 1 cow, 1

Input Map Shuffle & Sort Reduce Output

brown: 1,1 fox: 1,1 how:1 now:1 the:1,1,1 ate: 1 cow: 1 mouse: 1 quick: 1

An Optimization: The Combiner

def combiner(key, values):

output(key, sum(values))

• A combiner is a local aggregation function

for repeated keys produced by same map

• For associative ops. like sum, count, max

• Decreases size of intermediate data

• Example: local counting for Word Count:

(8)

Word Count with Combiner

Input Map & Combine Shuffle & Sort Reduce Output

the quick brown fox

the fox ate the mouse how now brown cow Map Map Map Reduce Reduce brown, 2 fox, 2 how, 1 now, 1 the, 3 ate, 1 cow, 1 mouse, 1 quick, 1 the, 1 brown, 1 fox, 1 quick, 1 the, 2 fox, 1 how, 1 now, 1 brown, 1 ate, 1 mouse, 1 cow, 1 split 0 split 1 split 2 split 3 split 4 worker worker worker worker worker Master User Program output file 0 output file 1 (1) submit

(2) schedule map (2) schedule reduce

(3) read

(4) local write

(5) remote read (6) write

Input files

Map phase

Intermediate files (on local disk)

Reduce phase

Output files

Adapted from (Dean and Ghemawat, OSDI 2004)

Distributed File System

• Don’t move data to workers… move workers to the

data!

–

Store data on the local disks of nodes in the cluster

–

Start up the workers on the node that has the data local

• Why?

–

Not enough RAM to hold all the data in memory

–

Disk access is slow, but disk throughput is reasonable (i.e.

sequential reading of disk for stream processing)

• A distributed file system is the answer

–

GFS (Google File System) for Google’s MapReduce

–

HDFS (Hadoop Distributed File System) for Hadoop

Another example of MapReduce

• Clickstream-like data: for each ad viewing,

user info and whether they clicked on the ad:

• {userid, ip, zip, adnum, clicked}

• Want unique users who saw, clicked, by zip

First Try

• First try key as zip:

• Map can emit {90210, {0,1}} if saw and failed

to click, {90210, {1,1}} if saw and clicked

• Reduce receives, say:

• {90210, [{1,1}, {0,1}, {0,1}]}

• This shows three visits, one click, but we don’t

know if these visits were by different users, so

we don’t know the number of unique users

Second try

• We need to preserve user identity longer

• Use {zip, userid} as key

• Value: again {0,1} or {1,1} if saw and clicked

• Map emits {{90210,user123}, {0,1}}, etc.

• Reducer gets info on one user, one zip:

• {{90210,user123}, [{0,1}, {1,1}]}

• Reducer can process list, emit {90210,user123},

{1,2}}

(9)

Second MapReduce pass

• Reducer (pass 1) emits {90210,user123}, {1,2}}

• Second Map reads this, emits its contribution to

zip’s stats (one user saw and clicked): {90210, {1,

1}}

• Second Reduce receives 2210 user reports for this

zip:

{90210, {{1,1}, {0,1}, {0,1}, …}}

• And counts up unique users and their clicks:

emits {90210, {56, 2210}} for 2210 unique users

in zip 90210 viewed ads, 56 of them clicked.

Compare to SQL

• Table T of {userid, ip, zip, adnum, clicked}

• Using a trick, we can do this in one select:

select zip, count (distinct userid), count (distinct clicked*userid) from T
