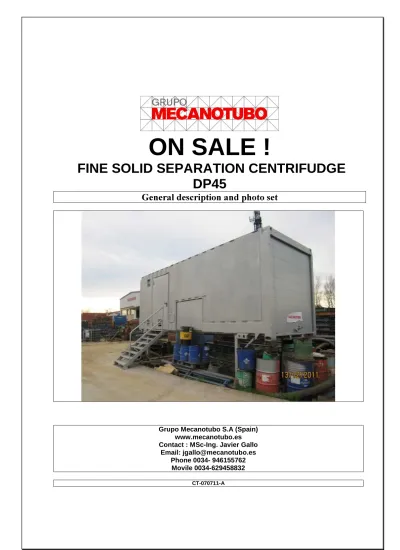

ON SALE !
FINE SOLID SEPARATION CENTRIFUDGE
DP45
General description and photo set
Grupo Mecanotubo S.A (Spain) www.mecanotubo.es Contact : MSc-Ing. Javier Gallo
Email: [email protected] Phone 0034- 946155762
Movile 0034-629458832
Grupo Mecanotubo S.A (Spain). www.mecanotubo.es.Contact : MSc-Ing. Javier Gallo. Email: [email protected]. Phone 0034- 946155762. Movile 0034-629458832
2
DESCRIPTION
GENERAL
ON SALE. Centrifudge for fine particle separation in the slurry. Model Hiller DP 45-422 up to 17 m3/h of slurry treatment. Used machine but fully operative, and have been used in several jobs in Spain till year 2010. It have been used less than 1000 operating hours.
Profile of Grupo Mecanotubo S.A can be seen in www.mecanotubo.es. Machine it is fully operative and ready to be operated, so you can visit us and check at any moment.
Technical description.
•HILLER® • moblle hlgh capacity decanter type DP45422 in slainless steel motor driven. Capacity up to 17 m3/h, up to 6 t/h of solid capacity.
• polymer (nstalation INDAG Flowmix 325
• feed pump as suspension pump, type eccentric conveyor pump • crusher Seepex, type 50 U maceralor, ¡nslalls before pump • doslng pump for chemicals, if necessary,
• double wave conveyor for segregated solid material phase, screw conveyor installed under decanter throw, product throw appr. 1.200 mm roller ground, wilh transfer on floaling screw conveyor
• Floatlng screw conveyor on the back vehicle end with hydraulic height regulation.
•Tromell, Bowl, slurry pump, polymer dosing and screw conveyors are fully controlled with Siemens Simatic S7-300 with screen Simatic OP-7. Machine can operate in FULL AUTOMATIC MODE with well known, homogeneous, slurries.
•Please check photos bellow or visit our installations for more details.
What is included with the centrifudge:
1 ud Centrifudge Hiller DP45-422 in container. Length= 7600 mm, Width= 2550 mm, Height= 2710 mm. Weight= 12500 daN (12500 kg).
1 ud set of hoses DN100 with storz couplings. Transport dimensions Length= 3500 mm, Width= 1000 mm, Height <1000 mm. Weight= 500 daN (12500 kg).
CENTRIFUDGE FOR FINE MATERIAL SEPARATION HILLER DP-45-422
General description
DIRECCION DELEGACIÓN NORTE: Ctra de Plentzia, 11 – 48100 MUNGIA (VIZCAYA)
OTHER machines on sale / rental !!!!!!. We can rent the
system with pilots that will allow you to make the job
Grupo Mecanotubo S.A. have a wide range of MTBM slurry shield machines, that provide capability to bore from
pipe DN1200 to DN2500. All the systems available can be rented with pilot and all the equipment to make the
job. Please contact us at addresses bellow and we will quote a solutions for your needs. All the machines have
been manufactured by Herrenknecht A.G.
Systems available for rental, DN1200, DN1500, DN1600,
DN1800, DN2000, DN2500. (DN= internal diameter).
Grupo Mecanotubo S.A (Spain).
www.mecanotubo.es.Contact : MSc-Ing. Javier Gallo. Email: [email protected]. Phone 0034- 946155762.
Movile 0034-629458832
Grupo Mecanotubo S.A (Spain). www.mecanotubo.es.Contact : MSc-Ing. Javier Gallo. Email: [email protected]. Phone 0034- 946155762. Movile 0034-629458832
4
PHOTO SET of Hiller DP-45 system ON SALE
CENTRIFUDGE FOR FINE MATERIAL SEPARATION HILLER DP-45-422
General description
DIRECCION DELEGACIÓN NORTE: Ctra de Plentzia, 11 – 48100 MUNGIA (VIZCAYA)
Grupo Mecanotubo S.A (Spain). www.mecanotubo.es.Contact : MSc-Ing. Javier Gallo. Email: [email protected]. Phone 0034- 946155762. Movile 0034-629458832
6
Electric control panel (inside view).
