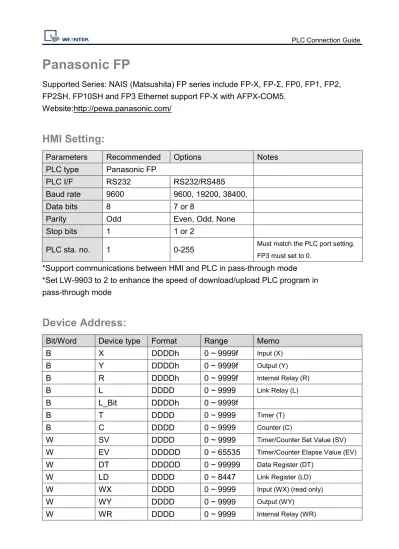

Panasonic FP
Supported Series: NAIS (Matsushita) FP series include FP-X, FP-Σ, FP0, FP1, FP2, FP2SH, FP10SH and FP3 Ethernet support FP-X with AFPX-COM5.
Website:http://pewa.panasonic.com/
HMI Setting:
Parameters Recommended Options Notes PLC type Panasonic FP
PLC I/F RS232 RS232/RS485
Baud rate 9600 9600, 19200, 38400, Data bits 8 7 or 8
Parity Odd Even, Odd, None Stop bits 1 1 or 2
PLC sta. no. 1 0-255 Must match the PLC port setting.
FP3 must set to 0.
*Support communications between HMI and PLC in pass-through mode *Set LW-9903 to 2 to enhance the speed of download/upload PLC program in pass-through mode
Device Address:
Bit/Word Device type Format Range Memo B X DDDDh 0 ~ 9999f Input (X) B Y DDDDh 0 ~ 9999f Output (Y) B R DDDDh 0 ~ 9999f Internal Relay (R) B L DDDD 0 ~ 9999 Link Relay (L) B L_Bit DDDDh 0 ~ 9999f B T DDDD 0 ~ 9999 Timer (T) B C DDDD 0 ~ 9999 Counter (C)
W SV DDDD 0 ~ 9999 Timer/Counter Set Value (SV)
W EV DDDDD 0 ~ 65535 Timer/Counter Elapse Value (EV)
W DT DDDDD 0 ~ 99999 Data Register (DT)
W LD DDDD 0 ~ 8447 Link Register (LD)
W WX DDDD 0 ~ 9999 Input (WX) (read only)
W WY DDDD 0 ~ 9999 Output (WY)
Bit/Word Device type Format Range Memo
W WL DDDD 0 ~ 9999 Link Relay (WL)
W FL DDDDD 0 ~ 99999 File Register (FL)
Wiring Diagram:
The following is the view from the soldering point of a cable. FP0, FP2, FP2SH, FPM CPU : 9P D-Sub to 5P Mini-DIN
eMT3000 series COM1 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Female RS232 5P Mini-DIN Female socket 2 RX 8 RX 2 TXD 3 TX 7 TX 3 RXD 5 GND 5 GND 1 GND cMT/mTV series COM1 RS232 9P D-Sub Female RS232 5P Mini-DIN Female socket 2 RX 2 TXD 3 TX 3 RXD 5 GND 1 GND
MT8000iE/MT8000XE series except MT8050iE COM1 RS232 9P D-Sub Female RS232 5P Mini-DIN Female socket 2 RX 2 TXD 3 TX 3 RXD 5 GND 1 GND
MT6000/8000 series except MT6050i/MT8050i COM1 RS232 9P D-Sub Female COM2 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Male RS232 5P Mini-DIN Female socket 2 RX 6 RX 8 RX 2 TXD 3 TX 4 TX 7 TX 3 RXD 5 GND 5 GND 5 GND 1 GND
MT6050i/MT8050i/MT8050iE COM1 RS232 9P D-Sub Female RS232 5P Mini-DIN Female socket 9 RX 2 TXD 6 TX 3 RXD 5 GND 1 GND
The following is the view from the soldering point of a cable. FP0 CPU : 9P D-Sub to 3P Terminal:
eMT3000 series COM1 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Female RS232 3P Terminal 2 RX 8 RX S 3 TX 7 TX R 5 GND 5 GND G cMT/mTV series COM1 RS232 9P D-Sub Female RS232 3P Terminal 2 RX S 3 TX R 5 GND G
MT8000iE/MT8000XE series except MT8050iE COM1 RS232 9P D-Sub Female RS232 3P Terminal 2 RX S 3 TX R 5 GND G
MT6000/8000 series except MT6050i/MT8050i COM1 RS232 9P D-Sub Female COM2 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Male RS232 3P Terminal 2 RX 6 RX 8 RX S 3 TX 4 TX 7 TX R 5 GND 5 GND 5 GND G
MT6050i/MT8050i/MT8050iE COM1 RS232 9P D-Sub Female RS232 3P Terminal 9 RX S 6 TX R 5 GND G
The following is the view from the soldering point of a cable. eMT3000 series COM1 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Female RS232 9P D-Sub Male 2 RX 8 RX 2 TXD 3 TX 7 TX 3 RXD 5 GND 5 GND 7 GND 4 RTS short 5 CTS 8 CD short 9 ER cMT/mTV series COM1 RS232 9P D-Sub Female RS232 9P D-Sub Male 2 RX 2 TXD 3 TX 3 RXD 5 GND 7 GND 4 RTS short 5 CTS 8 CD short 9 ER
MT8000iE/MT8000XE series except MT8050iE COM1 RS232 9P D-Sub Female RS232 9P D-Sub Male 2 RX 2 TXD 3 TX 3 RXD 5 GND 7 GND 4 RTS short 5 CTS 8 CD short 9 ER
MT6000/8000 series except MT6050i/MT8050i COM1 RS232 9P D-Sub Female COM2 RS232 9P D-Sub Female COM3 RS232 9P D-Sub Male RS232 9P D-Sub Male 2 RX 6 RX 8 RX 2 TXD 3 TX 4 TX 7 TX 3 RXD 5 GND 5 GND 5 GND 7 GND 4 RTS short 5 CTS 8 CD short 9 ER MT6050i/MT8050i/MT8050iE COM1 RS232 9P D-Sub Female RS232 9P D-Sub Male 9 RX 2 TXD 6 TX 3 RXD 5 GND 7 GND 4 RTS short 5 CTS 8 CD short 9 ER
The following is the view from the soldering point of a cable. FP1 CPU : 9P D-Sub to 8P MiniDIN
eMT3000 series COM1 RS485 4W 9P D-Sub Male RS485 4W 8P Hirose Female socket 1 RX- 2 TXDA 2 RX+ 5 TXDB 3 TX- 3 RXDA 4 TX+ 6 RXDB 5 GND 1 GND cMT/mTV series COM2 RS485 4W 9P D-Sub Female RS485 4W 8P Hirose Female socket 7 RX- 2 TXDA 6 RX+ 5 TXDB 9 TX- 3 RXDA 8 TX+ 6 RXDB 5 GND 1 GND
MT8000iE/MT8000XE series except MT8050iE COM1 RS485 4W 9P D-Sub Male COM2 RS485 4W 9P D-Sub Male RS485 4W 8P Hirose Female socket 1 RX- 1 RX- 2 TXDA 2 RX+ 2 RX+ 5 TXDB 3 TX- 3 TX- 3 RXDA 4 TX+ 4 TX+ 6 RXDB 5 GND 5 GND 1 GND
MT6000/8000 series except MT6050i/MT8050i COM1 RS485 4W 9P D-Sub Male RS485 4W 8P Hirose Male 1 RX- 2 TXDA 2 RX+ 5 TXDB 3 TX- 3 RXDA 4 TX+ 6 RXDB 5 GND 1 GND
MT6050i/MT8050i/MT8050iE COM1 RS485 4W 9P D-Sub Female RS485 4W 8P Hirose Male 1 RX- 2 TXDA 2 RX+ 5 TXDB 3 TX- 3 RXDA 4 TX+ 6 RXDB 5 GND 1 GND
The following is the view from the soldering point of a cable. FP3 CPU : 9P D-Sub to 15P D-Sub
eMT3000 series COM1 RS485 4W 9P D-Sub Male RS485 4W 15P D-Sub Male 1 RX- 9 TXDA 2 RX+ 2 TXDB 3 TX- 10 RXDA 4 TX+ 3 RXDB 5 GND 7 GND 4 RTS+ short 5 CTS+ 11 RTS- short 12 CTS- cMT/mTV series COM2 RS485 4W 9P D-Sub Female RS485 4W 15P D-Sub Male 7 RX- 9 TXDA 6 RX+ 2 TXDB 9 TX- 10 RXDA 8 TX+ 3 RXDB 5 GND 7 GND 4 RTS+ short 5 CTS+ 11 RTS- short 12 CTS-
MT8000iE/MT8000XE series except MT8050iE COM1 RS485 4W 9P D-Sub Male COM2 RS485 4W 9P D-Sub Male RS485 4W 15P D-Sub Male 1 RX- 1 RX- 9 TXDA 2 RX+ 2 RX+ 2 TXDB 3 TX- 3 TX- 10 RXDA 4 TX+ 4 TX+ 3 RXDB 5 GND 5 GND 7 GND 4 RTS+ short 5 CTS+ 11 RTS- short 12 CTS-
MT6000/8000 series except MT6050i/MT8050i COM1 RS485 4W 9P D-Sub Male RS485 4W 15P D-Sub Male 1 RX- 9 TXDA 2 RX+ 2 TXDB 3 TX- 10 RXDA 4 TX+ 3 RXDB 5 GND 7 GND 4 RTS+ short 5 CTS+ 11 RTS- short 12 CTS-
MT6050i/MT8050i/MT8050iE COM1 RS485 4W 9P D-Sub Female RS485 4W 15P D-Sub Male 1 RX- 9 TXDA 2 RX+ 2 TXDB 3 TX- 10 RXDA 4 TX+ 3 RXDB 5 GND 7 GND 4 RTS+ short 5 CTS+ 11 RTS- short 12 CTS-
Driver Version:
Version Date Description
