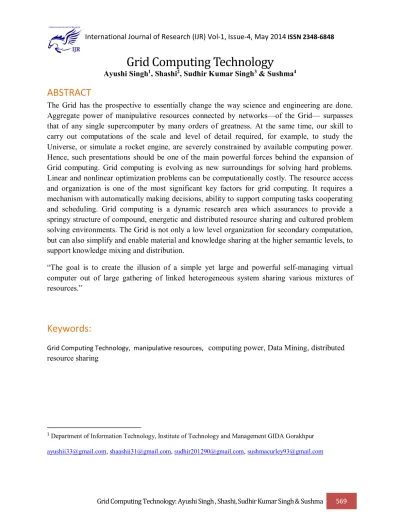

Grid Computing Technology: Ayushi Singh , Shashi, Sudhir Kumar Singh & Sushma 569

International Journal of Research (IJR) Vol-1, Issue-4, May 2014 ISSN 2348-6848

Grid Computing Technology

Ayushi Singh1_{, Shashi}2_{, Sudhir Kumar Singh}3_{& Sushma}4

ABSTRACT

The Grid has the prospective to essentially change the way science and engineering are done. Aggregate power of manipulative resources connected by networks—of the Grid— surpasses that of any single supercomputer by many orders of greatness. At the same time, our skill to carry out computations of the scale and level of detail required, for example, to study the Universe, or simulate a rocket engine, are severely constrained by available computing power.

Hence, such presentations should be one of the main powerful forces behind the expansion of Grid computing. Grid computing is evolving as new surroundings for solving hard problems.

Linear and nonlinear optimization problems can be computationally costly. The resource access and organization is one of the most significant key factors for grid computing. It requires a mechanism with automatically making decisions, ability to support computing tasks cooperating and scheduling. Grid computing is a dynamic research area which assurances to provide a springy structure of compound, energetic and distributed resource sharing and cultured problem solving environments. The Grid is not only a low level organization for secondary computation, but can also simplify and enable material and knowledge sharing at the higher semantic levels, to support knowledge mixing and distribution.

“The goal is to create the illusion of a simple yet large and powerful self-managing virtual computer out of large gathering of linked heterogeneous system sharing various mixtures of resources.”

Keywords:

Grid Computing Technology, manipulative resources, computing power, Data Mining, distributed resource sharing

(2)

1. INTODUCTION

Grid Computing is a method of distributed computing based on the active allocation of resources between members, organizations and firms to by combining them, and thus transport out serious computing requests or treating very great amounts of data. Such applications would not be thinkable within a single frame or company. Grid computing is put on the resources of many computers in a network to a solitary problem at the similar time, typically to a scientific or procedural problem that requires an excessive number of computer processing series or access to large quantities of data. Grid computing needs the use of software that can split and farm out bits of a program to as numerous thousand computers. Grid computing can be thought of as distributed and significant cluster computing and as a form of network-distributed parallel processing.

2. GRID COMPUTING

Let us state once more the Grid problem as synchronized resource sharing and problem solving in dynamic, multi-institutional virtual organizations. This definition states several separate possibilities of the Grid problem: The word “resource” is to be engaged in a wide sense, to contain data, computers, scientific gadgets, software, etc. Sharing must be “coordinated” in those resources organized with their suppliers. Customers are clearly defined, and in that numerous resources may need to be planned in a joint manner to reach various qualities of service. Attaining this management

involves the formation and administration of sharing agreements.The ability to exchange resource sharing agreements in a dynamic and springy technique enables a wide change of problem solving styles, ranging from joint engineering for distributed data mining. A Virtual Organization (VO) is then the set of entities and organizations defined by this sharing.

2.1 GRID ARCHITECHURE LAYERS

(3)

Fabric

INTERNET PROTOCOL ARCHITECTUREGRID PROTOCOL ARCHITECTURE

FIG 1: [The layered Grid architecture and its relationship to the Internet protocol architecture reproduced from]

2.2 CURRENT DEVELOPEMNENT AND LIMITATIONS

The substructure that emphases on management of distributed presentation data are frequently categorized a Data Grid. A growing number of scientific disciplines achieve large data assortments generated by the dimensions and beginning of quantitative data. As a result, many Data Grids are presently being organized. Infrastructure pointing resource information is frequently mentioned to as a Grid Information Service. Though, we will see in the relaxation of this paper that both infrastructures elevation a quantity of dissimilar research queries from a distributed computing outlook. For both infrastructures, suitable data schemas essentially be defined so that information can be encoded, stored, and searched in a capable manner.

More interesting is the design and implementation of a distributed system that apparatuses appliances to circulate information, propagate information, notify accomplice of material modifications, locate information, and save information. Initial Grid infrastructure efforts have plotted software explanations for those devices. Those mechanisms have made it likely to yield the formerly steps in Grid computing and have been significant to create the Grid a probable policy. However, a large amount of those energies were fixated on “getting it to work,” minus nonstop addressing issues of scalability, reliability, and information class. Now that we are facing VOs that enclose thousands of characters in hundreds of institutions world-wide, subjects such as scalability and usability are attracting a near-term apprehension.

APPLICATION

COLLECTIVE

RESOURCES

CONNECTIVITY

APPLICATION

TRASPORT

INTERNET

(4)

3. TYPES OF GRIDS:

3.1 Computational grid:

A computational grid is motivated on setting indirect resources precisely for computing power. In this type of grid, maximum of the machines is high-performance servers.

3.2 Scavenging grid:

A scavenging grid is most regularly used with large numbers of desktop gears. Machines are hunted for accessible CPU cycles and other resources. Holders of the desktop machines are typically given regulator over once their resources are obtainable to contribute in the grid.

3.3 Data grid:

A data grid is answerable for covering and providing access to data crossways several societies. Users are not anxious to where this data is situated as long as they have access to the data. A data grid wanted to allow them to segment their data, manage the data, and manage security subjects such as who has access to what data.

3. RELATED WORK

3.1. Grid Information Dissemination

3.1.1 PUBLISHER/ SUBSCRIBER SYSTEM

A class of event-based systems that are ideally suited for the dissemination of Grid information is that of publisher/subscriber systems (or pub/sub for short): systems that interconnect information providers to inform consumers in distributed environments. A broad pub/sub paradigm is that of subject-based routing. Publishers label each event with a subject name, and subscribers receive

all events with desired subjects. A number of subject-based systems have been successfully implemented. A more recent type of pub/sub systems is “content-based” ones. In those systems, each event follows a schema that defines the event's content as a set of attributes with different types. Subscriptions are then defined as predicates over event attributes.

3.1.2 Publisher/Subscriber and the Grid

Subject-based pub/sub schemes present two major benefits. The identical of events to subscriptions is a modest lookup in a table, and scalability is attained by frank multicasting, where a multicast group is created for each topic. The power of the content-based pattern comes with the damage of those two convenient features. Event matching is more involved as it requires evaluations of predicates over event content. A simple multicast technique where a multicast group is shaped for each matching set of events produces a prohibitive amount of assemblies. This is the main task that inspires most of the fresh research work on content-based system.

3.1.2.1 Selectivity and Regionalism

High selectivity means that subscriptions are selective sufficient that the chance of a match is less. High regionalism means that ties for an event are non-uniformly distributed over the whole subscriber network.

3.1.2.2 Dynamic Subscriptions

(5)

comparatively static. This means that actions are published at rate orders of scales, advanced than the rate at which subscriptions arrive and leave the organization. For instance, the work existing in describing an effective event identical and routing scheme that customs a Parallel Search Tree (PST) data structure. The PST encodes all subscriptions in the organization and is pretend on all event negotiators in the overlay network. Each time a new subscription is added (or removed) from the system; there is possibly an essential for a global inform of the replicated PST structure.

Dynamic subscriptions frequently involve that multicast groups used for event routing be rebuilt periodically contains a conversation of which routing algorithms are more hardy or sensitive to dynamic subscriptions.

3.1.3 QoS (QUALITY OF SERVICE) for Event Delivery

QoS for event delivery can come in many procedures and be specified by numerous strong or weak assurances. Examples comprise statements such as: “each event is ultimately delivered to all attentive subscribers” or “every event is transported to most interested subscribers in beneath 1 second”. Current event-based pub/sub systems agree such QoS requirements. For instance, race conditions encouraged by network latencies and out-of-order messages are not banned. The two most common QoS terms in existing systems are whether actions are delivered consistently or undependably, and whether events are

delivered in order or if they may be out of order.

4. Retrieving Data & Information

The objectives for Grid computing are no altered from other areas: to make discovery and retrieval efficient and scalable.

4.1 DISCOVERING DATA

Based on current advances in the area of distributed systems, Grid researchers are studying how scalable detection instruments can be executed using a peer-to-peer architecture. Every contributor (organization or individual) in a VO (Virtual Organization) must have complete regulation of which evidence is published about its local resources. We consequently accept that every participant in a VO preserves one or more servers, or peers, that offer access to local resource evidence. Those peers may join or leave the scheme at any period. One may expect positive VOs to be more or less active, but it is presently too initial to make any report about what could be “typical.

4.2 DISCOVERING GRID RESOURCES

(6)

challenges come across in the area of distributed databases. The query of constancy is perhaps not critical as most Grid resource information shadows a one-writer many-readers model. For instance, the subscription predicate language for Grid measures should almost definitely be a subclass of the Grid resource discovery query language.

4.3 REPLICATION

Data replication is a famous method used in many distributed loading systems for refining performance and availability. In this unit we focus on the problem of storing and replicating claim data in a Data Grid that is recycled by contestants in a VO. A significant focus in Grid computing currently is on distributed scientific societies who wish to achieve large quantity of data analyses on gradually large datasets. Recent efforts are even now building Data Grids that are likely to process and store petabytes of information each year. The Data Grid that is being organized as part of GriPhyn is hierarchical and organized in tiers. This hierarchical structure is suggestive of Web caches. Grid researchers are also witnessing at peer-to-peer architectures for data storage, as an amount of such experimental systems has been projected and are being recognized.

5. GRID COMPUTING IN FUTURE

Grid computing isn’t humble, but its possibilities are enormous. Grids are providing technology that can alter the world’s computing resources into whole

computing powerhouses, letting new ways of responsibility discipline and allowing new virtual research groups. They are aiding communities across the sphere in their mission for better information about our planet and our universe, which incomes, benefits for our heath, economy, environment and future.

6. CONCLUSION

Grid computing delivers a structure and deployment stage that assists resource sharing, accessing, aggregation, and management in a distributed computing atmosphere built on system performance, users' quality of services, as well as developing open principles, such as Web services. This is the age of Service Computing.

(7)

REFERENCES

1. International Science Grid This Week: www.isgtw.org

2. M. Aguilera, R. Strom, D. Sturman, M. Astley, and T. Chandra. Matching Events in a Content-based Subscription System. In Proceedings of the 18th Annual ACM Symposium on Principles of Distributed Computing (PODC 1999), pages 53–61, Atlanta, Georgia, May 1999.

3. GridCafe: www.gridcafe.org

4. A. Amoroso, K. Marzullo, and A. Ricciardi. Area Nile: A Case Study of a Wide-Area Data-Parallel Application. In Proceedings of the 18th International Conference on Distributed Computing Systems (ICDCS), Amsterdam, Netherlands, pages 506–515, May 1998International Thermonuclear Experimental Reactor: www.iter.org/

5. Worldwide Large Hadron Collider Computing Grid: http://lcg.web.cern.ch/LCG/

6. F. Berman. The Grid, Blueprint for a New computing Infrastructure, chapter 12. Morgan Kaufmann Publishers, Inc., 1998. Edited by Ian Foster and Carl Kesselman.

7. Russian Data Intensive Grid: http://egee-rdig.ru/ 8. WISDOM: http://wisdom.healthgrid.org

9. What is grid computing? - Gridcafe. E-sciencecity.org. Retrieved on 2013-09-18.

10.A. Carzaniga, D. Rosenblum, and A. Wolf. Achieving Scalability and Expressiveness in an Internet-Scale Event Notification Service. In Proceedings of the 19th Annual Symposium on Principles of Distributed Computing (PODC 2000), pages 219–227, Portland, Oregon, Jul. 2000.

11.R. Buyya, D. Abramson, and J. Giddy, An Economy Driven Resource Management Architecture for Global Computational Power Grids, The 2000 International Conference on Parallel and Distributed Processing Techniques and Applications (PDPTA 2000), 12.CERN LHC Computing Grid Project, http://lhcgrid.web.cern.ch/ LHCgrid/

13.Las Vegas, USA, June 26-29, 2000."What is the Grid? A Three Point Checklist".

14."Pervasive and Artificial Intelligence Group:: publications [Pervasive and Artificial Intelligence Research Group]". Diuf.unifr.ch. May 18, 2009. Retrieved July 29, 2010. 15.Computational problems - Gridcafe. E-sciencecity.org. Retrieved on 2013-09-18.

16.Kamran Karimi, Neil G. Dickson, and Firas Hamze, High-Performance Physics Simulations Using Multi-Core CPUs, and GPGPUs in a Volunteer Computing Context, International Journal of High Performance Computing Applications, 2011.

17.I. Foster and C. Kesselman, editors. The Grid: Blueprint for a New Computing Infrastructure. Morgan Kaufmann Publishers, Inc., San Francisco, USA, 1999.

18.I. Foster, C. Kesselman, and S. Tuecke. The Anatomy of the Grid: Enabling Scalable Virtual Organizations. International Journal of High Performance Computing Applications, 15 (3), 2001.
