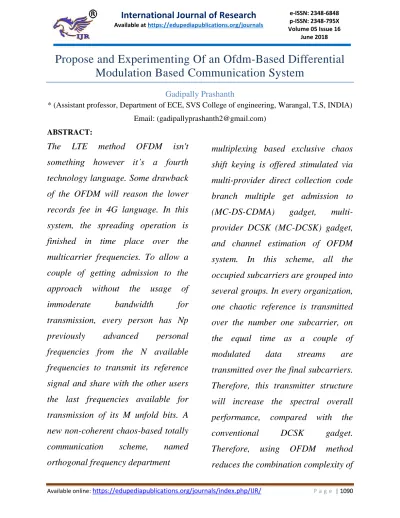

Propose and Experimenting Of an Ofdm-Based Differential
Modulation Based Communication System
Gadipally Prashanth
* (Assistant professor, Department of ECE, SVS College of engineering, Warangal, T.S, INDIA)
Email: ([email protected])
ABSTRACT:
The LTE method OFDM isn't
something however it’s a fourth
technology language. Some drawback
of the OFDM will reason the lower
records fee in 4G language. In this
system, the spreading operation is
finished in time place over the
multicarrier frequencies. To allow a
couple of getting admission to the
approach without the usage of
immoderate bandwidth for
transmission, every person has Np
previously advanced personal
frequencies from the N available
frequencies to transmit its reference
signal and share with the other users
the last frequencies available for
transmission of its M unfold bits. A
new non-coherent chaos-based totally
communication scheme, named
orthogonal frequency department
multiplexing based exclusive chaos
shift keying is offered stimulated via
multi-provider direct collection code
branch multiple get admission to
(MC-DS-CDMA) gadget,
multi-provider DCSK (MC-DCSK) gadget,
and channel estimation of OFDM
system. In this scheme, all the
occupied subcarriers are grouped into
several groups. In every organization,
one chaotic reference is transmitted
over the number one subcarrier, on
the equal time as a couple of
modulated data streams are
transmitted over the final subcarriers.
Therefore, this transmitter structure
will increase the spectral overall
performance, compared with the
conventional DCSK gadget.
Therefore, using OFDM method
the tool in which the parallel low skip
filters aren't needed to recover the
transmitted information as in
multicarrier DCSK scheme. At very
last we get the bit mistakes price
standard performance it's beneath
multipath Rayleigh fading channels in
the presence of multiuser and additive
white Gaussian noise interferences.
Keywords: OFDM, DCSK, MC DCSK,
Transmitted, Gaussian noise,
Communication.
1. INTRODUCTION:
Chaos-based communication has been
significantly studied in recently years
because chaotic indicators have the
following residences: non-periodic,
deterministic, noise like, wideband,
and clean to generate. A wide variety
of chaotic modulation schemes had
been proposed; among which
differential chaos shift keying
(DCSK) grow to be the most
appropriate one because of its
properly noise popular overall
performance and easy transceiver
requirement. The reference and the
statistics bearing signals are separated
with the aid of manner of Walsh code
sequences and then transmitted within
the same time slot. For such
structures, there's no need for a put
offline at the receiver give up. An
improved model of the immoderate
spectral performance DCSK device is
supplied, wherein chaotic codes are
used within the region of Walsh
codes, with outstanding receiver
structures. Another format based
mostly on an exceptionally-wideband
machine the use of chaotic signs for
low complexity, low fee, low energy,
and the coffee fee is furnished. In this
paper, we first introduce a
cutting-edge design of a multi-man or
woman, multi-carrier DCSK device
(MC-DCSK). The call for wireless
communique services is inconsistent
upward thrust with a long time of
years. Multicarrier (MC)
blessings of excessive spectral overall
performance, hardiness to frequency
selective attenuation parameter, and
practicability of the transmission this
is tons much less expensive
transceiver implementation can be a
strong candidate for numerous
amazing wireless applications which
can be essential for wireless
transmission. The proposed system
solves the RF positioned offline
hassle said, provides from the homes
of DCSK system in terms of
resistance to interference, will
increase the facts charge, and
optimizes the transmitted power of the
DCSK gadget with an easy
transmitter/receiver format. The
analytical normal overall performance
derivation of DCSK communication
tool is studied and the transmission
safety is advanced. On the transmitter
aspect, all the occupied subcarriers are
grouped into numerous organizations
(count on L groups). In every group,
one subcarrier is assigned to transmit
the reference slot, at the equal time as
the alternative subcarriers (count on
M subcarriers) will deliver the
information slots. These layout no
longer handiest increases the records
price and save the transmitted bit
energy because one chaotic reference
is used to transmit M bits, but also
solves the RF put off the trouble.
Then, we take a look at the BER
overall performance beneath AWGN
channel with Gaussian approximation,
which assumes that the correlated
output follows the normal
distribution. Moreover, several
simulation consequences are given
under AWGN and -path Raleigh flat
fading channels. Finally, we evaluate
the accuracy of the BER expression
with the numerical normal
performance.
2. RELATED STUDY:
They follow a multicarrier
transmission to a right away-series
CDMA gadget; anyplace we're having
an statistics sequence that's
accelerated with the aid of a spreading
sequence that could modulate multiple
vendors, as opposed to one carrier
which is having some of a
disadvantage. The receiver presents
correlates whilst transmission for each
carrier on this machine, and
additionally the outputs received from
correlators are blended with the given
condition of the maximal-ratio
combiner on this transmission. These
forms of Wi-Fi verbal exchange are
used for reaching higher properties of
exhibiting a narrowband interference
suppression effect on transmission of
facts, besides hardiness to weakening,
without. For such structures, there's
no want for an electrical circuit at the
receiver which is present at the finish.
Associate stepped forward model of
the high spectral potency DCSK
machine is bestowed, anywhere
chaotic codes area unit used as
opposed to Walsh codes, with
absolutely extraordinary receiver
structures are used there for better
transmission. Another fashion
supported associate ultra-wideband
system victimization chaotic signals
for low complexness, low fee, low
power, and occasional rate is
bestowed. During this paper, we will
be predisposed to first introduce an
alternative style of a multi-consumer,
multi-carrier DCSK gadget
(MC-DCSK) this is one of the famous ones
for transmission. The projected
machine solves the RF electric circuit
drawback noted, gives from the
properties of DCSK gadget present
utilized in OFDM in terms of
resistance to interference, will
increase the records charge, and
optimizes the transmitted electricity of
the DCSK system with a clean
transmitter/receiver aspect present
of the given derivation of DCSK
communication system is studied
extensive and additionally the
transmission safety is progressed.
During this paper implementation, for
the house available, we will be
predisposed to pay attention our
efforts to make clear the projected
machine fashion, anyplace the
analytical derivation, in addition to
mental feature more than one get
entry to techniques of MC-DCSK
system, are studied in destiny works.
3. METHODOLOGY:
In proposed machine explaining the
DCSK communication machine in
order to understand the principles at
the back of the unconventional
extension components of the proposed
device and to apply this as a
comparative benchmark to
demonstrate the executed
performance enhancements for the
facts transmission. As proven in
below Fig. 1, inside the DCSK
modulator for transmission and which
is, every bit 𝑠𝑖 = −1,+1 is represented
with the aid of two units of chaotic
signal samples for transmission, with
the first set representing the reference
indicators, and the second one
wearing information signal. If +1 is
transmitted, the data-bearing
collection is equal to the reference
series approach circuitously it
indicates the records series, and if −1
is transmitted, an inverted version of
the reference sequence is used for
statistics transmission.
Fig.3.1. Basic model diagram.
The intention of the proposed
machine is to reduce the hardware
complexity of the MC-DCSK
to reduce the transmitted bit power, to
function in multi-person state of
affairs, to enjoy the houses of OFDM
modulation and to perform with none
want to RF postpone circuits or
complex channel estimators. The
edges and the middle of the spectrum
are allocated to transmit the reference
signals of various customers and the
closing NS frequencies are shared to
transmit the unfold facts. As shown in
Fig. Three, the distribution of the
reference signal over the predefined
non-public frequencies follows the
brush-kind sample layout. In truth, the
comb-type layout lets in the receiver
to have a quick adaptation to the
channel whilst this lattice changes in
time from one OFDM symbol to
every other. It is vital to word that
specific uncorrelated reference alerts
of P users are used inside the equal
fashion as pilot indicators spreading
codes of the OFDM-DCSK gadget.

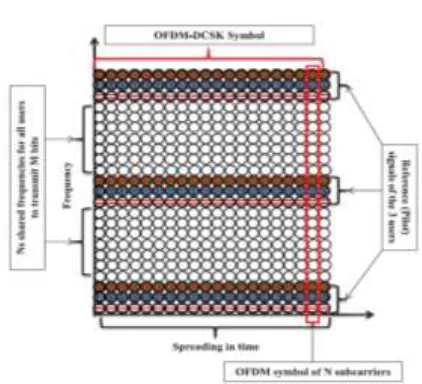

Fig.3.2. Signal structure with comb-type
reference sequences for the pth user.
This would require ߚ variety of IFFT operations to transmit the M unfold
bits with a spreading aspect of β. In
addition, on account that each user
shares a part of his bandwidth with
the other users, this reduces the full
required bandwidth but will increase
MAI. However, MAI can be
decreased with the aid of increasing
the spreading issue value. After each
IFFT operation, the parallel signal is
converted right into a serial collection
and a cyclic prefix is introduced to do
away with the intersymbol
frequency area processing. Hence, the
OFDM-DCSK device benefits from
the non-coherent blessings of DCSK
and the spectral excessive records rate
of OFDM modulation.
4. SIMULATION RESULTS:
The simulation outcomes, the BER
overall performance in principle of
OFDM-DCSK device, and the BER
overall performance in principle of
DCSK machine are given for
one-of-a-kind unfold element β with the
multicarrier quantity M = 36 below
AWGN channels. It may be visible
that the OFDMDCSK indicates
extraordinary with DCSK machine.
For a given Eb/N0, as spread issue β
boom, the BER overall performance
gets better first after which will
become worse for DCSK gadget,
whilst for OFDM-DCSK system, the
BER performance is becoming worse
and worse. The OFDM-DCSK
machine has higher performance, as
compared with DCSK for
one-of-a-kind spread issue β. For OFDMDCSK
gadget, the performance receives
worse with the growing of spread
thing β, which is similar with DCSK
gadget or MC-DCSK machine. It may
be seen that the performance gets
higher because the boom of the
multicarrier number M. It has the
same trend with one of a kind Eb/N0.
Fig. Eight indicates the simulation
consequences for a given Eb/N0 with
extraordinary multicarrier number M.

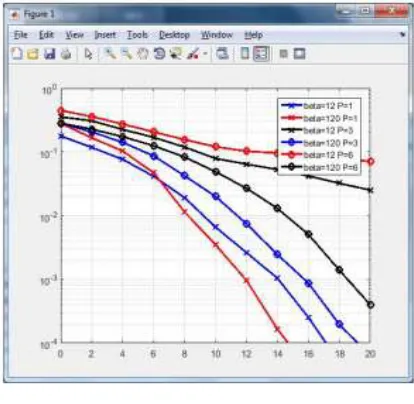

Fig.4.1. Simulation and analytical BER
performance of MU OFDM-DCSK.
First of all, we divided all the
businesses. There is an independent
reference chaotic sign for every group
and hence it ought to be tons extra
accurate for detection. Secondly, a
few subcarriers aren't occupied in our
gadget, even as all of the subcarriers
are used for records transmission.
Fig.4.2. BER performance of existing and
Proposed method.
5. CONCLUSION:
We efficaciously proposed the
multi-consumer OFDM-DCSK that's a
current approach used to overcome
the drawback of the OFDM. This new
improvement of OFDM targets to get
increasing the spectral and strength
efficiencies, permitting more than one
get right of entry to transmission,
reducing complexity by using
IFFT/FFT operations in place of
parallel matched filters as in
MC-DCSK and solving the RF delay line
problem faced in traditional DCSK
schemes. Clear up the radio frequency
delay hassle now not most effective in
DCSK system but also in HE-DCSK
or CS-DCSK systems. Compared with
OFDM machine, no channel
estimation is needed on the receiver
facet and no CSI feedback is wanted
to the transmitter aspect. Compare
with the OFDM-CSK, we are able to
attain better BER overall performance
below two-route Rayleigh channels. It
is a whole lot simpler to use in
exercise. To look at the performance
of the planned gadget thereto of
DCSK, MC-DCSK, and
OFDM-DCSK, the simulated BERs
rectangular degree designed where
consequences display a performance
of PAPR is in the deliberate gadget in
Considering the need and demand of
future Wi-Fi communications to
multiuser communications at the
reduced system of size and energy
expenses, the deliberate
OFDM-DCSK device as a promising
technique that is shown.
REFERENCES:
[1] L. Hanzo, T. Keller, M. Muenster, and
B.-J. Choi, OFDM and MCCDMA for
Broadband Multi-User Communications,
WLANs and Broadcasting. New York, NY,
USA: John Wiley & Sons, Inc., 2003.
[2] S. Kondo and B. Milstein, “Performance
of multicarrier DS-CDMA systems,”
Communications, IEEE Transactions on,
vol. Forty four, no. 2, pp. 238 –246, Feb.
1996.
[3] H. Yang and G. P. Jiang,
“High-performance differential-chaos-shift keying
scheme for chaos-based non coherent verbal
exchange,” IEEE Transactions on Circuits
and Systems II: Express Briefs, vol. 59, no.
5, pp. 312–316, May 2012.
[4] W. Xu, L. Wang, and G. Kaddoum, “A
novel differential chaos shift keying
modulation scheme,” International Journal
of Bifurcation and Chaos, vol. 21, no. Three,
pp. 799–814, 2011.
[5] G. Kaddoum and F. Gagnon, “Design of
a excessive-records-rate differential
chaos-shift keying system,” IEEE Transactions on
Circuits and Systems II: Express Briefs, vol.
Fifty nine, no. 7, pp. 448– 452, July 2012.
[6] S. Wang and X. Wang, “M
-DCSK-based chaotic communications in MIMO
multipath channels without a channel nation
data,” IEEE Transactions on Circuits and
Systems II: Express Briefs, vol. Fifty seven,
no. 12, pp. 1001–1005, Dec 2010.
[7] G. Kaddoum, F. Richardson, and F.
Gagnon, “Design and evaluation of a
multi-provider differential chaos shift keying
conversation system,” IEEE Transactions on
Communications, vol. 61, no. Eight, pp.
