Vascular Medicine

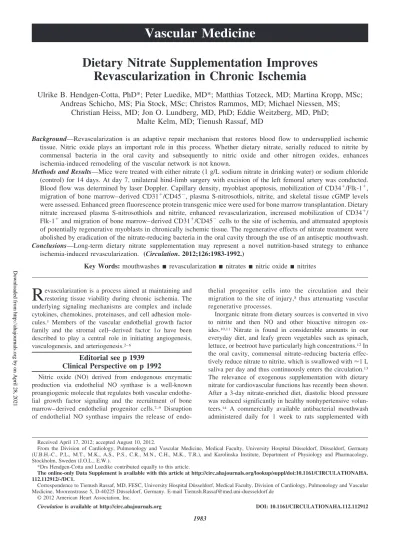

Dietary Nitrate Supplementation Improves Revascularization in Chronic Ischemia

Ulrike B. Hendgen-Cotta, PhD; Peter Luedike, MD; Matthias Totzeck, MD; Martina Kropp, MSc;

Andreas Schicho, MS; Pia Stock, MSc; Christos Rammos, MD; Michael Niessen, MS;

Christian Heiss, MD; Jon O. Lundberg, MD, PhD; Eddie Weitzberg, MD, PhD;

Malte Kelm, MD; Tienush Rassaf, MD

Background—Revascularization is an adaptive repair mechanism that restores blood flow to undersupplied ischemic tissue. Nitric oxide plays an important role in this process. Whether dietary nitrate, serially reduced to nitrite by commensal bacteria in the oral cavity and subsequently to nitric oxide and other nitrogen oxides, enhances ischemia-induced remodeling of the vascular network is not known.

Methods and Results—Mice were treated with either nitrate (1 g/L sodium nitrate in drinking water) or sodium chloride (control) for 14 days. At day 7, unilateral hind-limb surgery with excision of the left femoral artery was conducted.

Blood flow was determined by laser Doppler. Capillary density, myoblast apoptosis, mobilization of CD34^⫹/Flk-1^⫹, migration of bone marrow– derived CD31^⫹/CD45^⫺, plasma S-nitrosothiols, nitrite, and skeletal tissue cGMP levels were assessed. Enhanced green fluorescence protein transgenic mice were used for bone marrow transplantation. Dietary nitrate increased plasma S-nitrosothiols and nitrite, enhanced revascularization, increased mobilization of CD34^⫹/ Flk-1^⫹ and migration of bone marrow– derived CD31^⫹/CD45^⫺cells to the site of ischemia, and attenuated apoptosis of potentially regenerative myoblasts in chronically ischemic tissue. The regenerative effects of nitrate treatment were abolished by eradication of the nitrate-reducing bacteria in the oral cavity through the use of an antiseptic mouthwash.

Conclusions—Long-term dietary nitrate supplementation may represent a novel nutrition-based strategy to enhance ischemia-induced revascularization. (Circulation. 2012;126:1983-1992.)

Key Words: mouthwashes 䡲 revascularization 䡲 nitrates 䡲 nitric oxide 䡲 nitrites

R

evascularization is a process aimed at maintaining and restoring tissue viability during chronic ischemia. The underlying signaling mechanisms are complex and include cytokines, chemokines, proteinases, and cell adhesion mole- cules.¹ Members of the vascular endothelial growth factor family and the stromal cell– derived factor 1␣ have been described to play a central role in initiating angiogenesis, vasculogenesis, and arteriogenesis.^{2– 6}

Editorial see p 1939 Clinical Perspective on p 1992

Nitric oxide (NO) derived from endogenous enzymatic production via endothelial NO synthase is a well-known proangiogenic molecule that regulates both vascular endothelial growth factor signaling and the recruitment of bone marrow– derived endothelial progenitor cells.^7–9 Disruption of endothelial NO synthase impairs the release of endo-

thelial progenitor cells into the circulation and their migration to the site of injury,⁸ thus attenuating vascular regenerative processes.

Inorganic nitrate from dietary sources is converted in vivo to nitrite and then NO and other bioactive nitrogen oxides.^10,11 Nitrate is found in considerable amounts in our everyday diet, and leafy green vegetables such as spinach, lettuce, or beetroot have particularly high concentrations.¹²In the oral cavity, commensal nitrate–reducing bacteria effectively reduce nitrate to nitrite, which is swallowed with⬇1 L saliva per day and thus continuously enters the circulation.¹³ The relevance of exogenous supplementation with dietary nitrate for cardiovascular functions has recently been shown.

After a 3-day nitrate-enriched diet, diastolic blood pressure was reduced significantly in healthy nonhypertensive volunteers.¹⁴ A commercially available antibacterial mouthwash administered daily for 1 week to rats supplemented with

Received April 17, 2012; accepted August 10, 2012.

From the Division of Cardiology, Pulmonology and Vascular Medicine, Medical Faculty, University Hospital Du¨sseldorf, Du¨sseldorf, Germany (U.B.H.-C., P.L., M.T., M.K., A.S., P.S., C.R., M.N., C.H., M.K., T.R.), and Karolinska Institute, Department of Physiology and Pharmacology, Stockholm, Sweden (J.O.L., E.W.).

*Drs Hendgen-Cotta and Luedike contributed equally to this article.

The online-only Data Supplement is available with this article at http://circ.ahajournals.org/lookup/suppl/doi:10.1161/CIRCULATIONAHA.

112.112912/-/DC1.

Correspondence to Tienush Rassaf, MD, FESC, University Hospital Du¨sseldorf, Medical Faculty, Division of Cardiology, Pulmonology and Vascular Medicine, Moorenstrasse 5, D-40225 Du¨sseldorf, Germany. E-mail [email protected]

Circulation is available at http://circ.ahajournals.org DOI: 10.1161/CIRCULATIONAHA.112.112912

1983

Downloaded from http://ahajournals.org by on April 28, 2021

(2)

nitrate via drinking water has been shown to suppress the oral microflora to such an extent that the conversion of nitrate to nitrite in the oral cavity was strongly reduced. Consequently, the blood pressure–lowering and gastroprotective effects of nitrate were abolished.¹⁵ In contrast to pharmacological application of the anion nitrite,¹⁶dietary nitrate is nontoxic even in higher doses, whereas nitrite can cause serious harm at considerably lower levels.

On the basis of the recently described NO-like effects of dietary nitrate, we evaluated whether long-term dietary nitrate supplementation matched to the effect of a human diet rich in vegetables would improve ischemia-induced revascularization and tissue regeneration using a mouse hind-limb ischemia model.

Methods

Chemicals

All reagents were obtained from Sigma-Aldrich (Taufkirchen, Ger- many) unless indicated otherwise.

Animals

Male Naval Medical Research Institute (NMRI) mice 14⫾3 weeks old with an average body weight of 30⫾6 g were obtained from the local animal house. C57BL/6-Tg(CAG-EGFP)C14-Y01-FM131Osb mice were kindly provided by Dr Masaru Okabe (Osaka University,

Osaka, Japan). All experiments were approved by the local ethics committee in compliance with the European Convention for the Protection of Vertebrate Animals Used for Experimental and other Scientific Purposes (Council of Europe Treaty Series No. 123).

Sodium Nitrate Supplementation and Antiseptic Mouthwash

Sodium nitrate was added to the drinking water for 14 days at a concentration of 1 g/L (⬇150␮mol according to the measured daily drinking water consumption). This is equivalent to a rich vegetable intake in human.¹¹An equal concentration of sodium chloride served as control. To suppress the resident microflora in the oral cavity of the animals, subgroups were treated twice daily for 14 days with a commercial antibacterial mouthwash solution (0.2% wt/vol hexeti- dine/water; Pfizer, Berlin, Germany). The control group received a mouthwash with a water solution only. All mice were weighed after sodium nitrate intake for 7 days. Water and food consumption was recorded daily. Animals underwent surgical excision of the left femoral artery at day 7. At day 14, mice were subjected to imaging, blood sampling, and histological analyses.

Hind-Limb Ischemia Model

Under complete anesthesia after ketamine (45 mg/kg) and xylazine (10 mg/kg) injections, chronic ischemia was generated in compliance with well-established unilateral hind-limb surgery protocols.¹⁷ In brief, after a 1-cm skin incision was made at the medial thigh, the femoral artery was separated from the femoral vein and nerve. The part proximal to the outlet of the profunda femoris artery and the distal end (outlet of the saphenous artery) were ligated with 7– 0 silk Figure 1. Effect of dietary nitrate supplementation on perfusion recovery. A, Experimental protocol. B, Original laser Doppler perfusion images (LDPIs) display hind-limb perfusion before and 7 days after excision of the femoral artery. Mice receiving nitrate (middle row) show increased perfusion compared with control animals (left row). Mice receiving antiseptic mouthwash (MW) did not exhibit the nitrate-induced gain of perfusion (right row). C, Nitrate-supplemented mice showed increased perfusion recovery in chronic hind-limb ischemia (black bars; P⬍0.02); this effect was not observed in mice receiving antiseptic mouthwash (gray bars; P⬍0.02). Data are expressed as mean⫾SEM (n⫽21–23).

(3)

sutures (Serag-Wiessner, Naila, Germany). The femoral artery was then excised between the ligations. Wound closures were conducted with single-layer sutures with 4 – 0 Prolene threads. Immediately after surgery, animals received a subcutaneous injection of buprenorphine (0.05 mg/kg). Postoperative analgesia was maintained with buprenorphine (0.05 mg/kg) every 12 hours for 2 days, and mice were closely monitored for any signs of distress.

Assessment of Perfusion

Perfusion was assessed by laser Doppler perfusion imaging (Per- imed, Stockholm, Sweden) immediately after surgery and for the next 7 days. Blood flow was measured as changes in laser frequency, represented by pixels of different colors. The mean hind-limb perfusion was calculated as the ratio of ischemic to nonischemic side by a blinded observer.

Capillary Density Measurement

Paraffin-embedded serial sections (6 ␮m) obtained from skeletal muscles of the ischemic and nonischemic (control) hind limb were used for immunostaining. To define capillaries on day 7 after surgery, a primary antibody against CD31 (platelet/endothelial cell adhesion molecule-1; Santa Cruz Biotechnology, Santa Cruz, CA) was used to detect endothelial cells, followed by a rabbit anti-goat Alexa 647 secondary antibody. Double staining with CD45 antibodies was performed to unmask leukocytes. Tissues were mounted by the use of Vectashield DAPI nuclear counterstain. Only CD31^⫹and CD45^⫺cells were calculated per 1-mm²hind-limb section.

Determination of Myoblast Apoptosis

Seven days after chronic hind-limb ischemia, the hind limbs were removed from mice, and the bones were dissected. The muscle was then placed in PBS to keep it moist. Subsequently, the muscle was minced and the cells were digested with Pronase in PBS (10 mg/mL) with 1 mL HEPES Puffer (25 mmol/L) and Dulbecco modified Eagle medium (PromoCell, Heidelberg, Germany). Myoblasts were cultured in HAM’s F-10 medium (PromoCell) supplemented with 20% FCS, 10% equine serum, and 0.2% penicillin/streptomycin on collagen-coated dishes.

After incubation and sufficient fibroblast adhesion, myoblasts were carefully extracted. To verify the myoblast population, fluorescence-activated cell sorting (FACS) was performed on an FACS sorter (FACS Canto, BD, Franklin Lakes, NJ) with the integrin-␣7 antibody (Antikoerper-Online GmbH, Aachen, Germany) for sorting. Cells ex- hibiting DNA fragmentation were identified by terminal transferase dUTP nick-end labeling (TUNEL) assay according to the manufacturer’s recommendations (Roche Diagnostics, Mannheim, Germany). Cells were visualized with a Nikon fluorescence microscope (Nikon Instru- ments Europe BV Germany, Du¨sseldorf, Germany), and TUNEL- positive (green) and total (blue) nuclei were counted in 3 separate fields.

Apoptotic susceptibility was presented as the percentage of TUNEL- positive nuclei per total counted nuclei.

Determination of Peripheral Blood Mononuclear Cells

Blood samples were collected 7 days after hind-limb surgery.

Peripheral blood mononuclear cells were isolated by Ficoll density gradient centrifugation. To determine the isolated blood cells, we performed FACS analyses using FITC rat anti-mouse CD 34 and APC rat anti-mouse Flk-1 antibodies (BD, Heidelberg, Germany).

Bone Marrow Transplantation

To assess the migration of bone marrow– derived endothelium- regenerating cells into ischemic tissue, NMRI and enhanced green fluorescence protein (EGFP) transgenic mice were used for bone marrow transplantation. Bone marrow cells were obtained from the tibias and femurs of male EGFP^⫹mice. A suspension of single cells was created and prepared for transplantation. To generate chimeric

mice, 4 to 6⫻10⁶bone marrow cells were injected into the heart of the wild-type recipients in which bone marrow had been lethally irradiated with 6.5 Gy (2⫻10 minutes). Four weeks later, wild-type mice were subjected to nitrate supplementation for 7 days and long-term ligation of the femoral artery.

Figure 2. Effect of dietary nitrate supplementation on S-nitrosothiol (RSNO), nitrite (NO2⫺), and nitrate (NO3⫺) levels in plasma. A, Assessment of circulating RSNO, NO₂^⫺, and NO₃^⫺levels. B, Cir- culating RSNO, NO2⫺, and NO3⫺levels increase after nitrate supplementation during a 7-day period. Mice receiving antiseptic mouthwash (MW) displayed lower RSNO and NO2⫺levels in plasma. Data are expressed as mean⫾SEM (n⫽6–8).

Hendgen-Cotta et al Dietary Nitrate Improves Revascularization 1985

(4)

Determination of Bone Marrow–Derived Cells

Seven days after long-term ligation of the femoral artery, paraffin- embedded serial sections (6␮m) obtained from skeletal muscles were stained with rat anti-mouse CD31 antibody, followed by a rabbit anti-goat Alexa 647 secondary antibody. Double staining with CD45 antibodies was performed to unmask inflammatory cells.

Nuclei were counterstained with DAPI. EGFP^⫹/CD31^⫹/CD45^⫺ cells were calculated per 1-mm²hind-limb section.

Biochemical Analysis

Plasma nitrate, nitrite, and S-nitrosothiol levels were measured with high-performance liquid chromatography (ENO20, Eicom, Dublin, Ireland) and chemiluminescence¹⁸and skeletal tissue cGMP level was determined with the BiotrakTM cGMP competitive enzyme immunoassay system (GE Healthcare, Munich, Germany) following the manufacturer’s protocol. Tissue cGMP levels were expressed per 1 mg wet tissue.¹⁹

Statistical Analysis

Results are presented as mean⫾SEM unless stated otherwise. Data were analyzed by 1-way ANOVA and post hoc Bonferroni multiple- comparison tests and Kruskal-Wallis with Mann–Whitney test with GraphPad Prism 5 and IBM SPSS version 20 software to compare differences between multiple groups. The Student unpaired t test was used to analyze 2 groups. A value of P⬍0.05 was considered statistically significant.

Results

Dietary Nitrate Improves Perfusion Recovery in Chronic Hind-Limb Ischemia

To determine whether dietary nitrate supplementation augments the recovery of tissue perfusion, we subjected mice to femoral artery ligation, and the effects on perfusion recovery were assayed by laser Doppler perfusion imaging immediately after surgery and the next 7 days (Figure 1A and 1B). Perfusion recovery in the ischemic hind limb was significantly improved in mice treated with nitrate compared with controls (73⫾4% versus 59⫾4%; P⬍0.02; Figure 1B and 1C). Eradication of the nitrate-reducing bacteria in the oral cavity through antiseptic mouthwash twice daily (Figure I in the online-only Data Sup- plement) did not show the nitrate-mediated positive effect on perfusion (55⫾3%; P⬍0.02; Figure 1B and 1C).

Dietary Nitrate Supplementation Augments S-Nitrosothiol, Nitrite, and Nitrate Levels in Plasma Without Affecting Feeding Behavior Intake of nitrate by drinking water (⬇150␮mol/d) over 7 days showed an increase in plasma S-nitrosothiol, nitrite, and nitrate levels compared with controls (S-nitrosothiol, 349⫾98 versus 9⫾1.9 nmol/L; nitrite, 5.8⫾1.7 versus 0.5⫾0.1␮mol/L; nitrate, Figure 3. Effect of dietary nitrate supplementation on body weight and feeding behavior. A, Experimental protocol. Daily assessment of water, food consumption, and body weight. B through D, Dietary nitrate supplementation and daily mouthwash (MW) procedure had no effect on water and food intake and body weight development. Data are expressed as mean⫾SEM (n⫽4–5).

(5)

451⫾75 versus 40⫾17␮mol/L; Figure 2A and 2B). The nitrite and S-nitrosothiol concentrations were markedly lower in mice that underwent an antibacterial mouthwash (Figure 2B). We also observed lower amounts of plasma nitrate in mouthwash-treated animals. This could theoretically be due to a decrease in water intake (the nitrate source) in mouthwash-treated animals. How- ever, antibacterial mouthwash procedures or the different nitrate content of drinking water had no influence on water and food consumption or body weight (Figure 3A–3D).

Dietary Nitrate Increases Revascularization After Long-Term Ligation of the Femoral Artery

To investigate whether the improvement in tissue perfusion was mediated in part by increased revascularization, capillary density was determined 7 days after hind-limb surgery (Figure 4A). The capillary density was higher in the nitrate- treated group compared with controls (123⫾20 versus 59⫾15 cells per 1 mm²; P⫽0.045; Figure 4A and 4B) and mice receiving nitrate and antibacterial mouthwash (57⫾7 cells per 1 mm²; P⬍0.02; Figure 4A and 4B), as evident by CD31^⫹ staining in skeletal muscle tissue.

Dietary Nitrate Attenuates Apoptosis in Myoblasts in Chronic Hind-Limb Ischemia

To evaluate the remaining regenerative capacity of tissue in chronic ischemia, hind limbs were removed from mice on day 7 after surgical ligation of the femoral artery, and myoblasts were isolated and cultured and underwent TUNEL staining for the detection of apoptotic myoblasts (Figure 5A and 5B).

The amount of apoptotic nuclei was lower in the nitrate- treated group compared with controls (67⫾16 versus 197⫾19 cells per 1 mm²; P⬍0.001; Figure 5B and 5C). Blocking of oral nitrate reduction by antibacterial mouthwash showed no beneficial effects of nitrate (169⫾26 versus 67⫾16 cells per 1 mm²; P⬍0.02; Figure 5B and 5C).

Dietary Nitrate Increases the Mobilization and Migration of Endothelium-Regenerating Cells Quantitative FACS analysis of CD34^⫹/Flk-1^⫹cells in peripheral blood revealed that mobilization of this population was dramatically higher in mice receiving nitrate-enriched drink- ing water compared with the control group (P⬍0.001; Figure Figure 4. Effect of dietary nitrate on revascularization. A, Experimental protocol. B, Representative original micrographs of hind-limb sections show amounts of endothelial cells per 1 mm². Dietary nitrate–treated mice show higher numbers of CD31^⫹/CD45^⫺cells 7 days after hind-limb surgery, whereas the mice receiving mouthwash (MW) did not exhibit this effect. Top row micrographs show CD31^⫹/CD45^⫺-stained cells (red); middle row, DAPI-stained nuclei (blue); bottom row, double-stained (merged) cells indicating endo- thelial cells. C, Quantitative analysis of capillary density displayed as CD31^⫹/CD45^⫺-stained cells per 1 mm²hind limb. Bars show higher capillary density in dietary nitrate–supplemented mice at day 7 (black bars; P⫽0.045). Treatment with an antiseptic mouthwash did not exhibit the nitrate-mediated increase in capillary density (gray bars; P⬍0.02). Data are expressed as mean⫾SEM (n⫽6).

(6)

6A– 6C). Again, no nitrate-mediated effects were seen in the group that received antibacterial mouthwash (P⬍0.01; Figure 6C). After demonstrating the mobilizing effect on CD34^⫹/ Flk-1^⫹cells with dietary nitrate supplementation, we investigated the migration of this mobilized population into ischemic tissue using NMRI and EGFP transgenic mice for bone marrow transplantation. The NMRI recipients underwent lethal irradiation and subsequent EGFP^⫹ bone marrow cell transplantation to generate marked hematopoietic chimeras.

After 4 weeks of recovery, these animals received nitrate supplementation and control treatment before long-term ligation of the femoral artery was performed (Figure 6A). To assess migration of bone marrow– derived cells into the ischemic tissue, we investigated the localization of EGFP^⫹/ CD31^⫹/CD45^⫺cells in paraffin sections of the hind limbs.

Blinded analysis of at least 5 visual fields per section revealed that animals treated with nitrate showed higher amounts of EGFP^⫹/CD31^⫹/CD45^⫺cells at the site of active revascularization compared with animals on a low-nitrate diet (P⫽0.029; Figure 6D and 6E). No effects on the migration of bone marrow– derived EGFP^⫹/CD31^⫹/CD45^⫺ cells were seen with nitrate when antiseptic mouthwash was used (P⫽0.034; Figure 6D and 6E).

Dietary Nitrate Does Not Alter Tissue cGMP Levels

Quantification of cGMP levels by competitive enzyme immunoassay in excised skeletal muscle tissue revealed no impact of nitrate supplementation (4⫾5 fmol/mg tissue) or mouthwash procedure (9⫾7 fmol/mg tissue). This result is consistent with recent findings in studies investigating the role of nitrite injections in ischemia,¹⁶indicating that other nitrite-signaling pathways for regulating angiogenic activity may exist.²⁰However, it does not exclude the existence of cGMP-mediated effects because counterregulatory mechanisms may disguise NO-mediated changes in this second messenger.

Discussion

Chronically ischemic tissue, a feature of peripheral and coronary artery disease, requires a remodeling of the vascular network to reconstitute and sustain its viability. The physiological repair response, however, is often not sufficient, and therapeutic angiogenesis remains an unmet medical need. In the present study, we demonstrate that dietary nitrate supplementation improves revascularization through mechanisms Figure 5. Effect of dietary nitrate on apoptosis in myoblasts. A, Experimental protocol. B, Terminal deoxynucleotidyl transferase dUTP nick-end labeling (TUNEL) staining of isolated myoblasts demonstrating lower amounts of apoptotic cells in mice receiving dietary nitrate supplementation (middle) compared with those receiving control treatment (left) or antiseptic mouthwash (MW; right). Top row micrographs show TUNEL-positive nuclei indicating apoptotic cells (green); middle row, DAPI-positive cells indicating nuclei (blue); bot- tom, double-stained cells (merged) indicating apoptotic cells. C, Quantitative analysis of TUNEL-stained myoblasts per hind limb dis- played as the ratio between ischemic and nonischemic hind limb and expressed as percent. Bars show significantly decreased apopto- sis in mice supplemented with dietary nitrate (black bar). Mice without dietary nitrate supplementation (white bar; P⬍0.001) or with antiseptic mouthwash (gray bar; P⬍0.02) did not show nitrate-mediated regenerative effects. Data are expressed as mean⫾SEM (n⫽9–11).

(7)

involving the mobilization and migration of endothelium- regenerating cells. This is accompanied by an attenuation of myoblast apoptosis.

Despite endeavors to promote blood vessel formation by administration of proangiogenic factors, gene therapy, or targeting of microRNAs, clinically applicable strategies have not yet been developed or are still in a preclinical phase.^21–24 Although proangiogenic properties of NO have been demonstrated, direct application of NO or classic NO donors in vivo bears a high risk of failure owing to lack of targeted delivery, development of tolerance, cellular toxicity, and risk of hypotension.^25–27 Pharmacological treatment with nitrite, an oxi- dation product of NO, may offer an alternative therapeutic opportunity. We have recently shown that the administration of nitrite under hypoxia regulates cardiac energetics and functions resembling the characteristics described for acute hibernation.²⁸A cytoprotective role of nitrite in the setting of

myocardial, liver, kidney, and brain ischemia/reperfusion injury has previously been demonstrated.^19,29,30 In ischemic angiogenesis, a continuous pharmacological intervention with nitrite injections resulted in an increased vascular density in the hind limb and stimulated endothelial cell proliferation.¹⁶ Nitrite has several properties that make it an attractive drug candidate. Its conversion into bioactive nitrogen oxides is slow,³¹and the effect is not subjective to tolerance.³²There- fore, one can deliver it even in fairly high doses without the risk of classic NO-related side effects such as hypotension. In addition, first-passage metabolism in the liver is minimal compared with that of classic organic nitrates. Moreover, its bioactivation is augmented in ischemic areas, thereby making the drug selective to ischemic areas.

Dietary nitrate is an effective way of delivering nitrite systemically, and with a half-life of 6 hours, it continuously generates nitrite and bioactive nitrogen oxides like Figure 6. Impact of dietary nitrate on mobilization and migration of endothelium-regenerating cells. A, Experimental protocol. B, Exem- plary flow cytometric analysis shows the total mononuclear cells in peripheral blood analyzed at day 7 after the onset of hind-limb is- chemia. The gated population displays isolated blood cells, stained with FITC rat anti-mouse CD34 and APC rat anti-mouse Flk-1. B and C, The amount of CD34^⫹/Flk-1^⫹cells was higher in the nitrate-treated group compared with those receiving standard drinking water (P⬍0.001). Antiseptic mouthwash (MW) did not show this effect and distinctly prevented accumulation of CD34^⫹/Flk-1^⫹cells despite nitrate supplementation (P⬍0.01; n⫽7–10). D, Representative original micrographs of hind-limb sections show amounts of enhanced green fluorescence protein–positive (EGFP^⫹)/CD31^⫹/CD45^⫺cells per 1 mm². Mice receiving dietary nitrate showed an increased migration of EGFP^⫹/CD31^⫹/CD45^⫺cells 7 days after hind-limb surgery (middle) compared with mice receiving the mouth- wash procedure (right). E, Bars show significantly increased EGFP^⫹/CD31^⫹/CD45^⫺cell migration in mice supplemented with dietary nitrate at day 7 (black bars; P⫽0.029), whereas antiseptic mouthwash–treated mice displayed a markedly attenuated nitrate-mediated increase in EGFP^⫹/CD31^⫹/CD45^⫺cell migration in chronic hind-limb ischemia (gray bars; P⫽0.034; n⫽3–4). Data are expressed as mean⫾SEM. FACS indicates fluorescence-activated cell sorting.

(8)

S-nitrosothiols. Recent research in animals and humans has confirmed the beneficial effects of dietary nitrate.^14,33–38 Intake of nitrate-rich foods such as leafy vegetables and fruits, abundant in the Mediterranean diet, may represent an opportunity for disease prevention and health modula- tion of human physiological functions. The NO-like effects of dietary nitrate range from lowering of blood pressure^14,38to a reduction in experimental myocardial infarct size,³³ inhibition of platelet aggregation,³⁴ increase in exercise tolerance in peripheral arterial disease,³⁵ and improvement in intrinsic mitochondrial efficiency.³⁶ In addition, nitrate supplementation offered cardioprotection against doxorubicin-induced cardiomyopathy³⁷ and prevented oxidative stress and cardiovascular and renal injury in salt-induced hypertension.³⁹

These findings from experimental animal studies and human clinical studies support the hypothesis that nitrate of food origin promotes cardiovascular health and thus presents a novel mechanistic explanation for some of the well-known health benefits of a diet rich in vegetables.

We demonstrate here that dietary nitrate supplementation strongly augments perfusion recovery in chronic hind-limb ischemia in vivo via a significant increase in capillary density. This improvement was associated with an increase in circulating nitrite and S-nitrosothiol concentrations, an ele- vated mobilization of CD34^⫹/Flk-1^⫹cells, and migration of bone marrow– derived CD31^⫹/CD45^⫺ cells into ischemic tissue. The associative relation, increased plasma nitrite levels and an increased mobilization of CD34^⫹/Flk-1^⫹cells from the bone marrow, has also been observed in patients with coronary artery disease receiving nutrients that increased NO bioavailability.⁴⁰

In line with these findings, the results of the present study further point to a distinct contribution of dietary nitrate supplementation on tissue viability. Dietary nitrate amelio- rates the remarkable capacity of adult skeletal muscles to regenerate myofibers after damage. This rapid repair process is carried out mainly by satellite cells with a contribution of NO.⁴¹Quiescent satellite cells become active and proliferate on injury and display the regenerative capacity of the muscle.

Committed daughter cells, the myoblasts, continue to proliferate, followed by definite differentiation as initialized by a coordinated cellular signaling.

Intriguingly, disruption of the nitrate-NO pathway by long-term eradication of the oral microflora completely abolished the beneficial effects of the dietary nitrate supplementation. This daily intervention effectively suppressed the increase in circulating nitrite and S-nitrosothiol levels that is observed after intake of nitrate-rich food or dietary nitrate supplementation in drinking water.^15,38,42The fact that mouthwash prevented increases in plasma nitrite and all observed beneficial effects of nitrate provides significant mechanistic insight because it suggests an important role of intermediate nitrite formation in the bioactivation of nitrate. However, one cannot entirely rule out the possibility that oral bacteria could directly catalyze nitrosation reactions from nitrate without intermediate nitrite formation because recent data show that protein S-nitros(yl)ation is an obligate concomitant process of anaerobic respiration on nitrate in Escherichia coli.⁴³ It is

important to note that the exact identity of the final media- tor(s) of the nitrate effects is still not settled and that multiple possible mechanisms exist. Nitrite as a reservoir can be further reduced to NO via numerous pathways in blood and tissue, and this process is indeed accelerated under hypoxic conditions.^{44 – 47} In addition, nitrite forms other reactive nitrogen oxides, including S-nitrosothiols and nitrogen oxide, the latter promoting the formation of bioactive nitration products such as nitro fatty acids.^11,48,49 This oxidative chemistry is emerging as an alternative nitrite- mediated signaling mechanism^33,50that could explain some of the NO-like effects of nitrate and nitrite seen under normoxic conditions. The current data suggest that S-nitros(yl)ation might be a crucial signal transduction pathway and that the formation of S-nitrosothiols might account for the regenerative response to the dietary nitrate supplementation in chronic ischemia. This is supported by the marked increase in circulating S-nitrosothiols observed here after nitrate supplementation.

Conclusions

We show here that dietary nitrate supplementation increases the regenerative capacity of ischemic tissue and that this effect depends critically on bacteria-dependent bioactivation of nitrate in the oral cavity. These results suggest that dietary nitrate supplementation may offer an attractive nutrition-based strategy to improve ischemia- induced revascularization.

Sources of Funding

This study was supported in part by grants from the Deutsche Forschungsgemeinschaft (DFG; Ra969/6-1 to Dr Rassaf and Ke405/

5-1 to Dr Kelm). Dr Rassaf is a Heisenberg professor funded by the DFG (Ra969/7-1). Dr Totzeck received a scholarship from the Deutsche Herzstiftung. Dr Luedike receives a stipend from the German Cardiac Society.

Disclosures

None.

References

1. Carmeliet P, Jain RK. Molecular mechanisms and clinical applications of angiogenesis. Nature. 2011;473:298 –307.

2. Christman KL, Fang Q, Kim AJ, Sievers RE, Fok HH, Candia AF, Colley KJ, Herradon G, Ezquerra L, Deuel TF, Lee RJ. Pleiotrophin induces formation of functional neovasculature in vivo. Biochem Biophys Res Comm. 2005;332:1146 –1152.

3. Dimmeler S, Zeiher AM, Schneider MD. Unchain my heart: the scientific foundations of cardiac repair. J Clin Invest. 2005;115:572–583.

4. Roy H, Bhardwaj S, Yla-Herttuala S. Biology of vascular endothelial growth factors. FEBS Lett. 2006;580:2879 –2887.

5. Ruiz de Almodovar C, Luttun A, Carmeliet P. An SDF-1 trap for myeloid cells stimulates angiogenesis. Cell. 2006;124:18 –21.

6. Springer ML, Ozawa CR, Banfi A, Kraft PE, Ip TK, Brazelton TR, Blau HM. Localized arteriole formation directly adjacent to the site of VEGF- induced angiogenesis in muscle. Mol Ther. 2003;7:441– 449.

7. Ziche M, Morbidelli L, Choudhuri R, Zhang HT, Donnini S, Granger HJ, Bicknell R. Nitric oxide synthase lies downstream from vascular endothelial growth factor-induced but not basic fibroblast growth factor- induced angiogenesis. J Clin Invest. 1997;99:2625–2634.

8. Aicher A, Heeschen C, Mildner-Rihm C, Urbich C, Ihling C, Technau- Ihling K, Zeiher AM, Dimmeler S. Essential role of endothelial nitric

(9)

oxide synthase for mobilization of stem and progenitor cells. Nat Med.

2003;9:1370 –1376.

9. Morbidelli L, Chang CH, Douglas JG, Granger HJ, Ledda F, Ziche M.

Nitric oxide mediates mitogenic effect of VEGF on coronary venular endothelium. Am J Physiol. 1996;270:H411–H415.

10. Lundberg JO, Gladwin MT, Ahluwalia A, Benjamin N, Bryan NS, Butler A, Cabrales P, Fago A, Feelisch M, Ford PC, Freeman BA, Frenneaux M, Friedman J, Kelm M, Kevil CG, Kim-Shapiro DB, Kozlov AV, Lancaster JR Jr, Lefer DJ, McColl K, McCurry K, Patel RP, Petersson J, Rassaf T, Reutov VP, Richter-Addo GB, Schechter A, Shiva S, Tsuchiya K, van Faassen EE, Webb AJ, Zuckerbraun BS, Zweier JL, Weitzberg E. Nitrate and nitrite in biology, nutrition and therapeutics. Nat Chem Biol. 2009;

5:865– 869.

11. Lundberg JO, Weitzberg E, Gladwin MT. The nitrate-nitrite-nitric oxide pathway in physiology and therapeutics. Nat Rev Drug Discov. 2008;7:

156 –167.

12. Lundberg JO, Weitzberg E, Cole JA, Benjamin N. Nitrate, bacteria and human health. Nat Rev Microbiol. 2004;2:593– 602.

13. Lundberg JO, Govoni M. Inorganic nitrate is a possible source for systemic generation of nitric oxide. Free Radic Biol Med. 2004;37:

395– 400.

14. Larsen FJ, Ekblom B, Sahlin K, Lundberg JO, Weitzberg E. Effects of dietary nitrate on blood pressure in healthy volunteers. N Engl J Med.

2006;355:2792–2793.

15. Petersson J, Carlstrom M, Schreiber O, Phillipson M, Christoffersson G, Jagare A, Roos S, Jansson EA, Persson AE, Lundberg JO, Holm L.

Gastroprotective and blood pressure lowering effects of dietary nitrate are abolished by an antiseptic mouthwash. Free Radic Biol Med. 2009;46:

1068 –1075.

16. Kumar D, Branch BG, Pattillo CB, Hood J, Thoma S, Simpson S, Illum S, Arora N, Chidlow JH Jr, Langston W, Teng X, Lefer DJ, Patel RP, Kevil CG. Chronic sodium nitrite therapy augments ischemia-induced angiogenesis and arteriogenesis. Proc Natl Acad Sci U S A. 2008;105:

7540 –7545.

17. Couffinhal T, Silver M, Zheng LP, Kearney M, Witzenbichler B, Isner JM. Mouse model of angiogenesis. Am J Pathol. 1998;152:1667–1679.

18. Rassaf T, Bryan NS, Kelm M, Feelisch M. Concomitant presence of N-nitroso and S-nitroso proteins in human plasma. Free Radic Biol Med.

2002;33:1590 –1596.

19. Hendgen-Cotta UB, Merx MW, Shiva S, Schmitz J, Becher S, Klare JP, Steinhoff HJ, Goedecke A, Schrader J, Gladwin MT, Kelm M, Rassaf T.

Nitrite reductase activity of myoglobin regulates respiration and cellular viability in myocardial ischemia-reperfusion injury. Proc Natl Acad Sci U S A. 2008;105:10256 –10261.

20. Bryan NS, Fernandez BO, Bauer SM, Garcia-Saura MF, Milsom AB, Rassaf T, Maloney RE, Bharti A, Rodriguez J, Feelisch M. Nitrite is a signaling molecule and regulator of gene expression in mammalian tissues. Nat Chem Biol. 2005;1:290 –297.

21. Doebele C, Bonauer A, Fischer A, Scholz A, Reiss Y, Urbich C, Hofmann WK, Zeiher AM, Dimmeler S. Members of the microRNA-17-92 cluster exhibit a cell-intrinsic antiangiogenic function in endothelial cells. Blood. 2010;115:4944 – 4950.

22. Tirziu D, Simons M. Angiogenesis in the human heart: gene and cell therapy. Angiogenesis. 2005;8:241–251.

23. Webster KA. Therapeutic angiogenesis: a complex problem requiring a sophisticated approach. Cardiovasc Toxicol. 2003;3:283–298.

24. Mughal NA, Russell DA, Ponnambalam S, Homer-Vanniasinkam S.

Gene therapy in the treatment of peripheral arterial disease. Br J Surg.

2012;99:6 –15.

25. Loh E, Stamler JS, Hare JM, Loscalzo J, Colucci WS. Cardiovascular effects of inhaled nitric oxide in patients with left ventricular dysfunction.

Circulation. 1994;90:2780 –2785.

26. Kiss J, Kaapa P, Savunen T. Antioxidants combined with no donor enhance systemic inflammation in acute lung injury in rats. Scand Cardiovasc J. 2007;41:186 –191.

27. Nakajima A, Ueda K, Takaoka M, Kurata H, Takayama J, Ohkita M, Matsumura Y. Effects of pre- and post-ischemic treatments with FK409, a nitric oxide donor, on ischemia/reperfusion-induced renal injury and endothelin-1 production in rats. Biol Pharm Bull. 2006;29:577–579.

28. Rassaf T, Flogel U, Drexhage C, Hendgen-Cotta U, Kelm M, Schrader J.

Nitrite reductase function of deoxymyoglobin: oxygen sensor and reg- ulator of cardiac energetics and function. Circ Res. 2007;100:1749 –1754.

29. Pluta RM, Dejam A, Grimes G, Gladwin MT, Oldfield EH. Nitrite infusions to prevent delayed cerebral vasospasm in a primate model of subarachnoid hemorrhage. JAMA. 2005;293:1477–1484.

30. Lu P, Liu F, Yao Z, Wang CY, Chen DD, Tian Y, Zhang JH, Wu YH.

Nitrite-derived nitric oxide by xanthine oxidoreductase protects the liver against ischemia-reperfusion injury. Hepatobiliary Pancreat Dis Int.

2005;4:350 –355.

31. Jansson EA, Huang L, Malkey R, Govoni M, Nihlen C, Olsson A, Stensdotter M, Petersson J, Holm L, Weitzberg E, Lundberg JO. A mammalian functional nitrate reductase that regulates nitrite and nitric oxide homeostasis. Nat Chem Biol. 2008;4:411– 417.

32. Dejam A, Hunter CJ, Tremonti C, Pluta RM, Hon YY, Grimes G, Partovi K, Pelletier MM, Oldfield EH, Cannon RO 3rd, Schechter AN, Gladwin MT. Nitrite infusion in humans and nonhuman primates: endocrine effects, pharmacokinetics, and tolerance formation. Circulation. 2007;

116:1821–1831.

33. Bryan NS, Calvert JW, Elrod JW, Gundewar S, Ji SY, Lefer DJ. Dietary nitrite supplementation protects against myocardial ischemia-reperfusion injury. Proc Natl Acad Sci U S A. 2007;104:19144 –19149.

34. Webb AJ, Milsom AB, Rathod KS, Chu WL, Qureshi S, Lovell MJ, Lecomte FM, Perrett D, Raimondo C, Khoshbin E, Ahmed Z, Uppal R, Benjamin N, Hobbs AJ, Ahluwalia A. Mechanisms underlying eryth- rocyte and endothelial nitrite reduction to nitric oxide in hypoxia: role for xanthine oxidoreductase and endothelial nitric oxide synthase. Circ Res.

2008;103:957–964.

35. Kenjale AA, Ham KL, Stabler T, Robbins JL, Johnson JL, Vanbruggen M, Privette G, Yim E, Kraus WE, Allen JD. Dietary nitrate supplemen- tation enhances exercise performance in peripheral arterial disease. J Appl Physiol. 2011;110:1582–1591.

36. Larsen FJ, Schiffer TA, Borniquel S, Sahlin K, Ekblom B, Lundberg JO, Weitzberg E. Dietary inorganic nitrate improves mitochondrial efficiency in humans. Cell Metab. 2011;13:149 –159.

37. Zhu SG, Kukreja RC, Das A, Chen Q, Lesnefsky EJ, Xi L. Dietary nitrate supplementation protects against doxorubicin-induced cardiomyopathy by improving mitochondrial function. J Am Coll Cardiol. 2011;57:

2181–2189.

38. Kapil V, Milsom AB, Okorie M, Maleki-Toyserkani S, Akram F, Rehman F, Arghandawi S, Pearl V, Benjamin N, Loukogeorgakis S, Macallister R, Hobbs AJ, Webb AJ, Ahluwalia A. Inorganic nitrate supplementation lowers blood pressure in humans: role for nitrite-derived NO. Hyper- tension. 2010;56:274 –281.

39. Carlstrom M, Persson AE, Larsson E, Hezel M, Scheffer PG, Teerlink T, Weitzberg E, Lundberg JO. Dietary nitrate attenuates oxidative stress, prevents cardiac and renal injuries, and reduces blood pressure in salt- induced hypertension. Cardiovasc Res. 2011;89:574 –585.

40. Heiss C, Jahn S, Taylor M, Real WM, Angeli FS, Wong ML, Amabile N, Prasad M, Rassaf T, Ottaviani JI, Mihardja S, Keen CL, Springer ML, Boyle A, Grossman W, Glantz SA, Schroeter H, Yeghiazarians Y.

Improvement of endothelial function with dietary flavanols is associated with mobilization of circulating angiogenic cells in patients with coronary artery disease. J Am Coll Cardiol. 2010;56:218 –224.

41. Dhawan J, Rando TA. Stem cells in postnatal myogenesis: molecular mechanisms of satellite cell quiescence, activation and replenishment.

Trends Cell Biol. 2005;15:666 – 673.

42. Larsen FJ, Weitzberg E, Lundberg JO, Ekblom B. Dietary nitrate reduces maximal oxygen consumption while maintaining work performance in maximal exercise. Free Radic Biol Med. 2010;48:342–347.

43. Seth D, Hausladen A, Wang YJ, Stamler JS. Endogenous protein S-nitrosylation in E. coli: regulation by OxyR. Science. 2012;336:

470 – 473.

44. Totzeck M, Hendgen-Cotta UB, Luedike P, Berenbrink M, Klare JP, Steinhoff HJ, Semmler D, Shiva S, Williams D, Kipar A, Gladwin MT, Schrader J, Kelm M, Cossins AR, Rassaf T. Nitrite regulates hypoxic vaso- dilation via myoglobin-dependent nitric oxide generation. Circulation. 2012;

126:325–334.

45. Gladwin MT, Schechter AN, Kim-Shapiro DB, Patel RP, Hogg N, Shiva S, Cannon RO 3rd, Kelm M, Wink DA, Espey MG, Oldfield EH, Pluta RM, Freeman BA, Lancaster JR Jr, Feelisch M, Lundberg JO. The emerging biology of the nitrite anion. Nat Chem Biol. 2005;1:308 –314.

46. Lundberg JO, Weitzberg E. No generation from nitrite and its role in vascular control. Arterioscler Thromb Vasc Biol. 2005;25:915–922.

47. van Faassen EE, Bahrami S, Feelisch M, Hogg N, Kelm M, Kim-Shapiro DB, Kozlov AV, Li H, Lundberg JO, Mason R, Nohl H, Rassaf T, Samouilov A, Slama-Schwok A, Shiva S, Vanin AF, Weitzberg E, Zweier J, Gladwin MT. Nitrite as regulator of hypoxic signaling in mammalian physiology. Med Res Rev. 2009;29:683–741.

48. Luedike P, Hendgen-Cotta UB, Sobierajski J, Totzeck M, Reeh M, Dewor M, Lue H, Krisp C, Wolters D, Kelm M, Bernhagen J, Rassaf T. Car-

(10)

dioprotection through S-nitros(yl)ation of macrophage migration inhibi- tory factor. Circulation. 2012;125:1880 –1889.

49. Khoo NK, Freeman BA. Electrophilic nitro-fatty acids: anti-inflammatory mediators in the vascular compartment. Curr Opin Pharmacol. 2010;10:

179 –184.

50. Jadert C, Petersson J, Massena S, Ahl D, Grapensparr L, Holm L, Lundberg JO, Phillipson M. Decreased leukocyte recruitment by inorganic nitrate and nitrite in microvascular inflammation and NSAID-induced intestinal injury. Free Radic Biol Med. 2012;52:

683– 692.

CLINICAL PERSPECTIVE

With the worldwide increase in cardiovascular diseases in recent decades, the need for novel preventive and noninvasive therapeutic strategies has grown tremendously. In this context, there is accumulating evidence that inorganic nitrate from dietary sources is able to influence the hallmarks of cardiovascular functions, including blood pressure regulation. The bioactivation of nitrate from dietary or endogenous sources is carried out mainly by commensal bacteria that express effective nitrate reductase enzymes and are located in the gastrointestinal tract and on body surfaces. Under conditions of low oxygen tensions, nitrate and nitrite are physiologically recycled in blood and tissues to form nitric oxide and other bioactive nitrogen oxides that mediate cytoprotective signaling in the setting of pathological ischemia. The present study provides the first evidence that dietary nitrate supplementation improves revascularization in chronic ischemia. This study identified that dietary nitrate supplementation increases mobilization and migration of regenerative cells, improves the regenerative capacities of chronically ischemic tissue, and decreases apoptosis at the site of ischemia. Eradicating the commensal bacteria in the oral cavity and thus interrupting the bioactivation of the ingested nitrate decreased circulating levels of bioactive nitrogen oxides and reversed all of these beneficial effects. These data underscore the potential therapeutic value of inorganic nitrate and suggest the possible application of a nutritional approach in the prevention and treatment of cardiovascular diseases.
