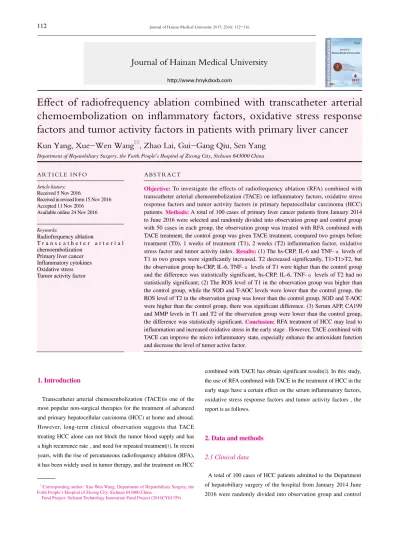

Effect of radiofrequency ablation combined with transcatheter arterial
chemoembolization on inflammatory factors, oxidative stress response
factors and tumor activity factors in patients with primary liver cancer
Kun Yang, Xue-Wen Wang
, Zhao Lai, Gui-Gang Qiu, Sen Yang
Department of Hepatobiliary Surgery, the Forth People’s Hospital of Zicong City, Sichuan 643000 China
Journal of Hainan Medical University
http://www.hnykdxxb.com
ARTICLE INFO ABSTRACT
Article history:
Received 5 Nov 2016
Received in revised form 15 Nov 2016 Accepted 11 Nov 2016
Available online 24 Nov 2016
Keywords:
Radiofrequency ablation
T r a n s c a t h e t e r a r t e r i a l chemoembolization
Primary liver cancer Inflammatory cytokines Oxidative stress Tumor activity factor
Corresponding author: Xue-Wen Wang, Department of Hepatobiliary Surgery, the
Forth People’s Hospital of Zicong City, Sichuan 643000 China.
Fund Project: Sichuan Technology Innovation Fund Project (2014CY01359).
1. Introduction
Transcatheter arterial chemoembolization (TACE)is one of the
most popular non-surgical therapies for the treatment of advanced
and primary hepatocellular carcinoma (HCC) at home and abroad.
However, long-term clinical observation suggests that TACE treating HCC alone can not block the tumor blood supply and has a high recurrence rate , and need for repeated treatment[1]. In recent years, with the rise of percutaneous radiofrequency ablation (RFA),
it has been widely used in tumor therapy, and the treatment on HCC
combined with TACE has obtain significant results[2]. In this study,
the use of RFA combined with TACE in the treatment of HCC in the early stage have a certain effect on the serum inflammatory factors, oxidative stress response factors and tumor activity factors , the
report is as follows.
2. Data and methods
2.1 Clinical data
A total of 100 cases of HCC patients admitted to the Department of hepatobiliary surgery of the hospital from January 2014 June 2016 were randomly divided into observation group and control
Objective: To investigate the effects of radiofrequency ablation (RFA) combined with transcatheter arterial chemoembolization (TACE) on inflammatory factors, oxidative stress response factors and tumor activity factors in primary hepatocellular carcinoma (HCC) patients. Methods: A total of 100 cases of primary liver cancer patients from January 2014 to June 2016 were selected and randomly divided into observation group and control group with 50 cases in each group, the observation group was treated with RFA combined with TACE treatment, the control group was given TACE treatment, compared two groups before
treatment (T0), 1 weeks of treatment (T1), 2 weeks (T2) inflammation factor, oxidative stress factor and tumor activity index. Results:(1) The hs-CRP, IL-6 and TNF-毩 levels of T1 in two groups were significantly increased, T2 decreased significantly, T1>T1>T2, but
the observation group hs-CRP, IL-6, TNF-毩 levels of T1 were higher than the control group
and the difference was statistically significant, hs-CRP, IL-6, TNF-毩 levels of T2 had no
statistically significant; (2) The ROS level of T1 in the observation group was higher than
the control group, while the SOD and T-AOC levels were lower than the control group, the ROS level of T2 in the observation group was lower than the control group, SOD and T-AOC
were higher than the control group, there was significant difference. (3) Serum AFP, CA199
and MMP levels in T1 and T2 of the observation group were lower than the control group,
the difference was statistically significant. Conclusion: RFA treatment of HCC may lead to
inflammation and increased oxidative stress in the early stage . However, TACE combined with
TACE can improve the micro inflammatory state, especially enhance the antioxidant function
group with 50 cases in each group, the observation group: male 31 cases, female 19 cases, age 41-66, tumor diameter 4-10 cm, average (7+2) cm, Child-Pugh classification of liver function in 26 cases of Grade A, 24 cases of grade B; control group: male 29 cases, female 21 cases, age 42-69, tumor diameter 5-12 cm, average (7+2) cm,
25 cases of liver function Child-Pugh grade A, 25 cases of grade B, two groups had no statistically significant differences in gender, age, tumor size, liver function and other clinical data (P>0.05), comparable.
2.2 Inclusion and exclusion criteria
Inclusion criteria: (1) The diagnosis was consistent with “the
criteria of diagnosis and treatment of primary hepatocellular
carcinoma (2011 version)”，CT scan and/or MRI enhanced scan
showed HCC performance, AFP>400 μg/L; (2) TNM stage II-IV period; (3) Compliance with TACE, RFA surgery indications; (4)
Informed consent was obtained from patients and family members,
and informed consent was signed.
Exclusion criteria: (1) Coagulation dysfunction, surgical infection,
severe heart disease, renal insufficiency and other TACE, HIFU
treatment of contraindications; (2) Liver function Child-Pugh class C; (3) Other parts of malignant tumors.
2.3 Treatment methods
Observation group: the RFA combined with TACE treatment, the specific method is as follows: First TACE treatment, the use of percutaneous femoral artery puncture, the first hepatic artery angiography, to determine and catheter into the blood supply to the liver after the injection of saline diluted chemotherapy drug Osha
10-30 mg, hydroxycamptothecin (Harbin triple Pharmaceutical Co., Ltd. production, Zhunzi H20033506) 15-30 mg, and then injected into the pirarubicin (Shenzhen Wanle Pharmaceutical Co., Ltd., Zhunzi H10930105) 20 mg and 7-20 mL of iodized oil mixture embolization of blood vessels. RFA treatment was performed 4-5 d after TACE. All patients underwent RFA treatment guided by CT scan. Rita 1
500 X radiofrequency tumor treatment system was selected and the 15 G or 20 G RFA needle was percutaneously punctured to the tumor set the RF power, the target temperature was set at 105 ℃,
and the power was set at 150 W, and the ablation area was controlled
at 5 cm. All the patients were treated by single point puncture and multi-direction superimposed ablation. According to the size of the lesion to set the scope and time of ablation, ablation of at least 0.5 cm beyond the lesion boundary. Postoperative hemostatic drugs to
stop bleeding, antibiotics to prevent infection, and liver function
protection drugs and other treatment.
The control group: TACE treatment alone, the specific methods and
drugs with the observation group.
2.4 Observation indicators
Observe the two groups inflammatory factors, oxidative stress
factor and tumor activity factors before treatment (T0), 1 weeks of treatment (T1), 2 weeks (T2) , inflammatory cytokines including
tumor necrosis factor alpha (TNF-毩) and interleukin-6 (IL-6), high sensitive C reactive protein (hsCRP); Oxidative stress response factors including: serum reactive oxygen species (ROS), superoxide dismutase (SOD) and total antioxidant capacity (T-AOC); Antitumor activity index including alpha fetoprotein (AFP), carbohydrate antigen CA199, matrix metalloproteinase (MMP). TNF-毩, IL-6, hsCRP, AFP, CA199, MMP were measured by enzyme-linked immunosorbent assay. ROS, SOD and T-AOC were detected by radioimmunoassay.
2.5 Statistical methods
Using SPSS 19 edition of statistical analysis, measurement data
of multiple time points test using repeated measures analysis of variance + t test, P<0.05 said the difference was statistically significant.
3. Results
3.1 Comparison of serum inflammatory factors levels between
two groups before and after treatment
The hs-CRP, IL-6, TNF-毩 levels of T0 in the two groups had no statistical significance difference (hs-CRPt=3.065, IL-6t=4.012,

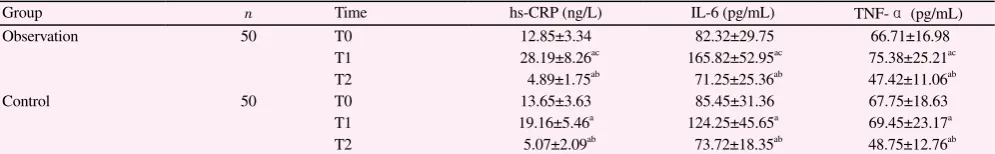

TNF-Table 1.
Comparison of serum inflammatory factors levels between two groups before and after treatment.
Group n Time hs-CRP (ng/L) IL-6 (pg/mL) TNF-α (pg/mL)
Observation 50 T0 12.85±3.34 82.32±29.75 66.71±16.98
T1 28.19±8.26ac 165.82±52.95ac 75.38±25.21ac T2 4.89±1.75ab 71.25±25.36ab 47.42±11.06ab
Control 50 T0 13.65±3.63 85.45±31.36 67.75±18.63
αt=6.352, P＞0.05), but hs-CRP, IL-6, TNF-α levels of T1 in the
two groups were significantly increased, T2 decreased significantly,
T1>T0>T2, the observation group hs-CRP, IL-6, TNF-α levels of T1 were higher than that of the control group ,there was significant difference (hs-CRPtT1=22.135, IL-6tT1=101.446, TNF-αtT1=131.055, P<0.05), hs-CRP, IL-6, TNF-α levels of T2 in two groups had no statistically significant difference (hs-CRPtT2=5.856, IL-6tT2=2.461, TNF-αtT2=2.584, P
＞0.05), see table 1.
3.2 Comparison of oxidative stress response factor levels of the
two groups before and after treatment
There was no significant difference in ROS, SOD and T-AOC
levels of T0 between the two groups (ROSt = 6.013, SODt = 6.762, T-AOCt = 2.375, P<0.05), but the ROS level of T1 was increased,
T2 decreased significantly, T2＜T0＜T1, SOD and T-AOC levels of T1 decreased, T2 increased significantly, T2＞T0＞T1, the level of ROS in T1 observation group was higher than that in control group, while the SOD and T-AOC levels were lower than those in control group, the level of ROS in T2 observation group was lower than that in control group, while the SOD and T-AOC levels were higher than those in control group, there was significant difference (ROStT1=136.137, SODtT2=81.352, T-AOCtT1=11.065, ROStT2=95.185, SODtT1=109.124, T-AOCtT2=26.987, P<0.05), see table 2.
3.3 Comparison of serum tumor activity factor levels between
the two groups before and after treatment
The serum AFP, CA199 and MMP levels of T0 in the two groups
had no statistical significance (AFPt=4.126, CA199t=6.815, MMPt=5.011,
P<0.05). The levels of AFP, CA199 and MMP were decreased significantly, T2<T1<T0. The serum AFP, CA199 and MMP
levels in the T1 and T2 observation group were lower than those in the control group, the difference was statistically significant (AFPtT1=263.754, CA199tT1=112.342, MMPtT1=45.675, AFPtT2=86.764,
CA199tT2=42.376, MMPtT2=37.352，P<0.05), see Table 3.
4. Discussion
HCC is one of the most common malignancies of the digestive
system. In recent years, the incidence of HCC is obviously higher.
According to the literature, about one million new cases have been reported each year, which has become the second cause of cancer death[4]. A large number of clinical studies at home and abroad
suggest that HCC can lead to micro-inflammatory state of the body,
serum inflammatory factors hs-CRP, IL-6, TNF-毩 levels increased.
In addition, HCC liver function decline, the body's antioxidant pose a serious impact, which can lead to increased ROS, SOD, T-AOC
levels. AFP is an important tumor activity factor of HCC, which has
a high sensitivity to reflect the severity of disease and relapse[6-8]. CA199 is an important marker of digestive system malignancy,
domestic and international studies have confirmed that AFP can be used as assessment of treatment efficacy and risk of recurrence of the reference[9,10]. MMP is one of the active factors that have been
shown to have a significant effect on tumor infiltration, invasion, and
recurrence and metastasis in recent years. The higher the level of
MMP, the more aggressive the tumor[11].
Currently the preferred method of treatment of HCC is still surgical resection, but the surgical trauma is relatively large, and the middle
Table 2.
Comparison of oxidative stress response factor levels of the two groups before and after treatment.
Group n Time ROS (U/mg) SOD (U/mL) T-AOC (U/mL)
Observation 50 T0 115.23±61.07 72.46±20.89 13.06±3.21
T1 185.25±41.06ac 57.12±11.32ac 11.38±2.77ac T2 88.46±17.63abc 99.73±26.75abc 35.45±9.36abc
Control 50 T0 121.08±53.86 71.75±19.86 13.25±3.02
T1 155.25±34.18a 64.86±22.37a 12.72±2.91a T2 119.71±25.37ab 91.42±23.16ab 31.02±8.72ab Note: compared with T0, aP<0.05; compared with T1, bP<0.05; compared with the control group at the same time, cP<0.05.

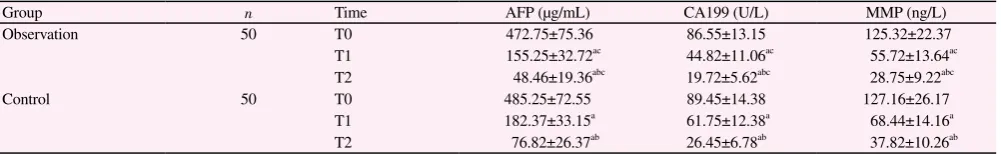

Table 3.
Comparison of the serum tumor activity factor levels before and after treatment.
Group n Time AFP (μg/mL) CA199 (U/L) MMP (ng/L)
Observation 50 T0 472.75±75.36 86.55±13.15 125.32±22.37
T1 155.25±32.72ac 44.82±11.06ac 55.72±13.64ac T2 48.46±19.36abc 19.72±5.62abc 28.75±9.22abc
Control 50 T0 485.25±72.55 89.45±14.38 127.16±26.17
and late stage HCC patients has poor surgical results. With the
continuous development of TACE technology and chemotherapy drugs, its application in liver diseases accounted for more and more widely, TACE treatment of HCC can inject chemotherapy drugs directly into the tumor near, effectively kill cancer cells, improve the effect of chemotherapy, reduce adverse reactions, and can block
HCC blood supply, lack of blood supply to tumor death. In recent
years, its clinical application rate is getting higher and higher, and
it has become the preferred treatment method. Domestic Jiang
Fu Qiang[12] research found that TACE treatment of HCC can effectively control tumor growth and regulate the level of tumor
activity factor. This study shows that serum inflammatory cytokines hs-CRP, IL-6, TNF-毩 levels decreased significantly in patients treated with TACE after 2 weeks operation, the level of oxidation stress response factor ROS decreased, SOD and T-AOC increased,
serum tumor activity factor AFP, CA199 and MMP were decreased, basically the same with Jiang Fuqiang and other research results.
However, a large number of literatures reported that TACE alone in the treatment of HCC is difficult to completely embolization tumor blood vessels, as well as the collateral circulation, some patients with poor tumor necrosis, postoperative recurrence and metastasis rate is higher[13,14].
In recent years, RFA has been widely used in the treatment of cancer, by thermal chemical reaction, the dissolution of tumor necrosis occurred in a short period of time, thus to achieve effective tumor cell killing effect, the clinical study showed that RFA
patients with less surgical trauma, and the patients recovered faster.
At present, many scholars at home and abroad consider which with TACE as the best combination therapy for the treatment of HCC[15,16]. This study shows that serum inflammatory factor level
of RFA and TACE treatment patients were higher than those in patients treated with TACE of 1 weeks after surgery, and the serum oxidative stress factor ROS level is higher, while SOD and T-AOC levels lower than that of TACE treated patients, but after 2 weeks, despite there was no statistically significant differences in the level of inflammatory factors (P>0.05), the level of oxidative stress
response factor ROS decreased, and SOD and T-AOC were higher
than those of TACE alone. The reason was that postoperative 1 week
serum inflammatory factors levels increased and increased oxidative stress factors may lead to increased early radiofrequency ablation of tumor and surrounding liver tissue necrosis, increased inflammation of the body, leading to a transient decline in liver function[17-19]. On
the other hand, two weeks after the surgery, the results showed that the two treatment regimens could inhibit the microinflammatory state induced by the tumor of the body, but the combined treatment had better effect on the early improvement of the body's antioxidant function[20-22]. Further observation of changes in tumor activity
factor levels found that the combined treatment of patients after 1 week and 2 weeks, the level of decline were higher than that in
patients with TACE alone, suggesting that RFA combined with TACE has an advantage in the effective killing of tumor cells and
improving the early treatment.
In summary, RFA treatment of HCC despite the early may lead to the phenomenon of increased inflammation and oxidative stress in the body, but the combination with TACE on the treatment of HCC can improve the micro-inflammatory state of the body, in particular, can improve the body's antioxidant function, reduce tumor activity
factor level, suggesting that the combined treatment is better.
References
[1] Qi Cheng, Zhao Xiao-Dong, Yan Chang-Qing. Liver function changes
and prognostic value after interventional therapy of hepatocellular
carcinoma. Chin J Exp Surg 2015; 32(3): 537.
[2] Tang YL, Qi XS, Guo XZ. Hepatic resection after initial transarterial
chemoembolization versus transarterial chemo-embolization alone for the treatment of hepatocellular carcinoma: a meta analysis of observational
studies. Asian Pac J Cancer Prey 2015; 16(17): 7871-7874.
[3] The People's Republic of China Ministry of Health, Department of
Medicine. Diagnosis and treatment of primary liver cancer [2011]. J Clin Oncol 2011; 16(10): 929-946.
[4] Butros SR,S henoy Bhangle A, Mueller PR. Radiofre quency ablation
of intrahepatic cholangiocarcinoma: feasability, local tumor control, and
long-term outcome. Clin Imaging 2014; 38(4): 490-494.
[5] Casaccia M,Santori G,Bottino G,et al.The procedure outcome of
laparoscopic resection for small hepatocellular carcinoma is comparable
to vlaparoscopic radiofrequency ablation. J Minim Access Surg 2015; 11(4): 231-235.
[6] Jiang Fuqiang, Lu Wei, Yang Chao. Effect of transcatheter arterial
chemoembolization combined with radiofrequency ablation for primary
liver cancer and its influence on serum indexes. J Hainan Med Univ 2016; 22(8): 807-810.
[7] Hammond JS, Franko J, Holloway SE. Gemcitabine transcatheter
arterial chemoembolization for unresectable hepatocellular carcinoma.
Hepatogastroenterology 2014; 61(133): 1339-1343.
[8] Tsuchiya K, Asahina Y, Tamaki N. Risk factors for ex- ceeding the Milan
criteria after successful radiofrequency ablation in patients with
early-stage hepatocelIular carcinoma.laver Transpl 2014; 20(3): 291-297. [9] Honda Y, Kimura T, Aikata H. Pilot study of stereotac- tic body radiation
therapy combined with transcatheter arterial chemoembolization for
small hepatocellular carcinoma. Hepatogastroenterology 2014; 61(129): 31-36.
[10] Qiao Binbin, Yu Xixiang, Wang Shuting. Clinical effect of intraoperative
infusion of TACE fluorouracil, oxaliplatin and pirarubicin in the
treatment of primary liver cancer analysis. J Interventional Radiol 2015; 24 (4): 349-353.
vascular endothelial growth factor enhances chem osensitivity by
induction of apoptosis in hepatocellular carci noma cells. Cell J 2015; 17(2): 273-287.
[12] Ji Yanlei, Han Zhen, Shao Limei. Combination use of TACE, PVE and
HIFU for the treatment of portal vein cancerous thrombus: a clinical
study. J Interventional Radiol 2015; 24(3): 256-260.
[13] Yang W, Yah K, Goldberg SN. Ten-year survival of hepato-cellular
carcinoma patients undergoing radiofrequency ablation as a first-line
treatment. World J Gastroenterol 2016; 22(10): 2993-3005.
[14] Feng Kai, Ma Kuan-sheng, Bie Ping. Application of radiofrequency
ablation technique in comprehensive treatment of hepatocellular
carcinoma. Chin J Pract Surg 2016; 36(6): 621-623.
[15] Wang Xiao-wei, Fu Shou-zhong, Dai Feng. Comparison of efficacy
and safety of transcatheter arterial chemoembolization combined with radiofrequency ablation and microwave ablation in the treatment of
primary liver cancer. J Interventional Radiol 2016; 25(8): 673-676. [16] Park EK, Kim HJ, Kim CY. A comparison between surgical resection
and radiofrequency ablation in the treatment of hepatocellular carcinoma.
Ann Surg Treat Res 2014; 87(2): 72-80.
[17] Hung AK, Guy J. Hepatocellular carcinoma in the elderly: Meta-analysis
and systematic literature review. World J Gastroenterol 2015; 21(42): 12197-12210.
[18] Han K, Kim JH. Transarterial chemoembolization in hepatocellular
carcinoma treatment: Barcelona clinic liver cancer staging system. World J Gastroenterol 2015; 21(36): 10327-10335.
[19] Sasaki Y. Progress of Regional Therapy for Hepatocellular Carcinoma.
Gan to Kagaku Ryoho Cancer Chemother 2015; 42(7): 771-777.
[20] Meniconi RL, Komatsu S, Perdigao F. Recurrent hepatocellular
carcinoma: a Western strategy that emphasizes the impact of pathologic
profile of the first resection. Surgery 2015; 157(3): 454-462.
[21] Tu JF, Xu HH, Ying XH. Comparative study of several microinvasive
treatments for large hepatocellular carcinoma. Eur Rev Med Pharm Sci
2015; 19 (1): 45-53.
[22] Sohn W, Choi MS, Cho JY. Role of radiofrequency ablation in
patients with hepatocellular carcinoma who undergo prior transarterial
