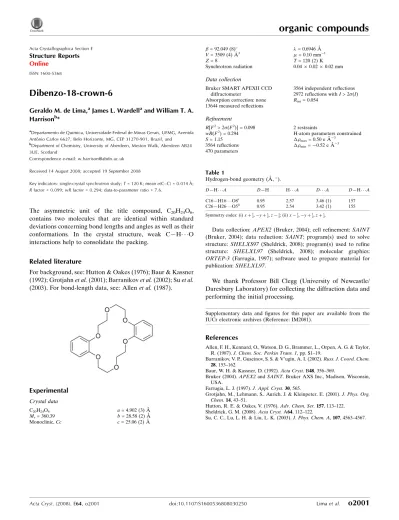

Dibenzo-18-crown-6
Geraldo M. de Lima,aJames L. Wardellaand William T. A. Harrisonb*
a
Departamento de Quimica, Universidade Federal de Minas Gerais, UFMG, Avenida Antoˆnio Carlos 6627, Belo Horizonte, MG, CEP 31270-901, Brazil, and
bDepartment of Chemistry, University of Aberdeen, Meston Walk, Aberdeen AB24
3UE, Scotland
Correspondence e-mail: [email protected]
Received 14 August 2008; accepted 19 September 2008
Key indicators: single-crystal synchrotron study;T= 120 K; mean(C–C) = 0.014 A˚; Rfactor = 0.099;wRfactor = 0.294; data-to-parameter ratio = 7.6.
The asymmetric unit of the title compound, C20H24O6, contains two molecules that are identical within standard deviations concerning bond lengths and angles as well as their conformations. In the crystal structure, weak C—H O interactions help to consolidate the packing.
Related literature
For background, see: Hutton & Oakes (1976); Baur & Kassner (1992); Grotjahnet al.(2001); Barranikovet al.(2002); Suet al. (2003). For bond-length data, see: Allenet al.(1987).
Experimental
Crystal data
C20H24O6 Mr= 360.39 Monoclinic,Cc
a= 4.902 (3) A˚
b= 28.58 (2) A˚
c= 25.06 (2) A˚
= 92.049 (8) V= 3509 (4) A˚3 Z= 8
Synchrotron radiation
= 0.6946 A˚ = 0.10 mm1 T= 120 (2) K 0.040.020.02 mm
Data collection
Bruker SMART APEXII CCD diffractometer
Absorption correction: none 13644 measured reflections
3564 independent reflections 2972 reflections withI> 2(I)
Rint= 0.054
Refinement
R[F2> 2(F2)] = 0.098 wR(F2) = 0.294 S= 1.15 3564 reflections 470 parameters
2 restraints
H-atom parameters constrained max= 0.50 e A˚3
min=0.52 e A˚ 3
Table 1
Hydrogen-bond geometry (A˚ ,).
D—H A D—H H A D A D—H A
C16—H16 O8i
0.95 2.57 3.46 (1) 157
C26—H26 O5ii
0.95 2.54 3.42 (1) 155
Symmetry codes: (i)xþ1 2;yþ
1 2;z
1 2; (ii)x
1 2;yþ
1 2;zþ
1 2.
Data collection:APEX2(Bruker, 2004); cell refinement:SAINT
(Bruker, 2004); data reduction:SAINT; program(s) used to solve structure:SHELXS97(Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics:
ORTEP-3(Farrugia, 1997); software used to prepare material for publication:SHELXL97.
We thank Professor Bill Clegg (University of Newcastle/ Daresbury Laboratory) for collecting the diffraction data and performing the initial processing.
Supplementary data and figures for this paper are available from the IUCr electronic archives (Reference: IM2081).
References
Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987).J. Chem. Soc. Perkin Trans. 1, pp. S1–19.
Barranikov, V. P., Guseinov, S. S. & V’ugin, A. I. (2002).Russ. J. Coord. Chem.
28, 153–162.
Baur, W. H. & Kassner, D. (1992).Acta Cryst.B48, 356–369.
Bruker (2004).APEX2andSAINT. Bruker AXS Inc., Madison, Wisconsin, USA.
Farrugia, L. J. (1997).J. Appl. Cryst.30, 565.
Grotjahn, M., Lehmann, S., Aurich, J. & Kleinpeter, E. (2001).J. Phys. Org. Chem.14, 43–51.
Hutton, R. E. & Oakes, V. (1976).Adv. Chem. Ser.157, 113–122. Sheldrick, G. M. (2008).Acta Cryst.A64, 112–122.
Su, C. C., Lu, L. H. & Liu, L. K. (2003).J. Phys. Chem. A,107, 4563–4567.
Acta Crystallographica Section E
Structure Reports Online
supporting information
Acta Cryst. (2008). E64, o2001 [doi:10.1107/S1600536808030250]
Dibenzo-18-crown-6
Geraldo M. de Lima, James L. Wardell and William T. A. Harrison
S1. Comment
The relationship between the conformations of crown ethers and their coordinating abilities has been the subject of many
crystallographic, spectroscopic, thermochemical and theoretical studies (e.g. Grotjahn et al., 2001; Barranikov et al.,
2002; Su et al., 2003). The crystal structures of a large number of complexes containing the title crown ether have been
determined, but the structure of the title compound, (I), the free crown ether, has remained undetermined until now.
There are two molecules in the asymmetric unit of (I) (Fig. 1) with very similar conformations, with both possessing
local approximate C2 symmetry. This is also reflected in the trans—gauche—trans—gauche sequence of conformation
angles about the four O—C—C—O bonds in the 18-membered ring. The dihedral angles between the mean planes of the
aromatic rings are 65.5 (3)° for the C1 molecule and 66.1 (3)° for the C21 molecule. Otherwise, the geometrical
paramaters for (I) may be regarded as normal (Allen et al., 1987).
In the crystal of (I), two weak intermolecular C—H···O interactions (Table 1) may help to consolidate the packing.
There are no π-π stacking interactions in (I), the minimum ring centroid separation being greater than 5.6 Å. The packing
(Fig. 3) for (I) results in (001) pseudo layers of the two asymmetric molecules.
S2. Experimental
The unreacted title compound was obtained from the attempted complexation with 3-(trichlorostannyl)propanamide
(Hutton & Oakes, 1976). Slow evaporation of dibenzo-18-crown-6 and 3-(trichlorostannyl)propanamide (0.2 mmol of
each) in ethanol solution (15 ml) led to isolation of tiny colourless shards of (I).
S3. Refinement
The situation of two asymmetric molecules in space group Cc is a suspicious one (Baur & Kassner, 1992) and careful
checks for additional or missed crystal symmetry were made, but none was found. No starting models could be
established in space groups C2/c, C2/m or any lower symmetry centrosymmetric space groups. Structure solutions in
lower-symmetry non-centrosymmetric space groups were easily achieved and could all be transformed to the model
described above.
Even with the use of synchrotron radiation, the small crystal size resulted in weak diffraction and a poor data to
parameter ratio of 7.6:1. The residuals are also high. Anomalous dispersion was negligible and Friedel pairs were merged
before refinement. The hydrogen atoms were placed in calculated positions (C—H = 0.95–0.99 Å) and refined as riding
Figure 1
View of the molecular structure of (I) showing 50% displacement ellipsoids. The H atoms are drawn as spheres of
arbitrary radius.

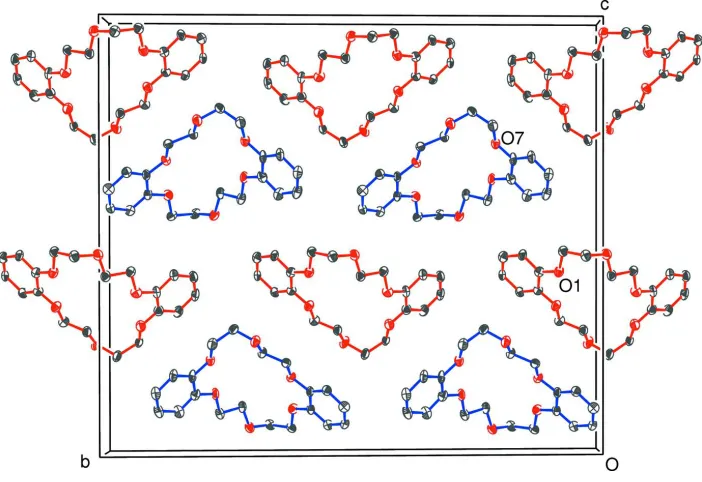

Figure 2
The packing in (I), viewed down [100] with H atoms omitted for clarity. Bonds in the C1 and C21 molecules are coloured
[image:3.610.130.481.420.661.2]6,7,9,10,17,18,20,21-Octahydrodibenzo[b,k][1,4,7,10,13,16]hexaoxacyclooctadecene
Crystal data
C20H24O6 Mr = 360.39 Monoclinic, Cc Hall symbol: C -2yc a = 4.902 (3) Å b = 28.58 (2) Å c = 25.06 (2) Å β = 92.049 (8)° V = 3509 (4) Å3 Z = 8
F(000) = 1536 Dx = 1.365 Mg m−3
Synchrotron radiation, λ = 0.6946 Å Cell parameters from 982 reflections θ = 2.9–25.3°
µ = 0.10 mm−1 T = 120 K Shard, colourless 0.04 × 0.02 × 0.02 mm
Data collection
Bruker SMART APEX2 CCD diffractometer
Radiation source: Daresbury SRS station 9.8 Silicon 111 monochromator
Fine–slice ω scans
13644 measured reflections 3564 independent reflections
2972 reflections with I > 2σ(I) Rint = 0.054
θmax = 25.8°, θmin = 2.9° h = −6→6
k = −35→35 l = −30→31
Refinement
Refinement on F2
Least-squares matrix: full R[F2 > 2σ(F2)] = 0.098 wR(F2) = 0.294 S = 1.15 3564 reflections 470 parameters 2 restraints
Primary atom site location: structure-invariant direct methods
Secondary atom site location: difference Fourier map
Hydrogen site location: inferred from neighbouring sites
H-atom parameters constrained w = 1/[σ2(F
o2) + (0.1469P)2 + 19.0455P]
where P = (Fo2 + 2Fc2)/3
(Δ/σ)max < 0.001
Δρmax = 0.50 e Å−3
Δρmin = −0.52 e Å−3
Extinction correction: SHELXL97 (Sheldrick, 2008), Fc*=kFc[1+0.001xFc2λ3/sin(2θ)]-1/4
Extinction coefficient: 0.067 (7)
Special details
Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2,
conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used
only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2
are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)
